BEJLG808H18" LCD Monitor

APPENDIX G : FCC ID : BEJLG808H USER’S MANUAL FPD 1830 monitor user's guide P/NO.3828TUO197K(0207-REV00) Printed in Korea
 i www.gateway.com Contents 1 Using Your Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Installing the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Starting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Adjusting display settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 External controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 OSD options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Software controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Picture is scrambled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Image is not sized or centered properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Image cannot be adjusted full screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 A Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . 19 ii www.gateway.com 1 1 www.gateway.com Using Your Flat Panel Monitor The FPD 1830 Flat Panel Display is high-resolution LCD color monitor with:
1280 × 1024 maximum resolution
Over 16 million colors
Excellent contrast and legibility
Space-saving and lightweight design
Reduced power usage 2 Chapter 1: Using Your Flat Panel Monitor www.gateway.com Installing the monitor To install the monitor: 1 Position the computer and monit or so you can easily reach the back panel of each. 2 Set the monitor upright, then feed the power cable and the attached video cable(analog) through the hole in the stand. 3 Lay the monitor down on its back. 3 Installing the monitor www.gateway.com 4 Connect one end of the video cable to the matching video port on the underside of the monitor. If your computer has both a digital video port and an analog video port, we recommend using the digital video connection. Analog port Digital port 4 Chapter 1: Using Your Flat Panel Monitor www.gateway.com 5 Connect the power cord to the power connector on the underside of the monitor. 6 Return the monitor to its upright position. 7 Make sure your computer is turned off, then connect the end of the attached video cable to the matching video port on the back of your computer (analog video connectors shown). 5 Installing the monitor www.gateway.com 8 Plug the other end of the power cord into a properly grounded electrical outlet. 6 Chapter 1: Using Your Flat Panel Monitor www.gateway.com Starting the monitor To start the monitor: 1 Press the power button once. The LED on the button turns on. 2 Turn on the computer. 3 After the computer is running, the LED on the power button should be green. Allow about 10 seconds for the video signal to appear. If the power LED is not green or you do not see a video signal, check the connections. For more troubleshooting information, see “Troubleshooting” on page 15. 4 Adjust the tilt of the panel for the best viewing angle. 5 Adjust the controls to get the best picture. If your monitor uses an analog connection, press the button to automatically adjust your display image to the ideal settings. Adjust other display settings by using the On-Screen Display (OSD). For more information, see “Adjusting display settings” on page 7. ImportantWhen adjusting your display settings, always press the button before entering the OSD. This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The optimal display mode is 1280 × 1024. Power button and LED 7 Adjusting display settings www.gateway.com Adjusting display settings You can adjust your display image by using external controls (located on the monitor itself) and software controls (accessible in Windows). External controls This monitor features an On-Screen Display (OSD) that lets you adjust and save contrast, brightness, and other settings for the display. The monitor saves changes you make to the settings, even if you turn off the monitor.
OSD. Press to view the OSD. Press again to exit.
Arrows. OSD active: Press to select or adjust OSD options. OSD inactive: Press and to adjust the contrast, and press once then and to adjust the brightness. If your monitor is connected to an analog video port, press ( Auto ) to automatically optimize your display’s position, clock, and phase.
Source/Set. OSD active: …

Text truncated - open the document above for the full version.

Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION Dear Sir: We, the undersigned, hereby authorize MET laboratories Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely, Kyeom Soon Kim August 12, 2002 LG Electronics Inc. /General Manager LG Electronics Inc.

Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR 18” LCD Monitor FCC ID: BEJLG808H MODEL #: FPD1830 Gentlemen This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams, block diagrams required to be submitted with this application be withheld from public review. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Kyeom Soon Kim August 12, 2002 LG Electronics Inc./General Manager LG Electronics Inc.

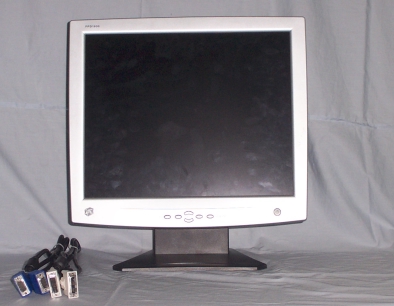

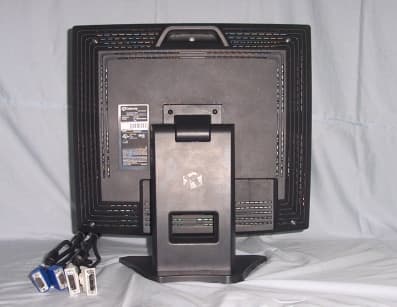

FCC ID : BEJLG808H APPENDIX F 1. External View 2. Internal View 3. PCB View 3-1. LCD Panel 3-2. Main Board 3-3. Control Board 3-4. Power Board 3-5. Inverter Board EUT Photographs FCC ID : BEJLG808H 1. External View [ Front ] [ Back ]

APPENDIX B : FCC ID : BEJLG808H Labelling Requirements ID Label Location

FCC ID : BEJLG808H 2. Internal View FCC ID : BEJLG808H 2. Internal View FCC ID : BEJLG808H 3-1. LCD Panel FCC ID : BEJLG808H 3-2. Main Board FCC ID : BEJLG808H 3-3. Control Board FCC ID : BEJLG808H 3-4. Power Board FCC ID : BEJLG808H 3-5. Inverter Board

FCC ID : BEJLG808H APPENDIX H : Specification FCC ID : BEJLG808H 1280 X 1024Best Screen Resolution8 17.40 X 16.89 X 8.07 (inches)Dimension (W X H X D)10 Over 16 million colorsDisplay colors9 < 55 WPower Consumption7 AC 100-240 V, 50/60 Hz, 1.0 ARating6 BEJLG808HFCC ID5 FPD1830Model Number4 GatewayTrade Name3 18 inch LCD MonitorEquipment Name2 FCC Part 15, Class BEquipment Class1

1/13 Report No.: 00431-4521-F2216 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 LG Electronics Inc. Quality & Reliability Center 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul 150-096, Korea Tel : + 82 2 2630 3077~9, Fax : +82 2 2635 5543 CERTIFICATION OF COMPLIANCE Date of Issue: August 12, 2002 Test Report No: 00431-4521-F2216 Applicant: LG Electronics Inc. Regulation: FCC Part 15 Class B / Canada Standard ICES-003 Class B Test procedure: ANSI C63.4-1992 / Canada Standard ICES-003 Equipment Class: Unintentional Radiators – Digital device EUT Type: 18” LCD Monitor Trade Name(s): Model No.: Gateway FPD1830 This device has been verified to comply with the applicable requirements in the FCC Part 15 / Canada Standard ICES-003 and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992 / Canada Standard ICES-003. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kyeom-Soon Kim / General Manager Quality and Reliability Center LG Electronics Inc. 2/13 Report No.: 00431-4521-F2216 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 REPORT FOR A DIGITAL DEVICE Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. U.S. Responsible Party: Address: LG Electronics USA Inc. 6133 North River Road,Suite 1100 (Riverway Plasza) Rosemont, IL 60018, USA Contact Person: P.H.Byun, General Manager Telephone No.: (847) 692-4630 EXT.329 Manufacturer: LG Electronics Inc. DID Division Address: 642 Jinpyoung-dong Kumi-City Kyoungsangbuk-do, 730-360, Korea FCC ID No.: BEJLG808H EUT Class: Unintentional Radiators - Digital device EUT Type: 18” LCD Monitor Trade Name: Gateway Model No.: FPD1830 Rule Part: FCC Part 15 Class B / Canada Standard ICES-003 Class B Test Procedure: ANSI C63.4-1992 / Canada Standard ICES-003 Date of Test: August 8 ~ 9, 2002 Date of Receipt of EUT: August 7, 2002 Date of Issue: August 12, 2002 Test Report No.: 00431-4521-F2216 Test Result: Positive Quality and Reliability Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entirety. Quality and Reliability Center reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. The Quality and Reliability Center was accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code: 200040-0. Tested by: Reviewed by : S. H. Ji / Senior Research Engineer Quality and Reliability Center LG Electronics Inc. D. H. Lee / Research Engineer Quality and Reliability Center LG Electronics Inc. 3/13 Report No.: 00431-4521-F2216 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 CONTENTS Page 1. GENERAL INFORMATION ..................................................................................................................... 4G 1.1 D ESCRIPTIONS OF EQUIPMENT UNDER TEST (EUT)................................................................................... 4G 1.2 R EGULATIONS APPLIED TO EUT ............................................................................................................... 4G 1.3 M EASUREMENT PROCEDURE.................................................................................................................... 4G 1.4 M EASUREMENT PLACE............................................................................................................................. 4G 2. GENERAL TEST CONDITIONS .............................................................................................................. 5G 2.1 O PERATING CONDITIONS OF EUT ............................................................................................................. 5G 2.2 S TABILIZATION OF EUT OPERATING......................................................................................................... 5G 2.3 T EMPERATURE AND HUMIDITY................................................................................................................. 5G 3. TEST SITE ................................................................................................................................................... 5G 3.1 S EMI-ANECHOIC CHAMBER....................................................................................................................... 5G 3.2 A SHIELDED ENCLOSURE.......................................................................................................................... 5G 4. CALIBRATIONS OF MEASURING INSTRUMENTS .......................................................................... 5G 5. DESCRIPTION OF TEST CONDITION .................................................................................................. 6G 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS............................................................................... 6G 5.2 R ADIATED EMISSIONS MEASUREMENTS.................................................................................................... 7G 6. MEASURING INSTRUMENTS AND SET-UP .........................................…

Text truncated - open the document above for the full version.

FCC ID : BEJLG808H APPENDIX A : Test Graph 1. Radiated Emission 1-1. Analog Mode (1280*1024@75Hz) 1-1-1. 30 ~ 300 MHz (Hor.) 1-1-2. 30 ~ 300 MHz (Ver.) 1-1-3. 300 ~ 1000 MHz (Hor.) 1-1-4. 300 ~ 1000 MHz (Ver.) 1-2. Digital Mode (1280*1024@60Hz) 1-2-1. 30 ~ 300 MHz (Hor.)1-2-2. 30 ~ 300 MHz (Ver.) 1-2-3. 300 ~ 1000 MHz (Hor.)1-2-4. 300 ~ 1000 MHz (Ver.) 2. Conducted Emissions 2 -1. Analog Mode (1280*1024@75Hz) 2-1-1. Live Line2-1-2. Neutral Line 2-2. Digital Mode (1280*1024@60Hz) 2-2-1. Live Line2-2-2. Neutral Line FCC ID : BEJLG808H 1. Radiated Emissions 1-1. Analog Mode (1280*1024@75Hz) 1-1-1. 30 ~ 300 MHz (Hor.) 1-1-2. 30 ~ 300 MHz (Ver.) FCC ID : BEJLG808H 1-1-3. 300 ~ 1000 MHz (Hor.) 1-1-4. 300 ~ 1000 MHz (Ver.) FCC ID : BEJLG808H 1-2. Digital Mode (1280*1024@60Hz) 1-2-1. 30 ~ 300 MHz (Hor.) 1-2-2. 30 ~ 300 MHz (Ver.) FCC ID : BEJLG808H 1-2-3. 300 ~ 1000 MHz (Hor.) 1-2-4. 300 ~ 1000 MHz (Ver.) FCC ID : BEJLG808H 2. Conducted Emissions 2-1. Analog Mode (1280*1024@75Hz) 2-1-1. Live Line 2-1-2. Neutral Line FCC ID : BEJLG808H 2-2. Digital Mode (1280*1024@60Hz) 2-2-1. Live Line 2-2-2. Neutral Line

FCC ID : BEJLG808H APPENDIX E : 1. Radiated Emission 2. Conducted Emission Test Set-up Photographs FCC ID : BEJLG808H 1. Radiated Emission FCC ID : BEJLG808H 2. Conducted Emission
