BEJLG900GCellular/PCS GSM/EDGE Phone with Bluetooth

LG900g User Guide - English Congratulations on your purchase of the advanced and compact LG900g phone by LG, designed to operate with the latest digital mobile communication technology. Some of contents in this manual may differ from your phone depending on the software of the phone or your service provider. Disposal of your old appliance 1 When this crossed-out wheeled bin symbol is attached to a product, the product is subject to European Directive 2002/96/EC. 2 All electrical and electronic products should be disposed of separa tely from the municipal waste stream at collection facilities designated by the government or local authorities. 3 The correct disposal of your old a ppliances will help prevent potential negative impacts on the environment and human health. 4 For more detailed information about disposal of your old appliances, please contact your city office, waste disposal service or the shop where you purchased the product. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. LG900g | User Guide1 Getting to know your phone Soft keys (Left soft key / Right soft key) • These keys perform the function Indicated in the bottom of the display. Confirm key / OK key • Selects menu options and confirms actions. End key • switch on/off (hold down) • End or reject a call. Navigation key • In standby mode: Briefly: Quick menu. Briefly: Contacts search. Briefly: P rofiles. Briefly: Homescreen. • I n menu: Scroll up & down. Earplece Main LCD Send key • Dials a phone number and answers a call. • I n standby mode: Shows the history of calls. Alpha numeric keys • In standby mode: Input numbers to dial Hold down – International calls – Connect voice mail centre to – Speed dials - Hold the key down to go Silent mode • I n editing mode: Enter numbers & characters Multitasking key Go to Home screen or Menu directly. Clear / lock key • Clears a character with each press. Hold the key down to clear all input. • Hold the key down to lock when using menus. 1 Camera key Side keys • In standby mode: Controls the ring volume. • Du ring a call: Earpiece volume adjustment • During playing MP3 music: Audio volume adjustment Micro SD memory card socket Battery pack Camera lens Battery cover SIM card holder Charger/USB cable connector TIP: Please ensure the phone is powered on , external memory card is inserted and in idle mode before connecting the USB cable for Mass Storage. Headset LG900g | User Guide1 Installing the SIM and battery 1 Remove the battery cover Press the battery cover release latch. 2 Remove the battery Lever the bottom edge of the battery and remove it carefully from the battery compartment. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. 3 Install the SIM card Slide the SIM card into the SIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the SIM card, pull it gently in the reverse direction. WARNING: Do not replace or remove the SIM card while your phone is being used or turned on, or data may be lost or the SIM card might be damaged. 1 4 Install the battery Insert the top of the battery first into the top edge of the battery compartment. Ensure that the battery contacts align with the terminals on the phone. Press down the bottom of the battery until it clips into place. 5 Replace the battery cover 6 Charging your phone Pull open the cover of the charger socket on the top of your LG900g. Insert the charger and plug into a mains electricity socket. Your LG900g will need to be charged until a message reading “Battery full” appears on screen. LG900g | User Guide1 Memory card Installing a memory card You can expand the memory available on your phone using a memory card. Note: A memory card is an optional accessory. Slide the memory card into the slot until it clicks into place. Make sure that the gold contact area is facing downwards. Removing a memory card Carefully remove the memory card by gently pushing it in to the phone and quickly releasing it. Formatting the memory card Your memory card may already be f…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date:November 2, 2009 Fe deral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJLG 900G Equip ment Class: PCE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

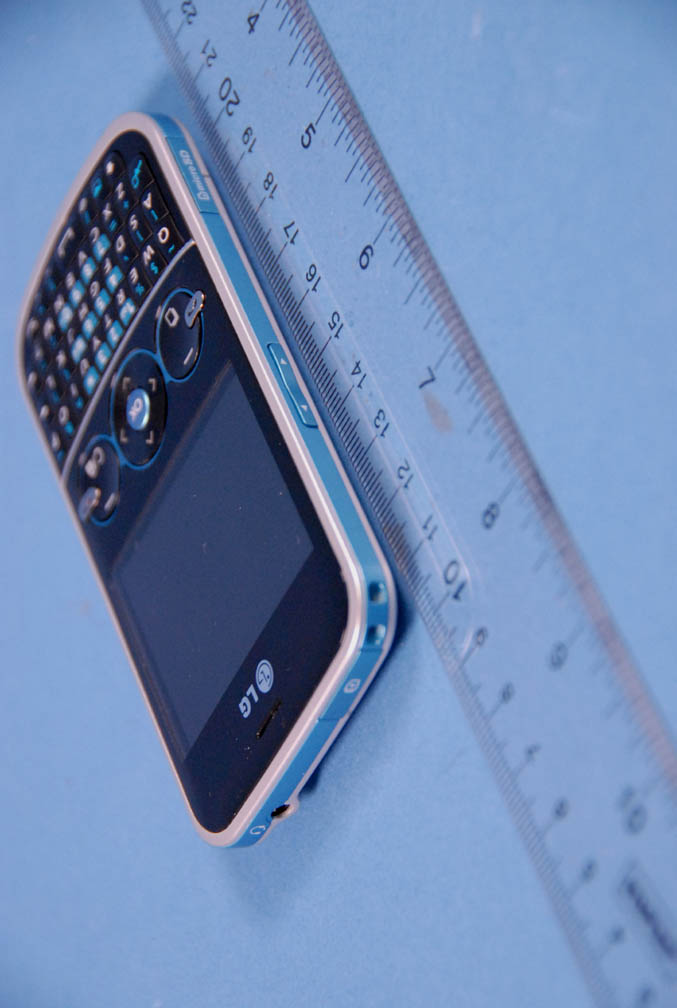

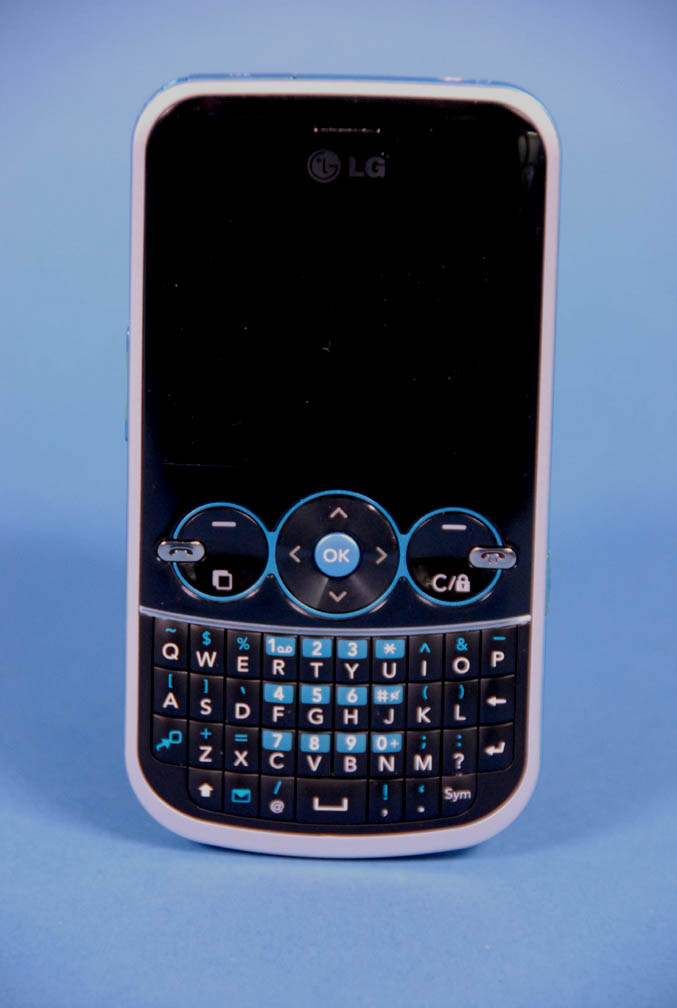

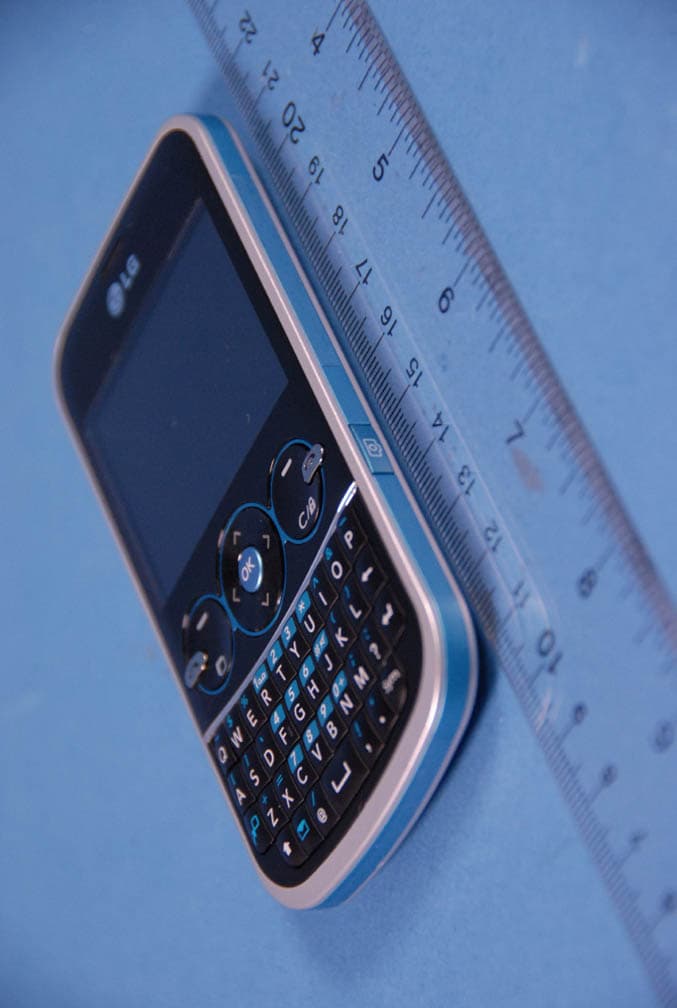

LG Electronics USA FCC ID: BEJLG900G Model: LG900G External Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 4 © 2009 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJLG900G Model: LG900G External Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 4 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLG900G Model: LG900G External Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 4 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLG900G Model: LG900G External Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 4 of 4 © 2009 PCTEST Engineering Laboratory Inc.

Model No: LG900G FCC ID : BEJLG900G S/N : Made in Korea LG Electronics Inc. LGE

LG Electronics USA FCC ID: BEJLG900G Model: LG900G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 8 © 2009 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJLG900G Model: LG900G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 8 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLG900G Model: LG900G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 8 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLG900G Model: LG900G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 4 of 8 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLG900G Model: LG900G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 5 of 8 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLG900G Model: LG900G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 6 of 8 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLG900G Model: LG900G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 7 of 8 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLG900G Model: LG900G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 8 of 8 © 2009 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: BEJLG900G SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0910141897.BEJ 10/22/09 - 10/26/09 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 27 © 2009 PCTEST Engineering Laboratory, Inc. REV 6.7 10/15/09 Applicant Name: Date of Testing: LG Electronics USA 10/22/09 - 10/26/09 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0910141897.BEJ FCC ID: BEJLG900G APPLICANT: LG ELECTRONICS USA EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): LG900G Tx Frequency: 824.20 - 848.80 MHz (Cellular GSM) 1850.20 - 1909.80 MHz (GSM PCS) Conducted Power: 33.48 dBm GSM 850 30.46 dBm GSM 1900 Max. SAR Measurement: 0.59 W/kg GSM 850 Head SAR / 0.33 W/kg GSM 850 Body SAR 1.08 W/kg GSM 1900 Head SAR / 0.51 W/kg GSM 1900 Body SAR Test Device Serial No.: Pre-Production [S/N: 909KPTM143065] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: BEJLG900G SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0910141897.BEJ 10/22/09 - 10/26/09 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 27 © 2009 PCTEST Engineering Laboratory, Inc. REV 6.7 10/15/09 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 16 12 SYSTEM VERIFICATION.............................................................................................................. 17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 19 14 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 20 15 SAR DATA SUMMARY ................................................................................................................. 21 16 EQUIPMENT LIST......................................................................................................................... 24 17 CONCLUSION............................................................................................................................... 25 18 REFERENCES .............................................................................................................................. 26 Reviewed by: FCC ID: BEJLG900G SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0910141897.BEJ 10/22/09 - 10/26/09 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 27 © 2009 PCTEST Engineering Laboratory, Inc. REV 6.7 10/15/09 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave [3] is used for gui…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJLG900G FCC Pt. 22/24 GSM / EDGE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0910141898.BEJ October 19, 2009 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 35 © 2009 PCTEST Engineering Laboratory, Inc. REV 7.2G 05/13/2009 Applicant Name: Date of Testing: LG Electronics USA October 19, 2009 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0910141898.BEJ FCC ID: BEJLG900G APPLICANT: LG ELECTRONICS USA Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Model(s): LG900G Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) Max. RF Output Power: 1.371 W ERP Cell. GSM (31.37 dBm) / 1.986 W EIRP PCS GSM (32.98 dBm) 0.91 W ERP EDGE850 (29.59 dBm) / 0.847 W EIRP EDGE1900 (29.28 dBm) Emission Designator(s): 248KGXW (Cellular GSM), 246KGXW (PCS GSM) / 238KG7W (EDGE850), 240KG7W (EDGE1900) Test Device Serial No.: identical prototype [S/N: 909KPTM143065] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: BEJLG900G FCC Pt. 22/24 GSM / EDGE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0910141898.BEJ October 19, 2009 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 35 © 2009 PCTEST Engineering Laboratory, Inc. REV 7.2G 05/13/2009 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR GSM RADIATED MEASUREMENTS ............................................................................. 14 6.5 PCS GSM RADIATED MEASUREMENTS ..............................................…

Text truncated - open the document above for the full version.

FCC ID: BEJLG900G Model: LG900G SAR Test Setup Photos 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 5 © 2009 PCTEST REV 3.1 07/13/09 1. Right Head SAR 2. Left Head SAR FCC ID: BEJLG900G Model: LG900G SAR Test Setup Photos 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 5 © 2009 PCTEST REV 3.1 07/13/09 3. Right Head SAR, Cheek Touch 4. Right Head SAR, 15 ̊ Tilt FCC ID: BEJLG900G Model: LG900G SAR Test Setup Photos 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 5 © 2009 PCTEST REV 3.1 07/13/09 5. Left Head SAR, Cheek Touch 6. Left Head SAR, 15 ̊ Tilt FCC ID: BEJLG900G Model: LG900G SAR Test Setup Photos 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 4 of 5 © 2009 PCTEST REV 3.1 07/13/09 7. Body SAR, Back Side 8. Body SAR, Back Side with 2 cm Space FCC ID: BEJLG900G Model: LG900G SAR Test Setup Photos 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 5 of 5 © 2009 PCTEST REV 3.1 07/13/09 9. Body SAR, Front Side 10. Body SAR, Front Side with 2 cm Space

LG Electronics USA FCC ID: BEJLG900G Model: LG900G Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 2 © 2009 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG Electronics USA FCC ID: BEJLG900G Model: LG900G Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 2 © 2009 PCTEST Engineering Laboratory Inc.
