BEJLGSWF41WIFI module

User Manual PRODUCT NAME : WiFi Module MODEL NAME : LGSWF41 (00)-0073 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 Index 1 / 10 No Description Page 1 Features 2 2 Module Photo 2 3 Install Guide 3 4 Block Diagram 4 5 Absolute Maximum Ratings 4 6 Operating Conditions 5 7 Standard Test Conditions 5 8 Pin Description 6 9 Outline Drawing 7 10 Packing Information 8 User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 is the small size and low power module for IEEE 802.11 ac/a/b/g/n wireless LAN is based on Broadcom BCM43526 solution.  IEEE 802.11 ac/a/b/g/n Dual Band WLAN infrastructure  Size : 54.0mm x 34.0mm x 4.95mm  2.4GHz and 5GHz, External PA and LNA  Two stream spatial multiplexing up to 300Mbps(802.11n)/ 867Mbps(802.11ac)  Internal PCB Pattern Antenna  Use on-chip OTP (One-Time Programmable)  USB 2.0  Supports drivers for Linux, Windows  Security : WPA,WPA2,AES,TKIP, IEEE 802.1X • Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB 2 / 10 2. Module Photo 1. Features User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 TV Rear Panel installed position Cable 3 / 10 3. Install Guide Cable is connected to the TV then inserted into the module. Not an escape module, as shown below is mounted on the TV. User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 4 / 10 5. Absolute Maximum Ratings Parameter Min Max Unit Storage Temperature -10 +80 °C Storage Humidity (40°C) - 90 % Caution : The specifications in Table 1 define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. 4. Block Diagram . Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°C and 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over. User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 5 / 10 6. Operating Conditions Parameter Min Typ Max Unit Operating Temperature 0 - +55 °C Operating Humidity (40°C) - - 85 % Supply Voltage 3.135 3.3 3.597 Vdc 7. Standard Test Conditions The Test for electrical specification shall be performed under the following condition Otherwise this following conditions, not guaranteed this performance. Temperature 25 ± 5°C Humidity 65 ± 5% Input power Supply Voltage VDD_3.3V +3.135V ~ +3.597V 7-1. Ambient condition 7-2. Power supply voltages User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 6 / 10 < TOP View > Pin No. Pin Name I/O Pin Description 1 VDD I VDD 3.3V 2 USB_DN I/O USB Communication signal USB_DN 3 USB_DP I/O USB Communication signal USB_DP 4 GND - GND 5 WOWL O Wake on Wireless Lan 6 NC - Not Connected A 8. Pin Description User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 7 / 10 9. Outline Drawing User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 8 / 10 10. Packing Information User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 9 / 10 User Manual PAGE : REG. DATE : 2013.11.06 REV. DATE : 2013.11.06 REV.NO : 1.0 Copyrightⓒ. 2013. All Rights Reserved. MODEL NAME : LGSWF41 10 / 10 1. FCC FCC Statements: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. End Product Labeling The module is labeled with its own FCC ID and IC Certification Number. If the FCC ID and IC Certification Number are not visible when the module is install ed inside another device, then the outsid e of the device into which the module is installed must als o display a la bel referring to the enclosed module. In that case, the fin al end produ ct mus t be la beled in a visible area with the following: “Contains FCC ID: BEJLGSWF41” “Contains IC: 2703H-LGSWF41” The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module or change RF related parameters in the user manual of the end product. OEM Responsibilities to comply with FCC and Industry Canada Regulations The module has been certified for integration into products only by OEM integrators under the following condition: - The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the radiator (antenna) and all persons at all times. - The transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. As long as the two condition above is met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any…

Text truncated - open the document above for the full version.

SCS-F26 Modular Approval Letter Page 2 of 3 Rev 7.0 LG Electronics USA. December 14, 2013 FCC ID : BEJLGSWF41 is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: * Please provide a detailed explanation if the answer is “No.” 1. “The modular transmitter must have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Signed by: Jacob Cho / Director, Standards & Compliance Company Name : LG Electronics USA. Company Address : 1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States

775 Montague Expressway, Milpitas, CA 95035, USA Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 LG Electronics USA Date: December 06, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035, USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, LG Electronics USA. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): WIFI module / LGSWF41 FCC ID : BEJLGSWF41 We affirm that between SIEMIC and LG Electronics USA, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ---------------------------------------------- Jacob Cho / Director, Standards & Compliance LG Electronics USA SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0

Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 LG Electronics USA Date : December 06, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : BEJLGSWF41 We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description CONFIDENTIAL 1 Block Diagram 2 Schematics 3 Operational Description & Part List SHORT-TERM CONFIDENTIAL (180 days) 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jacob Cho / Director, Standards & Compliance LG Electronics USA SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006

FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 6 FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 6 FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 6 FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 6 FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 5 / 6 FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 6 / 6

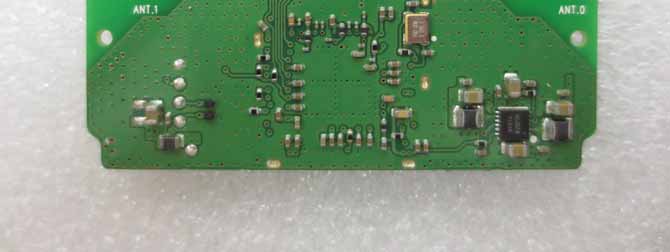

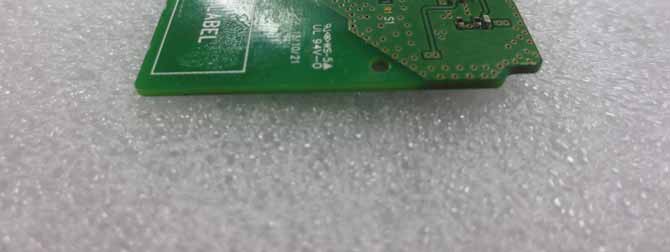

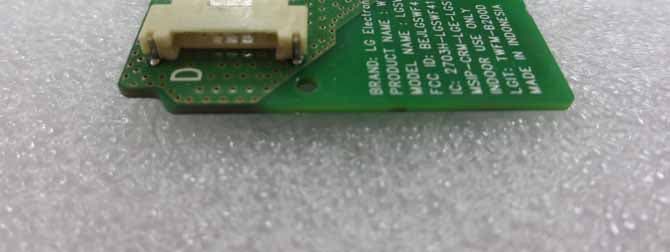

Copyrightⓒ. 2013. All Rights Reserved. TOP - with Shieldcan 1 / 3 Copyrightⓒ. 2013. All Rights Reserved. 2 / 3 TOP - without Shieldcan Copyrightⓒ. 2013. All Rights Reserved. 3 / 3 BOT

FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 2 FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 2

FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 1 of 10 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 2 of 10 3. DTS Ant1 and Ant 2 3-1. 802.11g (2.4GHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 3-2. 802.11n (2.4 GHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 3 of 10 3-3 802.11a(5745 ~ 5825 MHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 3-4 802.11n_20MHz BW_(5745 ~5825 MHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 4 of 10 3-5 802.11n_40MHz BW(5755~5795 MHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 3-6 802.11ac_20MHz BW (5745~ 5825 MHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 5 of 10 3-7 802.11ac_40MHz BW (5755~ 5795 MHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 3-8 802.11ac_80MHz BW (5755MHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 6 of 10 4. UNII Ant1 and Ant 2 4-1 802.11a (5180~5240 MHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 4-2 802.11n_20MHz BW (5180~5240 MHz) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 7 of 10 4-3 802.11n_40MHz BW(5190~5230 MHz) Max Peak output Power at antenna input terminal (dBm) …

Text truncated - open the document above for the full version.

FCCPT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1312FR11-1 Date of Issue: December 12, 2013 EUT Type: WIFI Module FCC ID: BEJLGSWF41 IC: 2703H-LGSWF41 Page of 214 Version TEST REPORT NO. DATE DESCRIPTION HCTR1312FR11 December 11, 2013 - First Approval Report HCTR1312FR11-1 December 12, 2013 -Revision page 7 sector 6. Antenna requirements (combine antenna is calculated) FCCPT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1312FR11-1 Date of Issue: December 12, 2013 EUT Type: WIFI Module FCC ID: BEJLGSWF41 IC: 2703H-LGSWF41 Page of 214 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... 2. EUT DESCRIPTION ..................................................................................................................................... 3. TEST METHODOLOGY ............................................................................................................................... 3.1 EUT CONFIGURATION ...................................................................................................................... 3.2 EUT EXERCISE .................................................................................................................................. 3.3 GENERAL TEST PROCEDURES ...................................................................................................... 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... 4. INSTRUMENT CALIBRATION..................................................................................................................... 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... 5.1 FACILITIES ......................................................................................................................................... 5.2 EQUIPMENT ....................................................................................................................................... 6. ANTENNA REQUIREMENTS ...................................................................................................................... 7. SUMMARY TEST OF RESULTS ................................................................................................................. 8. TEST RESULT ............................................................................................................................................. 8.1 DUTY CYCLE(802.11a/b/g/n/ac) ....................................................................................................... 8.2 6dB BANDWIDTH (802.11a/b/g/n/ac) ........................................................................................... 8.3 99% BANDWIDTH (802.11a/b/g/n) ................................................................................................ 8.4 OUTPUT POWER (802.11a/b/g/n/ac) ............................................................................................ 8.5 POWER SPECTRAL DENSITY (802.11a/b/g/n/ac) .................................................................... 8.6 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS 8.7 RADIATED MEASUREMENT. ..................................................................................................... 8.7.1 RADIATED SPURIOUS EMISSIONS. ............................................................................... 8.7.2 RECEI VER SPURIOUS EMISSIONS ................................................................................ 8.7.3 RADIATED RESTRICTED BAND EDGES ....................................................................... 8.8 POWERLINE CONDUCTED EMISSIONS .................................................................................. 9. LIST OF TEST EQUIPMENT ................................................................................................................ FCCPT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1312FR11-1 Date of Issue: December 12, 2013 EUT Type: WIFI Module FCC ID: BEJLGSWF41 IC: 2703H-LGSWF41 Page of 214 1. GENERAL INFORMATION Applicant: LG Electronics Inc. Address: 19-1 Cheongho-ri, Jinwi-myeon,Pyeongteak-si,Gyeonggi-do, 451-713 Korea FCC ID: BEJLGSWF41 IC 2703H-LGSWF41 EUT Type: WIFI Module FCC/ ICModel name(s): LGSWF41 Date(s) of Tests: November 29, 2013 ~ December 06, 2013 Place of Tests: HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Type WIFI Module FCC/ IC Model Name LGSWF41 Power Supply DC 3.3 V Frequency Range TX : 2412 MHz~2462 MHz, 5745 MHz~5825 MHz_20 MHz, 5755 MHz~5795 MHz_40 MHz 5775 MHz_80 MHz RX : 2412 MHz~2462 MHz, 5745 MHz~5825 MHz_20 MHz, 5755 MHz~5795 MHz_40 MHz 5775 MHz_80 MHz Max. RF Output Power Peak Ant.0 Wi-Fi 802.11b (17.88 dBm)/ Wi-Fi 802.11g (25.65 dBm)/ Wi-Fi 802.11n (25.75 dBm) / Wi-Fi 802.11a (5.8 GHz) (23.42 dBm)/ Wi-Fi 802.11n_20 MHz BW (5.8 GHz) (23.73 dBm) / Wi-Fi 802.11n_40 MHz BW (5.8 GHz) (20.60 dBm) / Wi-Fi 802.11ac_20 MHz BW (5.8 GHz) (23.55 dBm) / Wi-Fi 802.11ac_40 MHz BW (5.8 GHz) (20.49 dBm) / Wi-Fi 802.11ac_80 MHz BW (5.8 GHz) (17.22 dBm) Ant.1 Wi-Fi 802.11b (17.74 dBm)/ Wi-Fi 802.11g (25.50 dBm)/ Wi-Fi 802.11n (25.69 dBm) / Wi-Fi 802.11a (5.8 GHz) (23.78 dBm)/ Wi-Fi 802.11n_20 MHz BW (5.8 GHz) (24.07 dBm) / Wi-Fi 802.11n_40 MHz BW (5.8 GHz) (20.92 dBm) / Wi-Fi 802.11ac_20 MHz BW (5.8 GHz) (23.75 dBm) / Wi-Fi 802.11ac_40 MHz BW (5.8 GHz) (20.94 dBm) / Wi-Fi 802.11ac_80 MHz BW (5.8 GHz) (17.20 dBm) Average Ant.0 Wi-Fi 802.11b (14.09 dBm)/ Wi-Fi 802.11g(15.89 dBm)/ Wi-Fi 802.11n (15.74 dBm) / Wi-Fi 802.11a (5.8 GHz) (13.50 dBm)/ Wi-Fi 802.11n_20 MHz BW (5.8 GHz) (13.18 dBm) / Wi-Fi 802.11n_40 MHz BW (5.8 GHz) (13.12 dBm) / Wi-Fi 802.11…

Text truncated - open the document above for the full version.

FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 TEST SETUP PHOTOGRAPHS FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ Conducted WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ WLAN Test Setup Photo FCC ID: BEJLGSWF41/ IC: 2703H-LGSWF41 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr Page of 15 ■ Conducted Emission Test Setup Photo
