BEJLP1000Single Mode PCS Phone (PCS CDMA)

USER GUIDE (LG-LP1000) For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone CHAPTER 1. THE NAME AND FUNCTIONS Hold Icon LG CION BANNER Sep/09 [Fri] 12:30pm MENU BOOK Rm R Signal Strength In Use No Service Digital Service is Roaming Short Message Battery Level Short Message Vibrator D CHAPTER 2. BASIC FUNCTIONS Turning the Phone On and Off <Turning the Terminal On> 1. Connect the terminal to the charged battery or the external power supply. 2. Press the [END/PWR] key for about 1.5 seconds until a red right appears on the upper side of the terminal. < Turning the Terminal Off > 1. Press the [END/PWR] key until the end message appears on the LCD, and then stop pressing the key. 2. If an antenna is stretched, push it in for safety. Making a Call <Method1> Entering the Entire Phone Number 1. If the terminal is turned off, turn it on. 2. Enter the phone number. (Enter the area code, if necessary.) 3. Press the [OK] key. - If the terminal is locked on, enter the password to unlock the terminal. Then, attempt the call again. - If the call is not connected, “Call Failed” signal will be indicated on the LCD. 4. Press the [END] key. <Method2> Using Phone Book Entry 1. Enter the phone entry number, and press the [OK] key or 2. press the related phone entry number for some time. Then, the call will be attempted. e.g.) Press the [2] key for some time, then call will be connected to the phone number stored in the Entry #2. 123-456-7890 OPT CLR 123-456-7890 Calling . . . 3. If you are not sure of the phone entry number, select the Soft Key(BOOK) with the Right Mouse Button. 4. Place the cursor on the Phone Book, and press the Soft Key(SEL) with the Left Mouse Button. 5. Search the Phone Book Entry number or name requested in the Phone Book to attempt a call to the phone number stored in it. <Method3> Using the Recent Call History 1. Select the Soft Key(BOOK) with the Right Mouse Button. 2. If the screen changes, place the cursor on the Call History. Then, press the Soft Key(SEL) with the Left Mouse Button. 3. If the “Outgoing”, “Incoming”, and “Missed” are indicated on the screen, select the menu requested. Ten phone numbers of the recent calls are stored in each menu. Place the cursor on the menu requested, and press the Soft Key(SEL) with the Left Mouse Button. 4. The phone number list appears on the screen. Then, search and place the cursor on the phone number or name requested, and press the [OK] key. Correcting Dialing Mistakes 1. Press the Soft Key(CLR) with the Right Mouse Button of the screen to erase the number or character of the last entry. 2. Press the Soft Key(CLR) with the Right Mouse Button for one second, then all the number or LG CION BANNER Sep/09 12:30p m MENU BOOK Rm SEL BACK °„ °Â 1.Call History 2.Phone Book 3.Alarm 4.Own Number Input Entry #: ___ ALL BACK °„ °Â LG CION BANNER Sep/09 12:30p m MENU BOOK Rm SEL BACK °„ °Â 1.Call History 2.Phone Book 3.Alarm 4.Own Number VIEW BACK °„ °Â 01 : 1111111 02 : 2222222 03 : 3333333 04 : 4444444 SAVE BACK TIME Call to 1111111 character requested will be erased. Receiving Calls 1. Press any key except for the [END/PWR] key to receive a call. Press the END Key to end the incoming call 2. When the call completes, press the [END/PWR] key. Mute 1. Press the Soft Key(MENU) with the Left Mouse Button during the call. Key Beep 1. Press the Soft Key(MENU) with the Left Mouse Button during the call. 2. If a popup menu appears on the screen, place the cursor Key Beep and press the Soft Key(SEL) with the Left Mouse Button to select the Key Beep State. 3. Set the tone length in two levels (Normal, Long) with the direction keys. 2. If a popup menu appears on the screen, place the cursor on the Mute menu and press the Soft Key(SEL) with the Left Mouse Button to select the Mute state. (The message”Mute” will be indicated on the screen.) 3. Press the Soft Key(MENU) with the Left Mouse Button to clear the function. The popup menu will appear. Select the Unmute menu. (The message “Mute” will be disappeared on the screen.) SEL BACK °„ °Â 1.Send Msg 2.Ear Volume 3.Mute 4.Memo MENU BOOK MUTE : 1 :20 SEL BACK °„ °Â 1.Send Msg 2.Ear Volume 3.Mute 4.Memo SEL BACK °„ °Â 4.Key Beep OK BACK °„ °Â Key Beep Long Normal ¢∫ Redialing Last Outgoing Number <Method 1> 1. Just press [SEND] key to redial the last outgoing number. Then, the call will be attempted. <Method 2> using the Call History 1. P…

Text truncated - open the document above for the full version.

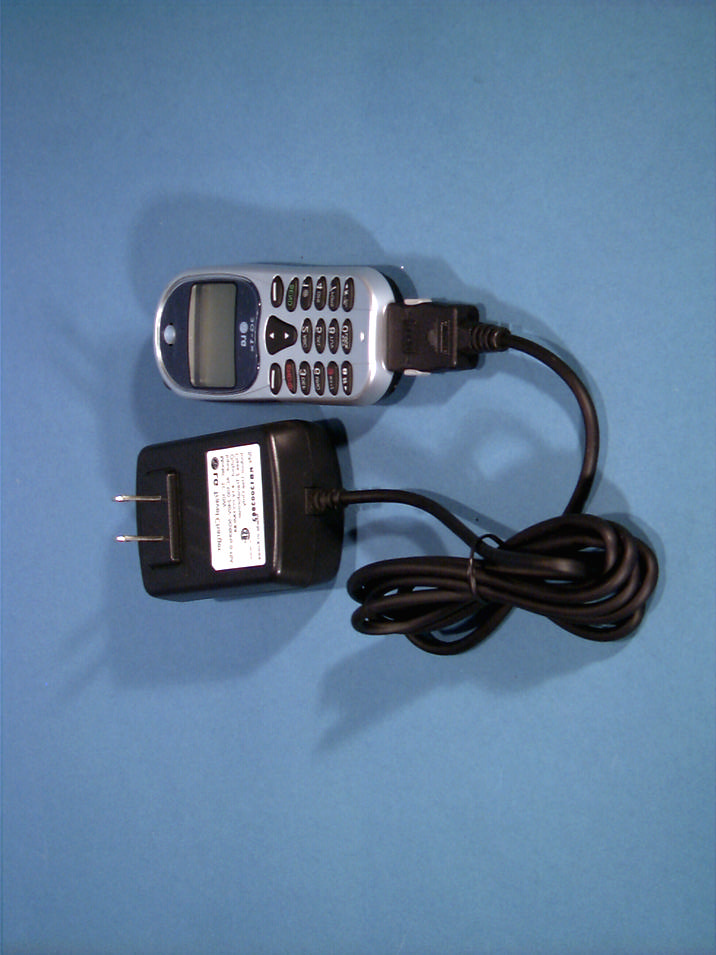

CDMA offers inherent voice privacy. Check with your service provider for availability of the enhanced voice privacy mode. Chapter 7. Accessories There are a variety of accessories available for the phone. You can select these options according to your personal communication requirements. Consult your local dealer for availability. Travel Charger This charger, model TC-10W, allows you to charge the battery pack. It supports standard U.S. 120Volt 60Hz outlets. While an orange light indicates that it is charging, a green light indicates charging is complete. It takes 5 hours to charge a completely discharged battery. Battery (LGLi-AAEM) Standard battery are available. Desktop Charger The desktop charger, model DC-41W, allows you to place the phone for charging the stand. It can charge a completely discharged battery in 3 hours. Cigar Lighter Charger You can operate the phone and trickle charge the phone’s battery from your vehicle by using the cigarette lighter charger, model CLC-11W. It takes 5 hours to charge a completely discharged battery. Hands-Free Car Kit (Portable) The hands-free car kit, model PHF-30W, enables you to attach the phone to the car providing you with hands-free operation. It will also charge a completely discharged battery in 5 hours. Hands-Free Car kit(Install) The installed hands-free car kit model IHF-51W is permanently installed in your car, and provides you with hands-free operation. It will also charge a completely discharged battery is shows. Data Cable Kit Connects your phone to your PC.(Model KW-a) AC Adapter

January 28. 2002 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJLP1000 Single mode CDMA PCS Phone Part 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJLP1000) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

. February 21, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJLP1000 Part 24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, Inc., is an application for Part 24 Certification of the following Single-Mode PCS Phone (PCS CDMA): FCC ID: BEJLP1000 TRADE/MODEL(s): LGE LP1000 EUT TYPE: Single-Mode PCS Phone (PCS CDMA) Tx Freq. Range(s): 1851.25 – 1908.75 MHz Rx Freq. Range(s): 1931.25 – 1988.75 MHz Max. RF Output Power: 0.313 W EIRP (24.951 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, User’s Manual RF Warning page, User’s Manual Location of RF Warning page statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned.

April 15, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Diane Poole SUBJECT: LG Electronics Inc. FCC ID: BEJLP1000 731 Confirmation No.: EA182812 Correspondence Reference No.: 22607 Request for Tech. Info.: 4/12/2002 Dear Diane: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated April 12, 2002. 1. Please find attached the revised cover page with the correct picture and FCC Classification (Licensed Portable Transmitter Held to the Ear (PCE)). We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us.

May 22, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Diane Poole SUBJECT: LG Electronics Inc. FCC ID: BEJLP1000 731 Confirmation No.: EA182812 Correspondence Reference No.: 22712 Request for Tech. Info.: 4/25/2002 Dear Diane: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated April 25, 2002. 1. Please find attached a list of accessories from the manufacturer. 2. Please find attached the SAR Test Plots. 3. We would like to inform you that the device had a fixed antenna. Per your request, please find attached the new summary table and new uncertainty calculation following the draft P1528 uncertainty template. 4. Please find attached the liquid dielectric parameter measurement data. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us.

© 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA)

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. 8/8 LG Electronics Inc. LGE Model No. : LG-LP1000 FCC ID : BEJLP1000 S/N : Made in Korea

© 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA)

© 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLP1000 (Model: LP1000) Single Band Telephone (PCS CDMA)

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

1900MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.88 mW/g, SAR (10g): 5.16 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid [02/06/02] SAR Tot [mW/g] 1.12E+0 2.94E+0 4.89E+0 6.91E+0 8.87E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Muscle: σ = 1.52 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.81 mW/g, SAR (10g): 5.09 mW/g 1900MHz Muscle Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid [02/05/02 SAR Tot [mW/g] 1.05E+0 3.08E+0 5.19E+0 6.40E+0 1.22E+1 PCTEST Engineering Laboratory, Inc.

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road •• Columbia, MD 21045 •• USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT SAR EVALUATION REPORT PCS CDMA ONLY PHONE Reviewed by: Quality Manager SAR Filename: SAR-220204034.BEJ Test Dates: February 4-5, 2002 Phone Type: PCS CDMA Only FCC ID: BEJLP1000 Page 1 of 26 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG Electronics Inc. Dates of Tests: February 4-5, 2002 Communication Terminal Research Lab Test Report S/N: SAR.220204034.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: E.S. Park, Research Engineer FCC ID: BEJLP1000 APPLICANT: LG ELECTRONICS, INC. EUT Type: Single-Mode PCS Phone (PCS CDMA) Tx Frequency: 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.313 W EIRP PCS CDMA (24.951 dBm) Max. SAR Measurement: 0.759mW/g PCS CDMA Head SAR; 0.535mW/g PCS CDMA Body SAR Trade Name/Model(s): LG-LP1000 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220204034.BEJ PCTEST SAR TEST REPORT SAR EVALUATION REPORT PCS CDMA ONLY PHONE Reviewed by: Quality Manager SAR Filename: SAR-220204034.BEJ Test Dates: February 4-5, 2002 Phone Type: PCS CDMA Only FCC ID: BEJLP1000 Page 2 of 26 © 2002 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION............................................................................................3 Scope.............................................................................................................3 Evaluation Guidelines......................................................................................3 2. SAR DEFINITION............................................................................................4 Definition.......................................................................................................4 Overview........................................................................................................4 3. SAR MEASUREMENT SETUP............................................................................5 Robotic System................................................................................................5 System Hardware............................................................................................5 System Electronics...........................................................................................5 4. DASY3 E-FIELD PROBE SYSTEM.......................................................................6 Probe Measurement System..............................................................................6 Probe Specifications.........................................................................................6 5. Probe Calibration Process.................................................................................7 Dosimetric Assessment Procedure.....................................................................7 Free Space Assessment.....................................................................................7 Temperature Assessment..................................................................................7 6. PHANTOM & EQUIVALENT TISSUES...............................................................8 SAM Phantom.................................................................................................8 Brain & Muscle Simulating Mixture Characterization...........................................8 Device Holder for Transmitters.........................................................................8 7. TEST SYSTEM SPECIFICATIONS........................................................................9 Automated Test System Specifications................................................................9 8. DOSIMETRIC ASSESSMENT & PHANTOM SPECS............................................10 Measurement Procedure.................................................................................10 Specific Anthropomorphic Mannequin (SAM) Specifications..............................10 9. DEFINITION OF REFERENCE POINTS.............................................................11 EAR Reference Point......................................................................................11 Handset Reference Points...............................................................................11 10. TEST CONFIGURATION POSITIONS..............................................................12 Positioning for Cheek/Touch...........................................................................12 Positioning for Ear / 15° Tilt............................................................................13 Body Holster /Belt Clip Configurations.............................................................14 11. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.........…

Text truncated - open the document above for the full version.

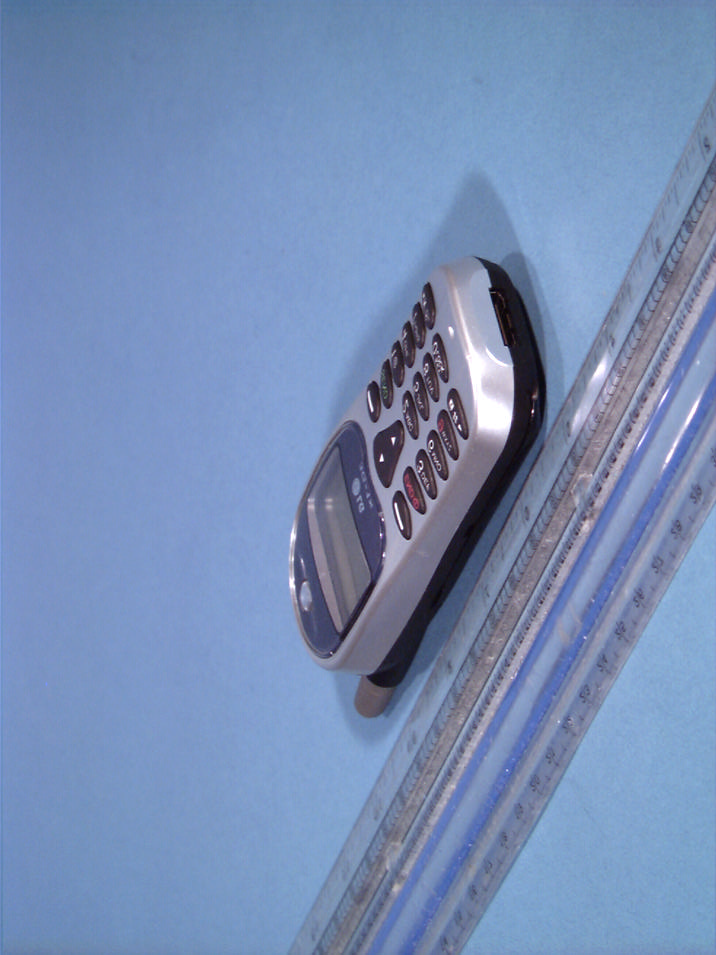

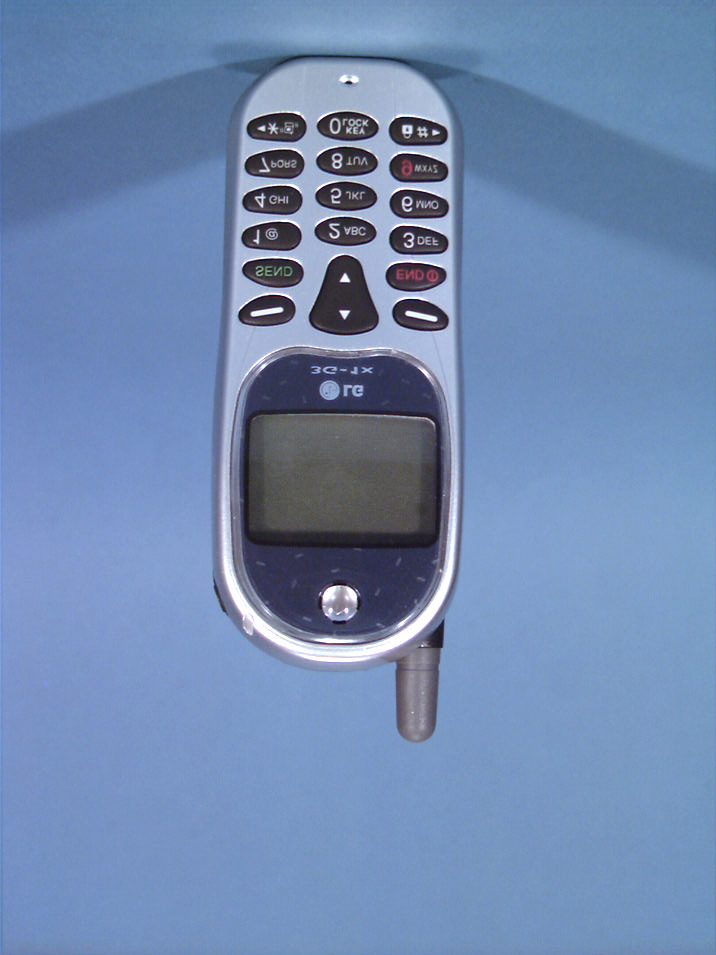

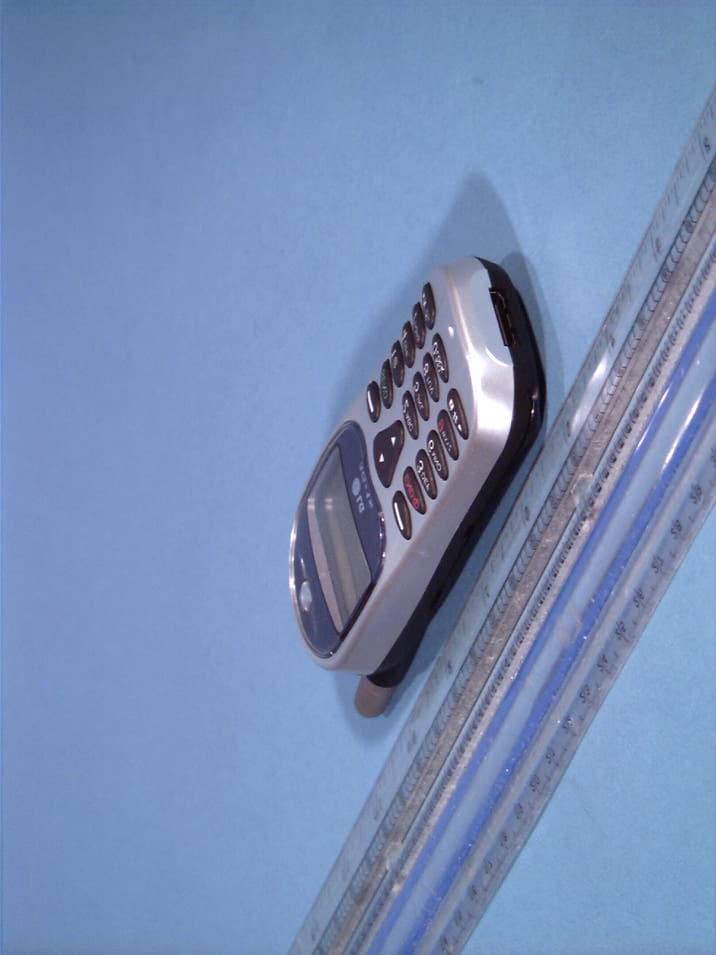

LGE FCC ID: BEJLP1000 -- PCS CDMA Body SAR SAM Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.52 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.309 mW/g, SAR (10g): 0.178 mW/g LGE PCS CDMA phone Model: LG-LP1000 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Flat Phantom; Standard Battery Conducted Power = 24.5dBm; Spacing = 1.5cm from flat phantom to closest point of fixed antenna, No BeltClip/No Holster Test Date -- 02/05/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.86E-2 8.58E-2 1.43E-1 2.00E-1 2.57E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJLP1000 -- PCS CDMA Body SAR SAM Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.52 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.535 mW/g, SAR (10g): 0.290 mW/g LGE PCS CDMA phone Model: LG-LP1000 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Flat Phantom; Standard Battery Conducted Power = 24.5dBm; Spacing = 1.5cm from flat phantom to closest point of fixed antenna, No BeltClip/No Holster Test Date -- 02/05/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.88E-2 1.16E-1 1.94E-1 2.72E-1 3.49E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJLP1000 -- PCS CDMA Body SAR SAM Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.52 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.303 mW/g, SAR (10g): 0.171 mW/g LGE PCS CDMA phone Model: LG-LP1000 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Flat Phantom; Standard Battery Conducted Power = 24.5dBm; Spacing = 1.5cm from flat phantom to closest point of fixed antenna, No BeltClip/No Holster Test Date -- 02/05/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.23E-2 3.69E-2 6.15E-2 8.61E-2 1.11E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJLP1000 -- PCS CDMA Head SAR SAM Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.328 mW/g, SAR (10g): 0.188 mW/g LGE PCS CDMA phone Model: LG-LP1000 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Standard Battery Conducted Power = 24.5dBm; Right Head Phantom, Cheek/Touch Position Test Date -- 02/06/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.19E-2 9.57E-2 1.60E-1 2.23E-1 2.87E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJLP1000 -- PCS CDMA Head SAR SAM Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.419 mW/g, SAR (10g): 0.245 mW/g LGE PCS CDMA phone Model: LG-LP1000 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Standard Battery Conducted Power = 24.5dBm; Right Head Phantom, Cheek/Touch Position Test Date -- 02/06/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.49E-2 1.35E-1 2.25E-1 3.14…
