BEJLSI1000Fixed Wireless Local Loop Telephone (PCS CDMA)

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Apr 18, 2002
Application Purpose: Original Equipment
Date of Application: Jan 08, 2002
Equipment Note: Fixed Wireless Local Loop Telephone (PCS CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

IX Electronics Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suitc 180 Morristown, NJ 07960 U.S.A. ?'el; 973-401-9109 December 27, 2001 Federal! Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To W hom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. On our behalf shall have the same effect as acts of our own. We a'lso hereby certify that No party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988,21 U.S.C 853(a). Sincerely, Bruce Choi General Manager of New York Office LG Info Comm U.S.A. Inc.

Cover Letter(s)

January 07, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJLSI1000 Part 24 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc., is an application for Part 24 Certification of the following Fixed Wireless Local Loop Telephone: FCC ID: BEJLSI1000 TRADE/MODEL(s): LGE LSI-1000 EUT TYPE: Fixed Wireless Local Loop Telephone (PCS CDMA) Tx Freq. Range(s): 1851.25 — 1908.75 MHz (PCS CDMA) Rx Freq. Range(s): 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.266 W EIRP (24.251 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Kevin Lee Research & Supporting Group WLL Terminal R&D Lab. LG Electronics Inc.

Cover Letter(s)

April 9, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Stan Lyles SUBJECT: LG Electronics Inc. FCC ID: BEJLSI1000 731 Confirmation No.: EA913614 Correspondence Reference No.: 22094 Request for Tech. Info.: 2/27/2002 Dear Stan: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated February 27, 2002. 1. Please note that the LSI-1000 has no ear phone jack or speaker phone so hands free operation is not an option. 2. LGE KeyPad test codes were used to control the phone. Power measurement were taken before and after each SAR test. 3. Please find the attached certificate of calibration for the probe. 4. Please find the attached system validation data. 5. Please find attached description details of the phantom used during the SAR tests. 6. We used a tissue recipe that yields the a higher conductivity than the 1.4 S/m recommended by IEEE P1528 (see attached). 7. Please find attached the revised uncertainty table using the new IEEE P1528 budget template. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics Inc.

Cover Letter(s)

April 16, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Stan Lyles SUBJECT: LG Electronics Inc. FCC ID: BEJLSI1000 731 Confirmation No.: EA913614 Correspondence Reference No.: 22602 Request for Tech. Info.: 04/12/2002 Dear Stan: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated April 12, 2002. 1. Please find attached the internal photos for the charger unit. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics Inc.

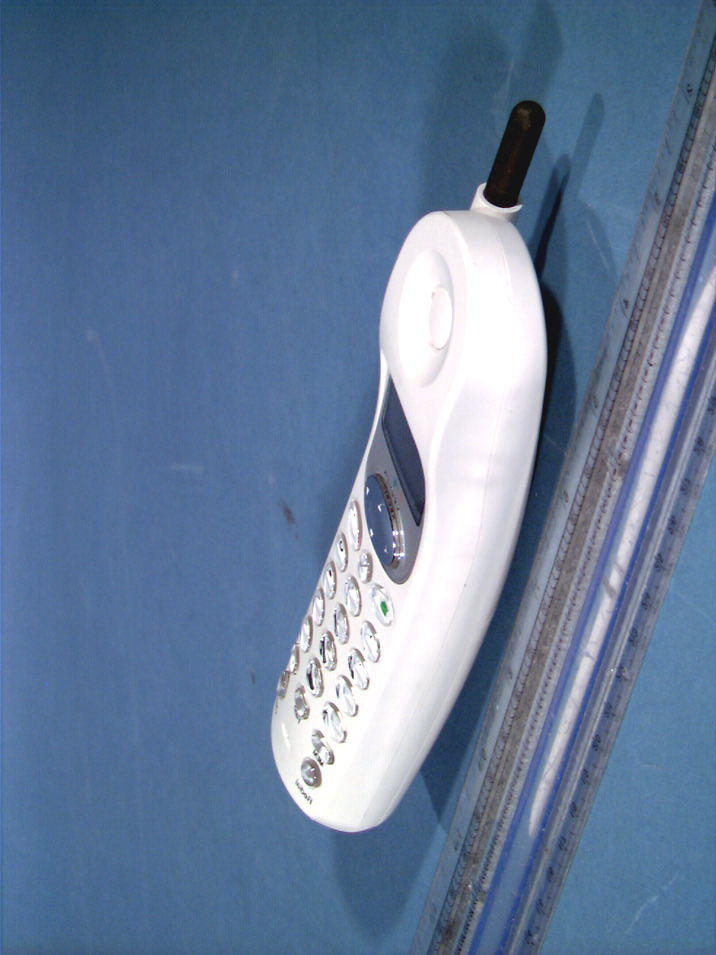

External Photos

ID Label/Location Info

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

© 2002 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 © 2002 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 © 2002 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 © 2002 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 © 2002 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 © 2002 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 © 2002 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0

RF Exposure Info

Peak SAR Location © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) Head SAR (Tilt) File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01121212_ZOOM.VLT Start : 12-Dec-101 11:09:08 am End : 12-Dec-101 11:10:02 am Radio Type : LGE Model Number : LSI-1000 Serial Number : 1 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Head Phantom Posn. : Right Ear Scan Type : SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : LGE CDMA PCS WLL TELEPHONE CH 0025 Conducted 23.0 dBm LGE CDMA PCS WLL TELEPHONE - TILT Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.550 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 0.000, Y = -3.000, Z = 0.000 (cm) Value = 21.308 Measured Values (volts) = 1.682E-002 1.216E-002 8.702E-003 7.054E-003 4.801E-003 3.880E-003 2.836E-003 2.679E-003 2.590E-003 1.518E-003 1.367E-003 2.103E-003 1.777E-003 1.539E-003 2.219E-003 1.408E-003 1.600E-003 2.494E-003 2.711E-003 2.236E-003 2.290E-003 Calc. Voltage @ Surface (Vs) = 0.0219 Voltage @ 1.00 cm (Vt) = 0.0066 Ave. Voltage (Vs+Vt)/2 = 0.0142 Ave. SAR over 1 g (mW/g) = 0.7256 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01121209_ZOOM.VLT Start : 12-Dec-101 10:45:07 am End : 12-Dec-101 11:03:59 am Radio Type : LGE Model Number : LSI-1000 Serial Number : 1 Frequency : 1880.00 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Head Phantom Posn. : Right Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : LGE CDMA PCS WLL TELEPHONE CH 0600 Conducted 23.0 dBm LGE CDMA PCS WLL TELEPHONE - TILT Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.550 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 0.000, Y = -3.000, Z = 0.000 (cm) Value = 21.308 Measured Values (volts) = 2.049E-002 1.552E-002 1.078E-002 8.726E-003 6.754E-003 5.400E-003 3.569E-003 2.968E-003 2.868E-003 1.957E-003 2.449E-003 1.766E-003 1.707E-003 2.216E-003 1.776E-003 1.934E-003 1.681E-003 2.620E-003 2.232E-003 2.126E-003 1.903E-003 Calc. Voltage @ Surface (Vs) = 0.0265 Voltage @ 1.00 cm (Vt) = 0.0083 Ave. Voltage (Vs+Vt)/2 = 0.0174 Ave. SAR over 1 g (mW/g) = 0.8873 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 01121209_ZOOM Start : 12-Dec-101 10:45:07 am End : 12-Dec-101 11:03:59 am LGE/LSI-1000/1;1880.00MHz;W;Helical/Internal; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 File : 01121209_ZOOM Start : 12-Dec-101 10:45:07 am End : 12-Dec-101 11:03:59 am LGE/LSI-1000/1;1880.00MHz;W;Helical/Internal; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.09 0.97 0.85 0.73 0.61 0.49 0.37 0.25 0.13 0.01 File : 01121209_ZOOM Start : 12-Dec-101 10:45:07 am End : 12-Dec-101 11:03:59 am LGE/LSI-1000/1;1880.00MHz;W;Helical/Internal; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.09 0.97 0.85 0.73 0.61 0.49 0.37 0.25 0.13 0.01 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01121211_ZOOM.VLT Start : 12-Dec-101 11:07:38 am End : 12-Dec-101 11:08:33 am Radio Type : LGE Model Number : LSI-1000 Serial Number : 1 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Head Phantom Posn. : Right Ear Scan Type : SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : LGE CDMA PCS WLL TELEPHONE CH 1175 Conducted 23.0 dBm LGE CDMA PCS WLL TELEPHONE - TILT Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.550 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 0.000, Y = -3.000, Z = 0.000 (cm) Value = 21.308 Measured Values (volts) = 1.866E-002 1.341E-002 9.152E-003 7.571E-003 5.470E-003 4.525E-003 2.917E-003 2.918E-003 2.672E-003 2.001E-003 1.976E-003 1.240E-003 1.549E-003 2.209E-003 2.120E-003 1.982E-003 1.657E-003 2.562E-003 2.367E-003 2.326E-003 2.316E-003 Calc. Voltage @ Surface (Vs) = 0.0248 Voltage @ 1.00 cm (Vt) = 0.0072 Ave. Voltage (Vs+Vt)/2 = 0.0160 Ave. SAR over 1 g (mW/g) = 0.8141 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01121207_ZOOM.VLT Start : 12-Dec-101 10:03:46 am End : 12-Dec-101 10:04:41 am Radio Type : LGE Model Number : LSI-1000 Serial Number : 1 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Head Phantom Posn. : Left Ear Scan Type : SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : LGE CDMA PCS WLL TELEPHONE CH 0025 Conducted 23.0 dBm LGE CDMA PCS WLL TELEPHONE - TILT Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.550 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = -1.000, Y = -2.000, Z = 0.000 (cm) Value = 25.323 Measured Values (volts) = 1.878E-002 1.352E-002 9.814E-003 6.609E-003 5.288E-003 3.256E-003 3.073E-003 1.774E-003 1.397E-003 1.112E-003 9.483E-004 8.339E-004 1.036E-003 9.045E-004 1.370E-003 8.648E-004 1.422E-003 1.562E-003 1.337E-003 1.579E-003 1.467E-003 Calc. Voltage @ Surface (Vs) = 0.0244 Voltage @ 1.00 cm (Vt) = 0.0063 Ave. Voltage (Vs+Vt)/2 = 0.0153 Ave. SAR over 1 g (mW/g) = 0.7817 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01121203_ZOOM.VLT Start : 12-Dec-101 09:37:37 am End : 12-Dec-101 09:56:33 am Radio Type : LGE Model Number : LSI-1000 Serial Number : 1 Frequency : 1880.00 MHz Peak Tr…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG ELECTRONICS, Inc. Dates of Tests: Dec 11-12, 2001 Kumkang Venturetel Bldg. 1108, Bisan-Dong, Test Report S/N: SAR.211203673.BEJ Dongan-Gu, Annyang-City, Kyunggi-Do, Test Site: PCTEST Lab, Columbia, MD USA Seoul, KOREA 431-050 Attn: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager FCC ID BEJLSI1000 APPLICANT LG Electronics Co., Ltd. EUT Type: Fixed Wireless Local Loop Telephone (PCS CDMA) Tx Frequency: 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.266W EIRP (24.251 dBm) Trade Name/Model(s): LGE LSI-1000 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.0991 W/kg This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 211203673.BEJ Test Report S/N: SAR.211203673.BEJ SAR Measurement Report Test Dates: DEC 11-12, 2001 FCC Part 24 Certification Table of Contents 1.1 SCOPE........................................................................................................................1 2.1 INTRODUCTION........................................................................................................2 3.1 SAR MEASUREMENT SET-UP.............................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM...............................................................4 5.1 E-field PROBE CALIBRATION PROCESS..........................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES...........................................................7 7.1 SYSTEM SPECIFICATIONS...................................................................................8 8.1 MEASUREMENT PROCESS..................................................................................9 9.1 TEST POSITION OF THE EUT.............................................................................10 10.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..........................................11 11.1 MEASUREMENT UNCERTAINTIES.................................................................12 12.1 SAR TEST DATA SUMMARY.............................................................................13 13.1 SAR TEST EQUIPMENT.....................................................................................17 14.1 CONCLUSION.......................................................................................................18 Test Report S/N: SAR.211203673.BEJ SAR Measurement Report Test Dates: Dec 11-12, 2001 FCC Part 24 Certification LGE FCC ID: BEJLSI1000 (Model: LSI-1000) © 2001 PCTEST Lab Fixed Wireless Local Loop Telephone (PCS CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: LG ELECTRONICS, Inc. Address: Kumkang Venturetel Bldg. 1108, Bisan-Dong, Dongan-Gu, Annyang-City, Kyunggi-Do, Seoul, KOREA 431-050 Attention: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager • EUT Type: Fixed Wireless Local Loop Telephone (PCS CDMA) • Trade Name: LGE • Model(s): LSI-1000 • FCC IDENTIFIER: BEJLSI1000 • Tx Frequency: 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max RF. Output Power: 0.266W ERP PCS CDMA (24.251 dBm) • Date(s) of Tests: Dec 11-12, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.211203673.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.211203673.BEJ SAR Measurement Report Test Dates: Dec 11-12, 2001 FCC Part 24 Certification LGE FCC ID: BEJLSI1000 (Model: LSI-1000) © 2001 PCTEST Lab Fixed Wireless Local Loop Telephone (PCS CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. © 1992 by the In…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA)

RF Exposure Info

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01121040 _ZOOM.VLT Start : 10-Dec-101 03:46:18 pm End : 10-Dec-101 04:01:34 pm Radio Type : Validation Model Number : Serial Number : C Frequency : 1900 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Dipole Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 39.900 Mixture Conductivity = 1.420 Comment : 1900 MHz Brain Validation SN: C Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.550 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 1.750, Y = -2.000, Z = 0.000 (cm) Value = 265.451 Measured Values (volts) = 2.439E-001 1.418E-001 9.500E-002 6.119E-002 4.488E-002 3.028E-002 2.141E-002 1.482E-002 1.059E-002 7.997E-003 6.023E-003 4.263E-003 3.083E-003 3.224E-003 2.444E-003 1.628E-003 1.172E-003 1.014E-003 1.043E-003 1.255E-003 1.262E-003 Calc. Voltage @ Surface (Vs) = 0.3564 Voltage @ 1.00 cm (Vt) = 0.0579 Ave. Voltage (Vs+Vt)/2 = 0.2072 Ave. SAR over 1 g (mW/g) = 10.5493 0 2 4 6 8 10 12 14 16 18 20 mW/g -1012345 Z centimeters SAR Scan File : 01121040_ZOOM Start : 10-Dec-101 03:46:18 pm End : 10-Dec-101 04:01:34 pm Validation//C;1900MHz;W;Dipole/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.900/1.420 File : 01121040_ZOOM Start : 10-Dec-101 03:46:18 pm End : 10-Dec-101 04:01:34 pm Validation//C;1900MHz;W;Dipole/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.900/1.420 13.5 12.2 10.9 9.5 8.2 6.9 5.6 4.2 2.9 1.6 File : 01121040_ZOOM Start : 10-Dec-101 03:46:18 pm End : 10-Dec-101 04:01:34 pm Validation//C;1900MHz;W;Dipole/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.900/1.420 13.5 12.2 10.9 9.5 8.2 6.9 5.6 4.2 2.9 1.6

RF Exposure Info

© 2002 PCTEST SAM PHANTOM DESCRIPTION SAM Phantom The Left and Right SAM Phantoms are constructed of a vivac composite integrated in a corian stand. The shape of the shell is based on data from an anatomical study designed to determine the maximum exposure in at least 90% of all users 1,2 . It enables the dosimetric evaluation of left and right hand phone usage as well as body mounted usage at the flat phantom region. Specific Anthropomorphic Mannequin (SAM) Specifications The phantom for handset SAR assessment testing is a low-loss dielectric shell, with shape and dimensions derived from the anthropometric data of the 90 th percentile adult male head dimensions as tabulated by the US Army. The SAM Phantom shell is bisected along the mid-sagittal plane into right and left halves. The perimeter sidewalls of each phantom halves are extended to allow filling with liquid to a depth that is sufficient to minimized reflections from the upper surface. The liquid depth is maintained at a minimum depth of 15cm to minimize reflections from the upper surface. Phantom: SAM Phantoms (Left & Right) Shell Material: Vivac Composite Thickness: 2.0 ± 0.2 mm 1 V. Hombach, K. Meier, M. Burkhardt, E. Kuhn, N. Kuster, The Dependence of EM Energy Absorption upon Human Head Modeling at 900 MHz, IEEE Transaction on Microwave Theory and Techniques, vol. 44 no. 10, Oct. 1996, pp. 1865-1873. 2 N. Kuster and Q. Balzano, Energy absorption mechanism by biological bodies in the near field of dipole antennas above 300MHz, IEEE Transaction on Vehicular Technology, vol. 41, no. 1, Feb. 1992, pp. 17-23. Figure A SAM Phantoms

RF Exposure Info

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01121107_ZOOM.VLT Start : 11-Dec-101 02:46:22 pm End : 11-Dec-101 03:03:48 pm Radio Type : LGE Model Number : LSI-1000 Serial Number : 1 Frequency : 1880.00 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 39.900 Mixture Conductivity = 1.420 Comment : LGE CDMA PCS WLL TELEPHONE CH 0600 Conducted 23.0 dBm LGE CDMA PCS WLL TELEPHONE - tilt Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.550 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 1.000, Y = -2.500, Z = 0.000 (cm) Value = 25.637 Measured Values (volts) = 2.309E-002 1.542E-002 1.124E-002 7.978E-003 5.434E-003 4.014E-003 2.943E-003 2.511E-003 2.062E-003 1.408E-003 1.255E-003 1.227E-003 1.356E-003 1.024E-003 1.246E-003 1.326E-003 1.284E-003 1.283E-003 1.700E-003 1.616E-003 1.606E-003 Calc. Voltage @ Surface (Vs) = 0.0308 Voltage @ 1.00 cm (Vt) = 0.0075 Ave. Voltage (Vs+Vt)/2 = 0.0191 Ave. SAR over 1 g (mW/g) = 0.9749 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01121107_ZOOM Start : 11-Dec-101 02:46:22 pm End : 11-Dec-101 03:03:48 pm LGE/LSI-1000/1;1880.00MHz;W;Helical/Internal; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.900/1.4 20 File : 01121107_ZOOM Start : 11-Dec-101 02:46:22 pm End : 11-Dec-101 03:03:48 pm LGE/LSI-1000/1;1880.00MHz;W;Helical/Internal; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.900/1.420 1.31 1.16 1.02 0.88 0.74 0.60 0.46 0.32 0.18 0.04 File : 01121107_ZOOM Start : 11-Dec-101 02:46:22 pm End : 11-Dec-101 03:03:48 pm LGE/LSI-1000/1;1880.00MHz;W;Helical/Internal; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.900/1.4 20 1.31 1.16 1.02 0.88 0.74 0.60 0.46 0.32 0.18 0.04

Test Report

© 2002 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660-- B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290-- 6652 6652 •• FAX (410) 290 FAX (410) 290-- 66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification LG Electronics Inc. Dates of Tests: December 11-12, 2001 Kumkang Venturetel Bldg. 1108, Bisan-Dong, Test Report S/N: 24.211203674.BEJ Dongan-Gu, Annyang-City, Kyunggi-Do, Test Site: PCTEST Lab, Columbia MD U.S.A. Seoul, KOREA 431-050 Attn: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager FCC ID BEJLSI1000 APPLICANT LG Electronics Co., Ltd. FCC Classification: Licensed Base Station for Part 24 (PCB) FCC Rule Part(s): §24(E), §2 EUT Type: Fixed Wireless Local Loop Telephone (PCS CDMA) Trade Name/Model(s): LGE LSI-1000 Tx Frequency Range: 1851.25 ~ 1908.75 MHz Rx Frequency Range: 1931.25 ~ 1988.75 MHz Max. RF Output Power: 0.266 W EIRP (24.251 dBm) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947): I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210716419.BEJ Certification © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION (SITE DESCRIPTION) 2 3.1 INSERTS 3 4.1 DESCRIPTION OF TESTS 4-5 5.1 TEST DATA (Equivalent Isotropic Radiated Power) 6 6.1 TEST DATA (RADIATED) 7-9 7.1 TEST DATA (FREQUENCY STABILITY) 10-11 8.1 PLOTS OF EMISSIONS 12 9.1 LIST OF TEST EQUIPMENT 13 10.1 SAMPLE CALCULATIONS 14 11.1 CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAMS ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24.211203674.BEJ FCC Part 24 Test Dates: December 11-12, 2001 Certification © 2002 PCTEST Lab LGE FCC ID: BEJLSI1000 (Model: LSI-1000) 1 Fixed Wireless Local Loop Telephone (PCS CDMA) MEASUREMENT REPORT 1.1 Scope Product Evaluation and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: LG Electronics Co., Ltd. Address: Kumkang Venturetel Bldg. 1108, Bisan-Dong Dongan-Gu, Annyang-City, Kyunggi-Do Attention: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager • FCC ID: BEJLSI1000 • Trade Name: LGE • Model(s): LSI-1000 • Quantity: Quantity production is planned • Emission Designator: 1M25F9W • Tx Freq. Range: 1851.25 – 1908.75 MHz Rx Freq. Range: 1931.25 – 1988.75 MHz • Equipment Class: Licensed Base Station for Part 24 (PCB) • Equipment Type: Fixed Wireless Local Loop Telephone (PCS CDMA) • Modulation: CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Out…
