Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
CDMA Fixed Wireless Telephone User Guide Model: LSI-110 LGE CDMA Fixed Wireless Telephone LSI-110/1100 2 REVISED HISTORY DATE ISSUE CONTENTS OF CHANGES REMARK 2002/05/13 ISSUE1 Initial Release LGE CDMA Fixed Wireless Telephone LSI-110/1100 3 Blank Page For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. To maintain compliance with FCC RF exposure requirements, maintain a 2.54 cm. separation distance between the user’s body and the phone, including the antenna. WARNING! Read this information before using your phone LGE CDMA Fixed Wireless Telephone LSI-110/1100 4 CONTENTS Highlights ............................................................................................................................... 6 1.Important Information ...................................................................................................... 7 1.1 Safety Information ..................................................................................................... 7 1.2 Optimal Phone Performance..................................................................................... 7 1.3 Care and Service ...................................................................................................... 7 2.Introduction ..................................................................................................................... 9 2.1 Front View of the Telephone ..................................................................................... 9 2.2 LCD Display ............................................................................................................ 10 2.3 Installation ...............................................................................................................11 2.4 Installation Steps..................................................................................................... 13 3. Basic Operation ............................................................................................................... 15 3.1 Making a Call .......................................................................................................... 15 3.2 Redialing Last Outgoing Number ............................................................................ 15 3.4 Signal Strength........................................................................................................ 16 3.5 Missed Call Message .............................................................................................. 16 4. List of Menu State ............................................................................................................ 17 4.1 Volume / Ring.......................................................................................................... 18 4.1.1 Ring Volume.................................................................................................. 18 4.1.2 Key Volume ................................................................................................... 18 4.1.3 Ear Volume ................................................................................................... 18 4.1.3 Ring Select.................................................................................................... 19 4.2 Additional feature .................................................................................................... 19 4.2.1 Wake-up Time............................................................................................... 19 4.2.2 Minute Alert ................................................................................................... 19 4.2.3 Set Rx call mode ........................................................................................... 19 4.2.4 Backlight........................................................................................................ 20 4.2.5 Own number.................................................................................................. 20 4.3 Dial features ............................................................................................................ 20 4.3.1 Hot Line......................................................................................................... 20 4.3.2 Hot Line Time................................................................................................ 20 4.3.3 Auto Time-out................................................................................................ 21 4.3.4 Speed Dial (enable / disable) ........................................................................ 21 4.3.5 Key-tone Length............................................................................................ 22 4.4 Security Features .................................................................................................... 22 4.4.1 Lock Mode Set .............................................................................................. 22 4.4.2 Clear Calls..................................................................................................... 22 LGE CDMA Fixed Wireless Telephone LSI-110/1100 5 4.4.3 Cl…
Text truncated - open the document above for the full version.
LG Electronics Inc. LG Electronics Inc. WLL Terminal R&D Lab. Kumkang venturetel Bldg. 12F, 1108, Bisan-Dong, Anyang-City, Kyonggi-Do 431-050 Korea Telephone : 82-31-389-1060 Fax. : 82-31-389-1030 June 19, 2002 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. In re : LG Electronics Inc. FCC ID : BEJLSI110 PCS CDMA WLL Terminal Part 22 Certification Request for Confidentiality Gentleman, In accordance with 0.459 of CFR47, LG Electronics Inc. Hereby requests confidentiality of Block Diagrams attachment, Schematic Diagram & circuit Description attachment, Operational Description attachment, and Parts List / Tune-Up Procedure attachment for the above-referenced application. These documents contain detailed system and equipment Description and related information about the product which LG Electronics Inc.to the general public. Since This design is a basic from which future technological products will evolve, LG electronics Inc. Considers this information to be a benefit to its competitors an unfair advantage in the market. Sincerely Yours, Kevin Lee / Approval Engineer Research & Supporting Group. WLL Terminal R&D Lab. LG Electronics Inc. LG Electronics Inc. LG Electronics Inc. June 19, 2002 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To Whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. On our behalf shall have the same effect as acts of our own. We also hereby certify that No party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988, 21 U.S.C 853(a). Sincerely, Bruce Choi General Manager of New York Office LG Info Comm U.S.A. Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel; 973-401-9109

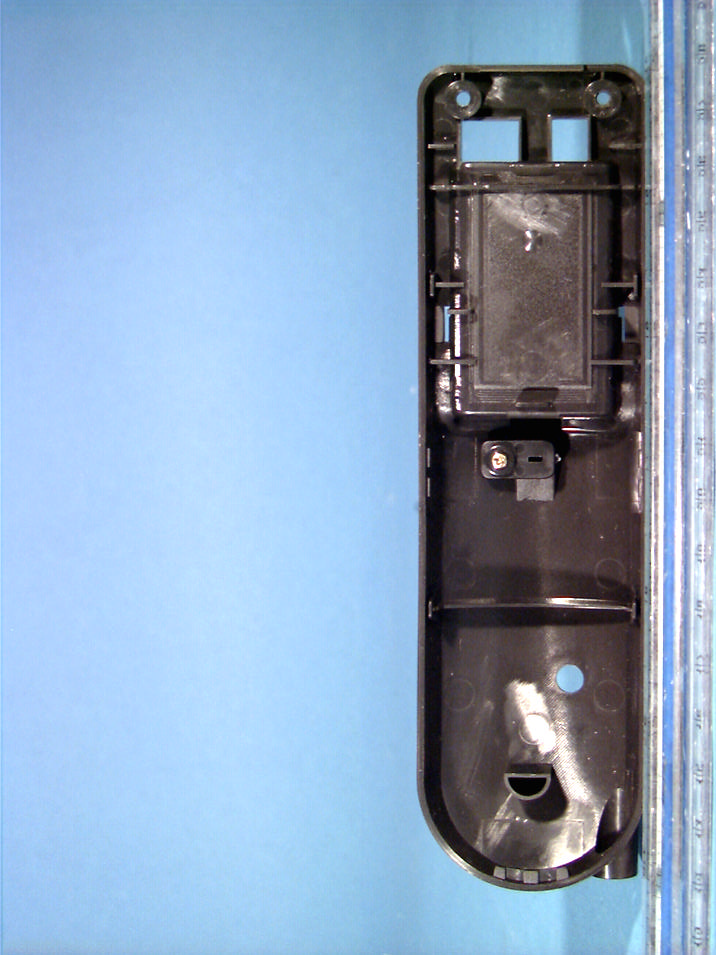

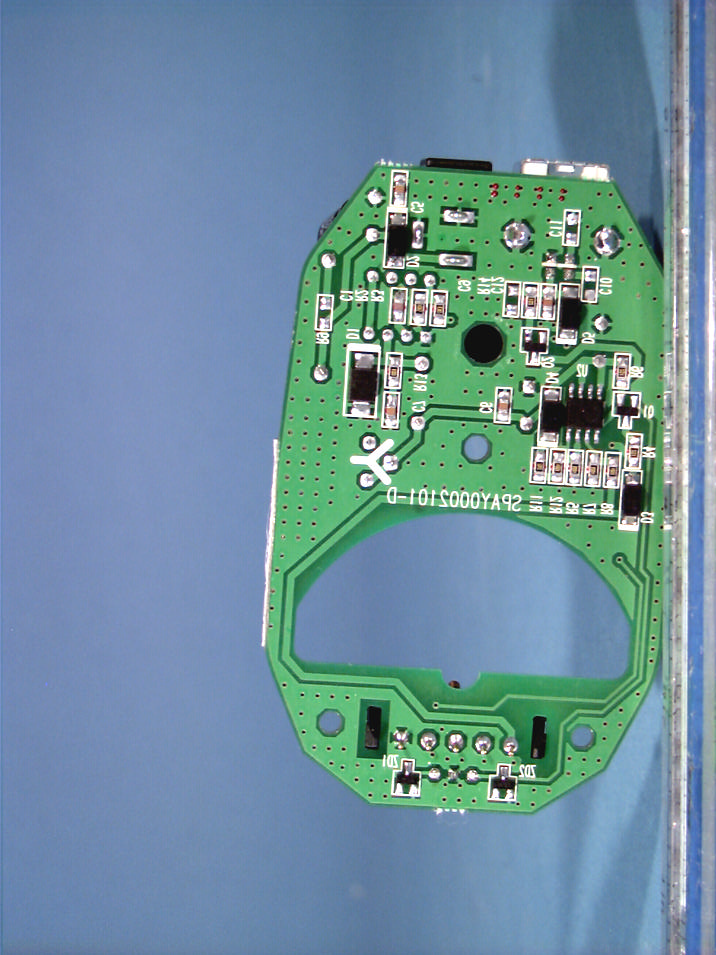

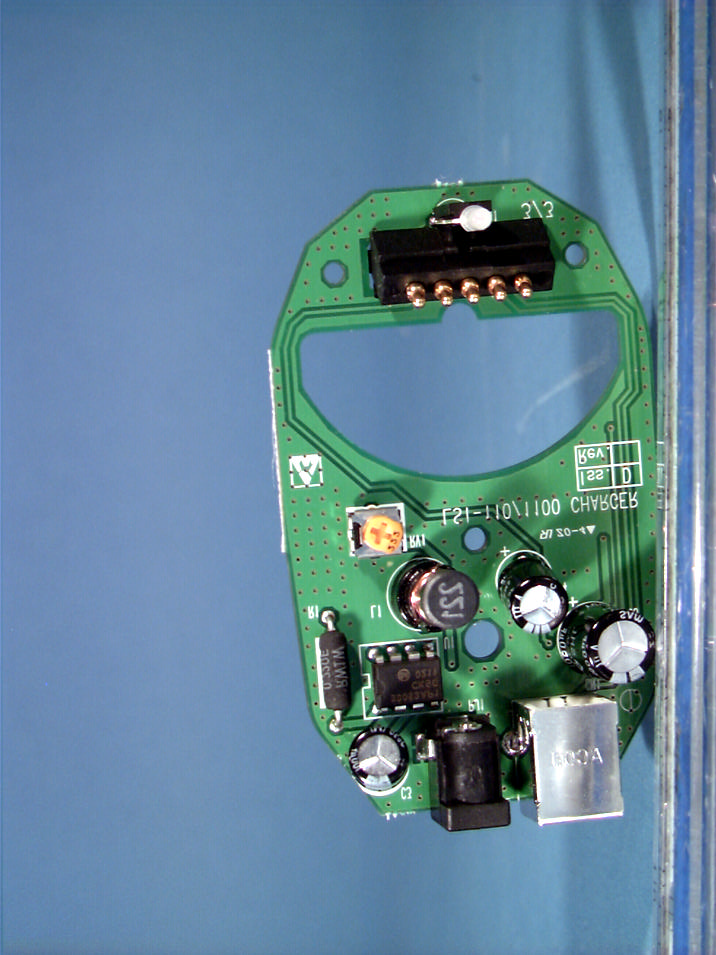

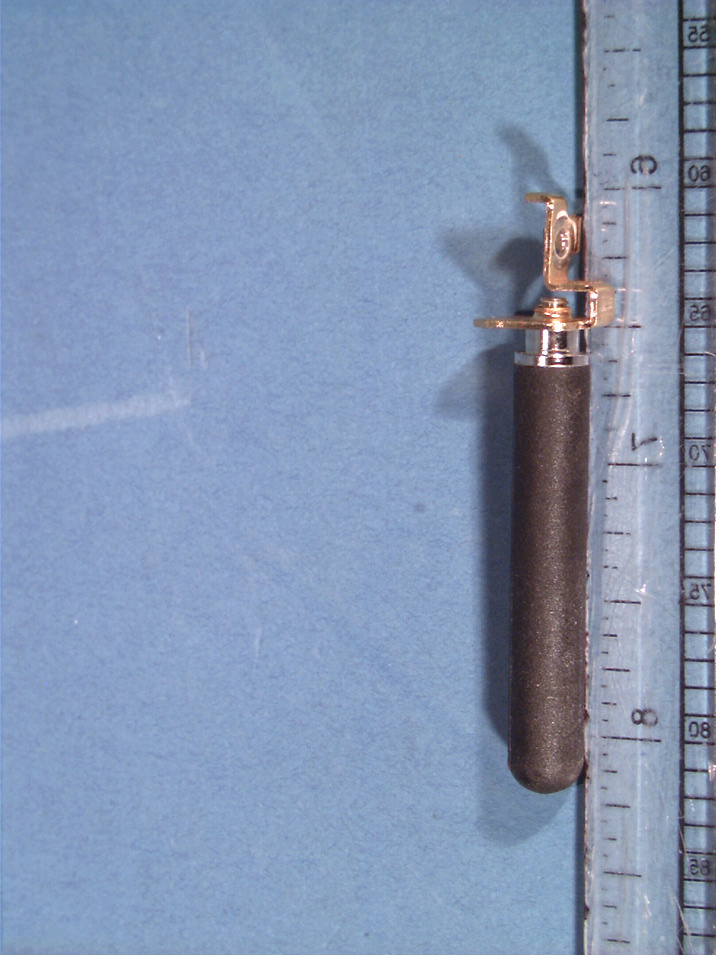

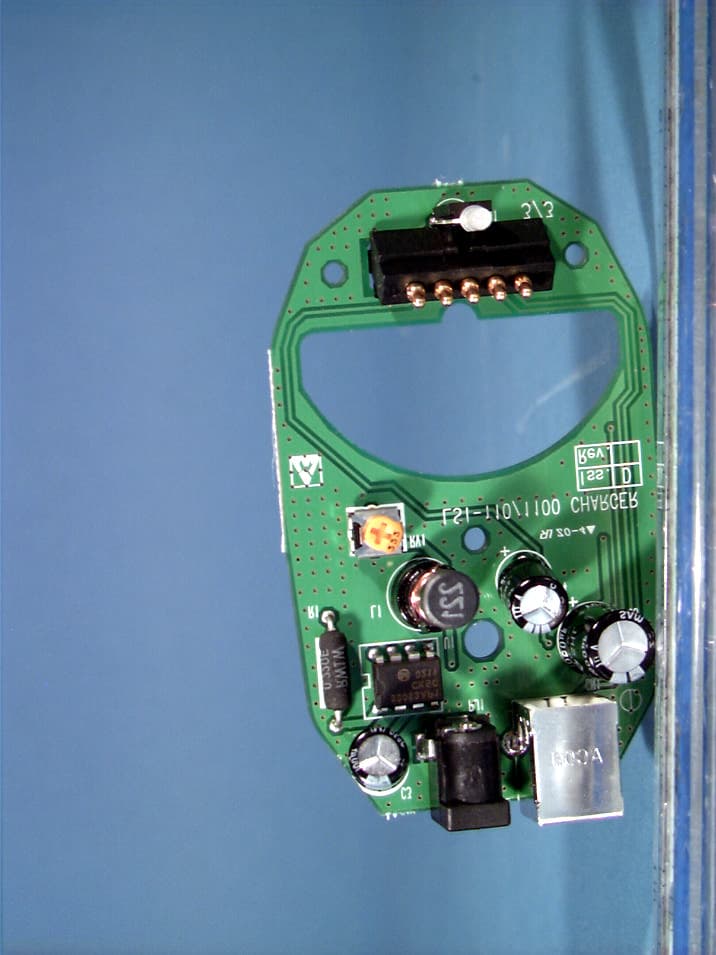

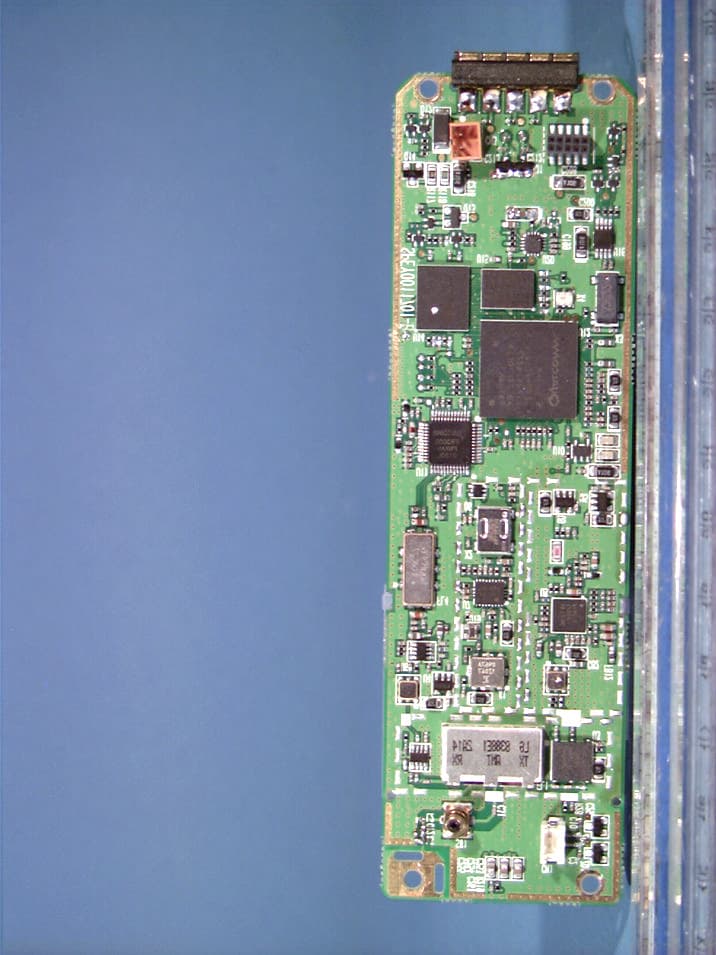

. July 12, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJLSI110 Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, Inc., is an application for Part 22 Certification of the Portable Wireless Local Loop Telephone (CDMA). Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned.
© 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed WirelessTelephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed WirelessTelephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA)
© 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJLSI110 (Model: LSI-110) Fixed Wireless Telephone (CDMA)
PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220617346.BEJ Test Dates: June 20-21, 2002 Phone Type: Portable WLL Telephone FCC ID: BEJLSI110 Page 1 of 23 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, Inc. Dates of Tests: June 20-21, 2002 Kumkang Venturetel Bldg. 1108, Bisan-Dong Test Report S/N: SAR.220617346.BEJ Dongan-Gu, Annyang-City, Kyunggi-Do, Test Site: PCTEST Lab, Columbia MD Seol, KOREA 431-050 Attn: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager FCC ID: BEJLSI110 APPLICANT: LG ELECTRONICS, Inc. EUT Type: Portable Wireless Local Loop Telephone (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.278 W ERP CDMA (24.433 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 1.13W/kg CDMA Head SAR Trade Name/Model(s): LSI-110 FCC Classification: Licensed Non-Broadcast Transmitter Held To Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220507242.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220617346.BEJ Test Dates: June 20-21, 2002 Phone Type: Portable WLL Telephone FCC ID: BEJLSI110 Page 2 of 23 © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 6 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Positioning for Cheek/Touch ................................................................................. 11 Positioning for Ear / 15° Tilt................................................................................... 12 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 13 Uncontrolled Environment .................................................................................... 13 Controlled Environment ........................................................................................ 13 11. MEASUREMENT UNCERTAINTIES ....…
Text truncated - open the document above for the full version.
File: 02-04-2002.cal Date: 04-Feb-02 01:20:16 pm Probe Name: PCT002 Frequency:835 MHz Comment:PCTEST TEM CAL Amp 1 Setting: 20.000 Amp 2 Setting: 20.000 Amp 3 Setting: 20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) File: 02-04-2002.cal2 Date: 04-Feb-02 03:18 :09 pm Probe Name: PCT002 Frequency:1900 MHz Comment:PCTEST TEM CAL Amp 1 Setting:20.000 Amp 2 Setting:20.000 Amp 3 Setting:20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) Conversion Factor Assessment for IDX SAR Measurement System S/N: PCT002 835 MHz Brain ε r = 40.7 ± 5% σ = 0.89 ± 5% mho/m Conversion Factor = 5.8 ± 7% (k=2) 1900 MHz Brain ε r = 40.2 ± 5% σ = 1.41 ± 5% mho/m Conversion Factor = 4.7 ± 7% (k=2) Probe calibration 1900 MHz Brain (WG 1900) 0 1 2 3 4 5 6 7 8 0510152025303540 z in mm SAR in mW/cm^3 / W Analytical Measurements Probe Calibration 835 MHz Brain (WG 835) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0510152025303540 z in mm SAR in (mW/cm^3)/W Analytical Measurements
SAR Data Report 02061216 Start : 21-Jun-02 09:42 :06 am End : 21-Jun-02 09:50:05 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 835 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 41.500 Tissue Conductivity : 0.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 835 MHz Validation CF=1; Amb. Temp= 22.7 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=1.0 y=-6.0 = 2.16 W/kg Zoom Scan - Max Peak SAR Value at x=2.0 y=-7.0 z=0.0 = 3.44 W/kg Max 1g SAR at x=2.0 y=-7.0 z=0.0 = 2.29 W/kg Max 10g SAR at x=2.0 y=-6.0 z=0.0 = 1.43 W/kg Validation Results at 0.25 W: Peak Nominal = 3.5, Error: -2.41 % 1g Nominal = 2.4, Error: -3.56 % 10g Nominal = 1.6, Error: -7.42 % 0 1 2 3 4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:2.0 y:-7.0 1g SAR Values 2.290 2.213 2.136 2.058 1.981 1.903 1.826 1.748 1.671 1.593 1.516
SAR Data Report 02062103 Start : 21-Jun-02 10:07:42 am End : 21-Jun-02 10:14:48 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Model Number : LSI-110 Serial Number : 12 Frequency : 835.89 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 41.500 Tissue Conductivity : 0.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: CDMA CH-363 Cheek CF=1; Amb. Temp= 22.3 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=52.0 y=2.0 = 0.98 W/kg Zoom Scan - Max Peak SAR Value at x=52.0 y=2.0 z=0.0 = 1.45 W/kg Max 1g SAR at x=52.0 y=2.0 z=0.0 = 1.02 W/kg Max 10g SAR at x=51.0 y=2.0 z=0.0 = 0.69 W/kg 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:52.0 y:2.0 1g SAR Values 1.016 0.986 0.956 0.926 0.897 0.867 0.837 0.807 0.777 0.747 0.718 SAR Data Report 02062104 Start : 21-Jun-02 10:16:42 am End : 21-Jun-02 10:23:41 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Model Number : LSI-110 Serial Number : 12 Frequency : 835.89 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 41.500 Tissue Conductivity : 0.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: CDMA CH-363 Tilt CF=1; Amb. Temp= 22.3 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=0.0 y=4.0 = 0.37 W/kg Zoom Scan - Max Peak SAR Value at x=-16.0 y=8.0 z=0.0 = 0.54 W/kg Max 1g SAR at x=-1.0 y=5.0 z=0.0 = 0.38 W/kg Max 10g SAR at x=0.0 y=5.0 z=0.0 = 0.25 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-16.0 y:8.0 1g SAR Values 0.3793 0.3695 0.3596 0.3497 0.3399 0.3300 0.3202 0.3103 0.3004 0.2906 0.2807 SAR Data Report 02062108 Start : 21-Jun-02 11:43:06 am End : 21-Jun-02 11:50:30 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Model Number : LSI-110 Serial Number : 12 Frequency : 835.89 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 41.500 Tissue Conductivity : 0.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: CDMA CH-363 Cheek CF=1; Amb. Temp= 22.3 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=50.0 y=-1.0 = 1.15 W/kg Zoom Scan - Max Peak SAR Value at x=51.0 y=0.0 z=0.0 = 1.51 W/kg Max 1g SAR at x=51.0 y=0.0 z=0.0 = 1.13 W/kg Max 10g SAR at x=51.0 y=0.0 z=0.0 = 0.77 W/kg 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:51.0 y:0.0 1g SAR Values 1.132 1.089 1.046 1.003 0.960 0.917 0.874 0.831 0.788 0.745 0.702 SAR Data Report 02062109 Start : 21-Jun-02 11:52:02 am End : 21-Jun-02 11:59:37 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Model Number : LSI-110 Serial Number : 12 Frequency : 835.89 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 41.500 Tissue Conductivity : 0.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: CDMA CH-363 Tilt CF=1; Amb. Temp= 22.3 'C; Liq. Temp=22.0 'C Area Scan - Max Peak SAR Value at x=-16.0 y=14.0 = 0.37 W/kg Zoom Scan - Max Peak SAR Value at x=-24.0 y=14.0 z=0.0 = 0.59 W/kg Max 1g SAR at x=-19.0 y=14.0 z=0.0 = 0.39 W/kg Max 10g SAR at x=-13.0 y=14.0 z=0.0 = 0.25 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-24.0 y:14.0 1g SAR Values 0.389 0.376 0.363 0.350 0.337 0.324 0.312 0.299 0.286 0.273 0.260
PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220617345.BEJ Test Dates: June 20-21, 2002 EUT Type: Portable WLL Telephone FCC ID: BEJLSI110 Page 1 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification LG ELECTRONICS, Inc. Dates of Tests: June 20-21, 2002 Kumkang Venturetel Bldg. 1108, Bisan-Dong Test Report S/N: 22.220617345.BEJ Dongan-Gu, Annyang-City, Kyunggi-Do, Test Site: PCTEST Lab, Columbia MD Seol, KOREA 431-050 Attn: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager FCC ID BEJLSI110 APPLICANT LG ELECTRONICS, Inc. Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: Portable Wireless Local Loop Telephone (CDMA) Model: LSI-110 Tx Frequency Range: 824.70 ~ 848.31 MHz Rx Frequency Range: 869.70 — 893.31 MHz Max. RF Output Power: 0.278 W ERP (24.433 dBm) Max. SAR Measurement: 1.13W/kg CDMA Head SAR Emission Designator(s): 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220617345.BEJ PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220617345.BEJ Test Dates: June 20-21, 2002 EUT Type: Portable WLL Telephone FCC ID: BEJLSI110 Page 2 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT K: SCHEMATIC DIAGRAM(S) ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION PLOT(S) ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220617345.BEJ Test Dates: June 20-21, 2002 EUT Type: Portable WLL Telephone FCC ID: BEJLSI110 Page 3 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, Inc. Address: Kumkang Venturetel Bldg. 1108, Bisan-Dong, Dongan-Gu, Annyang-City, Kyunggi-Do Seoul, KOREA 431-050 Attention: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager • FCC ID: BEJLSI110 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 — 848.31 MHz • Rx Freq. Range: 869.70 — 893.31 MHz • Max. Power Rating: 0.278 W ERP (24.433 dBm) • FCC Classification(s): Non-Broadcast Transmitter Held to Ear (TNE) • Equipment (EUT) Type: Portable Wireless Local Loop Telephone (CDMA) • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): §22.901(d), §2 • Dates of Tests: June 20-21, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.220617345.BEJ PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220617345.BEJ Test Dates: June 20-21, 2002 EUT Type: Portable WLL Telephone FCC ID: BEJLSI110 Page 4 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurem…
Text truncated - open the document above for the full version.
6660-B Dobbin Road · Columbia, Maryland · United States
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 22.901(d) | 824.7 MHz - 848.31 MHz | 278.00 mW | 1M25F9W | 2.5000000000 ppm |
