© 2001 PCTEST Lab ATTACHMENT M – USER’S MANUAL CDMA Fixed Wireless Telephone User Guide Model: LSP-2400 i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. To comply with FCC RF exposure requirements, a minimum separation distance of 2.5cm (1 inch) must be maintained between the user/bystander and the back of the unit, including the antenna. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before use LGE CDMA Fixed Wireless Telephone LSP-2400 3 REVISED HISTORY DATE ISSUE CONTENTS OF CHANGES REMARK 2000/12 ISSUE 1 Initial Release LGE CDMA Fixed Wireless Telephone LSP-2400 4 CONTENTS Highlights ................................................................................................................................7 1. Important Information..................................................................................................8 1.1 Safety Information.....................................................................................................8 1.2 Optimal Phone Performance.....................................................................................8 1.3 Care and Service.......................................................................................................9 2. Introduction..................................................................................................................10 2.1 Front View of the Telephone...................................................................................10 2.2 LCD Display............................................................................................................11 2.3 Installation...............................................................................................................12 2.4 Installation Steps.....................................................................................................14 3. Basic Operation...........................................................................................................15 3.1 Making a Call..........................................................................................................15 3.2 Redialing Last Outgoing Number............................................................................15 3.3 Receiving a Call......................................................................................................16 3.4 Signal Strength.......................................................................................................16 3.5 Missed Call Message..............................................................................................16 4. List of Menu State.......................................................................................................17 4.1 Select Volume.........................................................................................................17 4.1.1 Ring Volume ...................................................................................................17 4.1.2 Key Volume ....................................................................................................18 4.1.3 Ear Volume .....................................................................................................18 4.2 Ring Type Selection................................................................................................18 4.3 Wake-up Time.........................................................................................................19 4.4 Security...................................................................................................................19 4.4.1 Lock Mode Set................................................................................................19 4.4.2 Clear Calls......................................................................................................20 4.4.3 Clear Memory.........................................................................................................20 4.4.4 Emergency Call....................................................................................................... 20 4.4.5 Changing Lock Code...............................................................................................20 4.5 Convenient Features...............................................................................................21 4.5.1 Hot Line..................................................................................................................21 4.5.2 Hot Line Time.........................................................................................................21 4.5.3 Speed Dial(enable/disable).....................................................................................21 4.6 Additional Feature...................................................................................................22 4.6.1 Key-tone Length......................................................................................................22 4.6.2 Auto Time-out.........................................................................................................22 4.6.3 3 Minute Alert..........................................................................................................22 4.6.4 DS Mode Set.......................................................................................................... 22 LGE CDMA Fixed Wireless Telephone LSP-2400 5 5. Features while in a Call ..............................................................................…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) @ LG Electronics Inc.& January 10, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Electronics Inc. LGE LG Electronics Inc. January 10, 2001 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc. FCC ID: BEJLSP2400 Single-Mode PCS WLL Phone (CDMA) Part 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Yu-Sung Sim Approvals Engineer Quality Engineering Dept. / Research Laboratory LG Electronics Inc. 36, Munlae-dong 6-p, Youngdungpo-gu, Seoul 153-096, Korea Tel : +82-2-263@3650 Fax : +82-2-263@3669 LG Electronics LG Kangseo BID 36, Munlaedong 69, Youngdungpo-gu Seoul. 150496, Korea Phorxz t82-2-2630-3650-2 January IO,2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 2 1046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJLSP2400 Users Manual RF Exposure Warning Statement Gentlemen: LG Electronics Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (4 10) 2904652. Sincerely, Y u-Sung Sim Approvals Engineer Quality Engineering Dept. / Research Laboratory LG Electronics Inc.

© 2001 PCTEST Lab ATTACHMENT A – COVER LETTER(S) Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJLSP2400 Part 24 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc., is an application for Part 24 Certification of the following Single-Band PCS WLL Phone: FCC ID: BEJLSP2400 TRADE/MODEL(s): LGE LSP-2400 EUT TYPE: Single-Mode PCS WLL Phone Tx Freq. Range(s): 1851.25 – 1908.75 MHz (PCS CDMA) Rx Freq. Range(s): 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.283 W PCS CDMA (24.519 dBm) Max. Peak SAR: 1.090 mW/g PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, User’s Manual RF Warning page, User’s Manual Location of RF Warning page statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Yu-Sung Sim Approvals Engineer Quality Engineering Dept. / Research Laboratoy

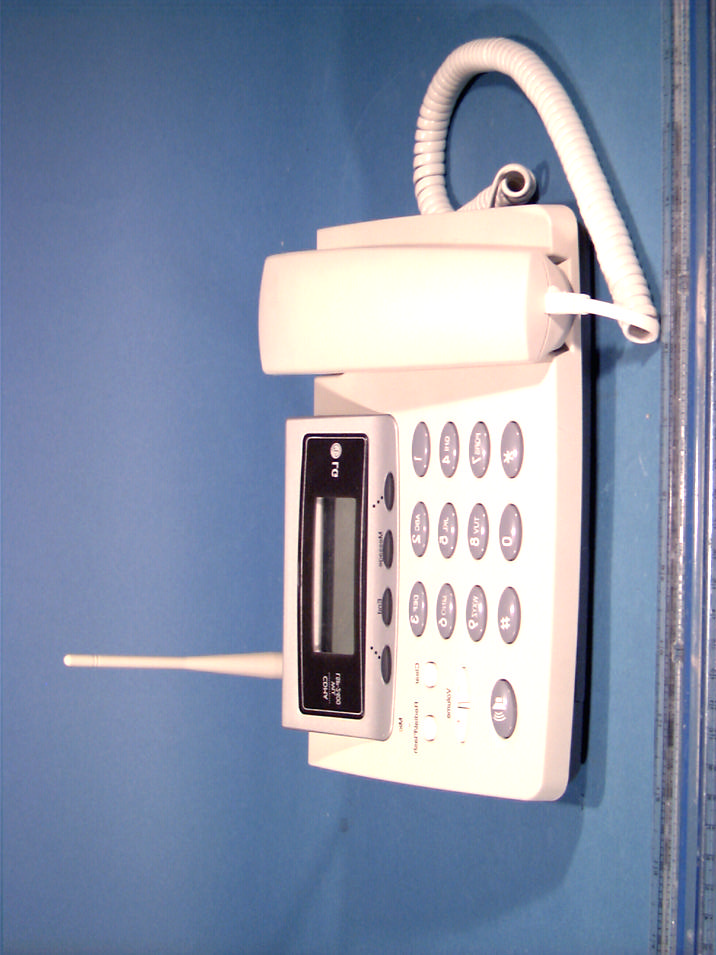

© 2001 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL & LOCATION © 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LGE CDMA Fixed Access Unit LSP-2400 Technical Documents 2. 983 (f) Equipment Identification:

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal

LGE CDMA Fixed Access Unit LSP-2400 Technical Documents 8.4.4 Antenna Specification LGE CDMA Fixed Access Unit LSP-2400 Technical Documents LGE CDMA Fixed Access Unit LSP-2400 Technical Documents

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal © 2001 PCTEST Lab FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) NVLAP Lab Code: 100431-0 LG ELECTRONICS PCS CDMA WLL Terminal

© 2001 PCTEST Lab ATTACHMENT O – SAR TEST DATA LG Electronics WLL FCC ID:BEJLSP2400 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.02 mW/g, SAR (10g): 0.573 mW/g LG Electronics WLL Model: LSP-2400 PCS Mode, Ch. 0025 [1851.25MHz] Antenna Extended up-right = normal operating condition; Spacing = 2.5cm from flat phantom to antenna Test Date -- 01-16-2001 SAR Tot [mW/g] 1.08E-1 3.25E-1 5.41E-1 7.57E-1 9.74E-1 PCTEST Engineering Laboratory, Inc. LG Electronics WLL FCC ID:BEJLSP2400 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.07 mW/g, SAR (10g): 0.584 mW/g LG Electronics WLL Model: LSP-2400 PCS Mode, Ch. 0600 [1880.00MHz] Antenna Extended up-right = normal operating condition; Spacing = 2.5cm from flat phantom to antenna Test Date -- 01-16-2001 SAR Tot [mW/g] 1.11E-1 3.32E-1 5.53E-1 7.74E-1 9.95E-1 PCTEST Engineering Laboratory, Inc. LG Electronics WLL FCC ID:BEJLSP2400 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.09 mW/g, SAR (10g): 0.610 mW/g LG Electronics WLL Model: LSP-2400 PCS Mode, Ch. 1175 [1908.75MHz] Antenna Extended up-right = normal operating condition; Spacing = 2.5cm from flat phantom to antenna Test Date -- 01-16-2001 SAR Tot [mW/g] 1.09E-1 3.26E-1 5.43E-1 7.61E-1 9.78E-1 PCTEST Engineering Laboratory, Inc.

© 2001 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG ELECTRONICS INC. Dates of Tests: January 16-17, 2001 LG Kangseo B/D 36, Munlae-dong, 6-ga, Test Report S/N: SAR.210110011.BEJ Youngdungpo-gu, Seoul, 150-096, Korea Test Site: PCTEST Lab, Columbia, MD USA Attention: Mr. Yu-Sung Sim, Approvals Engineer Quality Engineering Dept. / Research Laboratory FCC ID BEJLSP2400 APPLICANT LG ELECTRONICS INC. EUT Type: PCS CDMA WLL Terminal Tx Frequency: 1851.25 – 1908.75 MHz Rx Frequency: 1931.25 – 1988.75 MHz Max. RF Output Power: 0.283 W EIRP (24.519 dBm) Max. Peak SAR: 1.090 mW/g PCS CDMA Body SAR Trade Name/Model(s): LGE LSP-2400 FCC Classification: Licensed Base Station for Part 24 (PCB) Application Type: Certification Serial Number: n/a (pre production) FCC Rule Part(s): 2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210110011.BEJ FCC Part 24 Certification PCTEST Engineering Laboratory, Inc. i Table of Contents SCOPE 1 INTRODUCTION / SAR DEFINITION 2 SAR MEASUREMENT SET-UP 3 E-FIELD PROBE SYSTEM 4 E-FIELD PROBE CALIBRATION PROCESS 5 DATA EXTRAPOLATION 6 PHANTOM & EQUIVALENT TISSUE 7 SYSTEM SPECIFICATIONS 8 MEASUREMENT PROCESS 9 TEST POSITION OF THE EUT 10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 MEASUREMENT UNCERTAINTIES 12 TEST DATA SUMMARY 13 SAR TEST EQUIPMENT LIST 14 CONCLUSION 15 REFERENCES 16 Test Report S/N: SAR.210110011.BEJ SAR Measurement Report Test Date(s): January 16-17, 2001 FCC Part 24 Certification FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) © 2001 PCTEST Lab LG ELECTRONICS PCS CDMA WLL Terminal 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: LG ELECTRONICS INC. Address: LG Kangseo B/D 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, 150-096, Korea Attention: Mr. Yu-Sung Sim, Approvals Engineer Quality Engineering Dept. / Research Laboratory • EUT Type: PCS CDMA WLL Terminal • Trade Name: LG ELECTRONICS • Model(s): LG LSP-2400 • FCC IDENTIFIER: BEJLSP2400 • S/N: Pre-production • Tx Frequency: 1851-25 – 1908.75 MHz • Rx Frequency: 1931.25 – 1988.75 MHz • Application Type: Certification • FCC Classification: Licensed Base Station for Part 24 (PCB) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max. RF Output Power: 0.283 W EIRP (24.519dBm) • Max. Peak SAR: 1.090 mW/g PCS CDMA Body SAR • Antenna Type: Helical (λ/2) • Antenna Dimensions: 16.47 cm. (Length) • Date(s) of Tests: January 16-17, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210110011.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210110011.BEJ SAR Measurement Report Test Date(s): January 16-17, 2001 FCC Part 24 Certification FCC ID: BEJLSP2400 (Tx 1851.25 – 1908.75 MHz) © 2001 PCTEST Lab LG ELECTRONICS PCS CDMA WLL Terminal 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorp…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT R – PROBE CALIBRATION Probe ET3DV5 SN:1370 Manufactured: February 1999 Calibrated: February 2000 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1370 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μ V range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4) calibrate 1 before each measurement, 5) persons should avoid moving around the lab while measuring. Since the field distortion caused by the supporting material and the sheath is quite high in the θ direction, the receiving pattern is poor in air. However, the distortion in tissue equivalent material is much less because of its high dielectricity. In addition, the fields induced in the phantoms by dipole structures close to the body are dominently parallel to the surface. Thus, the error due to non-isotropy is much better than 1 dB for dosimetric assessments. The probes are calibrated in the TEM cell ifi 110 although the field distribution in the cell is not very uniform and the frequency response is not very flat. To ensure consistency, a strict protocol is followed. The conversion factor (ConF) between this calibration and the measurement in the tissue simulation solution is performed by comparison with temperature measurements and computer simulations. This conversion factor is only valid for the specified tissue simulating liquids at the specified frequencies. If measurements have to be performed in solutions with other electrical properties or at other frequencies, the conversion factor has to be assessed by the same procedure. As the probes have been constructed with printed resistive lines on ceramic substrates (thick film technique), the probe is very delicate with respect to mechanical shocks. Attention: Do not drop the probe or let the probe collide with any solid object. Never let the robot move without first activating the emergency stop feature (i.e., without first turning the data acquisition electronics on). 1 Feature of the DASY Software Tool. Fig 1: Due to the field distortion caused by the supporting material, the probe has two charac- teristic directions, referred to as angle ψ and θ . Page 2 of 8 ET3DV5 SN:1370 DASY3 - Parameters of Probe: ET3DV5 SN:1370 Sensitivity in Free Space NormX1.58μV/(V/m) 2 NormY1.64μV/(V/m) 2 NormZ1.80μV/(V/m) 2 Diode Compression DCP X96mV DCP Y96mV DCP Z96mV Sensitivity in Tissue Simulating Liquid 450 MHzConvF X6.5extrapolated ε r = 48 ± 5% ConvF Y6.5extrapolated σ =0.50 ± 10%mho/m ConvF Z6.5extrapolated(brain tissue simulating liquid) 900 MHz ConvF X6.0± 10% ε r = 42.5 ± 5% ConvF Y6.0± 10% σ =0.86 ± 10%mho/m ConvF Z6.0± 10%(brain tissue simulating liquid) 1500 MHz ConvF X5.4interpolated ε r = 41 ± 5% ConvF Y5.4interpolated σ =1.32 ± 10%mho/m ConvF Z5.4interpolated(brain tissue simulating liquid) 1800 MHz ConvF X5.1± 10% ε r = 41 ± 5% ConvF Y5.1± 10% σ =1.69 ± 10%mho/m ConvF Z5.1± 10%(brain tissue simulating liquid) Sensor Offset Probe Tip to Sensor Center2.7mm Surface to Probe Tip1.6 ± 0.2mm Page 3 of 8 ET3DV5 SN:1370 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV5 SN:1370 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 5 of 8 ET3DV5 SN:1370 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22, R26 ) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22R26 Page 6 of 8 ET3DV5 SN:1370 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -3 -2 -1 0 1 0.00010.0010.010.1110100 mW/cm 3 errror[dB] not compensated diode characteristic compensated relative accuracy Page 7 of 8 ET3DV5 SN:1370 Conversion Factor Assessment Receiving Pattern (φ) ( in brain tissue, z = 5 mm ) -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 900 MHz1800 MHz f = 900 MHz, WG R9 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f =…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT Q – DIPOLE VALIDATION 1900MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.7 mW/g, SAR (10g): 5.46 mW/g 1900MHz Muscle Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 9.47E-1 2.80E+0 4.82E+0 6.71E+0 8.59E+0 PCTEST Engineering Laboratory, Inc.

© 2001 PCTEST Lab ATTACHMENT C – TEST REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification LG ELECTRONICS INC. Dates of Tests: January 10-12, 2001 LG Kangseo B/D 36, Munlae-dong, 6-ga, Test Report S/N: 24.210110010.BEJ Youngdungpo-gu, Seoul, 150-096, Korea Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Mr. Yu-Sung Sim, Approvals Engineer QA Engineering Dept. / Research Lab. FCC ID BEJLSP2400 APPLICANT LG ELECTRONICS INC. Classification: Licensed Base Station for Part 24 (PCB) FCC Rule Part(s): §24(E), §2 EUT Type: PCS CDMA WLL Terminal Trade Name/Model(s): LGE LSP-2400 Frequency Range: Tx: 1851.25 – 1908.75MHz Rx: 1931.25 – 1988.75MHz Max. RF Output Power: 0.283 Watts EIRP (24.519 dBm) Max. Peak SAR: 1.090 mW/g PCS CDMA Body SAR Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210110010.BEJ Certification …
