. July 24, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJLSP3000 Part 24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, Inc., is an application for Part 24 Certification of the following PCS CDMA WLL Terminal: FCC ID: BEJLSP3000 TRADE/MODEL(s): LGE LSP-3000 EUT TYPE: PCS CDMA WLL Terminal Tx Freq. Range(s): 1851.25 — 1908.75 MHz (PCS) Rx Freq. Range(s): 1931.25 — 1988.75 MHz (PCS) Max. RF Output Power: 0.311 W EIRP (24.921 dBm) Max. Peak SAR: 0.9418 mW/g Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, User’s Manual RF Warning page, User’s Manual Location of RF Warning page statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune- up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned.

LG Electronics Inc. LG Electronics Inc. Communication Terminal R&D Lab. Kumkang venturetelBldg. 12F, 1108, Bisan-Dong, Anyang-City, Kyonggi-Do 431-050 Korea Telephone : 82-31-389-1060 Fax. : 82-31-389-1030 July 11, 20001 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 U.S.A. In re : LG Electronics Inc. FCC ID : BEJLSP3000 PCS CDMA WLL Terminal Part24 Certification Request for Confidentiality Gentleman, In accordance with 0.459 of CFR47, LG Electronics Inc. Hereby requests confidentiality of Block Diagrams attachment, Schematic Diagram & circuit Description attachment, Antenna Specifications attachment, Operational Description attachment, and Parts List / Tune-Up Procedure attachment for the above-referenced application. These documents contain detailed system and equipment Description and related information about the product which LG Electronics Inc.to the general public. Since This design is a basic from which future technological products will evolve, LG electronics Inc. Considers this information to be a benefit to its competitors anunfair advantage in the market. Sincerely Yours, Kevin Lee / Approval Engineer Research & Supporting Group. Communication Terminal R&D Lab. LG Electronics Inc. LG Electronics Inc. LG Electronics Inc. July 11, 20001 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 U.S.A. To Whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. On our behalf shall have the same effect as acts of our own. We also hereby certify that No party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988, 21 U.S.C 853(a). Sincerely, Bruce Choi General Manager of New York Office LG Info Comm U.S.A. Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel; 973-401-9109 LG Electronics Inc. LG Electronics Inc. Communication Terminal R&D Lab. Kumkang venturetelBldg. 12F, 1108, Bisan-Dong, Anyang-City, Kyonggi-Do 431-050 Korea Telephone : 82-31-389-1060 Fax. : 82-31-389-1030 July 11, 20001 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 U.S.A. SUBJECT :LG ELECTRONICS INC. FCC ID : BEJLSP3000 Users Manual RF Exposure Warning Statement Gentleman, LG electronics Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, Please do not hesitate to contact to me or PCTEST engineering Laboratory Inc.at(410)290-6652. Sincerely Kevin Lee / Approval Engineer Research & Supporting Group. Communication Terminal R&D Lab. LG Electronics Inc.

October 24, 2001 Federal Communications Commission 7435 Oakland Mills Rd Columbia, MD 21046 Attn: Frank Coperich Re: LG Electronics Inc. FCC ID: BEJLSP3000 EA101934 Dear Frank, This request is regarding the denial of the application for certification of the referenced FCC ID. On October 3, 2001 the application for FCC ID: BEJLSP3000 (a wireless local loop) was denied based on Section 2.919 of the FCC Rules. From discussions with Mr. Coperich, it appears the denial was issued because PCTest had inadvertently submitted SAR graphs (FCC ID: BEJLSP300) with the application that did not apply to this FCC ID. The SAR summary information submitted with the application was the correct information for the referenced FCC ID and shows the unit is in compliance with the FCC RF exposure requirements. However, the aforementioned incorrect SAR graphs were filed as an attachment to the SAR report. The incorrect charts and graphs were for a unit made by the same company with a very similar FCC ID, which most likely generated the mistake. There does not appear to be any issue regarding compliance of the referenced equipment with all of the requirements of the Commission’s Rules. PCTest regrets the mistake and wishes to assure the Commission that there was no intent to deceive the Commission. Based on the clerical error that resulted in the submission of the incorrect supporting graphs for the SAR report, PCTest requests that the denial issued to the subject equipment be set aside and the application reverted to a pending status for further review. This will permit PCTest to file the correct SAR report and supporting documentation for the application. Attached is the complete SAR test report and corrected SAR graphs for your evaluation. Should you have any questions or comments concerning the above, please contact the undersigned. Thank you for your consideration.

November 16, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Frank Coperich SUBJECT: LG Electronics Inc. FCC ID: BEJLSP3000 731 Confirmation No.: EA101934 Correspondence Reference No.: 21193 Request for Tech. Info.: 11/07/2001 Dear Frank, Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated November 7, 2001. 1. Please find attached the revised EIRP data (page 6 of Test Report). 2. Please find attached a clearer version of the antenna specs. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us.

© 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA)

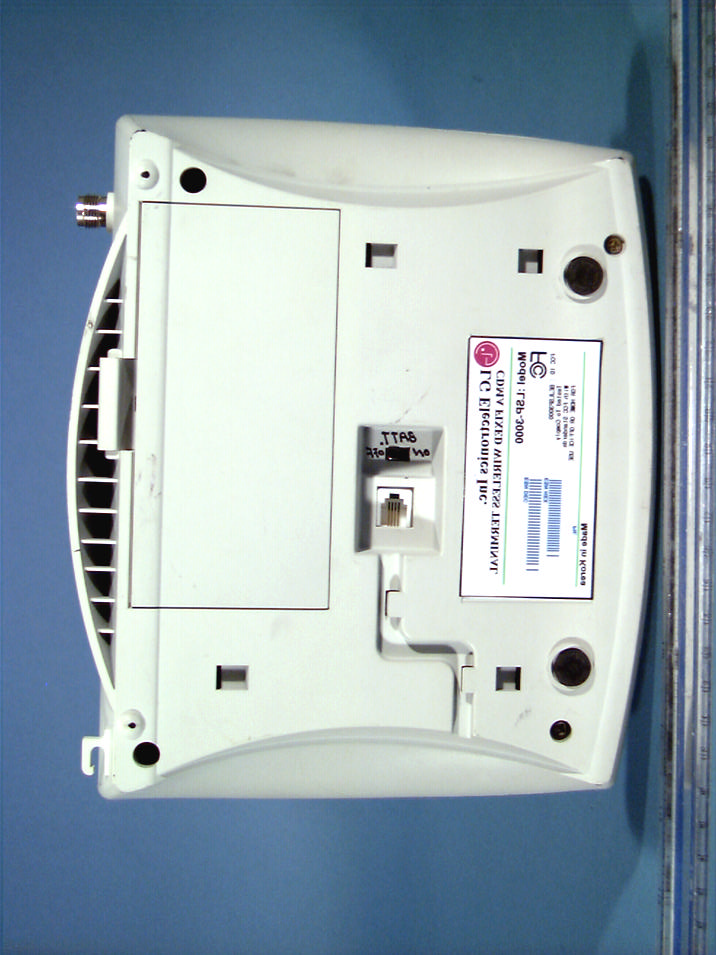

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

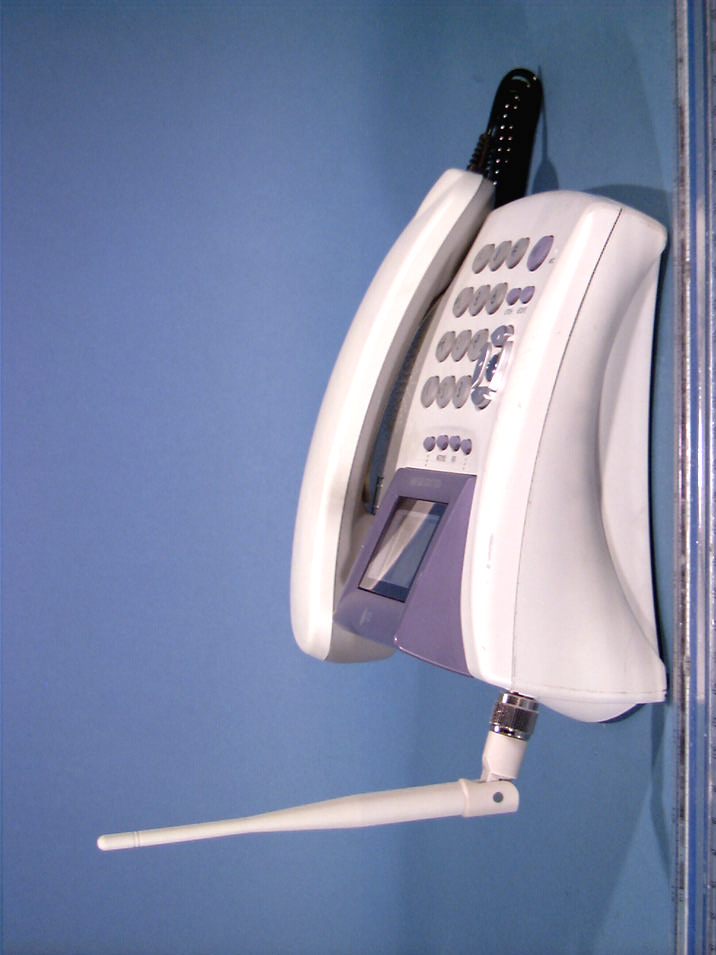

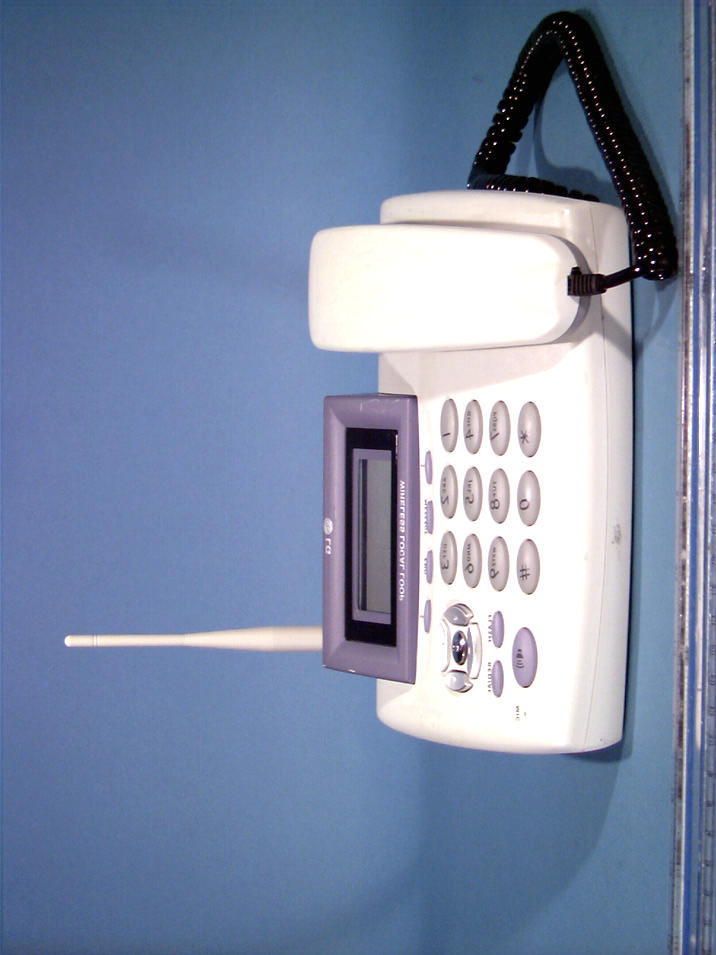

© 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA)

© 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA)

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Electronics Co., Ltd. Dates of Tests: July 16-18, 2001 Kumkang Venturetel Bldg. 1108, Bisan-Dong, Test Report S/N: SAR.210716418.BEJ Dongan-Gu, Annyang-City, Kyunggi-Do, Test Site: PCTEST Lab, Columbia, MD USA Seoul, KOREA 431-050 Attn: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager FCC ID BEJLSP3000 APPLICANT LG Electronics Co., Ltd. EUT Type: Fixed Wireless Local Loop Terminal Tx Frequency: 1851.25 — 1888.75 MHz (PCS CDMA) Rx Frequency: 1931.25 — 1968.75 MHz (PCS CDMA) Max. RF Output Power: 0.311 W ERP (24.921 dBm) Trade Name/Model(s): LGE LSP-3000 FCC Classification: Licensed Portable Transmitter Worn on Body (PCT) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 0.9418 W/kg (Body SAR) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210716418.BEJ Test Report S/N: SAR.210716418.BEJ SAR Measurement Report Test Dates: JULY 16-18, 2001 FCC Part 24 Certification Table of Contents 1.1 SCOPE ........................................................................................................... 1 2.1 INTRODUCTION ........................................................................................... 2 2.2 SAR Definition.....................................................................................................2 3.1 SAR MEASUREMENT SET-UP .................................................................... 3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM....................................................... 4 5.1 E-field PROBE CALIBRATION PROCESS .................................................. 5 6.1 PHANTOM AND EQUIVALENT TISSUES.................................................... 7 7.1 SYSTEM SPECIFICATIONS ......................................................................... 8 8.1 MEASUREMENT PROCESS ........................................................................ 9 9.1 TEST POSITION OF THE EUT .................................................................... 10 10.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................... 11 11.1 MEASUREMENT UNCERTAINTIES.......................................................... 12 12.1 SAR TEST DATA SUMMARY....................................................................13 13.1 SAR TEST EQUIPMENT............................................................................ 14 14.1 CONCLUSION............................................................................................ 15 Test Report S/N: SAR.210716418.BEJ SAR Measurement Report Test Dates: July 16-18, 2001 FCC Part 24 Certification LGE FCC ID: BEJLSP3000 (Model: LSP-3000) © 2001 PCTEST Lab Fixed Wireless Local Loop Terminal (PCS CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: LG Electronics Co., Ltd. Address: Kumkang Venturetel Bldg. 1108, Bisan-Dong, Dongan-Gu, Annyang-City, Kyunggi-Do, Seoul, KOREA 431-050 Attention: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager • EUT Type: Fixed Wireless Local Loop Terminal • Trade Name: LGE • FCC ID: BEJLSP3000 • Model: LSP-3000 • Tx Frequency: 1851.25 — 1888.75 MHz • Rx Frequency: 1931.25 — 1968.75 MHz • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Worn on Body (PCT) • FCC Rule Part(s): §2.1093; ET Docket 96.326 • Modulation(s): CDMA • Max RF. Output Power: 0.311 W EIRP PCS CDMA (24.921 dBm) • Date(s) of Tests: July 16-18, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210716418.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210716418.BEJ SAR Measurement Report Test Dates: July 16-18, 2001 FCC Part 24 Certification LGE FCC ID: BEJLSP3000 (Model: LSP-3000) © 2001 PCTEST Lab Fixed Wireless Local Loop Terminal (PCS CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electr…

Text truncated - open the document above for the full version.

Peak SAR Location © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (PCS CDMA) Body SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01071714_ZOOM.VLT Start : 17-Jul-101 01:02:41 pm End : 17-Jul-101 01:10:18 pm Radio Type : LGE Model Number : LSP-3000 Serial Number : 1 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : LGE PCS CDMA WLL TERMINAL CH 1175 23.0 dBm Conducted LGE PCS CDMA WLL TERMINAL Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.378 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = -2.250, Y = -0.750, Z = 0.000 (cm) Value = 8.797 Measured Values (volts) = 7.303E-003 6.160E-003 5.124E-003 4.411E-003 4.092E-003 3.827E-003 3.448E-003 3.005E-003 2.787E-003 2.837E-003 2.681E-003 2.318E-003 2.178E-003 2.323E-003 2.300E-003 1.999E-003 1.744E-003 2.089E-003 2.278E-003 2.258E-003 1.981E-003 Calc. Voltage @ Surface (Vs) = 0.0087 Voltage @ 1.00 cm (Vt) = 0.0044 Ave. Voltage (Vs+Vt)/2 = 0.0066 Ave. SAR over 1 g (mW/g) = 0.8377 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 mW/g -1012345 Z centimeters SAR Scan File : 01071714_ZOOM Start : 17-Jul-101 01:02:41 pm End : 17-Jul-101 01:10:18 pm LGE/LSP-3000/1;1908.75MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 File : 01071714_ZOOM Start : 17-Jul-101 01:02:41 pm End : 17-Jul-101 01:10:18 pm LGE/LSP-3000/1;1908.75MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 1.122 1.056 0.989 0.923 0.856 0.789 0.723 0.656 0.590 0.523 File : 01071714_ZOOM Start : 17-Jul-101 01:02:41 pm End : 17-Jul-101 01:10:18 pm LGE/LSP-3000/1;1908.75MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 1.122 1.056 0.989 0.923 0.856 0.789 0.723 0.656 0.590 0.523 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01071715_ZOOM.VLT Start : 17-Jul-101 01:12:55 pm End : 17-Jul-101 01:20:32 pm Radio Type : LGE Model Number : LSP-3000 Serial Number : 1 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : LGE PCS CDMA WLL TERMINAL CH 0025 23.0 dBm Conducted LGE PCS CDMA WLL TERMINAL Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.378 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = -2.500, Y = -0.750, Z = 0.000 (cm) Value = 9.641 Measured Values (volts) = 8.275E-003 6.884E-003 5.569E-003 4.674E-003 4.477E-003 4.243E-003 3.646E-003 3.101E-003 3.064E-003 3.056E-003 2.672E-003 2.241E-003 2.165E-003 2.313E-003 2.114E-003 1.750E-003 1.763E-003 2.166E-003 2.351E-003 2.270E-003 1.502E-003 Calc. Voltage @ Surface (Vs) = 0.0101 Voltage @ 1.00 cm (Vt) = 0.0047 Ave. Voltage (Vs+Vt)/2 = 0.0074 Ave. SAR over 1 g (mW/g) = 0.9418 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 mW/g -1012345 Z centimeters SAR Scan File : 01071715_ZOOM Start : 17-Jul-101 01:12:55 pm End : 17-Jul-101 01:20:32 pm LGE/LSP-3000/1;1851.25MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 File : 01071715_ZOOM Start : 17-Jul-101 01:12:55 pm End : 17-Jul-101 01:20:32 pm LGE/LSP-3000/1;1851.25MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 1.230 1.154 1.077 1.001 0.924 0.848 0.772 0.695 0.619 0.542 File : 01071715_ZOOM Start : 17-Jul-101 01:12:55 pm End : 17-Jul-101 01:20:32 pm LGE/LSP-3000/1;1851.25MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 1.230 1.154 1.077 1.001 0.924 0.848 0.772 0.695 0.619 0.542 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01071716_ZOOM.VLT Start : 17-Jul-101 01:22:24 pm End : 17-Jul-101 01:30:00 pm Radio Type : LGE Model Number : LSP-3000 Serial Number : 1 Frequency : 1880.00 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : LGE PCS CDMA WLL TERMINAL CH 0600 23.0 dBm Conducted LGE PCS CDMA WLL TERMINAL Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.378 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = -2.250, Y = -0.750, Z = 0.000 (cm) Value = 9.019 Measured Values (volts) = 7.571E-003 6.234E-003 5.117E-003 4.412E-003 4.079E-003 3.901E-003 3.495E-003 3.047E-003 2.826E-003 2.834E-003 2.681E-003 2.276E-003 2.190E-003 2.319E-003 2.310E-003 1.923E-003 1.709E-003 2.027E-003 2.280E-003 2.261E-003 1.890E-003 Calc. Voltage @ Surface (Vs) = 0.0092 Voltage @ 1.00 cm (Vt) = 0.0044 Ave. Voltage (Vs+Vt)/2 = 0.0068 Ave. SAR over 1 g (mW/g) = 0.8689 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 mW/g -1012345 Z centimeters SAR Scan File : 01071716_ZOOM Start : 17-Jul-101 01:22:24 pm End : 17-Jul-101 01:30:00 pm LGE/LSP-3000/1;1880.00MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 File : 01071716_ZOOM Start : 17-Jul-101 01:22:24 pm End : 17-Jul-101 01:30:00 pm LGE/LSP-3000/1;1880.00MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 1.151 1.081 1.010 0.940 0.870 0.800 0.729 0.659 0.589 0.519 File : 01071716_ZOOM Start : 17-Jul-101 01:22:24 pm End : 17-Jul-101 01:30:00 pm LGE/LSP-3000/1;1880.00MHz;W;…

Text truncated - open the document above for the full version.

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification LG Electronics Inc. Dates of Tests: July 16-18, 2001 Kumkang Venturetel Bldg. 1108, Bisan-Dong, Test Report S/N: 24.210716419.BEJ Dongan-Gu, Annyang-City, Kyunggi-Do, Test Site: PCTEST Lab, Columbia MD U.S.A. Seoul, KOREA 431-050 Attn: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager FCC ID BEJLSP3000 APPLICANT LG Electronics Co., Ltd. FCC Classification: Licensed Base Station for Part 24 (PCB) FCC Rule Part(s): §24(E), §2 EUT Type: PCS CDMA WLL Terminal Trade Name/Model(s): LGE LSP-3000 Tx Frequency Range: 1851.25 ~ 1908.75 MHz Rx Frequency Range: 1931.25 ~ 1988.75 MHz Max. RF Output Power: 0.311 W EIRP (24.921 dBm) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in § 2.947): I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210716419.BEJ Certification © 2001 PCTEST Engineering Laboratory, Inc.FCC Part 24 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION (SITE DESCRIPTION) 2 3.1 INSERTS 3 4.1 DESCRIPTION OF TESTS 4-5 5.1 TEST DATA (Equivalent Isotropic Radiated Power) 6 6.1 TEST DATA (RADIATED) 7-9 7.1 TEST DATA (FREQUENCY STABILITY) 10-11 8.1 PLOTS OF EMISSIONS 12 9.1 LIST OF TEST EQUIPMENT 13 10.1 SAMPLE CALCULATIONS 14 11.1 CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS & DESCRIPTION ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24.210716419.BEJ FCC Part 24 Test Dates: July 16-18, 2001 Certification © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) 1 Fixed Wireless Local Loop Terminal (PCS CDMA) MEASUREMENT REPORT 1.1 Scope Product Evaluation and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: LG Electronics Co., Ltd. Address: Kumkang Venturetel Bldg. 1108, Bisan-Dong Dongan-Gu, Annyang-City, Kyunggi-Do Attention: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager • FCC ID: BEJLSP3000 • Trade Name: LGE • Model(s): LSP-3000 • Quantity: Quantity production is planned • Emission Designator: 1M25F9W • Tx Freq. Range: 1851.25 — 1908.75 MHz Rx Freq. Range: 1931.25 — 1988.75 MHz • Equipment Class: Licensed Base Station for Part 24 (PCB) • Equipment Type: PCS CDMA WLL Terminal • Modulation: CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Output Power: 0.311 W EIRP (24.921 dBm) • FCC Rule Part(s): §24(E), §2 • Battery Pack: 8.4 VDC NiCD 2100 mAh • Dates of Tests: July16-18, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.210716419.BEJ Test Report S/N: 24.210716419.BEJ FCC Part 24 Test Dates: July 16-18, 2001 Certification © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) 2 Fixed Wireless Local Loop Terminal (PCS CDMA) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Lab is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance with criteria established in Title 15, Part 285 Code of Federal Regulations. These criteria encompass the requirements of ISO/IEC Guide 25 and the relevant requirements of ISO 9002 (ANSI/ASQC Q92-1987) as suppliers of calibration or test results. The Scope of PCTEST Accreditation are for Electromagnetic Compatibility and Telecommunications and FCC. 2.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 24.210716419.BEJ FCC Part 24 Test Dates: July 16-18, 2001 Certification © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) 3 Fixed Wireless Local Loop Terminal (PCS CDMA) 3.1 INSERTS PER Function of Active Devices (Confid…

Text truncated - open the document above for the full version.

Test Report S/N: 24.210716419.BEJ FCC Part 24 Test Dates: July 16-18, 2001 Certification © 2001 PCTEST Lab LGE FCC ID: BEJLSP3000 (Model: LSP-3000) 6 Fixed Wireless Local Loop Terminal (PCS CDMA) 5.1 Test Data Equivalent Isotropic Radiated Power (E.I.R.P.) Radiated measurements at 3 meters Supply Voltage:9.6VDC Modulation: FREQ.LEVELPOLHeightAzimuthMarginEIRP (MHz)(dBm)(H/V)(m)(o angle)(dBm)(W) 1851.25-18.000H1.360.024.8910.308 1880.00-18.400H1.360.024.8510.306 1908.75-18.500H1.360.024.9210.311 NOTES: PCS CDMA Equivalent Isotropic Radiated Power Measurements by Substitution Method according to ANSI/TIA/EIA-603 (rev.1998): The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. The conducted power at the terminals of the Horn antenna is measured. The difference between the gain of the horn and an isotropic antenna is taken into consideration and the EIRP is recorded.
