LG CDMA Fixed Wireless Terminal LST-250(F)/2500(F) 1 CDMA Fixed Wireless Terminal User Guide Model: LST-250(F) & 2500(F) i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. To comply with FCC RF exposure requirements, a minimum separation distance of 2.7cm (1 inch) must be maintained between the user/bystander and the back of the unit, including the antenna. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before use LG CDMA Fixed Wireless Terminal LST-250(F)/2500(F) 2 REVISED HISTORY DATE ISSUE CONTENTS OF CHANGES REMARK 2001.01. 08 ISSUE 1.0 Initial Release Please read this manual before you use this product. This manual is based on the production version of LST-250(F)/2500(F) FWT. Software changes may have occurred after this printing. LG reserves the right to make changes in technical and product specifications without prior notice. LG CDMA Fixed Wireless Terminal LST-250(F)/2500(F) 3 Blank Page LG CDMA Fixed Wireless Terminal LST-250(F)/2500(F) 4 Table of Contents 1. Before You Start....................................................................................................6 1.1 Safety Information....................................................................................................................6 1.2 Optimal Phone Performance...................................................................................................6 1.3 Care and Service.....................................................................................................................7 2. Introduction...........................................................................................................8 2.2 3 LEDs Indicators..................................................................................................................10 STEP I. Check Components...............................................................................................10 STEP II. Place the Terminal................................................................................................11 STEP III. Connect Components..........................................................................................11 STEP IV. Check LED indicators..........................................................................................11 STEP V. Install of Wall Mounting.........................................................................................11 2.4 Installation Steps...................................................................................................................13 3. Basic Operation..................................................................................................14 3.1 Power On...............................................................................................................................14 3.2 Placing a call..........................................................................................................................14 3.3 Receiving a call......................................................................................................................14 3.4 Ending a call..........................................................................................................................14 3.5 Warning Tone after Remote Disconnect................................................................................14 3.6 Dial Delay(Enblock mode only)..............................................................................................15 3.7 Emergency Call(Enblock mode only)....................................................................................15 4. System Features.................................................................................................16 4.1 Hook flash..............................................................................................................................16 4.2 Dial Delay Time(Enblock mode only).....................................................................................16 4.3 ROH (Receiver Off Hook)......................................................................................................16 4.4 Special Cellular Services.......................................................................................................16 4.5 Applications............................................................................................................................17 5. Programming......................................................................................................18 5.1 Speed Dial(Enblock mode only)............................................................................................18 Storing the Speed Dial Number.............................................................................................18 Enable or Disable Speed Dial................................................................................................19 Operation...............................................................................................................................19 5.2 Emergency Call(Enblock mode only)....................................................................................19 Entering the emergency phone number................................................................................19 Enable or Disable emergency call.........................................................................................19 5.3 Hot Line(Enblock mode only)................................................…

Text truncated - open the document above for the full version.

LG CDMA Fixed Wireless Terminal LST-250(F)/2500(F) 26 7 7 . . G G e e n n e e r r a a l l I I n n f f o o r r m m a a t t i i o o n n 7.1 LST-250(F) Main Unit Item Description Tx Frequency Digital : 824 ~ 849 MHz Rx Frequency Digital : 869 ~ 894 MHz Channel Bandwidth 1.25 MHz Frequency Stability Digital : 300 Hz Tx Power Digital : Max. 0.250 W Rx Power Level -104 ~ -25 dBm Size 210 x 147 x 63 mm Weight(g) 610g ( w/o battery ) / 800g ( w/ battery ) AC/DC Adapter Item Description Input Voltage 100V ~ 250V AC Input Current 0.6A Input Frequency 50 / 60 Hz Output Voltage 12V(DC) / 2A Internal Back-up Battery Item Description Capacity 8.4V NiMH Talk duration time 2 Hours Standby duration time 24 Hours Charging duration time Trickle, 24 Hours

LG Electronics Inc. LG Electronics Inc. Communication Terminal R&D Lab. Kumkang venturetelBldg. 12F, 1108, Bisan-Dong, Anyang-City, Kyonggi-Do 431-050 Korea Telephone : 82-31-389-1060 Fax. : 82-31-389-1030 July 11, 20001 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 U.S.A. In re : LG Electronics Inc. FCC ID : BEJLST250 PCS CDMA WLL Terminal Part22 Certification Request for Confidentiality Gentleman, In accordance with 0.459 of CFR47, LG Electronics Inc. Hereby requests confidentiality of Block Diagrams attachment, Schematic Diagram & circuit Description attachment, Antenna Specifications attachment, Operational Description attachment, and Parts List / Tune-Up Procedure attachment for the above-referenced application. These documents contain detailed system and equipment Description and related information about the product which LG Electronics Inc.to the general public. Since This design is a basic from which future technological products will evolve, LG electronics Inc. Considers this information to be a benefit to its competitors anunfair advantage in the market. Sincerely Yours, Kevin Lee / Approval Engineer Research & Supporting Group. Communication Terminal R&D Lab. LG Electronics Inc. LG Electronics Inc. LG Electronics Inc. July 11, 20001 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 U.S.A. To Whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. On our behalf shall have the same effect as acts of our own. We also hereby certify that No party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988, 21 U.S.C 853(a). Sincerely, Bruce Choi General Manager of New York Office LG Info Comm U.S.A. Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel; 973-401-9109 LG Electronics Inc. LG Electronics Inc. Communication Terminal R&D Lab. Kumkang venturetelBldg. 12F, 1108, Bisan-Dong, Anyang-City, Kyonggi-Do 431-050 Korea Telephone : 82-31-389-1060 Fax. : 82-31-389-1030 July 11, 20001 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 U.S.A. SUBJECT :LG ELECTRONICS INC. FCC ID : BEJLST250 Users Manual RF Exposure Warning Statement Gentleman, LG electronics Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, Please do not hesitate to contact to me or PCTEST engineering Laboratory Inc.at(410)290-6652. Sincerely Kevin Lee / Approval Engineer Research & Supporting Group. Communication Terminal R&D Lab. LG Electronics Inc.

. August 3, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJLST250 Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, Inc., is an application for Part 22 Certification of the following Fixed Wireless Local Loop Terminal (CDMA): FCC ID: BEJLST250 TRADE/MODEL(s): LGE LST-250 EUT TYPE: Fixed Wireless Local Loop Terminal (CDMA) Tx Freq. Range(s): 824.70 — 848.31 MHz (CDMA) Rx Freq. Range(s): 869.64 — 893.37 MHz (CDMA) Max. RF Output Power: 0.281 W CDMA (24.483 dBm) Max. Peak SAR: 1.0830 mW/g CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, User’s Manual RF Warning page, User’s Manual Location of RF Warning page statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune- up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned.

November 12, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: LG Electronics Inc. FCC ID: BEJLST250 731 Confirmation No.: EA101951 Correspondence Reference No.: 20753 Request for Tech. Info.: 09/26/2001 Dear Joe Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated September 26, 2001. 1. We used a value of 1.1 S/m, which has a higher conductivity than the 0.97 value of the new standard. The value is on the side of caution, which produces an overestimation of SAR. 2. Please find attached the following a. The revised Operational description b. The revised Users Manual. c. The revised Test Report (Pages 1&2). 3. Please find attach a clearer version of the schematics. 4. Please find attached the correct SAR Plots for Model: LST-250. 5. In regards to Tim’s email, please find attached the Z Scan liquid depth data. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us.

December 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: LG Electronics Inc. FCC ID: BEJLST250 731 Confirmation No.: EA101951 Correspondence Reference No.: 21299 Request for Tech. Info.: 11/20/2001 Dear Joe Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated November 20, 2001. 1. In order to remove the need to do calculations to determine the change in SAR levels caused by small changes in the tissue parameters, we re-measured the SAR with the proper tissue parameters with 15cm of liquid depth. Please find the attached SAR data for the worse case channel. 2. Please find attached the Z-scan plots. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us.

© 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA)

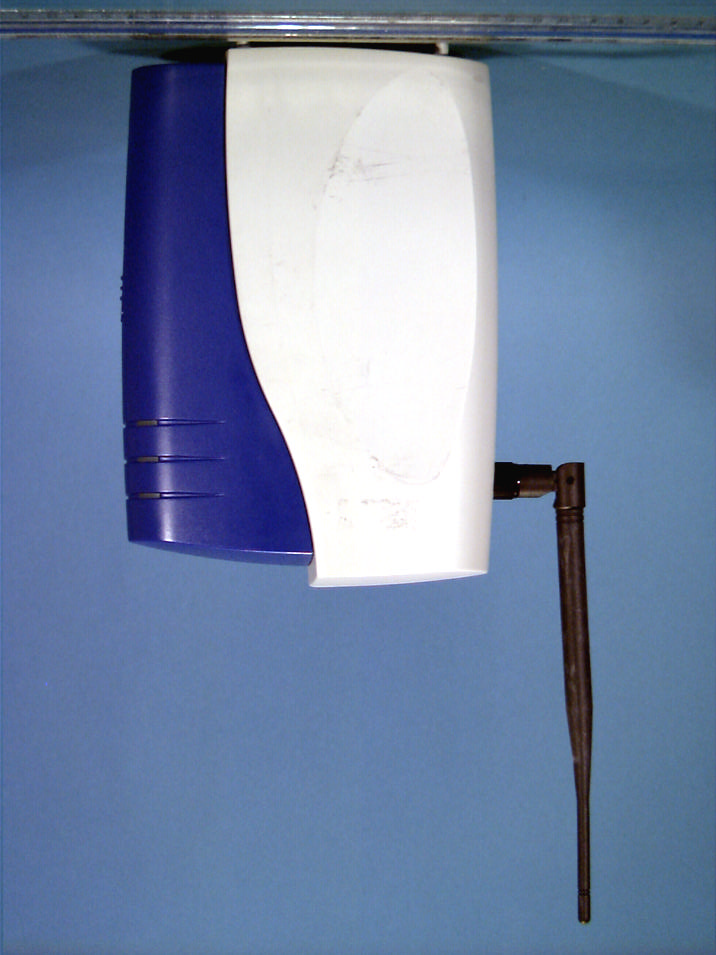

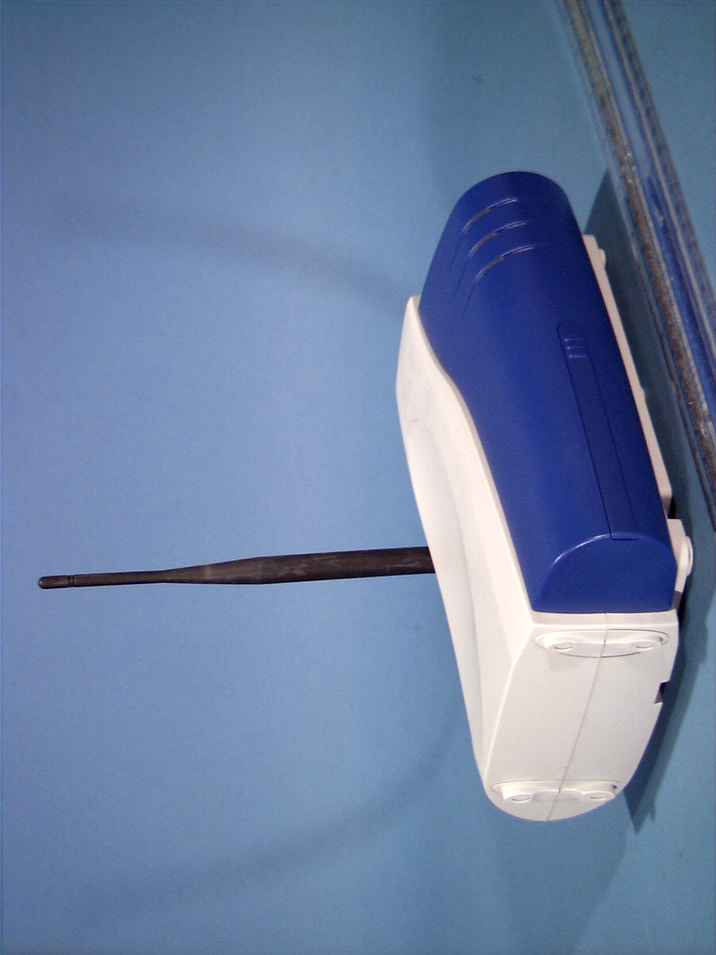

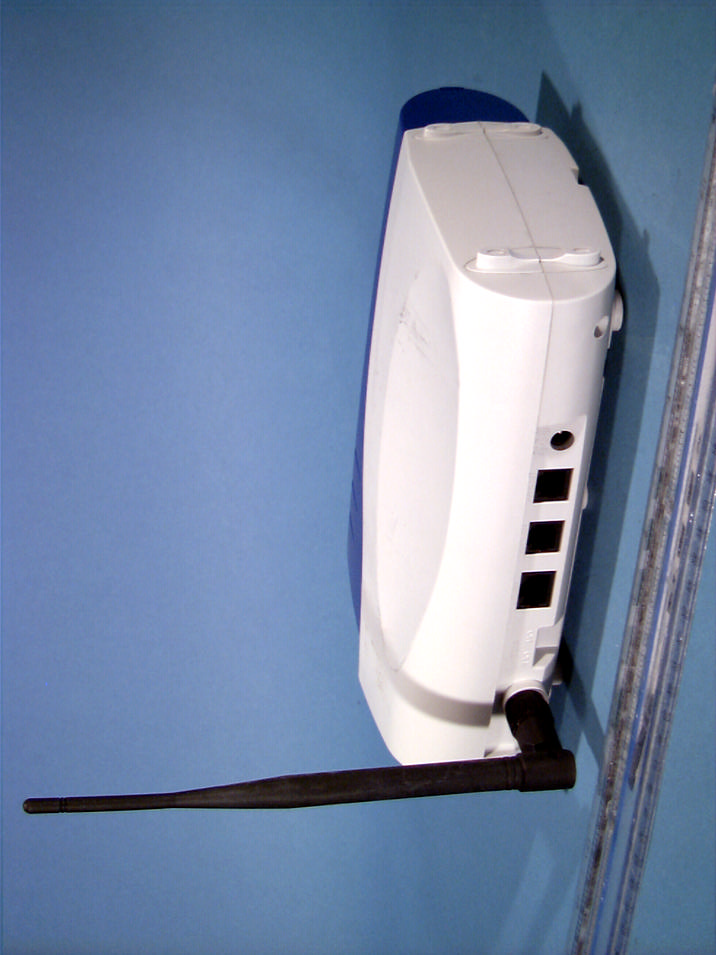

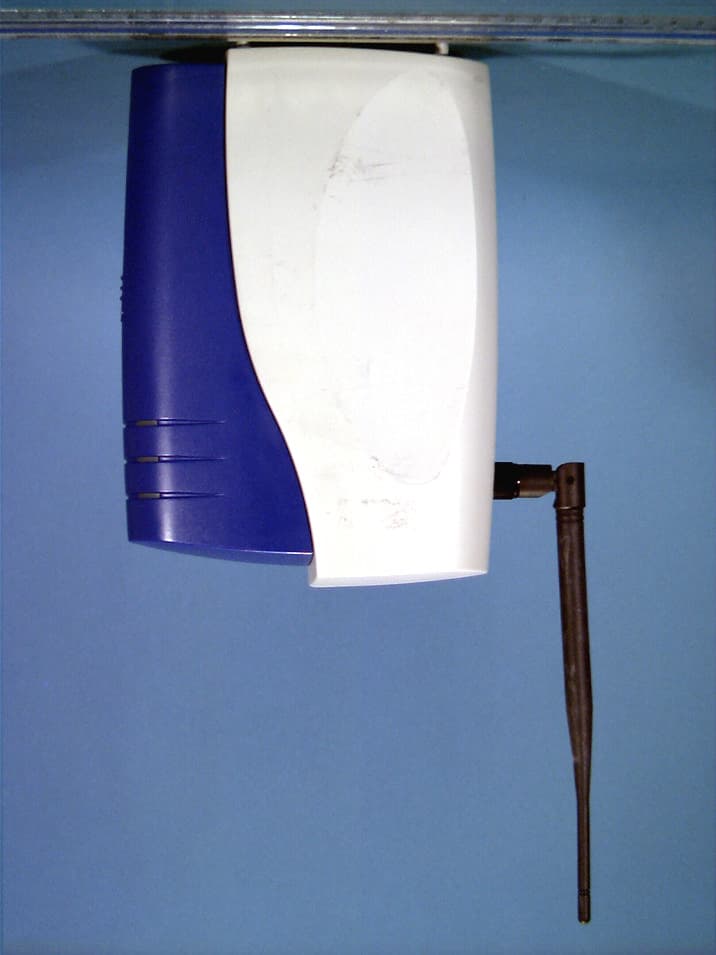

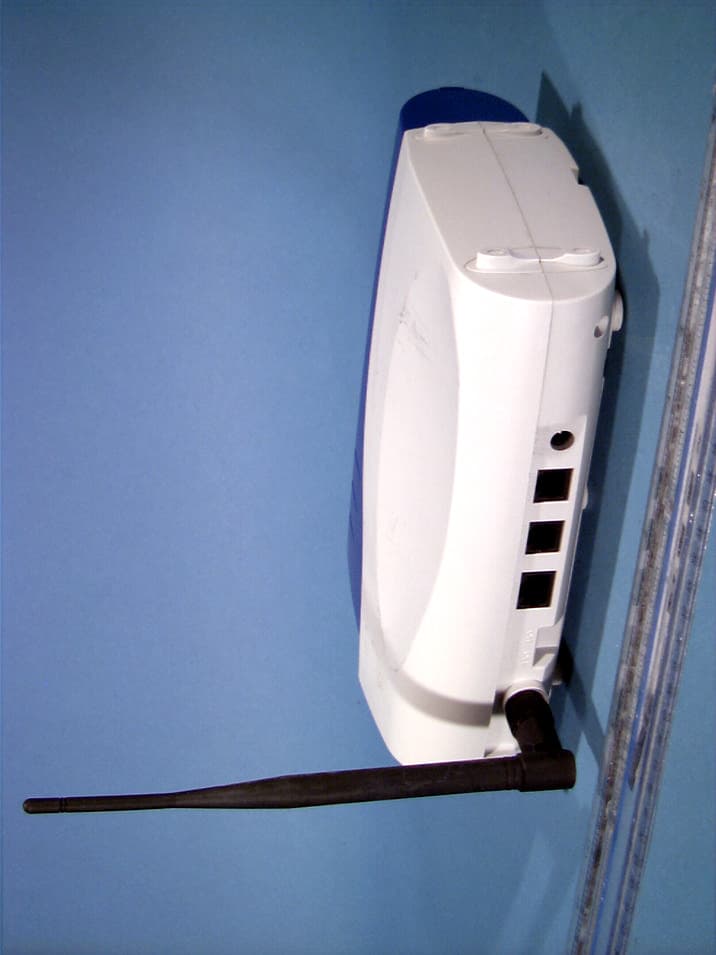

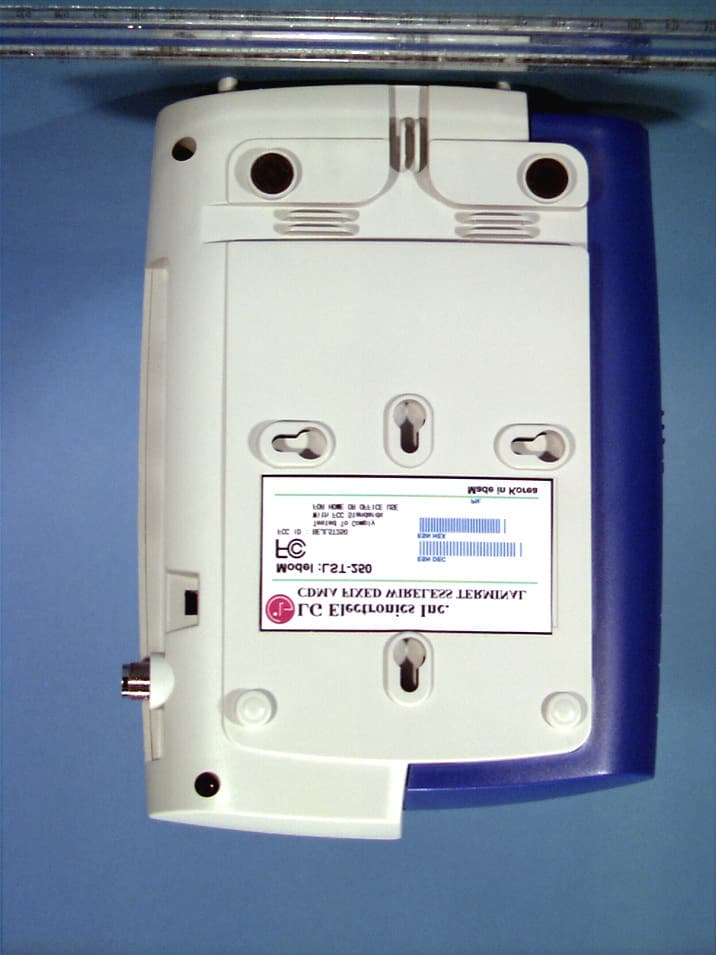

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA)

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG ELECTRONICS, Inc. Dates of Tests: July 17, 2001 Kumkang Venturetel Bldg. 1108, Bisan-Dong, Test Report S/N: SAR.210716414.BEJ Dongan-Gu, Annyang-City, Kyunggi-Do, Test Site: PCTEST Lab, Columbia, MD USA Seoul, KOREA 431-050 Attn: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager FCC ID BEJLST250 APPLICANT LG Electronics Co., Ltd. EUT Type: Fixed Wireless Local Loop Terminal (CDMA) Tx Frequency: 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.281W ERP CDMA (24.483 dBm) Trade Name/Model(s): LGE LST-250 FCC Classification: Licensed Non-Broadcast Transmitter (TNB) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.0830 W/kg (CDMA Body SAR) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210716414.BEJ Test Report S/N: SAR.210716414.BEJ SAR Measurement Report Test Dates: JULY 17, 2001 FCC Part 22 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION.......................................................................................2 3.1 SAR MEASUREMENT SET-UP.................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS.................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................7 7.1 SYSTEM SPECIFICATIONS......................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE EUT...............................................................10 10.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................11 11.1 MEASUREMENT UNCERTAINTIES.......................................................12 12.1 SAR TEST DATA SUMMARY................................................................13 14.1 SAR TEST EQUIPMENT.......................................................................14 15.1 CONCLUSION......................................................................................15 Test Report S/N: SAR.210716414.BEJ SAR Measurement Report Test Dates: July 17, 2001 FCC Part 22 Certification LGE FCC ID: BEJLST250 (Model: LST-250) © 2001 PCTEST Lab Fixed Wireless Local Loop Terminal (CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: LG ELECTRONICS, Inc. Address: Kumkang Venturetel Bldg. 1108, Bisan-Dong, Dongan-Gu, Annyang-City, Kyunggi-Do, Seoul, KOREA 431-050 Attention: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager • EUT Type: Fixed Wireless Local Loop Terminal (CDMA) • Trade Name: LGE • Model(s): LST-250 • FCC IDENTIFIER: BEJLST250 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Licensed Non-Broadcast Transmitter (TNB) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max RF. Output Power: 0.281W ERP CDMA (24.483 dBm) • Date(s) of Tests: July 17, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210716414.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210716414.BEJ SAR Measurement Report Test Dates: July 17, 2001 FCC Part 22 Certification LGE FCC ID: BEJLST250 (Model: LST-250) © 2001 PCTEST Lab Fixed Wireless Local Loop Terminal (CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. © 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA)

Peak SAR Location © 2001 PCTEST Lab LGE FCC ID: BEJLST250 (Model: LST-250) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Terminal (CDMA) Body SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01071708_ZOOM.VLT Start : 17-Jul-101 11:41:04 am End : 17-Jul-101 11:51:59 am Radio Type : LGE Model Number : LST-250 Serial Number : 1 Frequency : 824.70 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGE CDMA WLL TERMINAL CH 1013 24.0 dBm Conducted LGE CDMA WLL TERMINAL Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = 0.250, Z = 0.000 (cm) Value = 14.780 Measured Values (volts) = 1.461E-002 1.245E-002 1.013E-002 8.617E-003 7.145E-003 6.046E-003 5.259E-003 4.992E-003 4.977E-003 5.072E-003 5.154E-003 5.026E-003 4.664E-003 4.080E-003 3.406E-003 2.566E-003 2.104E-003 1.797E-003 1.876E-003 2.221E-003 2.725E-003 Calc. Voltage @ Surface (Vs) = 0.0175 Voltage @ 1.00 cm (Vt) = 0.0086 Ave. Voltage (Vs+Vt)/2 = 0.0131 Ave. SAR over 1 g (mW/g) = 1.0830 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01071708_ZOOM Start : 17-Jul-101 11:41:04 am End : 17-Jul-101 11:51:59 am LGE/LST-250/1;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 01071708_ZOOM Start : 17-Jul-101 11:41:04 am End : 17-Jul-101 11:51:59 am LGE/LST-250/1;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.223 1.193 1.162 1.131 1.101 1.070 1.039 1.009 0.978 0.947 File : 01071708_ZOOM Start : 17-Jul-101 11:41:04 am End : 17-Jul-101 11:51:59 am LGE/LST-250/1;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.223 1.193 1.162 1.131 1.101 1.070 1.039 1.009 0.978 0.947 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01071707_ZOOM.VLT Start : 17-Jul-101 11:23:22 am End : 17-Jul-101 11:38:11 am Radio Type : LGE Model Number : LST-250 Serial Number : 1 Frequency : 837.00 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGE CDMA WLL TERMINAL CH 0400 24.0 dBm Conducted LGE CDMA WLL TERMINAL Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = 0.250, Z = 0.000 (cm) Value = 14.786 Measured Values (volts) = 1.344E-002 1.156E-002 9.870E-003 8.282E-003 6.919E-003 5.814E-003 5.144E-003 4.766E-003 4.728E-003 4.826E-003 4.884E-003 4.774E-003 4.453E-003 3.841E-003 3.166E-003 2.430E-003 2.016E-003 1.755E-003 1.850E-003 2.242E-003 2.595E-003 Calc. Voltage @ Surface (Vs) = 0.0157 Voltage @ 1.00 cm (Vt) = 0.0083 Ave. Voltage (Vs+Vt)/2 = 0.0120 Ave. SAR over 1 g (mW/g) = 0.9922 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01071709_ZOOM.VLT Start : 17-Jul-101 11:55:14 am End : 17-Jul-101 12:05:10 pm Radio Type : LGE Model Number : LST-250 Serial Number : 1 Frequency : 848.31 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGE CDMA WLL TERMINAL CH 0777 24.0 dBm Conducted LGE CDMA WLL TERMINAL Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.750, Y = 0.000, Z = 0.000 (cm) Value = 11.111 Measured Values (volts) = 1.124E-002 9.321E-003 7.825E-003 6.594E-003 5.678E-003 4.864E-003 4.246E-003 3.951E-003 3.888E-003 3.912E-003 3.971E-003 3.893E-003 3.596E-003 3.233E-003 2.711E-003 2.183E-003 1.778E-003 1.623E-003 1.679E-003 1.918E-003 2.227E-003 Calc. Voltage @ Surface (Vs) = 0.0135 Voltage @ 1.00 cm (Vt) = 0.0066 Ave. Voltage (Vs+Vt)/2 = 0.0100 Ave. SAR over 1 g (mW/g) = 0.8302

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01111213_ZOOM.VLT Start : 12-Nov-101 03:11:38 pm End : 12-Nov-101 03:25:04 pm Radio Type : LGE Model Number : LST-250 Serial Number : 1 Frequency : 824.70 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 56.100 Mixture Conductivity = 0.950 Comment : LGE CDMA WLL TERMINAL CH 1013 Conducted 24.0 dBm LGE CDMA WLL TERMINAL Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.423 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Location : X = 2.000, Y = 0.500, Z = 0.000 (cm) Value = 34.593 Measured Values (volts) = 3.200E-002 1.351E-002 6.816E-003 3.703E-003 1.938E-003 1.079E-003 6.580E-004 1.088E-004 1.866E-005 3.786E-005 8.983E-004 1.145E-003 6.206E-004 0.000E+000 0.000E+000 0.000E+000 Calc. Voltage @ Surface (Vs) = 0.0374 Voltage @ 1.00 cm (Vt) = 0.0172 Ave. Voltage (Vs+Vt)/2 = 0.0273 Ave. SAR over 1 g (mW/g) = 1.0691 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g 0123456789101112131415 Z centimeters SAR Scan File : 01111213_ZOOM Start : 12-Nov-101 03:11:38 pm End : 12-Nov-101 03:25:04 pm LGE/LST-250/1;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/56.100/0.950 File : 01111213_ZOOM Start : 12-Nov-101 03:11:38 pm End : 12-Nov-101 03:25:04 pm LGE/LST-250/1;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/56.100/0.950 1.35 1.21 1.07 0.92 0.78 0.63 0.49 0.34 0.20 0.06 File : 01111213_ZOOM Start : 12-Nov-101 03:11:38 pm End : 12-Nov-101 03:25:04 pm LGE/LST-250/1;824.70MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/56.100/0.950 1.35 1.21 1.07 0.92 0.78 0.63 0.49 0.34 0.20 0.06

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification LG ELECTRONICS, Inc. Dates of Tests: July 17, 2001 Kumkang Venturetel Bldg. 1108, Bisan-Dong Test Report S/N: 22.210716413.BEJ Dongan-Gu, Annyang-City, Kyunggi-Do, Test Site: PCTEST Lab, Columbia MD U.S.A. Seol, KOREA 431-050 Attn: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager FCC ID BEJLST250 APPLICANT LG ELECTRONICS, Inc. FCC Classification: Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §22(E), §2 EUT Type: Fixed Wireless Local Loop Terminal (CDMA) Trade Name/Model(s): LGE LST-250 Tx Frequency Range: 824.70 ~ 848.31 MHz Rx Frequency Range: 869.64 ~ 893.37 MHz Max. RF Output Power: 0.281 W EIRP (24.483 dBm) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in § 2.947): I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210716415.BEJ Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION (SITE DESCRIPTION) 2 3.1 INSERTS 3 4.…
