BEJLUM850TGSM/EDGE/WCDMA Module

Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ LGCM Installation Guide  Installing the LG Connection Manager S/W 1. Run setup.exe 2. You will then see the Ericsson Wireless Module Install shield Wizard, and follow the instructions to proceed with installation. 3. When the follow screen appears, click the “Next >” button. 4. When the follow screen appears, select the “I accept the terms of the license agreement” and click the “Next > “ button. 5. It is installing. 6. When the installation is complete, press the [Finish] button and the installation message window will disappear.

LUM850T/LUM900T PCI Express Mini Card User Manual Oct.2009.R0.1.Draft LG Electronics Confidential 1. Production Overview 2 LG Electronics Confidential LG Electrics LUM850T and LUM900T HSPA PCI Express Mini Card are high‐speed packet access (HSPA) Mobile Broadband Modules. The modules support data services through HSPA, UMTS, EDGE, GPRS, and data message service. 1.1 Production Feature •Powered by ICERA E300™ chipset •Theoretical peak downlink rate of 14.4 Mbps (S/W upgradable to 21Mbps) •Theoretical peak uplink rate of 5.75 Mbps •Tri‐band HSPA and Rx Diversity 850/1900/2100 MHz (LUM850T) 900/1900/2100 MHz (LUM900T) •Quad‐band GSM/GPRS/EDGE 850/900/1800/1900 MHz (LUM850T / LUM900T) •Support Receive Equalization and Type i –improves performance in noisy & highly mobile environ •System interface : USB 2.0 (1) 4 LG Electronics Confidential PinNameTypeDescription 1NCNot Connect 23.3 VauxPWR+3.3V Power Supply 3NCNot Connect 4GNDPWRGround 5NCNot Connect 6NCNot Connect 7NCNot Connect 8UIM PWROUSIM Interface, USIM VCC Supply 9GNDPWRGround 10UIM_DATAI/OUSIM Interface, USIM IO 11NCNot Connect 12UIM_CLKOUSIM Interface, USIM Clock 13NCNot Connect 14UIM_RESETOUSIM Interface, USIM Reset 15GNDGNDGround 16NCNot Connect 17NCNot Connect 18GNDPWRGround 19NCNot Connect 20W_DISABLE#I/PUWireless Disable , Internal Pull‐up 21GNDPWRGround 22PERST#ISystem Reset 23NCNot Connect 243.3VauxPWR+3.3V Power Supply 25NCNot Connect 26GNDPWRGround 27GNDPWRGround 2.2 Pin Descriptions 5 LG Electronics Confidential PinNameTypeDescription 28NCNot Connect 29GNDPWRGround 30NCNot Connect 31NCNot Connect 32NCNot Connect 33NCNot Connect 34GNDPWRGround 35GNDPWRGround 36USB_D‐I/OUSB Data Negative 37GNDPWRGround 38USB_D+I/OUSB Data Positive 393.3VauxPWR+3.3V Power Supply 40GNDPWRNot Connect 413.3VauxPWR+3.3V Power Supply 42LED_WWAN#OLED Driver, Max 9mA 43GNDPWRNot Connect 44NCNot Connect 45NCNot Connect 46NCNot Connect 47NCNot Connect 48NCNot Connect 49NCNot Connect 50GNDPWRGround 52NCNot Connect 523.3VauxPWR+3.3V Power Supply 6 LG Electronics Confidential 2.3 Signal Descriptions 2.3.1 Power Supply Power Rail Voltage Tolerance Normal (max)Peak (max) 3.3Vaux ± 9%TBD2,750 Power is provided to the LUM850T / LUM900T through Power pins that range from 3.0V to 3.6V. (1)(1) (1) In case of the VCC is +3.3V Definitions: Peak –The highest averaged current value over any 100‐microsecond period Normal –The highest averaged current value over any 1‐second period Note: For Peak, the value of “100‐microsecond period” was derived as follows: The period of time that the current is to be measured and averaged over must be less than a single GPRS slot time. This enables measurement of the average peak current within a single GPRS slot. There are 4.6 milliseconds/GPRS frame and eight slots per GPRS frame = 575 microseconds/slot. The 100‐microsecond period < 575‐microsecond period. 2.3.2 USB Interface The USB interface is compliant with the High Speed USB 2.0 specifications. The USB interface is powered directly from host interface 3.3Vaux supply. 7 LG Electronics Confidential 2.3.3 Control Signal Interface Power is provided to the LUM850T / LUM900T through Power pins that range from 3.0V to 3.6V. Notes: 1. Applies to PERST# and W_DISABLE#. 2. As measured at the card connector pad. SymbolParameterConditionsMinMaxUnitsNotes +3.3VauxSupply Voltage3.3‐9%V2 V IH Input High Voltage2.03.6V1 V IL Input Low Voltage‐0.50.8V1 I IN Input Leakage Current0V to 3.3V‐10+10μA1 I LKG Output Leakage Current0V to 3.3V‐50+50μA1 2.3.4 USIM Interface The USIM interface pins provide the connections necessary to interface to a USIM socket located on host system. Voltage levels over this interface comply with 3GPP standards. 2.3.5 Antenna Interface The modem has two connecters for antenna interface. The one is for Main antenna and the other is for Diversity antenna(AUX). The connector type is UF.L and the path is assumed to be 50 ohms. 3. RF Specifications 8 LG Electronics Confidential 3.1 UMTS Technical Data Power Class Class 3 (+24dBm) Frequency BandBand V(850)BAND IV (900)BAND II (1900)BAND I (2100) Frequency Range (MHz) TX: 824‐849 RX: 869‐894 TX: 880‐915 RX: 925‐960 TX:1850‐1910 RX: 1930‐1990 TX:1920‐1980 RX: 2110‐2170 Duplex Spacing45MHz45MHz80MHz190MHz Advanced ReceiverType 3 Maximum Downlink Speed 384 kbps (Packet‐Switched) Maximum Uplink Speed 384 kbps (Packet‐Switched) Features FDD intra‐frequency cell reselection FDD inter‐frequency cell reselection Inter‐RAT(3G <‐> 2G) cell reselection Inter‐RAT Cell Change Order(3G <‐> 2G) Maximum Downlink Speed14Mbps Maximum Uplink Speed5.7Mbps HSDPA CategoriesCategory 10 HSUPA CategoriesCategory 6 3.2 HSPA Technical Data 9 LG Electronics Confidential 3.3 GSM Performance and Technical Characteristics ParameterGSM 850E‐GSM 900GSM 1800GSM 1900 Frequency Range (MHz) TX: 824‐849 RX: 869‐894 TX: 880‐915 RX: 925‐960 TX: 1710‐1785 RX: 1805‐1880 TX:1850‐1910 RX: 1930‐1990 Duplex spacing45MHz45MHz95MHz80MHz Channel Spacing 200kHz Number of channels 123 Carriers x 8 (TDMA) 175 Carriers x 8 (TDMA) 374 Carriers x 8 (TDMA) 299 Carriers x 8 (TDMA) Modulation GMSK 8‐PSK Power Class GSM Power Class 4(2W) : 850 / 900MHz (27dBm) GSM Power Class 1(1W) : 1800 / 19000MHz (26dBm) EDGE Power Class E2 3.4 GSM Features Supported ME SIM Lock Network 40 possible codes supported Network Subset 30 possible codes supported Service Provider 40 possible codes supported SIM / USIM 1 possible codes supported SIM Application Toolkit USIM Application Toolkit Supported(Release 99) Supported(Release 99) USSDSending USSD supported; No MMI is provided. Speech CodingNot applicable 10 LG Electronics Confidential GPRS ReleaseR99 Data Rates Multislot class 12 supported (Customer configurability to support Multi‐slot Class 10) GPRS Coding Schemes : CS‐1, CS‐2, CS‐3, CS‐4 Mode of OperationClass B Network Modes Network Mode 1 Network Mode 2 Network Mode 3 IP ConnectivityPDP type IP is supported IPv4 SMS over GPRSMobile Originated and Mobile Terminated QoSSupport for all 4 classe…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Date: Aug. 04, 2009 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. SunHee Kim of HCT Co., Ltd and hereafter referred to as HCT, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. SunHee Kim of HCT Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing HCT as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: January 15, 2010 Fed eral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJLUM850T Equip ment Class: JBP: Part 15 Class B Computing Device Peripheral To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram PERMANENT 2 Operational Descriptions 3 External Photos 4 Internal Photos 5 Test-Setup Photos SHORT-TERM 6 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee Ge neral Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

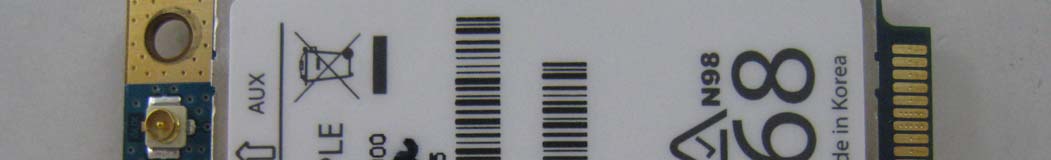

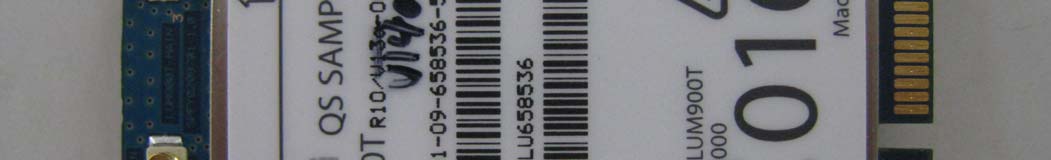

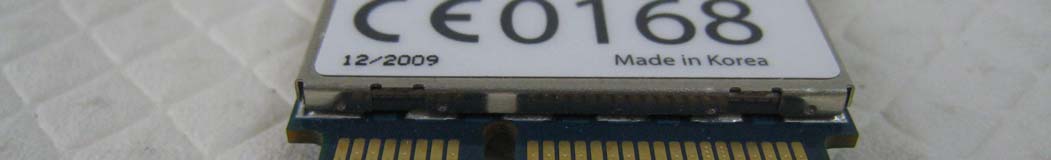

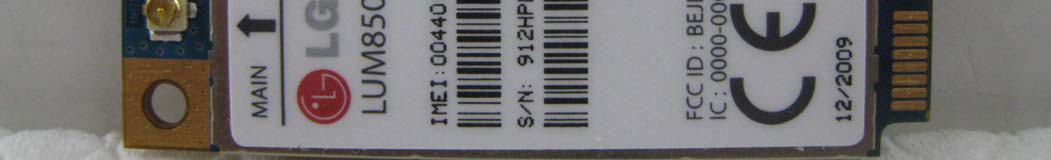

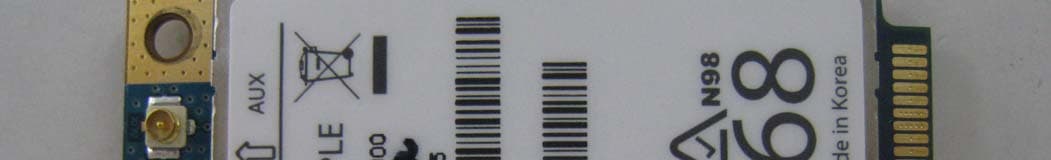

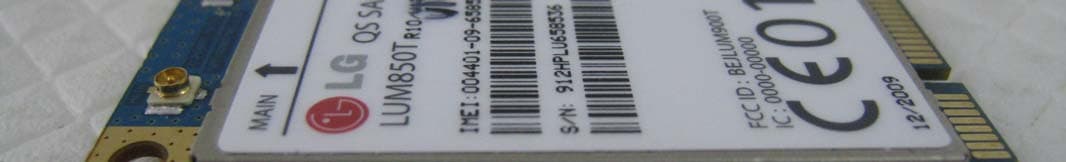

Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

※ FCC ID Label Form Note: The FCC ID label shown will be readily visible at the time of purchase. FCC ID: BEJLUM 85 0T Model: LUM- 85 0T

Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 3 INTERNAL PHOTOGRAPHS Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 3 ■ INTERNAL PHOTO Report No.: HCTR1001FR12 FCC ID: BEJLUM850T DATE: January 15, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 3 ■ INTERNAL PHOTO

FCC ID: BEJLUM850T Report No.: HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 2 of 17 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION 1.1 Product description 3 1.2 Related submittal(s)/Grant(s) 3 1.3 Tested system details 4 1.4 Cable description 5 1.5 Noise suppression parts on cable. (I/O cable) 5 1.6 Test methodology 6 1.7 Test facility 6 1.8 Frequency Range of Radiated Measurements 6 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of tested system 7 3. PRELIMINARY TEST 3.1 Conducted Emission test 8 3.2 Radiated Emission test 8 4. CONDUCTED AND RADIATED EMISSION TESTS SUMMARY 4.1 Conducted Emission test 9 4.2 Radiated Emission test 10 5. FIELD STRENGTH CALCULATION 15 6. TEST EQUIPMENT 16 7. CONCLUSION 17 ATTACHMENT : TEST SETUP PHOTOGRAPHS FCC ID: BEJLUM850T Report No.: HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 3 of 17 1. GENERAL INFORMATION 1.1 Product Description The LG Electronics Inc. Model: LUM-850T, GSM/EDGE/WCDMA Module. Its basic purpose is used for communications. It transmits from GSM 850 (824.20 ㎒ to 848.80 ㎒), GSM 1 900 (1 850.20 ㎒ to 1 909.80 ㎒), WCDMA 850 (826.40 ㎒ to 846.60 ㎒), WCDMA 1 900 (1 852.40 ㎒ to 1 907.60 ㎒) and receives from GSM 850 (869.20 ㎒ to 893.80 ㎒), GSM 1 900 (1 930.20 ㎒ to 1 989.80 ㎒), WCDMA 850 (871.40 ㎒ to 891.60 ㎒) WCDMA 1 900 (1 932.40 ㎒ to 1 987.60 ㎒). Model LUM-850T FCC ID BEJLUM850T E.U.T Type GSM/EDGE/WCDMA Module TX Frequency 824.20 ㎒ - 848.80 ㎒ (GSM 850) 826.40 ㎒ - 846.60 ㎒ (WCDMA 850) 1 850.20 ㎒ - 1 909.80 ㎒ (GSM 1 900) 1 852.4 ㎒ - 1 907.6 ㎒ (WCDMA 1 900) RX Frequency 869.20 ㎒ - 893.80 ㎒ (GSM 850) 871.40 ㎒ - 891.60 ㎒ (WCDMA 850) 1 930.20 ㎒ - 1 989.80 ㎒ (GSM 1 900) 1 932.40 ㎒ - 1 987.60 ㎒ (WCDMA 1 900) 1.2 Related Submittal(s) / Grant(s) Original submittal only. FCC ID: BEJLUM850T Report No.: HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 4 of 17 1.3 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Manufacturer Model Number/ Part Number FCC ID / DoC Connected To GSM/EDGE/ WCDMA Module LG LUM-850T BEJLUM850T Notebook PC Travel adaptor Phihong Electronics Co.,Ltd. PSA15R-050P - E.U.T JIG LG - - E.U.T, TA Notebook PC Notebook PC HP Compaq 6730b DoC E.U.T Notebook PC adaptor Hipro Electronics Co.,Ltd. PPP014Y-S - Notebook PC Mouse Microsoft Intellimouse optical USB and PS/2 compatible DoC Notebook PC FCC ID: BEJLUM850T Report No.: HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 5 of 17 1.4 Cable Description * The marked "(D)" means the data cable and "(P)" means the power cable. 1.5 Noise Suppression Parts on Cable. (I/O cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location DC in Y E.U.T End Y E.U.T End USB data N - Y Both End GSM/EDGE/ WCDMA Module USB data N - Y Both End Notebook PC USB (Mouse) Y Notebook PC End Y Notebook PC End Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (M) DC in Y - (P)1.7 USB data - Y (D)1.2 GSM/EDGE/ WCDMA Module USB data - Y (D)1.8 Notebook PC USB (Mouse) - Y (D)1.8 FCC ID: BEJLUM850T Report No.: HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 6 of 17 1.6 Test Methodology Both Conducted and Radiated testing was performed according to the procedures in ANSI C63.4/2003. Radiated testing was performed at an antenna to E.U.T distance of 3 m 1.7 Test Facility The open area test site and conducted measurement facility used to collect the radiated data are located at the 254-1, Maekok-ri, Hobup-myun, Ichon-si, Kyoungki-do, 467-701, KOREA. The site is constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated June 10, 2009. (Registration Number: 90661) 1.8 Frequency Range of Radiated Measurements An unintentional radiator, including a digital device, the spectrum shall be investigated from the lowest radio frequency signal generated or used in the device, without going below the lowest frequency for which a Radiated Emission limit is specified, up to the frequency shown in the following table Highest frequency generated or used in the device or on which the device operates or tunes (㎒) Upper frequency of measurement range (㎒) Below 1.705 30 1.705 to 108 1 000 108 to 500 2 000 500 to 1 000 5 000 Above 1 000 5 th harmonic of the highest frequency or 40 ㎓, whichever is lower FCC ID: BEJLUM850T Report No.: HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 7 of 17 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of Test System Power Line Conducted test : E.U.T was connected to LISN, all other peripheral equipment were connected to another LISN. Preliminary Power Line Conducted Emission tests were performed by using the procedure in ANSI C63.4/2003 7.2.3 to determine the worst operating conditions. Radiated Emission test : Preliminary Radiated Emission tests were performed by using the procedure in ANSI C63.4/2003 8.3.1.1 to determine the worst operating condition. Final Radiated Emission tests were performed at 3 m open area test site. [Configuration of Tested System] Power Line: 110VAC Non-Conductive Table Mouse Notebook PC adaptor Notebook PC TA JIG E.U.T FCC ID: BEJLUM850T Report No.: HCTE1001FE22 Date: January 27…

Text truncated - open the document above for the full version.

FCC ID: BEJLUM850T Report No. HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 1 of 5 ATTACHMENT - TEST SETUP PHOTOS - FCC ID: BEJLUM850T Report No. HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 2 of 5 1. CONDUCTED MEASUREMENT PHOTOS FCC ID: BEJLUM850T Report No. HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 3 of 5 FCC ID: BEJLUM850T Report No. HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 4 of 5 2. RADIATED MEASUREMENT PHOTOS FCC ID: BEJLUM850T Report No. HCTE1001FE22 Date: January 27, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 5 of 5
