BEJLX5550Tri-Mode Dual-Band Analog/PCS CDMA Phone

- 1 - 7.0 LG- User Guide Ver. 0.1 2003.2.28 - 2 - Unlocking Your Phone.......................................................................4 View of Phone...................................................................................4 Installing and Removing the Battery...................................................5 Turning Your Phone On and Off.........................................................5 Main Menu........................................................................................6 Power Save Mode..............................................................................6 Menu Navigation...............................................................................6 Entering Characters Using the Keypad(T9).........................................7 Display Icons.....................................................................................8 Antenna.............................................................................................8 Signal Strength..................................................................................9 Battery Capacity................................................................................9 Using the AC Adapter........................................................................9 Using Your Phone..........................................................................................................................................................9 Placing a Call..................................................................................10 Roaming With Your Sprint PCS Phone TM ..........................................10 Calling Experience...........................................................................10 Correcting Dialing Mistakes.............................................................11 In Call Options................................................................................12 Incoming Call Notification...............................................................12 Answering Calls..............................................................................13 Displaying Your Sprint PCS Phone Number(phone book – not functioning).....................................................................................13 Setting the Ring Volume to Vibrate...................................................14 Getting the Most From Sprint PCS Service............................................................................................................14 New Massage Alerts........................................................................14 Retrieving Page/Text Messages........................................................15 Page/Text Message Storage..............................................................16 Roaming on to Other Service Providers............................................16 (Call History- not functioning).........................................................17 Page/Text Messages.........................................................................17 Erasing Page/Text Messages.............................................................17 Sounds............................................................................................17 Adjusting the Volume.......................................................................17 Selecting Ring Types for Voice Calls................................................18 - 3 - Tone Length....................................................................................19 Display Menu...............................................................................................................................................................20 Security...........................................................................................20 Locking Your Phone.........................................................................20 Unlocking Your Phone.....................................................................20 Changing the Lock Code..................................................................21 Answering Your Phone with the Hands-Free Car Kit.........................21 For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone - 4 - Unlocking Your Phone If you received your Sprint PCS LX5550 in the mail, you may need to unlock it before making calls. 1. Press the END/PWR Switch for 23 secs. 2. Highlight Unlock and press .…

Text truncated - open the document above for the full version.

March 10. 2003 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : LG Electronics Inc.. Tri-band Quad-mode CDMA Phone (Amps/Cellular/PCS/GPS) Part 22, 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJLX5550) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE March 10. 2003 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject : LG Electronics Inc.. FCC ID: BEJLX5550 FCC E911 Requirements Per 22.921 Gentlemen: LG Electronics, Inc. hereby certifies that the analog cellular telephone(FCC ID : BEJLX5550), using the Automatic A/B Roaming–intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules, This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to he handled by other analog carriers. Should you any have questions or comments concerned the above, please contact the undersined. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE March 10. 2003 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject : LG Electronics Inc.. FCC ID: BEJLX5550 User’ s Manual RF Exposure Warning Statement Gentlemen: LG Electronics, Inc. hereby conforms that the attached RF exposure warning page will be ready visible to the user, and will be placed at a prominent location in the front of user’ s manual. If you have any questions or comments concerned the above, please do not hesitate to contact PCTEST Lab. or me at (410)290-6652 Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc.

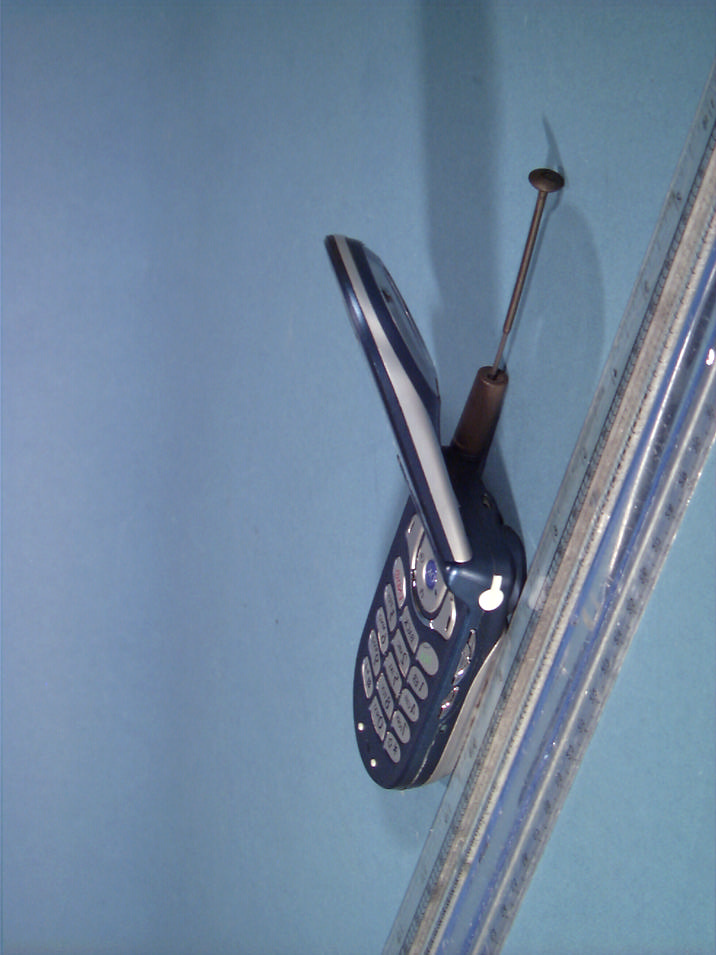

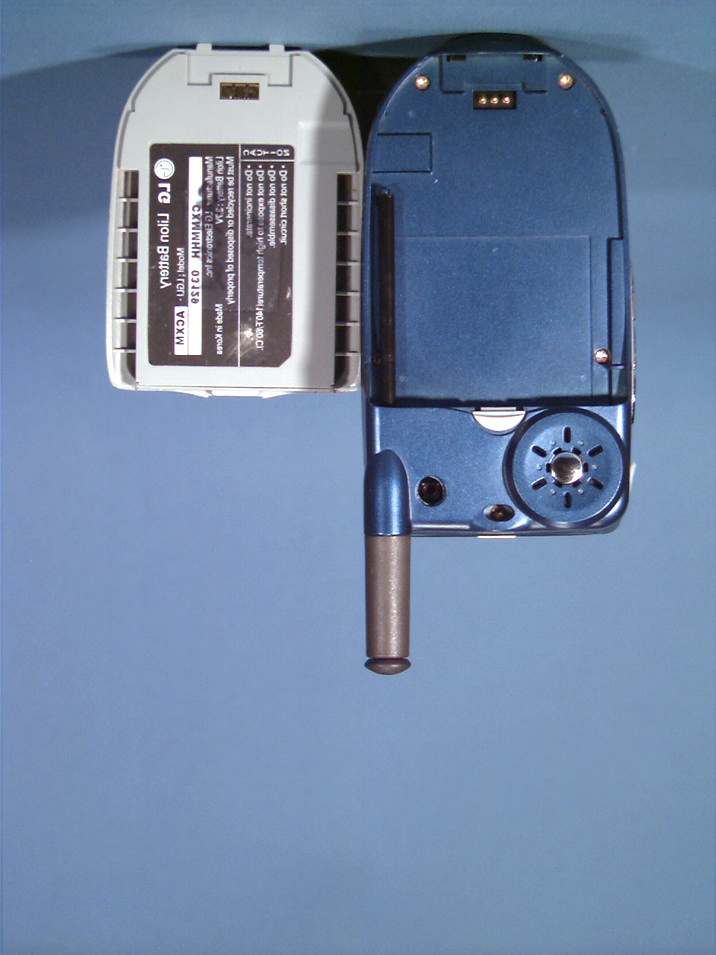

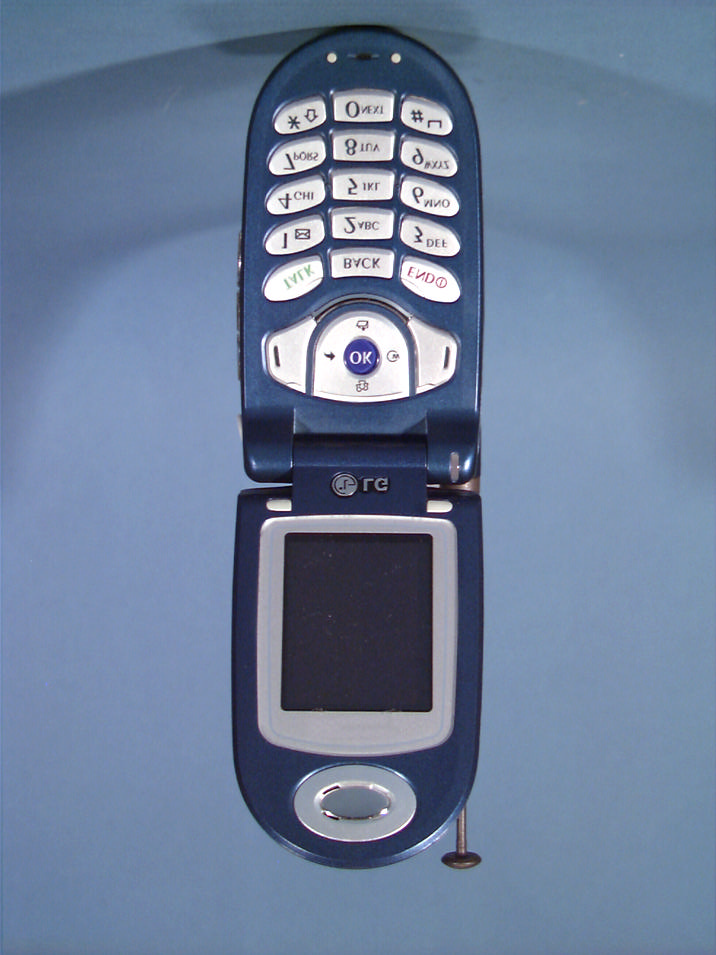

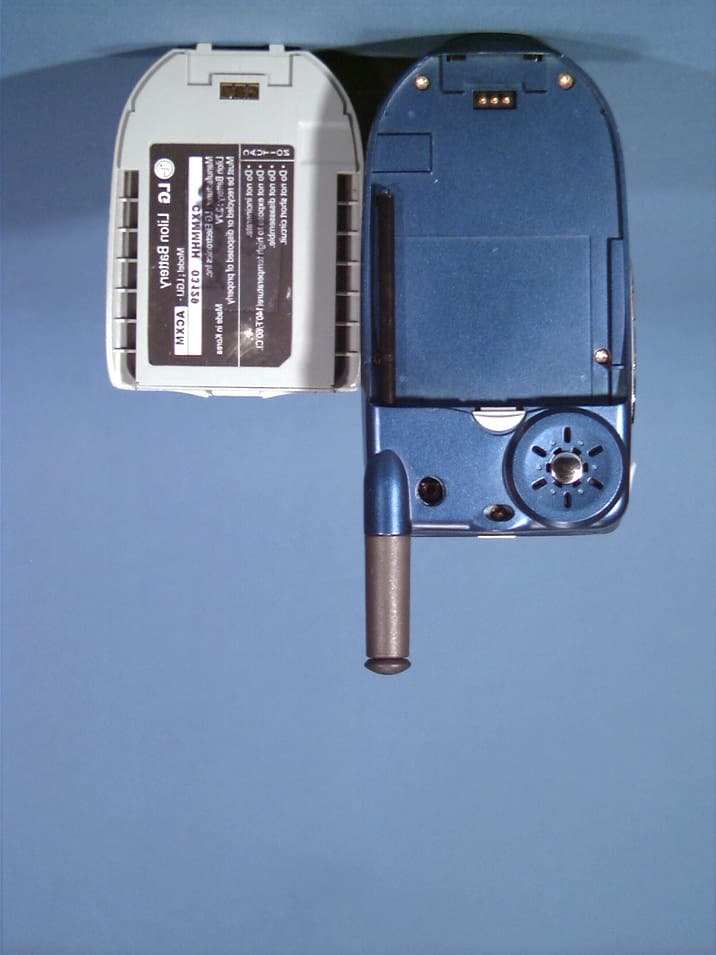

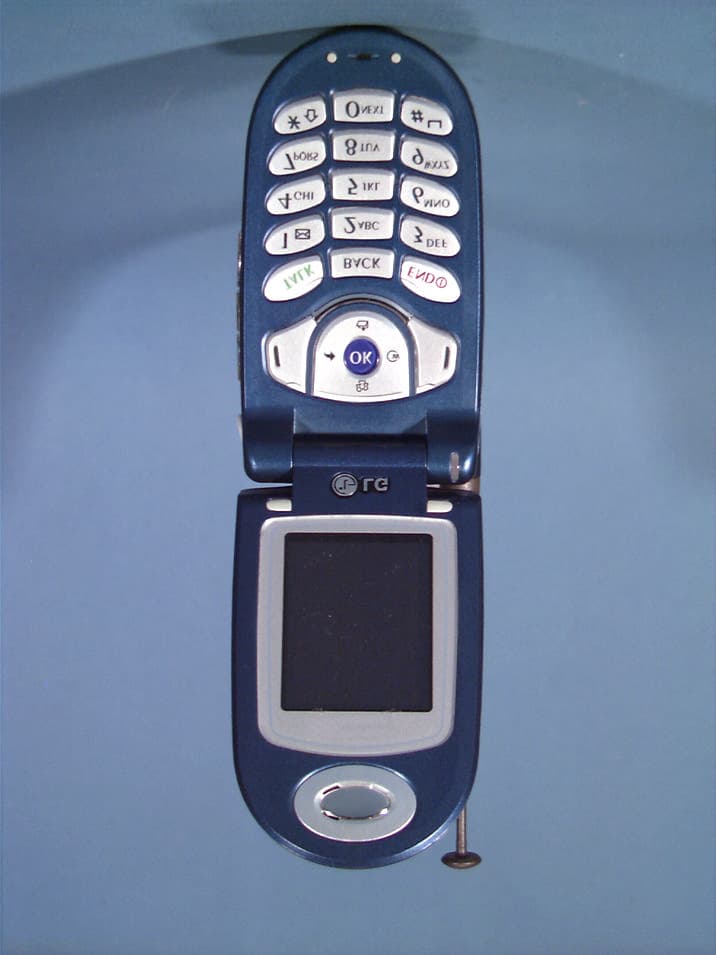

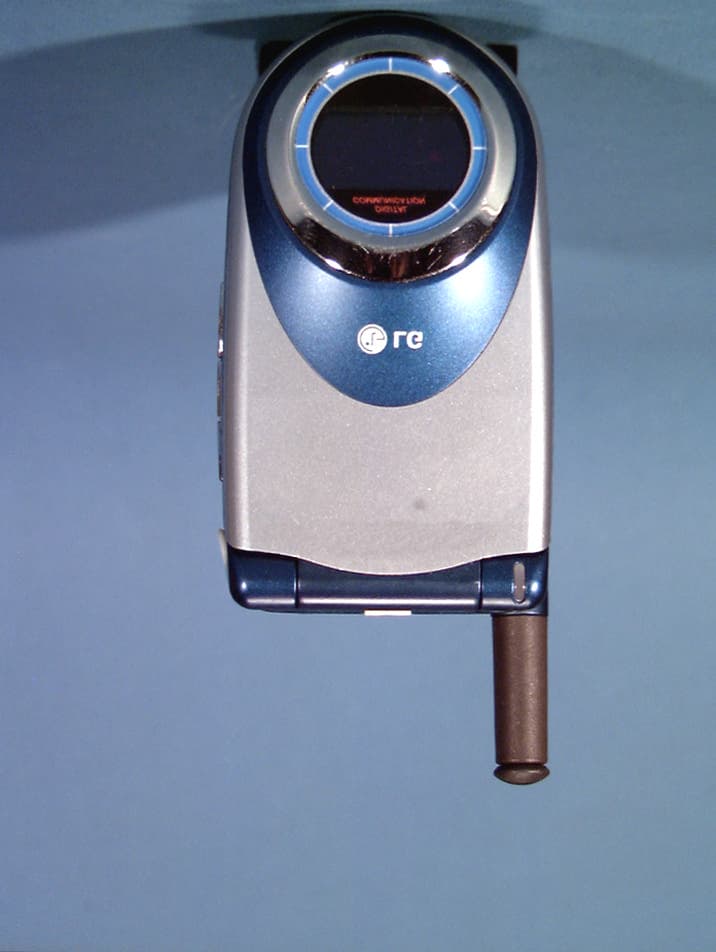

LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. 12 03-3-7 12/12 2.983 (e) Standard Test Conditions: 2. 983 (f) Equipment Identification: 2. 983 (g) Photograph : “Refer to additional documents” 2. 985 RF Power Output: “Refer to additional documents” 2. 987 Modulation Characteristics: “Refer to additional documents” 2. 989 Occupied Bandwidth “Refer to additional documents” 2. 991 Spurious Emissions at Antenna Terminals: “Refer to additional documents” 2. 993 Field Strength of Spurious Radiation: “Refer to additional documents” 2. 995 Frequency stability: “Refer to additional documents” 2. 997 Frequency spectrum to be investigated “Refer to additional documents” LG Electronics Inc. LGE Model No . LG-LX5550 FCC ID : BEJLX5550 S/N : Made in Korea

LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230310135.BEJ Test Dates: Mar. 10-13 & 21, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: BEJLX5550 Page 1 of 35 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: Mar. 10-13 & 21, 2003 Communication Terminal Research Lab Test Report S/N: SAR.230310135.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia MD Seoul, KOREA 153-023 Attn: E.S. Park, Research Engineer FCC ID: BEJLX5550 APPLICANT: LG ELECTRONICS, INC. EUT Type: Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.399 W ERP AMPS (26.013 dBm) / 26.0 dBm Conducted 0.254 W ERP CDMA (24.053 dBm) / 24.0 dBm Conducted 0.303 W EIRP PCS CDMA (24.801 dBm) / 24.0 dBm Conducted Max. SAR Measurement: 1.210 W/kg AMPS Head SAR; 0.650 W/kg AMPS Body SAR; 0.798 W/kg CDMA Head SAR; 0.652 W/kg CDMA Body SAR; 0.756 W/kg PCS CDMA Head SAR; 0.999 W/kg PCS CDMA Body SAR Trade Name/Model(s): LG-LX5550 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230310135.BEJ PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230310135.BEJ Test Dates: Mar. 10-13 & 21, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: BEJLX5550 Page 2 of 35 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION ..........................................................................................3 SAR DEFINITION .........................................................................................3 2. SAR MEASUREMENT SETUP...........................................................................4 Robotic System..............................................................................................4 System Hardware...........................................................................................4 System Electronics..........................................................................................4 3. DASY3 E-FIELD PROBE SYSTEM......................................................................5 Probe Measurement System.............................................................................5 Probe Specifications.......................................................................................5 4. Probe Calibration Process................................................................................6 Dosimetric Assessment Procedure....................................................................6 Free Space Assessment....................................................................................6 Temperature Assessment.................................................................................6 5. PHANTOM & EQUIVALENT TISSUES..............................................................7 SAM Phantom................................................................................................7 Brain & Muscle Simulating Mixture Characterization..........................................7 Device Holder for Transmitters........................................................................7 6. TEST SYSTEM SPECIFICATIONS.......................................................................8 Automated Test System Specifications...............................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................9 Measurement Procedure.................................................................................9 Specific Anthropomorphic Mannequin (SAM) Specifications...............................9 8. DEFINITION OF REFERENCE POINTS............................................................10 EAR Reference Point.....................................................................................10 Handset Reference Points..............................................................................10 9. TEST CONFIGURATION POSITIONS.............................................................11 Positioning for Cheek/Touch.....................................................................…

Text truncated - open the document above for the full version.

LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550

PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22/24.230310134.BEJ FCC Part 24/22Test Date:03.10.2003 EUT:LGE Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) Model:LG-LX5550 FCC ID:BEJLX5550 REFERENCE:1 kHz = 0 dB Modulation Limiting 0 2000 4000 6000 8000 10000 12000 14000 -35-30-25-20-15-10-50 Audio Input Level (dBV) Deviation (Hz) 3KHz 1KHz 300Hz LGE Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) FCC ID: BEJLX5550 PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22/24.230310134.BEJ FCC Part 24/22Test Date:03.10.2003 EUT:LGE Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) Model:LG-LX5550 FCC ID:BEJLX5550 REFERENCE:1 kHz = 0 dB Frequency Response of Audio Low Pass Filter -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 10k1k 100k LGE Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) FCC ID: BEJLX5550 PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22/24.230310134.BEJ FCC Part 24/22Test Date:03.10.2003 EUT:LGE Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) Model:LG-LX5550 FCC ID:BEJLX5550 REFERENCE:1 kHz = 0 dB Transmitter Audio Frequency Response -60.00 -50.00 -40.00 -30.00 -20.00 -10.00 0.00 10.00 20.00 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 100 1k 10k 100k LGE Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) FCC ID: BEJLX5550

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230310134.BEJ Test Dates: Mar. 10-13 & 21, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: BEJLX5550 Page 1 of 31 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification LG ELECTRONICS, INC. Dates of Tests: Mar. 10-13 & 21, 2003 Communication Terminal Research Lab Test Report S/N: 22/24.230310134.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia MD Seoul, KOREA 153-023 Attn: E.S. Park, Research Engineer FCC ID BEJLX5550 APPLICANT LG ELECTRONICS, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §22.901(d); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) Model: LG-LX5550 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 – 848.31MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 – 893.31MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.399 W ERP AMPS (26.013 dBm) /0.254 W ERP CDMA (24.053 dBm) 0.303 W EIRP PCS CDMA (24.801 dBm) Max. SAR Measurement: 1.210 W/kg AMPS Head SAR; 0.650 W/kg AMPS Body SAR; 0.798 W/kg CDMA Head SAR; 0.652 W/kg CDMA Body SAR; 0.756 W/kg PCS CDMA Head SAR; 0.999 W/kg PCS CDMA Body SAR Emission Designator(s): 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: 1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230310134.BEJ PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230310134.BEJ Test Dates: Mar. 10-13 & 21, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: BEJLX5550 Page 2 of 31 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10-11 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 12 7.1 RADIATED MEASUREMENTS 13-21 8.1 FREQUENCY STABILITY 22-27 9.1 PLOTS OF EMISSIONS 28 10.1 LIST OF TEST EQUIPMENT 29 11.1 SAMPLE CALCULATIONS 30 12.1 CONCLUSION 31 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT DATA ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230310134.BEJ Test Dates: Mar. 10-13 & 21, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: BEJLX5550 Page 3 of 31 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, INC. Communication Terminal Research Lab Address: 459-9, Kasan-dong, Keumchun-Ku Seoul, KOREA 153-023 Attention: E.S. Park, Research Engineer • FCC ID: BEJLX5550 • Quantity: Quantity production is planned • Emission Designators: 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) • Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.399 W ERP AMPS (26.013 dBm) /0.254 W ERP CDMA (24.053 dBm) 0.303 W EIRP PCS CDMA (24.801 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS CDMA Phone • Modulation(s): AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H), §22.901(d) • Dates of Tests: Mar. 10-13 & 21, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.230310134.BEJ PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230310134.BEJ Test Dates: Mar. 10-13 & 21, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: BEJLX5550 Page 4 of 31 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest…

Text truncated - open the document above for the full version.

LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550 LGE FCC ID: BEJLX5550 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: LG-LX5550
