BEJM17LTE Modem

M17 Device description Version 0.1 – Aug 26th 2009 Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. 1.1 Feature Copyright Copyright © 2009 LG Electronics Inc. All Rights Reserved. Though every care has been taken to ensure the accuracy of this document, LG Electronics Inc. cannot accept responsibility for any errors or omissions or for any loss occurred to any person, whether legal or natural, from acting, or refraining from action, as a result of the information contained herein. Information in this document is subject to change at any time without obligation to notify any person of such changes. LG Electronics Inc. may have patents or patent pending applications, trademarks copyrights or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give the recipient or reader any license to these patents, trademarks copyrights or other intellectual property rights. No part of this document may be communicated, distributed, reproduced or transmitted in any form or by any means, electronic or mechanical or otherwise, for any purpose, without the prior written permission of LG Electronics Inc. The document is subject to revision without further notice. All brand names and product names mentioned in this document are trademarks or registered trademarks of their respective owners. 1.1. Feature Caution To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) between the equipment and the body must be maintained. <UE> <User> At least 20 cm (8 inches) M4 1.1 Feature About This Document Revision History Version Date Comment Author 0.1 2009-04-07 Initial Draft Sang Ha Park References 1.1. Feature Contents 1 General Description.........................................................................................6 1.1 Feature................................................................................................................................................7 2 Mechanical description................................................................................10 2.1 Dimension......................................................................................................................................... 11 3 Functional description..................................................................................12 3.1 External connector description......................................................................................................13 3.2 External RF connector description................................................................................................14 3.3 Antenna description........................................................................................................................15 3.4 External Power description.............................................................................................................16 3.5 Battery description..........................................................................................................................17 1.1 Feature 1 General Description 1.1. Feature 1.1 Feature This document describes briefly the board level operations, key features and the environment of the M17 Platform. The purpose of this platform is the verification of LG LTE ASIC, namely ‘L1000’, and the evaluation of LG UE system performance. The further details about the characteristics and functions of L1000 are available on other documents. <Table 1. M17 Device Feature> Specification LTE only Remark SW Date LTE USB 2.0 High Speed Interface Spec. External port Micro USB 1 Port LTE 3GPP Rel. 8 (Dec. 2008) Standard(SW ver.) LTE 3GPP Band 17 Band support LTE L1000 (by LGE) Main chipset LTE DL 50Mbps / UL 25Mbps (Category2) Max. Data rate GPS Not Support General Battery Support Tx Diversity LTE Not support UE Antenna Selection will not be supported Max. Tx Power LTE 23 dBm At antenna port HW Transmitter Band Width LTE 10MHz 1.1 Feature Modulation Method LTE Up to 16QAM Rx Diversity LTE Support MIMO LTE 2x2 MIMO Adaptive switching between downlink Transmit Diversity and SU MIMO Band width LTE 10MHz Receiver Modulation Method LTE Up to 64QAM LTE USB Ethernet Interface protocol LTE 3 Ports (Data, DM, Control) USB Driver Downloading Tool Support Downloading tool for field upgrade through USB port Interface DM (Diagnostic Monitor) Support LGE tool for LTE Prefered system selection Support 'LTE only' mod…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: November 9, 2009 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJM17 Equipment Class: TNB: Licensed Non-Broadcast Station Transmitter To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager L G Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

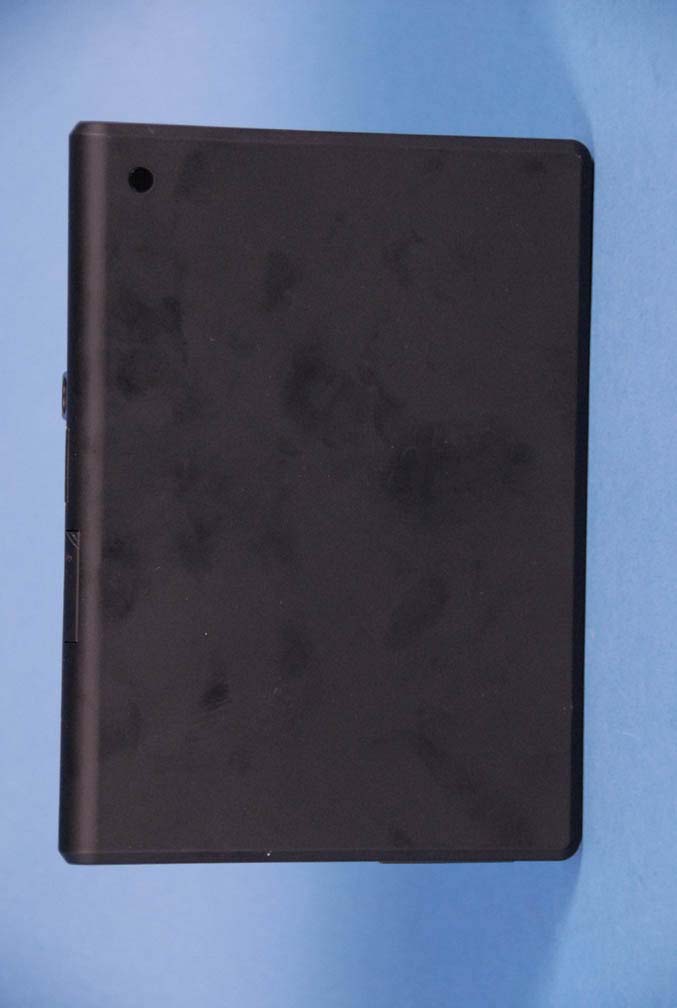

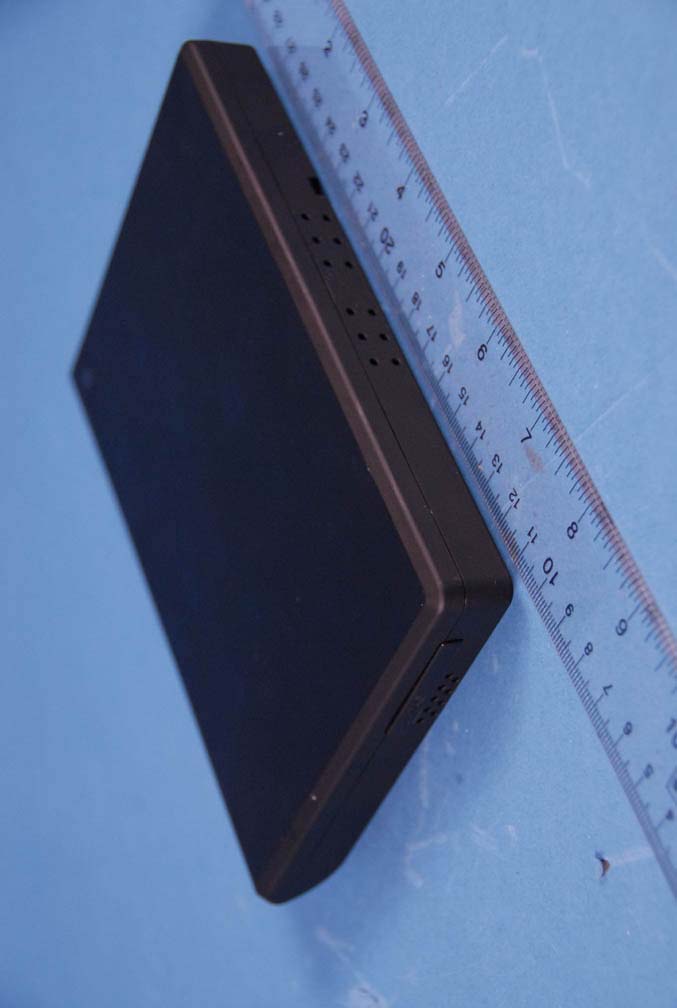

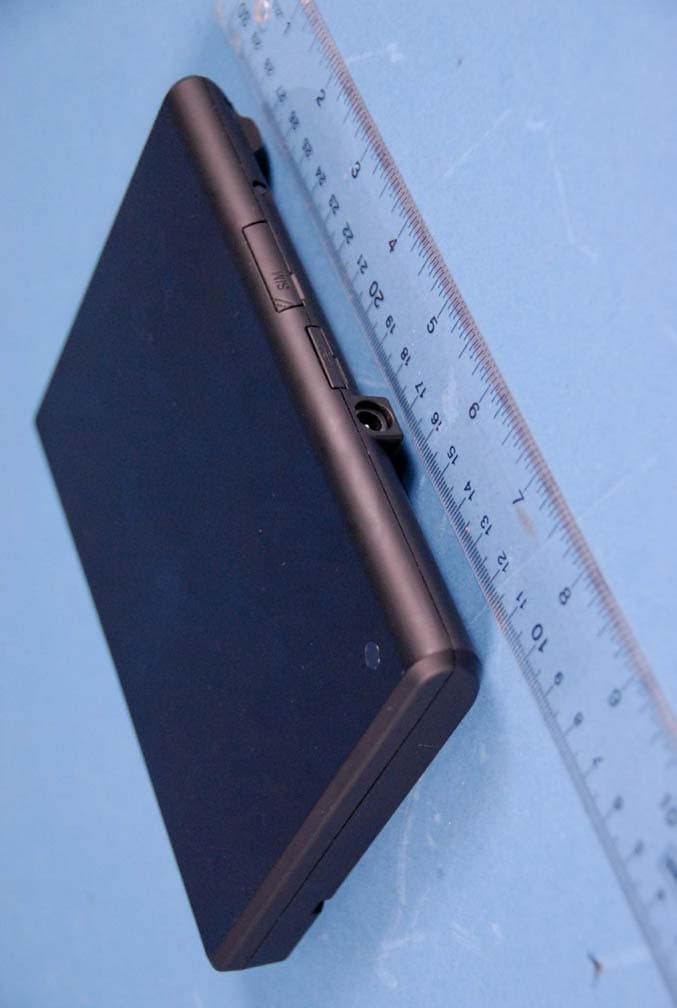

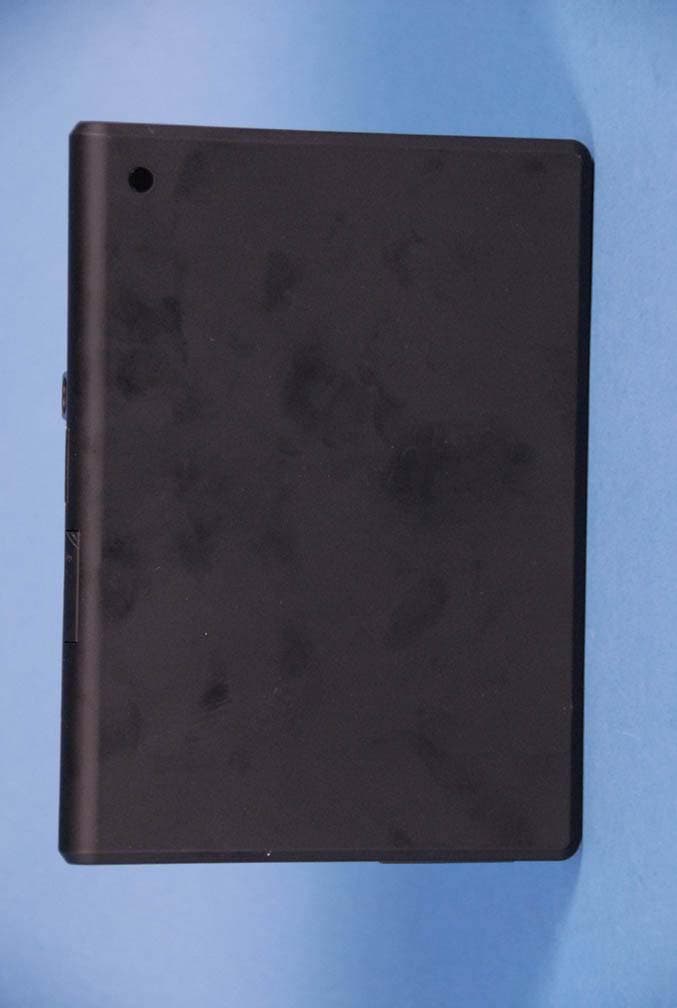

LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 External Photos EUT Type: LTE USB Modem Page 1 of 4 © 2009 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 External Photos EUT Type: LTE USB Modem Page 2 of 4 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 External Photos EUT Type: LTE USB Modem Page 3 of 4 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 External Photos EUT Type: LTE USB Modem Page 4 of 4 © 2009 PCTEST Engineering Laboratory Inc.

M17 BEJM17

LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 1 of 13 © 2009 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 2 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 3 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 4 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 5 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 6 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 7 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 8 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 9 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 10 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 11 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 12 of 13 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Internal Photos EUT Type: LTE USB Modem Page 13 of 13 © 2009 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: BEJM17 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0911172136.BEJ December 7 - 16, 2009 LTE USB Modem Page 1 of 28 © 2009 PCTEST Engineering Laboratory, Inc. REV 1.0LTE 06/03/09 Applicant Name: Date of Testing: LG Electronics USA December 7 - 16, 2009 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0911172136.BEJ FCC ID: BEJM17 APPLICANT: LG ELECTRONICS USA Application Type: Certification FCC Classification: Licensed Non-Broadcast Transmitter (TNB) FCC Rule Part(s): §2; §27 EUT Type: LTE USB Modem Model(s): M17 Tx Frequency Range: 709 - 711MHz (LTE) Max. RF Output Power: 0.198 W ERP (BPSK) (22.96 dBm) 0.2 W ERP (QPSK) (23.01 dBm) 0.198 W ERP (16-QAM) (22.97 dBm) Emission Designator(s): 9M99G7D (BPSK) / 8M70G7D (QPSK) / 8M71D7W (16-QAM) Test Device Serial No.: identical prototype [S/N: #46] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 27. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 27 Certification Reviewed by: FCC ID: BEJM17 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0911172136.BEJ December 7 - 16, 2009 LTE USB Modem Page 2 of 28 © 2009 PCTEST Engineering Laboratory, Inc. REV 1.0LTE 06/03/09 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT..................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.3 BLOCK C FREQUENCY RANGE ........................................................................................................6 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.5 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 3.6 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 7 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................8 5.0 SAMPLE CALCULATIONS ..............................................................................................................9 6.0 TEST RESULTS .............................................................................................................................10 6.1 SUMMARY......................................................................................................................................... 10 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 11 6.3 LTE RADIATED MEASUREMENTS .................................................................................................. 12 6.4 LTE FREQUENCY STABILITY MEASUREMENTS........................................................................... 14 7.0 PLOT(S) OF EMISSIONS ..............................................................................................................16 8.0 CONCLUSION................................................................................................................................28 Reviewed by: FCC ID: BEJM17 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0911172136.BEJ December 7 - 16, 2009 LTE USB Modem Page 3 of 28 © 2009 PCTEST Engineering Laboratory, Inc. REV 1.0LTE 06/03/09 MEASUREMENT REPORT FCC Part 27 §2.1033 General Information APPLICANT: LG Electronics USA APPLICANT ADDRESS: 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 6660-B Dobbin Road, Columbia, MD 21045 USA FCC RULE PART(S): §2; §27 BASE MODEL: M17 FCC ID: BEJM1…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJM17 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0911172138.BEJ December 15, 2009 LTE USB Modem Page 1 of 6 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: LG Electronics USA December 15, 2009 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0911172138.BEJ FCC ID: BEJM17 APPLICANT: LG Electronics USA EUT Type: LTE USB Modem FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: BEJM17 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0911172138.BEJ December 15, 2009 LTE USB Modem Page 2 of 6 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 5 2.0 CONCLUSION..................................................................................................................................6 Reviewed by: FCC ID: BEJM17 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0911172138.BEJ December 15, 2009 LTE USB Modem Page 3 of 6 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of LG Electronics USA to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The LGE LTE USB Modem Model: M17 is a device containing a 700MHz LTE transmitter. For this MPE evaluation the device is set to transmit from the antenna of each transmitter and the RF exposure of each transmitter is evaluated individually. EUT: Model: M17 Grantee: LG Electronics USA FCC ID: BEJM17 Tx Frequency Range: 709 – 711MHz (E-UTRA Band 17) Maximum Radiated Power: 23.01dBm ERP (QPSK Modulation) Reviewed by: FCC ID: BEJM17 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0911172138.BEJ December 15, 2009 LTE USB Modem Page 4 of 6 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile…

Text truncated - open the document above for the full version.

LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Test Set-Up Photos EUT Type: LTE USB Modem Page 1 of 2 © 2009 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG ELECTRONICS INC. FCC ID: BEJM17 Model: M17 Test Set-Up Photos EUT Type: LTE USB Modem Page 2 of 2 © 2009 PCTEST Engineering Laboratory Inc.
