BEJM4710CELCD MONITOR

EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification APPENDIX H : USER’S MANUAL Make sure to read the Important Precautionsbefore using the product. Keep the User's Guide(CD) in an accessible place for furture reference. See the label attached on the product and give the information to your dealer when you ask for service. M4710CE User’s Guide 1 Safety Precautions Please read these safety precautions carefully before using the product. If you ignore the caution message, you may be slightly injured or the product may be damaged If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. Warning Caution Precautions in installing the Product Keep away from heat sources like electrical heaters. - Electrical shock, fire, malfunction or deformation may occur. Keep the packing anti-moisture material or vinyl packing out of the reach of children. - Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children. Do not put heavy objects on the product or sit upon it. - If the product collapses or is dropped, you may be injured. Children must pay particular attention. Do not leave the power or signal cable unattended on the pathway. - The passerby can falter, which can cause electrical shock, fire, product breakdown or injury. Install the product in a neat and dry place. - Dust or moisture can cause electrical shock, fire or product damage. If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the service center. - If you continue to use without taking proper measures, electrical shock or fire can occur. If you dropped the product or the case is broken, turn off the product and unplug the power cord. - If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service center. Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen. - It can cause injury to human, problem to product and damage the display. Make sure the product ventilation hole is not blocked. Install the product in a suitably wide place (more than 10cm from the wall) - If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat. Do not block the ventilation hole of the product by a tablecloth or curtain. - The product can be deformed or fire can break out due to overheating inside the product. Install the product on a flat and stable place that has no risk of dropping the product. - If the product is dropped, you may be injured or the product may be broken. Install the product where no EMI occurs. Keep the product away from direct sunlight. - The product can be damaged. Warning Caution 2 2 Safety Precautions Electrical Power Related Precautions Make sure to connect the power cable to the grounded current. - You may be electrocuted or injured. Use the rated voltage only. - The product can be damaged, or you may be electrocuted. In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous. - It can cause electric shock. Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet. Use a power bar with a grounding terminal designed for exclusive use with the computer. - A fire can break out due to overheating. Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. - You may be electrocuted due to excess moisture. If you don’t intend to use the product for a long time, unplug the power cable from the product. - Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire. Fix the power cable completely. - If the power cable is not fixed completely, a fire can break out. Hold the plug when pulling out the power cable. Do not bend the power cord with excessive force or put heavy objects on the power cord. - The power line can be damaged, which may cause electric shock or fire. Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. - You may be electrocuted. The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation. Main power breaker is the power cord and this breaking device must be located at a location where it is easy to operate. Do not unplug the power cord while the product is in use. - Electrical shock can damage the product. Warning Caution Precautions in Moving the Product Warning Make sure to turn off the product. - You may be electrocuted or the product can be damaged. Make sure to remove all cables before moving the product. - You may be electrocuted or the product can be damaged. 3 Safety Precautions Caution Precautions in Using the Product Warning Do not put or store inflammable substances near the product. - There is a danger of explosion or fire due to careless handling of the inflammable substances. When cleaning the brown tube surface, unplug the power cord and scrub with soft cloth to prevent scratching. Do not clean with a wet cloth. - The water can sink into the product, which can cause electric shock or serious malfunction. Take a rest from time to time to protect your vision. Keep the product clean at all times. Take a comfortable and natural position when working with a product to relax the muscles. Take a regular break when working with a product for a long time. Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scr…

Text truncated - open the document above for the full version.

EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM M4710C Block Diagram ANX9021 (HDMI RX'er) RXC±/RX0± RX1±/RX2± FLI8662 (Cortez Advanced) NTP2000 (Digital Audio Processor) TAS5122 (D-CLASS AMP) NJU26901 (Audio Delay) LC FILTER OUT1A OUT1B OUT2A OUT2B MSP4440K (Audio Processor) AT49BV160 (Flash Memory) HY5DU281622ETP (DDR SDRAM) HY5DU281622ETP (DDR SDRAM) CXA2040AQ (Video Switch) LA7217M (Video Sync Seperator) 74HC14D (Schmitt Trigger Inverter) CM2021 (ESD Protector) ICL3232C (RS232C) AD8009 (OP AMP) PC R/G/B PC H/V SYNC PC R/G/B OUT PC H/V SYNC OUT PC H/V SYNC IR&LED Board 32" / 37" / 42" LCD Panel KEY1 / KEY2 PREAMP IR WIRE CONTROL RXD / TXD RXC±/RX0± RX1±/RX2± 24 bit SYNC_DE V / Y_OUT C_OUT I2S Delayed I2S Y/C CVBS CVBS OUT AV Audio IN Component Audio IN PC Audio IN AV Audio OUT Component 1,2 Y Pb Pr WIRE CONTROL RS-232C IN / OUT HDMI PC RGB IN / OUT Component 1, 2 IN PC Audio Component 1, 2 Audio IN CVBS IN / OUT CVBS Audio IN / OUT S-Video 27MHz 19.6608MHz 18.432MHz 500KHz KEY CONTROL B'D

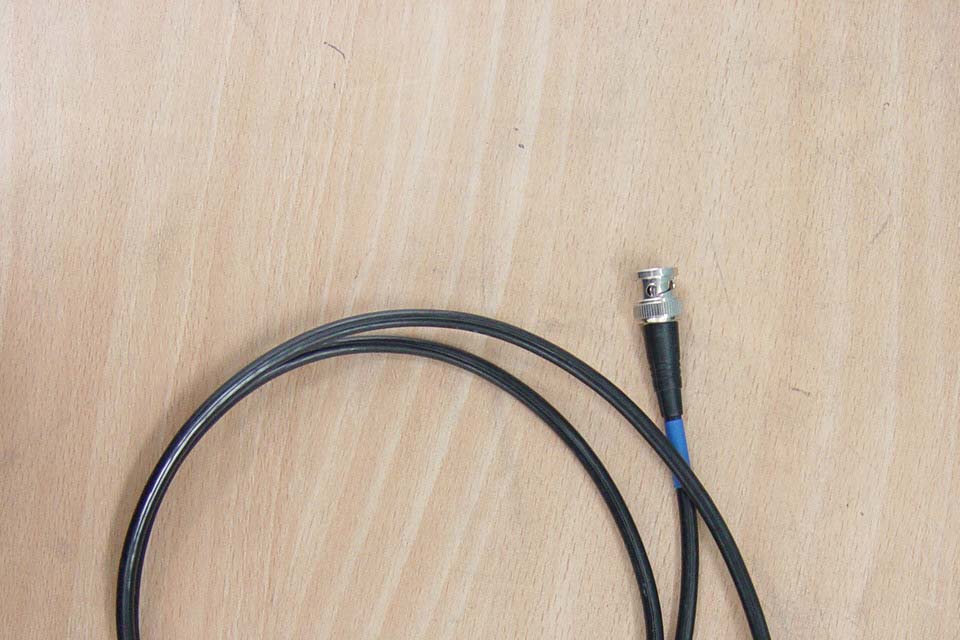

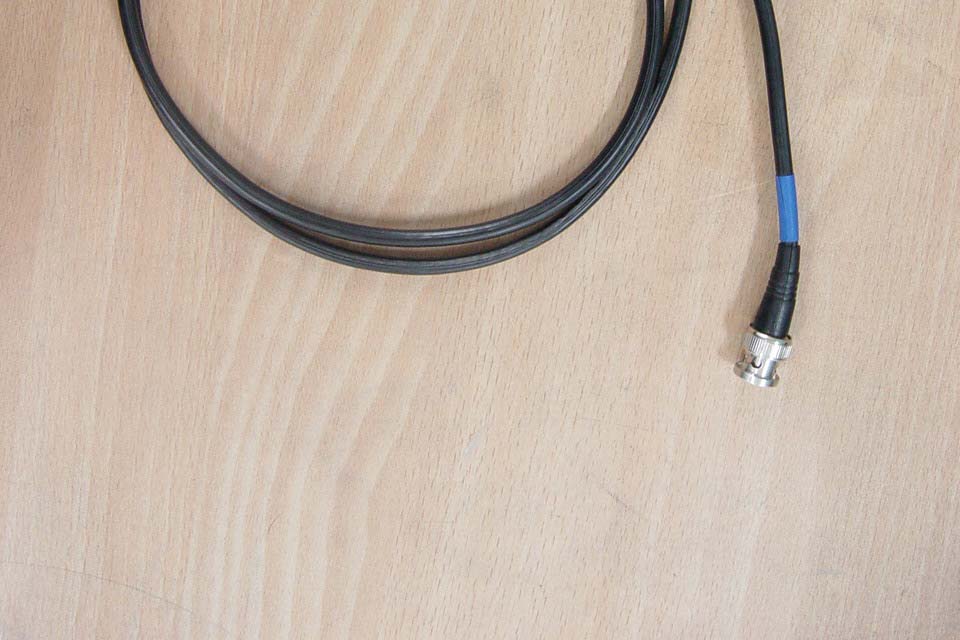

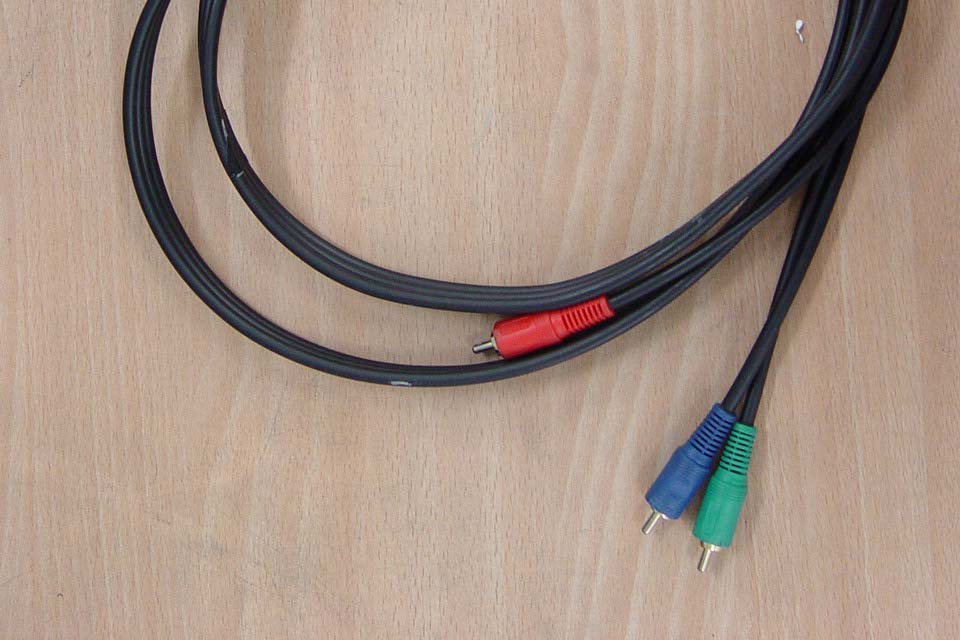

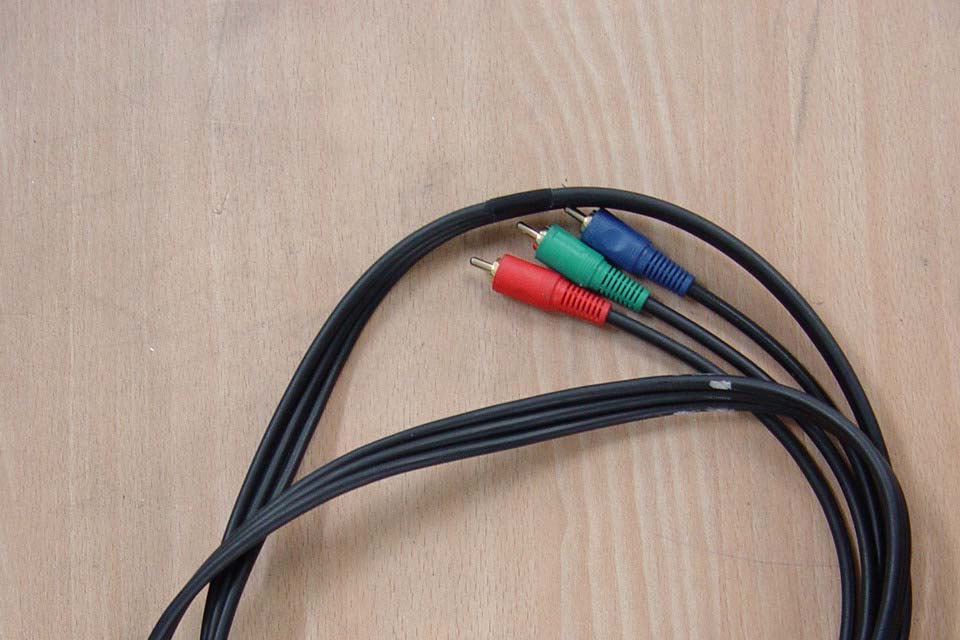

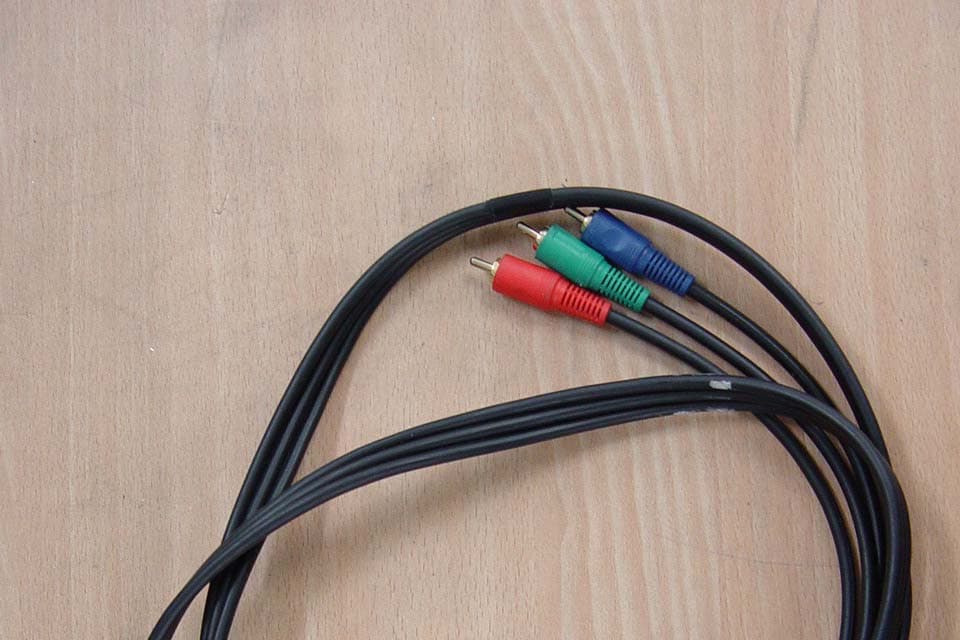

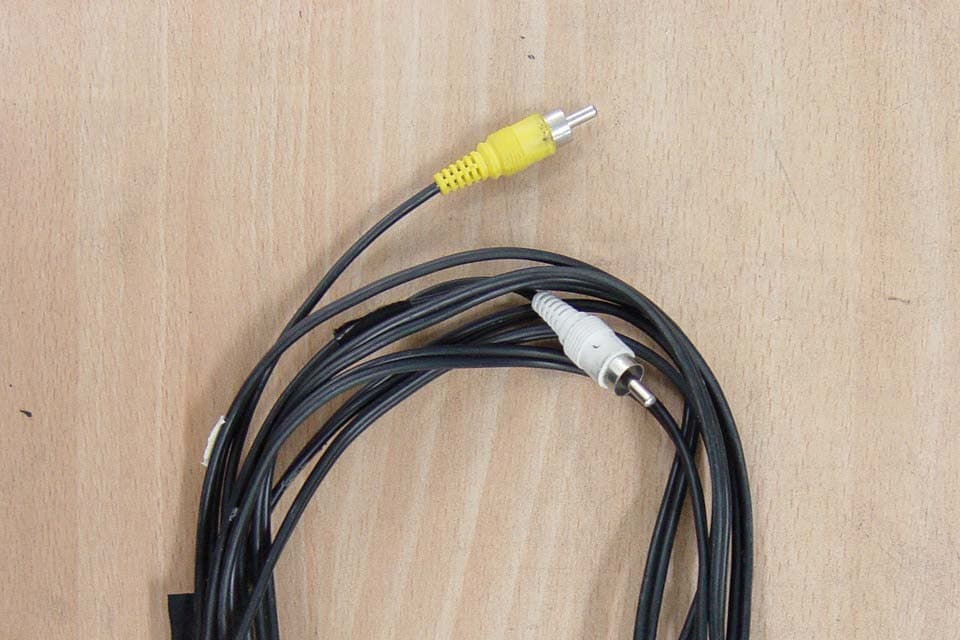

EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification

EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification

EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification „ Test Mode: 1600* 1200/ 60Hz(Analog) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Hot line > 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Neutral line > EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification „ Test Mode: 1280* 1024/ 60Hz (Digital) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Hot line > 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Neutral line > EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification „ Test Mode:1024 *768 / 75Hz (Analog) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Hot line > 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Neutral line > EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification „ Test Mode: 640*480 / 60Hz (Analog) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Hot line > 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Neutral line >

EUT Type: LCD Monitor FCC ID: BEJM4710CE Page 2 of 23 Test Report No.: GETEC-E3-07-061 FCC Class B Certification CONTENTS 1. GENERAL INFORMATION ......................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. PRODUCT INFORMATION ......................................................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT / CABLES USED.....................................................................................................................6 3.3 MODIFICATION ITEM(S) ...........................................................................................................................................7 4. DESCRIPTION OF TESTS.........................................................................................................................................8 4.1 TEST CONDITION......................................................................................................................................................8 4.2 CONDUCTED EMISSION............................................................................................................................................9 4.3 RADIATED EMISSION..............................................................................................................................................10 5. CONDUCTED EMISSION........................................................................................................................................ 11 5.1 OPERATING ENVIRONMENT................................................................................................................................... 11 5.2 TEST SET-UP............................................................................................................................................................ 11 5.3 MEASUREMENT UNCERTAINTY.............................................................................................................................. 11 5.4 LIMIT......................................................................................................................................................................12 5.5 TEST EQUIPMENT USED..........................................................................................................................................12 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................13 6. RADIATED EMISSION ............................................................................................................................................17 6.1 OPERATING ENVIRONMENT...................................................................................................................................17 6.2 TEST SET-UP............................................................................................................................................................17 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................17 6.4 LIMIT......................................................................................................................................................................18 6.5 TEST EQUIPMENT USED..........................................................................................................................................18 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................19 7. SAMPLE CALCULATIONS.....................................................................................................................................22 7.1 EXAMPLE 1 : ...........................................................................................................................................................22 7.2 EXAMPLE 2 : ...........................................................................................................................................................22 8. RECOMMENDATION & CONCLUSION..............................................................................................................23 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G –INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL EUT Type: LCD Monitor FCC ID: BEJM4710CE Page 3 of 23 Test Report No.: GETEC-E3-07-061 FCC Class B Certification Scope: Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission. 1. General Information z FCC ID BEJM4710CE z EUT Type LCD Monitor z Model No. M4710CE z Tra de Na me LG z Serial No. Proto type z Rule Part(s) FCC Part 15 Subpart B z Type of Authority Certification z Test Procedure(s) ANSI C63.4 (2003) / Canadian standard ICES-003 z Dates of Test July 18, 2007 z Place of Test Gumi College EMC Center ( FCC Registration No.: 100749) 407, Bugok-Dong, Gumi-si, Gyeongsangbuk-Do, Korea z Test Report No. GETEC-E3-07-061 z Dates of Issue July 23, 2007 Applicant: LG Electronics Inc. Applicant Address: 642, Jinpyung-Dong, Gumi-Si, Gyeongsangbuk-do, Korea Manufacturer: LG Electronics Inc. Manufacturer Address: 642, Jinpyung-Dong, Gumi-Si,…

Text truncated - open the document above for the full version.

EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: LCD Monitor FCC ID: BEJM4710CE Test Report No.: GETEC-E3-07-061 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
