BEJMS0700AMicrowave Oven

Microwave Oven Owner’s Manual 700 Watts Models: JES735 JES739 2 25 Helpful Information Microwave Terms25 Care and Cleaning26 28 If Something Goes Wrong Before You Call For Service28 GE Service Numbers30 Warranty Back Cover GE Appliances 11 Important Safety Information Precautions to Avoid Possible Exposure to Excessive Microwave Energy2 Special Notes About Microwaving6 Operating Instructions Features of Your Microwave11 The Controls on Your Microwave12 Time Cooking15 Automatic Cooking18 Other Features22 49-401891v03 3/1/01 8:18 AM Page 1 2 IMPORTANT SAFETY INFORMATION READ ALL SAFETY INFORMATION BEFORE USING FOR YOUR SAFETY PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life. Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do Not Place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: 1door (bent), 2hinges and latches (broken or loosened), 3door seals and sealing surfaces. The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel. 49-401891v03 3/1/01 8:18 AM Page 2 3 Welcome to the GE family. We’re proud of our quality products and we believe in dependable service. You’ll see it in this easy-to- use manual and you’ll hear it in the friendly voices of our consumer service department. Best of all, you’ll experience these values each time you use your microwave. That’s important, because your new microwave will be part of your family for a long time. Welcome Write down the model and serial numbers here. They are on a label inside the oven. Model number Serial number Date of purchase Staple your receipt to the inside back cover of this manual. You will need it to obtain service under warranty. Help us help you Before you call for service, there are a few things you can do to help us serve you better. Read this manual. It contains instructions to help you use and maintain your microwave properly. If you received a damaged oven... immediately contact the dealer (or builder) that sold you the oven. Save time and money. Check the section titled “If Something Goes Wrong” before calling. This section helps you solve common problems that might occur. If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customer service numbers is included in the back of this book. Need Help? Start Here!...Before using your Microwave 49-401891v03 3/1/01 8:18 AM Page 3 For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. WARNING •Read and follow the specific “Precautions to Avoid Possible Exposure to Excessive Microwave Energy” on page 2. •This appliance must be grounded. Connect only to properly grounded outlet. See Grounding Instructions section on page 9. •Do not mount this appliance over a sink. •Install or locate this appliance only in accordance with the provided Installation Instructions. •Be certain to place the front surface of the door three inches or more back from the countertop edge to avoid accidental tipping of the appliance in normal usage. •Do not mount the microwave oven over or near any portion of a heating or cooking appliance. •Do not store anything directly on top of the microwave oven surface when the oven is in operation. •Do not operate any heating or cooking appliance beneath this microwave. •Use this appliance only for its intended use as described in this guide. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. This microwave oven is not approved or tested for marine use. SAFETY PRECAUTIONS 4 IMPORTANT SAFETY INFORMATION READ ALL SAFETY INFORMATION BEFORE USING 49-401891v03 3/1/01 8:19 AM Page 4 •Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. If the power cord is damaged, it must be replaced by General Electric Service or an authorized service agent using a power cord available from General Electric. •Do not cover or block any openings on the appliance. •Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool or near a sink. •Keep power cord away from heated surfaces. •Do not immerse power cord or plug in water. •Do not let power cord hang over edge of table or counter. •To reduce the risk of fire in the oven cavity: — Do not overcook food. Carefully attend appliance if paper, plastic or other combustible materials are placed inside the oven while cooking. — Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. — Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. — If materials inside oven should ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. •See door surface cleaning instructions in the Care and Cleaning section(s) of this guide. •This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. •As with any appliance, close supervision is necessary when used by children. SAVE THESE INSTRUCTIONS…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M070 6660-B Dobbin Road Date: April 12, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJMS0700A Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJMS0700A 2. Application Model no.: MS-74ME (RF Power Output – IEC705: 700 W or 600 W) 3. Magnetron: 2M213 (LG Electronics Inc.), 2M214 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-74ME with Magnetron (2M213, LG / 2M214, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M070 Authorization and Standards Branch Date: April 12, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJMS0700A Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJMS0700A 2. Application Model no.: MS-74ME (RF Power Output – IEC705: 700 W or 600 W) 3. Magnetron: 2M213 (LG Electronics Inc.), 2M214 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-74ME with Magnetron (2M213, LG / 2M214, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

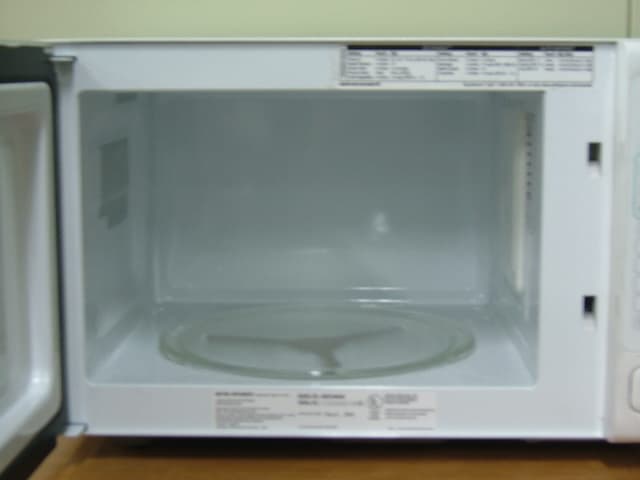

Test Report No.: 05-LAE-M070 FCC Part 18 (ISM) Test Date: April 12, 2005 Certification 30 / 34 LG Electronics Inc. FCC ID: BEJMS0700A APPENDIX E. EUT Photos Test Report No.: 05-LAE-M070 FCC Part 18 (ISM) Test Date: April 12, 2005 Certification 31 / 34 LG Electronics Inc. FCC ID: BEJMS0700A

Test Report No.: 05-LAE-M070 FCC Part 18 (ISM) Test Date: April 12, 2005 Certification 27 / 34 LG Electronics Inc. FCC ID: BEJMS0700A APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 9.3 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJMS0700A MADE IN KOREA LISTE D U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MS-74ME CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 05-LAE-M070 FCC Part 18 (ISM) Test Date: April 12, 2005 Certification 32 / 34 LG Electronics Inc. FCC ID: BEJMS0700A Test Report No.: 05-LAE-M070 FCC Part 18 (ISM) Test Date: April 12, 2005 Certification 33 / 34 LG Electronics Inc. FCC ID: BEJMS0700A

Test Report No.: 05-LAE-M070 FCC Part 18 (ISM) Test Date: April 12, 2005 Certification 28 / 34 LG Electronics Inc. FCC ID: BEJMS0700A APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: April 12, 2005 Test Report No: 05-LAE-M070 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M213 (LG Electronics Inc.) 2M214 (LG Electronics Inc.) Brand Name(s): LG Model No.: MS-74ME FCC ID: BEJMS0700A This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M070 FCC Part 18 (ISM) Test Date: April 12, 2005 Certification 1 / 34 LG Electronics Inc. FCC ID: BEJMS0700A REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MS-74ME FCC ID: BEJMS0700A Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: March 14, 2005 – April 4, 2005 Date of Issue: April 12, 2005 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kwang M. Son / Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M070 FCC Part 18 (ISM) Test Date: April 12, 2005 Certification 2 / 34 LG Electronics Inc. FCC ID: BEJMS0700A CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS..................................................................................... 4 5.2 R ADIATED EMISSIONS MEASUREMENT............................................................................................................ 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 I NPUT POWER............................................................................................................................................... 10 7.2 RF P OWER OUTPUT MEASUREMENT ACCORDING TO MP5. .......................................................................... 11 7.3 RF P OWER O UTPUT M EASUREMENT ACCORDING TO IEC 60705.................................................................. 12 7.4 F REQUENCY MEASUREMENTS....................................................................................................................... 13 7.5 P OWER DENSITY SAFETY CHECK.................................................................................................................. 15 7.6 C ONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 16 7.7 R ADIATED EMISSIONS (SECTION 18.305) ...................................................................................................... 17 APPENDIX A. TEST PLOT ............................................................................................................................... 19 APPENDIX B. LABELING REQUIREMENTS ...............................................................................................27 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 28 APPENDIX D. TEST PHOTOS.......................................................................................................................... 29 APPENDIX E. EUT PHOTOS ............................................................................................................................ 30 APPENDIX F. OWNER’S MANUAL WITH REGARD …

Text truncated - open the document above for the full version.

Test Report No.: 05-LAE-M070 FCC Part 18 (ISM) Test Date: April 12, 2005 Certification 29 / 34 LG Electronics Inc. FCC ID: BEJMS0700A APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
