BEJMTVWBE01GLXRF Module

PAGE : 5 / 118 REV. NO : V0.1 1. SPECIFICATION MODEL NAME Rev DATE : ‘20.12.24 MTVWBE01GLX 1. Features MTVWBE01GLX is the module for IEEE 802.11a/b/g/n/ac wireless LAN / BT 5.0. MTVWBE01GLX is based on MEDIATEK MT7668AUN solution.  IEEE 802.11 a/b/g/n/ac Dual Band Dual Concurrent (DBDC)  Bluetooth 5.0 + HS, BLE  Size : 68mm x 30mm x 6.5mm  Two stream spatial multiplexing  WLAN / BT metal press antenna on  Use on-chip OTP (One-Time Programmable)  Host Interface : USB2.0 (WLAN & BT)  Security : WAPI, WEP, WPA, WPA2, WMM, AES, TKIP, CKP  Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB 2. Ordering Information Model Description MTVWBE01GLX Wi-Fi / BT Module, Dual Band 3. Label Marking PAGE : 6 / 118 REV. NO : V0.1 1. SPECIFICATION MODEL NAME Rev DATE : ‘20.12.24 MTVWBE01GLX 4. Block Diagram 5. Absolute Maximum Ratings Parameter MIN MAX UNIT Storage Temperature -20 +80 °C Storage Humidity - 90 % Caution : The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. • Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°C and 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over MARKONE TECHNOLOGY Co., Ltd. PAGE : 7 / 118 REV. NO : V0.1 1. SPECIFICATION MODEL NAME Rev DATE : ‘20.12.24 MTVWBE01GLX 6. Operating Test Conditions Parameter MIN TYP. MAX UNIT Operating Temperature 0 - +60 °C Operating Humidity (40°C) - - 85 % Supply Voltage 3.135 3.3 3.6 Vdc 7. Standard Test Conditions The Test for electrical specification shall be performed under the following condition Otherwise this following conditions, not guaranteed this performance. 7-1. Ambient condition Temperature 25 ± 5 °C Humidity 65 ± 5% 7-2. Power supply voltages Input Voltage Supply Voltage VDD_3.3V 3.135 ~ 3.6V MARKONE TECHNOLOGY Co., Ltd. PAGE : 8 / 118 REV. NO : V0.1 1. SPECIFICATION MODEL NAME Rev DATE : ‘20.12.24 MTVWBE01GLX 7-3. Current consumption 7-4. ESD, ESD Limit Test Information MIN MAX UNIT Contact - ±4 kV Air - ±15 Description Spec. Current (Aver.) UNIT 2.4G Tx CCK, 11Mbps@21dBm 403 397 mA 2.4G Tx HT20 ,MCS15 @17.5dBm 496 369 2.4G Tx HT20 ,MCS8 @18dBm 520 506 5G Tx VHT80 ,MCS9, Nss=2 @15dBm 678 370 5G Tx VHT80 ,MCS0, Nss=2 @16.5dBm 713 690 MARKONE TECHNOLOGY Co., Ltd. Regulatory Statement (FCC) •Part 15. 19 Statement This device complies with Part15 ofthe FCC Rules. Operationis subjectto the following two conditions: (1) this device may not cause harmful interference,and (2) this device must acceptany interference received, including interference that may cause undesired operation. •Part 15. 105 Statement (ClassB) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. •Part 15.21 Statement Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device must not be co-located or operating in conjunction with any other antenna or transmitter. •Responsible Party Information (Supplier's Declarationof Conformity) LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs New Jersey, United States, 07632 LG Innotek Confidential : This document is protected by security policies and laws. Regulatory Statement (FCC) Regulatory notice to host manufacturer according to KDB 996369 D03 OEM Manual v01 List of applicable FCC rules This module has been granted modular approval as below listed FCC rule parts. - FCC Rule parts 15C(15.2 47,15.407) Summarize the specific operational use conditions The OEM integrator should use equivalent antennas whichis the same typeand equal or less gain then an antennalistedin this instruction manual. RF exposure considerations The modulehas beencertified for integration into productsonly byOEM integrators underthe following condition: - The antenna(s) mustbe installed such that a minimum separation distanceof at least 20 cm is maintained betweenthe radiator (antenna)and allpersonsat alltimes. - The transmitter module must notbe co-locatedor operatingin conjunction withany otherantennaor transmitter exceptin accordance with FCC multi-transmitter product procedures. -Mobile use As longas the three conditions above are met, further transmitter testing willnot be required. OEM integrators should providethe minimum separation distanceto end usersin their end -product manuals. LG Innotek Confidential : This document is protected by security policies and laws. •Antennas list This module is certified with the following integrated antenna. -Type: Metal Press Antenna -Max. peak Antenna gain 1)ANT 1: -0…

Text truncated - open the document above for the full version.

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM LG Electronics USA HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : July 13, 2021 T o: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID : BEJMTVWBE01GLX We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, S igned by: (Name / Title) Dae Woong Kim / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 1-201-266-2215 ( Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, US

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM LG Electronics USA HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 D ATE : July 13, 2021 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT: Request for Confidentiality for FCC ID:BEJMTVWBE01GLX We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List 4 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. S incerely, S igned by: (Name / Title) Dae Woong Kim/ Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 1-201-266-2215 ( Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, US

Date : Jul. 16, 2018 Rev : 3.2 HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC Modular Approval Declaration Letter Date : Jul. 16, 2018 Rev : 3.2 HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated Template(Obsolete) 10/01/2012 QM 2.1 Updated address (Obsolete) 01/10/2014 QM 3.0 Updated Template(Obsolete) 03/30/2015 QM 3.1 Updated Address 06/21/2018 QM 3.2 Changed File Name and Split Files FCC/IC 7/16/2018 QM LG Electronics USA Rev : 3.2 Date : July 13, 2020 FCC Modular Approval Attestation FCC ID: BEJMTVWBE01GLX is seeking FCC equipment authorization as Single Modular Transmitter Single Limited Modular Transmitter Product Information Product Description: RF Module FRN: 0023476120 Model Name(s): MTVWBE01GLX FCC Product ID: - FCC Module ID: BEJMTVWBE01GLX Modular Checklist/Information For Modular Approval, the module shall meet all the requirements listed below. Please check () if the module complies with the stated requirement. The modular transmitter must have its own shielding. The modular transmitter must have buffered modulation/data inputs. The modular transmitter must have its own power supply regulation. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c). The modular transmitter must tested in a stand-alone configuration. The modular transmitter must be labeled with its own FCC ID number. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instruction along with the module to explain any such requirements. The modular transmitter must comply with any applicable RF exposure requirements. If a module(s) does NOT meet one or more of the above listed requirements, the applicant may request Limited Modular Approval (LMA). For LMA, please state details about why the above requirement(s) could not be met; and state how control of the end product, into which the module will be installed, will be maintained by the applicant / manufacturer, such that full compliance of the end product is always ensured: (Name / Title) Dae Woong Kim / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 1-201-266-2215 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, US HACS-F007-1 FCC Modular Approval Declaration Letter

FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 8 EXTERNAL PHOTOGRAPHS FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 8 ■ EXTERNAL PHOTO FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 8 ■ EXTERNAL PHOTO FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 8 ■ EXTERNAL PHOTO FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 8 ■ EXTERNAL PHOTO FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 8 ■ EXTERNAL PHOTO FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 8 ■ EXTERNAL PHOTO FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 8 ■ EXTERNAL PHOTO

Label & Location

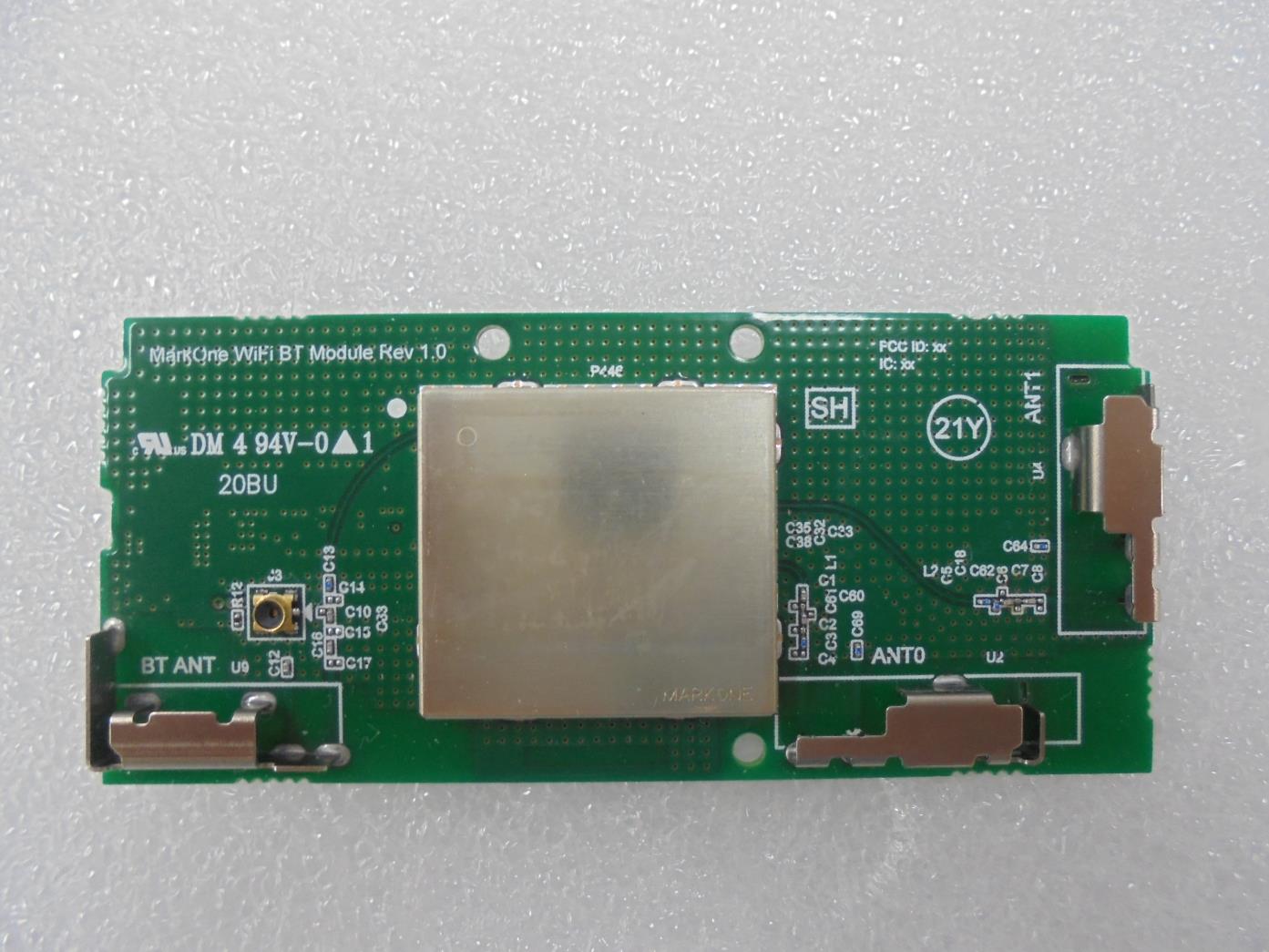

FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 4 INTERNAL PHOTOGRAPHS FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 4 ■ INTERNAL PHOTO FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 4 ■ INTERNAL PHOTO FCC ID: BEJMTVWBE01GLX, IC: 2703H-MTVWBE01GLX HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 4 ■ INTERNAL PHOTO

TEST REPORT FCC/ISED BT Test for MTVWBE01GLX Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2103-FI005 DATE OF ISSUE March 15, 2021 Tested by Jin Gwan Lee Technical Manager Jong Seok Lee Accredited by KOLAS, Republic of KOREA F-TP22-03(Rev.03) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 1 / 88 F-TP22-03 (Rev. 03) Page 2 of 88 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC/ISED BT Test for MTVWBE01GLX REPORT NO. HCT-RF-2103-FI005 DATE OF ISSUE March 15, 2021 Additional Model - A pplicantLG Electronics Inc. 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Korea Eut Type Model Name RF Module MTVWBE01GLX FCC ID IC BEJMTVWBE01GLX 2703H-MTVWBE01GLX Max. RF Output Power8.059 dBm (6.40 mW) FCC ClassificationFCC Part 15 Spread Spectrum Transmitter FCC Rule Part(s) Part 15 subpart C 15.247 ISED Rule Part(s) RSS-247 Issue 2 (February 2017) RSS-Gen Issue 5_Amendment 1 (March 2019) The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2103-FI005 F-TP22-03 (Rev. 03) Page 3 of 88 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 15, 2021 Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / ISED Rules under normal use and maintenance. This laboratory is not accredited for the test results marked *. The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 AND KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA.(HCT Accreditation No.: KT197) * The report shall not be reproduced except in full(only partly) without approval of the laboratory. Report No. HCT-RF-2103-FI005 F-TP22-03 (Rev. 03) Page 4 of 88 CONTENTS 1. EUT DESCRIPTION 5 2. Requirements for Bluetooth transmitter(15.247) 6 3. TEST METHODOLOGY 7 EUT CONFIGURATION 7 EUT EXERCISE 7 GENERAL TEST PROCEDURES 7 DESCRIPTION OF TEST MODES 8 4. INSTRUMENT CALIBRATION 8 5. FACILITIES AND ACCREDITATIONS 8 FACILITIES 8 EQUIPMENT 8 6. ANTENNA REQUIREMENTS 9 7. MEASUREMENT UNCERTAINTY 10 8. DESCRIPTION OF TESTS 11 9. SUMMARY OF TEST RESULTS 33 10. TEST RESULT 34 10.1 PEAK POWER 34 10.2 BAND EDGES 40 10.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99% BW) 47 10.4 NUMBER OF HOPPING FREQUENCY 55 10.5 TIME OF OCCUPANCY (DWELL TIME) 59 10.6 SPURIOUS EMISSIONS 65 10.6.1 CONDUCTED SPURIOUS EMISSIONS 65 10.6.2 RADIATED SPURIOUS EMISSIONS 73 10.6.3 RADIATED RESTRICTED BAND EDGES 78 10.7 RECEIVER SPURIOUS EMISSIONS 81 10.8 POWERLINE CONDUCTED EMISSIONS 82 11. LIST OF TEST EQUIPMENT 86 12. ANNEX A_ TEST SETUP PHOTO 88 Report No. HCT-RF-2103-FI005 F-TP22-03 (Rev. 03) Page 5 of 88 1. EUT DESCRIPTION Model MTVWBE01GLX Additional Model - EUT Type RF Module Power Supply DC 3.30 V Frequency Range 2 402 MHz ˊ 2 480 MHz Max. RF Output Power 8.059 dBm (6.40 mW) BT Operating Mode Normal, EDR, AFH Modulation Type GFSK(Normal), π/4DQPSK and 8DPSK(EDR) Modulation Technique FHSS Number of Channels 79Channels, Minimum 20 Channels(AFH) Antenna Specification Antenna type: PIFA (Planar Inverted F Antenna) Peak Gain : 1.51 dBi Date(s) of Tests February 19, 2021 ~ March 15, 2021 PMN (Product Marketing Number) RF Module HVIN (Hardware Version Identification Number) MTVWBE01GLX FVIN (Firmware Version Identification Number) ver 1.0 HMN (Host Marketing Name) N/A EUT serial numbers Radiated : MTVWBE01GLX-1 Conducted : MTVWBE01GLX-2 Manufacurer Markone-Technology A 2401, 606, Seobusaet-gil, Geumcheon-gu, Seoul, Korea, 08504 Report No. HCT-RF-2103-FI005 F-TP22-03 (Rev. 03) Page 6 of 88 2. Requirements for Bluetooth transmitter(15.247) This Bluetooth module has been tested by a Bluetooth Qualification Lab, and we confirm the following: 1) This system is hopping pseudo-randomly. 2) Each frequency is used equally on the average by each transmitter. 3) The receiver input bandwidths that match the hopping channel bandwidths of their corresponding transmitters 4) The receiver shifts frequencies in synchronization with the transmitted signals. ▪ 15.247(g): The system, consisting of both the transmitter and the receiver, must be designed to comply with all of the regulations in this Section 15.247 should the transmitter be presented with a continuous data (or information) stream. ▪ 15.247(h): The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. ▪ RSS-247 5.1 (a): The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and sh all shift frequencies in synchronization with the transmitted signals. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. Report No. HCT-RF-2103-FI005 F-TP22-03 (Rev. 03) Page 7 of 88 3. TEST METHODOLOGY The measurement procedure described in the American National Standard of Proce…

Text truncated - open the document above for the full version.
