BEJMU50PZ4050" Plasma Monitor

PLASMA MONITOROWNER’S MANUAL Please read this owner’s manual carefully before operating theMonitor.Retain it for future reference.Record model number and serial number of the Monitor.See the label attached on the back of the Monitor and quotethis information to your dealer when you require service.Model number : Serial number : MODEL : MU-50PZ40/41 MU-50PZ40A/41AMU-50PZ40B/41BMU-50PZ40K/41KMU-50PZ40R/41RMU-50PZ40S/41S P/NO : 3828VA0352A (RF02CA) 2 WARNING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOIS- TURE. FCC NOTICE • MU-50PZ41/A/B/K/R/S : A Class A digital device This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction man- ual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. • MU-50PZ40/A/B/K/R/S : A Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular instal- lation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. • Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. 3 Important safeguards for you and your new product Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference. Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation that are built into your new product. This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association. 1. Read Instructions All the safety and operating instructions should be read before the product is operated. 2. Follow Instructions All operating and use instructions should be followed. 3. Retain Instructions The safety and operating instructions should be retained for future reference. 4. Heed Warnings All warnings on the product and in the operating instructions should be adhered to. 5. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6. Water and Moisture Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. 7. Accessories Carts and Stands Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, brack- et, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manu- facturer’s instructions, and should use a mounting accessory recommended by the manufacturer. 8. Transporting Product A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 9. Attachments Do not use attachments not recommended by the product man- ufacturer as they may cause hazards. 10. Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This prod- uct should not be placed in a built-in installation such as a book- case or rack unless proper ventilatio…

Text truncated - open the document above for the full version.

Appendix 3. Block diagram of EUT IC501 Rembrandt-I Scaler 5V/3.3V/1.8V #8 IC404 FLI2200 De_interlace 3.3V/2.5V #7 IC201 AD9888 ADC 3.3V #3 IC401 VPC3230 Decoder 5V/3.3V #6 IC202 Sil161B TMDS_RX 3.3V #4 I C 502/ 503/ 50 4 K 4S 6432 32E SDRAM (8Mbyte) 3.3V #9 RGB 48 bit YUV 16 bit 15 P i n D_SU B PC-I N IC701 R8820LV CPU 3.3V #11 I C 703 A M 29L V 160B Flash-ROM (2MByte) 3.3V I C 702 K 6R 401 6V1C SRAM (4MBit) 3.3V 21PIN TO Mo dule Co n tr ol IC301 uPD64083 3D- Comb 9/5/3.3/2.5 #5 DVI-I I C 405 K 4S 643232 E SDRAM(8Mbyte) 3.3V #7 9PIN R S -2 32C IC750 DS232AS RS-232C 5VST IC751 PF8584 I2C-GEN. 5V #13 PORT_EXTEND (74LVC244/74LVC574) 3.3V #12 15 P i n D_SU B PC-O UT IC101 CXA2089 SWITCH Y/ C CVBS L/R f or Compone nt ,D-4 CVBS S_Y/C IC302 LA7151M SWITCH 5V #6 Y/ C Y/C IC104 OPA3682 AMP 5V #1 RGB /HV H/V RGB A RGB B (dual) TX 0 ± ,TX 1 ± TX 2 ± ,TX C ± RG B A (EVEN) RG B B ( ODD) D0 ± ,D 1± D2 ± ,I D K± RGB A (EVEN) RGB B (O DD) H/V/FIELD 4 TXD0,1 RXD0,1 PC/DVI AUDIO SVHS BNC I C 101 MS P 3440 Sound Pr oce ssor IC105 L A 4 282 AU DIO AMP PC/DV I AUD IO L/ R CXA2089 L/R O UT L/ R L/ R NTSC L/ R for SVHS,BNC IC601 Sil160 TMDS_TX 3.3V #10 DVD Y/Cb/Cr 1H R /G /B Y/Pb/Pr ( 480p ↑) COMPO NENT I C 402 7 4L S 123 5V #6 YUV 16 bit #: the pa ge of the ci rcuit sche ma tic 48 48 8 8 Phil Kim 2002.5.25 Y/ C 50” PDP VSC Board Block Diagram 50” PDP VSC Board Block Diagram U-COM Ident Comp 480 I/ P, ID_AT ID_PA L/N TSC, F AN ALAR M,KEY RGB IC103 74HCT08 AND GATE CVBS for 3/4-SYSTEM R e m o te C on t r olle r Wired IR For MUmarket Selection by S/W 74LV132 NAND 74HCT157 MUX 25MHz 20.25MHz 20MHz

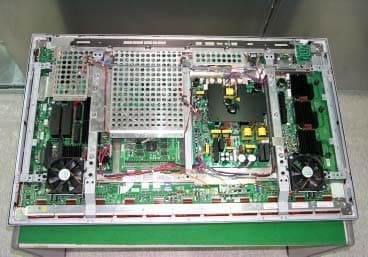

8. Photographs of EUT [ Front ] [ Rear ] Report Number : ESTF150208-002 , Web : www. estech. co. kr Page 14 of 14 Appendix 2. Phorographs of EUT in side PCB

Proposed FCC ID Label Rear Side of the EUT/Proposed ID Location

Compliance Test Report for FCC Company name Address Telephone Product name Model No. Serial No. Test date2002-08-19~ Testing location Standard □Class A■Class BTest resultOK □Class A■Class BTest resultOK Tested by Reviewed by Abbreviation * Note - This test report is not permitted to copy partly without our permission - This test result is dependent on only equipment to be used - This test result based on a single evaluation of one sample of the above mentioned - MU-50PZ40, P50W26B are same product. Only model name is different 2002-08-19 Korea Report Number : ESTF150208-002 , Web : www. estech. co. kr Page 1 of 14 Report NumberESTF150208-002 Manufacturer Applicant 2002-08-20 50" Plasma Monitor MU-50PZ40, P50W26B Date of issue (Signature) ESTECH. Co., Ltd. 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Test item ■ Conducted Emission ■ Radiated Emission FCC PART 15 2001 , ANSI C 63.4 2001 Product 205KT00005Contry of origin LG Electronics Inc. OK, Pass = Passed, Fail = Failed, N/A = not applicable LG Electronics USA 6133 N River Rd Suite 1100 Rosemont, IL60018 USA 847-692-4630 Measurement facility registration number Senior Engineer J.M. Yang Director T.K. Lee 94696 (Signature) 3 4 5 6 8 8 9 10 10 10 11 12 14 Appendix 1. Spectral diagram Appendix 2. Phorographs of EUT in side PCB Appendix 3. Block diagram of EUT Appendix 4. Circuit Diagram Report Number : ESTF150208-002 , Web : www. estech. co. kr Page 2 of 14 5. Measurement of radiated emission ............................................................... 5.1 Measurement e quipment ........................................................................ Contents 1. Laboratory Information ................................................................................. 2. Description of EUT ....................................................................................... 3. Test Standards .......................................................................................... 4. Measurement condition .............................................................................. ... 5.3 Test data ................................................................................................ 7. Photographs of test setup ........................................................................... 8. Photo graphs of EUT .................................................................................... 6. Measurement of conducted emission ............................................................ 6.1 Measurement equipment ........................................................................ 6.2 Environmental conditions ........................................................................ 6.3 Test data ............................................................................................. ... 1. Laboratory Information 1.1 General 1.2 Test Lab. Head Office : 3 rd Fl., Chungdam Bldg., 119-1 Chungdam-dong Kangnam-gu , Seoul, Korea (Safety & Telecom. Test Lab) EMC Test Lab : 58-1 Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Branch Office : USA-ESTECH INC. 21801 Stevens Creek Blvd. Suite 2A Cupertino, CA95014 1.3 Official Qualification(s) MIC : Granted Accreditation from Ministry of Information & Communication for EMC, Safety and Telecommunication KOLAS : Accredited Lab By Korea Laboratory Accreditation Schema base on CENELEC requirements FCC : Filed Laboratory at Federal Communications Commission VCCI : Granted Accreditation from Voluntary Control Council for Interference from ITE This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report. ESTECH Lab attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH Lab assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report Number : ESTF150208-002 , Web : www. estech. co. kr Page 3 of 14 2. Description of EUT 2.1 Summary of Equipment Under Test Product: Model Number: Manufacturer: Country of origin: Rating : Receipt Date: 2.2 General descriptions of EUT Report Number : ESTF150208-002 , Web : www. estech. co. kr Page 4 of 14 The PDP which is the display device of this product is composed of 0.9 to 2.2 million cells and a few cell defects can occur in the manufacture of the PDP. Several colored dots visible on the screen would be acceptable, in line with other PDP manufacturers and would not mean that the PDP is faulty. We hope you will understand that the product which corresponds to this standard is regarded as cceptable. It means that it could not be changed or refunded. We promise that we'll do our best to develop our technology to minimize the cell defects. - Width/Height/Depth : 1223/734/105mm - Resolution : 1366*768 (Dot) 50" Plasma Monitor MU-50PZ40, P50W26B LG Electronics Inc. Korea AC120V, 60Hz 2002-08-19 3. Test Standards Test Standard : FCC PART 15 (2001) Test Method : ANSI C 63.4 (2001) This standard sets forth uniform methods of measurement of radio-frequency (RF) signals and noise emitted from both unintentional and intentional emitters of RF energy in the frequency range 9 kHz to 40 GHz. Methods for the measurement of radiated and AC power-line conducted radio noise are covered and may be applied to any such equipment unless otherwise specified by individual equipment requirements. These methods cover measurement of certain decides that deliberately radiate energy, such as intentional emitters, but does not cover licensed transmitters. This standard is not intended for certification/approval of avionic equipment or for industrial, scientific, and medical (ISM) equipment These method apply to the measurement of individual units or systems comprised of multiple units This Standard sets out the regulations under which an intent…

Text truncated - open the document above for the full version.

7. Photographs of test setup 7.1 Setup for Radiated Test : 30 ~ 1000 MHz [ Front ] [ Rear ] Report Number : ESTF150208-002 , Web : www. estech. co. kr Page 12 of 14 7.2 Setup for Conducted Test : 0.45 ~ 30 MHz [ Front ] [ Rear ] Report Number : ESTF150208-002 , Web : www. estech. co. kr Page 13 of 14
