BEJMV1130AMicrowave Oven

LISTED LISTED OVER THE RANGE MICROWAVE- CONVECTION OVEN OWNER’S GUIDE MODEL NO.: DOTRC11B, DOTRC11W To help you get the most out of your new appliance P/N: 3828W5A0823 (a) DO NOT ATTEMPT TO OPERATE THIS OVEN WITH THE DOOR OPEN, since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (c) DO NOT OPERATE THE OVEN IF IT IS DAMAGED. It is particularly important that the oven door closes properly and that there is no damage to the:  door (bent),  hinges and latches (broken or loosened),  door seals and sealing surfaces. (b) DO NOT PLACE ANY OBJECT BETWEEN THE OVEN FRONT FACE AND THE DOOR, or allow soil or cleaner residue to accumulate on sealing surfaces. (d) THE OVEN SHOULD NOT BE ADJUSTED OR REPAIRED by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY... - 2 - - 3 - TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2 TABLE OF CONTENTS3 SAFETY4 Important Safety Instructions4 INFORMATION6 Location of Model Number6 Oven Specifications 6 Electrical Rating 6 Electrical Requirements6 Grounding Instructions6 Microwave Oven Features 7 Oven Control Panel8 OPERATION9 LEARN ABOUT YOUR MICROWAVE OVEN9 Clock 9 Child Lock9 Custom Cook9 Hold Warm10 Timer10 Fan 10 Light10 Time Cooking at High Power11 Time Cooking at Multi-Power11 Multi-Stage Cooking11 Cooking Guide for Lower Power Levels 12 Sensor Operating Instructions13 Sensor Cooking Guide13 Adding or Subtracting Cook Time13 Popcorn14 Sensor Cook 14 Auto Reheat14 Cooking Guide for Sensor Cook15 Auto Defrost16 Auto Defrost Instructions 16 Defrosting Tips16 Auto Defrost Sequence Table 17 General Guidelines17 Defrost Chart18 Convection Cooking 20 Introduction20 Convection Baking Without Preheating 21 Convection Baking With Preheating21 Convection Broiling21 Convenience Foods Cooking Chart for Convection Cooking 22 Combination Cooking23 Introduction 23 Combination Baking/Roasting Without Preheating24 Combination Baking/Roasting With Preheating24 Auto Combination 25 Auto Combination chart25 USING THE METAL RACK26 UTENSIL GUIDE27 CARE AND CLEANING28 General 28 Metal Rack28 Grease Filters28 Charcoal Filter Replacement 29 Cooktop Light Replacement29 QUESTIONS AND ANSWERS30 Operation30 Foods 30 BEFORE CALLING FOR SERVICE32 LIMITED WARRANTYBack Cover - 4 - WARNING - To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:  Read all the instructions before using your oven.  Do not allow children to use this oven without close supervision.  Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGYfound on page 2.  Do not usecorrosive chemicals or vapors, such as sulfide and chloride, in this appliance. This type of oven is specifically designed to heat, cook, of dry food. It is not designed for industrial or laboratory use.  Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.  Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.  Clean the ventilating hood frequently. Do not allow grease to accumulate on the hood or the filters.  Use care when cleaning the vent hood filters. Corrosive cleaning agents such as lye-based oven cleaners, may damage the filters.  Do not tamper with the built-in safety switches on the oven door. The oven has several built-in safety switches to make sure the power is off when the door is open.  When flaming foods under the hood, turn the fan on.  Suitable for use above both gas and electric cooking equipment 36 inches wide or less.  Do not use this oven for commercial purposes. If is made for household use only.  When cleaning the door and the surfaces that touch the door, use only mild, non-abrasive soaps or detergents and a sponge or soft cloth.  If your oven is dropped or damaged, have it thoroughly checked by a qualified service technician before using it again.  To avoid a fire hazard: - Do not severely overcook food. Severely overcooked foods can start a fire in the oven. Watch the oven carefully, especially if you have paper, plastic, or other combustibles in the oven. - Do not store combustible items (bread, cookies, etc.) in the oven, because if lightning strikes the power lines it may cause the oven to turn on. - Do not use wire twist-ties in the oven. Be sure to inspect purchased items for wire twist-ties and remove them before placing the item in the oven.  If a fire should start: - Keep the oven door closed. -Turn the oven off. -Disconnect the power cord or shut off the power at the fuse or circuit breaker panel.  To avoid electric shock: -This appliance must be grounded. Connect it only to a properly grounded outlet. See the electrical GROUNDING INSTRUCTIONS on page 6. -Do not operate this appliance if it has a damaged cord or plug,if it is not working properly or if it has been damaged or dropped. -Do not immerse the electrical or plug in water. -Keep the cord away from heated surfaces. The safety instructions below will tell you how to use your oven to avoid harm to yourself or damage to your oven. Important Safety Instructions SAFETY - 5 - SAFETY  To avoid improperly cooking some foods. - Do not heat any types of baby bottles or baby food.Uneven heating may occur and possibly cause personal injury. -Do not heat small-necked containers,such as syrup bottles. -Do not deep-fat fry in your microwave oven. -Do not attempt home canning in your microwave oven. -Do not heat the following items in the microwave oven: whole eggs in the shell, water with oil or fat, sealed containers, or closed glass jars. These items may explode.  Do not cover or block any openings in the oven.  Use your oven only for the operations described in …

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M143 6660-B Dobbin Road Date: June 22, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJMV1130A Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJMV1130A 2. Application Model no.: MV-1132SC (RF Power Output – IEC705: 850 W) 3. Magnetron: 2M214 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MV-1132SC with Magnetron (2M214, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M143 Authorization and Standards Branch Date: June 22, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJMV1130A Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJMV1130A 2. Application Model no.: MV-1132SC (RF Power Output – IEC705: 850 W) 3. Magnetron: 2M214 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MV-1132SC with Magnetron (2M214, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

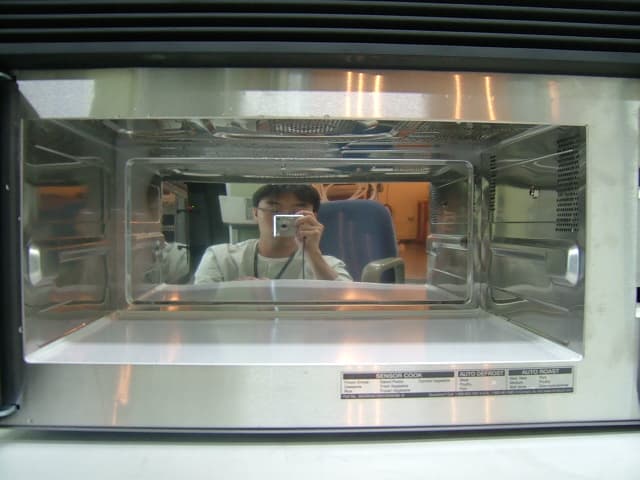

Test Report No.: 05-LAE-M143 FCC Part 18 (ISM) Test Date: June 22, 2005 Certification 22 / 26 LG Electronics Inc. FCC ID: BEJMV1130A APPENDIX E. EUT Photos Test Report No.: 05-LAE-M143 FCC Part 18 (ISM) Test Date: June 22, 2005 Certification 23 / 26 LG Electronics Inc. FCC ID: BEJMV1130A

Test Report No.: 05-LAE-M143 FCC Part 18 (ISM) Test Date: June 22, 2005 Certification 19 / 26 LG Electronics Inc. FCC ID: BEJMV1130A APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 13.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJMV1130A MADE IN KOREA LISTE D 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MV-1132SC CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 05-LAE-M143 FCC Part 18 (ISM) Test Date: June 22, 2005 Certification 24 / 26 LG Electronics Inc. FCC ID: BEJMV1130A Test Report No.: 05-LAE-M143 FCC Part 18 (ISM) Test Date: June 22, 2005 Certification 25 / 26 LG Electronics Inc. FCC ID: BEJMV1130A

Test Report No.: 05-LAE-M143 FCC Part 18 (ISM) Test Date: June 22, 2005 Certification 20 / 26 LG Electronics Inc. FCC ID: BEJMV1130A APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: June 22, 2005 Test Report No: 05-LAE-M143 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M214 (LG Electronics Inc.) Brand Name(s): LG Model No.: MV-1132SC FCC ID: BEJMV1130A This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M143 FCC Part 18 (ISM) Test Date: June 22, 2005 Certification 1 / 26 LG Electronics Inc. FCC ID: BEJMV1130A REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MV-1132SC FCC ID: BEJMV1130A Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: April 27, 2005 – May 31, 2005 Date of Issue: June 22, 2005 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical elec- trical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kwang M. Son / Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M143 FCC Part 18 (ISM) Test Date: June 22, 2005 Certification 2 / 26 LG Electronics Inc. FCC ID: BEJMV1130A CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 R ADIATED EMISSIONS MEASUREMENT............................................................................................................ 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 I NPUT POWER............................................................................................................................................... 10 7.2 RF P OWER OUTPUT MEASUREMENT ACCORDING TO MP5. .......................................................................... 10 7.3 RF P OWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705.................................................................. 11 7.4 F REQUENCY MEASUREMENTS....................................................................................................................... 12 7.5 P OWER D ENSITY S AFETY C HECK .................................................................................................................. 13 7.6 C ONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 R ADIATED EMISSIONS (SECTION 18.305) ...................................................................................................... 14 APPENDIX A. TEST PLOT ............................................................................................................................... 15 APPENDIX B. LABELING REQUIREMENTS...............................................................................................19 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 20 APPENDIX D. TEST PHOTOS.......................................................................................................................... 21 APPENDIX E. EUT PHOTOS............................................................................................................................ 22 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FCC INSTRUCTION .......…

Text truncated - open the document above for the full version.

Test Report No.: 05-LAE-M143 FCC Part 18 (ISM) Test Date: June 22, 2005 Certification 21 / 26 LG Electronics Inc. FCC ID: BEJMV1130A APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
