BEJNDHKANBN0A2Rear Seat Entertainment system

Rear Seat Entertainment system User Manual Model Name : NDHKANBN0A2 (2) Specifications *Product 1.Overview and Specifications (1) Overview 1) The Infotainment system provides infotainment in a car, using the latest technology. See your dealer to have the system or software updated and upgraded. 2)The radio can be easily used by registering up to 25 FM or AM with the PRESET button[1 to 5] per every 5 pages. 3) The Infotainment system can play the USB storage device or iPod/iPhoneproducts. 4)The Bluetooth phone connection function allows for the use of wireless hands-free Phone calls, as well as a phone music player. In addition, the WiFifunction is provided. 5)Connect a portable music player to the auxiliary sound input to enjoy the rich sound of the Infotainment system. ItemCategories Specifications Specification ProductNameRear Seat Entertainment system ModelNDHKANBN0A2 DimensionsRefer to image Weight Power sourceDC12V Operational temperature range -30 °C ~ 85 °C < Basic Design Concept > *RF specifications [ BT ] RSE BT module SUPPORTED SPEC : <BT > SUPPORTED SPEC : BT 4.2 / BDR /EDR SUPPORTED PROFILE : A2DP 1.3.2 / AVRCP 1.6.2 FREQUENCY RANGE : 2402 ~ 2480 MHz Output Power : MAX 4.0(dBm) Number of Channel : 79 FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. •Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. French Canadian Compliance Statements "Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. "This Class B digital apparatus complies with Canadian ICES-003." Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. “This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.” Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur. “This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body” Cet équipement doit être installé et utilisé à une distance minimale de 20cm entre le radiateur et votre corps.

Letter of Authorization Company : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, Product Name Model Number FCC Identifier New Jersey, 07632, United States : Rear Seat Entertainment system : NDHKANBN0A2 : BEJNDHKANBN0A2 We aut horize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We decl are that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Dae Woong, Kim Date: March 03, 2021 Title : Director, Regulatory and Environmental Affairs Signa ture of applicant:

LG Electronics USA Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: March 03, 2021 Subject; Request for Confidentiality FCC ID: BEJNDHKANBN0A2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. Thes e documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In addi tional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Si ncerely, Signature: Name: Dae Woong, Kim Title: Director, Regulatory and Environmental Affairs

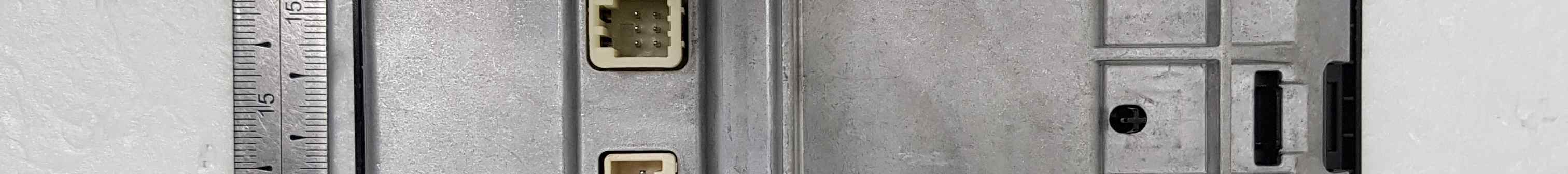

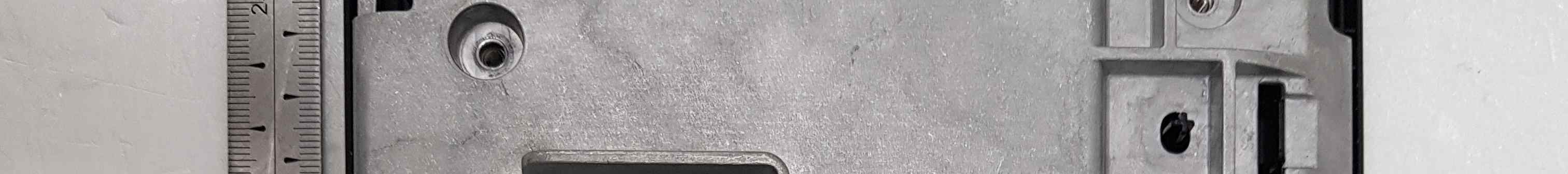

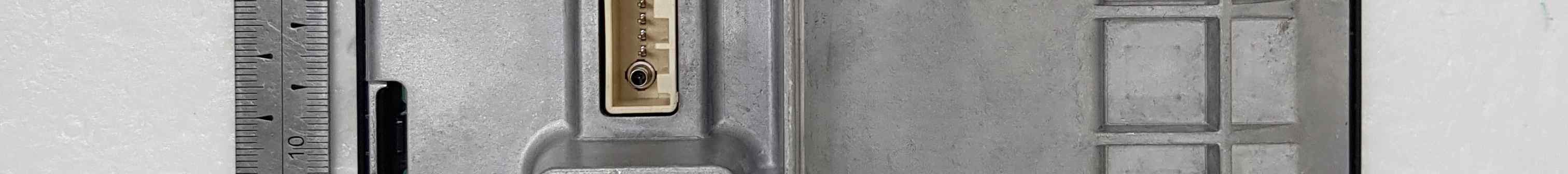

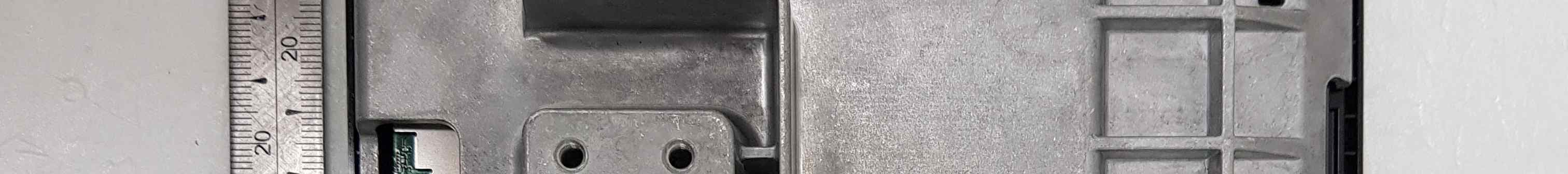

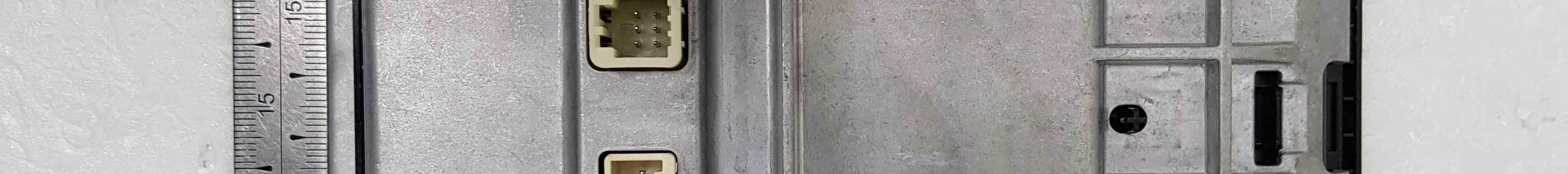

[Front] [Rear] [Left] [Right] [Upper] [Lower]

Page 1 of 1 IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed in the rear side of the equipment Authorized Person - Print Name: Dae Woong Kim / Director, Regulatory and Environmental Affairs Date: March 04, 2021 Signature: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : BEJNDHKANBN0A2

[Internal] [Main Board_Front] [Main Board_Rear] [Main Board(Shield Can Remove)_Front] [Sub Board_Front] [Sub Board_Rear] [BT Module_Right] [BT Module_Left] [BT Module_Right_Ant (Chip Antenna)] [BT Module_B2_Left (Chip Antenna)]

Page 1 of 8 Report No. : OT-212-RWD-096 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMF TEST REPORT Test Report No. : OT-212-RWD-096 Reception No. : 2012005261 Applicant : LG Electronics USA Address : 111 Sylvan Avenue North Building, Englewood Cliffs, New Jersey, United States Manufacturer : LG Electronics Inc. Address : 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do 17709, Rep of Korea Type of Equipment : Rear Seat Entertainment system FCC ID. : BEJNDHKANBN0A2 Model Name : NDHKANBN0A2 Serial number : N/A Total page of Report : 8 pages (including this page) Date of Incoming : January 07, 2021 Date of issue : February 22, 2021 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 and FCC PART 15 SUBPART E Section 15.407 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Tested by Ju Yun Park / Manager ONETECH Corp. Reviewed by Ha-Ram Lee / Manager ONETECH Corp. Approved by Ki-Hong, Nam / General Manager ONETECH Corp. Page 2 of 8 Report No. : OT-212-RWD-096 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 4 2. GENERAL INFORMATION ............................................................................................................................................ 5 2.1 PRODUCT DESCRIPTION ................................................................................................................................................. 5 2.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 5 3. EUT MODIFICATIONS .................................................................................................................................................... 5 4. MAXIMUM PERMISSIBLE EXPOSURE ...................................................................................................................... 6 4.1 RF EXPOSURE CALCULATION ....................................................................................................................................... 6 4.2 EUT DESCRIPTION ......................................................................................................................................................... 6 4.3.1 CALCULATED MPE SAFE DISTANCE FOR BLUETOOTH(LEFT SIDE) ........................................................................ 7 4.3.2 CALCULATED MPE SAFE DISTANCE FOR BLUETOOTH(RIGHT SIDE) ...................................................................... 7 4.4 DATA FOR INTERMODULATION TRANSMIT (LEFT + RIGHT BLUETOOTH) ................................................................ 8 Page 3 of 8 Report No. : OT-212-RWD-096 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Revision History Rev. No. Issue Report No. Issued Date Revisions Section Affected 0 OT-212-RWD-096 February 22, 2021 Initial Release All Page 4 of 8 Report No. : OT-212-RWD-096 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 1. VERIFICATION OF COMPLIANCE Applicant : LG Electronics USA Address : 111 Sylvan Avenue North Building, Englewood Cliffs, New Jersey, United States Contact Person : Dae Woong Kim / Director, Regulatory and Environmental Affairs Telephone No. : 201-266-2215 FCC ID : BEJNDHKANBN0A2 Model Name : NDHKANBN0A2 Brand Name : LG Serial Number : N/A Date : February 22, 2021 EQUIPMENT CLASS DSS – PART 15 SPREAD SPECTRUM TRANSMITTER E.U.T. DESCRIPTION Rear Seat Entertainment system THIS REPORT CONCERNS Original Grant MEASUREMENT PROCEDURES ANSI C63.10: 2013 TYPE OF EQUIPMENT TESTED Pre-Production KIND OF EQUIPMENT AUTHORIZATION REQUESTED Certification EQUIPMENT WILL BE OPERATED UNDER FCC RULES PART(S) FCC PART 15 SUBPART C Section 15.247 KDB 558074 D01 15.247 Meas Guidance v05r02 Modifications on the Equipment to Achieve Compliance None Final Test was Conducted On 3 m, Semi Anechoic Chamber -. The above equipment was tested by ONETECH Corp. for compliance with the requirement set forth in the FCC Rules and Regulations. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within the compliance requirements. Page 5 of 8 Report No. : OT-212-RWD-096 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 2. GENERAL INFORMATION 2.1 Product Description The LG Electronics USA, Model NDHKANBN0A2 (referred to as the EUT in this report) is a Rear Seat Entertainment system. The product specification described herein was obtained from product data sheet or user’s manual. Device Type Rear Seat Entertainment system Temperature Range -30 °C ~ 85 °C Operating Frequency 2 402 MHz ~ 2 480 MHz MAX. RF OUTPUT POWER Left 3.30 dBm Right 1.84 dBm Number of Channel 79 Channels Modulation Type GFSK for 1 Mbps, π/4-DQPSK for 2 Mbps, 8-DPSK for…

Text truncated - open the document above for the full version.

Page 1 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) RADIO PERFORMANCE TEST REPORT Test Report No. : OT-212-RWD-097 Reception No. : 2012005261 Applicant : LG Electronics USA Address : 111 Sylvan Avenue North Building, Englewood Cliffs, New Jersey, United States Manufacturer : LG Electronics Inc. Address : 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do 17709, Rep of Korea Type of Equipment : Rear Seat Entertainment system FCC ID. : BEJNDHKANBN0A2 Model Name : NDHKANBN0A2 Serial number : N/A Total page of Report : 136 pages (including this page) Date of Incoming : January 07, 2021 Date of issue : February 22, 2021 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Tested by Ju Yun Park / Manager ONETECH Corp. Reviewed by Ha-Ram Lee / Manager ONETECH Corp. Approved by Ki-Hong, Nam / General Manager ONETECH Corp. Page 2 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 7 2. TEST SUMMARY .............................................................................................................................................................. 8 2.1 TEST ITEMS AND RESULTS ............................................................................................................................................. 8 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ........................................................................................... 8 2.3 RELATED SUBMITTAL(S) / GRANT(S) ............................................................................................................................ 8 2.4 PURPOSE OF THE TEST ................................................................................................................................................... 8 2.5 TEST METHODOLOGY .................................................................................................................................................... 8 2.6 TEST FACILITY ............................................................................................................................................................... 8 3. GENERAL INFORMATION ............................................................................................................................................ 9 3.1 PRODUCT DESCRIPTION ................................................................................................................................................. 9 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 9 4. EUT MODIFICATIONS .................................................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................................. 10 5.1 JUSTIFICATION ............................................................................................................................................................. 10 5.2 PERIPHERAL EQUIPMENT ............................................................................................................................................ 10 5.3 MODE OF OPERATION DURING THE TEST .................................................................................................................... 10 5.4 CONFIGURATION OF TEST SYSTEM ............................................................................................................................. 15 5.5 ANTENNA REQUIREMENT ............................................................................................................................................ 15 6. PRELIMINARY TEST .................................................................................................................................................... 15 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS ....................................................................................................... 15 6.2 GENERAL RADIATED EMISSIONS TESTS ..................................................................................................................... 15 7. MINIMUM 20 DB BANDWIDTH .................................................................................................................................. 16 7.1 OPERATING ENVIRONMENT ......................................................................................................................................... 16 7.2 TEST SET-UP ................................................................................................................................................................. 16 7.3 TEST DATE ................................................................................................................................................................... 16 7.4 TEST DATA FOR LEFT SIDE ......................................................................................................................................... 17 7.4.1 Test data for 1 Mbps ............................................................…

Text truncated - open the document above for the full version.

Page 61 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) DH3 DH5 Page 62 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 10.5 Test Data for Right Side 10.5.1 Test data for 1 Mbps The system makes worst case 1 600 hops per second or 1 time slot has a length of 625 μs with 79 channels. For DH1 packet type, the EUT needs 1 time slot for transmitting and 1 time slot for receiving and for DH3 packet type, the EUT needs 3 times slots for transmitting and 1 time slot for receiving, and DH5 packet needs 5 times slots for transmitting and 1 time slot for receiving. So The EUT has each channel for 10.13 times per second (= 1 600/2/79) for DH1, and 5.06 times (= 1 600/4/79) for DH3, and 3.38 times (= 1 600/6/79) for DH5. Packet Type Pulse Time (ms) Hops per second with channels Period Time (ms) Total Dwell Time (ms) Limit (ms) Test Result DH1 0.385 10.13 31.60 123.24 400 PASS DH3 1.645 5.06 31.60 263.03 400 DH5 2.875 3.38 31.60 307.07 400 Total dwell time is calculated as following. Total Dwell Time = Pulse time * Hops per second with channels * period time Remark: See next page for an overview sweep performed with peak detector. DH1 Page 63 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) DH3 DH5 Page 64 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 10.5.2 Test data for 2 Mbps The system makes worst case 1 600 hops per second or 1 time slot has a length of 625 μs with 79 channels. For DH1 packet type, the EUT needs 1 time slot for transmitting and 1 time slot for receiving and for DH3 packet type, the EUT needs 3 times slots for transmitting and 1 time slot for receiving, and DH5 packet needs 5 times slots for transmitting and 1 time slot for receiving. So The EUT has each channel for 10.13 times per second (= 1 600/2/79) for DH1, and 5.06 times (= 1 600/4/79) for DH3, and 3.38 times (= 1 600/6/79) for DH5. Packet Type Pulse Time (ms) Hops per second with channels Period Time (ms) Total Dwell Time (ms) Limit (ms) Test Result DH1 0.395 10.13 31.60 126.44 400 PASS DH3 1.645 5.06 31.60 263.03 400 DH5 2.890 3.38 31.60 308.68 400 Total dwell time is calculated as following. Total Dwell Time = Pulse time * Hops per second with channels * period time Remark: See next page for an overview sweep performed with peak detector. DH1 Page 65 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) DH3 DH5 Page 66 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 10.5.3 Test data for 3 Mbps The system makes worst case 1 600 hops per second or 1 time slot has a length of 625 μs with 79 channels. For DH1 packet type, the EUT needs 1 time slot for transmitting and 1 time slot for receiving and for DH3 packet type, the EUT needs 3 times slots for transmitting and 1 time slot for receiving, and DH5 packet needs 5 times slots for transmitting and 1 time slot for receiving. So The EUT has each channel for 10.13 times per second (= 1 600/2/79) for DH1, and 5.06 times (= 1 600/4/79) for DH3, and 3.38 times (= 1 600/6/79) for DH5. Packet Type Pulse Time (ms) Hops per second with channels Period Time (ms) Total Dwell Time (ms) Limit (ms) Test Result DH1 0.385 10.13 31.60 123.24 400 PASS DH3 1.635 5.06 31.60 261.43 400 DH5 2.895 3.38 31.60 309.21 400 Total dwell time is calculated as following. Total Dwell Time = Pulse time * Hops per second with channels * period time Remark: See next page for an overview sweep performed with peak detector. DH1 Page 67 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) DH3 DH5 Page 68 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 11. MAXIMUM PEAK OUTPUT POWER 11.1 Operating environment Temperature : 23 °C Relative humidity : 45 % R.H. 11.2 Test set-up The antenna output of the EUT was connected to the spectrum analyzer. The resolution bandwidth is set to ≥ DTS Bandwidth, the video bandwidth is set to 3 times the resolution bandwidth. 11.3 Test Date January 07, 2021 ~ January 28, 2021 EUT Signal Analyzer Page 69 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 11.4 Test Data for Left Side 11.4.1 Test data for 1 Mbps -. Test Re…

Text truncated - open the document above for the full version.

Page 101 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) High Channel Hopping Mode Page 102 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Low Channel Low Channel Page 103 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Middle Channel Middle Channel Page 104 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) High Channel High Channel Page 105 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Hopping Mode Hopping Mode Page 106 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 12.6.2 Test data for 2 Mbps Low Channel Middle Channel Page 107 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) High Channel Hopping Mode Page 108 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Low Channel Low Channel Page 109 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Middle Channel Middle Channel Page 110 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) High Channel High Channel Page 111 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Hopping Mode Hopping Mode Page 112 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 12.6.3 Test data for 3 Mbps Low Channel Middle Channel Page 113 of 136 Report No.: OT-212-RWD-097 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Ko…
