BEJNT-15Z95NNotebook Computer

LG EASY GUIDE NOTEBOOK 15Z95N Series www.lg.com Copyright © 2020 LG Electronics Inc. All rights reserved. 2 Introduction / Important Safety Precautions Introduction / Important Safety Precautions UsingLG Easy Guide, LG TroubleShooting LG Electronics Inc. providesLG Easy Guide(User's Guide) andLG TroubleShooting(TroubleShooting Guide) to users for their easy and convenient use of the product. TIP LG Easy GuideandLG TroubleShootingare provided with the UWP app and they can be downloaded again on theMicrosoft Storeif they are deleted. If you want to download the files again, connect to theMicrosoft Store, search for the files and install them. •Press the [] button to run[LG Easy Guide 2.0]or[LG TroubleShooting 2.0]. ENGLISH Introduction / Important Safety Precautions 3 Information/Precautions Before Using Before readingLG Easy Guide, first check the following information. •ThisLG Easy Guidehas been written for the Windows 10 operating system. •The screen and menu configurations may differ from this manual depending on the status of the Windows and software update. •Representative images are used inLG Easy Guide. Product purchased may differ in appearance and color. •LG Easy Guideincludes instruction about optional products.There may be information about products you did not purchase. •The contents ofLG Easy Guideare subject to change without prior notice. •Use, duplication, or reproduction of any part ofLG Easy Guidewithout prior permission from LG Electronics Inc. is strictly prohibited. •LG Electronics Inc. does not provide warranty for data loss. In order to minimize damage from data loss, please make backup copies of important data. •The optical disk drive (DVD, CD-ROM, etc.) is optional and may not be provided upon purchasing the product. •Manufacturers and installers cannot provide services related to human safety as this wireless device may cause radio interference. Safety Precaution Notations The below symbols are to inform you of dangers and safety concerns that you must be aware of. Read the symbol-indicated instructions with caution to avoid any possible mishap. WARNING Appears in the case of noncompliance with the instruction that may cause serious physical damage or fatal injuries. CAUTION Appears in the case of noncompliance with the instruction that may cause minor damage to the body or the machine. Text Notations The symbols below are used to display information required to use the product. Familiarize yourself with the instructions marked by the symbols to ensure proper operation of the product. ENGLISH 4 Introduction / Important Safety Precautions TIP Indicates that the following information is added to help the user utilize the machine more conveniently. OPTION The Option symbol indicates that the concerned device is not included in the product package and thus has to be purchased separately, or the device may not be applied to the user's machine depending on model type. Manufacturer and Copyright Microsoft™, MS™, WinPE™, and Windows ® are the registered trademarks of Microsoft Corporation™. USB Type-C™and USB-C™are the trademarks of USB Implementers Forum. Thunderbolt™is a trademark of Intel Corporation or its subsidiaries in the U.S. and/or other countries. NVMe™is a trademark of NVM Express, Inc The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. Manufacturer and Copyright represent the logo and trademark of the manufacturer, and bear no relationship to the functions supported by the product. LG logo is a registered trademark of LG Electronics Inc. Micro SD Logo is a trademark of SD-3C, LLC The UFS Logo is a trademark of the Universal Flash Storage Association (UFSA). For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS:X, the DTS:X logo, and DTS:X Ultra are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. The SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. ENGLISH Introduction / Important Safety Precautions 5 LG Easy Guidemay contain undetectable errors despite our dedicated efforts to provide users with reliable information. We ask for your understanding. The illustrated figures inLG Easy Guidemay differ in appearance with the actual products. Unauthorized reproduction or duplication of any part ofLG Easy Guideis strictly prohibited. LG Electronics Inc. reserves the right to modify any part of this manual for quality purposes, without prior notice. Copyright (C) 2020 LG Electronics Inc. Digitalmate Co., LTD Country of OriginChina ManufacturerLG Electronics Inc. Open Source Software Notice Information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This offer is valid for a period of three years after our last shipment of this product.This offer is valid to anyone in receipt of this information. System Protection Feature If the system becomes too hot, the system protection feature automatically stops recharging and switches the power mode to Hibernate or Off. The PC system has to cool down before it can be reactivated. Information on Hard Drive / Memory Capacity Information on Ha…

Text truncated - open the document above for the full version.

Using the PC 129 Using USB-C™(Thunderbolt™) Charging Function You can connect a USB-C™device to charge a notebook PC battery or other external devices. •To charge a notebook PC battery, the external device (USB PD Charger, notebook PC, etc.) should support USB Power Delivery 10 W (5 V / 2 A) or higher profile. •The external devices that use the USB-C™port can be charged at 10 W (5 V / 2 A), 15 W (5 V / 3 A), and 18 W (9 V / 2 A). •USB PD (Power Delivery) supports charging at 15 W (5 V / 3 A) or 18 W (9 V / 2 A) when connected, whereas a regular USB device supports general charging at 10 W (5 V / 2 A). •When the remaining battery capacity of the notebook PC falls below 10 %, both USB PD and regular USB device support charging at 10 W (5 V / 2 A) only. •Always-On Charging is supported only with USB-C™ports, but not with the regular USB ports. •If you connect an AC adapter while the notebook PC is being used to charge an external device, it may take more time to charge the notebook PC. Using the Charging Function LG Control Centercan be used to set one of the three charging functions: Automatic, Sink and Source. TIP For information on how to use LG Control Center, refer to [Using Software] > [LG Control Center]. ENGLISH 130 Using the PC 1Automatic The operation mode is automatically selected depending on the charge settings of the connected device. •When the connected device is set to Automatic (charging the notebook PC or a connected device. Charging the notebook PC by using the mobile phone is not supported.) •When the connected device is set to Source (the notebook PC is charged.) •When the connected device is set to Sink (the connected device is charged.) ENGLISH Using the PC 131 2Sink The connected device is used to charge the notebook PC. TIP If the connected device is set to Sink, the charging function does not work. ENGLISH 132 Using the PC 3Source The notebook PC is used to charge the connected device. TIP If the connected device is set to Source, the charging function does not work. TIP The charging status of the external device being charged is not displayed on the notebook PC. If you connected a smartphone, you should select "Charge mobile phone" on the smartphone screen to charge the phone battery. CAUTION When you set the charging function for a USB-C™port inLG Control Center, beware of the following: •If you changed the charge setting, it is recommended that you remove the USB-C™cable and re-connect it. •If you restart the system or turn off the power, the charge setting is changed to [Automatic]. •If the charge setting is set to [Sink], some of the devices connected to the USB-C™port may not work properly. •Always-On Charging only supports the ON (automatic) and OFF options. •If the power consumption of the notebook PC is larger than the power supply from the external device, the battery may be consumed gradually. ENGLISH Using the PC 133 Bluetooth Bluetooth allows the user to access wirelessly various devices such as camera, cell phone, headset, printer, and GPS receiver that support Bluetooth . It can also establish a network and exchange data with other Bluetooth -enabled PC or smartphone. OPTION The Bluetooth device is optional, and it may not be available in some models. The figures herein may differ by language selection and are subject to change without prior notice. For details on connecting a Bluetooth device, refer to the user manual that came with the Bluetooth device. 1Click the [] button and select the [Settings] menu. TIP Press the [ ] key or [Ctrl] + [Esc] to display the Start menu. ENGLISH 134 Using the PC 2When the [Settings] screen appears, select [Devices]. ENGLISH Using the PC 135 3Select[Bluetooth & other devices]>[Add Bluetooth or other device]>[Bluetooth]to search for Bluetooth devices. ENGLISH 136 Using the PC 4Select a device to connect to. 5Complete the Bluetooth connection as directed. ENGLISH Using the PC 137 Wired LAN LAN is the network environment that users can connect to by using a cable to connect to their internet providers or the company's network. Using Wired LAN LAN is installed with an automatic IP (DHCP) as default value. Please refer to the following instructions for details on setting up an automatic IP (DHCP) or manual IP. 1Connect the LAN adapter to the USB-C™port on the PC. TIP The recommended network cable for the optimal network environment is CAT5 or higher. The network (LAN) cable may be connected when the LAN adapter is used. ENGLISH 138 Using the PC 2Connect the wired LAN cable to the LAN port. ENGLISH Using the PC 139 3Press the [] button and select the[Settings]menu. TIP Press the [ ] key or [Ctrl] + [Esc] to display the Start menu. ENGLISH 140 Using the PC 4Select[Network & Internet]>[Status]>[Change adapter options]. ENGLISH Using the PC 141 5Right-click[Ethernet]and select the[Properties]menu. ENGLISH 142 Using the PC 6Select[Internet Protocol Version 4 (TCP/IPv4)]and then click[Properties]. ENGLISH Using the PC 143 7To use an automatic IP(DHCP), select[Obtain an IP address automatically]. If you wish to use a static IP, select[Use the following IP address]to enter the address. Contact the network service provider or administrator to use a static IP. 8Press[OK]to complete the network setup. 9Click the Web Browser icon to check whether the Internet is operating normally. ENGLISH 144 Using the PC Wireless LAN The wireless network (Wireless LAN) is the network environment that connects a PC with the internet provider or company network through an Access Point (wireless or regular router). OPTION Wireless LAN is optional. Hence, it may not be installed in some models. Turning On/OffAirplane Mode Prior to using the wireless LAN, press [Fn] + [F6] to turn offAirplane Mode. Pressing [Fn] + [F6] keys will turn on or off theAirplane Mode. If you are not going to use the product for a while, keep theAirplane Modeturned on to reduce the battery power consumption. Using the Wireless LAN If an Access Point (wired or wireless router) …

Text truncated - open the document above for the full version.

Date: October 21, 2020 Subject: Family model declaration letter Product: Notebook Computer Model: 15Z95N, 15ZB95N, 15ZD95N, 15ZG95N, 15ZC95N FCC ID: BEJNT-15Z95N We hereby declare that models 15Z95N, 15ZB95N, 15ZD95N, 15ZG95N and 15ZC95N, we apply for are totally identical except to the sales customers Sincerely, _______________________________________ Kyung Su Han Director, Standards & Compliance LG Electronics Inc.

Cover Letter-Data Reuse Oct. 05, 2020 Subject: Statement for data reuse. Product: Notebook Computer Model: 15Z95N, 15ZB95N, 15ZD95N, 15ZG95N, 15ZC95N FCC ID: BEJNT-15Z95N, IC: 2703H-15Z95N To whom it may concern: Hereby we declare that this device embedded with same radio module(Intel, AX201D2W) with FCC ID: BEJNT-15Z90N and IC: 2703H-15Z90N which granted dates listed below: FCC ID: BEJNT-15Z90N IC: 2703H-15Z90N Granted date: DSS: 11/28/2019 DTS: 11/29/2019 NII: 11/29/2019 Approved Date:12/04/2019 The radio transmitter has RF parameters involved radio power, channels and electric circuit are totally identical. Below are summary table for data reuse and spot check according to KDB 484596D01. For DTS Function Test Item Data Reused Conducted Emission No Radiated Band Edge and Radiated Spurious Emission No 6dB/Occupied Bandwidth Yes Maximum Peak Output Power Spot Check Conducted Band Edges and Conducted Spurious Emission Yes Peak Power Spectral Density Yes For DSS Function Test Item Data Reused Conducted Emission No Radiated Band Edge and Radiated Spurious Emission No 20dB/Occupied Bandwidth Yes Carrier Frequency Separation Yes Time of Occupancy Yes Number of Hopping Channels Yes Maximum Peak Output Power Spot Check Conducted Band Edges and Conducted Spurious Emission Yes For UNII Function Test Item Data Reused Conducted Emission No Radiated Band Edge and Radiated Spurious Emission No Occupied Bandwidth Yes Maximum Output Power Spot Check Power Spectral Density Yes Frequency Stability Yes Sincerely, _______________________________________ KyungSu Han Director, Standards & Compliance LG Electronics Inc.

Federal Communications Commission Authorization and Evaluation Division Date: Oct. 05, 2020 ATTESTATION FCC ID: BEJNT-15Z95N IC:2703H-15Z95N Product descriotion: Notebook Computer We,LG Electronics USA hereby declare that the [Notebook Computer, 15Z95N, 15ZB95N, 15ZD95N, 15ZG95N, 15ZC95N] for being in compliance with KDB 594280 and KDB 848637 is disabled following bands/ functions by software 1. Ad-hoc and Wi-Fi Direct are disabled. 2. When the client in non-associated mode,This device is client software and associated drivers will not initate any transmissionon DFS frequencies without initiation by a master.without DFS detection function capability. This includes transmissions for beacon ad-hoc peer-to-peer modes. 3. This device is not able to operate in non-US/IC frequencies, and without country code selection function. Best regards _______________________________________ KyungSu Han Director, Standards & Compliance LG Electronics USA

053019 – 12 Authority to Act as Agent Date: Oct. 05, 2020 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______AUDIX Technology Corporation_______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____Oc. 05, 2021_____ By: __________________________ _KyungSu Han________ (Signature 1 ) (Print name) Title: ___Director, Standards & Compliance_ On behalf of: _____LG Electronics USA______ (Company Name) Telephone: _____201-472-2623_______ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

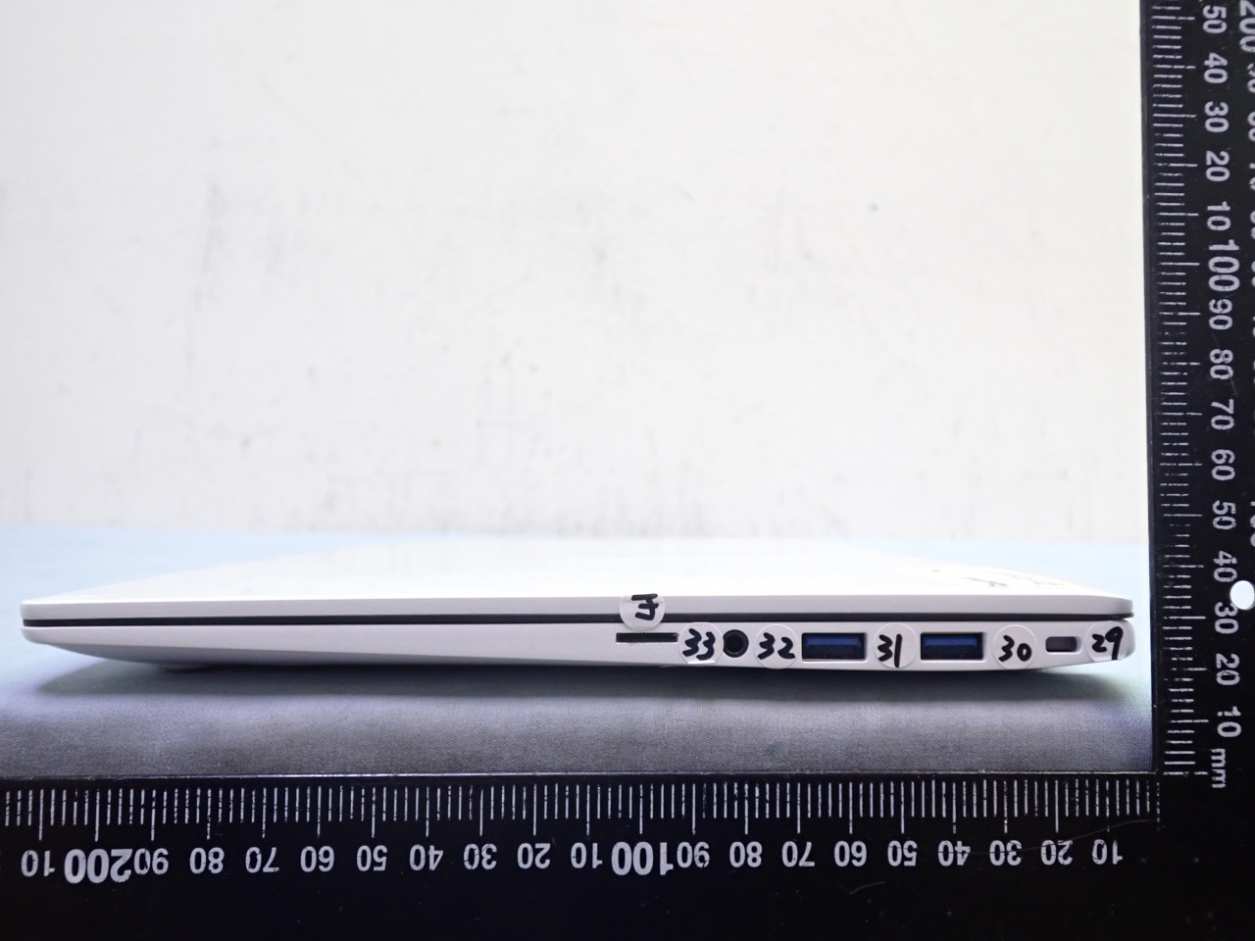

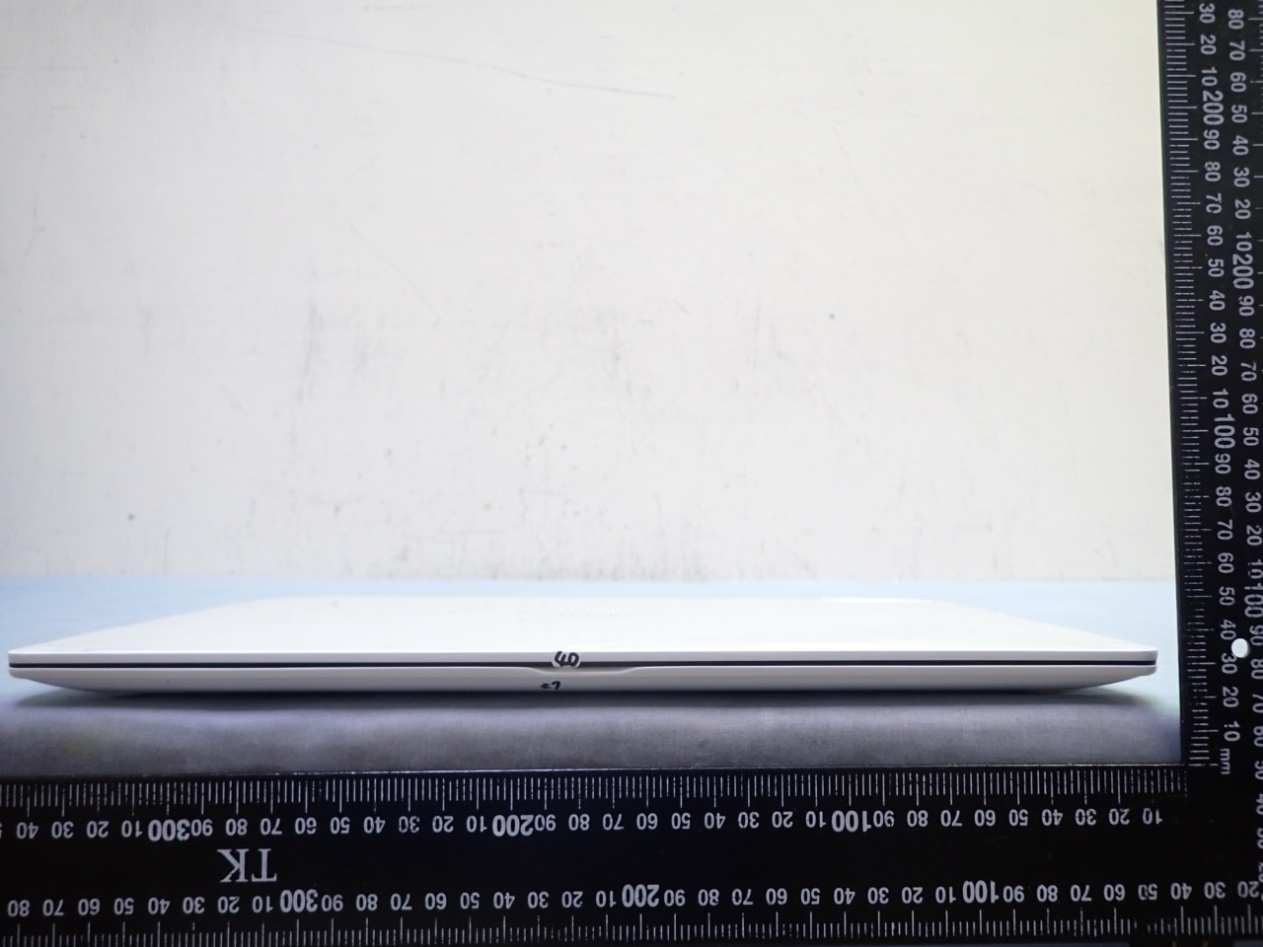

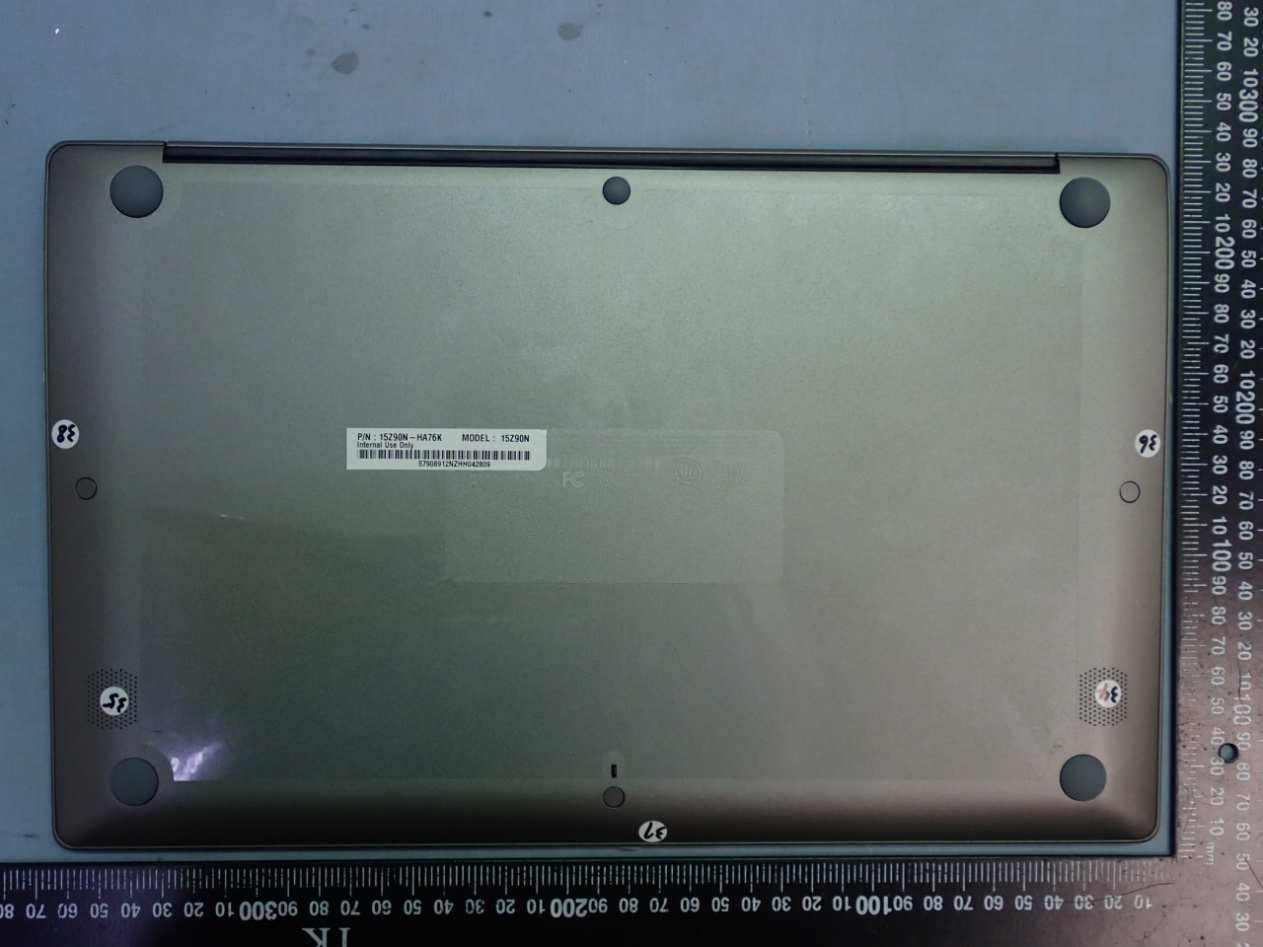

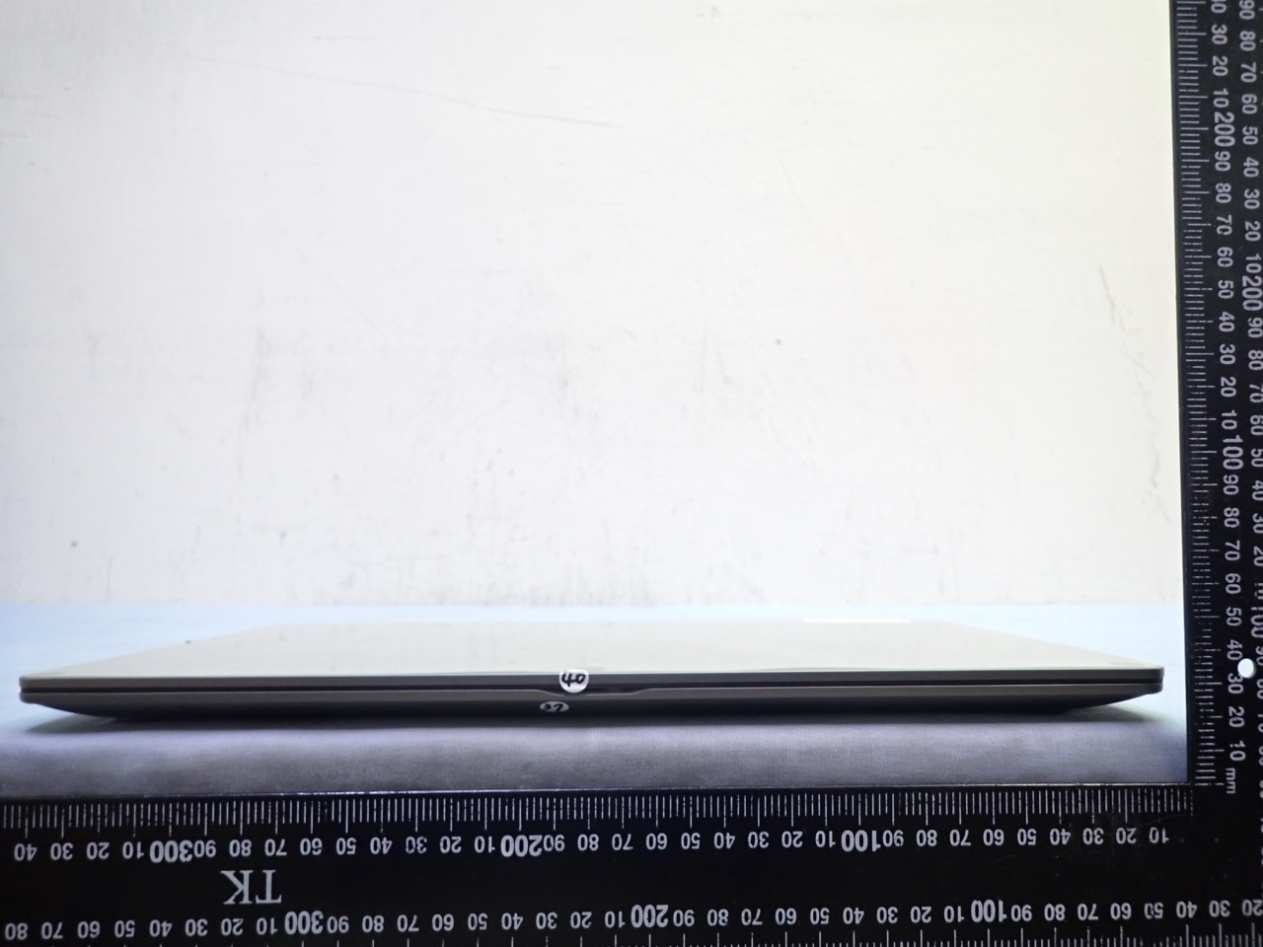

LG Electronics Inc. Notebook Computer Model : 15Z95N Series EUT External Photos Figure 1 General Appearance (Dark Silver), Front View Figure 2 General Appearance (Dark Silver), Back View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 3 General Appearance (Dark Silver), Top View Figure 4 General Appearance (Dark Silver), Bottom View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 5 General Appearance (Dark Silver), Side View Figure 6 General Appearance (Dark Silver), Side View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 7 General Appearance (White), Front View Figure 8 General Appearance (White), Back View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 9 General Appearance (White), Top View Figure 10 General Appearance (White), Bottom View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 11 General Appearance (White), Side View Figure 12 General Appearance (White), Side View

LG Electronics Inc. Notebook Computer Model : 15Z95N Series Label Location  Label Placement Location Label Placement Location (EUT Bottom View)  Label Format

LG Electronics Inc. Notebook Computer Model : 15Z95N Series EUT Internal Photos Figure 13 Internal View (With White Keyboard) Figure 14 Internal View (With Dark Sliver Keyboard) LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 15 Internal View Figure 16 Internal View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 17 Internal View (Removed Battery) Figure 18 Internal View (Touch Pad, Back View) LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 19 Internal View (Touch Pad, Front View) Figure 20 Hannstar, Main Board, Front View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 21 Hannstar, Main Board, Back View Figure 22 Elec&Eltek, Main Board, Front View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 23 Elec&Eltek, Main Board, Back View Figure 24 i7-1165G7, CPU View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 25 i5-1135G7, CPU View Figure 26 Hannstar, WLAN SUB Board, Front View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 27 Hannstar, WLAN SUB Board, Back View Figure 28 Elec&Eltek, WLAN SUB Board, Front View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 29 Elec&Eltek, WLAN SUB Board, Back View Figure 30 WLAN Combo Card View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 31 WLAN Combo Card, Remove Cover Figure 32 Internal View (DC Fan) LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 33 M/N: LP156WFD(SP)(Y1) (With Touch), LCD Panel, Front View Figure 34 M/N: LP156WFD(SP)(Y1) (With Touch), LCD Panel, Back View/ Label View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 35 M/N: LP156WF9(SP)(N1) (With Non touch),LCD Panel, Front View Figure 36 M/N: LP156WF9(SP)(N1) (With Non touch),LCD Panel, Back View/ Label View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 37 M/N: LP156WFC(SP)(Y1) (Normal Non touch),LCD Panel, Front View Figure 38 M/N: LP156WFC(SP)(Y1) (Normal Non touch),LCD Panel, Back View/ Label View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 39 M/N WA-P-LBLB-04-070, WLAN Combo Antenna Figure 40 M/N WA-P-LBLB-04-070, WLAN Combo Antenna Position Main ANT AUX ANT LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 41 M/N L1LRF003-CS-H, WLAN Combo Antenna Figure 42 M/N L1LRF003-CS-H, WLAN Combo Antenna Position Main ANT AUX ANT LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 43 Battery Pack, Front View Figure 44 Battery Pack, Back View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 45 Samsung, SSD (1TB), Front View Figure 46 Samsung, SSD (1TB), Back View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 47 SK hynix, SSD (256GB), Front View Figure 48 SK hynix, SSD (256GB), Back View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 49 SAMSUNG, SSD (128GB), Front View Figure 50 SK hynix, SSD (128GB), Back View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 51 SUZHOU MEC (100 Megabit Ethernet), LANGender (White) Figure 52 SUZHOU MEC (100 Megabit Ethernet), LANGender (White), IO View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 53 ARIN (100 Megabit Ethernet), LANGender (White) Figure 54 ARIN (100 Megabit Ethernet), LANGender (White), IO View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 55 MEC &ARIN (100 Megabit Ethernet), LANGender (Black), Front View Figure 56 MEC &ARIN (100 Megabit Ethernet), LANGender (Black), Back View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 57 AC Adapter (White), Front View Figure 58 AC Adapter (White), Back View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 59 AC Adapter (White), AC Inlet View Figure 60 AC Adapter (White), Label View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 61 AC Adapter (Black), Front View Figure 62 AC Adapter (Black), Back View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 63 AC Adapter (Black), AC Inlet View Figure 64 AC Adapter (Black), Label View LG Electronics Inc. Notebook Computer Model : 15Z95N Series Figure 65 AC Power Cord (1.55m) Figure 66 AC Power Cord (1.55m)

Dipole Verified Data Model Name: D2450V2 SN:888 Pursuant to KDB 865664 D01 V01r04 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Plot for Antenna Parameters with Head Tissue Antenna Parameters with Head Tissue Item Verified on 9/28, 2020 Original Cal. Result Deviation Impedance, transformed to feed point 52.819 Ω -1.0803 Ω 53.4 Ω +2.2j Ω < 5 Ω Return Loss -26.916 dB -28.2 dB -4.66%

Dipole Verified Data Model Name: D5GHzV2 SN:1124 Pursuant to KDB 865664 D01 V01r04 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Body Tissue 5200 MHz Item Verified on 9/29, 2020 Original Cal. Result Deviation Impedance, transformed to feed point 50.447 Ω -0.20549 Ω 50.5 Ω -3.8j Ω < 5 Ω Return Loss -29.421 dB -28.4 dB 3.471% Antenna Parameters with Body Tissue 5300 MHz Item Verified on 9/29, 2020 Original Cal. Result Deviation Impedance, transformed to feed point 50.023 Ω +1.0196 Ω 50.1 Ω -2.8j Ω < 5 Ω Return Loss -30.251 dB -31.9 dB -5.17% Antenna Parameters with Body Tissue 5500 MHz Item Verified on 9/29, 2020 Original Cal. Result Deviation Impedance, transformed to feed point 52.680 Ω -3.3604 Ω 53.3 Ω +1.3j Ω < 5 Ω Return Loss -29.494 dB -29.3 dB 0.66% Antenna Parameters with Body Tissue 5600 MHz Item Verified on 9/29, 2020 Original Cal. Result Deviation Impedance, transformed to feed point 53.082 Ω +4.8210 Ω 54.6 Ω +4.4j Ω < 5 Ω Return Loss -24.711 dB -24.4 dB 1.27% Antenna Parameters with Body Tissue 5800 MHz Item Verified on 9/29, 2020 Original Cal. Result Deviation Impedance, transformed to feed point 56.925 Ω- 2.0252 Ω 57.2 Ω +0.9j Ω < 5 Ω Return Loss -23.808 dB -23.4 dB 1.74% Plot for Antenna Parameters with Body Tissue 5200 MHz& 5300 MHz Plot for Antenna Parameters with Body Tissue 5500 MHz Plot for Antenna Parameters with Body Tissue 5600 MHz Plot for Antenna Parameters with Body Tissue 5800 MHz

Page 1 of 50 Audix Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2009321 Report Number: EM-SR200017 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. FCC 2.1093 SAR Test Report for LG Electronics Inc. 222, LG-ro Jinwi-myeon, Pyeongtaek-Si, Gyeonggi-Do, 451-713, Korea Product Name : Notebook PC Model Name : (1)15Z95N (2)15ZB95N (3)15ZD95N (4)15ZG95N (5)15ZC95N Brand LG FCC ID : BEJNT-15Z95N Prepared by: : AUDIX Technology Corporation, EMC Department The test report is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. Page 2 of 50 Audix Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2009321 Report Number: EM-SR200017 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. TABLE OF CONTENTS Description Page TEST REPORT ................................................................................................................................... 3 1. REVISION RECORD OF TEST REPORT ............................................................................ 4 2. SUMMARY OF TEST RESULTS ........................................................................................... 5 3. GENERAL INFORMATION ................................................................................................... 6 3.1. Description of Application .............................................................................................................. 6 3.2. Description of EUT ......................................................................................................................... 7 3.3. Reference Test Guidance ................................................................................................................. 8 3.4. Antenna Information ....................................................................................................................... 8 3.5. EUT Specifications Assessed in Current Report ............................................................................. 9 3.6. Description of Key Components ................................................................................................... 11 3.7. Test Environment .......................................................................................................................... 14 3.8. Description of Test Facility ........................................................................................................... 14 3.9. Measurement Uncertainty ............................................................................................................. 15 4. MEASUREMENT EQUIPMENTLIST ................................................................................. 17 5. SAR MEASUREMENT SYSTEM ......................................................................................... 18 5.1. Definition of Specific Absorption Rate (SAR) .............................................................................. 18 5.2. SPEAG DASY System .................................................................................................................. 18 5.3. SAR System Verification .............................................................................................................. 26 5.4. SAR Measurement Procedure ....................................................................................................... 32 6. SAR MEASUREMENT EVALUATION .............................................................................. 35 6.1. EUT Configuration and Setting ..................................................................................................... 35 6.2. EUT Testing Position .................................................................................................................... 36 6.3. Tissue Calibration Result .............................................................................................................. 37 6.4. SAR Exposure Limits .................................................................................................................... 38 6.5. Conducted Power Measurement .................................................................................................... 39 6.6. SAR Test Result ............................................................................................................................ 47 APPENDIX A TEST DATA AND PLOTS APPENDIX B TESTPHOTOGRAPHS Page 3 of 50 Audix Technology Corp. Tel: +886 2 26099301 No. 53-11, Dingfu, Linkou, Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2009321 Report Number: EM-SR200017 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. TEST REPORT Applicant : LG Electronics Inc. Manufacturer : LG Electronics Inc. Factory #1 : LG Electronics Nanjing New Technology Co., Ltd. Factory #2 : SEO HEUNG ELECTRONICS CO LTD EUT Description (1) Product : Notebook PC (2) Model : (1)15Z95N (2)15ZB95N (3)15ZD95N (4)15ZG95N (5)1…

Text truncated - open the document above for the full version.
