BEJNT-LG14Z96Notebook Computer

Model Name: LG14Z96 2 Introduction / Important Safety Precautions Introduction / Important Safety Precautions UsingLG Easy Guide, LG Troubleshooting LG Electronics Inc. providesLG Easy Guide(User's Guide) andLG Troubleshooting (Troubleshooting Guide) to users for their easy and convenient use of the product. ENGLISH Introduction / Important Safety Precautions 3 1Click the [] button to display the Start menu. TIP Press the [ ] key or [Ctrl] + [Esc] to display the Start menu. ENGLISH 4 Introduction / Important Safety Precautions 2Select[LG Easy Guide]or[LG Troubleshooting]tile to run it. TIP Select the [ ] button > [All Apps] > [LG Software] to run[LG Easy Guide]or[LG Troubleshooting]. ENGLISH Introduction / Important Safety Precautions 5 Information / Precautions Before Using Before readingLG Easy Guide, first check the following information. •ThisLG Easy Guidehas been written for the Windows 10 operating system. •Representative images are used inLG Easy Guide. Product purchased may differ in appearance and color. •LG Easy Guideincludes instruction about optional products. There may be information about products you did not purchase. •The contents ofLG Easy Guideare subject to change without prior notice. •Use, duplication, or reproduction of any part ofLG Easy Guidewithout prior permission from LG Electronics Inc. is strictly prohibited. •LG Electronics Inc. does not provide warranty for data loss. In order to minimize damage from data loss, please make backup copies of important data. Safety Precaution Notations The below symbols are to inform you of dangers and safety concerns that you must be aware of. Read the symbol-indicated instructions with caution to avoid any possible mishap. WARNING Appears in the case of noncompliance with the instruction that may cause serious physical damage or fatal injuries. CAUTION Appears in the case of noncompliance with the instruction that may cause minor damage to the body or the machine. Text Notations The symbols below are used to display information required to use the product. Familiarize yourself with the instructions marked by the symbols to ensure proper operation of the product. TIP Indicates that the following information is added to help the user utilize the machine more conveniently. The Option symbol indicates that the concerned device is not included in the product package and thus has to be purchased separately, or the device may not be applied to the user's machine depending on model type. ENGLISH 6 Introduction / Important Safety Precautions Manufacturer and Copyright Microsoft™, MS™, WinPE™, and Windows ® are the registered trademarks of Microsoft Corporation™. Manufacturer and Copyright represent the logo and trademark of the manufacturer, and bear no relationship to the functions supported by the product. LG™logo is a registered trademark of LG™Corporation. SD™logo is a registered trademark of Secure Digital™Corporation. xD™logo is a registered trademark of FUJIFILM™Co., ltd. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. The SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. LG Easy Guidemay contain undetectable errors despite our dedicated efforts to provide users with reliable information. We ask for your understanding. The illustrated figures inLG Easy Guidemay differ in appearance with the actual products. Unauthorized reproduction or duplication of any part ofLG Easy Guideis strictly prohibited. LG Electronics Inc. reserves the right to modify any part of this manual for quality purposes, without prior notice. Copyright (C) 2015 LG Electronics Inc. Digitalmate Co., LTD Country of OriginChina ManufacturerLG Electronics Inc. OPEN SOURCE SOFTWARE NOTICE To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, ENGLISH Introduction / Important Safety Precautions 7 shipping and handling) upon email request to [email protected]. This offer is valid for three (3) years from the date on which you purchased the product. System Protection Feature If the system becomes too hot, the system protection feature automatically stops recharging the battery and switches to hibernate mode or turns the power off. The PC system may not be reactivated until it cools down enough. Information on Hard Drive / Memory Capacity Information on Hard Drive (HDD, SSD, eMMC) Capacity The hard drive capacity shown by Windows is lower than that stated by the hard drive manufacturer due to a difference in calculation. ManufacturerHard drive manufacturers use a decimal definition of 1 KB = 1,000 Bytes. 100 GB Storage Device (HDD, SSD, eMMC): 100,000 MB / 1,000 Bytes = 100 GB WindowsWindows use the binary definition of 1 KB = 1,024 Bytes. 100 GB Storage Device (HDD, SSD, eMMC): 100,000 MB / 1,024 Bytes = 97.6 GB RAM Capacity RAM capacity shown by Windows may be lower than the actual capacity because the PC uses shared memory for BIOS and the integrated graphics card. Due to BIOS using shared memory, 1,024 MB RAM may be reported as 1,022 MB or slightly less. If the PC has integrated graphics card, 1,024 MB RAM may be reported as 1,022 MB or less than 1,000 MB. CMOS Backup Battery The CMOS backup battery of the main board ensures that the system setup (BIOS) does not disappear even if the power is disconnected. The CMOS backup battery is an expendable component. CMOS backup battery may not be available depending on the model. ENGLISH 8 Introduction / Important Safety Precautions CAUTION •To replace the CMOS backup bat…

Text truncated - open the document above for the full version.

Using the PC 101 Using a Wired/Wireless Router A wireless / regular router connects several PCs and mobile devices to one internet line and enables the use of internet and the network. A wireless / regular router has to be bought separately. Refer to the manual provided by the manufacturer for instructions. Connecting a Wireless or Regular Router If one internet line is used with a wireless / regular router and several devices are connected, this may result in a slower connection. In case of a wireless LAN, it is recommended to change the network name and security settings for a more secure connection. Network speed can differ according to operation environment and specifications. 1Connect the internet cable of the modem that was provided by your internet provider to the router's WAN port. 2Connect all devices (PC, IPTV, internet phone, etc.) with a LAN cable to LAN ports 1 to 4 of the router. The number of LAN ports can vary for each router model. 3Please refer to the manual provided by the router manufacturer for setup of the network and Internet. ENGLISH 102 Using the PC Micro SD Slot Checking Available Memory Card This model supports Micro SD memory cards. Directly applicable memory cards Mounting and Using Memory Card This product supports one Micro SD slot. Insert the card into the multi-card slot to the fullest in the right direction as shown in the following figure. ENGLISH Using the PC 103 TIP •When the memory card is formatted, the data stored in the memory card will be deleted. Check whether there are important data before formatting the memory stick. •To format a memory card, right-click the memory card drive and select Format. When Format window appears, press Start to continue. •Windows The format feature may not be available on versions of Windows that are earlier than Vista ® . Format the card on other digital devices or format it after installing Memory Stick Formatter. •If the write protection tab of memory card is locked, the user cannot format the memory stick nor write or delete the data. •SD™, MMC™memory cards can be used only as storage devices and do not support the copyright protection feature. Removing Memory Card Push the card with your finger to make the card spring out of the slot. Remove the memory card. ENGLISH 104 Using the PC TIP To safely remove a memory card: The figures herein may differ by language selection and is subject to change for performance improvements without prior notice. 1ClickSafely Remove Hardware and other Mediaicon on the right side of the taskbar. 2SelectRemove Multi-Card USB Deviceto safely remove hardware. ENGLISH Using Software 105 Using Software LG Control Center LG Control Centeris a software that helps you to change PC Settings, Power Settings, Windows Security Settings, etc. as well as viewing system information. TIP LG Control Center For more details about how to use , refer to the corresponding help. The figures herein is subject to change for performance improvements without prior notice and the functions supported byLG Control Centermay vary from models. UsingLG Control Center 1Press the [] icon on the desktop to run[LG Control Center]. TIP Select the [ ] button > [All Apps] > [LG Software] and run[LG Control Center]. ENGLISH 106 Using Software aMinimize/Exit Button: Minimizes the size of the window, or exits the software. bhelp/info Button: Runs Help or displays information about the software. cSystem Settings: Sets up the screen brightness / resolution, external display, sound and other various devices. dPower Management: Sets up power management option, USB charging, battery status and battery life extension. eWindows Security: Sets User Account Control settings and Firewall settings. fInstant Booting: You can set the system to automatically boot whenever you open the notebook PC. gSystem Information: Displays the PC OS in use, processor information and other system information. ENGLISH Using Software 107 LG Update Center LG Update Centerallows you to install various PC drivers, applications and Windows patches easily. TIP The illustrated images are subject to change without prior notice. It may not work properly depending on user preferences (security tools, etc.) and the network status. For more information onLG Update Center, refer to[Help]. UsingLG Update Center 1Press the [] icon on the desktop to runLG Update Center. TIP Select the [ ] button > [All Apps] > [LG Software] and run[LG Update Center]. aRequired Update: Installs critical items that must be applied to the system. bAll List: Displays and installs all required items for the system. ENGLISH 108 Using Software cNotification Setting: Sets up notifications for online updates for installed items. TIP You can use theLG Update Centerto quickly install the latest drivers, or reinstall any deleted drivers. UseLG Update Centerto keep your system current and optimized. ENGLISH Using Software 109 LG Reader Mode LG Reader Modeprevents the users from eyestrain and helps them to read the PC screen comfortably by displaying the screen just like a printed paper. UsingLG Reader Mode TIP You cannot adjust the screen brightness in reader mode. Deactivate reader mode to adjust screen brightness. If you want to use the hot keys you can use reader mode more conveniently. •Press the [Fn] + [F9] keys to switch the PC screen to reader mode. Press them again to turn off reader mode. 1Press the [] icon on the taskbar. ENGLISH 110 Using Software 2Select the[Reader Mode On]menu to switch to reader mode as shown in the figure. TIP Select[Reader Mode Off]to turn off the mode. ENGLISH Restoring the System 111 Restoring the System Restoring the System If the system has an error, you can use Windows 10's recovery feature to recover or restore the system to its initial pre-purchase state. CAUTION If you have deleted the restoration data in the protected area of the disk, or have arbitrarily installed another operating system, the restore function may not work. To recover the system, the AC a…

Text truncated - open the document above for the full version.

LG Electronics USA, Inc. 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 Date: Jan 19, 2016 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: BEJNT-LG14Z96 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA, Inc. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jongchul Lee Director, NA Regulatory & Environmental Affairs.

LG Electronics USA, Inc. 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 Date : Jan 12, 2016 Subject: Letter of Declaration Dear Sirs, This is the difference of the model used in the exporting country. There is no difference of electrical performance and circuit performance. The following is a list of the difference between each model name Basic model name Family models name LG14Z96 14Z960, 14ZD960 Sincerely, Jongchul Lee Director, NA Regulatory & Environmental Affairs. LG Electronics USA, Inc.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Jan. 19, 2016 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, LG Electronics USA, Inc.hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Notebook Computer, LG14Z96) FCC ID: BEJNT-LG14Z96 Sincerely, Client’s signature : Client’s name / title Jongchul Lee / Director, NA Regulatory & Environmental Affairs. Contact information / address 201-408-9181 / [email protected] / 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632

SCS-F19: Confidentiality Request Letter Page 1 of 4 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 4 Rev 5.0 Jan. 19, 2016 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: BEJNT-LG14Z96 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Tune up procedure - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title Jongchul Lee / Director, NA Regulatory & Environmental Affairs. Contact information / address 201-408-9181 / [email protected] / 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 SCS-F19: Confidentiality Request Letter Page 3 of 4 Rev 5.0 Jan. 19, 2016 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: BEJNT-LG14Z96 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920.. - e.g. User Manual - e.g. Internal Photos - e.g. Test Setup photos - e.g. External photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title Jongchul Lee / Director, NA Regulatory & Environmental Affairs. Contact information / address 201-408-9181 / [email protected] / 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632

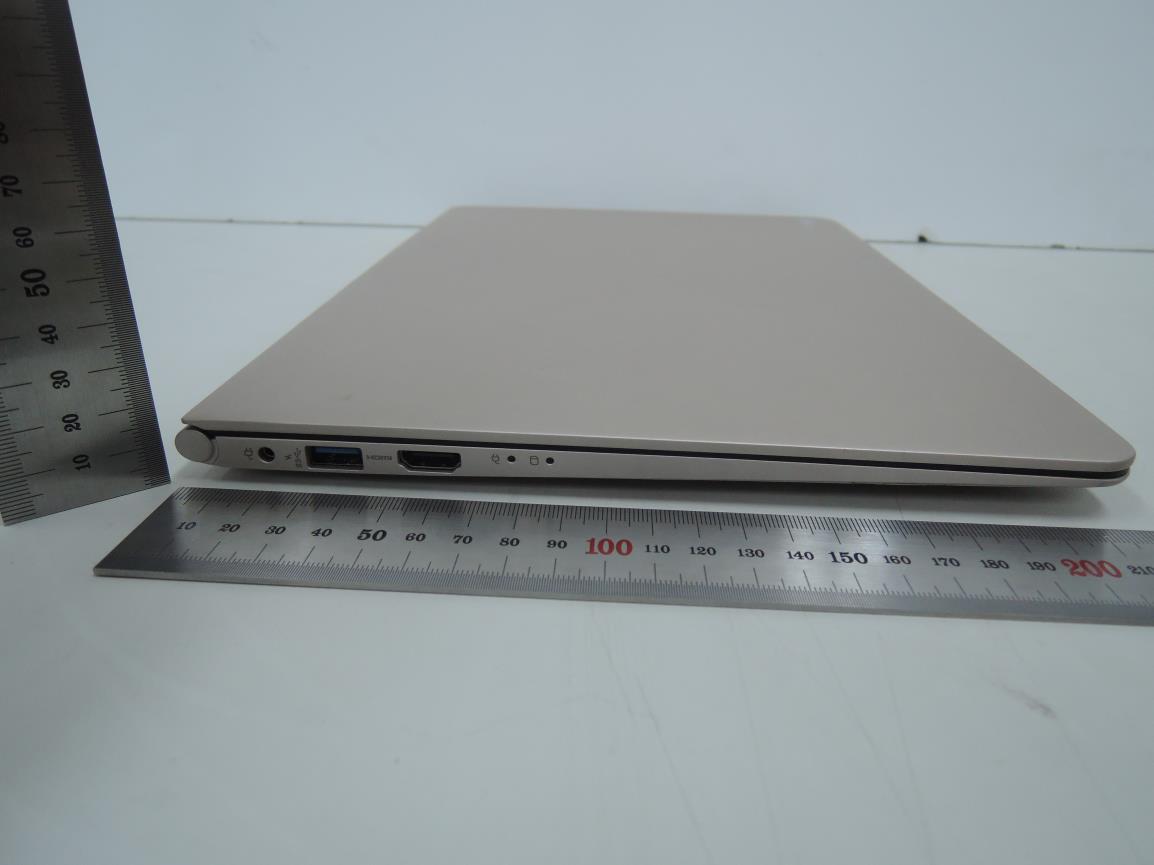

FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016 DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016 DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016 DT&C Co., Ltd. Page 3 / 3 View 3

FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2015, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

To LCD Back Side 8.2mm Main Antenna Aux Antenna 85mm 128mm To Rear Side 7.5mm 1. Separation distance of the Ant.Main / Ant.Aux and Rear Side: 7. 5mm 2. Separation distance of the Ant.Main / Ant.Aux and LCD Back Side : 8.2mm 3. Separation distance of the Ant.Main and Ant.Aux : 57mm

FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 1 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 2 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 3 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 4 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 5 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 6 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 7 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 8 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 9 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 10 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 11 FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 12 <Module> <Module> FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 13 <Module> FCCID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 14 <Antenna>

FCC ID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Report No.: DRTFCC1601-0021 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 88 Test Report Version Test Report No. Date Description DRTFCC1601-0021 Jan. 19, 2016 Initial issue FCC ID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Report No.: DRTFCC1601-0021 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 88 Table of Contents 1. General Information ............................................................................................................... 4 1.1 Testing Laboratory .......................................................................................................................... 4 1.2 Details of Applicant ......................................................................................................................... 4 1.3 Description of EUT .......................................................................................................................... 4 1.4 Declaration by the applicant / manufacturer ................................................................................. 5 1.5 Information about the FHSS characteristics ................................................................................. 5 1.6 Test conditions ................................................................................................................................ 5 1.7 Test Equipment List ......................................................................................................................... 6 1.8 Summary of Test Results ................................................................................................................ 7 1.9 Conclusion of worst-case and operation mode ............................................................................ 8 2. Maximum Peak Output Power Measurement ...................................................................... 9 2.1 Test Setup ........................................................................................................................................ 9 2.2 Limit .................................................................................................................................................. 9 2.3 Test Procedure ................................................................................................................................. 9 2.4 Test Results ................................................................................................................................... 10 3. 20 dB BW .............................................................................................................................. 16 3.1 Test Setup ...................................................................................................................................... 16 3.2 Limit ................................................................................................................................................ 16 3.3 Test Procedure ............................................................................................................................... 16 3.4 Test Results ................................................................................................................................... 16 4. Carrier Frequency Separation ............................................................................................ 22 4.1 Test Setup ...................................................................................................................................... 22 4.2 Limit ................................................................................................................................................ 22 4.3 Procedure ....................................................................................................................................... 22 4.4 Test Results ................................................................................................................................... 22 5. Number of Hopping Frequencies ....................................................................................... 27 5.1 Test Setup ...................................................................................................................................... 27 5.2 Limit ................................................................................................................................................ 27 5.3 Procedure ....................................................................................................................................... 27 5.4 Test Results ................................................................................................................................... 27 6. Time of Occupancy (Dwell Time) ........................................................................................ 33 6.1 Test Setup ...................................................................................................................................... 33 6.2 Limit ................................................................................................................................................ 33 6.3 Test Procedure ............................................................................................................................... 33 6.4 Test Results ................................................................................................................................... 33 7. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission .......... 38 7.1 Test Setup ...................................................................................................................................... 38 7.2 Limit ................................................................................................................................................ 38 7.3. Test P…

Text truncated - open the document above for the full version.

FCC ID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Report No.: DRTFCC1601-0021 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 27 / 88 5. Number of Hopping Frequencies 5.1 Test Setup Refer to the APPENDIX I. 5.2 Limit Limit : >= 15 hops 5.3 Procedure The number of hopping frequencies was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. To get higher resolution, two frequency ranges for FH mode within the 2400 ~ 2483.5 MHz were examined. The spectrum analyzer is set to : Span for FH mode = 50 MHz Start Frequency = 2391.5 MHz, Stop Frequency = 2441.5 MHz Start Frequency = 2441.5 MHz, Stop Frequency = 2491.5 MHz Span for AFH mode = 30 MHz Start Frequency = 2396.0 MHz, Stop Frequency = 2426.0 MHz RBW = To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold 5.4 Test Results FH mode Hopping mode Test mode Test Result (Total Hops) Enable GFSK 79 π/4-DQPSK 79 8DPSK 79 AFH mode Hopping mode Test mode Test Result (Total Hops) Enable GFSK 20 π/4-DQPSK 20 8DPSK 20 Note 1 : See next pages for actual measured spectrum plots. - Minimum Standard : At least 15 hopes FCC ID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Report No.: DRTFCC1601-0021 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 28 / 88 Number of Hopping Frequencies 1(FH) Hopping mode : Enable & GFSK Number of Hopping Frequencies 2(FH) Hopping mode : Enable & GFSK FCC ID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Report No.: DRTFCC1601-0021 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 29 / 88 Number of Hopping Frequencies 1(FH) Hopping mode : Enable & π/4-DQPSK Number of Hopping Frequencies 2(FH) Hopping mode : Enable & π/4-DQPSK FCC ID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Report No.: DRTFCC1601-0021 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 30 / 88 Number of Hopping Frequencies 1(FH) Hopping mode : Enable & 8DPSK Number of Hopping Frequencies 2(FH) Hopping mode : Enable & 8DPSK FCC ID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Report No.: DRTFCC1601-0021 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 31 / 88 Number of Hopping Frequencies 1(AFH) Hopping mode : Enable & GFSK Number of Hopping Frequencies 1(AFH) Hopping mode : Enable & π/4-DQPSK FCC ID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Report No.: DRTFCC1601-0021 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 32 / 88 Number of Hopping Frequencies 1(AFH) Hopping mode : Enable & 8DPSK FCC ID: BEJNT-LG14Z96 IC: 2703H-LG14Z96 Report No.: DRTFCC1601-0021 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 33 / 88 6. Time of Occupancy (Dwell Time) 6.1 Test Setup Refer to the APPENDIX I. 6.2 Limit The maximum permissible time of occupancy is 400 ms within a period of 400 ms multiplied by the number of hopping channels employed. 6.3 Test Procedure The dwell time was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. The spectrum analyzer is set to : Center frequency = 2441 MHz Span = zero RBW = 1 MHz (RBW shall be ≤ channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel) VBW ≥ RBW Detector function = peak Trace = max hold 6.4 Test Results FH mode Hopping mode Packet Type Number of hopping Channels Burst On Time (ms) Period (ms) Test Result (sec) Enable DH 5 79 2.880 3.750 0.307 2 DH 5 79 2.880 3.750 0.307 3 DH 5 79 2.880 3.750 0.307 AFH mode Hopping mode Packet Type Number of hopping Channels Burst On Time (ms) Period (ms) Test Result (sec) Enable DH 5 20 2.880 3.750 0.154 2 DH 5 20 2.880 3.750 0.154 3 DH 5 20 2.880 3.750 0.154 Note 1 : Dwell Time = 0.4 × Hopping channel × Burst ON time × ((Hopping rate ÷ Time sl…

Text truncated - open the document above for the full version.
