BEJNT-LG15Z96Notebook Computer

2 Introduction / Important Safety Precautions Introduction / Important Safety Precautions UsingLG Easy Guide, LG Troubleshooting LG Electronics Inc. providesLG Easy Guide(User's Guide) andLG Troubleshooting (Troubleshooting Guide) to users for their easy and convenient use of the product. ENGLISH Introduction / Important Safety Precautions 3 1Press the [] button to display the Start menu. TIP Press the [ ] key or [Ctrl] + [Esc] to display the Start menu. ENGLISH 4 Introduction / Important Safety Precautions 2Select[LG Easy Guide]or[LG Troubleshooting]tile to run it. TIP Select the [ ] button > [All Apps] > [LG Software] to run[LG Easy Guide]or[LG Troubleshooting]. ENGLISH Introduction / Important Safety Precautions 5 Information/Precautions Before Using Before readingLG Easy Guide, first check the following information. •ThisLG Easy Guidehas been written for the Windows 10 operating system. •The screen and menu configurations may differ from this manual depending on the status of the Windows update. •Representative images are used inLG Easy Guide. Product purchased may differ in appearance and color. •LG Easy Guideincludes instruction about optional products. There may be information about products you did not purchase. •The contents ofLG Easy Guideare subject to change without prior notice. •Use, duplication, or reproduction of any part ofLG Easy Guidewithout prior permission from LG Electronics Inc. is strictly prohibited. •LG Electronics Inc. does not provide warranty for data loss. In order to minimize damage from data loss, please make backup copies of important data. Safety Precaution Notations The below symbols are to inform you of dangers and safety concerns that you must be aware of. Read the symbol-indicated instructions with caution to avoid any possible mishap. WARNING Appears in the case of noncompliance with the instruction that may cause serious physical damage or fatal injuries. CAUTION Appears in the case of noncompliance with the instruction that may cause minor damage to the body or the machine. Text Notations The symbols below are used to display information required to use the product. Familiarize yourself with the instructions marked by the symbols to ensure proper operation of the product. TIP Indicates that the following information is added to help the user utilize the machine more conveniently. ENGLISH 6 Introduction / Important Safety Precautions The Option symbol indicates that the concerned device is not included in the product package and thus has to be purchased separately, or the device may not be applied to the user's machine depending on model type. Manufacturer and Copyright Microsoft™,MS™, WinPE™, and Windows ® are the registered trademarks of Microsoft Corporation™. Manufacturer and Copyright represent the logo and trademark of the manufacturer, and bear no relationship to the functions supported by the product. LG™logo is a registered trademark of LG™Corporation. SD™logo is a registered trademark of Secure Digital™Corporation. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. The SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. LG Easy Guidemay contain undetectable errors despite our dedicated efforts to provide users with reliable information. We ask for your understanding. The illustrated figures inLG Easy Guidemay differ in appearance with the actual products. Unauthorized reproduction or duplication of any part ofLG Easy Guideis strictly prohibited. LG Electronics Inc. reserves the right to modify any part of this manual for quality purposes, without prior notice. Copyright (C) 2015 LG Electronics Inc. Digitalmate Co., LTD Country of OriginChina ManufacturerLG Electronics Inc. OPEN SOURCE SOFTWARE NOTICE To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, ENGLISH Introduction / Important Safety Precautions 7 shipping and handling) upon email request to [email protected]. This offer is valid for three (3) years from the date on which you purchased the product. System Protection Feature If the system becomes too hot, the system protection feature automatically stops recharging the battery and switches to hibernate mode or turns the power off. The PC system may not be reactivated until it cools down enough. Information on Hard Drive / Memory Capacity Information on Hard Drive (HDD, SSD, eMMC) Capacity The hard drive capacity shown by Windows is lower than that stated by the hard drive manufacturer due to a difference in calculation. ManufacturerHard drive manufacturers use a decimal definition of 1 KB = 1,000 Bytes. 100 GB Storage Device (HDD, SSD, eMMC): 100,000 MB / 1,000 Bytes = 100 GB WindowsWindows use the binary definition of 1 KB = 1,024 Bytes. 100 GB Storage Device (HDD, SSD, eMMC): 100,000 MB / 1,024 Bytes = 97.6 GB RAM Capacity RAM capacity shown by Windows may be lower than the actual capacity because the PC uses shared memory for BIOS and the integrated graphics card. Due to BIOS using shared memory, 1,024 MB RAM may be reported as 1,022 MB or slightly less. If the PC has integrated graphics card, 1,024 MB RAM may be reported as 1,022 MB or less than 1,000 MB. CMOS Backup Battery The CMOS backup battery of the main board ensures that the system setup (BIOS) does not disappear even if the power is disconnected. The CMOS backup battery is an expendable component. CMOS backup battery may not be available depending on the model. ENGLISH 8 Introduction / Important Safety Precautions CAUTION…

Text truncated - open the document above for the full version.

LG Electronics USA, Inc. 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 Date: Jan 12, 2016 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: BEJNT-LG15Z96 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA, Inc. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jongchul Lee Director, NA Regulatory & Environmental Affairs. LG Electronics USA, Inc.

LG Electronics USA, Inc. 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 Date : Jan 12, 2016 Subject: Letter of Declaration Dear Sirs, This is the difference of the model used in the exporting country. There is no difference of electrical performance and circuit performance. The following is a list of the difference between each model name Basic model name Family models name LG15Z96 15Z960, 15ZD960 Sincerely, Jongchul Lee Director, NA Regulatory & Environmental Affairs. LG Electronics USA, Inc.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Jan. 12, 2016 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, LG Electronics USA, Inc.hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Notebook Computer, LG15Z96) FCC ID: BEJNT-LG15Z96 Sincerely, Client’s signature : Client’s name / title Jongchul Lee / Director, NA Regulatory & Environmental Affairs. Contact information / address 201-408-9181 / [email protected] / 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632

SCS-F19: Confidentiality Request Letter Page 1 of 4 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 4 Rev 5.0 Jan. 12, 2016 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: BEJNT-LG15Z96 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Tune up procedure - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title Jongchul Lee / Director, NA Regulatory & Environmental Affairs. Contact information / address 201-408-9181 / [email protected] / 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 SCS-F19: Confidentiality Request Letter Page 3 of 4 Rev 5.0 Jan. 12, 2016 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: BEJNT-LG15Z96 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920.. - e.g. User Manual - e.g. Internal Photos - e.g. Test Setup photos - e.g. External photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title Jongchul Lee / Director, NA Regulatory & Environmental Affairs. Contact information / address 201-408-9181 / [email protected] / 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632

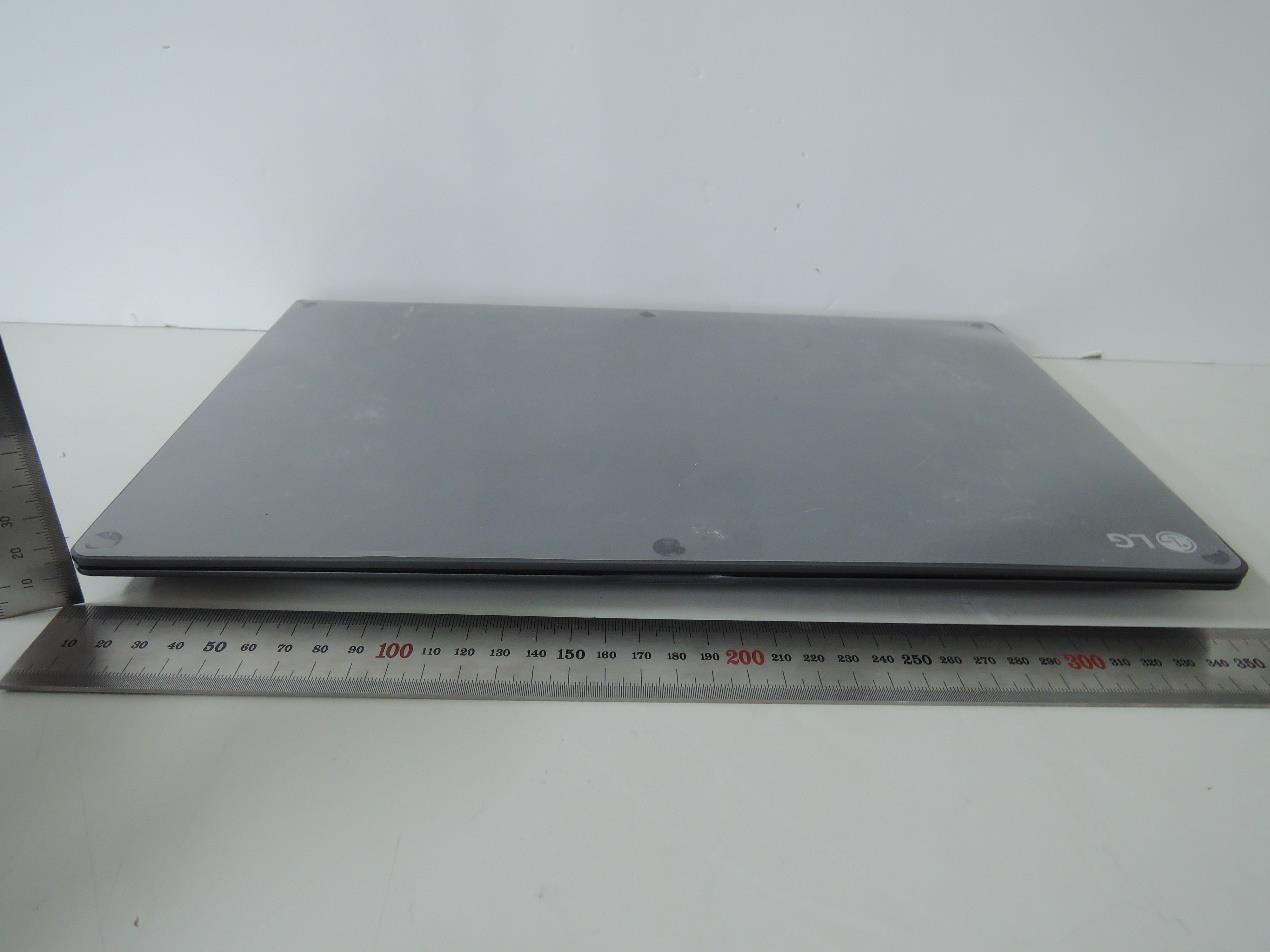

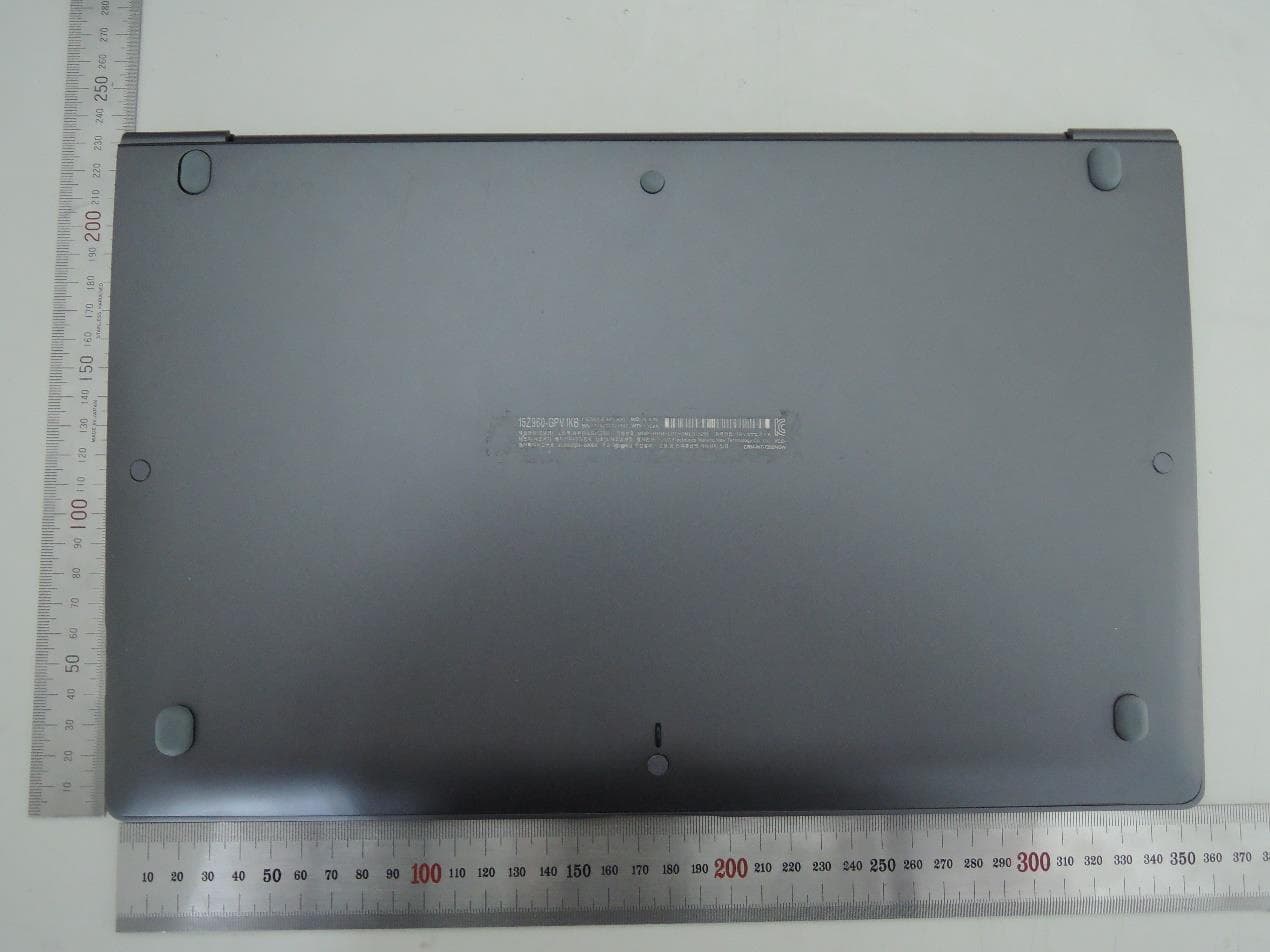

FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016 DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016 DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016 DT&C Co., Ltd. Page 3 / 3 View 3

FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 20 15 , DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase -The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

220mm 23 198mm 72mm 23 mm Main Antenna Aux Antenna Main Antenna Aux Antenna 1. Separation distance of the Ant. Main / Ant. Aux and Rear Side: 8mm 1. Separation distance of the Ant. Main / Ant. Aux and Rear Side: 8mm 2. Separation distance of the Ant. Main / Ant. Aux and LCD Back Side: 10mm

FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 1 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 2 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 3 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 4 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 5 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 6 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 7 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 8 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 9 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 10 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 11 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 12 FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 13 <Module> <Module> FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 14 <Module> FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. View 15 <Antenna>

FCC ID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Report No.: DRTFCC1601-0009 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 88 Test Report Version Test Report No. Date Description DRTFCC1601-0009 Jan. 14, 2016 Initial issue FCC ID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Report No.: DRTFCC1601-0009 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 88 Table of Contents 1. General Information ............................................................................................................... 4 1.1 Testing Laboratory .......................................................................................................................... 4 1.2 Details of Applicant ......................................................................................................................... 4 1.3 Description of EUT .......................................................................................................................... 4 1.4 Declaration by the applicant / manufacturer ................................................................................. 5 1.5 Information about the FHSS characteristics ................................................................................. 5 1.6 Test conditions ................................................................................................................................ 5 1.7 Test Equipment List ......................................................................................................................... 6 1.8 Summary of Test Results ................................................................................................................ 7 1.9 Conclusion of worst-case and operation mode ............................................................................ 8 2. Maximum Peak Output Power Measurement ...................................................................... 9 2.1 Test Setup ........................................................................................................................................ 9 2.2 Limit .................................................................................................................................................. 9 2.3 Test Procedure ................................................................................................................................. 9 2.4 Test Results ................................................................................................................................... 10 3. 20 dB BW .............................................................................................................................. 16 3.1 Test Setup ...................................................................................................................................... 16 3.2 Limit ................................................................................................................................................ 16 3.3 Test Procedure ............................................................................................................................... 16 3.4 Test Results ................................................................................................................................... 16 4. Carrier Frequency Separation ............................................................................................ 22 4.1 Test Setup ...................................................................................................................................... 22 4.2 Limit ................................................................................................................................................ 22 4.3 Procedure ....................................................................................................................................... 22 4.4 Test Results ................................................................................................................................... 22 5. Number of Hopping Frequencies ....................................................................................... 27 5.1 Test Setup ...................................................................................................................................... 27 5.2 Limit ................................................................................................................................................ 27 5.3 Procedure ....................................................................................................................................... 27 5.4 Test Results ................................................................................................................................... 27 6. Time of Occupancy (Dwell Time) ........................................................................................ 33 6.1 Test Setup ...................................................................................................................................... 33 6.2 Limit ................................................................................................................................................ 33 6.3 Test Procedure ............................................................................................................................... 33 6.4 Test Results ................................................................................................................................... 33 7. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission .......... 38 7.1 Test Setup ...................................................................................................................................... 38 7.2 Limit ................................................................................................................................................ 38 7.3. Test P…

Text truncated - open the document above for the full version.

FCC ID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Report No.: DRTFCC1601-0009 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 41 / 88 7.4. Test Results 7.4.1. Radiated Emissions 9 kHz ~ 25 GHz Data (Modulation : GFSK) ▪ Lowest Channel Frequency (MHz) AN T Pol The worst case EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 2322.24 H Y PK 47.94 3.54 N/A N/A 51.48 74.00 22.52 2322.04 H Y AV 39.56 3.54 -24.79 N/A 18.31 54.00 35.69 2390.00 H Y PK 44.71 3.54 N/A N/A 48.25 74.00 25.75 2390.00 H Y AV 34.62 3.54 -24.79 N/A 13.37 54.00 40.63 4804.02 H Y PK 44.85 9.50 N/A N/A 54.35 74.00 19.65 4804.01 H Y AV 32.59 9.50 -24.79 N/A 17.30 54.00 36.70 ▪ Middle Channel Frequency (MHz) AN T Pol The worst case EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 4881.77 H Y PK 45.38 9.73 N/A N/A 55.11 74.00 18.89 4882.02 H Y AV 32.95 9.73 -24.79 N/A 17.89 54.00 36.11 ▪ Highest Channel Frequency (MHz) AN T Pol The worst case EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 2484.68 H Y PK 48.55 3.70 N/A N/A 52.25 74.00 21.75 2484.70 H Y AV 35.11 3.70 -24.79 N/A 14.02 54.00 39.98 4959.87 H Y PK 43.73 9.93 N/A N/A 53.66 74.00 20.34 4960.11 H Y AV 32.61 9.93 -24.79 N/A 17.75 54.00 36.25 ▪ Note. 1. No other spurious and harmonic emissions were found greater than listed emissions on above table. 2. Information of Distance Factor For finding emissions, the test distance might be reduced from 3m to 1m. In this case, the distance factor(-9.54dB) is applied to the result. - Calculation of distance factor = 20 log( applied distance / required distance ) = 20 log( 1 m / 3 m ) = -9.54 dB When distance factor is “N/A”, the distance is 3 m and distance factor is not applied. 3. D.C.F Calculation. (D.C.F = Duty Cycle Correction Factor) - Time to cycle through all channels = Δt = T [ms] X 20 minimum hopping channels , where T = pulse width = 2.88 ms - 100 ms / Δt [ms] = H -> Round up to next highest integer, to account for worst case, H' = 100 / ( 2.88 X 20 ) = 1.736 ≒ 2 - The Worst Case Dwell Time = T [ms] x H' = 2.88 ms X 2 = 5.76 ms - D.C.F = 20 Log(The Worst Case Dwell Time / 100 ms) dB = 20 log( 5.76 / 100 ) = -24.79 dB 4. Sample Calculation. Margin = Limit – Result / Result = Reading + T.F + D.C.F / T.F = AF + CL – AG Where, T.F = Total Factor, AF = Antenna Factor, CL = Cable Loss, AG = Amplifier Gain. FCC ID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Report No.: DRTFCC1601-0009 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 42 / 88 9 kHz ~ 25 GHz Data (Modulation : π/4DQPSK) ▪ Lowest Channel Frequency (MHz) ANT Pol The worst case EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 2322.36 H Y PK 47.68 3.54 N/A N/A 51.22 74.00 22.78 2322.12 H Y AV 38.00 3.54 -24.79 N/A 16.75 54.00 37.25 2390.00 H Y PK 44.46 3.54 N/A N/A 48.00 74.00 26.00 2390.00 H Y AV 34.52 3.54 -24.79 N/A 13.27 54.00 40.73 4803.27 H Y PK 45.29 9.50 N/A N/A 54.79 74.00 19.21 4803.74 H Y AV 32.09 9.50 -24.79 N/A 16.80 54.00 37.20 ▪ Middle Channel Frequency (MHz) ANT Pol The worst case EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 4881.77 H Y PK 44.95 9.73 N/A N/A 54.68 74.00 19.32 4882.40 H Y AV 32.14 9.73 -24.79 N/A 17.08 54.00 36.92 ▪ Highest Channel Frequency (MHz) ANT Pol The worst case EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 2484.02 H Y PK 46.46 3.70 N/A N/A 50.16 74.00 23.84 2483.50 H Y AV 35.32 3.70 -24.79 N/A 14.23 54.00 39.77 4959.31 H Y PK 43.89 9.93 N/A N/A 53.82 74.00 20.18 4959.80 H Y AV 31.95 9.93 -24.79 N/A 17.09 54.00 36.91 ▪ Note. 1. No other spurious and harmonic emissions were found greater than listed emissions on above table. 2. Information of Distance Factor For finding emissions, the test distance might be reduced from 3m to 1m. In this case, the distance factor(-9.54dB) is applied to the result. - Calculation of distance factor = 20 log( applied distance / required distance ) = 20 log( 1 m / 3 m ) = -9.54 dB When distance factor is “N/A”, the distance is 3 m and distance factor is not applied. 3. D.C.F Calculation. (D.C.F = Duty Cycle Correction Factor) - Time to cycle through all channels = Δt = T [ms] X 20 minimum hopping channels , where T = pulse width = 2.88 ms - 100 ms / Δt [ms] = H -> Round up to next highest integer, to account for worst case, H' = 100 / ( 2.88 X 20 ) = 1.736 ≒ 2 - The Worst Case Dwell Time = T [ms] x H' = 2.88 ms X 2 = 5.76 ms - D.C.F = 20 Log(The Worst Case Dwell Time / 100 ms) dB = 20 log( 5.76 / 100 ) = -24.79 dB 4. Sample Calculation. Margin = Limit – Result / Result = Reading + T.F + D.C.F / T.F = AF + CL – AG Where, T.F = Total Factor, AF = Antenna Factor, CL = Cable Loss, AG = Amplifier Gain. . FCC ID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Report No.: DRTFCC1601-0009 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 43 / 88 9 kHz ~ 25 GHz Data (Modulation : 8DPSK) ▪ Lowest Channel Frequency (MHz) ANT Pol The worst case EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 2322.24 H Y PK 47.51 3.54 N/A N/A 51.05 74.00 22.95 2322.06 H Y AV 37.62 3.54 -24.79 N/A 16.37 54.00 37.63 2390.00 H Y PK 42.71 3.54 N/A N/A 46.25 74.00 27.75 2390.00 H Y AV 34.71 3.54 -24.79 N/A 13.46 54.00 40.54 4803.50 H Y PK 44.14 9.50 N/A N/A 53.64 74.00 20.36 4804.28 H Y AV 31.99 9.50 -24.79 N/A 16.70 54.00 37.30 ▪ Middle Channel Frequency (MHz) ANT Pol The worst case EUT Position (Axis) Detector Mode…

Text truncated - open the document above for the full version.

FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz) FCCID: BEJNT-LG15Z96 IC: 2703H-LG15Z96 Copyright Ⓒ 2016, DT&C Co., Ltd. Test Setup Photo for AC Conducted Emissions
