BEJON2DDVD MINI HI-FI AUDIO

OWNER’S MANUAL DVD Mini Hi-Fi Audio MODEL ON2D 2004_Rev01 www.lg.com Copyright © 2020 LG Electronics Inc. All Rights Reserved. Please read this manual carefully before operating your set and retain it for future reference. MFL71726902 1 Getting Started Getting Started2 Getting Started 1 Safety Information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. WARNING: Do not install this equipment in a confined space such as a book case or similar unit. CAUTION: Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due to electrical shock. CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built- in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to. NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other surface of the product. Getting Started3 Getting Started 1 CAUTION concerning the Power Cord The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily accessible. Check the specification page of this owner’s manual to be certain of the current requirements. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your device, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the device, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device. CAUTION: Be careful to make sure children do not put their hands or any objects into the *speaker duct. * speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure) CAUTION: No naked flame sources, such as lighted candles, should be placed on the apparatus. Symbols ~ Refers to alternating current (AC). 0 Refers to direct current (DC). Refers to class II equipment. 1 Refers to stand-by. ! Refers to “ON” (power). Refers to dangerous voltage. Table of Contents4 1 Getting Started 2 Safety Information 6 Unique Features 7 Introduction 7 – Playable Discs 7 – About the “7” Symbol Display 7 – Symbols Used in this Manual 7 – Regional Codes 8 Playable file Requirement 8 – Music file requirement 8 – Photo file requirement 9 – Video file requirement 9 – Compatible USB Devices 9 – USB device requirement 10 Remote control 12 Top panel 13 Front panel / Rear panel 2 Connecting 14 Connections to Your TV 14 – HDMI Out connection 15 – Resolution Setting 16 Optional Equipment Connection 16 – AUX IN Connection 17 – USB Connection Table of Contents 3 System Setting 18 Adjust the setup settings 18 – OSD Initial language settings - Optional 18 – To display and exit the Setup menu 19 – Language 19 – Display 20 – Audio 21 – Lock (Parental Control) Table of Contents5 1 2 3 4 5 6 4 Operating 22 Using the Home Menu 23 Basic Operations on Disc 24 Advanced Operations on Disc 24 – Displaying Disc Information on-screen 24 – To display the DVD Menu 24 – To display the DVD title 24 – 1.5 times speed playback 24 – Screen Saver 25 – Starting play from selected time 25 – Resume playback 25 – Changing subtitle code page 26 – Marked Playback 27 – Viewing a PHOTO file 28 USB Operations 30 Using BLUETOOTH® wireless technology 30 – Listening to music stored on the Bluetooth devices 32 Radio Operations 32 – Listening to the radio 32 – Presetting the Radio Stations 32 – Deleting all the saved stations 33 Sound adjustment 33 – Setting the sound mode 33 – Adjusting BASS level 33 Other Operations 33 – Turn off the sound temporarily 33 – Resume stop 34 – Last Scene Memory 34 – Power Resume - Optional 34 – System Select - Optional 34 – Using Microphone 34 – Adjusting MIC E CHO level 35 – Sleep Timer Setting 35 – Dimmer 5 Troubleshooting 36 Troubleshooting 36 – General 6 Appendix 38 Area Code List 39 Language code List 40 Trademarks and Licenses 41 Mai…

Text truncated - open the document above for the full version.

LG Electronics USA 111 Sylvan Avenue North Building, Englewood Cliffs, New Jersey, United States 07632 Date: Aug 03, 2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Geunki Son of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: BEJON2D including signing of all documents relating to these matters. Any and all acts carried out by Geunki Son of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Kyung-Su Han Director, Standards & Compliance

LG Electronics USA 111 Sylvan Avenue North Building, Englewood Cliffs, New Jersey, United States 07632 Date: Aug 03, 2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA RE: Request of Confidentiality for FCC ID: BEJON2D To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Kyung-Su Han Director, Standards & Compliance

FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 3

FCC ID : BEJON2D Copyright Ⓒ 2020, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. Label Location FCC Phrase Location

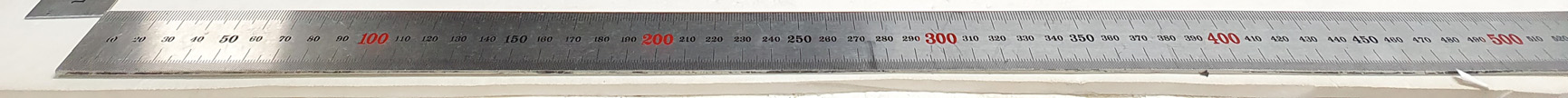

FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 3 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 4

FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 5 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 6 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 7 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 8

FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 9 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 10 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 11 FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. View 12 <Antenna>

FCC ID: Worst Case Mode Max Target Power (dBm) ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Maximum powe r density (mW/cm 2 ) Requriment (mW/cm 2 ) BT (1Mbps) 2402.00 ~ 2480.00 0.00 -0.84 -0.84 0.825 0.00017 1.000 BT (2,3Mbps) 2402.00 ~ 2480.00 -1.50 -0.84 -2.34 0.584 0.00012 1.000 ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : R= Distance to the center of the radiation of the anten n ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC The MPE sample calculation for this exposure is shown below. EIRP / ( 4 R 2 π ) 0.825 S= Maximum power density(mW/cm 2 ) 0.00017 EIRP= Equivalent Isotropic Radiated Power(mW) BEJON2D Frequency range (MHz) Note: Please refer to the operation description for Max tune-up power. The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. MPE Calculation

FCC ID: BEJON2D Report No.: DRTFCC2008-0227 IC : 2703H-ON2D TRF-RF-237(06)200603 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 79 Test Report Version Test Report No. Date Description Revised by Reviewed by DRTFCC2008-0227 Aug. 04, 2020 Initial issue JaeHyeok Bang JaeJin Lee FCC ID: BEJON2D Report No.: DRTFCC2008-0227 IC : 2703H-ON2D TRF-RF-237(06)200603 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 79 Table of Contents 1. General Information ............................................................................................................... 4 1.1 Testing Laboratory .......................................................................................................................... 4 1.2 Testing Environment ....................................................................................................................... 4 1.3 Measurement Uncertainty ............................................................................................................... 4 1.4 Details of Applicant ......................................................................................................................... 5 1.5 Description of EUT .......................................................................................................................... 5 1.6 Declaration by the applicant / manufacturer ................................................................................. 5 1.7 Information about the FHSS characteristics ................................................................................. 6 1.8 Test Equipment List ......................................................................................................................... 7 1.9 Summary of Test Results ................................................................................................................ 8 1.10 Conclusion of worst-case and operation mode .......................................................................... 9 2. Maximum Peak Output Power Measurement .................................................................... 10 2.1 Test Setup ...................................................................................................................................... 10 2.2 Limit ................................................................................................................................................ 10 2.3 Test Procedure ............................................................................................................................... 10 2.4 Test Results ................................................................................................................................... 11 3. 20 dB BW & Occupied BW .................................................................................................. 17 3.1 Test Setup ...................................................................................................................................... 17 3.2 Limit ................................................................................................................................................ 17 3.3 Test Procedure ............................................................................................................................... 17 3.4 Test Results ................................................................................................................................... 17 4. Carrier Frequency Separation ............................................................................................ 23 4.1 Test Setup ...................................................................................................................................... 23 4.2 Limit ................................................................................................................................................ 23 4.3 Procedure ....................................................................................................................................... 23 4.4 Test Results ................................................................................................................................... 23 5. Number of Hopping Frequencies ....................................................................................... 28 5.1 Test Setup ...................................................................................................................................... 28 5.2 Limit ................................................................................................................................................ 28 5.3 Procedure ....................................................................................................................................... 28 5.4 Test Results ................................................................................................................................... 28 6. Time of Occupancy (Dwell Time) ........................................................................................ 34 6.1 Test Setup ...................................................................................................................................... 34 6.2 Limit ................................................................................................................................................ 34 6.3 Test Procedure ............................................................................................................................... 34 6.4 Test Results ................................................................................................................................... 34 7. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission .......... 39 7.1 Test Setup ...................................................................................................................................... 39 7.2 Limit .........…

Text truncated - open the document above for the full version.

FCC ID: BEJON2D Report No.: DRTFCC2008-0227 IC : 2703H-ON2D TRF-RF-237(06)200603 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 41 / 79 7.3.2. Test Procedures for Conducted Spurious Emissions 1. The transmitter output was connected to the spectrum analyzer. 2. The reference level of the fundamental frequency was measured with the spectrum analyzer using RBW = 100 kHz, VBW = 300 kHz. 3. The conducted spurious emission was tested each ranges were set as below. Frequency range : 9 kHz ~ 30 MHz RBW = 100 kHz, VBW = 300 kHz, SWEEP TIME = AUTO, DETECTOR = PEAK, TRACE = MAX HOLD, SWEEP POINT : 40 001 Frequency range : 30 MHz ~ 10 GHz, 10 GHz ~ 25 GHz RBW = 1 MHz, VBW = 3 MHz, SWEEP TIME = AUTO, DETECTOR = PEAK, TRACE = MAX HOLD, SWEEP POINT : 40 001 LIMIT LINE = 20 dB below of the reference level of above measurement procedure Step 2. (RBW = 100 kHz, VBW = 300 kHz) If the emission level with above setting was close to the limit (ie, less than 3 dB margin) then zoom scan is required using RBW = 100 kHz, VBW = 300 kHz, SPAN = 100 MHz and BINS = 2 001 to get accurate emission level within 100 kHz BW. Also the path loss for conducted measurement setup was used as described on the Appendix I of this test report. FCC ID: BEJON2D Report No.: DRTFCC2008-0227 IC : 2703H-ON2D TRF-RF-237(06)200603 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 42 / 79 7.4. Test Results 7.4.1. Radiated Emissions ▪ Test Notes. 1. The radiated emissions were investigated 9 kHz to 25 GHz. And no other spurious and harmonic emissions were found below listed frequencies. 2. Information of Distance Factor For finding emissions, measurements may be performed at a distance closer than that specified in the regulations. In this case, the distance factor is applied to the result. - Calculation of distance factor At frequencies below 30 MHz = 40 log( tested distance / specified distance ) At frequencies at or above 30 MHz = 20 log( tested distance / specified distance ) When distance factor is “N/A”, the measurements were performed at the specified distance and distance factor is not applied. 3. D.C.F Calculation. (D.C.F = Duty Cycle Correction Factor) - Time to cycle through all channels = Δt = T [ms] X 20 minimum hopping channels , where T = pulse width = 2.88 ms - 100 ms / Δt [ms] = H -> Round up to next highest integer, to account for worst case, H' = 100 / ( 2.88 X 20 ) = 1.74 ≒ 2 - The Worst Case Dwell Time = T [ms] x H' = 2.88 ms X 2 = 5.76 ms - D.C.F = 20 Log(The Worst Case Dwell Time / 100 ms) dB = 20 log( 5.76 / 100 ) = -24.79 dB 4. Sample Calculation. Margin = Limit – Result / Result = Reading + T.F + D.C.F + Distance Factor / T.F = AF + CL – AG Where, T.F = Total Factor, AF = Antenna Factor, CL = Cable Loss, AG = Amplifier Gain. 9 kHz ~ 1 GHz Data ▪ GFSK & Lowest Channel (Worst Case) Frequency (MHz) ANT Pol EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 31.94 V X QP 39.90 -10.10 N/A N/A 29.80 40.00 10.20 36.74 V X QP 41.90 -9.70 N/A N/A 32.20 40.00 7.80 63.99 V X QP 38.80 -9.90 N/A N/A 28.90 40.00 11.10 189.00 H X QP 37.70 -9.30 N/A N/A 28.40 43.50 15.10 384.00 H X QP 42.30 -3.80 N/A N/A 38.50 46.00 7.50 593.98 V X QP 38.30 0.90 N/A N/A 39.20 46.00 6.80 593.99 H X QP 36.60 0.90 N/A N/A 37.50 46.00 8.50 2 402MHz & X axis & Ver Detector Mode : QP FCC ID: BEJON2D Report No.: DRTFCC2008-0227 IC : 2703H-ON2D TRF-RF-237(06)200603 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 43 / 79 1 GHz ~ 25 GHz Data (Modulation : GFSK) ▪ Lowest Channel Frequency (MHz) ANT Pol EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 2 387.47 V X PK 49.33 4.79 N/A N/A 54.12 74.00 19.88 2 387.47 V X AV 49.33 4.79 -24.79 N/A 29.33 54.00 24.67 4 803.61 H X PK 65.12 0.78 N/A N/A 65.90 74.00 8.10 4 803.61 H X AV 65.12 0.78 -24.79 N/A 41.11 54.00 12.89 7 205.66 V X PK 51.44 8.58 N/A N/A 60.02 74.00 13.98 7 205.66 V X AV 51.44 8.58 -24.79 N/A 35.23 54.00 18.77 ▪ Middle Channel Frequency (MHz) ANT Pol EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 4 881.64 H X PK 66.19 1.35 N/A N/A 67.54 74.00 6.46 4 881.64 H X AV 66.19 1.35 -24.79 N/A 42.75 54.00 11.25 7 322.76 V X PK 49.72 9.58 N/A N/A 59.30 74.00 14.70 7 322.76 V X AV 49.72 9.58 -24.79 N/A 34.51 54.00 19.49 ▪ Highest Channel Frequency (MHz) ANT Pol EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 2 483.72 V X PK 50.59 5.25 N/A N/A 55.84 74.00 18.16 2 483.72 V X AV 50.59 5.25 -24.79 N/A 31.05 54.00 22.95 4 959.61 H X PK 65.89 1.61 N/A N/A 67.50 74.00 6.50 4 959.61 H X AV 65.89 1.61 -24.79 N/A 42.71 54.00 11.29 7 440.03 V X PK 49.14 9.18 N/A N/A 58.32 74.00 15.68 7 440.03 V X AV 49.14 9.18 -24.79 N/A 33.53 54.00 20.47 FCC ID: BEJON2D Report No.: DRTFCC2008-0227 IC : 2703H-ON2D TRF-RF-237(06)200603 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 44 / 79 1 GHz ~ 25 GHz Data (Modulation : π/4DQPSK) ▪ Lowest Channel Frequency (MHz) ANT Pol EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 2 388.03 V X PK 49.43 4.79 N/A N/A 54.22 74.00 19.78 2 388.03 V X AV 49.43 4.79 -24.79 N/A 29.43 54.00 24.57 4 803.77 H X PK 65.87 0.78 N/A N/A 66.65 74.00 7.35 4 803.77 H X AV 65.87 0.78 -24.79 N/A 41.86 54.00 12.14 7 205.59 V X PK 51.46 8.58 N/A N/A 60.04 74.00 13.96 7 205.59 V X AV 51.46 8.58 -24.79 N/A 35.25 54.00 18.75 ▪ Middle Channel Frequency (MHz) ANT Pol EUT Position (Axis) Detector Mode Reading (dBuV) T.F (dB/m) D.C.F (dB) Distance Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) 4 881.68 H X PK 66.65 1.35 N/A N/A 68.00 74.00 6.00 4 881.68 H X AV 66.65 1.35…

Text truncated - open the document above for the full version.

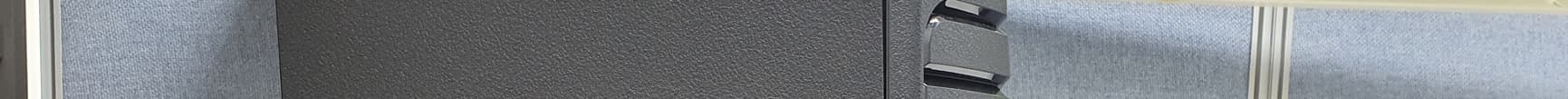

FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Below 1GHz) FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz) FCC ID : BEJON2D IC : 2703H-ON2D Copyright Ⓒ 2020, DT&C Co., Ltd. Test Setup photo of Conducted Emissions (DSS)
