BEJP925Cellular/PCS GSM/WCDMA/EDGE Phone with WLAN and Bluetooth

LG Electronics USA, Inc.

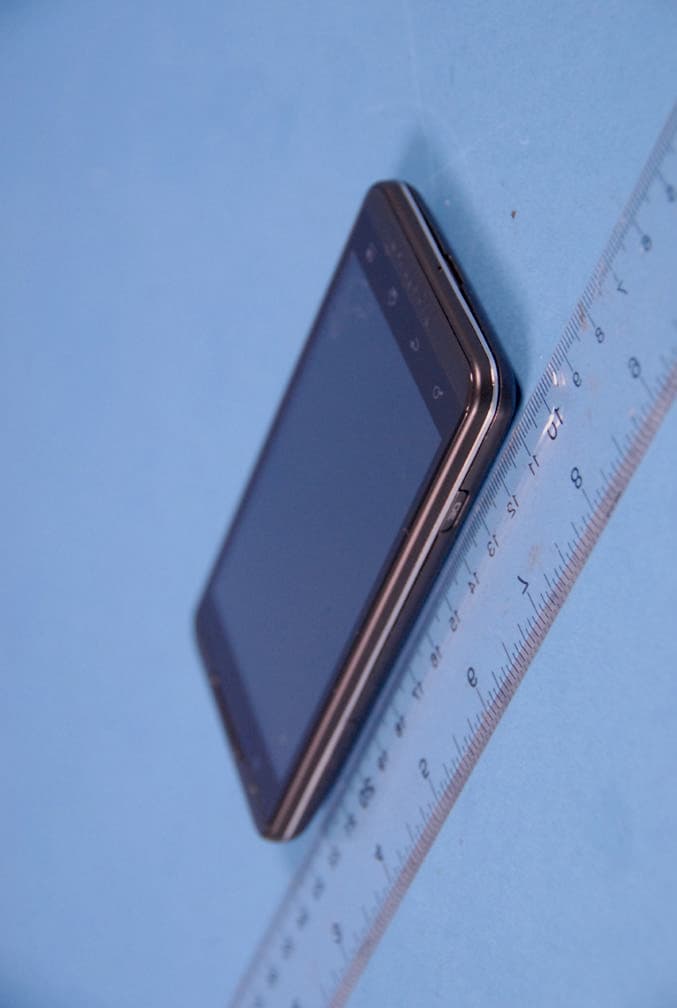

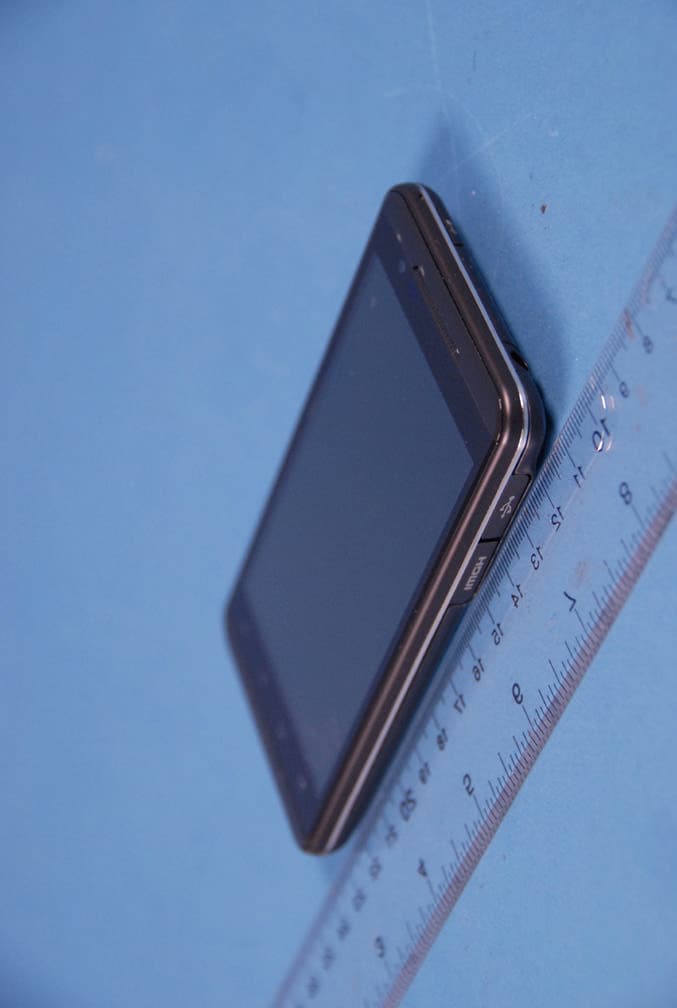

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Jun 06, 2011
Application Purpose: Original Equipment
Date of Application: Jun 05, 2011
Equipment Note: Cellular/PCS GSM/WCDMA/EDGE Phone with WLAN and Bluetooth
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Guide 7 Please check to see if any problems you have encountered with your phone are described in this section, before taking the phone in for service or calling a service representative. 1. Phone memory When available space on your phone memory is less than 10%, your phone can not receive a new message. You need to check your phone memory and delete some data such as applications or messages to make more memory available. To manage the application On the home screen, touch 1 Applications tab and select Settings> Applications> Manage applications. When all applications appear, scroll and 2 select the application you want to uninstall. Tap 3 Uninstall and touch OK to uninstall application you desired. 2. Optimising Battery Life You can extend your battery's life between charges by turning off features that you don't need to run constantly in the background. You can also monitor how applications and system resources consume battery power. To extend the life of your battery - Turn off radio communications that you aren't using. If you aren't using Wi-Fi, Bluetooth, or GPS, turn them off. - Turn down screen brightness and set a shorter screen timeout. - Turn off automatic syncing for Google mail™, Calendar, Contacts, and other applications. - Some applications you’ve downloaded may cause your battery’s life to be reduced. To check the battery charge level On the home screen, touch 1 Applications tab and select Settings> About phone> Status. The battery status (charging, discharging) 2 and level (as a percentage of fully charged) are displayed at the top of the screen. Important notice 8 To monitor and control what uses the battery On the home screen, touch 1 Applications tab and select Settings> About phone> Battery use. The top of the screen displays battery usage 2 time. Either how long since last connected to a power source or, if connected to a power source, how long you were last running on battery power. The body of the screen lists applications or services using battery power from greatest amount to least. 3. Installing an Open Source OS If you install an open source OS on your phone, and do not use the OS provided by the manufacturer, this may cause your phone to malfunction. n Warning If you install and use an OS other than the one provided by the manufacturer, your phone is no longer covered by the warranty. n Warning To protect your phone and personal data, download applications only from trusted sources, such as Android Market™. If some applications are not properly installed on your phone, your phone may not work normally or a serious error may occur. You will need to uninstall those applications and all of its data and settings from the phone. 4. Using Unlock pattern Set unlock pattern to secure your phone. Opens a set of screens that guide you through drawing a screen unlock pattern. n Warning Precautions to take when using the Pattern Lock, It is very important that you remember the unlock pattern you set. You will not be able to access your phone if you use an incorrect pattern 5 times. You have 5 opportunities to enter your unlock Pattern, PIN or Password. If you used all the 5 opportunities, you can attempt it after 30 seconds. Important notice 9 When you can’t recall your unlock Pattern, PIN, or Password: If you logged in Google account on the phone and failed to use correct pattern 5times, tab the Forgot pattern button. Then, you are required to sign in with your Google account to unlock your phone. If you haven’t created a Google account on the phone or you forgot it, you need to perform a hard reset. n Caution If you perform a hard reset, all user applications and user data will be deleted. Please remember to back up any important data before performing a hard reset. Turn the power off.1 Press and hold for over 10 seconds: Power 2 key + Home Key + Up volume key. When the power turns on, release these 3 keys. 5. Using Safe Mode and Hard Reset Using Safe mode * To recover from malfunction state of your phone Turn off your phone and reboot. While your 1 phone is powering back on, press and hold the Menu key while the Android Logo is displayed. Your phone will boot all the way to the main screen and display "safe mode" in lower left corner. Select2 Settings> Applications>Manage applications, and choose the application then select an Uninstall icon. After uninstalling the application, turn off 3 and reboot your phone. * Using Hard Reset (Factory Reset) If this does not restore it to the original condition, use Hard Reset to initialise your phone. If you turn on the phone while pressing and holding Power + Home + Up volume keys at the same time (for 10 seconds), the phone will turn on and perform hard reset immediately. Important notice 10 n Warning If you perform Hard Reset, all user applications and user data will be deleted. Please remember to back up any important data before performing Hard Reset. 6. Connecting to Wi-Fi networks To use Wi-Fi on your phone, you access a wireless access point, or “hotspot.” Some access points are open and you can simply connect to them. Others are hidden or implement other security features, so you must configure your phone so it can connect to them. Turn off Wi-Fi when you're not using it, to extend the life of your battery. To turn Wi-Fi on and connect to a Wi-Fi network On the home screen, touch 1 Applications tab and select Settings > Wireless & networks > Wi-Fi settings. Touch 2 Wi-Fi to turn it on and begin scan for available Wi-Fi networks. - List of available Wi-Fi networks is displayed. Secured networks are indicated by a lock icon. Touch a network to connect to it.3 - If the network is open, you are prompted to confirm that you want to connect to that network by touching Connect. - If the network is secured, you're prompted to enter a password or other credentials. (Ask your network administrator for details.) The Status bar displays icons that indicate 4 Wi-Fi status. Important notice 11 7. Using a microSD card Pictures, a…

Text truncated - open the document above for the full version.

Attestation Statements

LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: March 25, 2011 PCTEST TCB/CB Div. of PCTEST En gineering Lab., Inc.gg, 6660-B Dobbin Road, Columbia, MD 21045 SUBJECT: LG Electronics USA FCC ID:BEJP925FCC ID: BEJP925 To whom it may concern: We LG Electronics USA confirm that the purpose of the power reduction for Mobile hotspotWe, LG Electronics USA, confirm that the purpose of the power reduction for Mobile hotspot is to meet LG internal SAR limit. When Mobile hotspot mode is activated, power reduction is applied until Mobile hotspot is deactivated by the user with no exception. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Christopher Johnson Senior Manager LG Electronics USA

Cover Letter(s)

!"# Date:February 10#1 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: $P925 Equipment Class: $%&% '$ () * % )+ To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for , days after the grant as outlined in Public Notice DA 04-1705. This provision will give temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %-./*01-/2/-.134*/44/ 5+ 6 * ) 1 Block Diagram %-./ 2 Operational Descriptions 3 External Photos 4 Internal Photos 5 Test-Setup Photos 01-/2/-. 6 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Christopher Johnson Senior Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

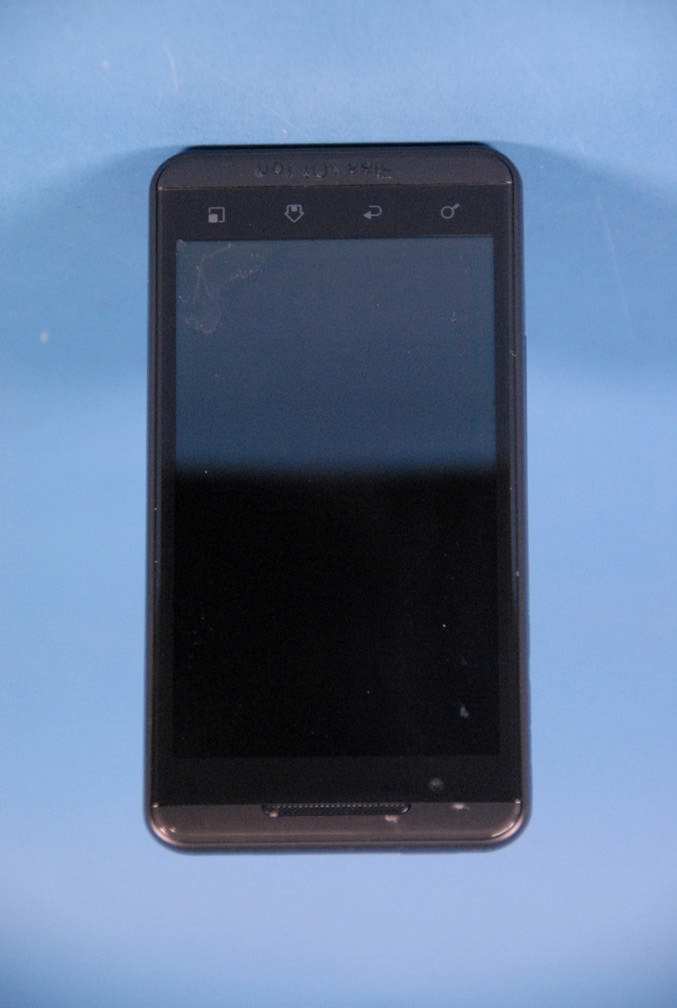

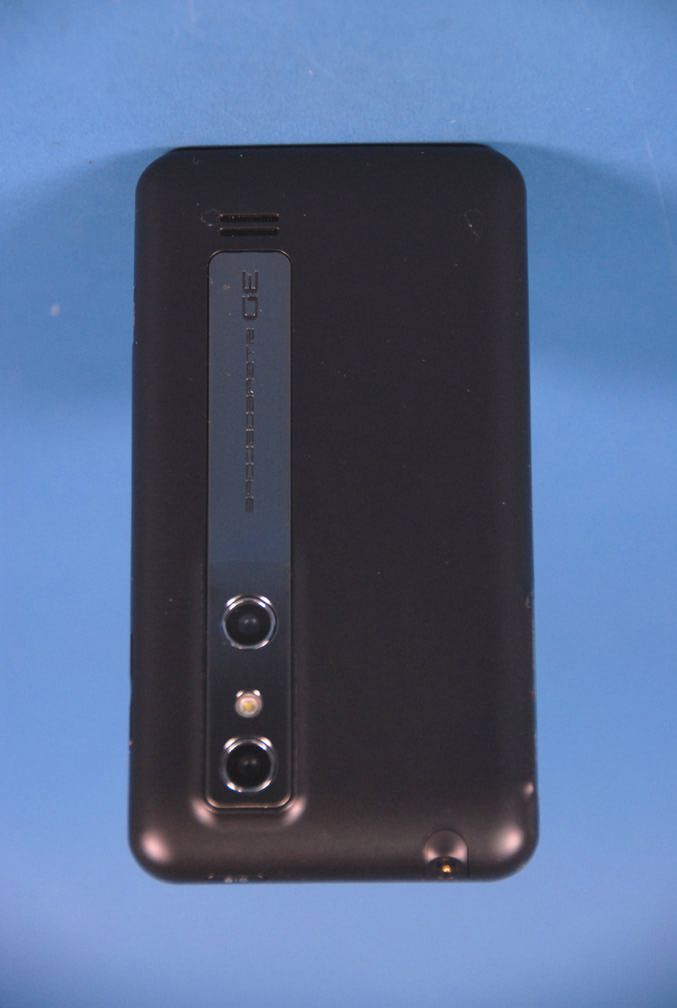

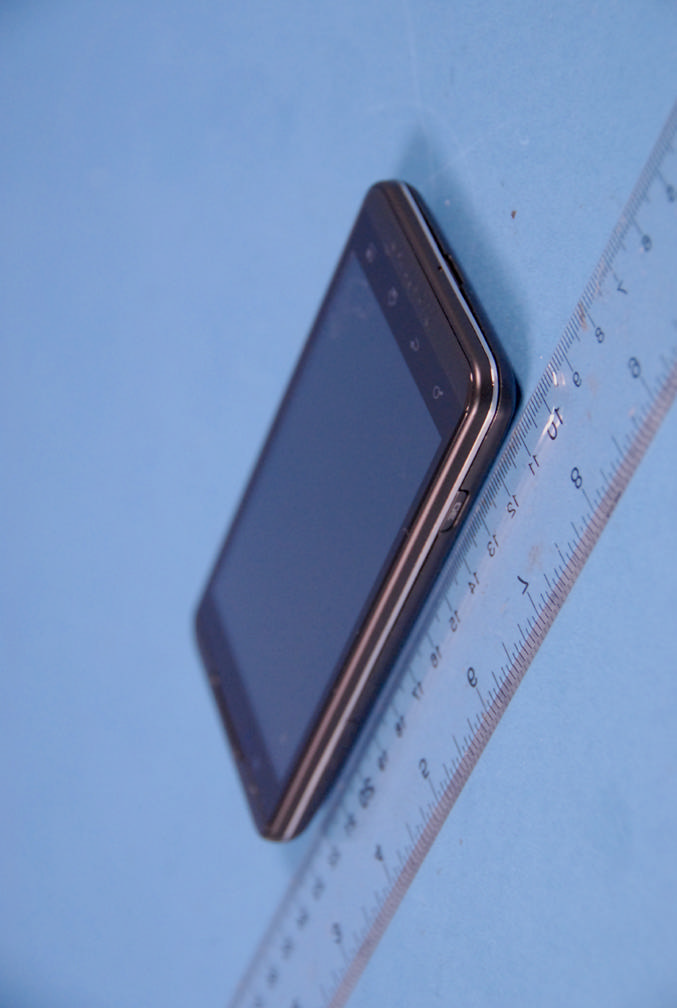

External Photos

LG Electronics USA FCC ID: BEJP925 Model: P925 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 1 of 4 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJP925 Model: P925 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 2 of 4 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 3 of 4 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc.

ID Label/Location Info

Model No: P925 FCC ID : BEJP925 S/N : Made in Korea LG Electronics Inc. LGE

Internal Photos

LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 1 of 11 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 2 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 3 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 4 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 5 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 6 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 7 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 8 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 9 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 10 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJP925 Model: P925 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Phone w/ BT and WLAN Page 11 of 11 © 2011 PCTEST Engineering Laboratory Inc.

Test Report

FCC ID: BEJP925 Report No.: HCTE1102FE04-1 Date: February 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 2 of 17 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION 1.1 Product description 3 1.2 Related submittal(s)/Grant(s) 3 1.3 Tested system details 4 1.4 Cable description 5 1.5 Noise suppression parts on cable. (I/O cable) 5 1.6 Test methodology 6 1.7 Test facility 6 1.8 Frequency Range of Radiated Measurements 6 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of tested system 7 3. PRELIMINARY TEST 3.1 Conducted Emission test 8 3.2 Radiated Emission test 8 4. CONDUCTED AND RADIATED EMISSION TESTS SUMMARY 4.1 Conducted Emission test 9 4.2 Radiated Emission test 14 5. FIELD STRENGTH CALCULATION 15 6. TEST EQUIPMENT 16 7. CONCLUSION 17 ATTACHMENT: TEST SETUP PHOTOGRAPHS FCC ID: BEJP925 Report No.: HCTE1102FE04-1 Date: February 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 3 of 17 1. GENERAL INFORMATION 1.1 Product Description Equipment Under Test (E.U.T) is Cellular/PCS GSM/WCDMA/EDGE Phone with Bluetooth& WLAN, Model: P925, LG-P925 manufactured by LG Electronics Inc. Its basic purpose is used for communications. Model (s) P925, LG-P925 FCC ID BEJP925 E.U.T Type Cellular/PCS GSM/WCDMA/EDGE Phone with Bluetooth&WLAN TX Frequency 824.20 ㎒ to 848.80 ㎒ (GSM 850) 1 850.20 ㎒ to 1 909.80 ㎒ (GSM 1 900) 826.40 ㎒ to 846.60 ㎒ (WCDMA 850) 1 852.4 ㎒ to 1 907.6 ㎒ (WCDMA 1 900) RX Frequency 869.20 ㎒ to 893.80 ㎒ (GSM 850) 1 930.20 ㎒ to 1 989.80 ㎒ (GSM 1 900) 871.40 ㎒ to 891.60 ㎒ (WCDMA 850) 1 932.4 ㎒ to 1 987.6 ㎒ (WCDMA 1 900) 1.2 Related Submittal(s) / Grant(s) Original submittal only. FCC ID: BEJP925 Report No.: HCTE1102FE04-1 Date: February 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 4 of 17 1.3 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Manufacturer Model Number/ Serial Number FCC ID / DoC Connected To Cellular/PCS GSM/ WCDMA/EDGE Phone with Bluetooth &WLAN LG Electronics Inc P925 BEJP925 Notebook PC TA TV monitor Notebook PC SAMSUNG NT-R519 ZLA693AS900033M DoC E.U.T Notebook PC adaptor DELTA (JIANG SU) ADP-60ZH D AD-6019R DA44-00242A - Notebook PC Mouse Microsoft Intellimouse optical USB and PS/2 compatible 3902B008 DoC Notebook PC TV monitor LG Electronics Inc W2261VP-PF 912NDDM0C242 - E.U.T USB cable - - - E.U.T, TA HDMI cable - - - E.U.T, TV monitor Headset - - - E.U.T SD card (4 GB) HC - - E.U.T FCC ID: BEJP925 Report No.: HCTE1102FE04-1 Date: February 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 5 of 17 1.4 Cable Description * The marked "(D)" means the data cable and "(P)" means the power cable. 1.5 Noise Suppression Parts on Cable. (I/O cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location Headset jack N - Y E.U.T End USB data N - Y Both End Cellular/PCS GSM/ WCDMA/EDGE Phone with Bluetooth &WLAN HDMI N - Y Both End Notebook PC USB (Mouse) Y Notebook PC End Y Notebook PC End Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) Headset jack - N (D)1.2 USB data Y Y (P,D)1.2 Cellular/PCS GSM/ WCDMA/EDGE Phone with Bluetooth &WLAN HDMI N Y (D)2.0 Notebook PC USB (Mouse) - Y (D)1.8 FCC ID: BEJP925 Report No.: HCTE1102FE04-1 Date: February 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 6 of 17 1.6 Test Methodology Both Conducted and Radiated testing was performed according to the procedures in ANSI C63.4/2003. Radiated testing was performed at an antenna to E.U.T distance of 3 m 1.7 Test Facility The 10 m semi anechoic chamber used to collect the radiated data is located at the 105-1, Jangam-Ri, Majang-Myeon, Icheon-Si, Kyoungki-Do, South Korea, and the conducted measurement facility used to measure the conducted data are located at San 136-1, Ami-Ri Bubal-Eup, Icheon-Si, Kyoungki-Do, 467-701, South Korea. Those measurement facilities are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facilities was submitted to the Commission and accepted dated Sep. 03, 2010 (Registration Number: 90661) 1.8 Frequency Range of Radiated Measurements An unintentional radiator, including a digital device, the spectrum shall be investigated from the lowest radio frequency signal generated or used in the device, without going below the lowest frequency for which a Radiated Emission limit is specified, up to the frequency shown in the following table Highest frequency generated or used in the device or on which the device operates or tunes (㎒) Upper frequency of measurement range (㎒) Below 1.705 30 1.705 to 108 1 000 108 to 500 2 000 500 to 1 000 5 000 Above 1 000 5 th harmonic of the highest frequency or 40 ㎓, whichever is lower FCC ID: BEJP925 Report No.: HCTE1102FE04-1 Date: February 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 7 of 17 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of Test System Power Line Conducted test : E.U.T was connected to LISN via Notebook PC adaptor. Preliminary Power Line Conducted Emission tests were performed by using the procedure in ANSI C63.4/2003 7.2.3 to determine the worst operating conditions. Radiated Emission test : Preliminary Radiated Emission tests were performed by using the procedure in ANSI C63.4/2003 8.3.1.1 to determine the worst operating condition. Final Radiated Emission tests were performed at 3 m semi-anechoic chamber. [Configuration of Tested Sy…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: BEJP925 Report No. HCTE1102FE04 Date: February 01, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 1 of 5 ATTACHMENT - TEST SETUP PHOTOS - FCC ID: BEJP925 Report No. HCTE1102FE04 Date: February 01, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 2 of 5 1. CONDUCTED MEASUREMENT PHOTOS FCC ID: BEJP925 Report No. HCTE1102FE04 Date: February 01, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 3 of 5 FCC ID: BEJP925 Report No. HCTE1102FE04 Date: February 01, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 4 of 5 2. RADIATED MEASUREMENT PHOTOS FCC ID: BEJP925 Report No. HCTE1102FE04 Date: February 01, 2011 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 5 of 5
