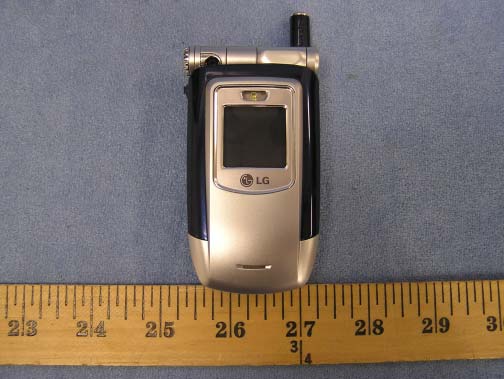

BEJPD820Single Band, Single Mode CDMA Mobile Phone

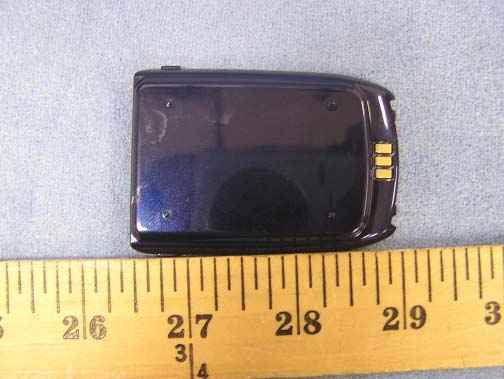

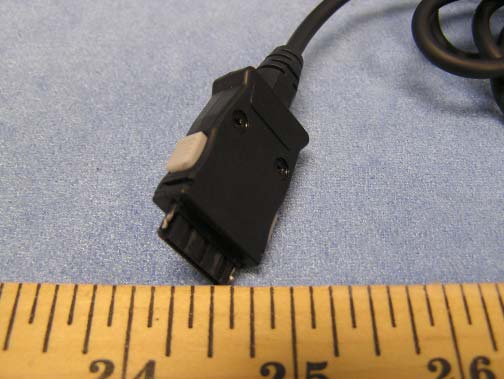

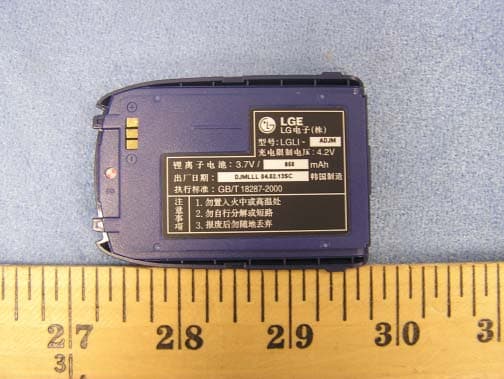

1 PD820 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Important Information . . . . . . . . . . . . . . . . . . . . . . .5 Check Accessories . . . . . . . . . . . . . . . . . . . . . . . . .5 Bodily Contact During Operation . . . . . . . . . . . . . .7 Vehicle-Mounted External Antenna . . . . . . . . . . . .7 FCC Part 15 Class B Compliance . . . . . . . . . . . . .8 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Phone Components . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Using the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . .12 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . .12 Removing the Battery . . . . . . . . . . . . . . . . . . . . . .12 Battery Charge Level . . . . . . . . . . . . . . . . . . . . . .12 Using the Desktop Charger . . . . . . . . . . . . . . . . . . . . .13 Technical Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Screen Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Phone Menu Reference . . . . . . . . . . . . . . . . . . . . . . . .16 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Travel Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Desktop Charger . . . . . . . . . . . . . . . . . . . . . . . . . .18 Cigarette Lighter Charger . . . . . . . . . . . . . . . . . . .19 Hands-Free Car Kit (Portable) . . . . . . . . . . . . . . . .19 AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Explosion, Shock, and Fire Hazards . . . . . . . . . .20 General Warnings and Cautions . . . . . . . . . . . . . .21 Battery Information and Care . . . . . . . . . . . . . . . . . . . .23 Basic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Turning the Phone On and Off . . . . . . . . . . . . . . . . . . .25 Turning the Phone On . . . . . . . . . . . . . . . . . . . . . .25 Turning the Phone Off . . . . . . . . . . . . . . . . . . . . . .25 Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Power Save Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 PD820_eng.qxd 04/5/21 7:09 PM Page 1 PD820 2 Correcting Dialing Errors . . . . . . . . . . . . . . . . . . .26 Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 My Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . .28 Ring Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Quick Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Adjusting Manner Mode . . . . . . . . . . . . . . . . . . . .29 Adjusting Lock Function . . . . . . . . . . . . . . . . . . . .29 Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Redialing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Additional Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 How to enter Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Examples Using Text Input . . . . . . . . . . . . . . . . . .34 Phone Book Features . . . . . . . . . . . . . . . . . . . . . . . . .35 Personal Phone Book Memory . . . . . . . . . . . . . . .35 Saving Numbers in Your Personal Phone Book . . .35 Find Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Menu Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Phone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 New Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Call Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Clear History . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Delete All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Volume/Ringer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Select Ringer . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Melody Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Ring/Vibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Ring Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Key Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Flip Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Connect Alert . . . . . . . . . . . . . . . . . . . . . . . . . . .41 PD820_eng.qxd 04/5/21 7:09 PM Page 2 PD820 3 Service Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 1 Min Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Voice Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Display Theme . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Banner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Num Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Standby Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Menu Theme . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJPD820) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Chief Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3855 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

Jun 8. 2004 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJPD820 Single - Mode Cellular Phone (CDMA) Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Operational Description, Technical Specification, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82- 2- 850-3850 Fax : 82- 2- 850-3855 [email protected] 459- 9, Kasan-dong,Kemchun-ku Seoul 153- 023, Korea LG Electronics Inc. LGE

1 Mike Kuo From: Compliance Certification Services [[email protected]] Sent: June282004Monday 12:18 PM To: [email protected] Subject: LG Electronics Inc., FCC ID: BEJPD820, Assessment NO.: AN04T3998, Notice#1 Question #1:Page 14 of user manual mentioned that this phone is dual band ( 800/1900 MHz ) CDMA phone, however, the test report and support documents indicated that this phone is single band phone ( 824-848 MHz ) . Please explain. Question #2: Section 2 of EMC test report indicates that this antenna gain is -2 dBi which does not agree with antenna specification. Please explain. Question #3: As indicated in page 18 of user manual, this phone will be offered to use with two type of batteries. In the SAR and EMC test report, only one battery was tested. Please provide separate EMC and SAR body worn test data for another battery. Question #4: The max. measured SAR value as indicated in the SAR test report is : head :0.819 W/kg and Body:0.364 W/kg. These values do not agree those values listed in the page 86 of user manual (head :1.32 W/kg; Body:0.686 W/kg). Please make necessary correction. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION LG ELECTRONICS INC. This device complies with Part 22 of the FCC Rules. FCC ID Label

ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 1/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 2/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 3/19 LG-SD820 rev. IR - ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 4/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 5/19 LG-SD820 rev. IR ? ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 6/19 LG-SD820 rev. IR ? ? ? ? ? ? ? ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 7/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 8/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 9/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 10/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 11/19 LG-SD820 rev. IR ?? ?? ?? ?? ?? ?? ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 12/19 LG-SD820 rev. IR ?? ?? ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 13/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 14/19 LG-SD820 rev. IR MODEL: LG-SD820 FRAGILE !!LOT NO:C/T NO:Q'TY: 1500 pcs ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 15/19 LG-SD820 rev. IR ? ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 16/19 LG-SD820 rev. IR ? ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 17/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 18/19 LG-SD820 rev. IR ANTENNA SPECIFICATION DATE 2004-05-12 REV. IR MODEL LG-SD820(silver) TYPE FIXED PAGE 19/19 LG-SD820 rev. IR ?

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE MODEL: LG-PD820 FCC ID: BEJPD820 June 4, 2004 REPORT NO: 04I2757-2 Prepared for LG ELECTRONICS 459-9, KASAN-DONG, KUMCHON-GU SEOUL, SOUTH KOREA 153-023 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 04I2757-2 DATE: June 4, 2004 FCC ID: BEJPD820 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 33 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: June 4, 2004 APPLICANT: LG ELECTRONICS 459-9, KASAN-DONG, KUMCHON-GU SEOUL, SOUTH KOREA 153-023 MODEL: LG-PD820 FCC ID: BEJPD820 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: CDMA Tx Frequency: 824.82 to 848.19 MHz Max. O/P Power: 25.43 dBm (Conducted/Average) Max. SAR (1g): 0.819 mW/g at Right head touched position) 0.364 mW/g at Body worn Application Type: Certification FCC Rule Part(s): 22H This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer REPORT NO: 04I2757-2 DATE: June 4, 2004 FCC ID: BEJPD820 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 33 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION................................................................. 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC..................................... 4 3. DOSIMETRIC ASSESSMENT SETUP................................................................................... 4 3.1. MEASUREMENT SYSTEM DIAGRAM..................................................................................................................5 3.2. SYSTEM COMPONENTS...................................................................................................................................6 4. EVALUATION PROCEDURES............................................................................................ 8 5. MEASUREMENT UNCERTAINTY...................................................................................... 12 6. EXPOSURE LIMIT........................................................................................................ 13 7. EUT ARRANGEMENT................................................................................................... 14 8. MEASUREMENT RESULTS............................................................................................ 17 8.1. SIMULATING LIQUIDS PARAMETER CHECK.....................................................................................................17 8.2. SYSTEM PERFORMANCE CHECK...................................................................................................................20 8.3. PROCEDURES USED TO ESTABLISH TEST SIGNAL..........................................................................................21 8.4. SAR MEASUREMENT RESULTS.....................................................................................................................22 9. EUT PHOTOS............................................................................................................. 27 10. EQUIPMENT LIST & CALIBRATION STATUS..................................................................... 31 11. REFERENCES............................................................................................................ 32 12. ATTACHMENTS.......................................................................................................... 33 REPORT NO: 04I2757-2 DATE: June 4, 2004 FCC ID: BEJPD820 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 33 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. E QUIPMENT UNDER TEST (EUT) DESCRIPTION The following is the information provided by the applicant. Type of EUT: Single Band, Single Mode CDMA Mobile Phone Type/Model No.: LG-PD820 TX Frequency: 824.82 to 848.19 MHz Duty Cycle: 100% Battery: Li-Ion Battery, rating 3.7Vdc 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Expo…

Text truncated - open the document above for the full version.

Date/Time: 06/04/04 09:48:50 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_060404.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.914 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 53.1 V/m; Power Drift = -0.004 dB Maximum value of SAR (measured) = 2.54 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 53.1 V/m; Power Drift = -0.004 dB Maximum value of SAR (measured) = 2.54 mW/g Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.53 mW/g 0 dB = 2.54mW/g Date/Time: 06/04/04 09:48:50 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_060404.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.914 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Phantom section: Flat Section d=15mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 53.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.14 mW/g

FCC CFR47 CERTIFICATION PART 22H TEST REPORT FOR SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE MODEL: LG-PD820 FCC ID: BEJPD820 REPORT NUMBER: 04I2757-1 ISSUE DATE: JUNE 10, 2004 Prepared for LG ELECTRONICS 459-9, KASAN-DONG, KUMCHON-GU SEOUL, SOUTH KOREA 153-023 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04I2757-1 DATE: JUNE 10, 2004 FCC ID: BEJPD820 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE Page 2 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION.................................................................................................. 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 4 4. TEST FACILITY................................................................................................................................ 4 5. ACCREDITATION AND LISTING ................................................................................................. 4 6. MEASURING INSTRUMENT CALIBRATION ............................................................................ 4 7. TEST SETUP, PROCEDURE AND RESULT................................................................................. 5 7.1. SECTION 2.1046: RF POWER OUTPUT ................................................................................... 5 7.2. SECTION 2.1047: MODULATION CHARACTERISTICS ..................................................... 10 7.3. SECTION 2.1049: OCCUPIED BANDWIDTH ........................................................................ 10 7.4. SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINAL .............................. 15 7.5. SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION ................................... 22 7.6. SECTION 2.1055: FREQUENCY STABILITY ........................................................................ 26 8. APENDIX .......................................................................................................................................... 29 8.1. EXTERNAL & INTERNAL PHOTOS ...................................................................................... 29 8.2. SCHEMATICS ........................................................................................................................... 29 8.3. BLOCK DIAGRAM ...................................................................................................................29 8.4. USER MANUAL ........................................................................................................................ 29 REPORT NO: 04I2757-1 DATE: JUNE 10, 2004 FCC ID: BEJPD820 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE Page 3 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: LG ELECTRONICS 459-9, KASAN-DONG, KUMCHON-GU SEOUL, SOUTH KOREA 153-023 EUT DESCRIPTION: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE MODEM NAME: LG-PD820 DATE TESTED: MAY 28 – JUN 01, 2004 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE LICENSED TX MODULE IN MOBILE APPLICATION MEASUREMENT PROCEDURE ANSI 63.4 / 2001, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 22 Subpart H Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 22 Subpart H-Cellular Radiotelephone Service. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Tested By: Released For CCS By: VIEN TRAN THU CHAN EMC TECHCIAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04I2757-1 DATE: JUNE 10, 2004 FCC ID: BEJPD820 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE Page 4 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The Single Band, Single Mode Cellular Phone has an output power 24.80dBm / 302mW (CDMA, ERP). It has a fixed type (Helical) antenna, which is designed for the Cellular band transmitting of frequency range 824 ~ 849MHz. 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures documented on chapter 13 of ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057. 4. TEST FACILITY The o…

Text truncated - open the document above for the full version.

REPORT NO: 04I2757-1 DATE: JUNE 10, 2004 FCC ID: BEJPD820 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE Page 8 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. X position: Y position: Z position: REPORT NO: 04I2757-1 DATE: JUNE 10, 2004 FCC ID: BEJPD820 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE Page 10 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 7.2. SECTION 2.1047: MODULATION CHARACTERISTICS Not applicable, the EUT is single mode CDMA only. 7.3. SECTION 2.1049: OCCUPIED BANDWIDTH SETUP CONFIGURATION EUT 10 dB Att. or Ant. Coupler Spectrum Analyzer REPORT NO: 04I2757-1 DATE: JUNE 10, 2004 FCC ID: BEJPD820 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE Page 27 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TEST PROCEDURE • Frequency stability versus environmental temperature 1). Setup the configuration per figure 6 for frequencies measurement inside the environmental chamber. Set the temperature of the chamber to 25°C. Set SA Resolution Bandwidth low enough to obtain the desired frequency resolution and measure the EUT 25°C operating frequency as reference frequency. 2). Turn EUT off and set Chamber temperature to -30°C. 3). Allow sufficient time (approximately 20 to 30 minus after chamber reach the assigned temperature) for EUT to stabilize. Turn on EUT and measure the EUT operating frequency. Turn off EUT after the measurement. 4). Repeat step 3 with a 10°C increased per stage until the highest temperature of +50°C reached, record all measured frequencies on each temperature step. • Frequency stability versus AC input voltage 1). Setup the configuration per figure 6 and set chamber temperature to 25°C. Use a variable AC power supply to power the EUT and set AC output voltage to EUT nominal input AC voltage. Set SA Resolution Bandwidth low enough to obtain the desired frequency resolution and measure the EUT 25°C operating frequency as reference frequency. 2). Slowly reduce the EUT input voltage to specified extreme voltage variation (±15%) and record the maximum frequency change. RESULT No non-compliance noted, as shown below because the EUT uses the same OSC in both receiver and transmitter LO circuit. As a result, the frequency does not shift in Frequency Stability Test.
