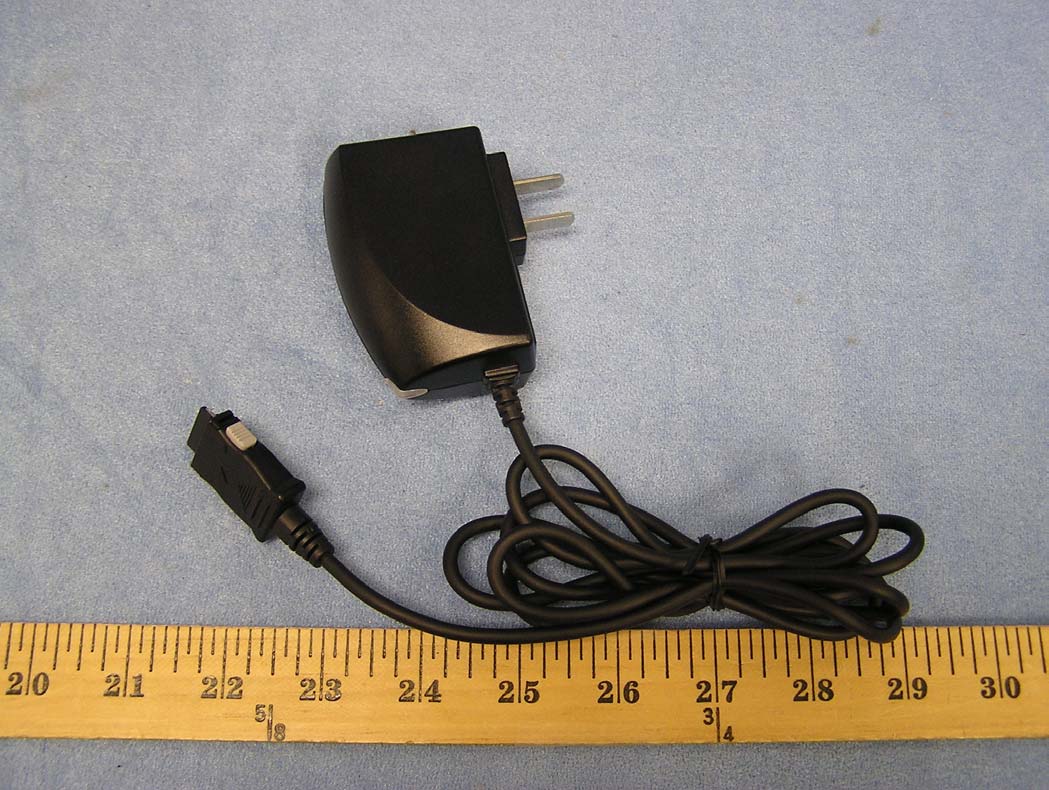

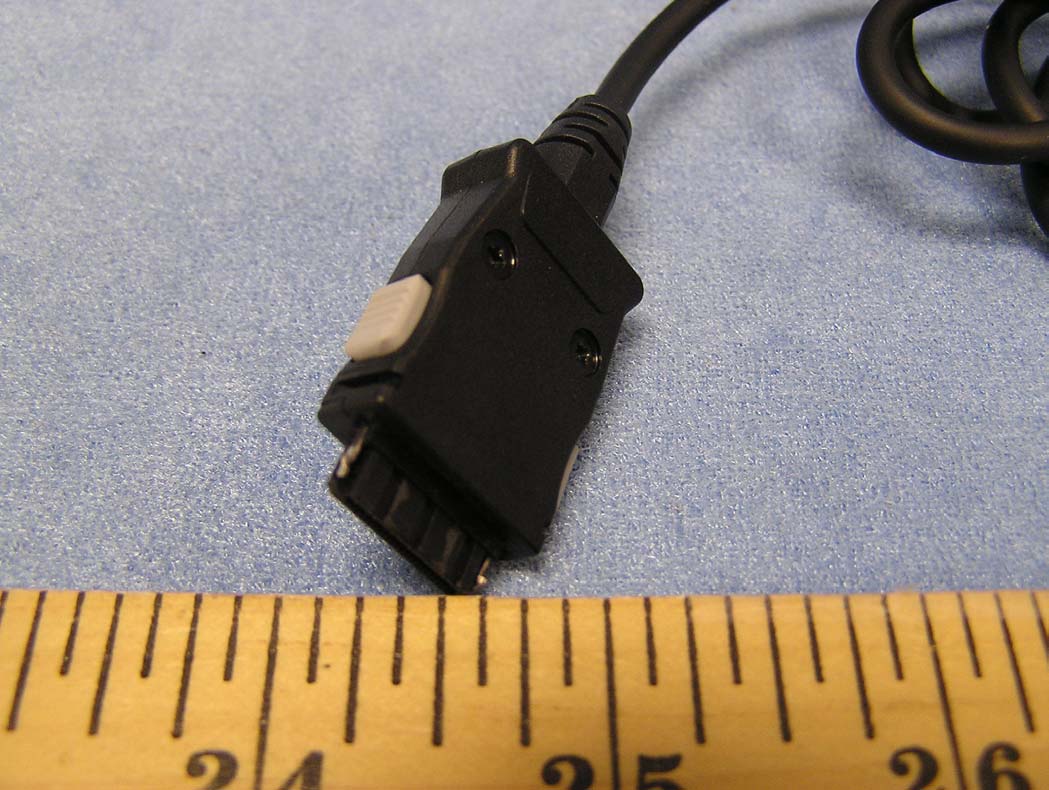

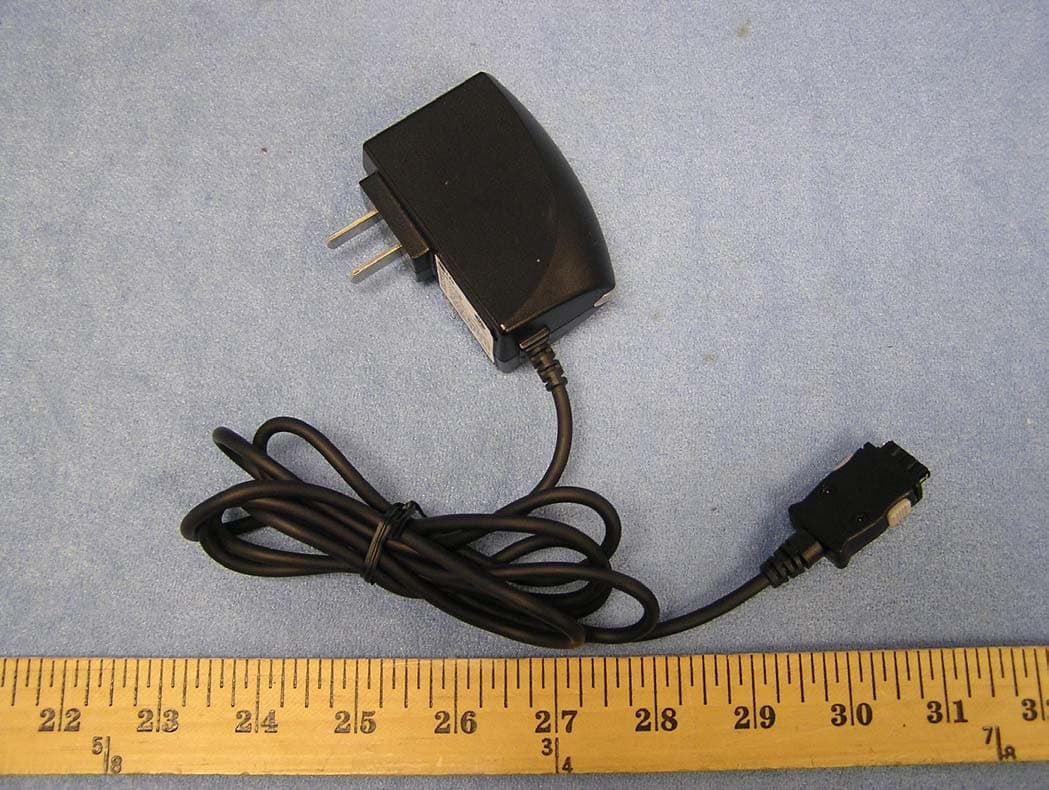

BEJPD8380Single Band, Single Mode CDMA Mobile Phone

1 LG-PD8380 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Screen Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Phone Components . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Using the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . .10 Using the Desktop Charger . . . . . . . . . . . . . . . . . . . . .11 Phone Menu Reference . . . . . . . . . . . . . . . . . . . . . . . .12 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Battery Information and Care . . . . . . . . . . . . . . . . . . . .19 Basic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Turning the Phone On and Off . . . . . . . . . . . . . . . . . . .21 Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Power Save Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . .23 Quick Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Redialing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Additional Functions . . . . . . . . . . . . . . . . . . . . . . .28 How to enter Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Menu Features . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . .30 *PD8380_eng-1.qxd 04/5/21 8:02 PM Page 1 LG-PD8380 2 Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Call History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47 PIMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68 Game . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71 Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . .72 TIA Safety Information . . . . . . . . . . . . . . . . . . . . . . . . .72 FDA Consumer Update . . . . . . . . . . . . . . . . . . . . . . . .76 *PD8380_eng-1.qxd 04/5/21 8:02 PM Page 2 LG-PD8380 3 Introduction Congratulations on your purchase of the advanced and compact PD8380 cellular phone, designed to operate with the latest digital mobile communication technology, Code Division Multiple Access (CDMA). Along with the many advanced features of the CDMA system such as greatly enhanced voice clarity this phone offers: Large, easy-to-read, 8-line backlight LCD with status icons. Paging, messaging, voice mail, and caller ID. 20-key keypad. Long battery stand-by and talk time. Menu-driven interface with prompts for easy operation and configuration. Any key answer, auto retry, one-touch and speed dialing with 99 memory locations. Bilingual (English and Hebrew). Important Information This user’s manual provides important information on the use and operation of your phone. Please read all the information carefully prior to using the phone for the best performance and to prevent any damage to or misuse of the phone. Any unapproved changes or modifications void your warranty. Check Accessories Your mobile phone comes with a one-slot desktop charger and a rechargeable battery. Please verify that these accessories are included. *PD8380_eng-1.qxd 04/5/21 8:02 PM Page 3 LG-PD8380 4 FCC RF Exposure Information WARNING! Read this information before operating the phone. In August 1996, the Federal Communications (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. CAUTION Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could impair call quality, damage the phone, void your warranty and/or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin a minor burn may result. Contact your local dealer for a replacement of antenna. *PD8380_eng-1.qxd 04/5/21 8:02 PM Page 4 LG-PD8380 5 Bodily Contact During Operation This device was tested for typical use with the back of the phone kept 1.5 cm from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 1.5 cm must be maintained between the user’s body and the back of the phone, including the antenna whether extended or retracted. Third-party belt- clips, holsters, and similar accessories containing metallic components should not be used. Avoid the use of accessories that cannot maintain 1.5 cm distance between the user’s body and the back of the phone …

Text truncated - open the document above for the full version.

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJPD8380) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Chief Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3855 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

Jun 8. 2004 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJPD8380 Single - Mode Cellular Phone (CDMA) Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Operational Description, Technical Specification, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82- 2- 850-3850 Fax : 82- 2- 850-3855 [email protected] 459- 9, Kasan-dong,Kemchun-ku Seoul 153- 023, Korea LG Electronics Inc. LGE

1 Mike Kuo From: Helen Zhao Sent: June282004Monday 5:19 PM To: Mike Kuo Subject: LG Electronics Inc., FCC ID: BEJPD8380, Assessment NO.: AN04T3995, LG-PD820 User Manual_Re.pdf LG-PD8380 User Manual_Re.pdf Hello Mike, Below is the reply from LG to your questions: Question #1: The max. measured SAR value as indicated in the SAR test report is : head :1.26 W/kg and Body:0.773 W/kg. These values do not agree those values listed in the page 86 of user manual (head :1.32 W/kg; Body:0.686 W/kg). Please make necessary correction. -> I corrected that. I deleted that part. Question #2: As indicated in the SAR test report, this phone was tested with 1.5 cm space gap. However, in the page 15 of user manual indicated that this device will be sold with holster. Please provide a photo of holster and indicate on thickness of holster on the photo. -> I corrected that. We do not offer holster. Question #3: As indicated in page 14 of user manual, this phone will be offered to use with two type of batteries. In the SAR and EMC test report, only one battery was tested. Please provide separate EMC and SAR body worn test data for another battery. -> I corrected that. We do not offer extened battery. Best Regards. --------------------------------------------------- Chris Lee Research Engineer QE Gr. MOBILE HANDSET R&D CENTER TELECOMMUNICATION EQUIPMENT & HANDSET COMPANY 459-9, Kasan-dong, Kumchon-gu, Seoul 153-023, Korea Phone : +82-2-850-3860, +82-2-818-4272,4676 FAX : +82-2-850-3855 Mobile Phone : +82-11-756-7160 E-mail : [email protected] ---------------------------------------------------

PROPOSED FCC ID LABEL AND LOCATION LG ELECTRONICS INC. This device complies with Part 22 of the FCC Rules. FCC ID Label

Confidential PRODUCT SPECIFICATIONS Page 1 of (30) Specification No. Description PS0068-102 LGE CU8380 Antenna Product Specification Customer Date Rev LG Electronics Co., Ltd., Korea August, 2003 B: Color / dimensions Antenna Specifications (LGE CU8380) Silver / Dark Blue / Red Confidential PRODUCT SPECIFICATIONS Page 2 of (30) Specification No. Description PS0068-102 LGE CU8380 Antenna Product Specification Customer Date Rev LG Electronics Co., Ltd., Korea August, 2003 B: Color / dimensions Contents 1 General................................................................................................................................................... 3 1.1 Product Description....................................................................................................................................................3 1.2 Product Number .........................................................................................................................................................3 1.3 Print Acceptance ........................................................................................................................................................3 1.4 Units, Definitions, and Abbreviations ........................................................................................................................3 1.5 Interface......................................................................................................................................................................3 1.6 Conditions ..................................................................................................................................................................3 1.7 Coordinate System .....................................................................................................................................................4 2 Electrical Properties ............................................................................................................................. 5 2.1 Frequency Bands ........................................................................................................................................................5 2.2 Impedance ..................................................................................................................................................................5 2.3 The Radio (Phone) .....................................................................................................................................................5 2.4 VSWR ........................................................................................................................................................................6 2.5 Gain ............................................................................................................................................................................8 2.6 Power Rating ............................................................................................................................................................18 3 Mechanical Properties ........................................................................................................................ 19 3.1 Appearance...............................................................................................................................................................19 3.2 Helix Deformation....................................................................................................................................................19 3.3 Torque ......................................................................................................................................................................19 3.4 Tensile strength ........................................................................................................................................................20 3.5 Drop..........................................................................................................................................................................20 3.6 Antenna Weight: ......................................................................................................................................................21 4 Environmental Resistance Properties ............................................................................................... 22 4.1 Operating Temperature.............................................................................................................................................22 4.2 Storage Temperature ................................................................................................................................................22 4.3 Temperature Cycling ................................................................................................................................................22 4.4 Humidity ..................................................................................................................................................................23 4.5 Sinusoidal Vibration.................................................................................................................................................23 4.6 Corrosion (Salt spray test) ........................................................................................................................................24 5 UV Painting Reliability ...................................................................................................................... 25 5.1 Samples Size ............................................................................................................................................................25 5.2 Initial coating reliability prior to test resistance of cosmetics ..................................................................................25 5.3 Coating reliability Post testing of resista…

Text truncated - open the document above for the full version.

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE MODEL: LG-PD8380 FCC ID: BEJPD8380 June 4, 2004 REPORT NO: 04I2756-2 Prepared for LG ELECTRONICS 459-9, KASAN-DONG, KUMCHON-GU SEOUL, SOUTH KOREA 153-023 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 04I2756-2 DATE: June 4, 2004 FCC ID: BEJPD8380 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 33 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: June 4, 2004 APPLICANT: LG ELECTRONICS 459-9, KASAN-DONG, KUMCHON-GU SEOUL, SOUTH KOREA 153-023 MODEL: LG-PD8380 FCC ID: BEJPD8380 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: CDMA Tx Frequency: 824.82 to 848.19 MHz Max. O/P Power: 25.35 dBm (Conducted/Average) Max. SAR (1g): 1.26 mW/g at Right head touched position) 0.773 mW/g at Body worn Application Type: Certification FCC Rule Part(s): 22H This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer REPORT NO: 04I2756-2 DATE: June 4, 2004 FCC ID: BEJPD8380 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 33 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION................................................................. 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC..................................... 4 3. DOSIMETRIC ASSESSMENT SETUP................................................................................... 4 3.1. MEASUREMENT SYSTEM DIAGRAM..................................................................................................................5 3.2. SYSTEM COMPONENTS...................................................................................................................................6 4. EVALUATION PROCEDURES............................................................................................ 8 5. MEASUREMENT UNCERTAINTY...................................................................................... 12 6. EXPOSURE LIMIT........................................................................................................ 13 7. EUT ARRANGEMENT................................................................................................... 14 8. MEASUREMENT RESULTS............................................................................................ 17 8.1. SIMULATING LIQUIDS PARAMETER CHECK.....................................................................................................17 8.2. SYSTEM PERFORMANCE CHECK...................................................................................................................20 8.3. PROCEDURES USED TO ESTABLISH TEST SIGNAL..........................................................................................21 8.4. SAR MEASUREMENT RESULTS.....................................................................................................................22 9. EUT PHOTOS............................................................................................................. 27 10. EQUIPMENT LIST & CALIBRATION STATUS..................................................................... 31 11. REFERENCES............................................................................................................ 32 12. ATTACHMENTS.......................................................................................................... 33 REPORT NO: 04I2756-2 DATE: June 4, 2004 FCC ID: BEJPD8380 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 33 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. E QUIPMENT UNDER TEST (EUT) DESCRIPTION The following is the information provided by the applicant. Type of EUT: Single Band, Single Mode CDMA Mobile Phone Type/Model No.: LG-PD8380 TX Frequency: 824.82 to 848.19 MHz Duty Cycle: 100% Battery: Li-Ion Battery, rating 3.7Vdc 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Hum…

Text truncated - open the document above for the full version.

Date/Time: 06/04/04 16:01:24 Test Laboratory: Compliance Certification Services File Name: 1_L-Touch.da4 DUT: LG Electronics; Type: LG-PD8380; Serial: #2 Program Name: Left Head Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CDMA Cellular Band; Frequency: 824.82 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.82 MHz; σ = 0.903 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Touch position, Low/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 10.7 V/m; Power Drift = -0.002 dB Maximum value of SAR (measured) = 0.922 mW/g Info: Interpolated medium parameters used for SAR evaluation! Touch position, Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.7 V/m; Power Drift = -0.002 dB Maximum value of SAR (measured) = 1.03 mW/g Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 0.961 mW/g; SAR(10 g) = 0.614 mW/g Info: Interpolated medium parameters used for SAR evaluation! 0 dB = 1.03mW/g Date/Time: 06/04/04 16:01:24 Test Laboratory: Compliance Certification Services File Name: 1_L-Touch.da4 DUT: LG Electronics; Type: LG-PD8380; Serial: #2 Program Name: Left Head Communication System: CDMA Cellular Band; Frequency: 824.82 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.82 MHz; σ = 0.903 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Phantom section: Left Section Touch position, Low/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 10.7 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.857 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 06/04/04 16:01:24 Test Laboratory: Compliance Certification Services File Name: 1_L-Touch.da4 DUT: LG Electronics; Type: LG-PD8380; Serial: #2 Program Name: Left Head Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CDMA Cellular Band; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.917 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Touch position, Middle/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.56 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.674 mW/g Info: Interpolated medium parameters used for SAR evaluation! Touch position, Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.56 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.767 mW/g Peak SAR (extrapolated) = 1.14 W/kg SAR(1 g) = 0.715 mW/g; SAR(10 g) = 0.458 mW/g Info: Interpolated medium parameters used for SAR evaluation! 0 dB = 0.767mW/g Date/Time: 06/04/04 16:01:24 Test Laboratory: Compliance Certification Services File Name: 1_L-Touch.da4 DUT: LG Electronics; Type: LG-PD8380; Serial: #2 Program Name: Left Head Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CDMA Cellular Band; Frequency: 848.19 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.19 MHz; σ = 0.925 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Touch position, High/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11 V/m; Power Drift = -0.17 dB Maximum value of SAR (measured) = 0.810 mW/g Info: Interpolated medium parameters used for SAR evaluation! Touch position, High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11 V/m; Power Drift = -0.17 dB Maximum value of SAR (measured) = 0.893 mW/g Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.873 mW/g; SAR(10 g) = 0.548 mW/g Info: Interpolated medium parameters used for SAR evaluation! 0 dB = 0.893mW/g Date/Time: 06/04/04 20:44:16 Test Laboratory: Compliance Certification Services File Name: 2_L-Tilt.da4 DUT: LG Electronics; Type: LG-PD8380; Serial: #2 Program Name: Left Head Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CDMA Cellular Band; Frequency: 824.82 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.82 MHz; σ = 0.903 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilt position, Low/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.28 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.222 mW/g Info: Interpolated medium parameters used for SAR evaluation! Tilt position, Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.28 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.219 mW/g Peak SAR (extrapolated) = 0.272 W/kg SAR(1 g) = 0.211 mW/g; SAR(10 g) = 0.160 mW/g Info: Interpolated medium parameters used for SAR evaluation! 0 dB = 0.219mW/g Date/Ti…

Text truncated - open the document above for the full version.

Date/Time: 06/04/04 09:48:50 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_060404.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.914 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 53.1 V/m; Power Drift = -0.004 dB Maximum value of SAR (measured) = 2.54 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 53.1 V/m; Power Drift = -0.004 dB Maximum value of SAR (measured) = 2.54 mW/g Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.53 mW/g 0 dB = 2.54mW/g Date/Time: 06/04/04 09:48:50 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_060404.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.914 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Phantom section: Flat Section d=15mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 53.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measure…

Text truncated - open the document above for the full version.
