LG Electronics Inc Date:09.05.2003 Federal Communications Commission Authorization and Evaluation Division Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 Re: LG Electronics Inc, PDA Request for withholding from public disclosure proprietary information submitted pursuant to an application for certification of a PE2030 B. FCC ID:BEJPDA-PE2030B Sir/Madam: LG Electronics Inc requests that certain materials submitted with this application for certification of the PE2030 B be withheld from public disclosure. This request is made under the provision of Section 0.457 (d) of the Commission’s Rule and Section 552 (b) (4) of the Freedom of Information Act, Trade Secrets. The items marked “Confidential” contain detailed block diagram, schematic, part list, operational description and PCB layout, submitted to the FCC for review with this application. The information contains proprietary information (trade secrets) regarding the circuit operation and capabilities (specific values of components, circuit design details and system architecture) which are the result of our extensive investment in research and development. Without the disclosed information, competitive organizations would take considerable more time to assess and develop a workable competitive product. Therefore, we believe that disclosure of these company guarded materials would compromise our leading position in this market. We therefore formally request that the materials marked “Confidential” be kept strictly confidential and not made available for inspection by any other party, except on a need to know basis for the sole purpose of the certification process. Sincerely yours, Hoseob Sung Senior Research Engineer

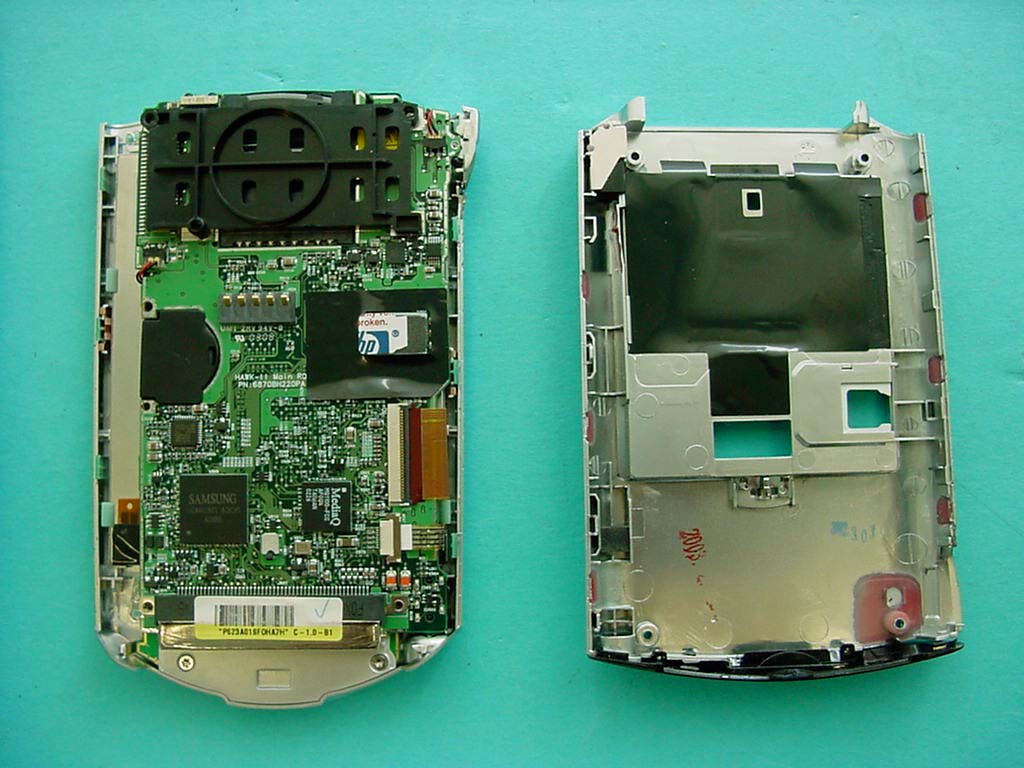

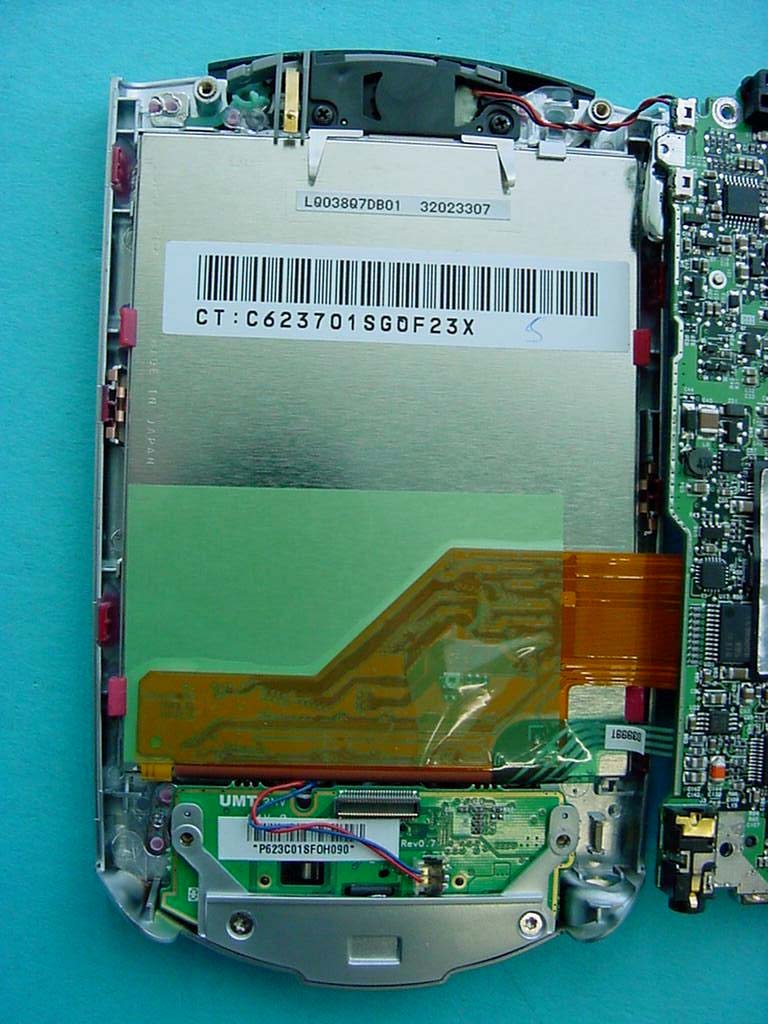

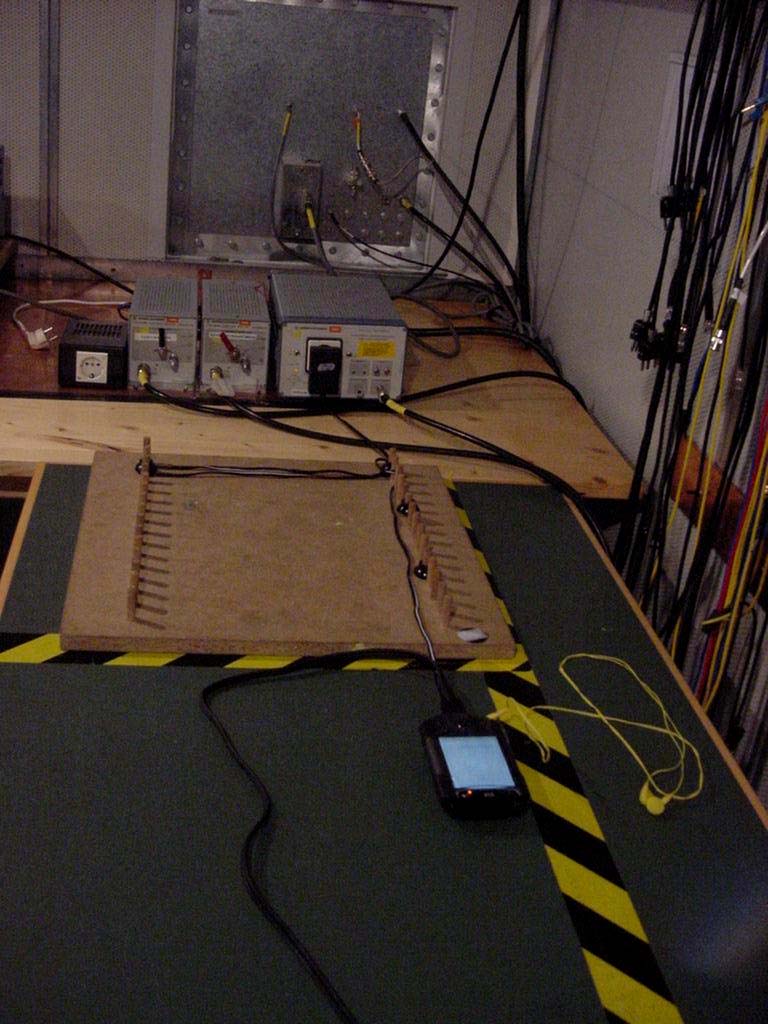

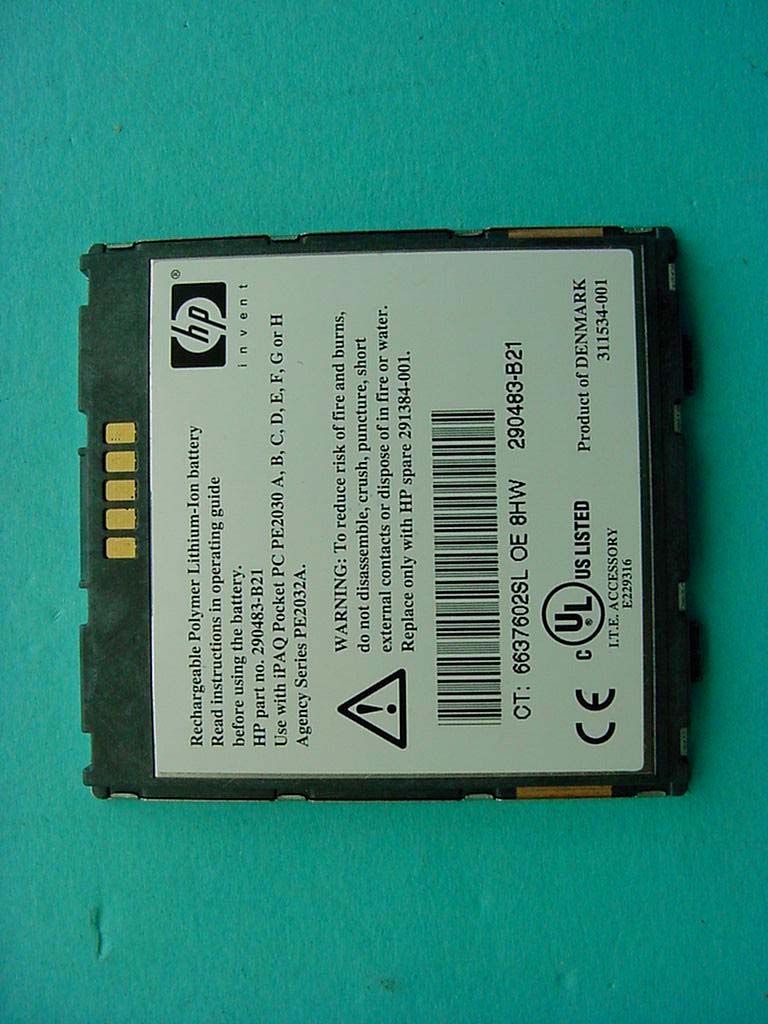

CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 90 (108) Test setup CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 91 (108) Test site Radiated Emissions CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 92 (108) Test site Conducted emissions CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 93 (108) Test site Conducted emissions CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 94 (108) Photographs of the equipment CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 95 (108) CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 96 (108) CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 97 (108) PDA with Sharp Corp. LCD Panel CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 98 (108) LCD panel Philps Electronics CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 99 (108) LCD panel Philps Electronics CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 100 (108) SAMSUNG Battery CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 101 (108) DANIONICS Battery CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 102 (108) AC/DC Adapter CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 103 (108) AC/DC Adapter CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 104 (108) Headphone CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 105 (108) Cradle ( Docking) CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 106 (108) Y-Cable CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 107 (108) CF Card Jacket w/Battery CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 108 (108) CF card Jacket with battery

CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 90 (108) Test setup CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 91 (108) Test site Radiated Emissions CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 92 (108) Test site Conducted emissions CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 93 (108) Test site Conducted emissions CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 94 (108) Photographs of the equipment CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 95 (108) CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 96 (108) CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 97 (108) PDA with Sharp Corp. LCD Panel CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 98 (108) LCD panel Philps Electronics CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 99 (108) LCD panel Philps Electronics CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 100 (108) SAMSUNG Battery CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 101 (108) DANIONICS Battery CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 102 (108) AC/DC Adapter CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 103 (108) AC/DC Adapter CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 104 (108) Headphone CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 105 (108) Cradle ( Docking) CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 106 (108) Y-Cable CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 107 (108) CF Card Jacket w/Battery CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06Page 108 (108) CF card Jacket with battery

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephon: +49 (0)681 598-0Telefax: -9075 RSC14issue test report consist of 108 PagesPage 1 (108) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 4-0976-01-02-B/03 FCC Part 15.247 / CANADA RSS-210 PE2030 B FCC ID: BEJPDA-PE2030B CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 589-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06 Page 2 (108) Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06 Page 3 (108) 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2003-05-12RSC8411Berg M. DateSectionNameSignature Technical Responsibility for Area of Testing: 2003-05-12RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06 Page 4 (108) 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of Applicant Name : Hewlett Packard Company Street : MS 060607 City : 20555 SH 249 Houston ,TX 77070-2698 Country : USA Telephone : +1 281 514 2756 Telefax : +1 281 514 8029 Contact : Walter Overcash Telephone : +1 281 514 2756 1.4 Application Details Date of receipt of application : 2003-04-17 Date of receipt of test item : 2003-04-28 Date of test : 2003-04-28/29/30 CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06 Page 5 (108) 1.5 Test Item Type of equipment : PDA with Bluetooth ® transmitter Type designation: PDA PE2030 B Manufacturer: LG Electronics Inc. Street: 19-1 Cheongho-Ri, Jinwuy-Myeon City: Pyungtaik-Shi Kyunggi-Do Country: Republic of Korea 451-713 Serial number: FCC ID: BEJPDA-PE2030B Hardware: 0.4 Software : 1. OS version: Windows CE 4.2 2. Bluetooth: Firmware version: 1.7.0 - 1.8.0 Additional information : Frequency: 2402 – 2480 MHz Type of modulation: 1M00FXD / 79M8FXD (FHSS) Number of channels : 79 Antenna: Print antenna Power supply: Li-Ion rechargeable battery 3,7V Output power: EIRP: 1.38 mW (worst case); conducted : 1.20 mW Field strength: 94.80 dBμV/m Occupied bandwidth: 991.984 kHz Transmitter spurious : -.- Receiver spurious. -.- Temperature range: 0°C - +40°C DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2003-05-09 Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test Specifications: FCC Part 15 §15.247 CANADA RSS-210 CETECOM ICT Services GmbH Test Report No.: 4-0976-01-02-B/03Issue Date: 2003-05-06 Page 6 (108) 2 Technical Test 2.1Summary of Test Results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4-1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn All measurements are done in accordance with the Filing and Measurement Guidelimes for Frequency Hopping Spread Spectrum Systems DA 00-705 and Appendix A…
