BEJRBHP-B213ABT + WIFI Combo Module

CUSTOMER : LGE DATE : 2017.09.06. SPECIFICATIONS FOR APPROVAL PRODUCT NAME : BT(v4.2) + WLAN(802.11a/b/g/n/ac) 2.4G SISO/5G MIMO MODEL NAME : RBHP-B213A CUSTOMER P/N : EAT63433501 APPROVAL REMARK Designed Checked Approved LG Innotek Co., Ltd. DOCUMENT No. RBHP-B213A PAGE 68 APPENDIX (00)-0070 TITLE : Specifications for approval (RBHP-B213A) (CUSTOMER P/NO : EAT63433501 ) REV 1.6 (2 / 68) R E V APPD CHKD DSGD DOCUMENT NO. 6-3 RBHP-B213A LG Innotek Co., Ltd 1.4 2017. 07.14. Rev1.4 Released 1.5 2017. 08.10. Rev1.5 Released (30) - 4021 1.2 2017. 05.23. Rev1.2 Released 1.3 2017. 06.27. Rev1.3 Released 1.6 2017. 09.06. Rev1.6 Released i Change History of Revision Revision Date Contents of Revision Change Remark 0.1 2015.4.23. Establishment 0.2 2015.9.15. Digital I/O Pins IN/OUT Range Spec. changed P.29 Pin configuration was modified P.52 Recommended Land Pattern updated P.59 0.3 2016.2.13. 2.4G WiFi power spec. updated P18 5G WiFi power spec. updated P22 0.4 2016.4.20. Model number is changed to RBHP-B213A(PCIe) PCIe power-on timing inserted P34 Pin configuration is modified(PCIe inserted) P51 0.5 2016.6.10 Application updated P4 Blockdiagram updated P58 Customer P/N inserted P1 0.6 2016.9.4 Block diagram updated P58 0.7 2016.10.14 Bluetooth, WiFi Radiation performance spec. inserted P12,13, 14, 17,18, 22 0.8 2016.10.26 Customer P/N modified P1 0.9 2017.01.06 ESD spec. modified P49 Antenna Tube color modified P6 1.0 2017.02.28 Module Radiation sensitivity spec. modified P9 BT/WiFi core0 5G Antenna tube color changed P6 1.1 2017.05.17 Label information updated P5 1.2 2017.05.23 Out box label information updated P63 a b c d e f g h j k l m n o p q TITLE : Specifications for approval (RBHP-B213A) (CUSTOMER P/NO : EAT63433501 ) REV 1.6 (3 / 68) R E V APPD CHKD DSGD DOCUMENT NO. 6-3 RBHP-B213A LG Innotek Co., Ltd 1.4 2017. 07.14. Rev1.4 Released 1.5 2017. 08.10. Rev1.5 Released (30) - 4021 1.2 2017. 05.23. Rev1.2 Released 1.3 2017. 06.27. Rev1.3 Released 1.6 2017. 09.06. Rev1.6 Released Change History of Revision Revision Date Contents of Revision Change Remark 1.3 2017.6.27. PCIE power-on timing updated P35 PCIE I/O characteristics updated P50 RF performance guarantee min. VBAT voltage updated P53 Application schematic updated P63 1.4 2017.7.17. Bluetooth version updated P1 1.5 2017.8.10. Low temp. operating comment added in Clause 5. (Customer Request) P5 1.6 2017.9.06. Reliability spec. updated P58 r s t u v w x TITLE : Specifications for approval (RBHP-B213A) (CUSTOMER P/NO : EAT63433501 ) REV 1.6 (4 / 68) R E V APPD CHKD DSGD DOCUMENT NO. 6-3 RBHP-B213A LG Innotek Co., Ltd 1.4 2017. 07.14. Rev1.4 Released 1.5 2017. 08.10. Rev1.5 Released (30) - 4021 1.2 2017. 05.23. Rev1.2 Released 1.3 2017. 06.27. Rev1.3 Released 1.6 2017. 09.06. Rev1.6 Released Table of Contents 1.Application 2.Quality 3.Appearance and Characteristics 4.Application of Bluetooth Module 5.Maximum Rating 6.Test 7.Labeling Information 8.Mechanical Dimension 9.General Features 10.Electrical Specification 11.Pin Configuration 12.Reliability Test 13.Block Diagram 14.Reference Circuit 15.Reflow Profile 16.Recommended Land Pattern 17.Packing Information 18.Ordering Information TITLE : Specifications for approval (RBHP-B213A) (CUSTOMER P/NO : EAT63433501 ) REV 1.6 (5 / 68) R E V APPD CHKD DSGD DOCUMENT NO. 6-3 RBHP-B213A LG Innotek Co., Ltd 1.4 2017. 07.14. Rev1.4 Released 1.5 2017. 08.10. Rev1.5 Released (30) - 4021 1.2 2017. 05.23. Rev1.2 Released 1.3 2017. 06.27. Rev1.3 Released 1.6 2017. 09.06. Rev1.6 Released 1. Application This specification is applied to LGInnotek Bluetooth (v4.2)and 2.4GHz SISO/5GHz MIMO WLAN(802.11a/b/g/n/ac) Module RBHP-B213A which includes BCM88359 2. Quality Quality should meet each condition which mentioned on this specification. However, the items which are not mentioned on this specification follow the inspection agreements and standards which are agreed with both companies. 3. Appearance and Characteristics 1) Appearance Appearance should not be contaminated by harmful materials and should not have cracks etc. Mechanical dimensions should meet the contents of clause 8. 2) Characteristics Electrical characteristics should meet the contents of clause 10. 4. Application of Bluetooth v4.2 and 2.4GHz/5GHz WLAN(IEEE 802.11.a/b/g/n/ac) 1) Automotive 5. Maximum Rating NO ITEM Rating UNIT 1 Operating Temperature Range -40 ~ +85 °C 2 Storage Temperature Range -40 ~ +105 °C 3 VBAT Voltage Range -0.5 ~ 6.0 V 4 VIO Voltage Range -0.5 ~ 3.9 V 5 VBAT Max. Current 700(@3.3V) mA 6 VIO Max. Current 50(@1.8V) mA v ■ RBHP-B213A Module assures operating normally at -40 ~ +85°C. w TITLE : Specifications for approval (RBHP-B213A) (CUSTOMER P/NO : EAT63433501 ) REV 1.6 (6 / 68) R E V APPD CHKD DSGD DOCUMENT NO. 6-3 RBHP-B213A LG Innotek Co., Ltd 1.4 2017. 07.14. Rev1.4 Released 1.5 2017. 08.10. Rev1.5 Released (30) - 4021 1.2 2017. 05.23. Rev1.2 Released 1.3 2017. 06.27. Rev1.3 Released 1.6 2017. 09.06. Rev1.6 Released EAT63433501 6. Test Electrical characteristics are tested for every products. However, if there are any objection in judgments, it should be treated with agreements of companies. 7. Labeling Information No. Index ① PRODUCT ② MODEL PART NO. ③ MANUFACTURED YEAR (0~9) ④ MANUFACTURED MONTH(1,2, ...9, A,B,C) ⑤ GwangJu ⑥ MANUFACTURED DATE (1~31) ⑦ MANUFACTURED SERIAL NUMBER(0001~9999) ⑧ Customer P/N ⑨ QR CODE INFORMATION : EAT63433501_704GJ270059 ② ④ ⑤ ① ③ ⑥ ⑧ RBHP-B213A GWANGGAETOH 7 04 GJ 27 0059 ⑦ p ⑨ TITLE : Specifications for approval (RBHP-B213A) (CUSTOMER P/NO : EAT63433501 ) REV 1.6 (7 / 68) R E V APPD CHKD DSGD DOCUMENT NO. 6-3 RBHP-B213A LG Innotek Co., Ltd 1.4 2017. 07.14. Rev1.4 Released 1.5 2017. 08.10. Rev1.5 Released (30) - 4021 1.2 2017. 05.23. Rev1.2 Released 1.3 2017. 06.27. Rev1.3 Released 1.6 2017. 09.06. Rev1.6 Released 8. Mechanical Dimension 1) Dimension without Antenna Ass’y [Unit: mm] TITLE : Specifications for approval (RBHP-B213A) (CUSTOMER P/NO : EAT63433501 ) REV 1.6 (8 / 68) R E V APPD C…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name LG Electronics USA Address 111 Sylvan Ave, North Building, Englewood Cliffs, New Jersey, 07632, USA Grantee Code BEJ FCC ID BEJRBHP-B213A Authorized Contact Name Kyung-Su Han Contact Email [email protected] Contact Phone 201-472-2623 I, the undersi gned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accor dance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepti ng a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) l abeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Appl icant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accor dance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accor dance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the A pplicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Appl icant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CF Rs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 9 July 2020 Print Name: Kyung-Su Han Title: Director *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

March 26, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: BEJRBHP-B213A Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Kyung-Su Han Director, NA Regulatory & Environmental Affairs LG Electronics USA LG Electronics USA 1000 Sylvan Ave Englewood Cliffs, NJ 07632-0763 United States

Cover Letter-Modular Approval FCC ID: BEJRBHP-B213A Date: 9 July 2020 Gentlemen: There’s a Bluetooth Module that would like to have your authorization as a modular approval. The specific product as below, Bluetooth Module, with its designed features and specified description, meets special requirements for full modular approval on Requirement of RSP-100 issue 10 Section 7.3 by cross-reference list below. Company LG Electronics Inc. Model Name Bluetooth Module Model Number RBHP-B213A FCC ID BEJRBHP-B213A Comply（Y/N） a)The radio elements shall have the radio frequency circuitry shielded. Physical / discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. Y b)The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over- modulation. Y c)The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. Y . d)The module shall comply with the provisions for external power amplifiers and antennas detailed in the applicable RSS standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. Y e)The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. Y f)The module shall comply with the Category I equipment labelling requirements. Y g)The module shall comply with applicable RSS- 102 exposure requirements, which are based on the intended use/configurations. Y h)Is the modular device for an Industry Canada licence-exempt service? Y Thank you. Sincerely, By: __________________________Kyung-Su Han (Print name) (Signature 1 ) Title: Director On behalf of: LG Electronics Inc. (Company Name) Telephone: 201-472-2623

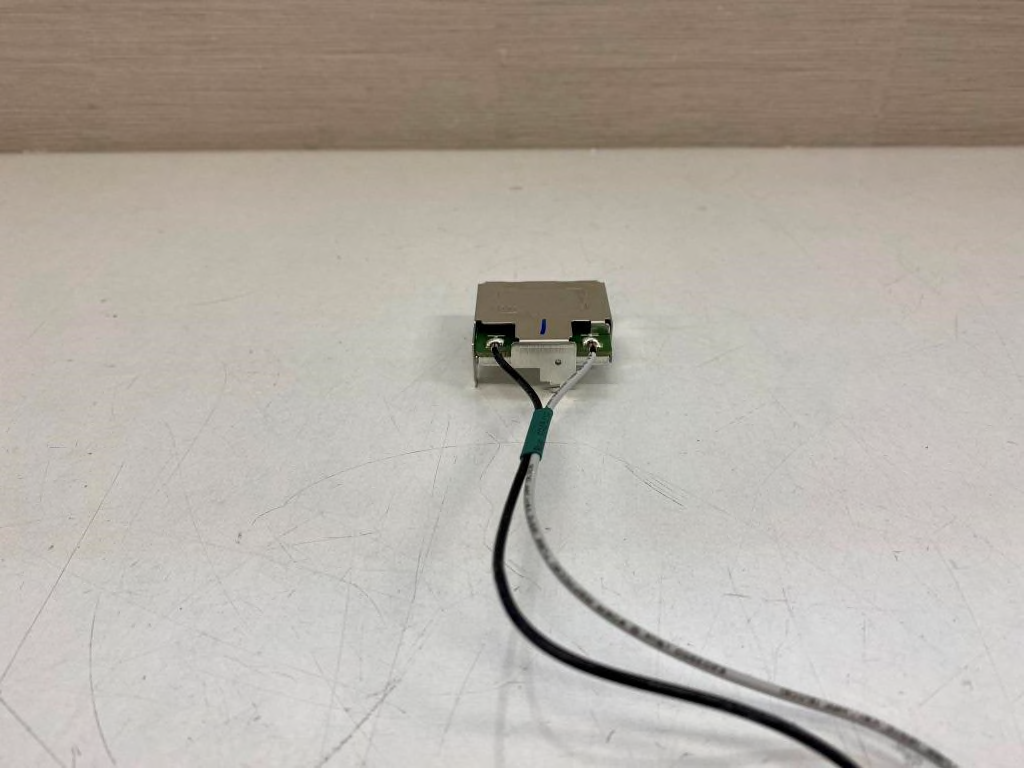

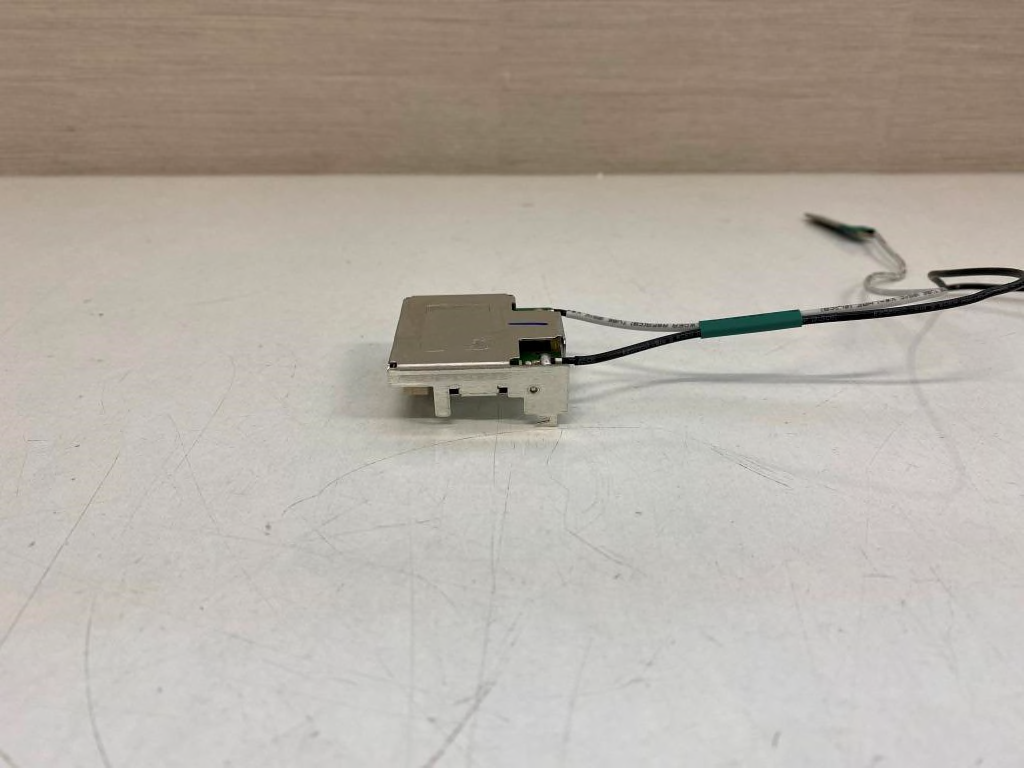

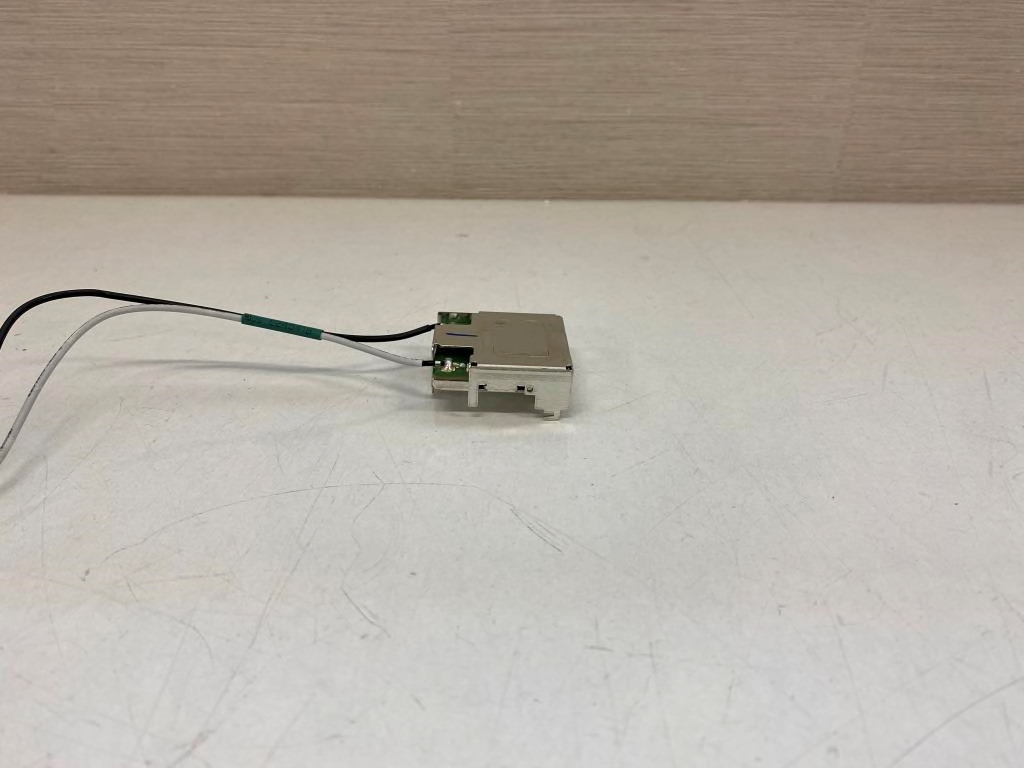

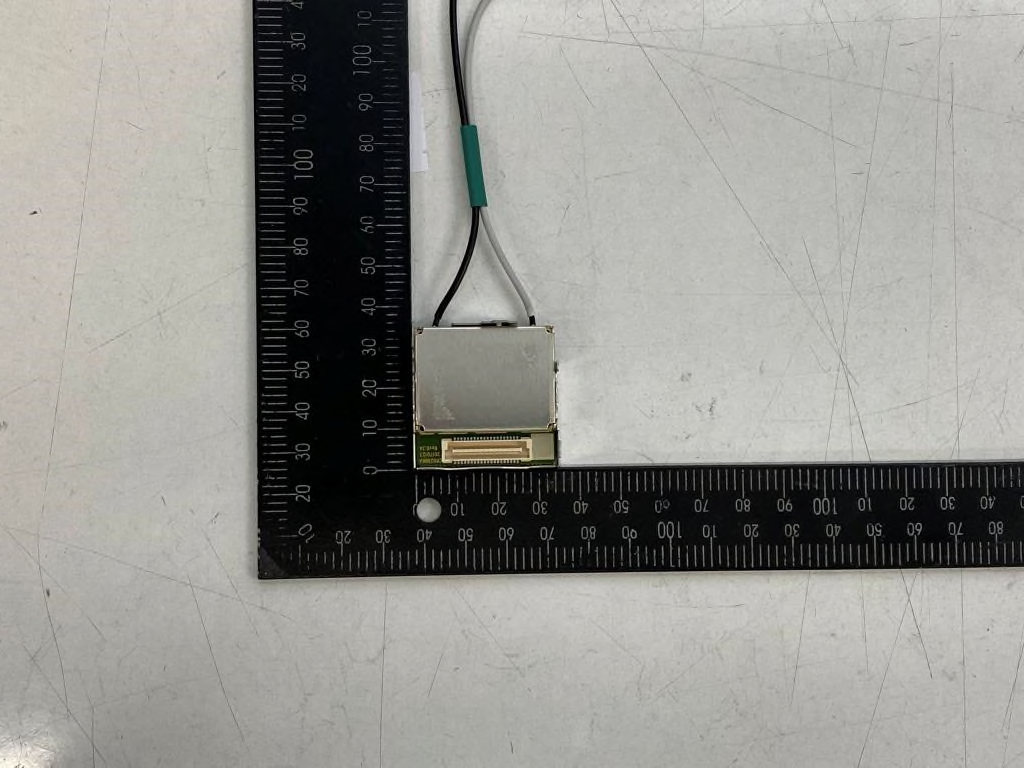

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Format and Location •Model: RBHP-B213A •FCC ID: BEJRBHP-B 213A • IC: 2703H-RBHPB213A <Top view of EUT> Label Model: RBHP-B213A FCC ID: BEJRBHP-B213A IC: 2703H-RBHPB213A HVIN: RBHP-B213A

Internal photos of EUT Internal view of EUT EUT (Main PCB) EUT without the shielding cover Top view of Main PCB Bottom view of Main PCB Vi ew of Antenna PCB Antenna (ANT 2) PCB Antenna (ANT 1)

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000427-1 Page:2of5 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------4 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000427-1 Page:3of5 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 -4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 -Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:LG Electronics USA Address:1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States, 07632 Contact Person:Han, Kyung-su Phone No.:+1 201 472 2623 1.3. Details of Manufacturer Company: LG INNOTEK CO., LTD. AUTOMOTIVE COMPONENT & ELECTRONICS BUSINESS UNIT GWANG-JU PLANT Address:(Jangduk-dong) 26, Hanamsandan 5beon-ro, Gwangsan-gu, Gwangju, 62229, Korea 1.4. Description of EUT Kind of Product BT + WIFI Combo Module Model Name RBHP-B213A Power Supply DC 3.3 V Frequency Range 2 412㎒~ 2 462㎒(11b/g/n_HT20) 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Modulation Technique DSSS, OFDM Number of Channels 11 channels (11b/g/n_HT20) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type PCB antenna Antenna Gain ANT1 5 745㎒~ 5 850㎒: 0.30㏈i (WLAN 5G) ANT2 2 412㎒~ 2 462㎒: 1.60㏈i (WLAN 2.4 G) 5 745㎒~ 5 825㎒: 0㏈i (WLAN 5G) 1.5. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0004272020.03.20Initial 1F690501-RF-RTL000427-12020.04.21 Added the note of the simultaneous transmission SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000427-1 Page:4of5 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.06141.63*1006 3.0-301842/f4.89/f*900/f 2 6 30-30061.40.1631.06 300-1 500--f/3006 1 500-100 000--56 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.346141.63*10030 1.34-30824/f2.19/f*180/f 2 30 30-30027.50.0730.230 300-1 500--f/150030 1 500-100 000 -- 1.030 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000427-1 Page:5of5 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Bluetooth - Maximum tune up tolerance Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 402 ~ 2 480 4 -1.60.000 3461 WLAN (2.4G) - Maximum tune up tolerance Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 412 ~ 2 462 190.30 0.016 9331 WLAN (5G) - Maximum tune up tolerance Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 5 745 ~ 5 825153.160.013 0241 Note; - The power density Pd (5th column) at a distance of 20㎝calculated from the friis transmission formula is far below the limit of 1㎽/㎠. - This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - This equipment should be installed and operated with minimum 20㎝between the radiator and your body. - The antenna gain of this transmitter is less than 6㏈i and must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. - According to KDB 447498 D01 RF Exposure Guidance 4.1.d, Output Average Power to Antenna applied Maximum Tune up power considering tolerance. Simultaneous transmission of RF Exposure test exclusion for worst case configuration. Bluetooth: the ratio is 0.000 346 / 1 WLAN (2.4G): the ratio is 0.016 933 / 1 WLAN (5G): the ratio is 0.013 024 / 1 Confirm the sum result of individual MPEs ratio is ≤ 1.0; Bluetooth + WLAN (2.4G) + WLAN (5G): (0.016 933 / 1) + (0.013 024 / 1) + (0.000 346 / 1) = 0.030 303 ≤ 1.0 - End of the Test Report -

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000431-2 Page:2of69 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of contents 1. General Information‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐--‐‐‐‐‐‐‐‐ 3 2. Transmitter Radiated Spurious Emissions‐‐-‐‐------------------------------------------------------ 9 3. 26㏈Bandwidth & 99 % Bandwidth----------------------------------------------------------------- 28 4. 6㏈Bandwidth-------------------------------------------------------------------------------------------- 45 5. Maximum Conducted Output Power‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐-‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐‐‐‐ 54 6. Peak Power Spectral Density‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 58 7. Antenna Requirement‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 69 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000431-2 Page:3of69 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant FCC Applicant:LG Electronics USA FCC Address:1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States, 07632 IC Applicant:LG ELECTRONICS INC. IC Address:222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Korea (Republic Of) Contact Person:Han, Kyung-su Phone No.:+1 201 472 2623 1.3. Details of Manufacturer Company: LG INNOTEK CO., LTD. AUTOMOTIVE COMPONENT & ELECTRONICS BUSINESS UNIT GWANG-JU PLANT Address:(Jangduk-dong) 26, Hanamsandan 5beon-ro, Gwangsan-gu, Gwangju, 62229, Korea 1.4. Description of EUT Kind of Product BT + WIFI Combo Module Model Name RBHP-B213A Serial Number 807GJ030097, 906GJ240613 Power Supply DC 3.3 V Frequency Range 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Modulation Technique OFDM Number of Channels 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type PCB antenna Antenna Gain ANT 1 5 745㎒~ 5 825㎒: 0.30㏈i ANT 2 5 745㎒~ 5 825㎒: 0㏈i S/W Version AVN.GEN5.1.0 H/W version V1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000431-2 Page:4of69 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal Generator Agilent E8257DMY51501169Nov. 21, 2019AnnualNov. 21, 2020 Signal Generator R&S SMBV100A255834Jun. 10, 2019AnnualJun. 10, 2020 Spectrum Analyzer R&S FSV30103453Nov. 06, 2019AnnualNov. 06, 2020 Spectrum AnalyzerAgilentN9030AUS51350132Nov. 15, 2019AnnualNov. 15, 2020 Power Meter Anritsu ML2495A1223004Jun. 05, 2019AnnualJun. 05, 2020 Power Sensor Anritsu MA2411B1207272Jun. 05, 2019AnnualJun. 05, 2020 AttenuatorAEROFLEX / INMET40AH2W-1040G-3Jun. 20, 2019AnnualJun. 20, 2020 Low Pass FilterMini-CircuitsNLP-1200+V9500401023-2Jun. 05, 2019AnnualJun. 05, 2020 High Pass Filter Wainwright Instrument GmbH WHKX6.0/18G-10SS51Jun. 07, 2019AnnualJun. 07, 2020 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS15Jun. 07, 2019AnnualJun. 07, 2020 DC Power Supply R&S HMP2020020089489May 21, 2019AnnualMay 21, 2020 Preamplifier MITEQ Inc. JS44-18004000-35-8P1546891May 13, 2019AnnualMay 13, 2020 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Aug. 22, 2019BiennialAug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163396Mar. 21, 2019BiennialMar. 21, 2021 Horn AntennaR&SHF906100326Feb. 14, 2020AnnualFeb. 14, 2021 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170BBHA9170431Sep. 10, 2018BiennialSep. 10, 2020 Test ReceiverR&SESU26100109Feb. 19, 2020AnnualFeb. 19, 2021 Turn TableInnco systems GmbHDS 1200 SN/AN.C.R.N/AN.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R.N/AN.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/383 30516/L N.C.R.N/AN.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableSUCOFLEX104 (3 m)MY3258414Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableSUCOFLEX104 (10 m)MY3145814Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 07/20Feb. 13, 2020 Semi- annual Aug. 13, 2020 Note; Using the software of Teraterm Pro (Version 4.105 SVN# 8433) to testing of EUT. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000431-2 Page:5of69 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Summary of Test Result The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart E, IC RSS-247 Issue 2, RSS-Gen Issue 5 Section in FCCSection in ICTest Item(s)Result 15.205(a) 15.209(a) 15.407(b)(1) 15.407(b)(2) 15.407(b)(3) 15.407(b)(4) RSS-Gen Issue 5 8.9 RSS-247 Issue 2 6.2.1.2 RSS-247 Issue 2 6.2.2.2 RSS-247 Issue 2 6.2.3.2 RSS-247 Issue 2 6.2.4.2 Transmitter Radiated Spurious Emissions Complied 15.407(a) RSS-Gen Issue 5 6.7 26㏈Bandwidth & 99 % Bandwidth Complied 15.407(e) RSS-247 Issue 2 6.2.4.1 6㏈Bandwidth Complied 15.407(a)(1) 15.407(a)(2) 15.407(a)(3) RSS-247 Issue 2 6.2.1.1 RSS-247 I…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓)
