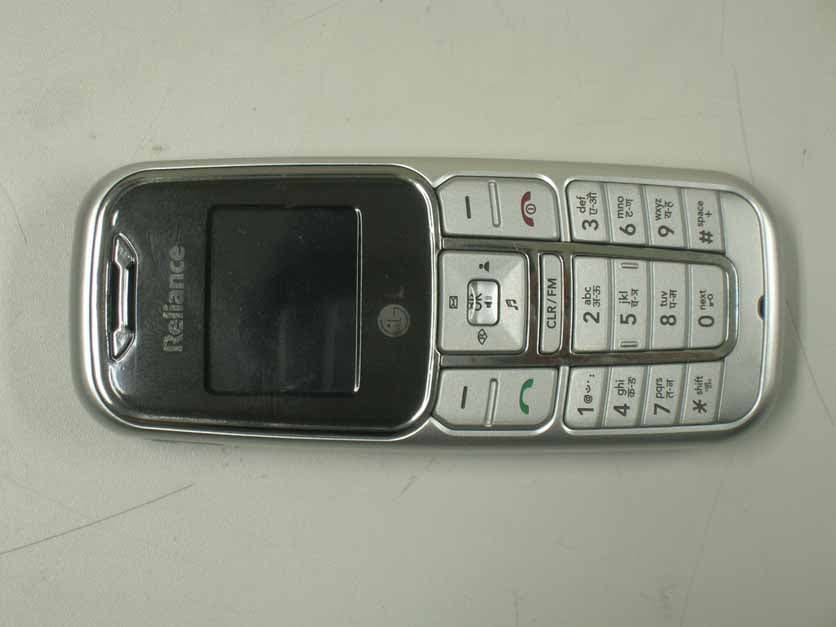

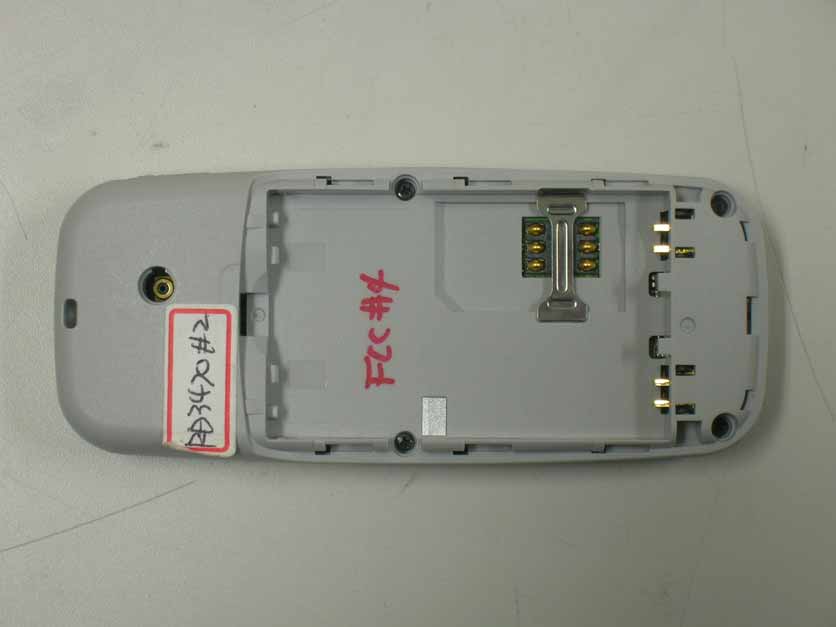

BEJRD3470Single Band CDMA Mobile Phone

6. Operating Manual LG-RD3470 User Guide CDMA PHONE Contents Introduction Highlights Important Information Check Accessories Before You Start FCC RF EXPOSURE INFORMATION Chapter 1. Getting Started Cautions Phone Overview On screen Icons Chapter 2. Basic Functions Turning the Phone On and Off Making a Call Correcting Dialing Mistakes Receiving Calls Emergency Dialing Speed Dialing Phone Book Features Chapter 3. Menu Features General Guidelines to MENU Access and Settings Names Messages Call History Profiles Display Settings Organizer R World Chapter 4. Book Features Names Chapter 5. Message Features Write Message Inbox 1234 Services Outbox Voice Mail Archive Draft Templates Msg Groups Erase Msgs Msg Settings Chapter 6. Functions used during a call Scratch pad Mute Voice Privacy Send my number Short DTMF Chapter 7. Accessories Chapter 1. Getting Started Cautions z Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference. z Keep your phone in a safe place when not in use. z Only use the batteries, antennas, and chargers provided by LG. Using the wrong accessories could void your warranty. z Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty. z Do not hold the antenna while the phone is in use. z Do not use the phone in designated “no cellular phone use” areas. z Do not expose the phone to high temperature or humidity. z Avoid getting your phone wet. If the phone gets wet, turn the power off immediately and remove the battery pack. If the phone is mal-functional, return it to the dealer for service. z Avoid shock or impact on the phone. Phone Overview On screen Icons The phone screen displays several onscreen icons and onscreen icons appears when the phone is power on. D Chapter 2. Basic Functions Turning the Phone On and Off Turning the Phone On 1. Install a charged battery pack or connect the phone to an external power source such as the cigarette lighter adapter or car kit. 2. Press [END/PWR] for a few seconds until the red light on the top of the phone flashes. z Fully extend the antenna for the best performance. <Note> Like any other radio device, avoid any unnecessary contact with the antenna while your phone is on. Turning the Phone Off 1. Press and hold until display screen will be turned off, and then release the key. 2. Protect the antenna by pushing it back into the phone, if extended. Making a Call When you make a call, follow these simple steps: 1. Make sure the phone is turned on. z If not, press [END/PWR]. 2. Enter the phone number with area code, if needed. 3. Press [SEND]. z If the phone is locked, enter the lock code. z “Call Failed” indicates that the call did not go through. 4. Press [END/PWR] to disconnect the call. Correcting Dialing Mistakes If you make mistakes in dialing a number, press [CLR] key once to erase the cursor positioned digit or hold down [CLR] for at least two second to delete all digits, or simply press soft key 2 [BACK] to exit dialing state. And, you can move the cursor by pressing [5],[6],[3],[4] Receiving Calls 1. When the phone rings or vibrate (if the Vibrate Mode is enabled), press any key (except [END]) or depending on the Call settings. z When you press once, when a call is received, the phone stops ringing or vibrating depending on the mode it is in. Press twice to disconnect. 2. To end an answered call press [END]. In call waiting mode, the present call is on hold as you answer another incoming call. This service is provided by your service provider. When the call waiting function is activated, your phone will beep to let you know if you have an incoming call. 3. If you are not in the condition to receive call, pressing Soft key 2 will send a Preset SMS to Caller. The SMS can be editted using "Edit SMS on Call Reject" function given under Settings' Call. Dialing a call from Phone Book You can place a call from any memory location either by speed dialing or by pressing [SEND] while looking up the memory location. One-Touch Dialing : One-touch dialing is a convenient feature which enables you to dial frequently used numbers in your speed-dial data by pressing a key . z Entry 9 is designated to Emergency Call. z For locations 1 to 8, you can use one-touch dialing (if enabled, see “One-Touch” on page 9.) by pressing and holding down the key corresponding to the memory location. OR z Press digit, then press [SEND]. Two-Touch Dialing (Speed Dialing) : This dialing feature enables you to dial numbers in your phone book through two keys (for locations 10 to 99). 1) Press the first digit. 2) Press and hold the key of the second digit. OR 1) Press the first and second digits, then press [SEND]. Dialing from a Memory List 1) From a memory list, press the scroll keys to go to the memory location you want. 2) Press [SEND]. Dialing from a Memory Location. On viewing and checking the memory location to call, press [SEND]. Chapter 3. Menu Features General Guidelines to MENU Access and Settings 1. Press Soft Key 1 [Menu]. The animation of menu category will appear on the display screen. 2. Press Soft key 1 [Ok]. The menu items will appear on the display screen. 3. Press[v] to go through the list of menu features, or use the side keys. 4. Press the corresponding number to the menu item that you want to select. Then the sub-menu list will appear on the screen. 5. Press the appropriate key to select the sub-menu you want to access. 6. Select preferred settings, using the [v] keys. Press Soft Key 2 [Back] to go one step backward while accessing menu or selecting settings. 7. Press Soft Key 1 [Ok] to save the settings or Soft Key 2 [Back] to cancel without saving. Names ([Menu]+[1]) see “Book Feature” on page 10. Messages ([Menu]+[2]) see “Message Feature” on page 12. Call History ([Menu]+[3]) Allows you to view list of all Missed/Received/Dialled Calls. (Maximum 60 numbers are possible including Missed, Receive…

Text truncated - open the document above for the full version.

June 15, 2006 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJRD3470 Single Band CDMA Phone Part22 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Operational Description, Technical Specification, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82- 2-2033-3850 Fax : 82- 2-2033-2228 [email protected] 459- 9, Kasan-dong,Kemchun-ku Seoul 153- 023, Korea LG Electronics Inc. LGE

June 15, 2006 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: LG Electronics Inc. FCC ID: BEJRD3470 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, LG Electronics Inc. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer CDMA Handset Lab LG Electronics Inc. LG Electronics Inc. LGE Tel : 82-2-2033-3850 Fax : 82-2-2033-2228 [email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea

Product Name Model Name Applicant FCC ID ͑͑ESTECH CO., LTD. http://www.estech.co.kr FCC TEST REPORT Single Band CDMA Mobile Phone ESTECH CO., LTD Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 RD3470 LG Electronics Inc. BEJRD3470 Report Number : ESTR0607-0111 of 18 FCC ID : BEJRD3470 Company Name Address Product Name Model No.Manufacturer Serial No. Country of origin Issued DateTested Date Test Result Pass 2006-07-18 2006-05-22 ~ 2006-07-18 Other ESTR0607-011 459-9, Kasan-dong, Keumchun-ku, Seoul 153-023, Korea Single Band CDMA Mobile Phone NONE LG Electronics Inc. o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Estech Co., Ltd. Standard FCC PART 22 Subpart H Tested by Approved by S.R. Kim/ Engineer (Signature) Jay Kim/ Engineering Manager (Signature) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD FCC Test Report Applicant Product Report Number RD3470 KOREA LG Electronics Inc. Report Number : ESTR0607-0112 of 18 FCC ID : BEJRD3470 1. General Information Page 4 2. Laboratory Information Page 5 3. Summary of Test Results Page 5 4. RF Output Power Page 6 5. Occupied Bandwidth Page 8 6. Spurious and Harmonic Emission at Antenna Terminal Page 10 7. Field Strength of Spurious Radiation Page 15 8. Frequency stability Page 17 Contents ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0607-0113 of 18 FCC ID : BEJRD3470 1. General Information 1.1 EUT Description 3.7VDC(3.2 ~ 4.2VDC) Power Rating ͑͑ ESTECH CO., LTD. http://www.estech.co.kr FCC ID BEJRD3470 Modulation Type Product Name Model Name Single Band CDMA Mobile Phone RD3470 Channel Tx :824.70 ~ 848.31MHz CDMA (1013/363/777) CDMA Frequency Rx :869.70 ~ 893.31MHz Report Number : ESTR0607-0114 of 18 FCC ID : BEJRD3470 2. Laboratory Information 3. Summary of Test Results Result PASS PASS PASS PASS Frequency stability Spurious and Harmonic Emission at Antenna Terminal PASS 2.1 Laboratory Name 2.2 Location 2.3 Quality System Estech Co., Ltd. Rm. 1015, World Venture Center II, 426-5 Gasan-dong Geumcheon-gu, Seoul, 153-803. Korea. Part 22 Field Strength of Spurious Radiation Test Item Accredited by KOLAS(ISO/IEC 17025) Head Office EMC Lab(Ichon) EMC Lab(Yanggi) Standard RF Output Power Occupied Bandwidth ͑͑ ESTECH CO., LTD. http://www.estech.co.kr 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 2.4 Major Accredited Mark Report Number : ESTR0607-0115 of 18 FCC ID : BEJRD3470 4. RF Output Power 4.1 Test Procedure 4.2 Test Equipments The following test equipments are used during tests Cal. Due Date 2006-08-22 2006-09-02 2006-10-25 2006-09-21 2007-03-31 2007-05-01 4.3. Test Results 1013824.70 363835.89 777848.31 ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Signal Generator Power Meter 83620B EPM-442A Equipment Receiver The EUT was placed on a wooden turn table 3 meters from the receive antenna. The receive antenna height and turn table rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1MHz, A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For reading 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. Pre Amplifier Horn Antenna Horn Antenna Model ESP17 HP HP Manufacturer Rohde & Schwarz 310N Ch No.Freq (MHz) 24.5022.90 Peak Power Meter(dBm)Peak Power ERP(dBm) BBHA 9120 D BBHA 9120 D SONOMA INSTRUMENT SCHWARZBECK SCHWARZBECK 24.45 24.43 20.79 20.21 Report Number : ESTR0607-0116 of 18 FCC ID : BEJRD3470 Antenna gain(dBd) Cable Loss (dB) 824.70 96.001.0 3.3025.2022.9038.5V 835.89 95.331.29 3.3022.8020.7938.5V 848.31 95.001.61 3.3021.9020.2138.5V FREQ (MHz) Correction Factor (dB) POL (H/V) Limit (dBm) ERP (dBm) SG Reading (dBm) Receiver Reading (dBuV) ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0607-0117 of 18 FCC ID : BEJRD3470 5. Occupied Bandwidth 5.1 Test Procedure 5.2 Test Equipments The following test equipments are used during tests Cal. Due Date 2007-03-03 - 5.3 Test Results 1013824.701.402 Spectrum Analyzer 26dB Bandwidth(MHz) Agilent JFW ChannelFrequency(MHz) ͑͑ ESTECH CO., LTD. http://www.estech.co.kr Attenuator EquipmentModel E4407B 50FH-010-5 The transmitter output is connected to the spectrum analyzer. The RBW is set to 1% of the Emission bandwidth. The VBW is set to 3 times the RBW. The sweep time is coupled. Manufacturer 777848.311.424 363835.891.401 Report Number : ESTR0607-0118 of 18 FCC ID : BEJRD3470 5.4 Test Plot 26dB Channel Bandwidith(1013) 26dB Channel Bandwidith(363) 26dB Channel Bandwidith(777) ͑͑ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0607-0119 of 18 FCC ID : BEJRD3470 6. Spurious and Harmonic Emission at Antenna Terminal 6.1 Test Procedure 6.2 Test Equipments The following test equipments are used during tests Cal. Due Date 2007-03-03 - 6.3 Test Results CDMA (Spurious Emission: Band Edge) ChannelFrequencyResultLimitMargin 1013824.70-14.29-13.001.29 777848.31-14.98-13.001.98 CDMA (Spurious Emission: Out of Band) ChannelFrequencyResultLimitMargin 1013824.70-25.92-13.0012.92 363835.89-24.88-13.0011.88 777848.31-26.25-13.0013.25 Spectrum Analyzer Manufacturer Agilent JFW ͑͑ESTECH CO., LTD. http://www.estech.co.kr Attenuator EquipmentModel E4407B 50FH-010-5 …
