BEJRD6130Single Band, Single Mode CDMA Mobile Phone

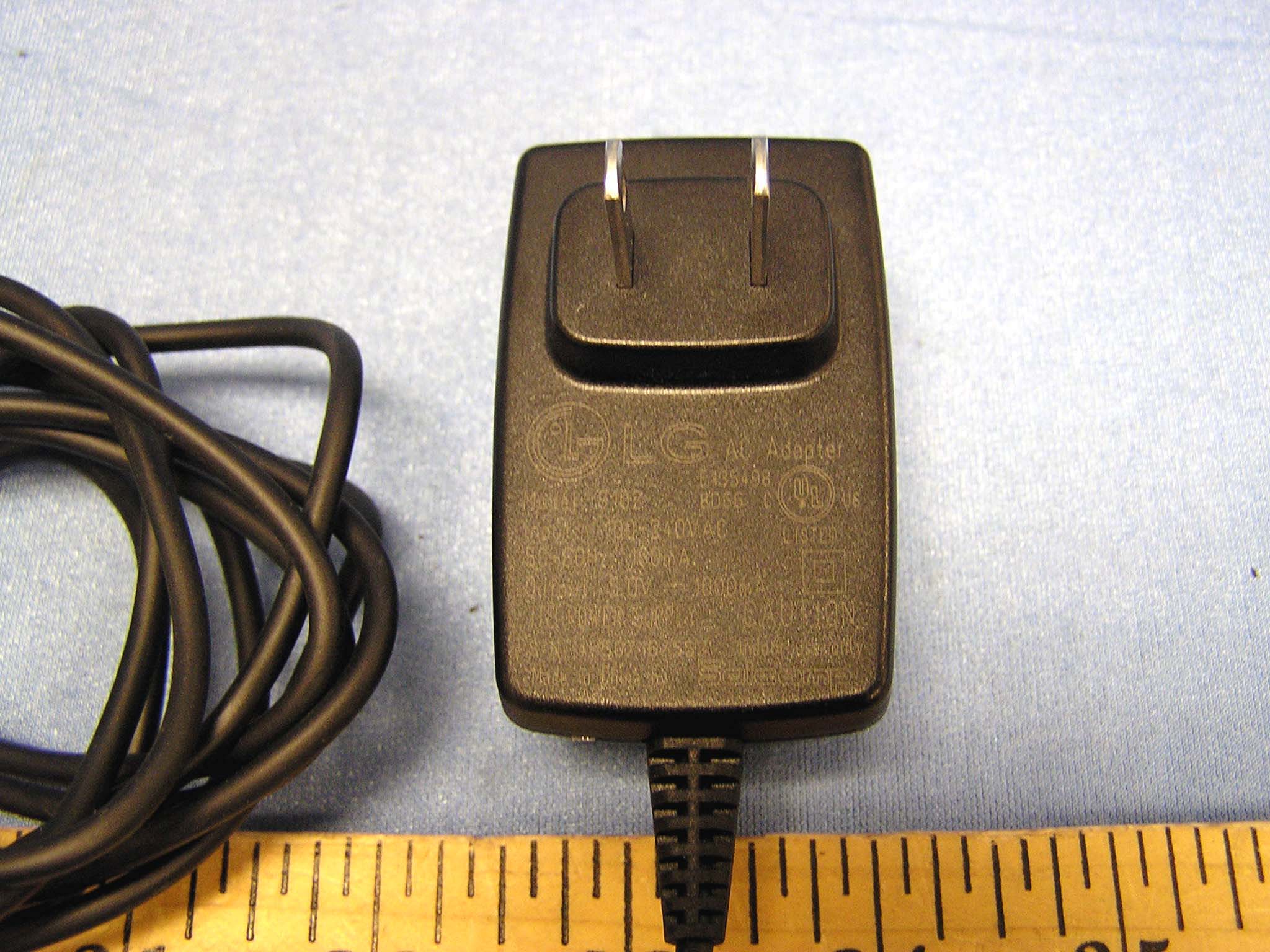

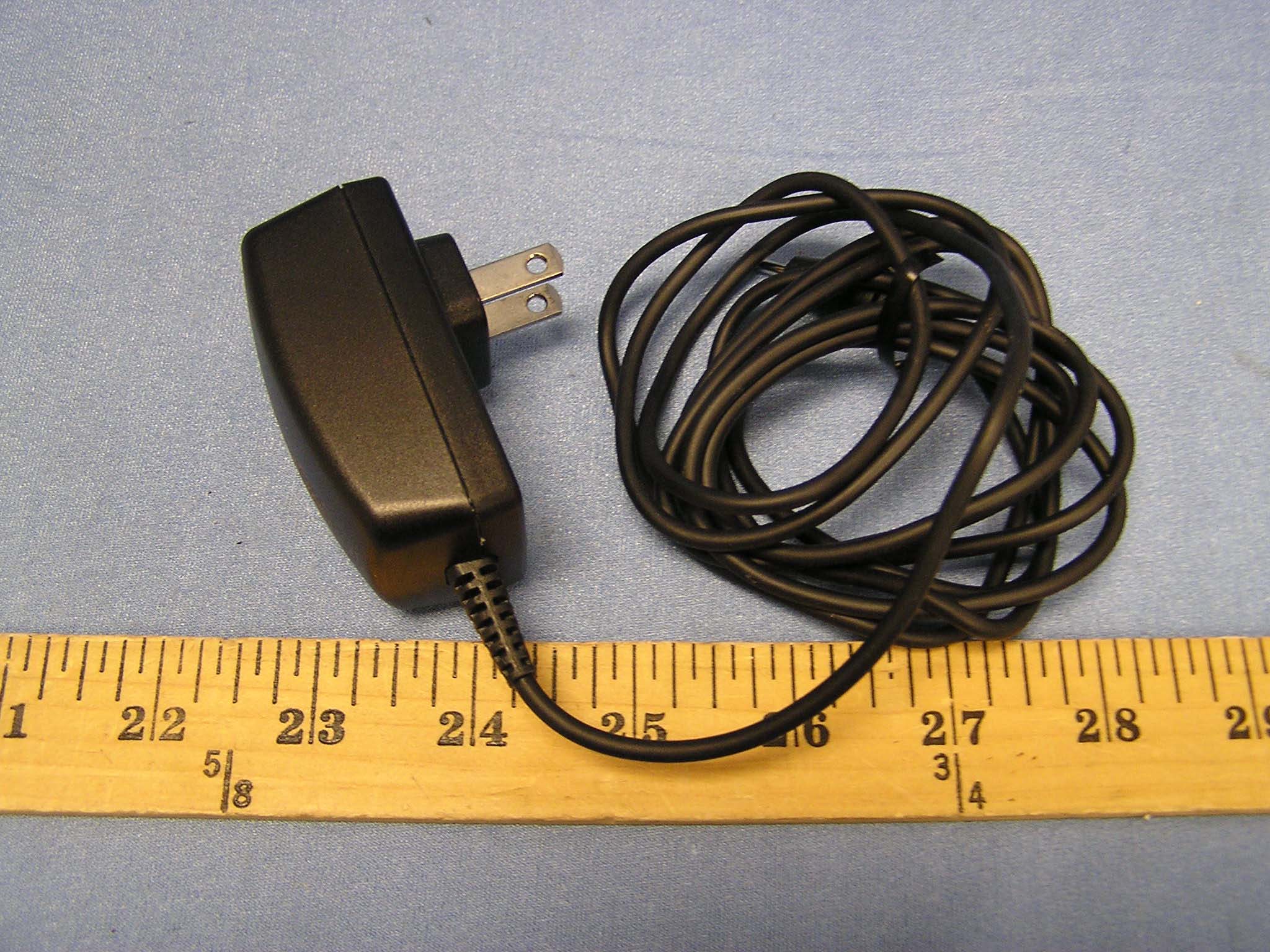

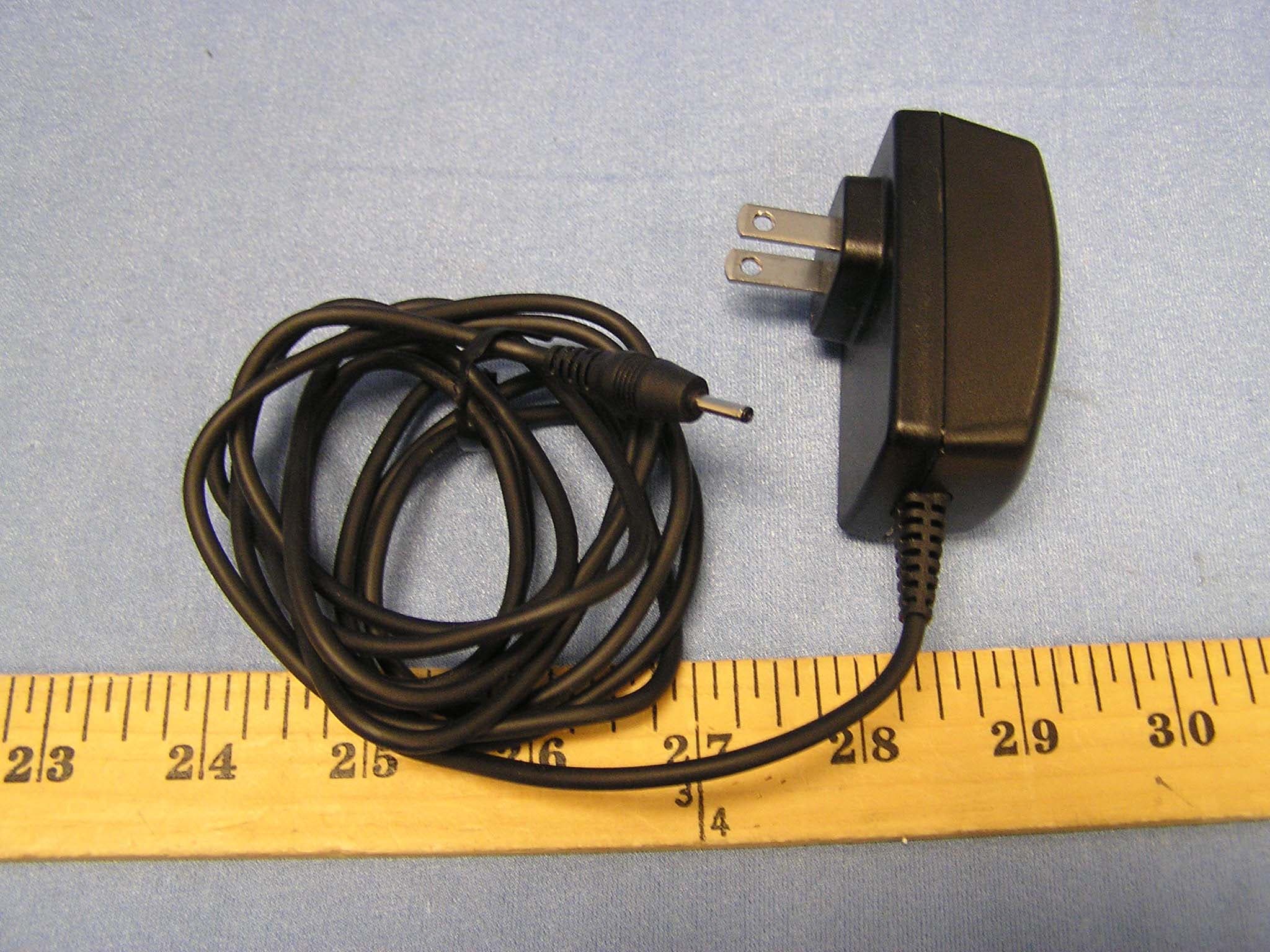

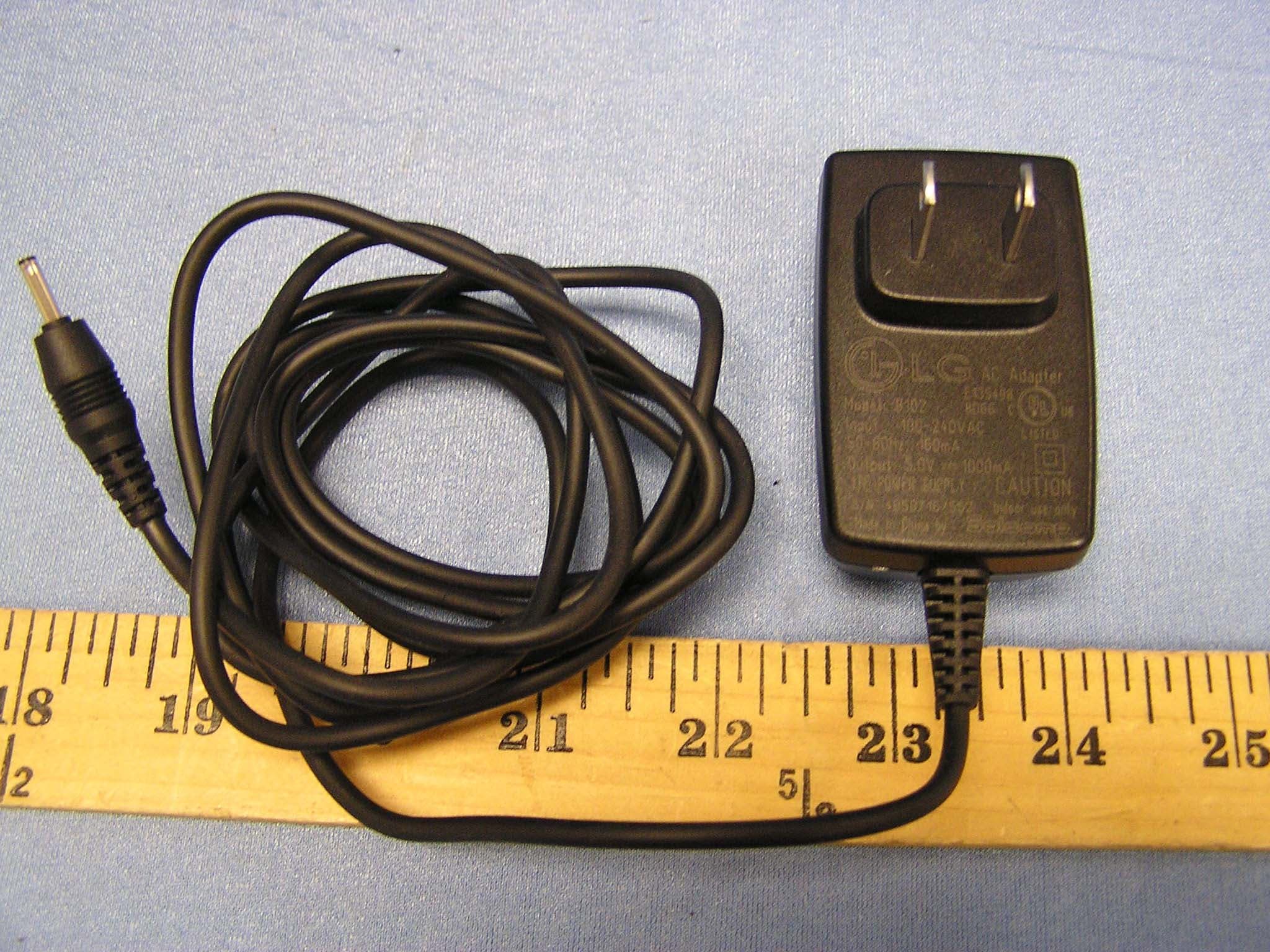

LG-RD6130 User Guide CDMA PHONE Contents Introduction Highlights Important Information Check Accessories Before You Start FCC RF EXPOSURE INFORMATION Chapter 1. Getting Started Cautions Phone Overview On screen Icons Chapter 2. Basic Functions Turning the Phone On and Off Making a Call Correcting Dialing Mistakes Receiving Calls Emergency Dialing Speed Dialing Phone Book Features Chapter 3. Menu Features General Guidelines to MENU Access and Settings Names Messages Call History Profiles Setting Planner System Chapter 4. Book Features Names Chapter 5. Message Features Write Message Inbox Outbox Voice Mail Archive Draft Templates Erase Messages Settings Chapter 6. Functions used during a call Scratch pad Mute Voice Privacy Send my number Short DTMF Chapter 7. Accessories Appendix 1. Installation Appendix 2. RF Exposure Statement Chapter 1. Getting Started Cautions ??Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference. ??Keep your phone in a safe place when not in use. ??Only use the batteries, antennas, and chargers provided by LG. Using the wrong accessories could void your warranty. ??Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty. ??Do not hold the antenna while the phone is in use. ??Do not use the phone in designated “no cellular phone use” areas. ??Do not expose the phone to high temperature or humidity. ??Avoid getting your phone wet. If the phone gets wet, turn the power off immediately and remove the battery pack. If the phone is mal-functional, return it to the dealer for service. ??Avoid shock or impact on the phone. Phone Overview Function Key Descriptions Lamp The light goes on when you use the power key to turn on the phone and when there are incoming calls and messages. LCD screen Displays messages & indicator icons. END/PWR Used to turn power on/off. This key disconnects a call. Using this key, you can also exit out of a menu back to the phone’s standby display without changing the setting. SEND Allows user to place or answer calls. Mouse Key This mouse key allows quick access to text and voice mail notification messages. Profiles, R- World, and RingTone menu. And these keys are used to scroll through the memory locations and menu items. Alphanumeric Keypad These keys enable you to enter numbers and characters and choose menu items. Soft Keys The current operation of a soft key is defined by the word at the bottom of the display. Soft Keys 2 : If you press this key once in a menu, you can go back one level and if you press and hold the key in a menu, you can go back to the standby display. Side Keys These keys enable you to adjust keybeep volume (in standby mode) and earpiece volume (in a call status). Star/Pound Key - In the standby status, set the manner mode by pressing the [ * ]button. (for 2 seconds) - In the standby status, set the lock function by pressing the [ # ]button. (for 2 seconds) Clear Key This key erase character and In the standby status, you can go MyMenu On screen Icons The phone screen displays several onscreen icons and onscreen icons appears when the phone is power on. Icons Descriptions Displays the strength of the signal received by the phone and current signal strength is indicated as the number of bars displayed on the screen. No service The phone is not receiving a system signal. In use A call is in progress. No icon indicates the phone is in standby mode. Digital indicator Digital service is available. Analog indicator Analog service is unavailable Indicates that a text message or voice mail has been received Roaming The phone is outside of its home service area. Charge level Indicates battery charge level. D Chapter 2. Basic Functions Turning the Phone On and Off Turning the Phone On 1. Install a charged battery pack or connect the phone to an external power source such as the cigarette lighter adapter or car kit. 2. Press [END/PWR] for a few seconds until the red light on the top of the phone flashes. ??Fully extend the antenna for the best performance. <Note> Like any other radio device, avoid any unnecessary contact with the antenna while your phone is on. Turning the Phone Off 1. Press and hold until display screen will be turned off, and then release the key. 2. Protect the antenna by pushing it back into the phone, if extended. Making a Call When you make a call, follow these simple steps: 1. Make sure the phone is turned on. ??If not, press [END/PWR]. 2. Enter the phone number with area code, if needed. 3. Press [SEND]. ??If the phone is locked, enter the lock code. ??“Call Failed” indicates that the call did not go through. 4. Press [END/PWR] to disconnect the call. Correcting Dialing Mistakes If you make mistakes in dialing a number, press [CLR] key once to erase the last entered digit or hold down [CLR] for at least two second to delete all digits, or simply press soft key 2 [BACK] to exit dialing state. Receiving Calls 1. When the phone rings, open cellcase or If cellcase is open, press any key (except [END/PWR], [?][?], [?((]) to answer. ??If you press the key [END/PWR], Side Keys ([(][(]) once when you receive a call, you can hold the present call and ring sound or vibration stops. If you press the [END/PWR] key, Side Keys ([(][(]) twice, the present call is terminated. 2. Press [END/PWR] to disconnect the call. In call waiting mode, the present call is on hold as you answer another incoming call. This service is provided by your service provider. When the call waiting function is activated, your phone will beep to let you know if you have an incoming call. Your phone may also display the incoming caller’s identification. Dialing a call from Phone Book You can place a call from any memory location either by speed dialing or by pressing [SEND] while looking up the memory location. One-Touch Dialing : One-touch dialing is a convenient feature which enables you to dial freq…

Text truncated - open the document above for the full version.

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJRD6130) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3855 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

Apr 28. 2004 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJRD6130 Single - Mode Cellular Phone (CDMA) Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Operational Description, Technical Specification, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82- 2- 850-3850 Fax : 82- 2- 850-3855 [email protected] 459- 9, Kasan-dong,Kemchun-ku Seoul 153- 023, Korea LG Electronics Inc. LGE

1 Mike Kuo From: Helen Zhao Sent: May192004Wednesday 2:14 PM To: Mike Kuo Subject: FW: Re : LG Electronics Inc., FCC ID:BEJRD6130, AN04T3884 Importance: High LG-RD6130_SAR Test Result.pdf Dipole 471.pdf Hello Mike, Regarding the following submission LG Electronics Inc. FCC ID: BEJRD6130, Assessment No: AN04T3884 Below is the answer: Question #1: Please provide SAR Dipole calibration file. A: Please see attached "Dipole 471.pdf". Question #2: Based upon the information presented in SAR Vs Z Scan, while performing SAR tests, the probe is only sensing from 0 mm to 35 mm. As indicated on SAR Vs Z chart, the power value sensed by probe has not yet reached 0dB. Please increase Z scan to at least 100 mm to demonstrate by increasing the probe distance, the power will not be increased. Please provide SAR Vs Z chart for highest measured SAR value at head and also at body worn confirmation. A: Retest was done. Please see the new data from "LG-RD6130_SAR Test Result.pdf". Question #3: Please explain large power drift reported in page 43/44/46 of Sar report. Power drift within +/- 5% is expected. Please refer to P1528 section 6.6.3 to address power drift issue. A: Retest was done. Please see the new data from "LG-RD6130_SAR Test Result.pdf". Thanks, Helen

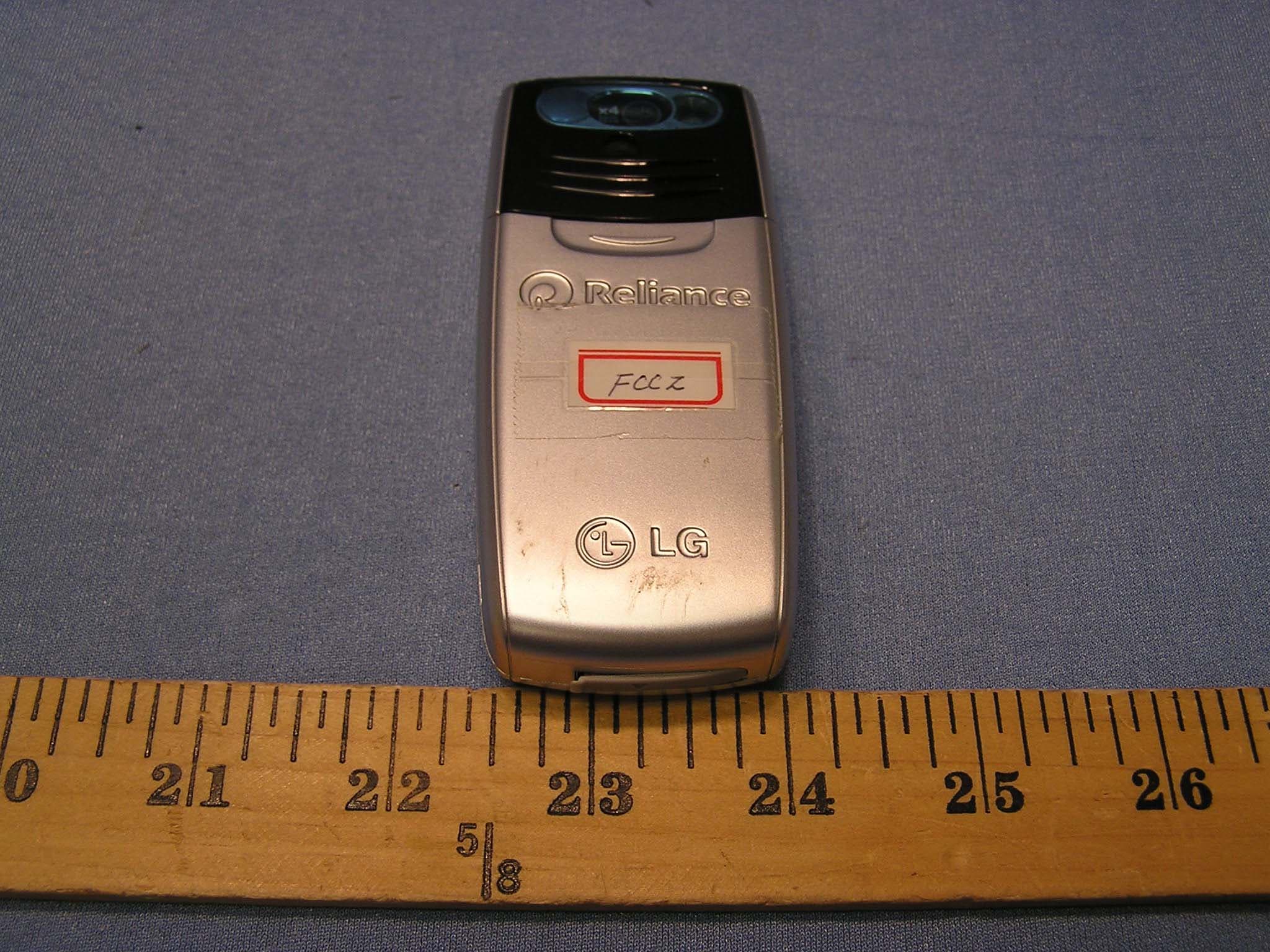

PROPOSED FCC ID LABEL AND LOCATION LG ELECTRONICS INC. This device complies with Part 22 of the FCC Rules. FCC ID Label

SAR Measurement Report Test Date : Apr 19~20, 2004 FCC ID : BEJRD6130 Test Report No: LGE-SAR2004005 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun -ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855www.lge.com - 1/22 - SAR Compliance Test Report APPLICANT NAME & ADDRESS:DATE & LOCATION OF TESTING: LG ELECTRONICS INC. Dates of tests: Apr 19~20, 2004 Communication Terminal Research Lab Test Site: LG ELECTRONICS, SEOUL Korea 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea Attn: S.S. Kim , President Test Device Test Report No. LGE-S A R2004005 Number of Page 58 Contact Person S. S. Kim Responsible Test Engineer E. S. Park Testing has been Carried out in Accordance with IEEE P1528-200X Draft 6.4 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate(SAR) in the Human Body Due to Wireless Communications Device : Experimental Techniques Application Type Certification FCC Classification Licensed Portable Transmitter held to ear (PCE) FCC Rule Part(s) 2.1093; FCC/OET Bu lletin 65 Supplement C (July 2001) Test Results The Tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced recept in full, without written approval of the laboratory. Date and Signatures Apr / 21 / 2004 ReportPrepared by Eui - Soon Park Senior Research Engineer Model : LG-RD6130 FCC ID : BEJRD6130 Type : Single-Mode Single-Band Cellular Phone SAR Measurement Report Test Date : Apr 19~20, 2004 FCC ID : BEJRD6130 Test Report No: LGE-SAR2004005 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun -ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855www.lge.com - 2/22 - Table of Contents 1. SUMMARY FOR SAR TEST REPORT............................................................................................... 3 1.1 Head Configuration ................................................................................................................ 3 1.2 Body Worn Configuration ....................................................................................................... 3 1.3 Measurement Uncertainty ....................................................................................................... 3 2. INTRODUCTION...............................................................................................................................4 3. DESCRIPTION OF THE DEVICE UNDER TEST............................................................................... 5 3.1 Antenna Description................................................................................................................ 5 3.2 Device Description .................................................................................................................. 5 3.3 Battery Option ......................................................................................................................... 5 4. TEST CONDITIONS ......................................................................................................................... 6 4.1 Ambient Conditions.................................................................................................................. 6 4.2 RF Characteristics of The Test Site........................................................................................6 4.3 Test Signal, Frequencies, And Output Power.......................................................................... 6 5. DESCRIPTION OF THE TEST EQUIPMENT.................................................................................... 7 5.1 Test System Specifications..................................................................................................... 7 5.2 SAR Measurement Setup......................................................................................................... 7 5.3 DASY4 E-Field Probe System.................................................................................................8 5.4 Phantom & Equivalent Tissues...............................................................................................10 6. DESCRIPTION OF THE TEST PROCEDURE...................................................................................12 6.1 Definition of Reference Point .................................................................................................12 6.2 Test Configuration Positions..................................................................................................13 6.3 Scan Procedures.....................................................................................................................16 6.4 SAR Averaging Methods.........................................................................................................16 7. MEASUREMENT UNCERTAINTY ...................................................................................................17 8. SYSTEM VERIFICATION.................................................................................................................18 8.1 Tissue Verification.................................................................................................................18 8.2 Test System Validation...........................................................................................................18 9. RESULTS.........................................................................................................................................19 10. REFERENCE..................................................................................................................................22 APPENDIX A : Validation Test Data APPENDIX B : SAR Test Setup Photographs APPENDIX C : SAR Test Data APPENDIX D : Calibration Certificates SAR Measurement Report Test Date : Apr 19~20, 2004 FCC ID : BEJRD6130 Test Report No: LGE-SAR20…

Text truncated - open the document above for the full version.

Test Laboratory: LG Electronics Inc. DUT: LG-RD6130;Type: Single Band-Single Mode;Serial: #3 Program: LG-RD6130;CDMA Mode Ch: 363 Communication System: CDMA;Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz;(σ = 0.89 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 05/18/2004;Ambient Temp: 22.5 C;Tissue Temp: 22.2 C Probe: ET3DV6 - SN1730;ConvF(6.2, 6.2, 6.2);Calibrated: 2003-12-16 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 Sn534;Calibrated: 2003-12-23 Phantom: SAM 835;Type: SAM 4.0;Serial: TP-1151 Measurement SW: DASY4, V4.2 Build 44;Postprocessing SW: SEMCAD, V1.8 Build 112 CDMA 363 Left Head Tilt/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 18.4 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 0.427 mW/g CDMA 363 Left Head Tilt/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.4 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.500 mW/g Peak SAR (extrapolated) = 1.23 W/kg SAR(1 g) = 0.435 mW/g; SAR(10 g) = 0.235 mW/g 0 dB = 0.500mW/g Test Laboratory: LG Electronics Inc. DUT: LG-RD6130;Type: Single Band-Single Mode;Serial: #3 Program: LG-RD6130;CDMA Mode Ch: 777 Communication System: CDMA;Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz;(σ = 0.89 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05/18/2004;Ambient Temp: 22.5 C;Tissue Temp: 22.2 C Probe: ET3DV6 - SN1730;ConvF(6.2, 6.2, 6.2);Calibrated: 2003-12-16 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 Sn534;Calibrated: 2003-12-23 Phantom: SAM 835;Type: SAM 4.0;Serial: TP-1151 Measurement SW: DASY4, V4.2 Build 44;Postprocessing SW: SEMCAD, V1.8 Build 112 CDMA 777 Right Head Touch/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 21.1 V/m; Power Drift = -0.1 dB Maximum value of SAR (interpolated) = 0.534 mW/g CDMA 777 Right Head Touch/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.1 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.514 mW/g Peak SAR (extrapolated) = 0.622 W/kg SAR(1 g) = 0.484 mW/g; SAR(10 g) = 0.337 mW/g 0 dB = 0.514mW/g Test Laboratory: LG Electronics Inc. DUT: LG-RD6130;Type: Single Band-Single Mode;Serial: #3 Program: LG-RD6130;CDMA Mode Ch: 777 Communication System: CDMA;Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz;(σ = 0.97 mho/m; ε r = 55.3; ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 05/18/2004;Ambient Temp: 22.4 C;Tissue Temp: 22.2 C Probe: ET3DV6 - SN1730;ConvF(6.2, 6.2, 6.2);Calibrated: 2003-12-16 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 Sn534;Calibrated: 2003-12-23 Phantom: SAM 835;Type: SAM 4.0;Serial: TP-1151 Measurement SW: DASY4, V4.2 Build 44;Postprocessing SW: SEMCAD, V1.8 Build 112 CDMA 777 Body/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 10.1 V/m; Power Drift = 0.1 dB Maximum value of SAR (interpolated) = 0.234 mW/g CDMA 777 Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 0.236 mW/g Peak SAR (extrapolated) = 0.299 W/kg SAR(1 g) = 0.219 mW/g; SAR(10 g) = 0.154 mW/g 0 dB = 0.228mW/g Test Laboratory: LG Electronics Inc. DUT: LG-RD6130;Type: Single Band-Single Mode;Serial: #3 Program: LG-RD6130;CDMA Mode Ch: 777 Communication System: CDMA;Frequency: 848.31 MHzDuty Cycle: 1:1 Medium: Head 835 MHz;(σ = 0.9 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 04/19/2004;Ambient Temp: 22.2 C;Tissue Temp: 22.0 C Probe: ET3DV6 - SN1730;ConvF(6.2, 6.2, 6.2);Calibrated: 2003-12-16 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 Sn534;Calibrated: 2003-12-23 Phantom: SAM 835;Type: SAM 4.0;Serial: TP-1151 Measurement SW: DASY4, V4.2 Build 44;Postprocessing SW: SEMCAD, V1.8 Build 112 CDMA 777 Left Head Touch/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 23.8 V/m; Power Drift = 0.003 dB Maximum value of SAR (interpolated) = 0.862 mW/g CDMA 777 Left Head Touch/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.8 V/m; Power Drift = 0.003 dB Maximum value of SAR (measured) = 0.719 mW/g Peak SAR (extrapolated) = 1.65 W/kg SAR(1 g) = 0.660 mW/g; SAR(10 g) = 0.440 mW/g Test Laboratory: LG Electronics Inc. DUT: LG-RD6130;Type: Single Band-Single Mode;Serial: #3 Program: LG-RD6130;CDMA Mode Ch: 777 Communication System: CDMA;Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz;(σ = 0.97 mho/m; ε r = 55.3; ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 05/18/2004;Ambient Temp: 22.4 C;Tissue Temp: 22.2 C Probe: ET3DV6 - SN1730;ConvF(6.2, 6.2, 6.2);Calibrated: 2003-12-16 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 Sn534;Calibrated: 2003-12-23 Phantom: SAM 835;Type: SAM 4.0;Serial: TP-1151 Measurement SW: DASY4, V4.2 Build 44;Postprocessing SW: SEMCAD, V1.8 Build 112 CDMA 777 Body/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 10.1 V/m; Power Drift = 0.1 dB Maximum value of SAR (interpolated) = 0.234 mW/g CDMA 777 Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 0.236 mW/g Peak SAR (extrapolated) = 0.299 W/kg SAR(1 g) = 0.219 mW/g; SAR(10 g) = 0.154 mW/g

FCC CFR47 CERTIFICATION PART 22H TEST REPORT FOR SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE MODEL: LG-RD6130 FCC ID: BEJRD6130 REPORT NUMBER: 04I2693-1 ISSUE DATE: APRIL 27, 2004 Prepared for LG ELECTRONICS 459-9, KASAN-DONG, KUMCHON-GU SEOUL, SOUTH KOREA 153-023 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04I2693-1 DATE: APRIL 27, 2004 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE FCC ID: BEJRD6130 Page 2 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION.................................................................................................. 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 4 4. TEST FACILITY................................................................................................................................ 4 5. ACCREDITATION AND LISTING ................................................................................................. 4 6. MEASURING INSTRUMENT CALIBRATION ............................................................................ 4 7. TEST SETUP, PROCEDURE AND RESULT................................................................................. 5 7.1. SECTION 2.1046: RF POWER OUTPUT ................................................................................... 5 7.2. SECTION 2.1047: MODULATION CHARACTERISTICS ..................................................... 10 7.3. SECTION 2.1049: OCCUPIED BANDWIDTH ........................................................................ 10 7.4. SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINAL .............................. 15 7.5. SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION ................................... 22 7.6. SECTION 2.1055: FREQUENCY STABILITY ........................................................................ 26 8. APENDIX .......................................................................................................................................... 30 8.1. EXTERNAL & INTERNAL PHOTOS ...................................................................................... 30 8.2. SCHEMATICS ........................................................................................................................... 30 8.3. BLOCK DIAGRAM ...................................................................................................................30 8.4. USER MANUAL ........................................................................................................................ 30 REPORT NO: 04I2693-1 DATE: APRIL 27, 2004 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE FCC ID: BEJRD6130 Page 3 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: LG ELECTRONICS 459-9, KASAN-DONG, KUMCHON-GU SEOUL, SOUTH KOREA 153-023 CONTACT PERSON: EUI-SOON PARK / SENIOR RESEARCH ENGINEER TELEPHONE NO: 082-02-850-3861 EUT DESCRIPTION: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE MODEM NAME: LG-RD6130 DATE TESTED: APRIL 23 TO APRIL 26, 2004 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE LICENSED TX MODULE IN MOBILE APPLICATION MEASUREMENT PROCEDURE ANSI 63.4 / 2001, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 22 Subpart H Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 22 Subpart H-Cellular Radiotelephone Service. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Tested By: Released For CCS By: VIEN TRAN THU CHAN EMC TECHNICIAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04I2693-1 DATE: APRIL 27, 2004 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE FCC ID: BEJRD6130 Page 4 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The 800MHz CDMA Cellular Phone has an output power 23dBm / 199.53mW (CDMA, ERP). It has a fixed type (Chip-Type-Antenna-Module) antenna, and -2dBi gain which is designed for the Cellular band transmitting of frequency range 824 ~ 849MHz. 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures documented o…

Text truncated - open the document above for the full version.

REPORT NO: 04I2693-1 DATE: APRIL 27, 2004 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE FCC ID: BEJRD6130 Page 10 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 7.2. SECTION 2.1047: MODULATION CHARACTERISTICS Not applicable, the EUT is single mode CDMA only. 7.3. SECTION 2.1049: OCCUPIED BANDWIDTH SETUP CONFIGURATION EUT 10 dB Att. or Ant. Coupler Spectrum Analyzer REPORT NO: 04I2693-1 DATE: APRIL 27, 2004 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE FCC ID: BEJRD6130 Page 24 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 14). The input signal to the substitution antenna shall be adjusted to the level that produces a level detected by the measuring receiver, that is equal to the level noted while the transmitter radiated power was measured, corrected for the change of input attenuation setting of the measuring receiver. 15). The input level to the substitution antenna shall be recorded as power level in dBm, corrected for any change of input attenuator setting of the measuring receiver. 16). The measurement shall be repeated with the test antenna and the substitution antenna oriented for horizontal polarization. 17). The measure of the effective radiated power is the larger of the two levels recorded, at the input to the substitution antenna, corrected for the gain of the substitution antenna if necessary. RESULT No non-compliance noted, as shown below REPORT NO: 04I2693-1 DATE: APRIL 27, 2004 EUT: SINGLE BAND, SINGLE MODE CDMA MOBILE PHONE FCC ID: BEJRD6130 Page 27 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the documen…

Text truncated - open the document above for the full version.
