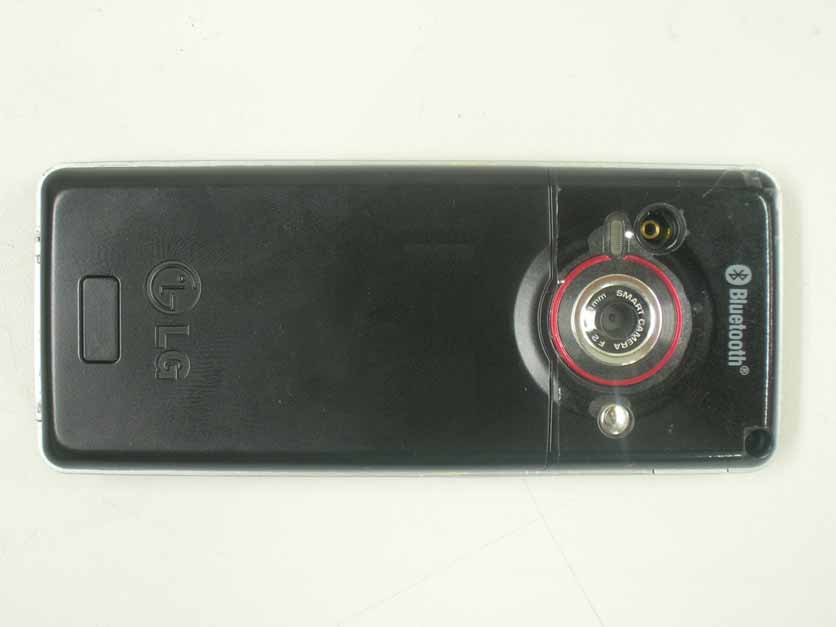

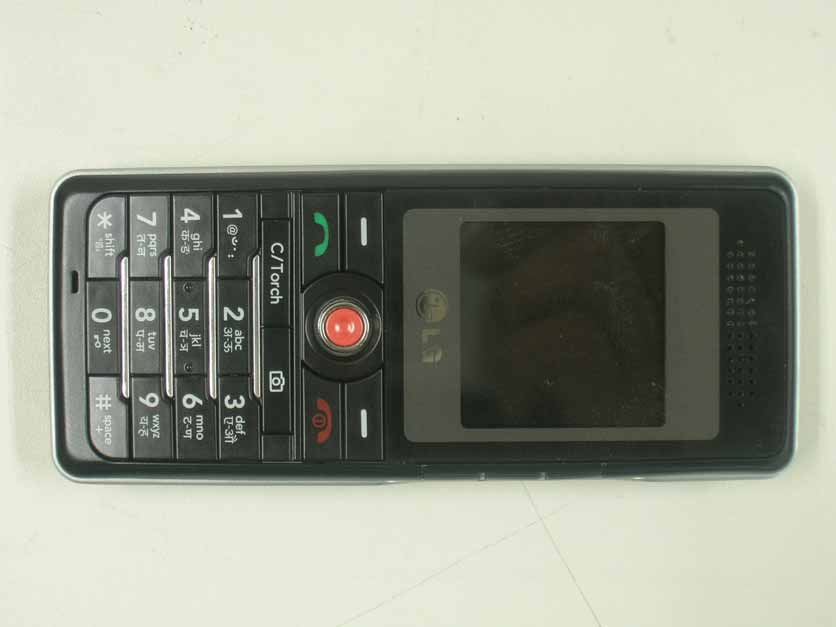

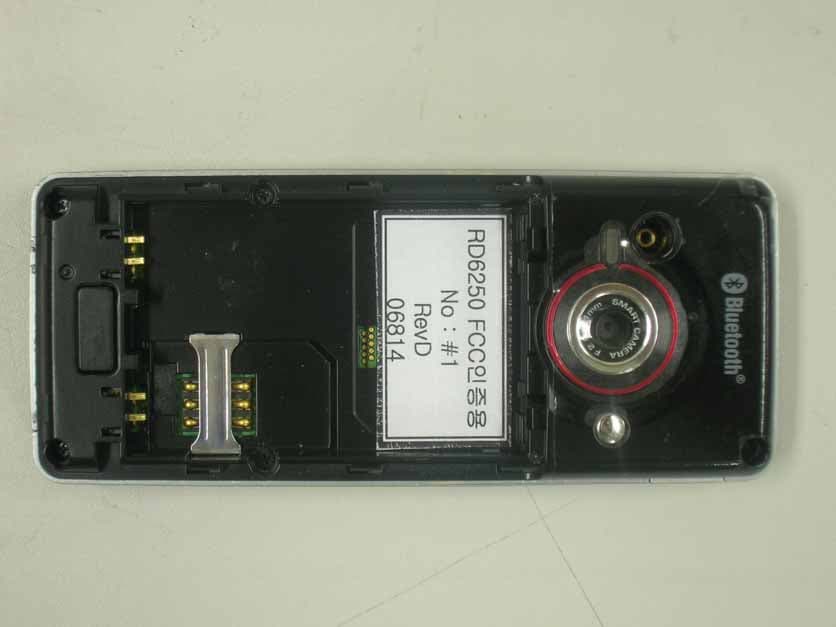

BEJRD6250Single-Band CDMA Phone with Bluetooth

User Manual LG-RD6250 Ver. 0.1 2006. 7. 27 LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the data of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. 3 (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following web address: www.lgeservice.com Contents Limited Warranty Statement Important Information Check Accessories Before You Start Safety Instructions FCC RF EXPOSURE INFORMATION Chapter 1. Getting Started Cautions Phone Overview On screen Icons Chapter 2. Basic Functions Turning the Phone On and Off Making a Call Correcting Dialing Mistakes Receiving Calls Emergency Dialing Speed Dialing Phone Book Features Chapter 3. Menu Features General Guidelines to MENU Access and Settings Names Messages Call History Display R-World Profiles Organizer & Tools Multimedia Settings Chapter 4. Names Features Names Chapter 5. Message Features Write Inbox 1234 Services Outbox Voice Mail Archive In UIM Drafts Templates Erase Msgs Msg Settings Chapter 6. Functions used during a call Send my number Search contact Add new contact Search scheduler Mute DTMF Voice Privacy Chapter 7. Accessories Chapter8. Safety Guideline Consumer Information on SAR (Specific Absorption Rate) Important Information This user’s guide provides important information on the use and operation of the phone. Please read all the information carefully prior to using the phone for the best performance and to prevent any anticipated damage to or misuse of the phone. Any unapproved change or modification will void your warranty. Check Accessories Your mobile phone comes with standard accessories of a one-slot desktop charger and a rechargeable battery. Please make sure that those accessories are all included. Before You Start 8 Safety Instructions WARNING! To reduce the electric shock, do not expose your phone in high humidity areas, such as the bathroom, swimming pool. IMPORTANT! Please read the SAFETY AND GENERAL INFORMATION prior to using your phone. FCC RF Exposure Information WARNING! Read this information before operating the phone In August 1996 the Federal Communications (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. CAUTION Use only the supplied or and approved antenna. Use of unauthorized antennas, modifications could impair call quality, damage th…

Text truncated - open the document above for the full version.

PCTEST-TCB From: Sung Ryul Kim [[email protected]] Sent: Friday, October 13, 2006 7:16 AM To: 'PCTEST TCB' Cc: 'PCTEST - Al Cirwithian'; 'PCTEST - Randy Ortanez'; 'PCTEST - Gregory Czumak'; 'PCTEST - Channy Park' Subject: RE: Questions Regarding FCC ID: BEJRD6250 Page 1 of 3 10/13/2006 Hello Gregory, Please refer to the below answer for comments. And check it, please go ahead the issuing for FCC grant. Thanks. SUNG RYUL KIM Estech Co., Ltd. Rm.1015, World Venture Center II, 426-5, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea TEL : +82-2-867-3201 FAX : +82-2-867-3204 International Test Laboratory for EMC /Safety /Telecom From: PCTEST TCB [mailto:[email protected]] Sent: Thursday, October 12, 2006 6:38 AM To: [email protected] Cc: PCTEST - Al Cirwithian; PCTEST - Randy Ortanez; PCTEST - Gregory Czumak; PCTEST - Channy Park Subject: Questions Regarding FCC ID: BEJRD6250 To: Mr. Sung-Ryul Kim / ESTECH Co., Ltd. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: BEJRD6250 Applicant: LG Electronics Inc. Correspondence Reference Number: BEJ0651 Confirmation Number: 1610090650/0652 Date of Original Email: October 11, 2006 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. On May 9, 2006, the FCC released a new policy with respect to testing 3-G phones (e.g., cdma2000, EV- DO, WCDMA, etc.). Included are new procedures for testing EMC, SAR and HAC on cdma2000 phones- please see the attached documents, particularly pages 1/102 – 10/102 of the document “3G-SAR”, dealing with the required RC/SO combinations to be tested for head and body SAR and the required output power measurements, as well as the document “3G Review Guidance” for both EMC and RFx guidance (for instance the specific RC/SO combinations for the various tests are provided, also, please note that internal test codes may not be used- a base station simulator must be used). Please retest Part 22 EMC and SAR in accordance with these procedures, and submit new test reports that address the various requirements of the documents. You may also review some example test reports that use this new procedure, at: https://gullfoss2.fcc.gov/prod/oet/cf/eas/reports/GenericSearch.cfm Type in the following FCC ID: BEJVX9400, and view the EMC and SAR reports. Please note that the maximum SAR levels listed in the user’s manual may require modification, based on the outcome of the tests. In addition, please be sure to address the points in questions (2) and (4), below. Æ I uploaded the revised test report on your website. 2. Pursuant to FCC policy, you must test the extended battery for SAR in the worst-case configuration determined by the standard battery tests, and submit that data, even if the extended battery results in a lower ERP. Æ I uploaded the revised user manual. This device uses only standard battery. I confirmed from LG guy for that. 3. If the Attenuator and Dual Direction Coupler, listed in the SAR report, are on a one year calibration cycle, then it appears that they are both past their cal due dates. Please address. Æ They are not one year calibration cycle, two years calibration cycle. 4. What settings (i.e., RBW, VBW) and detector function was used to perform Part 22 spurious radiated emission tests? Æ RBW=VBW = 1MHz, detector mode: Peak mode. I also uploaded the revised test report on website. 5. Please provide the FCC ID of the support equipment used in the Part 15B tests, or else indicate if they have been approved through DoC. Æ They have been approved through DoC. 6. Regarding the Bluetooth transmitter, please address the following requirements from Section 15.247(a)(1): a. Is the list of hopping frequencies pseudo randomly ordered? Yes. Pseudo randomly b. Is each frequency used equally, on average? Yes. c. Is the system receiver input bandwidth approximately equal to the transmitted signal’s bandwidth? Yes. Approximately equal to the transmitted signal’s bandwidth. d. Does the receiver have the capability of hopping in synchronization with the transmitted signal? Yes. 7. Please address Sections 15.247(g) and (h). the transmitter be presented with a continuous data (or information) stream, and the number of hopping channels is total 79 channels. 8. Please submit a Technical Description of the spread spectrum (Bluetooth) transmitter. Æ I uploaded it on website. 9. Please verify that the statements required by Sections 15.21 and 15.105(b) will be included in the user’s Page 2 of 3 10/13/2006 manual prior to shipment of the EUT. Æ I uploaded the revised user manual The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 3 of 3 10/13/2006

Test Report for FCC Company name Address Telephone Product name Model No. Serial No. Test date Testing location Standard □ Class A ■ Class B Test resultOK □ Class A ■ Class B Test resultOK Tested by Reviewed by Abbreviation * Note - This test report is not permitted to copy partly without our permission - This test result is dependent on only equipment to be used - This test result based on a single evaluation of one sample of the above mentioned OK, Pass = Passed, Fail = Failed, N/A = not applicable LG Electronics Inc. 459-9, Kasan-dong, Keumchun-ku, Seoul 153-023, Korea 82-2-2033-3847 Measurement facility registration number Engineer J.H.Kim Manager Engineer J.M.Yang 94696 (Signature) (Signature) Date of issue ESTECH. Co., Ltd. 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Test item ■ Conducted Emission ■ Radiated Emission FCC PART 15 2006 , ANSI C 63.4 2003 11-Sep-06 RD6250 NONE LG Electronics Inc. KOREA Report Number : ESTF150609-002 , Web : www. estech. co. kr Page 1 of 11 Report NumberESTF150609-002 Manufacturer Country of origin Applicant Product 12-Sep-06 SINGLE BAND CDMA MOBILE PHONE 3 4 5 6 8 8 8 9 10 10 10 11 Appendix 1. Spectral diagram 6. Measurement of conducted emission ............................................................ 6.1 Measurement e quipment ........................................................................... 6.2 Environmental conditions ........................................................................... 6.3 Test data ................................................................................................ Report Number : ESTF150609-002 , Web : www. estech. co. kr Page 2 of 11 5. Measurement of radiated emission ............................................................... 5.1 Measurement e quipment ........................................................................... Contents 1. Laboratory Information ................................................................................. 2. Description of EUT ....................................................................................... 3. Test Standards ............................................................................................. 4. Measurement condition ................................................................................. 5.2 Environmental conditions ........................................................................ 5.3 Test data ............................................................................................. ... 1. Laboratory Information 1.1 General 1.2 Test Lab. Corporation Name : ESTECH Co. Ltd Head Office : Rm 1015, World Venture Center II, 426-5, Gasan-dong, Geumcheon-gu, Seoul, Kor e (Safety & Telecom. Test Lab) EMC Test Lab : 58-1 Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 1.3 Official Qualification(s) MIC : Granted Accreditation from Ministry of Information & Communication for EMC, Safety and Telecommunication KOLAS : Accredited Lab By Korea Laboratory Accreditation Schema base on CENELEC requirements FCC : Filed Laboratory at Federal Communications Commission VCCI : Granted Accreditation from Voluntary Control Council for Interference from ITE This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report. ESTECH Lab attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH Lab assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report Number : ESTF150609-002 , Web : www. estech. co. kr Page 3 of 11 2. Description of EUT 2.1 Summary of Equipment Under Test NONE: Model Number : RD6250 Serial Number : Manufacturer : Country of origin : Rating : Receipt Date : 21-Aug-06 Report Number : ESTF150609-002 , Web : www. estech. co. kr Page 4 of 11 SINGLE BAND CDMA MOBILE PHONE NONE LG Electronics Inc. KOREA INPUT:AC100~240V , 50/60Hz 0.16A Output:DC 5V,1000mA 3. Test Standards Test Standard : FCC PART 15 (2006) Test Method : ANSI C 63.4 (2003) This standard sets forth uniform methods of measurement of radio-frequency (RF) signals and noise emitted from both unintentional and intentional emitters of RF energy in the frequency range 9 kHz to 40 GHz. Methods for the measurement of radiated and AC power-line conducted radio noise are covered and may be applied to any such equipment unless otherwise specified by individual equipment requirements. These methods cover measurement of certain decides that deliberately radiate energy, such as intentional emitters, but does not cover licensed transmitters. This standard is not intended for certification/approval of avionic equipment or for industrial, scientific, and medical (ISM) equipment These method apply to the measurement of individual units or systems comprised of multiple units This Standard sets out the regulations under which an intentional, unintentional, or incidental radiator may be operated without an individual license. It also contains the technical specifications, administrative requirements and other conditions relating to the marketing of Part 15 devices. Report Number : ESTF150609-002 , Web : www. estech. co. kr Page 5 of 11 4. Measurement Condition 4.1 EUT Operation. 4.2 Configuration and Peripherals * The EUT was in the following operation mode during all testing * The operational conditions of the EUT was determined by the manufacturer according to the typical use of the EUT with respect to the expected hightest level of emission. * Connect the EUT to Note PC. * Install sync program to Note PC. * Transferred media data between the phone and note pc during the test. Report Number : ESTF150609-002 , Web : www. estech. co. kr Page 6 of 11 4.3 EUT and Support equipment Equipment Name Remark (FCC ID) SINGLE BAND CDMA MOBILE PHONE …

Text truncated - open the document above for the full version.
