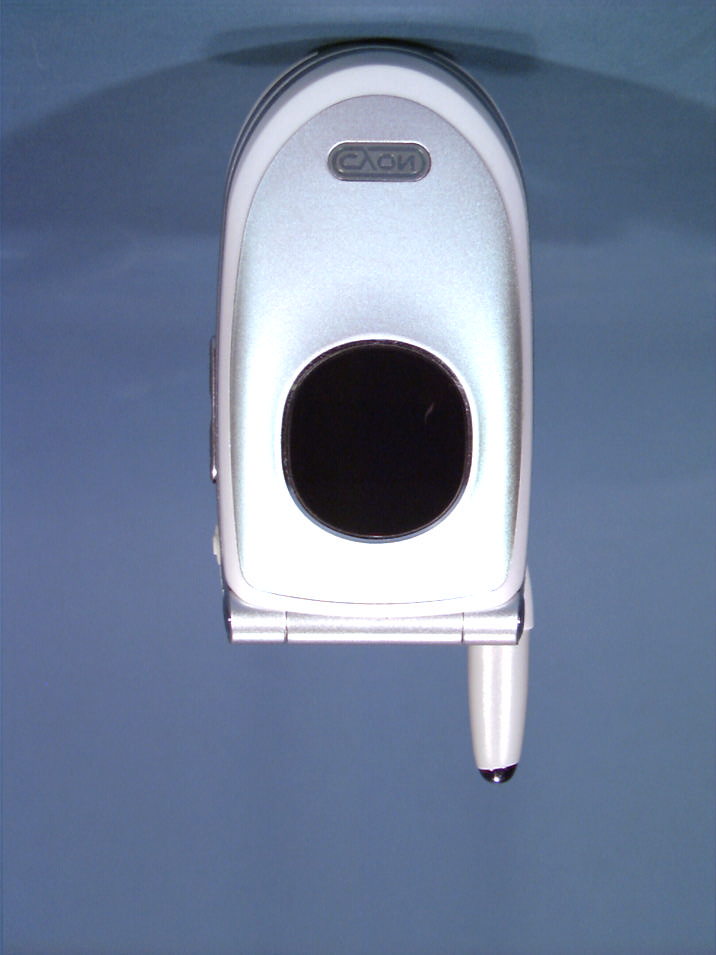

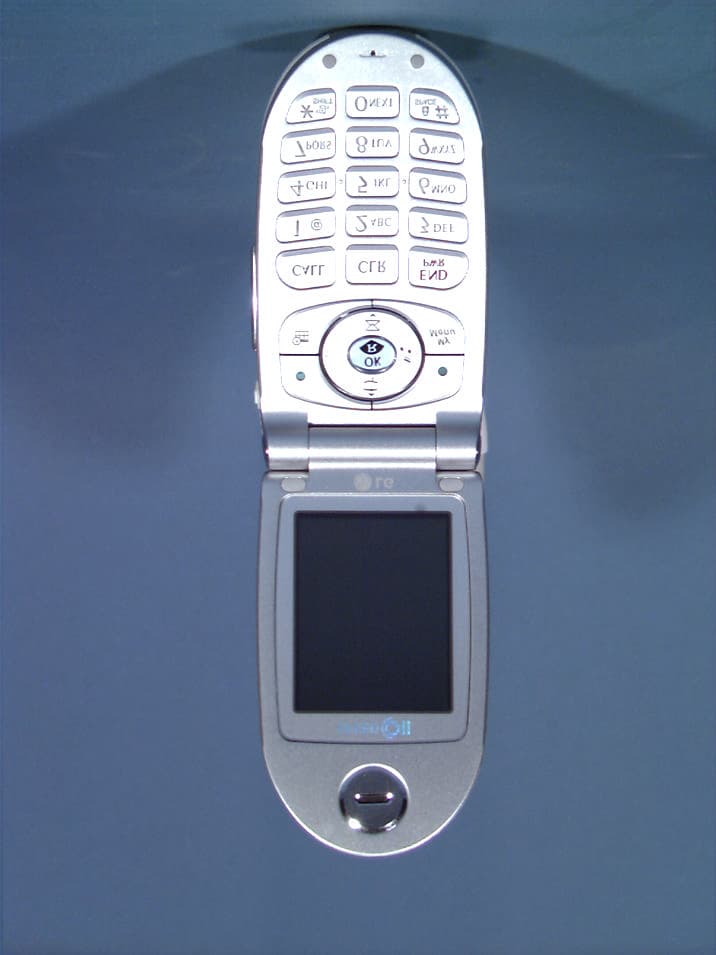

BEJRD7130Single-Mode Cellular Phone (CDMA)

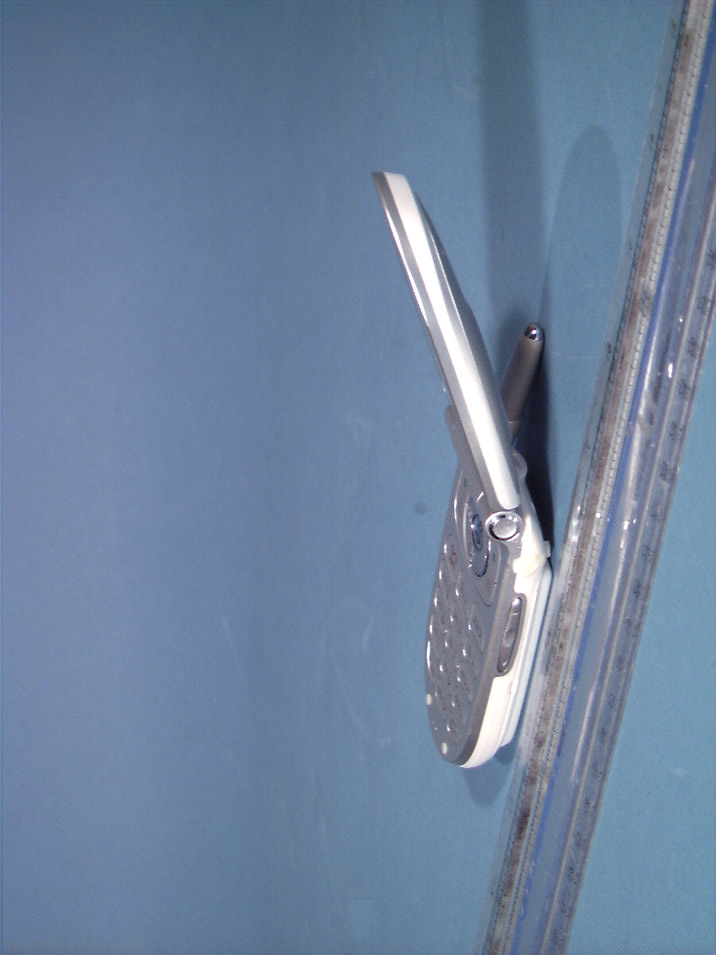

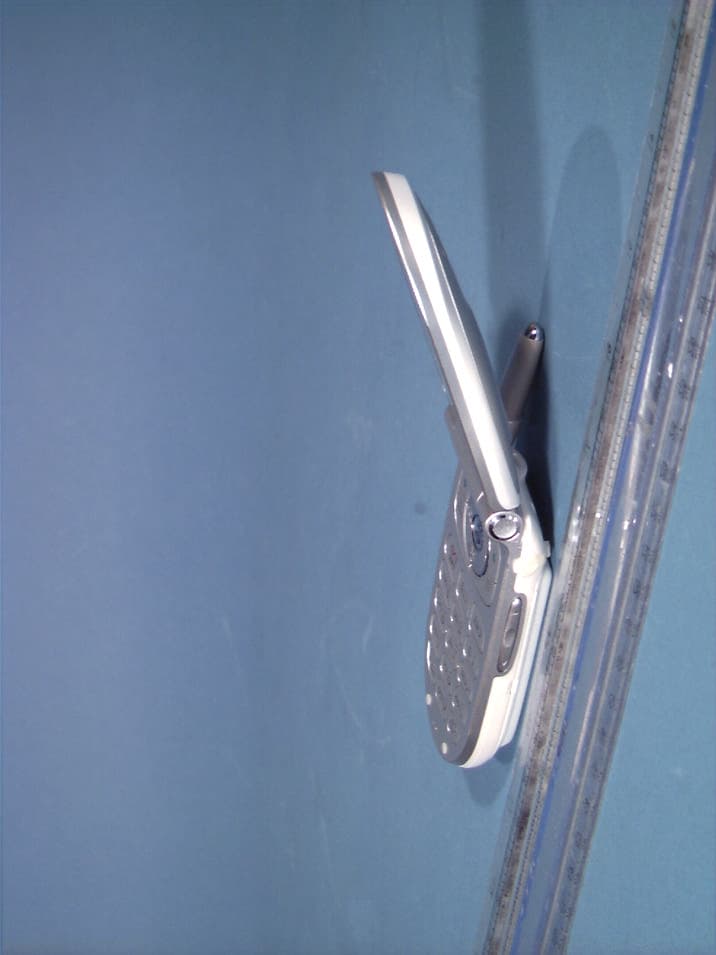

Operating Manual LG-RD7130 User Guide CDMA PHONE For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone Contents Introduction Highlights Important Information Check Accessories Chapter 1. Getting Started Cautions Phone Overview On screen Icons Chapter 2. Basic Functions Chapter 3. Menu Features General Guidelines to MENU Access and Settings Melodies Vol/Effect Display Scheduler Call Set Phone Set Security Chapter 4. Message Features Chapter 1. Getting Started Cautions l Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference. l Keep your phone in a safe place when not in use. l Only use the batteries, antennas, and chargers provided by LG. Using the wrong accessories could void your warranty. l Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty. l Do not hold the antenna while the phone is in use. l Do not use the phone in designated “no cellular phone use” areas. l Do not expose the phone to high temperature or humidity. l Avoid getting your phone wet. If the phone gets wet, turn the power off immediately and remove the battery pack. If the phone is mal-functional, return it to the dealer for service. l Avoid shock or impact on the phone. Phone Overview Function Key Descriptions Lamp The red light goes on when you use the power key to turn on the phone and when there are incoming calls and messages. LCD screen Displays messages & indicator icons. END/PWR Used to turn power on/off. This key disconnects a call. Using this key, you can also exit out of a menu back to the phone’s standby display without changing the setting. SEND Allows user to place or answer calls. Mouse Key This mouse key allows quick access to text and voice mail notification messages. calendar, outgoing call log, phonebook Find name. Cellcase Close the active cellcase to the terminate a call in progress. Open the active cellcase to answer an incoming call. Soft Keys The current operation of a soft key is defined by the word at the bottom of the display. Soft Keys 2 : If you press this key once in a menu, you can go back one level and if you press and hold the key in a menu, you can go back to the standby display. Side Keys These keys enable you to adjust keybeep volume (in standby mode) and earpiece volume (in a call status). Scroll Keys These keys are used to scroll through the memory locations and menu items. - In the standby status, set the manner mode by pressing the button. (for 2 seconds) - In the standby status, set the lock function by pressing the button. (for 2 seconds) Alphanumeric Keypad These keys enable you to enter numbers and characters and choose menu items. Clear Key On screen Icons The phone screen displays several onscreen icons and onscreen icons appears when the phone is power on. Icons Descriptions Displays the strength of the signal received by the phone and current signal strength is indicated as the number of bars displayed on the screen. No service The phone is not receiving a system signal. In use A call is in progress. No icon indicates the phone is in standby mode. Digital indicator Digital service is available. Analog indicator Analog service is unavailable Indicates that a text message or voice mail has been received Roaming The phone is outside of its home service area. Charge level Indicates battery charge level. D Chapter 2. Basic Functions Turning the Phone On and Off Turning the Phone On 1. Install a charged battery pack or connect the phone to an external power source such as the cigarette lighter adapter or car kit. 2. Press [END/PWR] for a few seconds until the red light on the top of the phone flashes. l Fully extend the antenna for the best performance. <Note> Like any other radio device, avoid any unnecessary contact with the antenna while your phone is on. Turning the Phone Off 1. Press and hold until display screen will be turned off, and then release the key. 2. Protect the antenna by pushing it back into the phone, if extended. Making a Call When you make a call, follow these simple steps: 1. Make sure the phone is turned on. l If not, press [END/PWR]. 2. Enter the phone number with area code, if needed. 3. Press [SEND]. l If the phone is locked, enter the lock code. l “Call Failed” indicates that the call did not go through. 4. Press [END/PWR] to disconn…

Text truncated - open the document above for the full version.

November 5, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJRD7130 Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, INC., is an application for Part 22 Certification of the Single-Mode Cellular CDMA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS, INC.

© 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA)

© 2002PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. LG Electronics Inc. LGE Model No. : RD7130 FCC ID : BEJRD7130 S/N : Made in Korea

© 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA)

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-221023544.BEJ Test Dates: October 28-29, 2002 Phone Type: Single-Mode CDMA FCC ID: BEJRD7130 Page 1 of 25 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, Inc. Dates of Tests: October 28-29, 2002 Communication Terminal Research Lab Test Report S/N: SAR.221023544.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul, KOREA 153-023 Attn: E.S. Park, Research Engineer FCC ID: BEJRD7130 APPLICANT: LG ELECTRONICS, INC. EUT Type: Single-Mode Cellular Phone (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.268 W ERP CDMA (24.283 dBm) / 25.2 dBm Conducted Max. SAR Measurement: 1.200W/kg CDMA Head SAR; 0.566W/kg CDMA Body SAR Trade Name/Model(s): RD7130 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 221023544.BEJ PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-221023544.BEJ Test Dates: October 28-29, 2002 Phone Type: Single-Mode CDMA FCC ID: BEJRD7130 Page 2 of 25 © 2002 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configurations ................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment ................................................................................... 14 Controlled Environment........................................................................................ 14 11. MEAS…

Text truncated - open the document above for the full version.

LG Electronics FCC ID: BEJRD7130 -- Cellular CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.09 mW/g, SAR (10g): 0.691 mW/g LGE Cellular CDMA (Single Mode) Model: RD7130 Cellular CDMA Mode, Ch.0777 [848.31MHz]; Standard Battery; Ambient Temp. = 20.5°C / Meas. Tissue Temp. = 20.0°C Conducted Power = 25.2dBm; Left Head Phantom, Cheek/Touch position Test Date --10/28/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.16E-1 3.47E-1 5.78E-1 8.09E-1 1.04E+0 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJRD7130 -- Cellular CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.20 mW/g, SAR (10g): 0.733 mW/g LGE Cellular CDMA (Single Mode) Model: RD7130 Cellular CDMA Mode, Ch.0777 [848.31MHz]; Standard Battery; Ambient Temp. = 20.5°C / Meas. Tissue Temp. = 20.0°C Conducted Power = 25.2dBm; Right Head Phantom, Cheek/Touch position Test Date --10/28/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.17E-1 3.51E-1 5.85E-1 8.18E-1 1.05E+0 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJRD7130 -- Cellular CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.231 mW/g, SAR (10g): 0.168 mW/g LGE Cellular CDMA (Single Mode) Model: RD7130 Cellular CDMA Mode, Ch.0777 [848.31MHz]; Standard Battery; Ambient Temp. = 20.5°C / Meas. Tissue Temp. = 20.0°C Conducted Power = 25.2dBm; Left Head Phantom, EAR/15 Degrees Tilt position Test Date --10/28/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.33E-2 6.99E-2 1.17E-1 1.63E-1 2.10E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJRD7130 -- Cellular CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.239 mW/g, SAR (10g): 0.174 mW/g LGE Cellular CDMA (Single Mode) Model: RD7130 Cellular CDMA Mode, Ch.0777 [848.31MHz]; Standard Battery; Ambient Temp. = 20.5°C / Meas. Tissue Temp. = 20.0°C Conducted Power = 25.2dBm; Right Head Phantom, EAR/15 Degrees Tilt position Test Date --10/28/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.37E-2 7.11E-2 1.19E-1 1.66E-1 2.13E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJRD7130 -- Cellular CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(6.40,6.40,6.40) Med. Parameters 835 MHz Muscle: σ = 0.98 mho/m ε r = 55.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.566 mW/g, SAR (10g): 0.384 mW/g LGE Cellular CDMA (Single Mode) Model: RD7130 Cellular CDMA Mode, Ch.0777 [848.31MHz]; Standard Battery; Ambient Temp. = 21.1°C / Meas. Tissue Temp. = 20.2°C Conducted Power = 25.2dBm; Spacing = 1.5cm from back (antenna side) of EUT to flat phantom, No BeltClip/No Holster Test Date -- 10/29/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 5.22E-2 1.57E-1 2.61E-1 3.65E-1 4.70E-1 PCTEST Engineering Laboratory, Inc.

© 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA)

835MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.47 mW/g SAR (10g): 1.60 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 20.5°C / Meas. Tissue Temp. = 20.0°C PCTEST Brain Tissue Simulating Liquid [10/28/2002] SAR Tot [mW/g] 2.55E-1 7.71E-1 1.26E+0 1.78E+0 2.29E+0 PCTEST Engineering Laboratory, Inc.

PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.221023544.BEJ Test Dates: Oct. 28-29, 2002 Phone Type: Single Mode CDMA FCC ID: BEJRD7130 Page 1 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 0 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification LG ELECTRONICS INC. Dates of Tests: October 28-29, 2002 Communication Terminal Research Lab Test Report S/N: 22.221023544.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia MD Seoul 153-023, Korea Attn: E.S. Park, Research Engineer FCC ID BEJRD7130 APPLICANT LG ELECTRONICS, INC. Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: Single-Mode Cellular Phone (CDMA) Model: RD7130 Tx Frequency Range: 824.70 — 848.31MHz (CDMA) Rx Frequency Range: 869.70 — 893.31MHz (CDMA) Max. RF Output Power: 0.268 W ERP CDMA (24.283 dBm) Max. SAR Measurement: 1.200W/kg CDMA Head SAR; 0.566W/kg CDMA Body SAR; Emission Designator(s): 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 221023544.BEJ PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.221023544.BEJ Test Dates: Oct. 28-29, 2002 Phone Type: Single Mode CDMA FCC ID: BEJRD7130 Page 2 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT K: SCHEMATIC DIAGRAM(S) ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.221023544.BEJ Test Dates: Oct. 28-29, 2002 Phone Type: Single Mode CDMA FCC ID: BEJRD7130 Page 3 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, INC. Address: Communication Terminal Research Lab 459-9, Kasan-dong, Keumchun-Ku Seoul 153-023, Korea Attention: E.S. Park, Research Engineer • FCC ID: BEJRD7130 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 — 848.31 MHz (CDMA) • Rx Freq. Range: 869.70 — 893.31 MHz (CDMA) • Max. Power Rating: 0.268 W ERP CDMA (24.283 dBm) • FCC Classification(s): Non-Broadcast Transmitter Held to Ear (TNE) • Equipment (EUT) Type: Single-Mode Cellular Phone (CDMA) • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): §22.901(d), §2 • Dates of Tests: October 28-29, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.221023544.BEJ PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.221023544.BEJ Test Dates: Oct. 28-29, 2002 Phone Type: Single Mode CDMA FCC ID: BEJRD7130 Page 4 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the diffe…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA) © 2002 PCTEST Lab LGE FCC ID: BEJRD7130 Single-Mode Cellular Phone (CDMA)
