BEJRU42PZ61PDP Display

PLASMA TV OWNER’S MANUAL Please read this manual carefully and completely before operating your TV. Retain this manual for future reference. Record model number and serial number of the TV in the spaces provided below. See the label attached on the back cover and relate this information to your dealer if you require service. Model Number : Serial Number : MODELS: RU-42PZ61/71 RU-50PZ61 RU-60PZ61 LG Electronics U.S.A., Inc. 2 Plasma TV Warning WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor- tant operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. POWER CORD POLARIZATION: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. REGULATORY INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equip- ment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod- ification could void the user’s authority to operate this product. COMPLIANCE: The responsible party for this product’s compliance is: Zenith Electronics Corporation 1-201-816-2000 Marketed and Distributed in the United States by LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 http://www.zenith.com WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN W W arning arning Owner’s Manual 3 Safety Instructions Important safeguards for you and your new product Your product has been manufactured and tested with your safety in mind. However, improper use can result in electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference. Observing the simple precautions discussed in this manual can help you get many years of enjoyment and safe operation that are built into your new product. This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association. 1. Read Instructions All the safety and operating instructions should be read before the product is operated. 2. Follow Instructions All operating and use instructions should be followed. 3. Retain Instructions The safety and operating instructions should be retained for future reference. 4. Heed Warnings All warnings on the product and in the operating instructions should be adhered to. 5. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6. Water and Moisture Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet base- ment, or near a swimming pool. 7. Accessories, Carts, and Stands Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manu- facturer, or sold with the product. Any mounting of the prod- uct should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufac- turer. 8. Transporting Product A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 9. Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by plac- ing the product on a…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 19, 2004 RE: LG Electronics Inc. FCC ID: BEJRU42PZ61 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please review the internal photographs. Photographs 3.1 and 3.2 are for a board that does not appear to be shown in the product when the back was removed. Please explain as necessary. 2) Component values on the schematics could not be read. Please provide a higher resolution schematic where the component values are readable. 3) The device is capable of many different resolutions and refresh rates. These different resolutions and rates must be investigated to determine worse case (Page 15 of the users manual shows various resolutions possible). Worse case does not always occur at the highest resolution. Was this investigation performed? If not, how can worse case data be assured? 4) What was the final resolution/refresh rate for he worse case mode of operation. 5) FYI...Please be careful to maintain the 10 cm spacing of components on the table per ANSI C63.4. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Timothy R. Johnson, Answer 1-I send Detail content in Appended file Answer 2-I uploaded a circuit digram. Answer 3-I tested in worse case. Answer 4-I measured the plasma tv in higher resolution of 1280*1024,bright:100/contrast:100. Thank you and Regards. Yang.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 19, 2004 RE: LG Electronics Inc. FCC ID: BEJRU42PZ61 After a review of the submitted information, I have a few comments on the above referenced Application. 1) FYI....This application only covered the PC peripheral portion of the device. Please note that the manufacturer is still responsible for making sure that the technical requirements for TV receivers have been verified per the FCC rules (these may be found in Sections 15.31(n), 15.107, 109, 111, 117, 118, 119,120, and 122 as applicable). Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

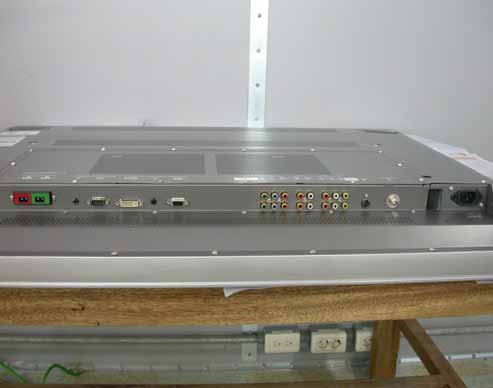

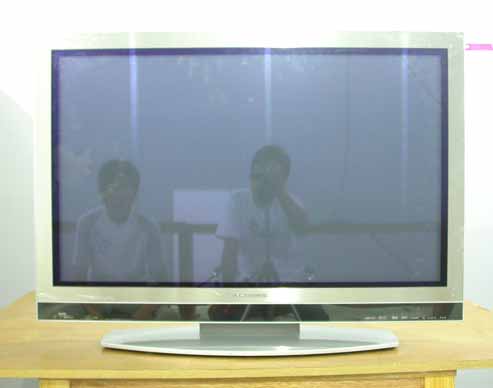

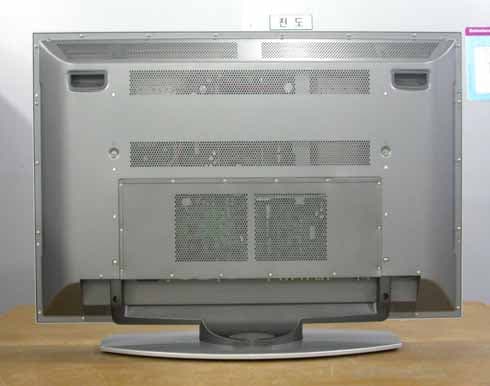

EXTERNAL PHOTO

3. SETUP INTERNAL PHOTO 1. MAIN 1.1 Front 1.2 Rear 2. POWER 2.1 Front 2.2 Rear 3. CTRL_LVDS 3.1 Front 3.2 Rear 4.LCD 4.1 Front 4.2 Rear 5. TURNER 5.1 Front 5.2 Rear 6. YSUS 6.1 Front 6.2 Rear 7. YDRV_BOT 7.1 Front 7.2 Rear

***answer *** FCC ID:BEJRU42PZ61-Photo graphs 3.1/ 3.2 are located at the bottom of arrow on the s

LG Electronics Inc. FCC ID BEJRU42PZ61 -Operational description- A plasma display panel is the latest display technology. It is currently the best way to achieve flat panel displays with excellent image quality and large screen sizes, that are easily viewable. The PDP can be thought of as a descendant of the neon lamp an dit can be also be viewed as a series of fluorescent lamps. PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue. Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos-phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors. You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over16 million different colors. All of this means that you get perfect images that are easily viewable in a display that is less than 5inches thick.

Compliance Test Report for FCC Company name Address Telephone Product name Model No. Serial No. Test date Testing location Standard □ Class A ■ Class B Test resultOK □ Class A ■ Class B Test resultOK Tested by Reviewed by Abbreviation * Note - This test report is not permitted to copy partly without our permission - This test result is dependent on only equipment to be used - This test result based on a single evaluation of one sample of the above mentioned - RU-42PZ61,RU-42PZ71 are same product. Only model name is different Report Number : ESTF150408-004 , Web : www. estech. co. kr Page 1 of 14 Report NumberESTF150408-004 Manufacturer Country of origin Applicant Product 2004-08-12 Plasma TV RU-42PZ61,RU-42PZ71 NONE LG Electronics Inc. KOREA Date of issue ESTECH. Co., Ltd. 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Test item ■ Conducted Emission ■ Radiated Emission FCC PART 15 2002 , ANSI C 63.4 2001 2004-08-10~2004-08-12 OK, Pass = Passed, Fail = Failed, N/A = not applicable LG Electronics USA 2000 Millbrook Dr Lincolnshire, IL 60069 United states 847-941-8373 Measurement facility registration number Senior Engineer J.M. Yang Director T.K. Lee 94696 (Signature) (Signature) 3 4 5 6 8 8 8 9 10 10 10 11 12 14 Appendix 1. Spectral diagram Appendix 2. Phorographs of EUT in side PCB Appendix 3. Block diagram of EUT Appendix 4. Circuit Diagram 7. Photogra phs of test setup ........................................................................... 8. Photogra phs of EUT .................................................................................... 6. Measurement of conducted emission ............................................................ 6.1 Measurement e quipment ........................................................................ 6.2 Environmental conditions ........................................................................ ... 6.3 Test data ................................................................................................ Report Number : ESTF150408-004 , Web : www. estech. co. kr Page 2 of 14 5. Measurement of radiated emission ............................................................... 5.1 Measurement e quipment ........................................................................ Contents 1. Laboratory Information ................................................................................. 2. Description of EUT ....................................................................................... 3. Test Standards ............................................................................................. 4. Measurement condition ................................................................................. 5.2 Environmental conditions ........................................................................ 5.3 Test data ................................................................................................ 1. Laboratory Information 1.1 General 1.2 Test Lab. Corporation Name : ESTECH Co. Ltd Head Office : 3 rd Fl., Chungdam Bldg., 119-1 Chungdam-dong Kangnam-gu , Seoul, Korea (Safety & Telecom. Test Lab) EMC Test Lab : 58-1 Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 1.3 Official Qualification(s) MIC : Granted Accreditation from Ministry of Information & Communication for EMC, Safety and Telecommunication KOLAS : Accredited Lab By Korea Laboratory Accreditation Schema base on CENELEC requirements FCC : Filed Laboratory at Federal Communications Commission VCCI : Granted Accreditation from Voluntary Control Council for Interference from ITE This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report. ESTECH Lab attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH Lab assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report Number : ESTF150408-004 , Web : www. estech. co. kr Page 3 of 14 2. Description of EUT 2.1 Summary of Equipment Under Test Product: Model Number : Serial Number : Manufacturer : Country of origin : Rating : Receipt Date : 2.2 General descriptions of EUT Using OSC :13.5Mhz/14.318Mhz/8Mhz/20.250Mhz/18.432Mhz/20Mhz Report Number : ESTF150408-004 , Web : www. estech. co. kr Page 4 of 14 - Width(inches / mm) : 48.4 / 1210 - Height(inches / mm) : 27.6 / 701 - Depth(inches / mm) : 11.6 / 295 - Weight(pounds / kg) : 76 / 34.6 - Resolution : 852 × 480 (Dot) - Power requirement : AC100-240V 60Hz - Television System : NTSC - Program Coverage : VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 125 - External Antenna Impedance : 75Ω - Color : 16,770,000 (256 steps of each R,G and B) - Operating Temperature Range : 32 ~ 104°F (0 ~ 40°C) - Operating Humidity Range : Less than 80％ - Maximum Elevation : 6561 feet (2000m) Plasma TV RU-42PZ61,RU-42PZ71 NONE LG Electronics Inc. KOREA AC120V / 60Hz 2004-08-04 3. Test Standards Test Standard : FCC PART 15 (2002) Test Method : ANSI C 63.4 (2001) This standard sets forth uniform methods of measurement of radio-frequency (RF) signals and noise emitted from both unintentional and intentional emitters of RF energy in the frequency range 9 kHz to 40 GHz. Methods for the measurement of radiated and AC power-line conducted radio noise are covered and may be applied to any such equipment unless otherwise specified by individual equipment requirements. These methods cover measurement of certain decides that deliberately radiate energy, such as intentional emitters, but does not cover licensed transmitters. This standard is not intended for certification/approval of avionic equipment or for industrial, scientific, and medical (ISM) equipment These method apply to the measurement of individual units or systems comprised of multiple units This Standard sets …

Text truncated - open the document above for the full version.

TEST SETUP PHOTO 1. Conducted Emission setup photo 1.1. Front 1.2. Rear 2. Radiated Emission setup photo 2.1 Front 2.2. Rear
