BEJS074MKAMicrowave Oven

PLEASE READ THIS OWNER'S MANUAL THOROUGHLY BEFORE OPERATING. P/NO. 3828W5A1515 Printed in China MS-0743G Website address:http://www.LGEservice.com e-mail address: http://www.LGEservice.com/techsup.html - 2 - The serial number is found on the back of this unit. This number is unique to this unit and not avaliable to others. You should record requested information here and retain this guide as a permanent record of your pur- chase. Date of Purchase Dealer Purchased From Dealer Address Dealer Phone No. Model No. Serial No. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open-since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safe- ty interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service per- sonnel. 3/ TECHNICAL SPECIFICATIONS 4/ IMPORTANT SAFETY INSTRUCTIONS 5/ INSTALLATION 6/ INTRODUCTION 9/ CONTROL PANEL 9/ FEATURE DIAGRAM 10/ OPERATING INSTRUCTIONS SETTING TIME OF DAY TIMED COOKING ADD 30 TIMER CHILD LOCK ONE TOUCH CONTROL MICROWAVE POWER LEVELS AUTO DEFROST 14/ OTHER HELPFUL INSTRUCTIONS 15/ CARE OF YOUR MICROWAVE OVEN 15/ PRECAUTIONS 16/ QUESTIONS AND ANSWERS 17/ COOKING GUIDES 19/ VEGETABLE COOKING CHART 20/ REHEATING CHART 21/ SERVICE CENTER LIST - 3 - TABLE OF CONTENTS TECHNICAL SPECIFICATIONS * IEC 705 RATING STANDARDSpecifications subject to change without prior notice. Power Supply120V AC., 60Hz Rated Power Consumption1050W Microwave Output*700W Frequency2,450MHz Overall Dimensions (WXHXD)19"511"512 7 /8" Oven Cavity Dimensions (WXHXD)12 1 /4"57 3 /4"512 1 /2" Effective Capacity of Oven Cavity0.7 Cu.ft. MS-74MEU - 4 - IMPORTANT SAFETY INSTRUCTIONS WARNING– To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY"found on page 2 of this manual. 3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS"found on page 5 of this manual . 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers–for example, closed glass jars–may explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. Either - (a) When cleaning surfaces of door and oven that come together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth; or when separate cleaning instructions apply, (b) See door surface cleaning instructions on(specific page or section to be included). 16. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance if paper, plastic, or other combustible materi- als are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven should ignite, KEEP OVEN DOOR CLOSED, turn oven off, and dis- connect the power cord, or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 17. a. Do not operate any heating or cooking appliance beneath this appliance. b. Do not mount unit over or near any portion of a heating or cooking appliance. c. Do not mount over a sink. d. Do not store anything directly on top of the appliance surface when appliance is in operation. 18. Do not heat any type of baby bottles or baby food. Uneven heating may occur and could cause personal injury. 19. Avoid using corrosive and vapors, such as sulfide and chloride. 20. Liquids heated in certain shaped containers (especially cylindrical-shaped containers) may become overheated. The liquid may splash out with a loud noise during or after heating or when adding ingredients (instant coffee, etc.), resulting in harm to the oven and possible injury. In all containers, for best results, stir the liquid several times before heating. Always stir liquid several times between reheatings. SAVE THESE INSTRUCTIONS A. GROUNDING INSTRUCTIONS For personal safety, this appliance must be properly grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by provid- ing an escape route for the electric current. The power cord of this appliance is equipped with a three-prong (grounding) plug to minimize…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M083 6660-B Dobbin Road Date: April 18, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS074MKA Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJS074MKA 2. Application Model no.: MS-0743G (RF Power Output – IEC705: 700 W) 3. Magnetron: 2M213 (LG Electronics Inc.), 2M288 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-0743G with Magnetron (2M213, LG / 2M288, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M083 Authorization and Standards Branch Date: April 18, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS074MKA Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJS074MKA 2. Application Model no.: MS-0743G (RF Power Output – IEC705: 700 W) 3. Magnetron: 2M213 (LG Electronics Inc.), 2M288 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-0743G with Magnetron (2M213, LG / 2M288, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

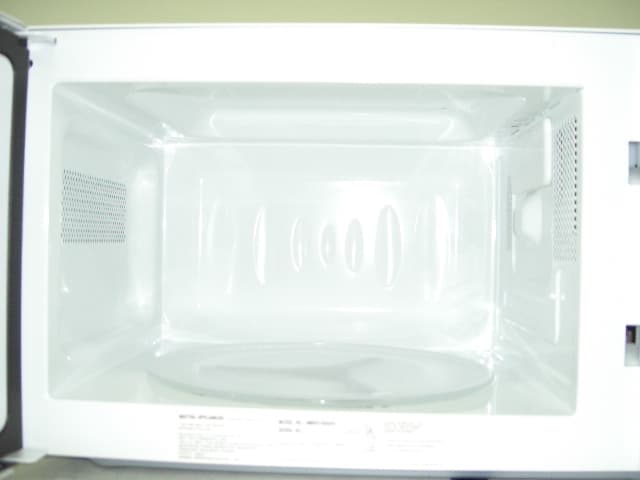

Test Report No.: 05-LAE-M083 FCC Part 18 (ISM) Test Date: April 18, 2005 Certification 30 / 34 LG Electronics Inc. FCC ID: BEJS074MKA APPENDIX E. EUT Photos Test Report No.: 05-LAE-M083 FCC Part 18 (ISM) Test Date: April 18, 2005 Certification 31 / 34 LG Electronics Inc. FCC ID: BEJS074MKA

Test Report No.: 05-LAE-M083 FCC Part 18 (ISM) Test Date: April 18, 2005 Certification 27 / 34 LG Electronics Inc. FCC ID: BEJS074MKA APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 9.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJS074MKA MADE IN KOREA LISTE D 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MS-0743G CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 05-LAE-M083 FCC Part 18 (ISM) Test Date: April 18, 2005 Certification 32 / 34 LG Electronics Inc. FCC ID: BEJS074MKA Test Report No.: 05-LAE-M083 FCC Part 18 (ISM) Test Date: April 18, 2005 Certification 33 / 34 LG Electronics Inc. FCC ID: BEJS074MKA

Test Report No.: 05-LAE-M083 FCC Part 18 (ISM) Test Date: April 18, 2005 Certification 28 / 34 LG Electronics Inc. FCC ID: BEJS074MKA APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: April 18, 2005 Test Report No: 05-LAE-M083 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M213 (LG Electronics Inc.) 2M288 (LG Electronics Inc.) Brand Name(s): LG, GE or Sunbeam Model No.: MS-0743G FCC ID: BEJS074MKA This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M083 FCC Part 18 (ISM) Test Date: April 18, 2005 Certification 1 / 34 LG Electronics Inc. FCC ID: BEJS074MKA REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MS-0743G FCC ID: BEJS074MKA Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: March 14, 2005 – April 15, 2005 Date of Issue: April 18, 2005 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical elec- trical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kwang M. Son / Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M083 FCC Part 18 (ISM) Test Date: April 18, 2005 Certification 2 / 34 LG Electronics Inc. FCC ID: BEJS074MKA CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 R ADIATED EMISSIONS MEASUREMENT............................................................................................................ 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 I NPUT POWER............................................................................................................................................... 10 7.2 RF P OWER OUTPUT MEASUREMENT ACCORDING TO MP5. .......................................................................... 11 7.3 RF P OWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705.................................................................. 12 7.4 F REQUENCY MEASUREMENTS....................................................................................................................... 13 7.5 P OWER D ENSITY S AFETY C HECK .................................................................................................................. 15 7.6 C ONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 16 7.7 R ADIATED EMISSIONS (SECTION 18.305) ...................................................................................................... 17 APPENDIX A. TEST PLOT ............................................................................................................................... 19 APPENDIX B. LABELING REQUIREMENTS...............................................................................................27 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 28 APPENDIX D. TEST PHOTOS.......................................................................................................................... 29 APPENDIX E. EUT PHOTOS............................................................................................................................ 30 APPENDIX F. OWNER’…

Text truncated - open the document above for the full version.

Test Report No.: 05-LAE-M083 FCC Part 18 (ISM) Test Date: April 18, 2005 Certification 29 / 34 LG Electronics Inc. FCC ID: BEJS074MKA APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
