BEJS112XHMicrowave Oven

Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 30 / 30 LG Electronics Inc.FCC ID: BEJS112XH APPENDIX F. Owner’s Manual with regard to FCC Instruction

Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 26 / 30 LG Electronics Inc.FCC ID: BEJS112XH APPENDIX E. EUT Photos Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 27 / 30 LG Electronics Inc.FCC ID: BEJS112XH

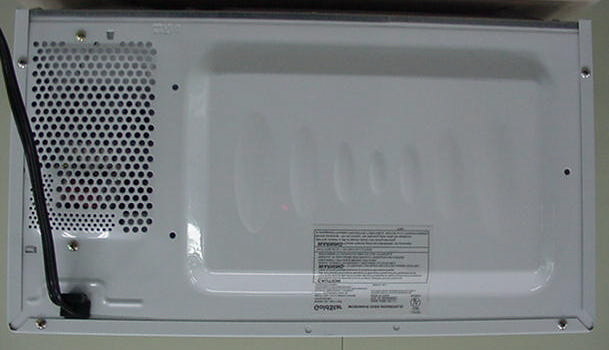

Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 22 / 30 LG Electronics Inc.FCC ID: BEJS112XH APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> GoldStar INPUT 120V 13.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: LT FCC ID : BEJS112XH MADE IN CHNIA CAUTION LISTED 57B5 U L R This Device is to be Serviced Only by Properly Qualified Service Personnel. Consult the Service Manual for Proper Service Procedures to Assure Continued Compliance with the Federal Performance Standard for Microwave Ovens and for Precautions to be Taken to Avoid Possible Exposure to Excessive Microwave Energy . WARNING- TO PROVIDE CONTINUED PROTECTION AGAINST ELECTRIC SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY . • DISCONNECT APPLIANCE BEFORE SERVICING . • REMOVAL OF ENCLOSURE WITH PRODUCT ENERGIZED MAY EXPOSE • SERVICEMAN TO HAZARDOUS HIGH VOLTAGE POTENTIALS Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel - Do not contact the following parts while the appliance is energized(If Provided FAN MOTOR,TURNTABLE MOTOR or LV.TRANSFORMER). MICROWAVE OVEN (HOUSEHOLD) DISTRIBUTED BY LG ELECTRONICES INC. 20,YOIDO-DONG,YOUNGDUNGPO-GU,SEOUL MODEL NO.: MS-112XE CATALOG NO. NOT FOR BUILT-IN INSTALLATION SERIAL NO.: MANUFACTURED : P/NO.: WARNING- E82904 * Alternate location: The nameplate may be alternatively affixed on the front surface of oven cavity or left side of control panel.

Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 28 / 30 LG Electronics Inc.FCC ID: BEJS112XH Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 29 / 30 LG Electronics Inc.FCC ID: BEJS112XH

Test Report No.: 01-LAE-M056FCC Part 18 (ISM) Test Date: Mar. 08, 2001Certification 17 / 24 LG Electronics Inc.FCC ID: BEJS112MH APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue : February 22, 2001Test Report No: 01-LAE-M028 Test Site: LG Electronics Changwon EMC Center Applicant:LG Electronics Inc. Regulation:FCC Part 18 – ISM Consumer Device Test Procedure:MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type:Microwave oven Magnetron Type:2M246 (LG Electronics Inc.) 2M248J (Toshiba Hokuto Electronics Corp.) Brand Name(s):Goldstar or LG Model No.:MS-112XE FCC ID:BEJS112XH This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Senior Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 1 / 30 LG Electronics Inc.FCC ID: BEJS112XH REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. EUT Type: Microwave oven Model No.: MS-112XE FCC ID:BEJS112XH Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: Feb. 03, - Feb. 12, 2001 Date of Issue : Feb. 22, 2001 Test Result:Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Dong H. Kim / Associate Research EngineerKwan Y. Sung / Senior Engineer Digital Appliance Company, EMC CenterDigital Appliance Company, EMC Center LG Electronics Inc.LG Electronics Inc. Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 2 / 30 LG Electronics Inc.FCC ID: BEJS112XH CONTENTS Page 1. CLIENT INFORMATION......................................................................................................................................................3 2. EQUIPMENT UNDER TEST (EUT)......................................................................................................................................3 3. TEST SITE...............................................................................................................................................................................4 4. CALIBRATIONS OF MEASURING INSTRUMENT.......................................................................................................4 5. DESCRIPTION OF TEST CONDITION............................................................................................................................4 5.1 RADIATED EMISSIONS MEASUREMENT........................................................................................................................4 6. MEASURING INSTRUMENT...............................................................................................................................................8 7. TEST DATA.............................................................................................................................................................................9 7.1 INPUT POWER...................................................................................................................................................................9 7.2 RF POWER OUTPUT MEASUREMENT.........................................................................................................................10 7-3. FREQUENCY MEASUREMENTS....................................................................................................................................11 7-4. POWER DENSITY SAFETY CHECK..............................................................................................................................13 7-5. RADIATED EMISSIONS (SECTION 18.305)..................................................................................................................14 APPENDIX A. TEST PLOT...................................................................................................................................................16 APPENDIX B. LABELING REQUIREMENTS....................................................................................................................22 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS.......................................................................................................23 APPENDIX D. TEST PHOTOS.............................................................................................................................................24 APPENDIX E. EUT PHOTOS................................................................................................................................................26 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FCC INSTRUCTION......................................................30 Test Report No.…

Text truncated - open the document above for the full version.

Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 24 / 30 LG Electronics Inc.FCC ID: BEJS112XH APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. Test Report No.: 01-LAE-M028FCC Part 18 (ISM) Test Date: Feb. 22, 2001Certification 25 / 30 LG Electronics Inc.FCC ID: BEJS112XH
