BEJS124ZHMW Oven

MS-124ZK MICROWAVE OVEN OWNER'S MANUAL & COOKING GUIDE PLEASE READ THIS OWNER'S MANUAL THOROUGHLY BEFORE OPERATING. website:http://www.lgservice.com e-mail: http://www.lgeservice.com/techsup.html - 2 - Please record the model number and serial number of this unit for future reference. We also suggest you record the details of your contact with Goldstar (LG Electronics U.S.A., Inc.) concerning this unit. Staple your Receipt here to prove your retail purchase. Model No: Serial No: Dealer: Dealer Phone No: Customer Relations LG Electronics U.S.A., Inc. Service Division Bldg. #3 201 James Record Rd. Huntsville, AL 35824-0126 (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Thank you for purchasing a Goldstar microwave oven TECHNICAL SPECIFICATIONS3 IMPORTANT SAFETY INSTRUCTIONS4 INSTALLATION5 INTRODUCTION6 CONTROL PANEL9 FEATURE DIAGRAM9 OPERATING INSTRUCTIONS10 SETTING TIME OF DAY TIMED COOKING Ez On TIMER CHILD LOCK ONE TOUCH CONTROL ONE TOUCH CONTROL CHART MICROWAVE POWER LEVELS Q-DEFROST AUTO DEFROST OTHER HELPFUL INSTRUCTIONS15 CARE OF YOUR MICROWAVE OVEN16 PRECAUTIONS16 QUESTIONS AND ANSWERS17 COOKING GUIDES18 VEGETABLE COOKING CHART20 REHEATING CHART21 CLEANING22 BEFORE CALLING FOR SERVICE22 WARRANTY Inside back cover - 3 - TABLE OF CONTENTS TECHNICAL SPECIFICATIONS * IEC 60705 RATING STANDARDSpecifications subject to change without prior notice. Power Supply120V AC, 60Hz Rated Power Consumption1530W Microwave Output1200W Frequency2,450MHz Rated Current13.3A Overall Dimensions (WXHXD)20 3 /19"✕11 17 /20"✕16 21 /46" Oven Cavity Dimensions (WXHXD)14 13 /75"✕9 10 /27"✕15" Effective Capacity of Oven Cavity1.2 Cu.ft. MS-124ZK - 4 - IMPORTANT SAFETY INSTRUCTIONS WARNING– To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY"found on page 2 of this manual. 3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS"found on page 5 of this manual . 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers–for example, closed glass jars–may explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surfaces. 14. Do not let cord hang over edge of table or counter. 15. Either - (a) When cleaning surfaces of door and oven that come together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth; or when separate cleaning instructions apply, (b) See door surface cleaning instructions on(specific page or section to be included). 16. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven should ignite, KEEP OVEN DOOR CLOSED, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 17. a. Do not operate any heating or cooking appliance beneath this appliance. b. Do not mount unit over or near any portion of a heating or cooking appliance. c. Do not mount over a sink. d. Do not store anything directly on top of the appliance surface when appliance is in operation. 18. Do not heat any type of baby bottles or baby food. Uneven heating may occur and could cause personal injury. 19. Avoid using corrosive and vapors, such as sulfide and chloride. 20. Liquids heated in certain shaped containers (especially cylindrical-shaped containers) may become overheated. The liquid may splash out with a loud noise during or after heating or when adding ingredients (instant coffee, etc.), resulting in harm to the oven and possible injury. In all containers, for best results, stir the liquid several times before heating. Always stir liquid several times between reheatings. SAVE THESE INSTRUCTIONS A. GROUNDING INSTRUCTIONS For personal safety, this appliance must be properly grounded. In the even…

Text truncated - open the document above for the full version.

Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification LG Electronics Inc.FCC ID: BEJS124ZH APPENDIX C. Block Diagram Model No.:MS-124ZK FCC ID:BEJS124ZH

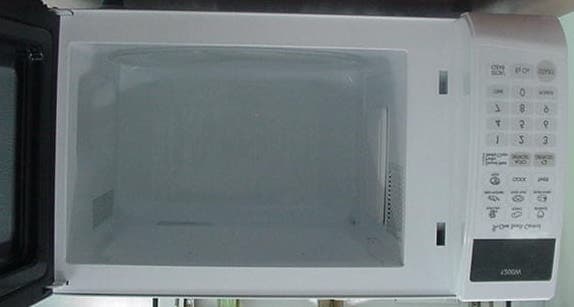

Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification LG Electronics Inc.FCC ID: BEJS124ZH APPENDIX E. EUT Photos Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification LG Electronics Inc.FCC ID: BEJS124ZH

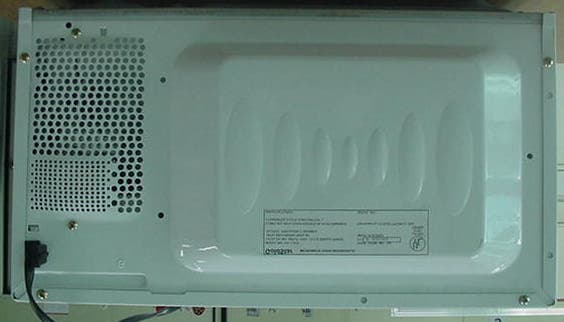

Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification LG Electronics Inc.FCC ID: BEJS124ZH APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> * Alternate location: The nameplate may be alternatively affixed on the front surface of oven cavity, left side of control panel or internal surface of oven cavity GoldStar INPUT 120V 13.3 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJS124ZH MADE IN KOREA LISTED 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MS-124ZK CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG ELECTRONICS Inc.

Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification LG Electronics Inc.FCC ID: BEJS124ZH Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification LG Electronics Inc.FCC ID: BEJS124ZH

FCC ID: BEJS174ZH FCC Part 18 (ISM) LG Electronics Inc. Schematic Diagram <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue : February 19, 2002Test Report No: 02-LAE-M042 Test Site: LG Electronics Changwon EMC Center Applicant:LG Electronics Inc. Regulation:FCC Part 18 – ISM Consumer Device Test Procedure:MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type:Microwave oven Magnetron Type:2M248J (Toshiba Hokuto Electronics Corp.) Brand Name(s):Goldstar or LG Model No.:MS-124ZK FCC ID:BEJS124ZH This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification 1 / 24 LG Electronics Inc.FCC ID: BEJS124ZH REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. EUT Type: Microwave oven Model No.: MS-124ZK FCC ID:BEJS124ZH Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: Jan. 21, 2001 - Feb. 05, 2002 Date of Issue : Feb. 19, 2002 Test Result:Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Dong H. Kim / Research EngineerKwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC CenterDigital Appliance Company, EMC Center LG Electronics Inc.LG Electronics Inc. Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification 2 / 24 LG Electronics Inc.FCC ID: BEJS124ZH CONTENTS Page 1. CLIENT INFORMATION..............................................................................................................................................3 2. EQUIPMENT UNDER TEST (EUT)..............................................................................................................................3 3. TEST SITE.......................................................................................................................................................................4 4. CALIBRATIONS OF MEASURING INSTRUMENT...............................................................................................4 5. DESCRIPTION OF TEST CONDITION....................................................................................................................4 5.1 RADIATED EMISSIONS MEASUREMENT................................................................................................................4 6. MEASURING INSTRUMENT.......................................................................................................................................8 7. TEST DATA.....................................................................................................................................................................9 7.1 INPUT POWER...........................................................................................................................................................9 7.2 RF POWER OUTPUT MEASUREMENT...................................................................................................................9 7-3. FREQUENCY MEASUREMENTS............................................................................................................................10 7-4. POWER DENSITY SAFETY CHECK......................................................................................................................11 7-5. RADIATED EMISSIONS (SECTION 18.305)..........................................................................................................12 APPENDIX A. TEST PLOT............................................................................................................................................13 APPENDIX B. LABELING REQUIREMENTS.............................................................................................................16 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS................................................................................................17 APPENDIX D. TEST PHOTOS......................................................................................................................................18 APPENDIX E. EUT PHOTOS.........................................................................................................................................20 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FCC INSTRUCTION...............................................24 Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification 3 / 24 LG Electronics Inc.FCC ID: BEJS124ZH 1. CLIENT INFORMATION The EUT has been tested by request o…

Text truncated - open the document above for the full version.

Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification LG Electronics Inc.FCC ID: BEJS124ZH APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. Test Report No.: 02-LAE-M042FCC Part 18 (ISM) Test Date: Feb. 19, 2002Certification LG Electronics Inc.FCC ID: BEJS124ZH
