ENGLISH ESPAÑOL Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com Models/Modelos 721.62252 721.62253 721.62259 MICROWAVE OVEN Use and Care Guide HORNO DE MICROONDAS Manual de Uso y Cuidado P/NO.: 3828W5A2593 2 ENGLISH TABLE OF CONTENTS WARRANTY ......................................................... 2 SAFETY ............................................................ 3-4 Precautions To Avoid Possible Exposure To Excessive Microwave Energy ........................ 3 Grounding Instructions........................................ 3 Important Safety Instructions .............................. 4 UNDERSTANDING YOUR MICROWAVE OVEN ......................................... 5-8 Specifications...................................................... 5 Installation........................................................... 5 Parts And Accessories ........................................ 6 Control Panel ...................................................... 6 Cookware Guide ................................................. 7 Tips For Microwave Cooking .............................. 8 Cleaning.............................................................. 8 USING YOUR MICROWAVE OVEN ............... 9-18 Clock ................................................................... 9 Kitchen Timer...................................................... 9 Child Lock ........................................................... 9 Quick Touch Sensor Operation Instruction ....... 10 Potato ............................................................... 10 Quick Touch Sensor Table ................................ 11 Reheat............................................................... 11 Reheat Table ..................................................... 11 Auto Cook ......................................................... 12 Auto Cook Table ............................................... 12 Add Minute........................................................ 12 Option ............................................................... 13 Option Function Table....................................... 13 Auto Defrost...................................................... 14 Express Defrost ................................................ 14 Auto Defrost Table ............................................ 15 Timed Cooking.................................................. 15 Multi-Stage Cooking ......................................... 16 Microwave Power Levels .................................. 16 Cooking Tips................................................ 17-18 TROUBLESHOOTING .................................. 19-21 Questions And Answers .............................. 19-20 Before Calling For Service................................ 21 Master Protection Agreements ......................... 44 WARRANTY FULL ONE-YEAR WARRANTY ON MICROWAVE OVEN For one year from the date of purchase, if this Kenmore microwave oven fails due to a defect in material or workmanship, Sears will repair it free of charge. FULL FIVE-YEAR WARRANTY ON THE MAGNETRON For five years from the date of purchase, if the magnetron in this Kenmore microwave oven fails due to a defect in material or workmanship, Sears will repair it free of charge. WARRANTY SERVICE For warranty service, return the microwave to your nearest Sears Parts & Repair Center in the United States. For the location of your nearest Sears Parts & Repair Center, call 1-800-4-MY-HOME®. This warranty applies only while this product is in use in the United States. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL. 60179 U.S.A. ENGLISH 3 SAFETY • Do not attempt to operate this oven with the door open, since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlock. • Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: – door (bent) – hinges and latches (broken or loosened) – door seals and sealing surfaces. • Do not place any object between the oven front face and the door, or allow soil or cleaner residue to accumulate on sealing surfaces. • The oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ... GROUNDING INSTRUCTIONS This appliance must be grounded! If an electrical short circuit occurs, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. Put the plug into an outlet that is properly installed and grounded. WARNING If you use the grounding plug improperly, you risk electric shock. Ask a qualified electrician or the Sears Service Department if you do not understand the grounding instructions or if you wonder whether the appliance is properly grounded. This appliance has a short power supply cord to reduce the risk of anyone’s tripping over or becoming entangled in the cord. You may use an extension cord if you are careful. If you use an extension cord, be sure that: NOTE: This oven draws 14 amperes at 120 Volts, 60 Hz. • The extension cord has the same electrical rating as the appliance. • The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance. • The extension cord is a grounding-type 3-wire cord. • The extension cord does not drape over a countertop or tabletop, where it can be pulled on by children or tripped over accidentally. • The electrical cord is dry and not pinched or crushed in any way. 4 ENGLISH SAFETY IMPORTANT SAFETY INSTRUCTIONS The safety instructions below will tell you how to use your oven to avoid harm to yourself or damage to your oven. WARNING –To reduce the risk of burns, e…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M077 6660-B Dobbin Road Date: April 7, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS124ZHA Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJS124ZHA 2. Model no.: MS-1242KSZ (RF Power Output – IEC705: 1,200 W) 3. Magnetron: 2M246 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-1242KSZ with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M077 Authorization and Standards Branch Date: April 7, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS124ZHA Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJS124ZHA 2. Model no.: MS-1242KSZ (RF Power Output – IEC705: 1,200 W) 3. Magnetron: 2M246 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-1242KSZ with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

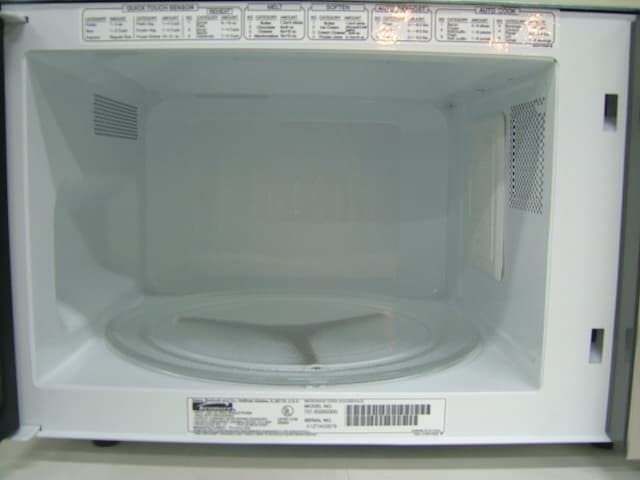

Test Report No.: 05-LAE-M077 FCC Part 18 (ISM) Test Date: April 7, 2005 Certification 23 / 27 LG Electronics Inc. FCC ID: BEJS124ZHA APPENDIX E. EUT Photos Test Report No.: 05-LAE-M077 FCC Part 18 (ISM) Test Date: April 7, 2005 Certification 24 / 27 LG Electronics Inc. FCC ID: BEJS124ZHA

Test Report No.: 05-LAE-M077 FCC Part 18 (ISM) Test Date: April 7, 2005 Certification 20 / 27 LG Electronics Inc. FCC ID: BEJS124ZHA APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 13.3 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJS124ZHA MADE IN KOREA LISTE D 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MS-1242KSZ CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 05-LAE-M077 FCC Part 18 (ISM) Test Date: April 7, 2005 Certification 25 / 27 LG Electronics Inc. FCC ID: BEJS124ZHA Test Report No.: 05-LAE-M077 FCC Part 18 (ISM) Test Date: April 7, 2005 Certification 26 / 27 LG Electronics Inc. FCC ID: BEJS124ZHA

Test Report No.: 05-LAE-M077 FCC Part 18 (ISM) Test Date: April 7, 2005 Certification 21 / 27 LG Electronics Inc. FCC ID: BEJS124ZHA APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

Test Report No.: 05-LAE-M077 FCC Part 18 (ISM) Test Date: April 7, 2005 Certification 22 / 27 LG Electronics Inc. FCC ID: BEJS124ZHA APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
