BEJS142XOMicrowave Oven

Statement for Interference FCC ID : BEJS142XO

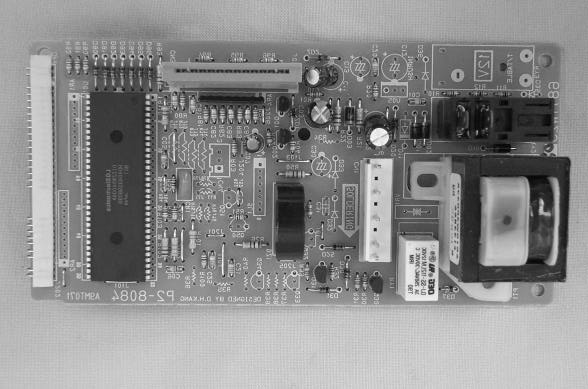

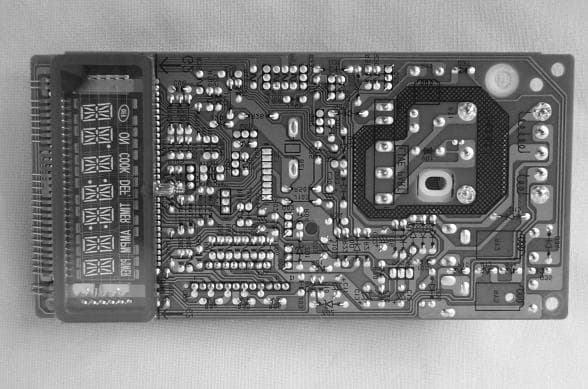

The EUT Photographs EXTERNAL VIEW FCC ID : BEJS142XO INTERNAL VIEW FCC ID : BEJS142XO PCB VIEW FCC ID : BEJS142XO

LABEL FCC ID : BEJS142XO Label Location GoldStar INPUT 120V 13.6 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID : BEJS142XO MADE IN KOREA CAUTION LISTED 57B5 U L R This Device is to be Serviced Only by Properly Qualified Service Personnel. Consult the Service Manual for Proper Service Procedures to Assure Continued Compliance with the Federal Performance Standard for Microwave Ovens and for Precautions to be Taken to Avoid Possible Exposure to Excessive Microwave Energy . WARNING- TO PROVIDE CONTINUED PROTECTION AGAINST ELECTRIC SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY . •DISCONNECT APPLIANCE BEFORE SERVICING . REMOVAL OF ENCLOSURE WITH PRODUCT ENERGIZED MAY EXPOSE SERVICEMAN TO HAZARDOUS HIGH VOLTAGE POTENTIALS Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel - Do not contact the following parts while the appliance is energized(If Provided FAN MOTOR,TURNTABLE MOTOR or LV.TRANSFORMER). MICROWAVE OVEN (HOUSEHOLD) DISTRIBUTED BY LG ELECTRONICES INC. 20,YOIDO-DONG,YOUNGDUNGPO-GU,SEOUL MODEL NO. MA-1417W CATALOG NO. NOT FOR BUILT-IN INSTALLATION SERIAL NO.:MANUFACTURED : P/NO.:4140W3A446K WARNING-

Schematic Diagram FCC ID : BEJS142XO MICOM CONTROLLER FUSE BKBK BN BK RD YL PRIMARY SWITCH WHWH THERMOSTAT SECONDARY SWITCH 1 3 5 6 PT1 RY2 RY1 CN1 O.LF.MT.M MONITOR SWITCH BK BK WHWHBL PK GN GN FAN MOTOROVEN LAMP H.V.TRANS H.V. CAPACITOR MAGNETRON H.V.DIODE L N AC 120V 60Hz Model No : MS-144YE Alternate One Model No : MS-144YE

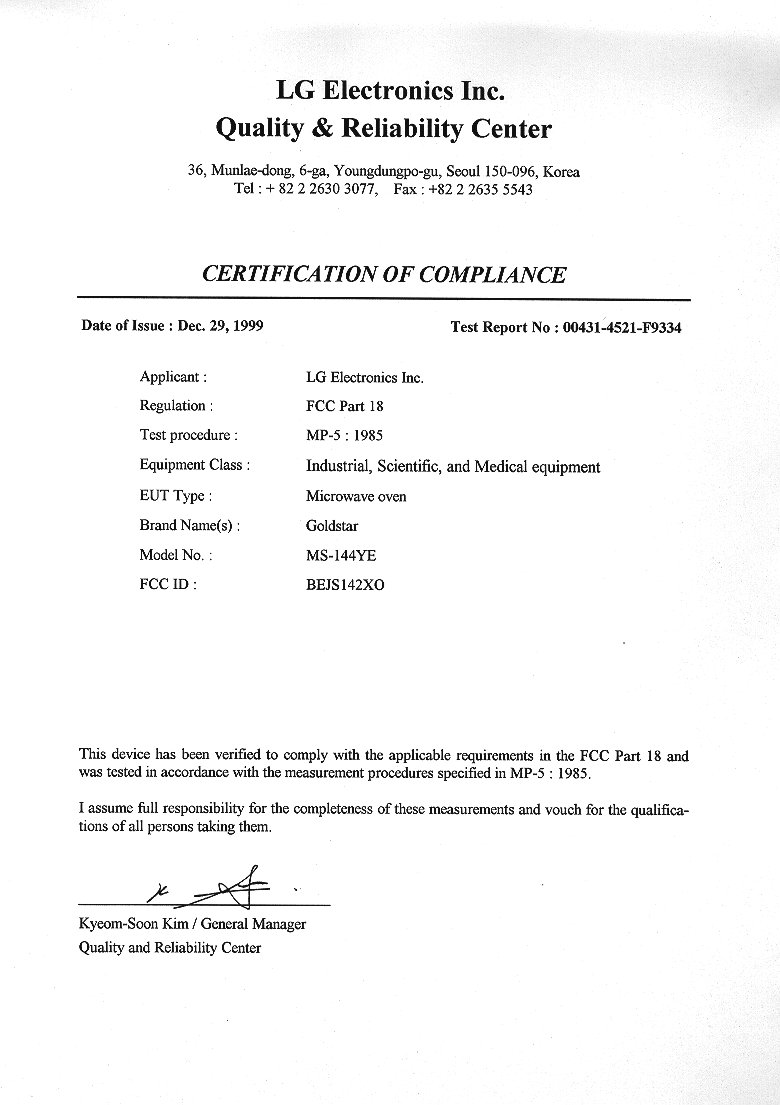

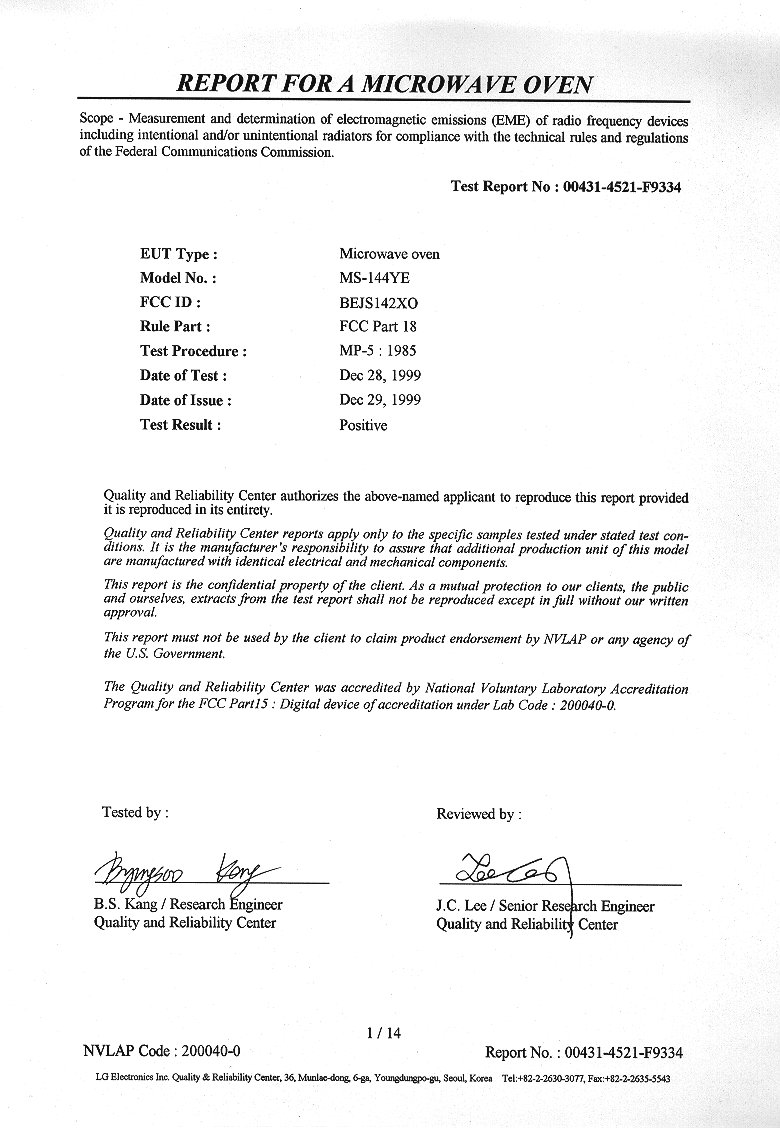

LG Electronics Inc. Quality & Reliability Center 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul 150-096, Korea Tel : + 82 2 2630 3077, Fax : +82 2 2635 5543 CERTIFICATION OF COMPLIANCE Date of Issue : Dec. 29, 1999Test Report No : 00431-4521- F9334 Applicant :LG Electronics Inc. Regulation :FCC Part 18 Test procedure :MP-5 : 1985 Equipment Class : Industrial, Scientific, and Medical equipment EUT Type :Microwave oven Brand Name(s) :Goldstar Model No. :MS-144YE FCC ID :BEJS142XO This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5 : 1985. I assume full responsibility for the completeness of these measurements and vouch for the qualifi- cations of all persons taking them. Kyeom-Soon Kim / General Manager Quality and Reliability Center 1 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F9334 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including inten- tional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communica- tions Commission. Test Report No : 00431-4521- F9334 EUT Type : Microwave oven Model No. : MS-144YE FCC ID :BEJS142XO Rule Part : FCC Part 18 Test Procedure : MP-5 : 1985 Date of Test : Dec 28, 1999 Date of Issue : Dec 29, 1999 Test Result :Positive Quality and Reliability Center authorizes the above-named applicant to reproduce this report provided it is repro- duced in its entirety. Quality and Reliability Center reports apply only to the specific samples tested under stated test condi- tions. It is the manufacturer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. The Quality and Reliability Center was accredited by National Voluntary Laboratory Accreditation Program for the FCC Part15 : Digital device of accreditation under Lab Code : 200040-0. Tested by : Reviewed by : B.S. Kang / Research Engineer J.C. Lee / Senior Research Engineer Quality and Reliability Center Quality and Reliability Center 2 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F9334 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 CONTENTS Page 1. CLIENT INFORMATION..............................................................................................................................................3 2. EQUIPMENT UNDER TEST (EUT)..............................................................................................................................3 2.1 IDENTIFICATION OF THE EUT...............................................................................................................................3 2.2 ADDITIONAL INFORMATION ABOUT THE EUT..................................................................................................3 3. TEST SITE.......................................................................................................................................................................4 3.1 SEMI-ANECHOIC CHAMBER.....................................................................................................................................4 4. CALIBRATIONS OF MEASURING INSTRUMENTS.............................................................................................4 5. DESCRIPTION OF TEST CONDITION....................................................................................................................4 5.1 RADIATED EMISSIONS MEASUREMENTS...............................................................................................................4 6. MEASURING INSTRUMENTS AND SET-UP...........................................................................................................6 6.1 RADIATED EMISSIONS..............................................................................................................................................6 6.2 FREQUENCY MEASUREMENTS................................................................................................................................6 7. RF POWER OUTPUT MEASUREMENT AND RESULTS......................................................................................7 8. TEST DATA.....................................................................................................................................................................8 8-1. RADIATED EMISSIONS (SECTION 18.305).............................................................................................................8 8-2. FREQUENCY MEASUREMENTS..............................................................................................................................9 9. LIST OF INSTRUMENTS USED...............................................................................................................................10 APPENDIX A THE TEST GRAPH...............................................................................................................................11 APPENDIX B THE PHOTOGRAPHS OF TEST SET-UP.......................................................................................14 3 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F9334 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-263…

Text truncated - open the document above for the full version.

Specification FCC ID : BEJS142XO 1Equipment ClassISM Consumer Device, Part 18 2Equipment nameMicrowave Oven 3Trade NameGoldstar 4Model Number MS-144YE 5FCC IDBEJS142XO 6Serial number & Manufacturer DateProto-Type (Not Produced yet) 7Date of Original GrantOriginal Model 8Rated RF Power Output1150W 9Rated Power Consumption1550W 10Rated Current13.6A 11Overall Dimensions (W*H*D) mm556 x 320 x 438 12Cavity Dimensions (W*H*D) mm376 x 251 x 405 13Cavity Volume1.4 Cu.ft. 14Magnetron2M248J (Toshiba) 15Mode of StirrerTurntable 16Measurement FacilityLG 17Frequency Range in MHz2450 ±50 MHz 18Household Use
