BEJS181XFAMicrowave Oven

Microwave Oven Important Safety Information . . . . . . 2–11 Grounding Instructions . . . . . . . . 9 Operating Instructions . . . . . 14–28 Features . . . . . . . . 12, 29 Care and Cleaning . . . . . . . . 30–31 Troubleshooting . .32–33 Consumer Services Warranty & Service . . .34–36 GLMB186 PLMB186 Getting Started . . . . .13 READ AND SAVE THESE INSTRUCTIONS P/N 316137204 Rev. A 06-03 JR 49-40359 v06 6/24/03 4:35 PM Page 1 3828W5A3544 2 Before you call for service, there are a few things you can do to help us serve you better. Read this manual. It contains instructions to help you use and maintain your microwave properly. If you received a damaged oven...immediately contact the dealer (or builder) that sold you the oven. Save time and money. Check the section titled “Troubleshooting” before calling. This section helps you solve common problems that might occur. If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customer service numbers is included in the back of this manual. Or call Frigidaire Consumer Services at 1-800-944-9044, 24 hours a day, 7 days a week. NEED HELP?Help us, help you: 1-800-944-9044. Visit the Frigidaire Web Site at: http://www.frigidaire.com IMPORTANT SAFETY INFORMATION READ ALL INFORMATION BEFORE USING Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do Not Placeany object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. Do Not Operatethe oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: 1.door (bent), 2.hinges and latches (broken or loosened), 3.door seals and sealing surfaces. The Oven Should Notbe adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life. 49-40359 v06 6/24/03 4:35 PM Page 2 To reduce the risk of fire, burns, electric shock, injury to persons, or exposure to excessive microwave energy when using your appliance, follow basic precautions, including the following sections. •Read and follow the specific“Precautions to Avoid Possible Exposure to Excessive Microwave Energy” on page 2. •This appliance must be grounded. Connect only to properly grounded outlet. See Grounding Instructions section on page 9. •Do not mount this appliance over a sink. •Install or locate this appliance only in accordance with the provided Installation Instructions. •Be certain to place the front surface of the door three inches or more back from the countertop edge to avoid accidental tipping of the appliance in normal usage. •Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. •Do not cover or block any openings on the appliance. •Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. SAFETY PRECAUTIONS 3 When using electrical appliances basic safety precautions should be followed, including the following: IMPORTANT SAFETY INFORMATION 49-40359 v06 6/24/03 4:36 PM Page 3 •This microwave oven is not approved or tested for marine use. •Do not store this appliance outdoors. Do not use this product near water— for example, in a wet basement, near a swimming pool, near a sink or in similar locations. •Keep power cord away from heated surfaces. •Do not immerse power cord or plug in water. •See door surface cleaning instructions in the Care and Cleaning section(s) of this manual. •This appliance must only be serviced by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. •As with any appliance, close supervision is necessary when used by children. •Do not mount the microwave oven over or near any portion of a heating or cooking appliance. •Do not store anything directly on top of the microwave oven surface when the microwave oven is in operation. •Do not let power cord hang over edge of table or counter. •To reduce the risk of fire in the oven cavity: — Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven while cooking. — Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. — Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. — If materials inside the oven ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. — Do not use the Sensor Features twice in succession on the same food portion. If food is undercooked after the first countdown, use Cook Time for additional cooking time. SAVE THESE INSTRUCTIONS. 4 IMPORTANT SAFETY INFORMATION READ ALL INFORMATION BEFORE USING 49-40359 v06 6/24/03 4:36 PM Page 4 Arcing is the microwave term for sparks in the oven. Arcing is caused by: •Metal or foil touching the side of the oven. •Foil not molded to food (upturned edges act like antennas). •Metal, such as twist-ties, poultry pins, or gold-rimmed dishes, in the microwave. •Recycled paper towels containing small metal pieces being used in the microwave. Arcing •Do not pop popcorn in your microwave oven unless in a special microwave popcorn accessory or unless you use popcorn labeled for use in microwave ovens. •Some products such as whole eggs and…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M078 6660-B Dobbin Road Date: April 7, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS181XFA Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJS181XFA 2. Application Model no.: MS-184SJ (RF Power Output – IEC705: 1200 W) 3. Magnetron: 2M246 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-184SJ with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M078 Authorization and Standards Branch Date: April 7, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS181XFA Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. Granted FCC ID: BEJS181XFA 2. Application Model no.: MS-184SJ (RF Power Output – IEC705: 1200 W) 3. Magnetron: 2M246 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-184SJ with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

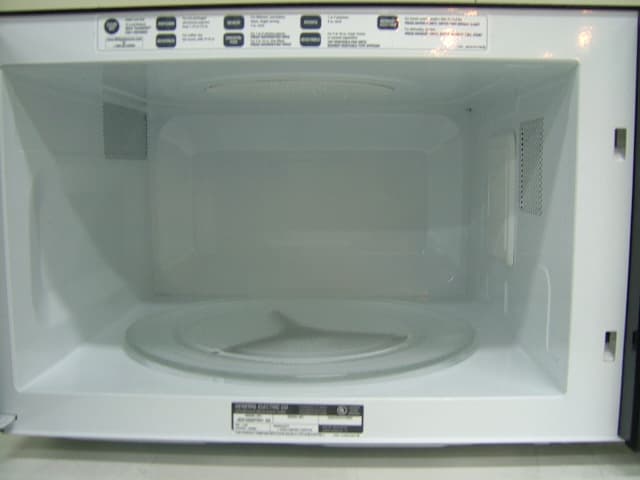

APPENDIX E. EUT Photos

APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 13.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJS181XFA MADE IN KOREA LISTE D 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MS-184SJ CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: April 7, 2005 Test Report No: 05-LAE-M078 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M246 (LG Electronics Inc.) Brand Name(s): LG Model No.: MS-184SJ FCC ID: BEJS181XFA This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MS-184SJ FCC ID: BEJS181XFA Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: March 14, 2005 – March 30, 2005 Date of Issue: April 7, 2005 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kwang M. Son / Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 4 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 4 3. TEST SITE.......................................................................................................................................................... 5 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 5 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 5 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS..................................................................................... 5 5.2 R ADIATED EMISSIONS MEASUREMENT............................................................................................................ 6 6. MEASURING INSTRUMENT ....................................................................................................................... 10 7. TEST DATA ..................................................................................................................................................... 11 7.1 I NPUT POWER............................................................................................................................................... 11 7.2 RF P OWER OUTPUT MEASUREMENT............................................................................................................. 11 7-3. F REQUENCY MEASUREMENTS ...................................................................................................................... 12 7-4. P OWER DENSITY SAFETY CHECK................................................................................................................ 13 7-5. C ONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................. 13 7-6. R ADIATED EMISSIONS (SECTION 18.305) ..................................................................................................... 14 APPENDIX A. TEST PLOT ............................................................................................................................... 15 APPENDIX B. LABELING REQUIREMENTS ...............................................................................................19 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 20 APPENDIX D. TEST PHOTOS.......................................................................................................................... 21 APPENDIX E. EUT PHOTOS ............................................................................................................................ 22 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FCC INSTRUCTION..................................... 26 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Cooking Appliances Division (Manufacturer) 391-2, Ga Eum Jeong - Dong, Changwon City, Gyeong Nam, 641-711, Korea 2. LG Electronics Tianjin Appliance Co., Ltd. Xing Dian Road, Bei Chen Distr., Tianjin 300402, People’s Republic of China Name of contact:Jan…

Text truncated - open the document above for the full version.

APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
