BEJS184TVAMicrowave Oven

LMV1831ST LMV1831SW LMV1831SB MFL06317608 - 2 - Please record the model number and serial number of this unit for future reference. We also suggest you record the details of your contact with LG (LG Electronics U.S.A., Inc.) concerning this unit. Staple your receipt here as proof of purchase. Model No: Serial No: Dealer: Dealer Phone No: Customer Relations LG Electronics U.S.A., Inc. Service Division Bldg. #3 201 James Record Rd. Huntsville, AL 35824-0126 Thank you for purchasing a LG microwave oven. (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY... - 3 - TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.............................................................. 2 TABLE OF CONTENTS ...................................... 3 SAFETY............................................................... 4 Important Safety Instructions ............................ 4 INFORMATION........................................................ 6 Location of Model Number .................................... 6 Oven Specifications .............................................. 6 Electrical Rating .................................................... 6 Electrical Requirements ........................................ 6 Grounding Instructions .......................................... 6 Microwave Oven Features .................................... 7 Oven Control Panel............................................... 8 OPERATION............................................................10 LEARN ABOUT YOUR MICROWAVE OVEN......10 Audible Signals...................................................10 Clock...................................................................10 Interrupting Cooking............................................10 Child Lock...........................................................10 Cooktop Light......................................................11 Time Defrost.......................................................11 Timed Cooking...................................................12 Multi-stage Cooking............................................12 Microwave Power Levels...................................1 Auto Defrost........................................................1 Operating Tips....................................................1 Defrosting Tips...................................................1 Using Quick Touch.............................................1 Popcorn..............................................................1 Pizza ..................................................................1 Frozen Entree.....................................................1 Potato ................................................................1 Auto Cook...........................................................1 Cooking Guide for Auto Cook.............................1 Auto Reheat........................................................1 Cooking Guide for Auto Reheat..........................1 COOKING ................................................................ GETTING THE BEST COOKING RESULTS ....... FISH & SHELLFISH ............................................. Cooking Fish and Shellfish: General Directions........ Fish And Shellfish Cooking Table ...................... APPETIZERS / SAUCES / SOUPS ......................2 Cooking Appetizers: Tips and Techniques.........2 MEAT ....................................................................2 Cooking Meat: General Directions .....................2 Meat Cooking Table ...........................................2 POULTRY .............................................................2 Cooking Poultry: General Directions ..................2 Poultry Cooking Table........................................2 PASTA AND RICE................................................2 Cooking Pasta and Rice: Tips and Techniques.........2 Pasta Cooking Table..........................................2 Rice Cooking Table............................................2 MAINTENANCE.......................................................2 CARE AND CLEANING .......................................2 Cleaning the Grease Filters ...............................2 Charcoal Filter Replacement .............................2 Cooktop/Night Light Replacement .....................2 Oven Light Replacement ...................................2 QUESTIONS AND ANSWERS.............................2 MICROWAVE UTENSIL GUIDE...........................2 BEFORE CALLING FOR SERVICE.....................2 WARRANTY..................................  VENT Hi/Low/Off ................................................11  .....................................................11 M............................................1 .......................................1  ......................................1  .................................1  ............................1 - 4 - WARNING- To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy. w • Read all the instructions before using your oven. • Do not allow children to use this oven w…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Seong San-Gu, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-268-4530 LG Electronics Inc. PCTEST Engineering Laboratory Inc. Ref. No.: 13-EMUS-0032 PCTEST Engineering Laboratory Inc. Ref. No.: 13-EMUS-0032 6660-B Dobbin Road Date: April 10, 2013 6660-B Dobbin Road Date: April 10, 2013 Columbia, MD 21045 USA Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS184TVA FCC ID: BEJS184TVA Dear Mr. Ortanez, Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJS184TVA 1. FCC ID: BEJS184TVA 2. Application Model no.: MV1843ASDL(Buyer model No.: LMV1831ST) 2. Application Model no.: MV1843ASDL(Buyer model No.: LMV1831ST) (RF Power Output – IEC60705: 1000 W) (RF Power Output – IEC60705: 1000 W) 3. Magnetron: 2M214 (LG) 3. Magnetron: 2M214 (LG) 4. Applied model is for household use. 4. Applied model is for household use. We have performed all tests using model MV1843ASDL with Magnetron (2M214, LG) at our measurement facilities as enclosed. We have performed all tests using model MV1843ASDL with Magnetron (2M214, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Jacob Cho at LG Electronics New Jersey Office or Mr. Dae-Woong, Kim at LG Electronics, HA EMC Center. If you have any comments, please feel free to contact me, Mr. Jacob Cho at LG Electronics New Jersey Office or Mr. Dae-Woong, Kim at LG Electronics, HA EMC Center. Best regards, Best regards, Kim Dae Woong, Chief Research Engineer Jacob Cho, General Manager Home Appliance Company, EMC Center Product Regulatory Complaince Team. LG Electronics Inc. LG Electronics New Jersey Office E-Mail: [email protected] E-Mail: [email protected]

Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification APPENDIX C. Block Diagram / Schematics <Fig. 3-1. Block Diagram> 20 / 29 LG Electronics Inc. FCC ID: BEJS184TVA

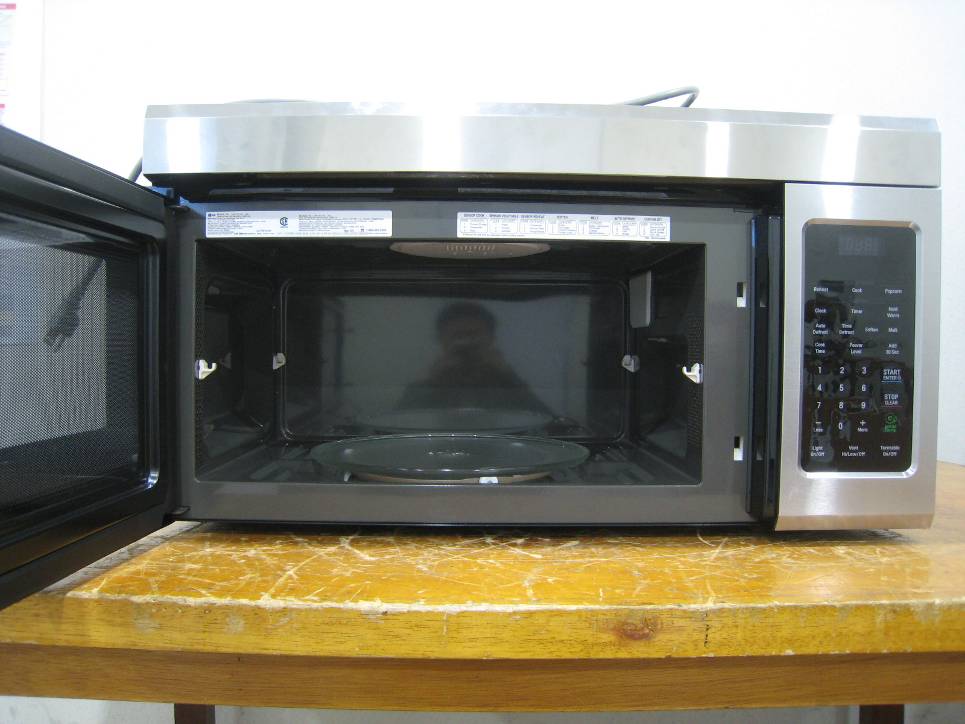

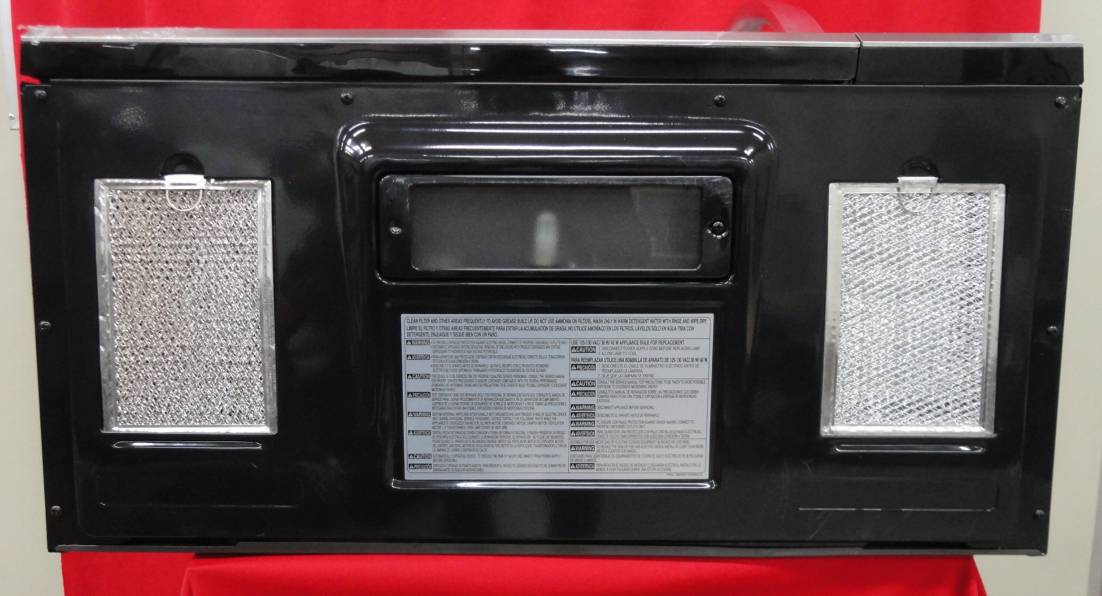

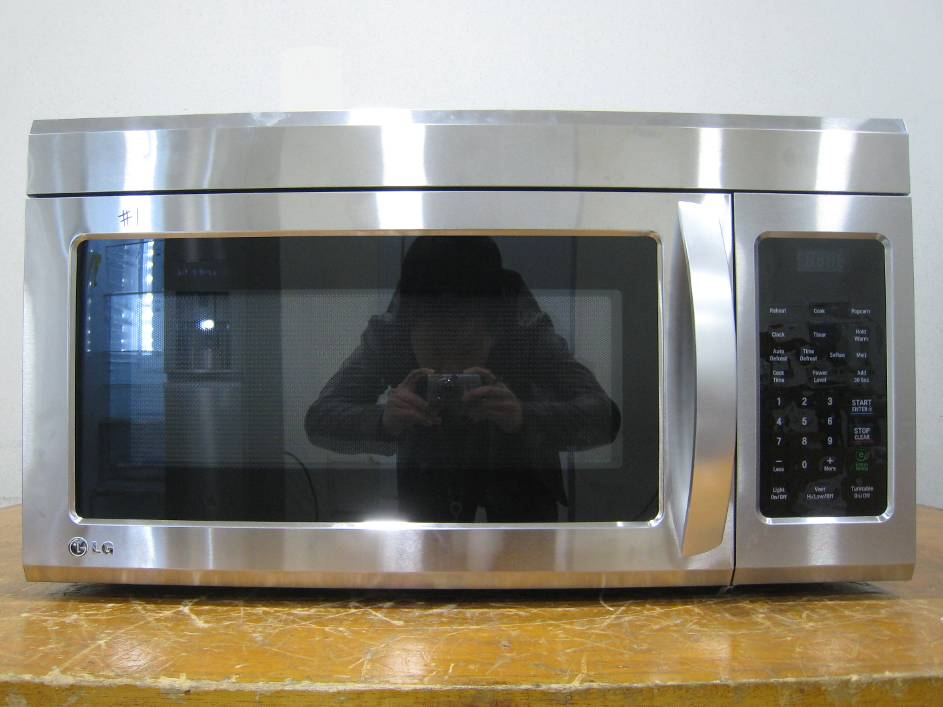

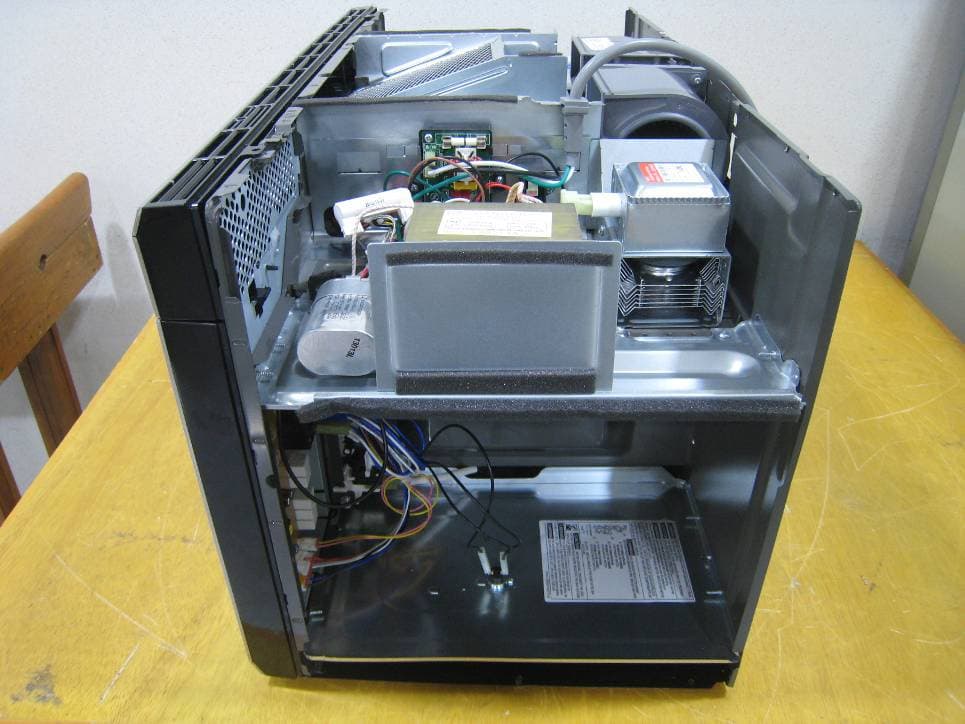

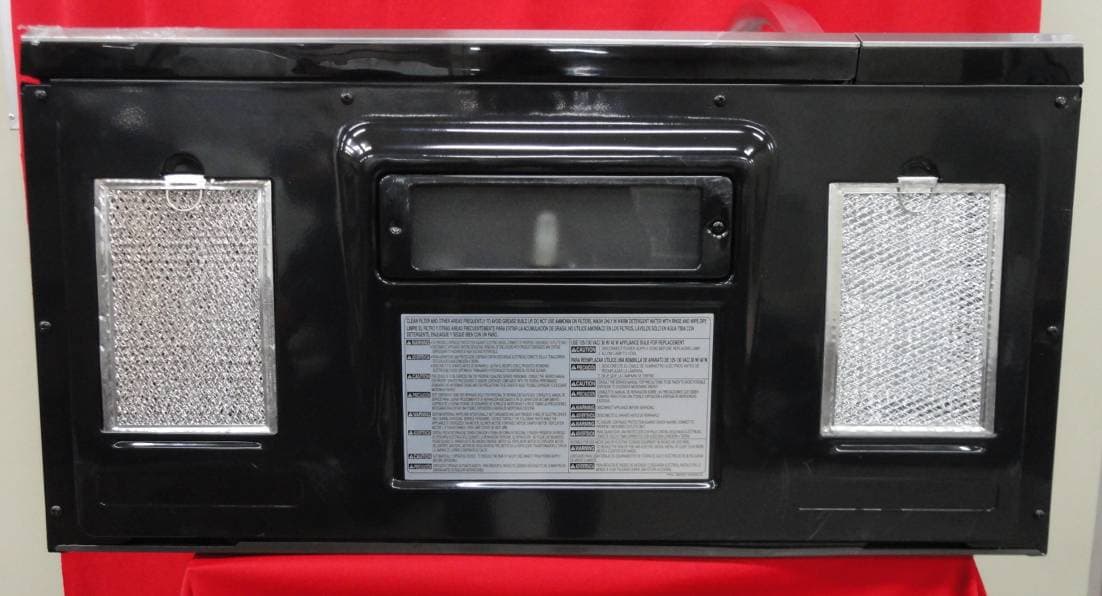

Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification APPENDIX E. EUT Photos <Front View> <Rear View> 23 / 29 LG Electronics Inc. FCC ID: BEJS184TVA Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification <Top View> <Bottom View> 24 / 29 LG Electronics Inc. FCC ID: BEJS184TVA Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification <Left Side View> <Right Side View> 25 / 29 LG Electronics Inc. FCC ID: BEJS184TVA Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification <Inside of Cavity> <Inside of MWO> 26 / 29 LG Electronics Inc. FCC ID: BEJS184TVA

Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is permanently affixed to the front cavity of the equipment with a permanent adhesive as below. <Fig. 1. Sample Label of Nameplate> BEJS184TVA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven. < Fig. 2. Photo of the physical location of the label> 19 / 29 LG Electronics Inc. FCC ID: BEJS184TVA

Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification <Magnetron> <Noise filter> 27 / 29 LG Electronics Inc. FCC ID: BEJS184TVA Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification <PCB> 28 / 29 LG Electronics Inc. FCC ID: BEJS184TVA

Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification 3 / 29 LG Electronics Inc. FCC ID: BEJS184TVA 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Cooking & Cleaning Division (Manufacturer) 391-2, Ga Eum Jeong - Dong, Seongsan – Gu, Changwon City, Gyeong Nam, 641-711, Korea 2. LG Electronics Tianjin Appliance Co., Ltd. Xing Dian Road, Bei Chen Distr., Tianjin 300402, People’s Republic of China Name of contact: Mi Ran Park Telephone: +82-55-260-3463 Fax: +82-55-268-4783 2. EQUIPMENT UNDER TEST (EUT) EUT is the LG Electronics Inc. Microwave Oven as followings: Equipment: Microwave oven Model: MV1843ASDL (Buyer model No.: LMV1831ST) Brand name: LG Serial number: N/A Magnetron: 2M214 by LG RF Frequency: 2,450 ± 50 MHz RF Power Output (IEC 705): 1000 W Power Consumption Microwave Mode:1600 W Rated Input Voltage: 120 V~, 60 Hz Rated Input Current Microwave Mode: 14.0 A Cavity Volume: 1.8 Cu.ft Oven Type: Over the range / Household Mode Stirrer: Turntable and Stirrer Power Cord: Shielded Outer Dimensions (inch) 29.9 (W) * 16.5 (H) * 17.0 (D) EMI suppression device(s) installed in production: See schematics (Appendix C & E) EMI suppression device(s) added and/or modified during test: None

390

LG Electronics Inc. Home Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Seongsan – Gu, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 268 4530 CERTIFICATION OF COMPLIANCE Date of Issue: April 10, 2013 Test Report No: 13-EMUS-0032 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M214 (LG) Brand Name(s): LG Model No.: MV1843ASDL (Buyer model No.: LMV1831ST) FCC ID: BEJS184TVA This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kim Dae Woong/ Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MV1843ASDL (Buyer model No.: LMV1831ST) FCC ID: BEJS184TVA Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: March 25, 2013 – March 27, 2013 Date of Issue: April 10, 2013 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibilities to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kim Tae Yul / Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Son Kwang Mu / Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. 1 / 29 LG Electronics Inc. FCC ID: BEJS184TVA Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification 2 / 29 LG Electronics Inc. FCC ID: BEJS184TVA CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 POWER LINE CONDUCTED EMISSION MEASUREMENTS..................................................................................... 4 5.2 RADIATED EMISSIONS MEASUREMENT............................................................................................................. 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 INPUT POWER................................................................................................................................................ 10 7.2 RF POWER OUTPUT MEASUREMENT ACCORDING TO MP-5........................................................................... 10 7.3 RF POWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705. ................................................................. 11 7.4 FREQUENCY MEASUREMENTS........................................................................................................................ 12 7.5 POWER DENSITY SAFETY CHECK.................................................................................................................. 13 7.6 CONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 RADIATED EMISSIONS (SECTION 18.305) ...................................................................................................... 14 APPENDIX A. TEST PLOT ............................................................................................................................... 15 APPENDIX B. LABELING REQUIREMENTS...............................................................................................19 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 20 APPENDIX D. TEST PHOTOS.......................................................................................................................... 22 APPENDIX E. EUT PHOTOS............................................................................................................................ 23 APPENDIX F. OWNER’S M…

Text truncated - open the document above for the full version.

Test Report No.: 13-EMUS-0032 FCC Part 18 (ISM) Test Date: March 27, 2013 Certification APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. 22 / 29 LG Electronics Inc. FCC ID: BEJS184TVA
