BEJS210XFMicrowave Oven

Owner Manual FCC ID : BEJS210XF

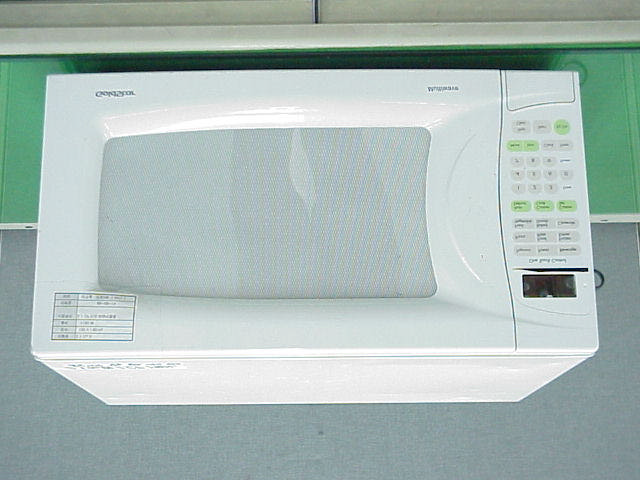

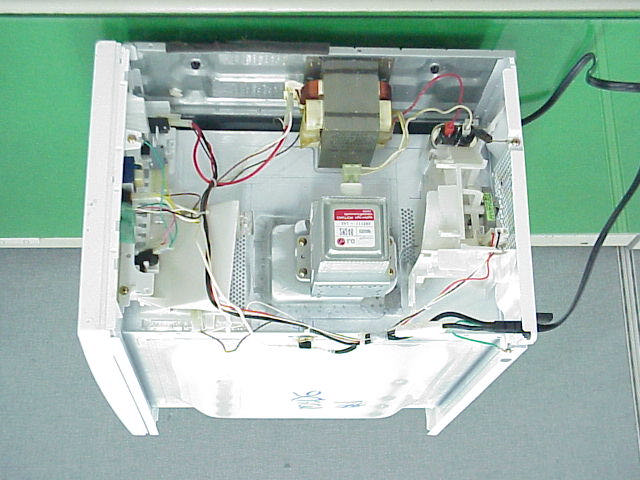

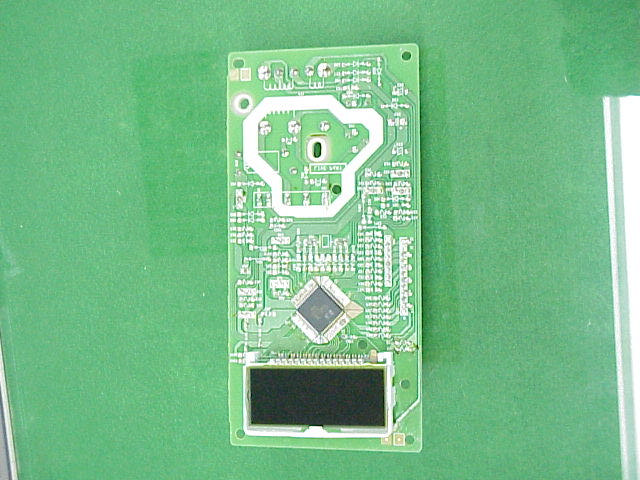

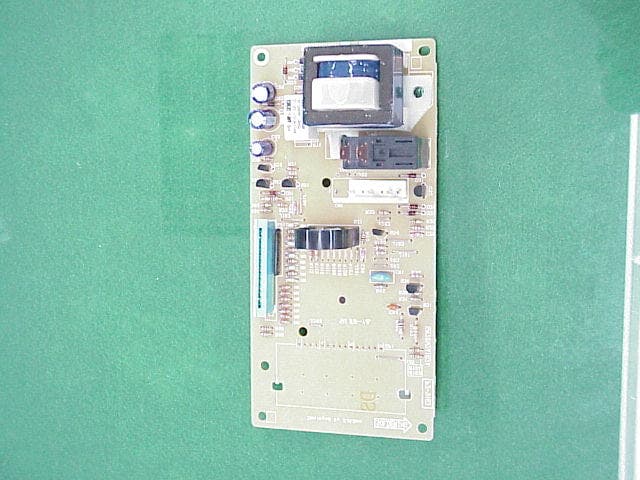

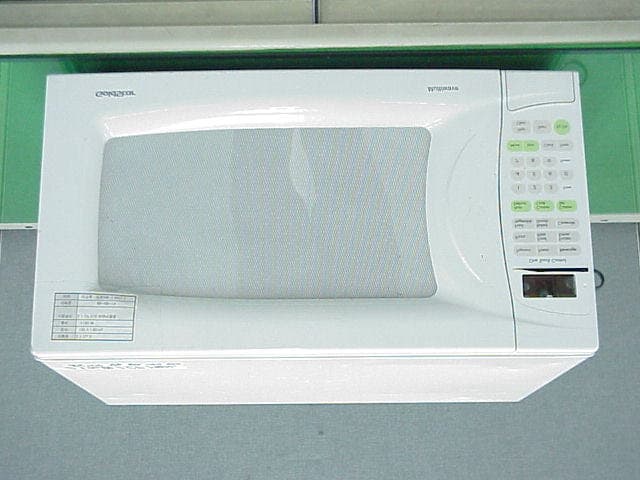

The EUT Photographs EXTERNAL VIEW FCC ID : BEJS210XF INTERNAL VIEW FCC ID : BEJS210XF PCB VIEW FCC ID : BEJS210XF

LABEL FCC ID : BEJS210XF Label Location GoldStar INPUT 120V 13.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID : BEJS210XF MADE IN KOREA CAUTION LISTED 57B5 U L R This Device is to be Serviced Only by Properly Qualified Service Personnel. Consult the Service Manual for Proper Service Procedures to Assure Continued Compliance with the Federal Performance Standard for Microwave Ovens and for Precautions to be Taken to Avoid Possible Exposure to Excessive Microwave Energy . WARNING- TO PROVIDE CONTINUED PROTECTION AGAINST ELECTRIC SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY . •DISCONNECT APPLIANCE BEFORE SERVICING . REMOVAL OF ENCLOSURE WITH PRODUCT ENERGIZED MAY EXPOSE SERVICEMAN TO HAZARDOUS HIGH VOLTAGE POTENTIALS Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel - Do not contact the following parts while the appliance is energized(If Provided FAN MOTOR,TURNTABLE MOTOR or LV.TRANSFORMER). MICROWAVE OVEN (HOUSEHOLD) DISTRIBUTED BY LG ELECTRONICES INC. 20,YOIDO-DONG,YOUNGDUNGPO-GU,SEOUL MODEL NO. MS-214YE CATALOG NO. NOT FOR BUILT-IN INSTALLATION SERIAL NO.: MANUFACTURED : P/NO.: WARNING-

Schematic Diagram FCC ID : BEJS210XF

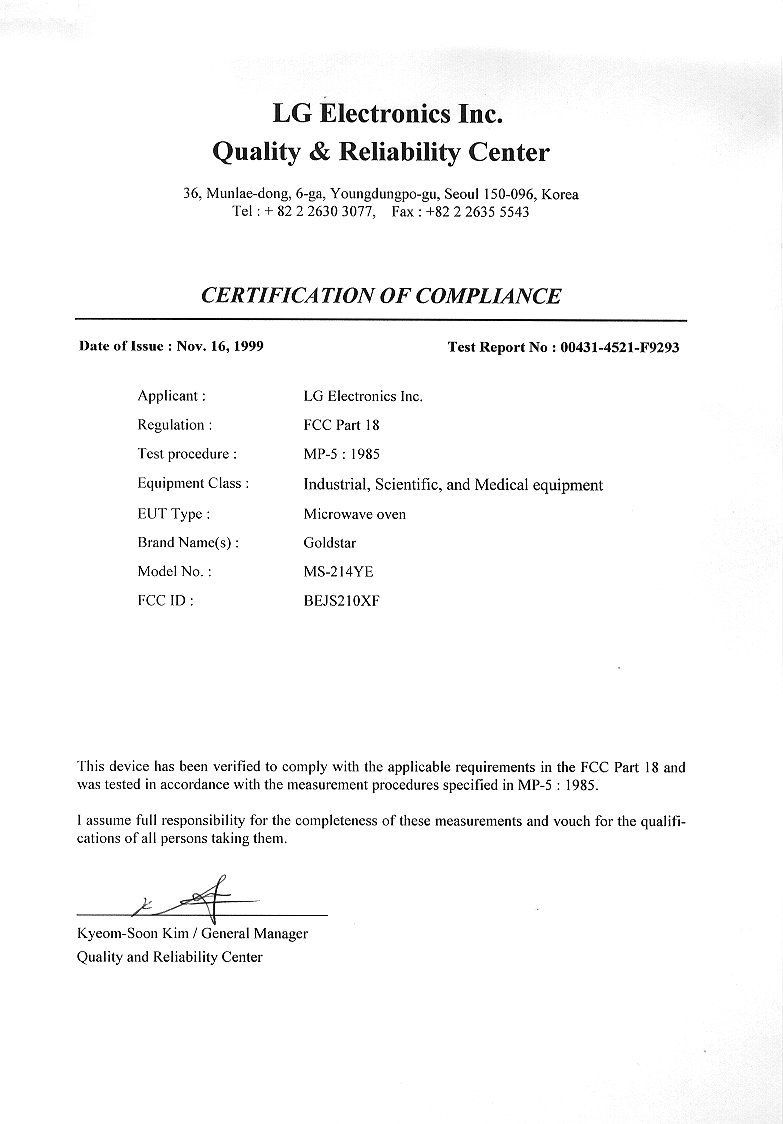

LG Electronics Inc. Quality & Reliability Center 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul 150-096, Korea Tel : + 82 2 2630 3077, Fax : +82 2 2635 5543 CERTIFICATION OF COMPLIANCE Date of Issue : Nov. 16, 1999Test Report No : 00431-4521-F9293 Applicant :LG Electronics Inc. Regulation :FCC Part 18 Test procedure :MP-5 : 1985 Equipment Class : Industrial, Scientific, and Medical equipment EUT Type :Microwave oven Brand Name(s) :Goldstar Model No. :MS-214YE FCC ID :BEJS210XF This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5 : 1985. I assume full responsibility for the completeness of these measurements and vouch for the qualifica- tions of all persons taking them. Kyeom-Soon Kim / General Manager Quality and Reliability Center 1 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F9293 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. Test Report No : 00431-4521-F9293 EUT Type : Microwave oven Model No. : MS-214YE FCC ID :BEJS210XF Rule Part : FCC Part 18 Test Procedure : MP-5 : 1985 Date of Test : Nov. 12, 1999 to Nov. 15, 1999 Date of Issue : Nov. 16, 1999 Test Result : Positive Quality and Reliability Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entirety. Quality and Reliability Center reports apply only to the specific samples tested under stated test con- ditions. It is the manufacturer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. The Quality and Reliability Center was accredited by National Voluntary Laboratory Accreditation Program for the FCC Part15 : Digital device of accreditation under Lab Code : 200040-0. Tested by : Reviewed by : B.S. Kang / Assistant Research Engineer J.C. Lee / Research Engineer Quality and Reliability Center Quality and Reliability Center 2 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F9293 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 CONTENTS Page 1. CLIENT INFORMATION...................................................................................................................3 2. EQUIPMENT UNDER TEST (EUT)...................................................................................................3 2.1 IDENTIFICATION OF THE EUT..............................................................................................................3 2.2 ADDITIONAL INFORMATION ABOUT THE EUT......................................................................................3 3. TEST SITE............................................................................................................................................4 3.1 SEMI-ANECHOIC CHAMBER.................................................................................................................4 4. CALIBRATIONS OF MEASURING INSTRUMENTS......................................................................4 5. DESCRIPTION OF TEST CONDITION.............................................................................................4 5.1 RADIATED EMISSIONS MEASUREMENTS................................................................................................4 6. MEASURING INSTRUMENTS AND SET-UP...................................................................................6 6.1 RADIATED EMISSIONS.........................................................................................................................6 6.2 FREQUENCY MEASUREMENTS..............................................................................................................6 7. RF POWER OUTPUT MEASUREMENT AND RESULTS...............................................................7 8. TEST DATA..........................................................................................................................................8 8-1. RADIATED EMISSIONS (SECTION 18.305)............................................................................................8 8-2. FREQUENCY MEASUREMENTS.............................................................................................................9 9. LIST OF INSTRUMENTS USED......................................................................................................10 APPENDIX A THE TEST GRAPH.....................................................................................................11 APPENDIX B THE PHOTOGRAPHS OF TEST SET-UP................................................................14 3 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F9293 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 1. CLIENT INFORMATION The EUT has been tested by request of: Company:LG Electronics Inc. Cooking Appliances OBU 391-2, Gaeumjung-dong, Changwon city, Gyeongnam, Korea Name of contact:B. H. Kim Telephone:+82-551-260-3463 Fax:+82-551-260-3223 2. EQUIPMENT UNDER TEST (EUT) 2.1 Identification of the EUT Equipment:Microwave oven Model:MS-214YE Brand name:Goldstar Serial number:N/A Manufacture…
