BEJS229TWMicrowave Oven

OWNER’S MANUAL MICROWAVE OVEN LMV2031ST LMV2031SB LMV2031SW PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING AND KEEP IT HANDY FOR REFERENCE AT ALL TIMES. www.lg.com MFL06317610 - 2 - Please record the model number and serial number of this unit for future reference. We also suggest you record the details of your contact with LG (LG Electronics U.S.A., Inc.) concerning this unit. Staple your receipt here as proof of purchase. Model No: Serial No: Dealer: Dealer Phone No: Customer Relations LG Electronics U.S.A., Inc. Service Division Bldg. #3 201 James Record Rd. Huntsville, AL 35824-0126 Thank you for purchasing an LG microwave oven. (a) Do not attempt to operate this oven with the door open. Open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door: (1)closes properly, (2)is not damaged or bent, (3)has hinges and latches that are not broken or loosened, (4)has undamaged door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY - 3 - TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY .................................................................. 2 IMPORTANT SAFETY INSTRUCTIONS ............. 4~5 SPECIFICATIONS .................................................... 6 Location of Model Number .................................... 6 Oven Specifi cations .............................................. 6 Electrical Rating .................................................... 6 Electrical Requirements ........................................ 6 Grounding Instructions .......................................... 6 FEATURES ........................................................... 7-9 Microwave Oven Features .................................... 7 Oven Control Panel ........................................... 8~9 USING YOUR MICROWAVE OVEN ................. 10-20 Learn About Your Microwave Oven ..................... 10 Audible Signals ................................................... 10 Interrupting Cooking ............................................ 10 Slide out Ventilation............................................. 10 Glass Touch Controller ........................................ 10 Clock ................................................................... 10 Child Lock ........................................................... 10 Light Hi/Low/Off ....................................................11 Energy Saving. .....................................................11 Turntable On/Off...................................................11 Vent On/Off ..........................................................11 Vent 4 Speed........................................................11 Add 30 Sec...........................................................11 Cooking at High Cook Power .............................. 12 Microwave Power Levels .................................... 12 Multi -Stage Cooking ........................................... 12 + / - ..................................................................... 12 Cooking Guide for Lower Power Levels .............. 13 Sensor Operating Instructions............................. 14 Sensor Cooking Guide ........................................ 14 Sensor Popcorn .................................................. 14 Sensor Reheat .................................................... 15 Sensor Cook ....................................................... 15 Cooking Guide for Sensor Reheat ...................... 15 Cooking Guide for Sensor Popcorn .................... 16 Cooking Guide for Sensor Cook ......................... 16 Timer ................................................................... 17 Soften .................................................................. 17 Melt ..................................................................... 17 Kids Meal ............................................................ 17 Soften Table ........................................................ 18 Melt Table ............................................................ 18 Defrost ............................................................... 19 Defrost Table ....................................................... 19 Quick Defrost ...................................................... 19 Time Defrost ........................................................ 20 Defrosting Tips .................................................... 20 Metal Rack .......................................................... 20 COOKING TIPS ............................................... 21~25 Getting the Best Cooking Results ....................... 21 Fish & Shellfi sh ................................................... 21 Fish and Shellfi sh Cooking Table ........................ 21 Appetizers / Sauces / Soups ............................... 22 Meat .................................................................... 22 Meat Cooking Table ............................................ 23 Poultry ................................................................. 24 Poultry Cooking Table ......................................... 24 Pasta and Rice .................................................... 25 Pasta Cooking Table ........................................... 25 Rice Cooking Table ............................................. 25 MAINTENANCE ............................................... 26~27 Care and Cleaning .............................................. 26 Metal Rack .......................................................... 26 Cleaning the Grease Filters ..............…

Text truncated - open the document above for the full version.

OWNER’S MANUAL MICROWAVE OVEN LMHM2237ST PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING AND KEEP IT HANDY FOR REFERENCE AT ALL TIMES. www.lg.com MFL06317611 - 2 - Please record the model number and serial number of this unit for future reference. We also suggest you record the details of your contact with LG (LG Electronics U.S.A., Inc.) concerning this unit. Staple your receipt here as proof of purchase. Model No: Serial No: Dealer: Dealer Phone No: Customer Relations LG Electronics U.S.A., Inc. Service Division Bldg. #3 201 James Record Rd. Huntsville, AL 35824-0126 Thank you for purchasing an LG microwave oven. (a) Do not attempt to operate this oven with the door open. Open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door: (1)closes properly, (2)is not damaged or bent, (3)has hinges and latches that are not broken or loosened, (4)has undamaged door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY - 3 - TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY .................................................................. 2 IMPORTANT SAFETY INSTRUCTIONS ............. 4~5 SPECIFICATIONS .................................................... 6 Location of Model Number .................................... 6 Oven Specifi cations .............................................. 6 Electrical Rating .................................................... 6 Electrical Requirements ........................................ 6 Grounding Instructions .......................................... 6 FEATURES ........................................................... 7-9 Microwave Oven Features .................................... 7 Oven Control Panel ........................................... 8~9 USING YOUR MICROWAVE OVEN ................. 10-20 Learn About Your Microwave Oven ..................... 10 Audible Signals ................................................... 10 Interrupting Cooking ............................................ 10 Slide out Ventilation............................................. 10 Glass touch Controller......................................... 10 Clock ................................................................... 10 Child Lock ........................................................... 10 Light Hi/Low/Off ....................................................11 Energy Saving. .....................................................11 Turntable On/Off...................................................11 Vent On/Off ..........................................................11 Vent 4 Speed........................................................11 Add 30 Sec...........................................................11 Cooking at High Cook Power .............................. 12 Microwave Power Levels .................................... 12 Multi -Stage Cooking ........................................... 12 + / - ..................................................................... 12 Cooking Guide for Lower Power Levels .............. 13 Sensor Operating Instructions............................. 14 Sensor Cooking Guide ........................................ 14 Sensor Popcorn .................................................. 14 Sensor Reheat .................................................... 15 Sensor Cook ....................................................... 15 Cooking Guide for Sensor Reheat ...................... 15 Cooking Guide for Sensor Popcorn .................... 16 Cooking Guide for Sensor Cook ......................... 16 Timer ................................................................... 17 Soften .................................................................. 17 Melt ..................................................................... 17 Kids Meal ............................................................ 17 Soften Table ........................................................ 18 Melt Table ............................................................ 18 Defrost ............................................................... 19 Defrost Table ....................................................... 19 Quick Defrost ...................................................... 19 Time Defrost ........................................................ 20 Defrosting Tips .................................................... 20 Metal Rack .......................................................... 20 COOKING TIPS ............................................... 21~25 Getting the Best Cooking Results ....................... 21 Fish & Shellfi sh ................................................... 21 Fish and Shellfi sh Cooking Table ........................ 21 Appetizers / Sauces / Soups ............................... 22 Meat .................................................................... 22 Meat Cooking Table ............................................ 23 Poultry ................................................................. 24 Poultry Cooking Table ......................................... 24 Pasta and Rice .................................................... 25 Pasta Cooking Table ........................................... 25 Rice Cooking Table ............................................. 25 MAINTENANCE ............................................... 26~27 Care and Cleaning .............................................. 26 Metal Rack .......................................................... 26 Cleaning the Grease Filters ................................ …

Text truncated - open the document above for the full version.

LG Electronics Tianjin Appliance Co., Ltd. EMC Laboratory Xing Dian Road, Bei Chen Distr., Tianjin 300402, P.R.China Tel: + 86 22 2690 3808, Fax: +86 22 2690 3476 PCTEST Engineering Laboratory Inc. Ref. No.: 14-LTE-M004 B 6660-B Dobbin Road Date: February 11, 2014 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS229TW Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJS229TW 2. Model no.: LMHM2237ST (RF Power Output – IEC 60705: 1000 W) 3. Magnetron: 2M246 (LG) 4. Applied model is for household use. We have performed all tests using model LMHM2237ST with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Dae-Woong Kim at LG Electronics Home Appliance Company or Jacob Cho, Director of Standards & Compliance at LG Electronics USA, Inc. Best regards, Dae-Woong Kim, Chief Research Engineer Jacob Cho, Director Home Appliance Company, EMC Center Standards & Environmental Affairs. LG Electronics Inc. LG Electronics USA Inc. LG Electronics Inc.

Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 25 / 34 LG Electronics FCC ID: BEJS229TW Requirements per section 2.1033 (5) of CFR Title 47. <Fig. 4. PCB Circuit Diagram>

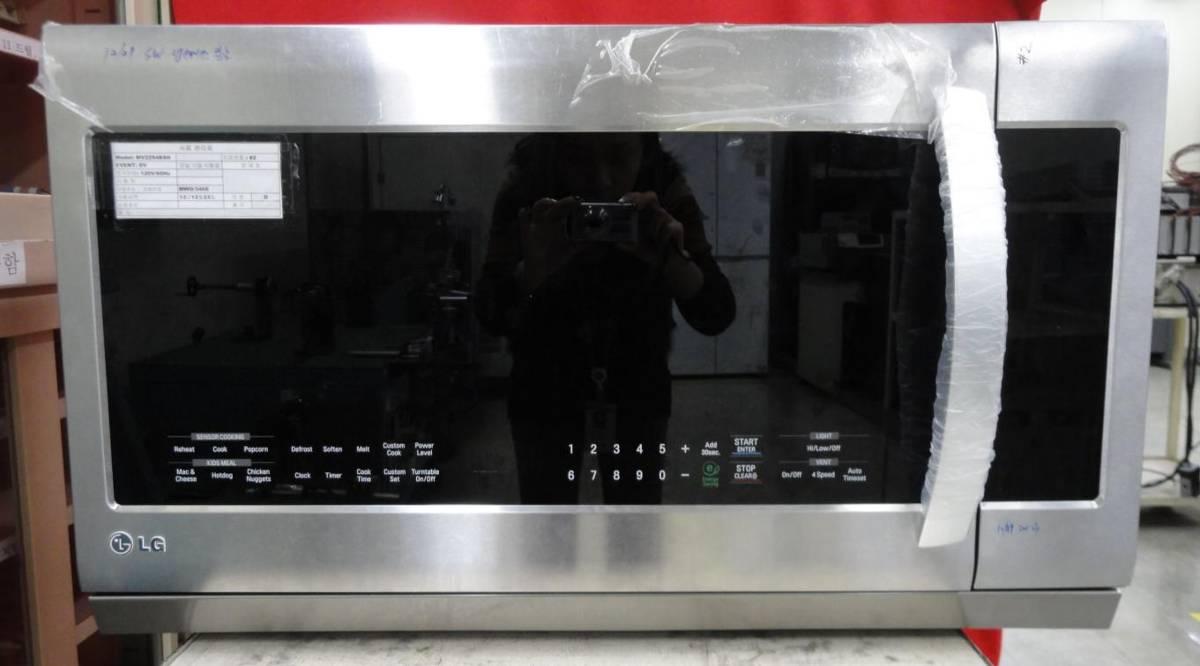

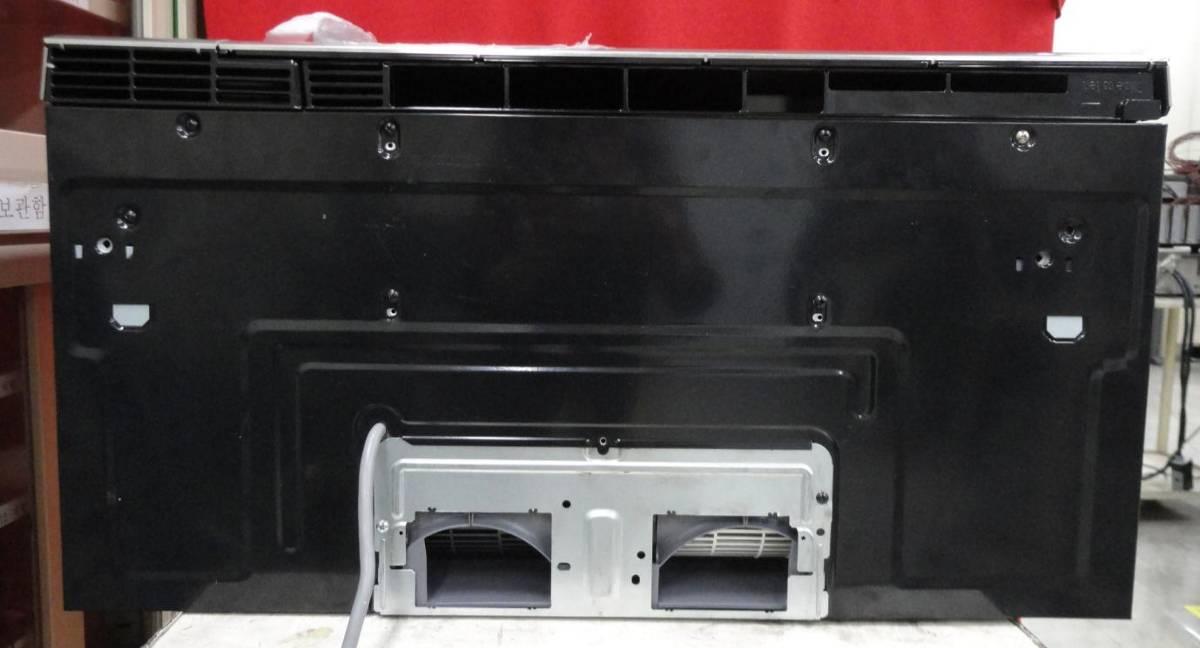

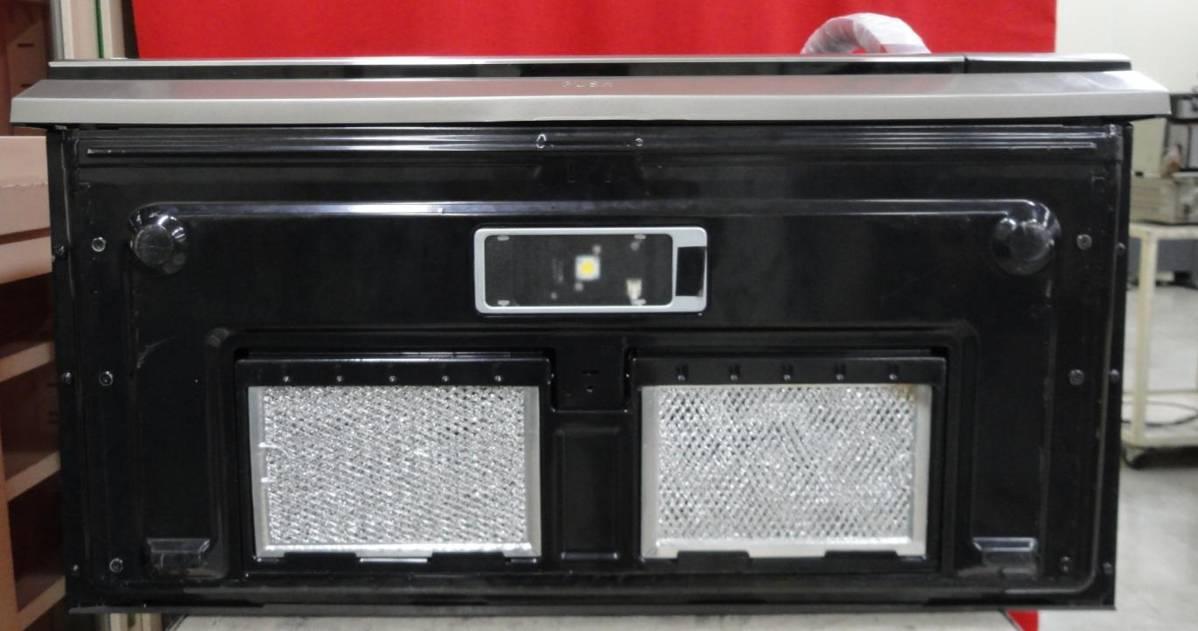

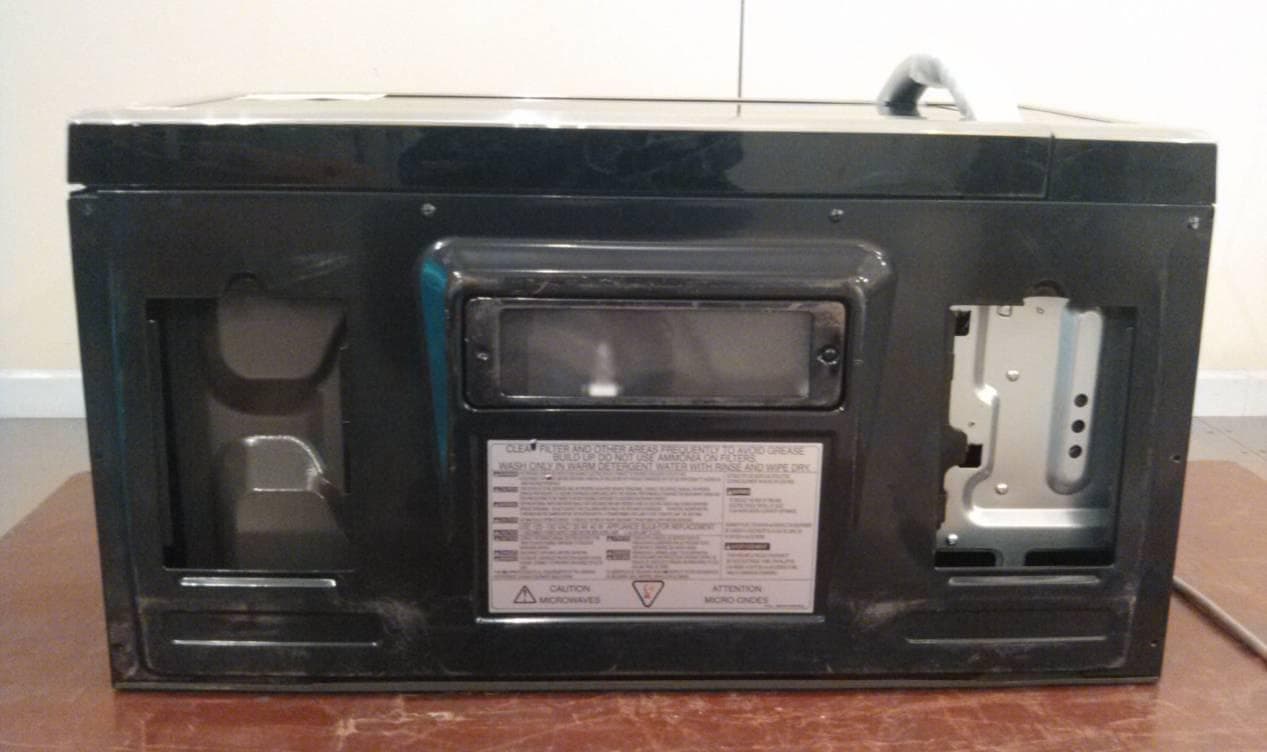

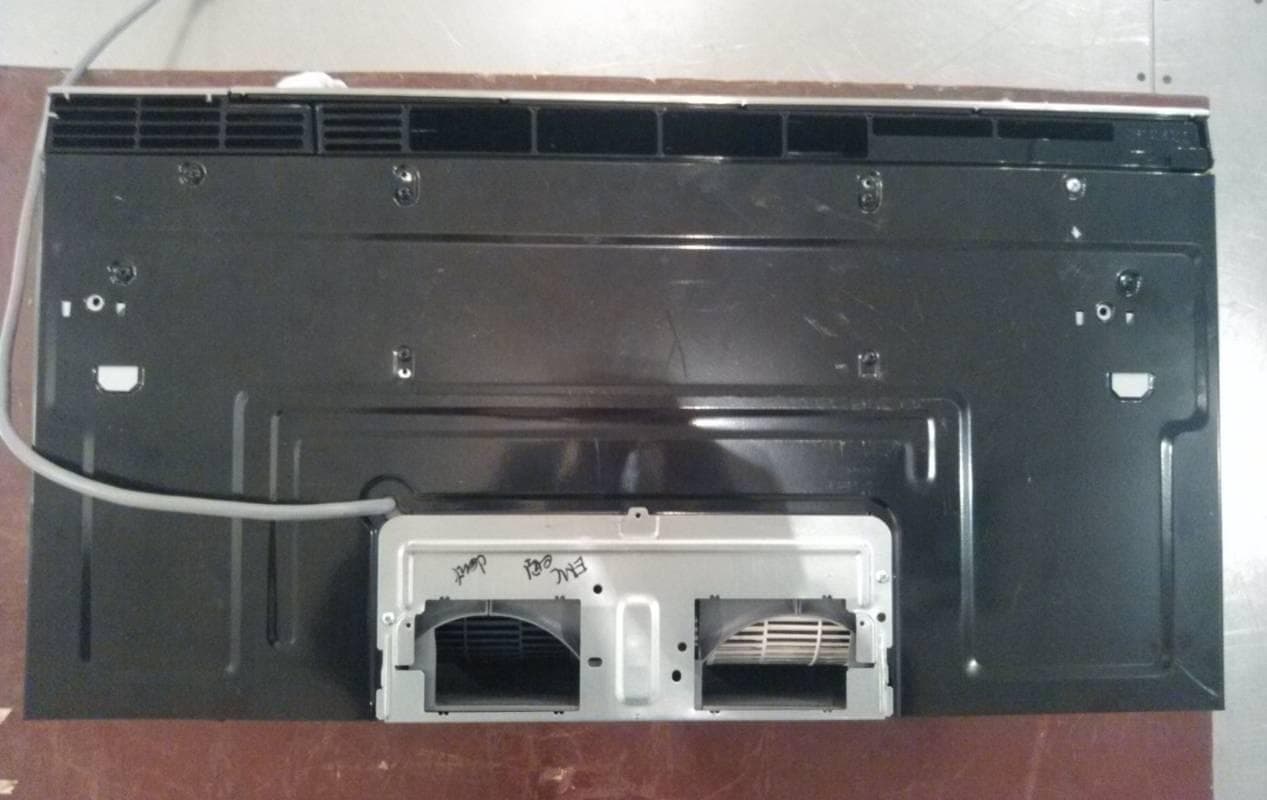

Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 28 / 40 LG Electronics FCC ID: BEJS229TW APPENDIX E. EUT Photos Slide-out Model Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 29 / 40 LG Electronics FCC ID: BEJS229TW Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 30 / 40 LG Electronics FCC ID: BEJS229TW Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 31 / 40 LG Electronics FCC ID: BEJS229TW Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 32 / 40 LG Electronics FCC ID: BEJS229TW Non Slide-out Model Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 33 / 40 LG Electronics FCC ID: BEJS229TW Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 34 / 40 LG Electronics FCC ID: BEJS229TW Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 35 / 40 LG Electronics FCC ID: BEJS229TW

Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 22 / 34 LG Electronics FCC ID: BEJS229TW APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. < Fig. 2. Photo of the physical location of the label> * Location: Name plate is perma- nently affixed to the front cavity of the equipment as right.

Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 37 / 40 LG Electronics FCC ID: BEJS229TW Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 38 / 40 LG Electronics FCC ID: BEJS229TW Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 39 / 40 LG Electronics FCC ID: BEJS229TW

Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 3 / 34 LG Electronics FCC ID: BEJS229TW 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Changwow Plant 1 (Manufacturer) 170, Sungsanpaechong-ro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, 641-711, Korea 2. LG Electronics Tianjin Appliance Co., Ltd. No. 9 Jin Wei Road, Bei Chen Distr., 300402 Tianjin, People’s Republic of China Name of contact: Feng Xinliang Telephone: +86-22-2690-3308 Fax: +86-22-2690-3643 2. EQUIPMENT UNDER TEST (EUT) EUT is the LG Electronics Inc. Microwave Oven as followings: Equipment: Microwave oven Model: LMHM2237ST Brand name: LG Serial number: N/A Magnetron: 2M246 by LG Noise Filter: EAM35001888 RF Frequency: 2450 +/- 50 MHz RF Power Output (IEC 60705): 1000 W Power Consumption Microwave Mode: 1600 W Rated Input Voltage: 120 V~, 60 Hz Rated Input Current Microwave Mode: 14 A Cavity Volume: 2.2 or 2.0 Cu.ft Oven Type: Household Mode Stirrer: Turntable Power Cord: Unshielded Outer Dimensions (inch) 29 15/16 (W) * 17 11/16 (H) * 18 5/16 (D) EMI suppression device(s) installed in production: See schematics (Appendix C) EMI suppression device(s) added and/or modified during test: None

Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 23 / 34 LG Electronics FCC ID: BEJS229TW APPENDIX C. Block Diagram / Schematics <Fig. 3a. Schematic Diagram of Slide-out model> Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 24 / 34 LG Electronics FCC ID: BEJS229TW <Fig. 3b. Schematic Diagram of Non Slide-out model>

LG Electronics Tianjin Appliance Co., Ltd., EMC Center Xing Dian Road, Bei Chen Distr., Tianjin 300402, P.R.China Tel: + 86 22 2690 3808, Fax: +86 22 2690 3476 CERTIFICATION OF COMPLIANCE Date of Issue: February 11, 2014 Test Report No: 14-LTE-M004 B Test Site: LG Electronics Tianjin Appliance Co., Ltd. EMC Laboratory Applicant: LG Electronics Tianjin Appliance Co., Ltd. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1986 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M246 (LG) Noise Filter: EAM35001888 Brand Name(s): LG Model No.: LMHM2237S#, LMH2235S#, LMVM2033S#, LMV2031S# FCC ID: BEJS229TW This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1986. I assure full responsibility for the completeness of these measurements and vouch for the qualifica- tions of all persons taking them. Dae-Woong Kim, Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 1 / 40 LG Electronics FCC ID: BEJS229TW REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: LMHM2237ST FCC ID: BEJS229TW Rule Part: FCC Part 18 Test Procedure: MP-5: 1986 Date of Test: February 8, 2014 – February 10, 2014 Date of Issue: February 11, 2014 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entire- ty. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufactur- er’s responsibility to assure that additional production unit of this model is manufactured with identical electric- al and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for t he FCC Part 15 and 18 of the Commission’s Rules under Registration Number 728166. Reviewed by: Approved by: Kwang-Mu Son / Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Dae-Woong Kim / Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Prepared by: Li Hong / Research Engineer LGETA EMC Laboratory LG Electronics Tianjin Appliance Co., Ltd. Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 2 / 40 LG Electronics FCC ID: BEJS229TW CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT)................................................................................................................ 3 3. TEST SITE .......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT ................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 POWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 RADIATED EMISSIONS MEASUREMENT ............................................................................................................. 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA...................................................................................................................................................... 10 7.1 INPUT POWER ................................................................................................................................................ 10 7.2 RF POWER OUTPUT MEASUREMENT ACCORDING TO MP-5........................................................................... 10 7.3 RF POWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705. ................................................................. 11 7.4 FREQUENCY MEASUREMENTS ....................................................................................................................... 12 7.5 POWER DENSITY SAFETY CHECK .................................................................................................................. 13 7.6 CONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 RADIATED EMISSIONS (SECTION 18.305) ....................................................................................................... 14 APPENDIX A. TEST PLOT ................................................................................................................................ 15 APPENDIX B. LABELING REQUIREMENTS ............................................................................................... 22 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS ..................................................................................... 23 APPENDIX D. TEST PHOTOS ........................................................................................................................…

Text truncated - open the document above for the full version.

Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 26 / 34 LG Electronics FCC ID: BEJS229TW APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. Test Report No.: 14-LTE-M004 B FCC Part 18 (ISM) Report Issued date: February 11, 2014 Certification 27 / 34 LG Electronics FCC ID: BEJS229TW
