BEJS841MHAMicrowave Oven

Covering models MS-84MK Electric Microwave Keep instructions for future reference. Be sure manual stays with microwave. Part No. 3828W5A2446 Contents Important Safety Information ....................................... 3 Installation ..................................................................... 5 Other Helpful Information ............................................. 6 Cooking Utensils........................................................... 8 Feature Diagram .......................................................... 9 Control Panel ................................................................ 9 Operating Instructions ................................................ 10 Fresh Vegetable Chart............................................... 18 Cook using Sensor Cook ........................................... 19 Cleaning...................................................................... 20 Troubleshooting.......................................................... 21 Amana Warranty ........................................................ 22 Goldstar 2 Please take the time to complete the registration card and return promptly. If the registration card is missing, call Amana Consumer Affairs Department. When contacting Amana, provide product information from serial plate: Model Number Manufacturing (P) Number Serial Number (S/N) Purchase Date Dealer Name Dealer Address Dealer Phone Keep this manual and your sales receipt together in a safe placefor future reference or if warranty service is required. For answers to questions or to locate an authorized servicer, call 1-800- NAT-LSVC(1-800-628-5782) inside USA or 319-622-5511 outside USA. Warranty service must be performed by an authorized servicer. Amana Appliances also recommends contacting an authorized servicer if service is required after warranty expires. Asure™ Extended Service Plan Amana Appliances offers long-term service protection for this new microwave. Asure™ Extended Service Plan, covering functional parts, labor, and travel charges, is specially designed to supplement a strong warranty. Call 1-800-528-2682 for information. Parts and Accessories Purchase replacement part and additional accessories by phone. To order accessories for your Amana product, call 1-800-843-0304 inside USA or 319- 622-5511 outside USA. Save Time and Money If something seems unusual, please check "Troubleshooting" section, which is designed to help you solve problems before calling service. If you have a question, call us at (800) 843-0304 or write us at: Consumer Affairs Department Remember to include model number of your appliance and your phone number. What You Need to Know About Safety Instructions Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating microwave. Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not understand. Recognize Safety Symbols, Words, Labels DANGER - Immediate hazards which WILL result in severe personal injury or death. WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death. CAUTION - Hazards or unsafe practices which COULD result in minor personal injury or product or property damage. ww DANGER ww WARNING ww CAUTION Questions on cooking, cleaning or usage? Refer to or call Consumer Affairs at 1-800-843-0304 3 IMPORTANT SAFETY INFORMATION A. DO NOTattempt to operate this oven with door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with safety interlocks. B. DO NOTplace any object between oven front face and door to allow soil or cleaner residue to accumulate on sealing surfaces. C. DO NOToperate oven if it is damaged. It is particularly important that oven door close properly and that there is no damage to: 1. Door (bent), 2. Hinges and latches (broken or loosened), 3. Door seals and sealing surfaces. D. Oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY SAVE THESE INSTRUCTIONS To avoid risk of personal injury or property damage, observe the following: ww CAUTION 1. Be certain to place the front surface of the door three inches away or more from the countertop edge to avoid accidental tipping of the appliance in normal usage. 2. For the most accurate programming of the electronic units, touch the center of each pad securely. Do not touch several pads at one time or touch between pads. A beep sound should be heard with each touch when a pad is touched correctly. 3. Do not hit or strike the control with objects such as silverware, utensils, etc. Breakage may occur. 4. Be careful when taking the cooking utensils out of the oven. Some dishes absorb heat from the cooked food and may be hot. 5. Do not rinse cooking utensils by immediately placing them into water just after cooking. This may cause breakage. Allow the turntable to cool. 6. Use only specific glass utensils. See cooking utensils section in this manual. 7. Do not operate the oven empty. Either food or water should always be in the oven during operation to absorb microwave energy. 8. Do not use your microwave oven to dry newspapers or clothes. They can catch fire. 9. Use only thermometers approved for microwave oven cooking. 10. Be certain the turntable is in place when you operate the oven. 11. Pierce the skin of potatoes, whole squash, apples, or any fruit or vegetable which has a skin covering before cooking. 12. Never use your microwave oven to cook eggs in the shell. Pressure can build up inside the shell, causing it to burst. 13. Do not pop popcorn, except in a microwave-safe container or commercial package designed especially for microwave ovens. Never try to pop popcorn in a paper bag not de…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M073 6660-B Dobbin Road Date: April 11, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS841MHA Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant complying with the line conducted requirements for unintentional radiators and consumer Industrial, Scientific and Medical (ISM) device in ET Docket 98-80, FCC 02-157 on the previous granted model MS-84MK, FCC ID: BEJS841MH dated 04/01/2002 as follows. 1. Granted FCC ID: BEJS841MH dated 04/01/2002 2. Application Model no.: MS-84MK (RF Power Output – IEC705: 800 W) 3. Magnetron: 2M214 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-84MK with Magnetron (2M214, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M073 Authorization and Standards Branch Date: April 11, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS841MHA Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant complying with the line conducted requirements for unintentional radiators and consumer Industrial, Scientific and Medical (ISM) device in ET Docket 98-80, FCC 02-157 on the previous granted model MS-84MK, FCC ID: BEJS841MH dated 04/01/2002 as follows. 1. Granted FCC ID: BEJS841MH dated 04/01/2002 2. Application Model no.: MS-84MK (RF Power Output – IEC705: 800 W) 3. Magnetron: 2M214 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MS-84MK with Magnetron (2M214, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

Test Report No.: 05-LAE-M073 FCC Part 18 (ISM) Test Date: April 5, 2005 Certification 21 / 25 LG Electronics Inc. FCC ID: BEJS841MHA APPENDIX E. EUT Photos Test Report No.: 05-LAE-M073 FCC Part 18 (ISM) Test Date: April 5, 2005 Certification 22 / 25 LG Electronics Inc. FCC ID: BEJS841MHA

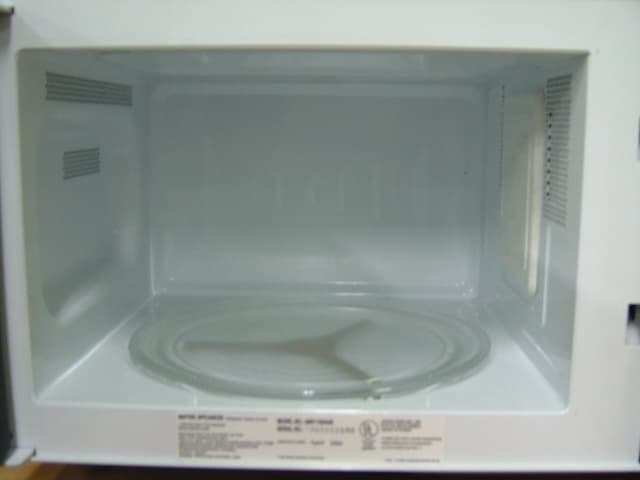

Test Report No.: 05-LAE-M073 FCC Part 18 (ISM) Test Date: April 5, 2005 Certification 18 / 25 LG Electronics Inc. FCC ID: BEJS841MHA APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 13.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJS841MHA MADE IN KOREA LISTE D U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MS-84MK CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 05-LAE-M073 FCC Part 18 (ISM) Test Date: April 5, 2005 Certification 23 / 25 LG Electronics Inc. FCC ID: BEJS841MHA Test Report No.: 05-LAE-M073 FCC Part 18 (ISM) Test Date: April 5, 2005 Certification 24 / 25 LG Electronics Inc. FCC ID: BEJS841MHA

Test Report No.: 05-LAE-M073 FCC Part 18 (ISM) Test Date: April 5, 2005 Certification 19 / 25 LG Electronics Inc. FCC ID: BEJS841MHA APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: April 5, 2005 Test Report No: 05-LAE-M073 Test Site: LG Electronics Changwon EMC Center This application is to comply with the line conducted requirements for unintentional radiators and consumer Industrial, Scientific and Medical (ISM) device in ET Docket 98-80, FCC 02-157 on the previous granted model MS-84MK, FCC ID: BEJS841MH dated 04/01/2002. Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M214 (LG Electronics Inc.) Brand Name(s): LG Model No.: MS-84MK FCC ID: BEJS841MHA This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M073 FCC Part 18 (ISM) Test Date: April 5, 2005 Certification 1 / 25 LG Electronics Inc. FCC ID: BEJS841MHA REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MS-84MK FCC ID: BEJS841MHA Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: March 14, 2005 – March 19, 2005 Date of Issue: April 5, 2005 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kwang M. Son / Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M073 FCC Part 18 (ISM) Test Date: April 5, 2005 Certification 2 / 25 LG Electronics Inc. FCC ID: BEJS841MHA CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 R ADIATED EMISSIONS MEASUREMENT............................................................................................................ 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 I NPUT POWER............................................................................................................................................... 10 7.2 RF P OWER OUTPUT MEASUREMENT............................................................................................................. 10 7-3. F REQUENCY MEASUREMENTS...................................................................................................................... 11 7-4. P OWER DENSITY SAFETY CHECK................................................................................................................ 12 7-5. C ONDUCTED EMISSIONS (S ECTION 18.307) ................................................................................................. 12 7-6. R ADIATED EMISSIONS (SECTION 18.305) ..................................................................................................... 13 APPENDIX A. TEST PLOT ............................................................................................................................... 14 APPENDIX B. LABELING REQUIREMENTS...............................................................................................18 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 19 APPENDIX D. TEST PHOTOS.......................................................................................................................... 20 APPENDIX E. EUT PHOTOS.................................................…

Text truncated - open the document above for the full version.

Test Report No.: 05-LAE-M073 FCC Part 18 (ISM) Test Date: April 5, 2005 Certification 20 / 25 LG Electronics Inc. FCC ID: BEJS841MHA APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
