BEJSZB23WRF Module

SPECIFICATIONS PRODUCT NAME : LGE HE/H&A向ZIGBEE Module MODEL NAME : SZB23W(ETWZBSUC01) DesignedCheckedApproved LG Innotek Co., Ltd. Sung Chan Kim Yeon Ung Jeong Seok Dong Choi Document No. WC40182 2022.08.262022.08.262022.08.26 PAGE13 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. Specification For Approval PAGE : DOCUMENT No. : REG. DATE : 2022. 08. 26 MODEL NAME : SZB23W ETWZBSUC01 REV. NO : 1.0 © 2022 LGIT. All rights reserved. 1/ 11 WC40182 REV. DATE : 2022. 08. 26 Table of Contents NoDescriptionPage 1Features2 2Ordering Information2 3Label Marking2 4Block Diagram3 5Absolute Maximum Ratings 3 6Operating Test Conditions 4 7Standard Test Conditions4 8Electrical Characteristics5 9Environmental Tests8 10Pin Description9 11Mechanical Characteristics10 12Outline Drawing11 13Packing Information12 14Changing History of Revision13 Specification For Approval PAGE : DOCUMENT No. : REG. DATE : 2022. 08. 26 MODEL NAME : SZB23W ETWZBSUC01 REV. NO : 1.0 © 2022 LGIT. All rights reserved. 2/ 11 WC40182 REV. DATE : 2022. 08. 26 2. Ordering Information ModelDescription ETWZBSUC012.4GHz Zigbee Module 1. Features ETWZBSUC01 is the small size module for TV Accessory, IoT Devices. ETWZBSUC01 is based on Silicon Labs EFR32MG21 solution. 2.4GHz Zigbee Module Size : 30mm x 43mm x 7.65 mm PCB printed Antenna UART interface Applied the conformal coating Application: TV Accessory, Home Appliance 3. Label Marking ①Customer P/N : EAT65197301 ③Product Lot No. ②Model No. 22 : Year 20 : Date ④Check sum(V10: C083) 04 : Month 01 : Manufactured Process ⑤2D Matrix Code for GMES Revision No. : A 10 : Change History of Revision ① ② ③ EAT65197301 2204A200110 ETWZBSUC01 ⑤ ④ C083 Specification For Approval PAGE : DOCUMENT No. : REG. DATE : 2022. 08. 26 MODEL NAME : SZB23W ETWZBSUC01 REV. NO : 1.0 © 2022 LGIT. All rights reserved. 3/ 11 WC40182 REV. DATE : 2022. 08. 26 ParameterMinMaxUnit Storage Temperature-20+80°C Storage Humidity (@ 40°C)-90% Caution: The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. •Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°Cand 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over. 5. Absolute Maximum Ratings 4. Block Diagram EFR32MG21 Interface Block CPU (ARM-M33) Clock(38.4MHz) ANT ROM 512kb 3.3V Radio Transceiver LNA, PA RAM 64kb UART WAKE_UP Specification For Approval PAGE : DOCUMENT No. : REG. DATE : 2022. 08. 26 MODEL NAME : SZB23W ETWZBSUC01 REV. NO : 1.0 © 2022 LGIT. All rights reserved. 4/ 11 WC40182 REV. DATE : 2022. 08. 26 The Test for electrical specification shall be performed under the following condition Otherwise this following conditions, not guaranteed this performance. 6. Operating Test Conditions Temperature 25 ±5°C Humidity 65 ±5% Input power(VDD)Supply Voltage +3.3V +3.3V±10% 7. Standard Test Conditions 7-1. Ambient condition 7-2. Power supply voltages 7-3. Current consumption Current ConsumptionMin.Typ.Max.Unit TX Mode @ 6dBm--100 mA RX Mode -16- Human Body Model (HBM)Min.Max.Unit Contact- ±2 kV Air- ±10 7-4. ESD Information Note 1 : IEC 61000-4-2 (150pF, 330R) ParameterMinTypMaxUnit Operating Temperature 0-+60 °C Operating Humidity (40°C) --85 % Supply Voltage 33.33.6 Vdc Specification For Approval PAGE : DOCUMENT No. : REG. DATE : 2022. 08. 26 MODEL NAME : SZB23W ETWZBSUC01 REV. NO : 1.0 © 2022 LGIT. All rights reserved. 5/ 11 WC40182 REV. DATE : 2022. 08. 26 8. Electrical Characteristics 8-1. RF Characteristics * Normal Condition : 25°C, VDD=3.3V. * RF characteristics is board limit. It can differ according to standards Parameter (Condition)Min.Typ.Max.Unit Frequency Range2400-2483.5MHz TX output power369dBm Receiver Sensitivity--94-90dBm Maximum Input Level-10--dBm Frequency tolerance-300+30ppm Error Vector Magnitude (EVM)--35% Specification For Approval PAGE : DOCUMENT No. : REG. DATE : 2022. 08. 26 MODEL NAME : SZB23W ETWZBSUC01 REV. NO : 1.0 © 2022 LGIT. All rights reserved. 6/ 11 WC40182 REV. DATE : 2022. 08. 26 9. Environmental Tests Item Test Conditions SPEC Heat Load Test Initial values are measured at standard test condition. Leave samples in 60°C±3°Cfor 200±5 ho0urs, and in standard test condition for 30 minutes, then take measurements after 2 hours. -Supply voltage : standard ±5% •TX Power : ±4dB Max •Min Input Level : ±4dB Max Humidity Load Test Initial values are measured at standard test condition. Leave samples in 45°C±3°C, 95% RH for 96 ±5 hours, and in standard test condition for 30 minutes, then take measurements after 2 hours. -Supply voltage : standard + 5% Heat Test Initial values are measured at standard test condition. Leave samples in 85°C±2°Cfor 120±5 hours, and in standard ambient for 1 hour with standard power Supply then take measurements within 1 hour. Cold Test Initial values are measured at standard test condition. Leave samples in -40°C±2°Cfor 120±5 hours, and in standard ambient for 1 hour with standard power Supply then take measurements after 2 hours. Temperature Shock Take measurements in standard test condition. Temp. : -45°C~ +125°C Duration : 30min@-45°C, 30min@125°C Ramp-up & Ramp-down for 5 min Cycle : 200cycle. Vibration Test Initial value measure at standard test condition. Sweep rate : 1 single sweep/ minute Amplitude : 1.5 mm Frequency : 10-55Hz Duration : 1 Hours per direction (X,Y,Z) Specification For Approval PAGE : DOCUMENT No. : REG. DATE : 2022. 08. 26 MO…

Text truncated - open the document above for the full version.

Date : Jul. 16, 2018 Rev : 3.2 HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC ELa Modular Approval Declaration Letter Date : Jul. 16, 2018 Rev : 3.2 HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated Template(Obsolete) 10/01/2012 QM 2.1 Updated address (Obsolete) 01/10/2014 QM 3.0 Updated Template(Obsolete) 03/30/2015 QM 3.1 Updated Address 06/21/2018 QM 3.2 Changed File Name and Split Files FCC/IC 7/16/2018 QM HACS-F007-1 FCC Modular Approval Declaration Letter Rev : 3.2 Date : Oct 24 2022 FCC Modular Approval Attestation FCC ID: BEJSZB23W is seeking FCC equipment authorization as Single Modular Transmitter Single Limited Modular Transmitter Product Information Product Description: RF Module FRN: 0023476120 Model Name(s): FCC Product ID: - FCC Module ID: Modular Checklist/Information For Modular Approval, the module shall meet all the requirements listed below. Please check () if the module complies with the stated requirement.  The modular transmitter must have its own shielding.  The modular transmitter must have buffered modulation/data inputs. □ The modular transmitter must have its own power supply regulation.  The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).  The modular transmitter must tested in a stand-alone configuration.  The modular transmitter must be labeled with its own FCC ID number.  The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instruction along with the module to explain any such requirements.  The modular transmitter must comply with any applicable RF exposure requirements. If a module(s) does NOT meet one or more of the above listed requirements, the applicant may request Limited Modular Approval (LMA). For LMA, please state details about why the above requirement(s) could not be met; and state how control of the end product, into which the module will be installed, will be maintained by the applicant / manufacturer, such that full compliance of the end product is always ensured: (Name / Title) SungSoo Kim / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-266-2215 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM LG Electronics USA HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : October 24, 2022 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID : BEJSZB23W We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: (Name / Title) SungSoo Kim / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-266-2215 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM LG Electronics USA HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : 10/24/2022 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT: Request for Confidentiality for FCC ID: BEJSZB23W We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List 4 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: (Name / Title) SungSoo Kim / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-266-2215 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

FCC ID: BEJSZB23W, IC: 2703H-SZB23W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 3 EXTERNAL PHOTOGRAPHS FCC ID: BEJSZB23W, IC: 2703H-SZB23W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 3 ■ EXTERNAL PHOTO FCC ID: BEJSZB23W, IC: 2703H-SZB23W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 3 ■ EXTERNAL PHOTO

Copyrightⓒ. 2017. All Rights Reserved. 1/ 1 Label Drawing (Silk Label Drawing) < Top ><Bottom >

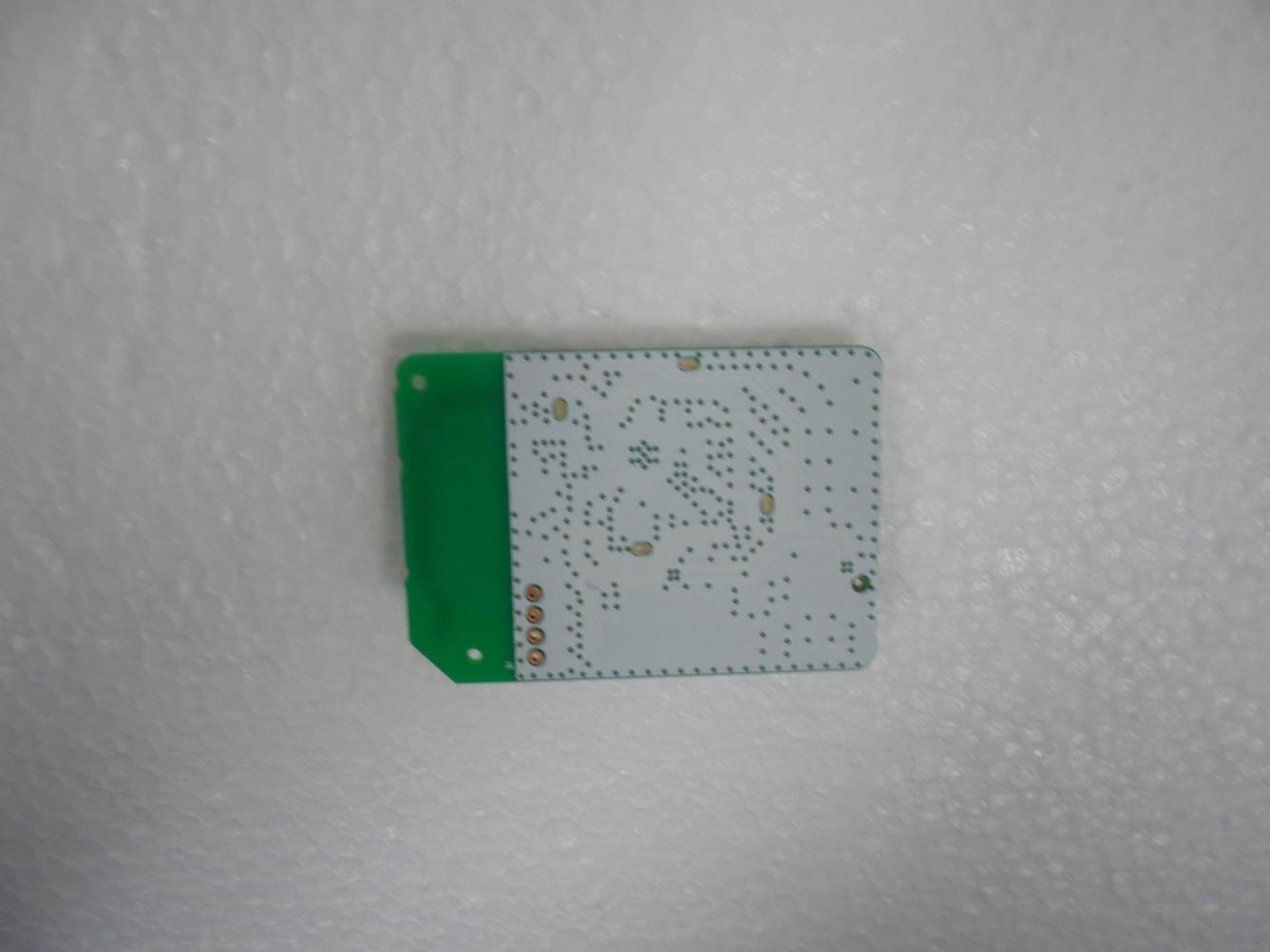

FCC ID: BEJSZB23W, IC: 2703H-SZB23W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 3 INTERNAL PHOTOGRAPHS FCC ID: BEJSZB23W, IC: 2703H-SZB23W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 3 ■ INTERNAL PHOTO FCC ID: BEJSZB23W, IC: 2703H-SZB23W HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 3 ■ INTERNAL PHOTO(Antenna)

TEST REPORT FCC MPE Test for SZB23W Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2210-FI005 DATE OF ISSUE October 27, 2022 Tested by Kyung Jun Woo Technical Manager Kwon Jeong Accredited by KOLAS, Republic of KOREA F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 5 The report shall not be reproduced except in full(only partly) without approval of the laboratory. F-TP22-03 (Rev. 04) Page 2 of 5 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC MPE Test for SZB23W REPORT NO. HCT-RF-2210-FI005 DATE OF ISSUE October 27, 2022 Additional Model - ApplicantLG Electronics Inc. 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Republic of Korea Eut Type Model Name RF Module SZB23W FCC IDBEJSZB23W Frequency range2405 MHz ~ 2480 MHz (Zigbee) The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2210-FI005 F-TP22-03 (Rev. 04) Page 3 of 5 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 October 27, 2022 Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance KOLAS Statement: The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (KOLAS Accreditation No. KT197) If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2210-FI005 F-TP22-03 (Rev. 04) Page 4 of 5 RF Exposure Statement 1. Limit According to §1.1310, §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34 1.34 - 30 30 - 300 300 - 1500 1500 - 100.000 614 824/f 27.5 ... ... 1.63 2.19/f 0.073 ... ... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. Maximum Permissible Exposure Prediction Prediction of MPE limit at a given distance ଶ S = Power density P = Power input to antenna G = Power gain to the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Report No. HCT-RF-2210-FI005 F-TP22-03 (Rev. 04) Page 5 of 5 3. RESULTS 3-1. Zigbee Max. Average output Power at antenna input terminal 9.00 dBm Max. Average output Power at antenna input terminal 7.94 mW Prediction distance 20.00 cm Prediction frequency 2405 ᄧ 2480 MHz Antenna Gain(typical) 1.46 dBi Antenna Gain(numeric) 1.400 - Power density at prediction frequency( S) 0.0022 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 2.1091 EIRP 10.46 (dBm) ERP 8.31 (dBm) ERP 0.007 (W) ERP Limit 3.00 (W) MARGIN 26.46 (dB)

TEST REPORT FCC/ISED Zigbee Test for SZB23W Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2210-FI004 DATE OF ISSUE October 27, 2022 Tested by Kyung Jun Woo Technical Manager Kwon Jeong Accredited by KOLAS, Republic of KOREA F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 61 The report shall not be reproduced except in full(only partly) without approval of the laboratory. F-TP22-03 (Rev. 04) Page 2 of 61 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC/ISED Zigbee Test for SZB23W REPORT NO. HCT-RF-2210-FI004 DATE OF ISSUE October 27, 2022 Additional Model - A pplicantLG Electronics Inc. 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Republic of Korea Eut Type Model Name RF Module SZB23W FCC ID IC BEJSZB23W 2703H-SZB23W Peak Output Power7.052 dBm (5.07 mW) Modulation typeO-QPSK FCC ClassificationDigital Transmission System(DTS) FCC Rule Part(s) Part 15.247 ISED Rule Part(s)RSS-247 Issue 2 (February 2017) RSS-Gen Issue 5_Amendment 2 (February 2021) The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2210-FI004 F-TP22-03 (Rev. 04) Page 3 of 61 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 October 27, 2022 Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / ISED Rules under normal use and maintenance. KOLAS Statement: The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (KOLAS Accreditation No. KT197) If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2210-FI004 F-TP22-03 (Rev. 04) Page 4 of 61 CONTENTS 1. EUT DESCRIPTION 5 2. TEST METHODOLOGY 6 EUT CONFIGURATION 6 EUT EXERCISE 6 GENERAL TEST PROCEDURES 6 DESCRIPTION OF TEST MODES 7 3. INSTRUMENT CALIBRATION 7 4. FACILITIES AND ACCREDITATIONS 7 FACILITIES 7 EQUIPMENT 7 5. ANTENNA REQUIREMENTS 8 6. MEASUREMENT UNCERTAINTY 9 7. DESCRIPTION OF TESTS 10 8. SUMMARY OF TEST RESULTS 29 9. TEST RESULT 30 9.1 DUTY CYCLE & DCCF 30 9.2 6 dB BANDWIDTH & 99 % BANDWIDTH 31 9.3 OUTPUT POWER 35 9.4 POWER SPECTRAL DENSITY 36 9.5 BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS 39 9.6 RADIATED SPURIOUS EMISSIONS 48 9.7 RADIATED RESTRICTED BAND EDGES 52 9.8 RECEIVER SPURIOUS EMISSIONS 54 9.9 POWERLINE CONDUCTED EMISSIONS 55 10. LIST OF TEST EQUIPMENT 59 11. ANNEX A_ TEST SETUP PHOTO 61 Report No. HCT-RF-2210-FI004 F-TP22-03 (Rev. 04) Page 5 of 61 1. EUT DESCRIPTION Model SZB23W EUT Type RF Module Manufacturer Name Address LG Electronics Inc. 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Republic of Korea Factory Name Address LG Innotek Indonesia PT Bekasi International Industrial Estate Blok C8 No. 12-12A Desa Cibatu, Cikarang, Indonesia Power Supply DC 3.30 V Frequency Range 2405 MHz ~ 2480 MHz Max. RF Output Power (Peak) 7.052 dBm (5.07 mW) Modulation Type O-QPSK Number of Channels 16 Channels Antenna Specification Antenna type: PCB Printed PIFA type Peak Gain : 1.46 dBi Date(s) of Tests October 07, 2022~ October 27, 2022 PMN (Product Marketing Number) RF Module HVIN (Hardware Version Identification Number) SZB23W FVIN (Firmware Version Identification Number) 1.0 HMN (Host Marketing Name) N/A EUT serial numbers Radiated : ETWZBSUC01-01 Conducted : ETWZBSUC01-02 Report No. HCT-RF-2210-FI004 F-TP22-03 (Rev. 04) Page 6 of 61 2. TEST METHODOLOGY FCC KDB 558074 D01 15.247 Meas Guidance v05 dated August 24, 2018 entitled ᄲguidance for compliance measurements on digital transmission system, frequency hopping spread spectrum system, and hybrid system devices and the measurement procedure described in ANSI C63.10(Version : 2013) ᄭthe American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devicesᄮ. EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. / RSS-Gen issue 5, RSS-247 issue 2. GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 6.2 of ANSI C63.10. (Version :2013) Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30 MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane below 1 GHz. Above 1 GHz with 1.5 m using absorbers between the EUT and receive antenna. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3.75 m away from the receiving antenna, which varied from 1 m to 4 m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horiz…

Text truncated - open the document above for the full version.

SPECIFICATIONS DesignedCheckedApproved LG Innotek Co., Ltd. S.J.Han DOCUMENT No. 2022RF-ANT-05 2022.09.28- PAGE7 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. PRODUCT NAME : 2.4GHz Zigbee Module MODEL NAME : ETWZBSUC01 S P E C I F I C A T I O N PAGE : DOCUMENT No : REG. DATE : 2022.09.28 REV. DATE : 2022.09.28 REV.NO : 1.0 2022RF-ANT-05 1/ 7 MODEL NAME : ETWZBSUC01 (LGIT) LG Innotek Confidential : This document is protected by security policies and laws. [Confidential] Change History of Revision RevisionDateContents of Revision ChangeRemark 1.02022.09.28Zigbee ANT SpecS.J.Han S P E C I F I C A T I O N PAGE : DOCUMENT No : REG. DATE : 2022.09.28 REV. DATE : 2022.09.28 REV.NO : 1.0 2022RF-ANT-05 2/ 7 MODEL NAME : ETWZBSUC01 (LGIT) LG Innotek Confidential : This document is protected by security policies and laws. [Confidential] Table of Contents NoDescriptionPage 1ANT Features3 2Antenna Characteristics3 2.1 Network Data4 2.2 Efficiency5 2.3 Radiation Pattern6 3ANT Test Condition 6 4ANT Dimension7 S P E C I F I C A T I O N PAGE : DOCUMENT No : REG. DATE : 2022.09.28 REV. DATE : 2022.09.28 REV.NO : 1.0 2022RF-ANT-05 3/ 7 MODEL NAME : ETWZBSUC01 (LGIT) LG Innotek Confidential : This document is protected by security policies and laws. [Confidential] 2. Antenna Characteristics 1. ANT Features -Zigbee ANT -Main Frequency: 2.45GHz -Frequency range : From 2.405 to 2.480 GHz -Operating temperature range : 0 to +60°C Built-in performance ParameterMinTypMaxUnit Frequency Range2.4052.452.480GHz Directivity-Omni-- 2.45GHz Average Gain--1.02- dBi Peak Gain--1.46 V.S.W.R--3.0:1Under Impedance50Ohm Radiation Material PCB Printed PIFA type S P E C I F I C A T I O N PAGE : DOCUMENT No : REG. DATE : 2022.09.28 REV. DATE : 2022.09.28 REV.NO : 1.0 2022RF-ANT-05 4/ 7 MODEL NAME : ETWZBSUC01 (LGIT) LG Innotek Confidential : This document is protected by security policies and laws. [Confidential] 2.1 Network Data VSWR S P E C I F I C A T I O N PAGE : DOCUMENT No : REG. DATE : 2022.09.28 REV. DATE : 2022.09.28 REV.NO : 1.0 2022RF-ANT-05 5/ 7 MODEL NAME : ETWZBSUC01 (LGIT) LG Innotek Confidential : This document is protected by security policies and laws. [Confidential] 2.2. Efficiency S P E C I F I C A T I O N PAGE : DOCUMENT No : REG. DATE : 2022.09.28 REV. DATE : 2022.09.28 REV.NO : 1.0 2022RF-ANT-05 6/ 7 MODEL NAME : ETWZBSUC01 (LGIT) LG Innotek Confidential : This document is protected by security policies and laws. [Confidential] 2.3. Radiation Pattern 3. ANT Test Condition CTIA-OTA Test Chamber : 3x6x3m
