BEJT300Cellular/PCS GSM Phone with Bluetooth

T300T300 User Guide Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 6 LG T300 | User Guide Getting to know your phone Smart key • Accepts and ends a call. • Goes to home screen directly. Power/Lock key • Long press for power on/off. • Short press to turn on/off the screen. WARNING: Placing a heavy object on the phone or sitting on it while it is in your pocket can damage the phone’s LCD and touch screen functionality. Side keys • When the screen is at the Home screen: Ring tone and key tone volume. • During a call: Earpiece volume. Charger, cable and handsfree connector Camera/Multi-tasking key • Long press to use the camera. • Short press to use multi- tasking. Ext e Micr Batte Op 7 n the ne e key e ulti- External camera lens MicroSD Card Slot SIM Card Tray Battery Battery cover Open view 8 LG T300 | User Guide Installing the SIM and battery 1 Remove the battery cover Slide the battery cover towards the bottom of the phone and away from it. 2 Install the SIM card Slide the SIM card into the SIM card holder making sure that the gold contact area on the card is facing downwards. Please make sure the battery is removed from the phone before installing the SIM card. To remove the SIM card, pull it gently outwards. 3 Install the battery Insert the left side of the battery into the top edge of the battery compartment first. Ensure that the battery contacts align with the phone’s terminals. Press the right side of the battery until down it clicks into place. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. WARNING: Do not use your fi ngernail to remove the battery. Ch Rem on t h the T inclu USB into be c h mess NOT charg lifeti full” char g 9 y y s s. ry ge r y. Charging your phone Remove the charger socket cover on the side of your T300. Connect the Travel Adapter (Charger) and the included USB cable. Connect the USB cable into the phone and plug it into a power socket. Your T300 must be charged until the “Battery full“ message appears on the screen. NOTE: The battery must be fully charged initially to improve battery lifetime. Disregard the first “Battery full” message and keep the phone on charge overnight. 10 LG T300 | User Guide Memory card Installing a memory card You can expand the memory space on your phone by using a MicroSD memory card. NOTE: A memory card is an optional accessory. 1 Remove the battery cover. 2 Push the microSD card slot to release lock. 3 Flip up the slot. 4 Put the microSD card on the card tray. Make sure the gold colour contact area is facing downwards. 5 Flip down then push the slot to lock. 6 Replace the cover. Formatting the memory card Your memory card may already be formatted. If it isn’t, you will need to format it before you can start to use it. 1 From the Home screen select , then Phone settings in SETTINGS tab. 2 Touch Memory info then choose External memory. 3 Touch Format and then confirm your choice. 4 Enter the password, if one is set. Your card will then be formatted and ready to use. NOTE: If there is existing content on your memory card, the folder structure may be different after formatting since all files will have been deleted. Me To uc furth COM CO U 11 e to se it. , GS e m . d Menu map Touch in the Home screen to open a Top menu. From here you can access further menus by scrolling through the icons: COMMUNICATION, ENTERTAINMENT, UTILITIES and SETTINGS. COMMUNICATION Contacts Recent history Messaging E-mail Dialling Contact search Speed dials New message UTILITIES Browser Google search Alarms Organiser Memo Voice recorder Tools Drawing panel SETTINGS Profiles Screen settings Phone settings Call settings Bluetooth Touch settings Connectivity Message settings ENTERTAINMENT Camera Gallery My stuff Music Games & Apps FM radio Video camera Muvee studio 12 LG T300 | User Guide Using your touch screen Touch screen tips • To select an item, touch the centre of the icon. • Do not press too hard…

Text truncated - open the document above for the full version.

Date: March 22, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: June 4, 2010 Federal Communications Commission Autho rization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Re quest of Confidentiality for FCC ID: BEJT300 Eq uipment Class: JBP: Part 15 Class B Computing Device Peripheral To Whom It May Conce rn: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram PERMANENT 2 Operational Descriptions 3 External Photos 4 Internal Photos 5 Test-Setup Photos SHORT-TERM 6 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Chris Harvey From: Loh, Grace (Gunpo) [[email protected]] Sent: Thursday, June 17, 2010 8:41 PM To: [email protected]; Jeong, Feel (Gunpo) Cc: [email protected]; [email protected] Subject: RE: LG Electronics Inc., FCC ID: BEJT300, Assessment NO.: AN10T0506, Notice#1 Attachments: LG-T300 _EMC TEST REPORT.pdf Page 1 of 2 6/18/2010 Dear Chris, Pls find attach to the JBP test report. Thanks, Grace Grace Loh/ 노 윤 정 Wireless Division Section Chief/ 과장 SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Phone: +82 (0)31 428 5744 Mobile: +82 (0)10 2251 3461 Fax: +82 31 428 5859 E-mail : [email protected] citawireless_logo.gif -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, June 17, 2010 11:38 PM To: Jeong, Feel (Gunpo); Loh, Grace (Gunpo) Cc: [email protected]; [email protected] Subject: LG Electronics Inc., FCC ID: BEJT300, Assessment NO.: AN10T0506, Notice#1 Dear Feel Jeong and Grace Loh, I am starting to review the applications for the LG T-300 but the FCC Part 15 Subpart B Computer Peripheral JBP test report was not submitted. Please submit this JBP test report. The test setup photos submitted show Test Report No. : F690501/RF-EMG003293 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and an y attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Page 2 of 2 6/18/2010

Chris Harvey From: Loh, Grace (Gunpo) [[email protected]] Sent: Friday, June 18, 2010 8:03 AM To: Chris Harvey Cc: [email protected]; [email protected] Subject: RE: LG Electronics Inc., FCC ID: BEJT300, Assessment NO.: AN10T0506, Notice#1 Attachments: External Photos_LG-T300.pdf; Internal Photos_LG-T300.pdf; EMC Test report_LG-T300.pdf; Test setup photo_LG-T300.pdf Page 1 of 3 6/18/2010 Dear Chris, I’m sorry. It’s error to the file. Pls find attach to the documents. Thanks and regards, Grace Grace Loh/ 노 윤 정 Wireless Division Section Chief/ 과장 SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Phone: +82 (0)31 428 5744 Mobile: +82 (0)10 2251 3461 Fax: +82 31 428 5859 E-mail : [email protected] From: Chris Harvey [mailto:[email protected]] On Behalf Of Chris Harvey Sent: Friday, June 18, 2010 7:20 PM To: Loh, Grace (Gunpo); [email protected]; Jeong, Feel (Gunpo) Cc: [email protected]; [email protected] Subject: RE: LG Electronics Inc., FCC ID: BEJT300, Assessment NO.: AN10T0506, Notice#1 Grace, this test report also does not contain AC Conducted Emissions data required by FCC 15.107. Please submit updated test report for the LG-T300 that contains AC Conducted Emissions data. Best regards, Chris Harvey From: Loh, Grace (Gunpo) [mailto:[email protected]] Sent: Thursday, June 17, 2010 8:41 PM To: [email protected]; Jeong, Feel (Gunpo) Cc: [email protected]; [email protected] Subject: RE: LG Electronics Inc., FCC ID: BEJT300, Assessment NO.: AN10T0506, Notice#1 Dear Chris, Pls find attach to the JBP test report. Thanks, Grace Grace Loh/ 노 윤 정 Wireless Division Section Chief/ 과장 SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Phone: +82 (0)31 428 5744 Mobile: +82 (0)10 2251 3461 Fax: +82 31 428 5859 E-mail : [email protected] citawireless_logo.gif -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, June 17, 2010 11:38 PM To: Jeong, Feel (Gunpo); Loh, Grace (Gunpo) Cc: [email protected]; [email protected] Subject: LG Electronics Inc., FCC ID: BEJT300, Assessment NO.: AN10T0506, Notice#1 Dear Feel Jeong and Grace Loh, I am starting to review the applications for the LG T-300 but the FCC Part 15 Subpart B Computer Peripheral JBP test report was not submitted. Please submit this JBP test report. The test setup photos submitted show Test Report No. : F690501/RF- EMG003293 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 Page 2 of 3 6/18/2010 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and any attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and an y attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Page 3 of 3 6/18/2010

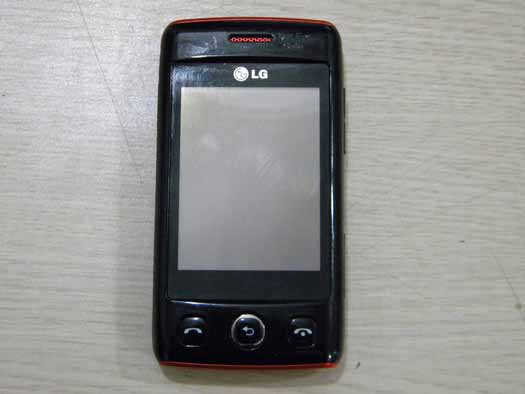

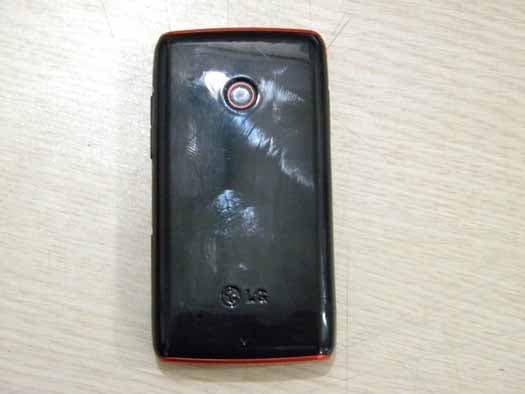

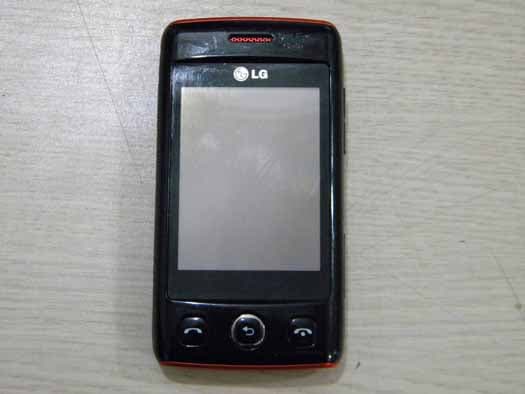

Test Report No. : F690501/RF-EMG003291 Page : 12 of 17 3. Photographs of EUT  Front View  Rear View

Model No: LG-T300 FCC ID : BEJT300 S/N : Made in Korea LG Electronics Inc. LGE

Test Report No. : F690501/RF-EMG003291 Page : 13 of 17  Top View of Main Board  Bottom View of Main Board Test Report No. : F690501/RF-EMG003291 Page : 14 of 17  Top View of LCD Panel  Bottom View of LCD Panel Test Report No. : F690501/RF-EMG003291 Page : 15 of 17  Top View of Battery  Bottom View of Battery Test Report No. : F690501/RF-EMG003291 Page : 16 of 17  Inside

Test Report No. : F690501/RF-EMG003291 Page : 2 of 17 Contents 1. General Information...................................................................................................3 1.1 Client Information................................................................................................3 1.2 Test Laboratory...................................................................................................3 1.3 General Information of E.U.T. .............................................................................3 1.4 Operating Modes and Conditions........................................................................3 1.5 Peripheral Equipments........................................................................................3 1.6 Cable List ............................................................................................................4 1.7 System Configurations ........................................................................................4 1.8 Test System Layout ............................................................................................4 1.9 Applicable Standards for Testing ........................................................................5 1.10 Summary of Test Results..................................................................................5 2. Emission Test............................................................................................................6 2.1 Test Results ........................................................................................................6 2.2 Test Equipments .................................................................................................6 2.3 Test Site..............................................................................................................6 2.4 Conducted Emission Test Data...........................................................................6 2.5 Radiated Emission Test Data..............................................................................8 2.6 Modifications.......................................................................................................8 2.7 Photograph of Conducted Emission....................................................................9 2.8 Photographs of Radiated Emission (Below 1GHz)............................................10 2.9 Photographs of Radiated Emission (Above 1GHz) ...........................................11 3. Photographs of EUT ................................................................................................12 Appendix A : Conducted Emission ..............................................................................17 Test Report No. : F690501/RF-EMG003291 Page : 3 of 17 1. General Information 1.1 Client Information Applicant : LG Electronics Inc. Address of Applicant : 60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Manufacturer : LG Electronics Inc. Address of Manufacturer : 60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea 1.2 Test Laboratory Name and Address : SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo, Gyeonggi-do, Korea 435-041 1.3 General Information of E.U.T. Product Name : Cellular/PCS GSM Phone with Bluetooth Model Name : LG-T300 Alt. Mode Name : T300 Model Difference : Only model name is different. Serial No. : 003KPAE0733064 Highest Internal Frequency : Max. 208 MHz Test Voltage : AC 120V, 60Hz(Notebook Computer) 1.4 Operating Modes and Conditions Operating mode Operating condition USB Mode USB Data Communication 1.5 Peripheral Equipments Description Model Serial No. Manufacturer Notebook Computer PCG-3AHP 28272287 7000053Sony Corporation LCD Monitor CR22KS N843H1KP902165L Samsung Electronics USB Keyboard KU-0459 7691402003981 Microsoft USB MOUSE Basic Optical Mouse 1.0A USB/PS2 Compatible N/A MICROSOFT CORPORATION Micro SD Card Mobile Ultra 2GBN/A SanDisk Test Report No. : F690501/RF-EMG003291 Page : 4 of 17 1.6 Cable List Start END Cable Spec. Name I/O PortName I/O PortLength Shield USB Notebook Computer USB 1.2 Shielded Cellular/PCS GSM Phone with Bluetooth MicroSD Micro SD Card - - - DC IN AC AdapterDC OUT1.8 Unshielded RGB LCD Monitor RGB 1.8 Shielded USB USB Keyboard - 2.0 Shielded Notebook Computer USB USB Mouse- 1.8 Shielded AC Adapter AC IN AC Source- 1.0 Unshielded 1.7 System Configurations 1.8 Test System Layout Description Model Serial No. Manufacturer Battery LGIP-430N DC100314 LG Main Board LGT300 MAIN SPFY 0229101-E(2) N/A LCD Panel DM24- DSM07(Papaya)_V02 DLN103220140 LG INNOTEK AC Adapter Notebook Computer Cellular/PCS GSM Phone with Bluetooth Micro SD Card LCD Monitor USB Mouse USB Keyboard Test Report No. : F690501/RF-EMG003291 Page : 5 of 17 1.9 Applicable Standards for Testing 1.10 Summary of Test Results Test Item Standards Results Conducted Emission FCC Part 15 : 2009, Subpart B ANSI C63.4 : 2003 CISPR 22 : 2006 Complied Radiated Emission FCC Part 15 : 2009, Subpart B ANSI C63.4 : 2003 CISPR 22 : 2006 Complied Standards Status Deviation FCC Part 15 : 2009, Subpart B ANSI C63.4 : 2003 CISPR 22 : 2006 Applicable No Deviation Test Report No. : F690501/RF-EMG003291 Page : 6 of 17 EMISSION 2. Emission Test 2.1 Test Results Test Items Standards Test Results Conducted Emission FCC Part 15 : 2009, Subpart B ANSI C63.4 : 2003 CISPR 22 : 2006 Complied Radiated Emission FCC Part 15 : 2009, Subpart B ANSI C63.4 : 2003 CISPR 22 : 2006 Complied 2.2 Test Equipments Equipment Model Manufacturer Last Cal. Date Two-Line V-Network ENV216 R&S 2010.01.06 Test Receiver ESHS10 R&S 2009.07.13 LISN L3-25 PMM 2009.07.02 Test Receiver ESU26 R&S 2010.04.08 Amplifier 8447F HP 2009.07.02 Bi-Log Antenna VULB9163 SCHWARZBECK MESS- ELEKTRONIK 2009.07.22 Preamplifier 8449B Agilent 2010.03.31 Horn Antenna HF906 R&S 2009.10.08 Note : Only the calibration period of Antennas is 2 years but the period of every equipment is 1 year. 2.3 Test Site Conducted Emission: Shield Room in Gunpo Laboratory Radiated Emission: 3m Semi-Anechoi…

Text truncated - open the document above for the full version.

Test Report No. : F690501/RF-EMG003291 Page : 9 of 17 2.7 Photograph of Conducted Emission Test Report No. : F690501/RF-EMG003291 Page : 10 of 17 2.8 Photographs of Radiated Emission (Below 1GHz) Test Report No. : F690501/RF-EMG003291 Page : 11 of 17 2.9 Photographs of Radiated Emission (Above 1GHz)
