BEJT320Cellular/PCS GSM/EDGE Phone with Bluetooth

T320T320 User Guide Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 6 LG T320 | User Guide Getting to know your phone WARNING: Placing a heavy object on the phone or sitting on it while it is in your pocket can damage the phone’s LCD and touch screen functionality. End/Power key • Long press for power on/off. Call key • Dials a phone number and answers incoming calls. Multitasking key Main screen Handsfree or Stereo earphone connector Earpiece 7 Lock key • Short press to turn on/off the screen. Side keys • When the screen is at the Home screen: Ring tone and key tone volume. • During a call: Earpiece volume. MicroSD Card Slot Camera key • Go to the camera menu directly by pressing and holding the key. External camera lens SIM Card Tray Battery Battery cover Open view Charger, cable 8 LG T320 | User Guide Installing the SIM and battery 1 Remove the battery cover Slide the battery cover towards the bottom of the phone and away from it. 2 Install the SIM card Slide the SIM card into the SIM card holder making sure that the gold contact area on the card is facing downwards. Please make sure the battery is removed from the phone before installing the SIM card. To remove the SIM card, pull it gently outwards. WARNING: Do not use your fi ngernail to remove the battery. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. 3 Install the battery Insert the left side of the battery into the top edge of the battery compartment first. Ensure that the battery contacts align with the phone’s terminals. Press the right side of the battery until down it clicks into place. 9 Charging your phone Remove the charger socket cover on the side of your T320. Connect the Travel Adapter (Charger) and the included USB cable. Connect the USB cable into the phone and plug it into a power socket. Your T320 must be charged until the “Battery full“ message appears on the screen. NOTE: The battery must be fully charged initially to improve battery lifetime. Disregard the first “Battery full” message and keep the phone on charge overnight. 10 LG T320 | User Guide Memory card Installing a memory card You can expand the memory space on your phone by using a MicroSD memory card. NOTE: A memory card is an optional accessory. 1 Open the microSD card slot cover on the left-hand edge of the phone. 2 Slide the microSD card into the slot until it clicks into place. Make sure the gold contact area is facing downwards. Formatting the memory card Your memory card may already be formatted. If it isn’t, you will need to format it before you can start to use it. 1 From the Home screen select , then Phone settings in SETTINGS tab. 2 Touch Memory info then choose External memory. 3 Touch Format and then confirm your choice. 4 Enter the password, if one is set. Your card will then be formatted and ready to use. NOTE: If there is existing content on your memory card, the folder structure may be different after formatting since all files will have been deleted. 11 Using your touch screen Touch screen tips • To select an item, touch the centre of the icon. • Do not press too hard. The touchscreen is sensitive enough to pick up a light, firm touch. • Use the tip of your finger to touch the option you require. Be careful not to touch any other keys. • Whenever your T320 is not in use, it will return to the lock screen. Control the touch screen The controls on the T320 touch screen change dynamically depending on the task you are carrying out. Opening Applications To open any application, simply touch its icon. Scrolling Drag from side to side to scroll. On some screens, such as the call history list, you can also scroll up or down. Lock screen gesture Lock screen gesture - set a gesture to the 9 extended shortcut applications. Gesture in Lock screen allows users to unlock the phone and execute the applications directly as they draw a gesture on the screen. To set up this feature, 1 Select …

Text truncated - open the document above for the full version.

Date: March 22, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: July 5, 2010 Federal Communications Commission Autho rization and Evaluation Division 7435 Oakland Mills Road, Columbia , MD 21046 RE: Re quest of Confidentiality for FCC ID: BEJT320 Eq uipment Class: PCE: PCS Licensed Transmitter held to ear To Whom It May Co ncer n: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

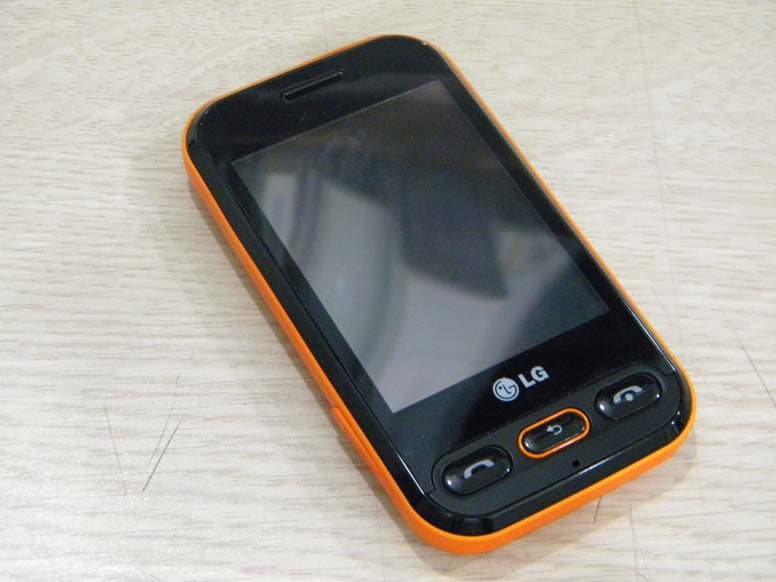

External photos of EUT Front view of EUT Rear view of EUT

Model No: LG-T320 FCC ID : BEJT320 S/N : Made in Korea LG Electronics Inc. LGE

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of LCD module Bottom view of LCD module

APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 LGE confidential The Distance Between Mai n and Bluetooth Antenna BT ANTBT ANT 80 mm Main ANT Challenge 1010 The People Company

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 1 of 83 MCCL SAR TEST REPORT Specific Absorption Rate Issued under the authority of E. S. Park / Technical Manager MCCL Reviewed by H. S. Shim /Vice Technical Manager MCCL Prepared by H. S. Shim / Test Engineer MCCL This report may not be reproduced other than in full, except with the prior written approval by MCCL Test Report No : MCCL-3-10-103 Product :Cellular/PCS GSM/EDGE Phone with Bluetooth Model Name(s) :LG-T320, T320 Manufacturer :LG Electronics, Inc. Applicant : Application Type : LG Electronics, Inc. Certification Device Category :Licensed Portable Transmitter Held to Ear (PCE) Standards : §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Date of Sample Receipt :May 17, 2010 Date of Issue : Test Device Serial No. : June 10, 2010 Pre-Production Sample [S/N: #1] Test Result :PASS SUMMARY This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI / IEEE C95.1(2005) and had been tested in accordance with the measurement procedures specified in FCC/OET bulletin 65 Supplement C (2001) , ANSI / IEEE 1528 – Dec. 2003 and in applicable Industry Canada Radio Standards specifications (RSS) ※ The test results in this test report apply only to sample(s) tested. MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 2 of 83 MCCL TABLE OF CONTENTS 1. TEST RESULT SUMMARY ········································································································3 2. DESCRIPTION OF THE DEVICE UNDER TEST·························································· 4 2.1 Antenna Description·································································································· 4 2.2 Device Description···································································································· 4 3. INTRODUCTION············································································································· 5 4. SAR MEASUREMENT SYSTEM ·················································································· 6 4.1 SAR Measurement Setup·························································································6 4.2 DASY4 E-Field Probe System·················································································· 7 4.3 Phantom···················································································································· 9 4.4 Brain & Muscle Simulating Mixture Characterization ···········································10 4.5 Device Holder for Transmitters··············································································· 11 4.6 Validation Dipole ···································································································· 11 5. SAR MEASUREMENT PROCEDURE········································································· 12 6. DEFINITION OF REFERENCE POINT········································································ 13 6.1 EAR Reference Point······························································································ 13 6.2 Handset Reference Points······················································································ 14 7. TEST CONFIGURATION POSITIONS········································································ 15 7.1 Positioning for Cheek/Touch··················································································· 15 7.2 Positioning for Ear / 15 ° Tilt···················································································· 16 7.3 Body Holster /Belt Clip Configuration······························································· 17 8. MEASUREMENT UNCERTAINTY··············································································· 18 9. ANSI/IEEE C95.1–2005 RF EXPOSURE LIMITS ····················································· 19 10. SYSTEM VERIFICATION··························································································· 20 11. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ···································································································································· 23 12. RF CONDUCTED POWER ····················································································· 24 13. MEASUREMENT RESULTS ································································································· 25 14. TEST EQUIPMENT ············································································································ 27 15. REFERENCES············································································································ 28 APPENDIX A: Validation Test Data······································································ 29 APPENDIX B: SAR Test Data··············································································· 35 APPENDIX C: Calibration Certificates································································· 58 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 3 of 83 MCCL 1.TEST RESULT SUMMARY Maximum Results Found During SAR Evaluation 1. Head Configuration 2. Body Worn Configuration 3. Measurement Uncertainty ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram Model Name(s) : LG-T320, T320 Date of Test : June 03 ~ 04, 2010 Date of Issue : June 10, 2010 Address of Test Site :60-39, Kasan-Dong, Kumchon-Gu, Seoul 153-801, Korea. Respons…

Text truncated - open the document above for the full version.

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 61 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 62 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 63 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 64 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 65 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 66 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 67 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 68 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 69 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 70 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 71 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 72 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 73 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 74 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 75 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 76 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 77 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 78 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 79 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 80 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 81 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 82 of 83 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-103 Page 83 of 83 MCCL

Report Number: F690501/RF-RTL003966 Page: 2 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------------- 3 2. RF radiated output power & spurious radiated emission -------------------------------- 7 3. Conducted Output Power ----------------------------------------------------------------------- 13 4. Occupied Bandwidth 99 % --------------------------------------------------------------------- 15 5. Spurious Emissions At Antenna Terminal--------------------------------------------------- 21 6. Band Edge ------------------------------------------------------------------------------------------ 25 7. Frequency Stability ------------------------------------------------------------------------------ 30 Report Number: F690501/RF-RTL003966 Page: 3 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General information 1.1. Testing laboratory SGS Testing Korea Co., Ltd. - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :LG Electronics Inc. Address :60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Contact Person : Han, Bong Hyo Phone No. : +82 +2 2033 1108 1.3. Description of EUT Kind of Product Cellular/PCS GSM/EDGE Phone with Bluetooth Model Name LG-T320, T320 Serial Number N/A Power Supply DC 3.7 V (Li-poly Battery) Rated Power GSM850 : 32.5 ㏈m GSM1900 : 29.5 ㏈m Frequency Range GSM850 : 824.2 ㎒ ~ 848.8 ㎒ GSM1900 : 1 850.2 ㎒ ~ 1 909.8 ㎒ Bluetooth : 2 402 ㎒ ~ 2480 ㎒ Number of Channels GSM850 : 125 GSM1900 : 300 Bluetooth : 79 Class of GPRS Class 12 Report Number: F690501/RF-RTL003966 Page: 4 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.4. Description of test mode Voice GPRS Data GPRS GPRS GPRS GPRS GSM 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) 824.2 32.63 32.58 31.10 29.09 27.10 836.6 32.47 32.45 30.95 28.95 26.90 GSM850 848.8 32.46 32.44 30.96 28.91 26.85 1 850.2 29.50 29.51 28.03 27.98 25.90 1 880.0 29.38 29.40 27.96 27.90 25.85 GSM1900 1 909.8 29.69 29.68 28.25 28.10 26.13 EDGE Data EDGE EDGE EDGE EDGE 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) 824.2 26.83 25.20 23.28 21.68 836.6 26.71 25.25 23.32 21.70 GSM850 848.8 26.46 25.20 23.13 21.50 1 850.2 25.05 23.60 22.12 22.53 1 880.0 25.05 23.52 22.01 22.40 GSM1900 1 909.8 25.07 23.50 22.00 22.30 GSM (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose GSM850 Voice mode and GSM1900 GPRS 1 Tx slot (worst case) as a representative. Report Number: F690501/RF-RTL003966 Page: 5 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2011 Signal Generator Rohde & Schwarz SMR40 Sep. 25, 2010 Spectrum Analyzer R & S FSV30 Mar. 31, 2011 Mobile Test Unit Agilent E5515C Mar. 31, 2011 Directional Coupler Narda 4226-20 Jan. 07, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2010 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2011 DC power Supply Agilent U8002A Jan. 06, 2011 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Empower RF Systems,Inc2002-BBS2C4AEL Mar. 31, 2011 Test Receiver R & S ESU26 Apr. 08, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jul. 22, 2010 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBH 9120D Nov. 09, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R Turn Table Daeil EMC DI-1500 N.C.R Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) Jan. 27, 2011 Report Number: F690501/RF-RTL003966 Page: 6 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 22, 24 Section in FCC part Test Item Result §2.1046 §22.913(a) §24.232(b) RF Radiated Output Power Complied §2.1053 §22.917(e) §24.238(a) Spurious Radiated Emission Complied §2.1046(a) Conducted Output Power Complied §2.1049(h) (i) Occupied Bandwidth Complied §2.1051 §22.917(e) §24.238(a) Spurious Emission at Antenna Terminal Complied…

Text truncated - open the document above for the full version.

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 1 of 10 MCCL SAR Test Setup Photographs Figure 1 Right Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 2 of 10 MCCL Figure 2 Right Head SAR Test Setup - Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 3 of 10 MCCL Figure 3 Left Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 4 of 10 MCCL Figure 4 Left Head SAR Test Setup - Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 5 of 10 MCCL Figure 5 Body SAR Test Setup – w/o Holster MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 6 of 10 MCCL Figure 6 Body SAR Test Setup – w/o Holster MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 7 of 10 MCCL Figure 7 DUT Photo MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 8 of 10 MCCL Figure 8 DUT Photo MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 9 of 10 MCCL Figure 9 DUT Photo MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 10 of 10 MCCL Figure 10 DUT Photo

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test B. Photos of conducted power line test
