BEJTA4HEBN2Car Telematics Device

LG Electronics Inc. 1 19-4-8 JLR VDC User Manual TA4HEB-N2 Introduction VDC ( Vehicle Domain Controller) Telematics module device equipped in the JLR(Jaguar Land Rover) vehicles. In charge of wireless communications in LTE-A/LTE/WCDMA/GSM network Platform for Telematics Virtual Machine (VM) and other VMs based on Hypervisor TA4HEB-N2 supports GSM850/1900, WCDMA B2/4/5, LTE B2/4/5/7/12/26, 2.4/ 5GHz WLAN (UNII 1, 3) Service types which are provided by VDC Voice service : eCall, bCall1) via TSP2) SMS service : MO/MT SMS between Telematics VM – TSP2) Data service : Telematics services between Telematics VM – TSP 1/ 10 LG Electronics Inc. 2 19-4-8 Major functions of VDC (TA4HEB-N2) Multi-mode LTE, Wi-Fi 11ac-Client, Ethernet connection. Micom for a vehicle interface and a power control, AP for an Ethernet interface and Wi-Fi operation Audio circuitry for Emergency Call and Breakdown Call. Cel lular Wi-Fi Mode/Band Frequency Band (MHz) 802.11b, g, n / 2.4GHz 2412 ~ 2462 802.11a, n, ac / 5GHz 5180~5240, 5745~5825 VDC (Vehicle Domain Controller) supports highly integrated multimode, multiband RF CMOS transceiver IC. It provides a single-chip solution for LTE carrier aggregation support up to 20 MHz+20 MHz for 2DLCA. For the WiFi, Qualcomm engine are used. Overall the VDC d irectly supports with up to 2 GSM bands, 3UMTS bands and 6 FDD-LTE bands with 2DLCA. Additional Qualcomm IC as QCA6574 support WiFi 11ac. VDC is operating with LGE shark antenna approved for use with the device. 2/ 10 RFx information The strength of the RF field produced by the wireless module or modules embedded in the TCU is well within all international RF exposure limits known at this time. Because the wireless modules embedded in the TCU emit less than the maximum amount of energy permitted in radio frequency safety standards and recommendations, the manufacturer believes these modules are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation. This module should be remain more than 20 cm (8 inches) from the body when wireless devices are on and transmitting. This transmitter must not be collocated or operated in conjunction with any other antenna or transmitter. Operation is subject to the following two conditions: (1) this module does not cause interference , (2) this module accepts any interference that may cause undesired operation. Information for the integrator The integrator must not provide information to the end user regarding how to install or remove this RF module in the user manual of the end product. The user manual that is provided by the integrator for end users must include the following information in a prominent location. To comply with FCC RF and IC RSS‐102 exposure requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operated in conjunction with any other antenna or transmitter. Approbation FCC This module complies with FCC/IC rules. FCC : Part 15, Part 22, Part 24, Part 27, Part 90 ISED : RSS-130, RSS-132, RSS-133, RSS-139, RSS-199, RSS-247 Furthermore, this device complies with FCC radiation exposure limits set forth for uncontrolled environments. This module must be installed and operated with minimum distance of 20 cm between the radiating element and the user. This module must not be co-located with any other transmitters or antennas. To comply with F CC regulatio ns limiting both the maximum RF output power and human ex posure to RF r adiatio n, the maximum antenna gain including cable loss in a mobile- only ex posure condition must not exceed the values listed in the following table. Band Frequency Rang e [M Hz] Maximum Antenna Gain[dBi] GSM850 824~849 -3.57 GSM1900 1850~1910 0.01 WCDMA(B2) 1850~1910 0.01 WCDMA(B4) 1710~1755 0.33 WCDMA(B5) 824~849 -3.57 LTE(B2) 1850~1910 0.01 LTE(B4) 1710~1755 0.33 LTE(B5) 824~849 -3.57 LTE(B7) 2500~2690 -3.61 LTE(B12) 699~716 -2.61 LTE(B26) 814~849 -4.30 Approbation FCC To satisfy the FCC’s exterior labeling requirements, the following text must appear on the exterior of the end product. Contains transmitter module FCC ID: BEJTM05GTJN2 Contains transmitter module IC: 2703H-TM 05GTJN2 Changes or modifications to this equipment may cause harmful interference unless th e modifi cations are expressly approved in the instruction manual. Users may lose the authority to operate this equipment if an unauthorized change or codification is made. Note: If this module is intended for use in a portable device, additional testing will be required to satisfy the RF exposure and SAR requirements of FCC Part 2.1093 and RSS-102. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Approbation FCC Note: The OEM integrator is responsible for ensuring that the host product which is installed and operating with the module is in compliant with Part 15B unintentional Radiator requirements, please note that For a Class B digital device or peripheral, the instructions furnished the user manual of the end‐ user product shall include the following or similar statement, placed in a prominent location in the text of the host product manual: Note：This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment do…

Text truncated - open the document above for the full version.

LG Electronics USA 11 1 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 February 25, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: BEJTA4HEBN2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Software Security Document 5 Tune-Up Procedure Short-Term 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Dae Woong Kim Director, NA Regulatory & Environmental Affairs LG Electronics USA

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: BEJTA4HEBN2 To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; February 25, 2021 LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Dae Woong Kim Director, NA Regulatory & Environmental Affairs LG Electronics USA LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name LG Electronics USA Address 111 Sylvan Ave, North Building, Englewood Cliffs, NJ 07632 United States Grantee Code BEJ FCC ID BEJTA4HEBN2 Authorized Contact Name Dae Woong Kim Contact Email [email protected] Contact Phone 201-816-2003 I , the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in ac cordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in ac cepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made i n t his application, the Applicant is responsible for: (1 ) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c )if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensur e t hat production units of this equipment will continue to comply with the FCC’s technical requirements. d)in ac cordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsibl e par ty and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in ac cordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1 ) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. S ee 47C FR 1.2002(b) for the definition of a “party” for these purposes. g)t he Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions . Li nk to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: February 25, 2021 Print Name: Dae Woong Kim Title: Director, Regulatory and Environmental Affairs *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

TECHNICAL JUSTIFICATION HOST CONFIGURATION 5 March 2021 We , LG Electronics Inc., as a manufacturer of following product, hereby submit application of equipment authorization for a host equipment that contains certified modular. A. Modular Information FCC FCC ID BEJTM05GTJN2 Original Grant Date 21 February 2021 Modular Single Modular ISED IC Certification Number 2703H-TM05GTJN2 Approved Date 19 February 2021 HVIN TM05GTJN2 PMN TM05GTJN2 B. Difference between Host configuration and Modular configuration. Modular FCC ID BEJTM05GTJN2 IC Certification Number 2703H-TM05GTJN2 Equipment Type Single Modular HVIN/PMN TM05GTJN2 Host FCC ID BEJTA4HEBN2 IC Certification Number 2703H-TA 4 H E B N 2 HVIN/PMN TA4HEB-N2 Difference Same hardware and software specification. Host equipment has identical PCB and components but has enclosures. C. Te st Reports Following test reports are referenced. Mode FCC ID, IC Certification Number Test Report Reference Date GSM BEJTM05GTJN2, 2703H-TM05GTJN2 F690501-RF-RTL001646 8 February 2021 WCDMA BEJTM05GTJN2, 2703H-TM05GTJN2 F690501-RF-RTL001646 8 February 2021 LTE BEJTM05GTJN2, 2703H-TM05GTJN2 F690501-RF-RTL001647 F690501-RF-RTL001648 8 February 2021 8 February 2021 WLAN 2.4 GHz BEJTM05GTJN2, 2703H-TM05GTJN2 F690501-RF-RTL001644 8 February 2021 WLAN 5 GHz BEJTM05GTJN2, 2703H-TM05GTJN2 F690501-RF-RTL001645 8 February 2021 D. Test in host configuration The only difference of modular (BEJTM05GTJN2) and host equipment (BEJTA4HEBN2) is the host equipment has enclosure. BEJTM05GTJN2 was tested in standalone configuration without enclosure. BEJTA4HEBN2 has enclosure added around the modular without having any modification or differences. All the software and hardware are identical in both configurations. Spot check of conducted power was performed to make sure conducted power is not changed. Conducted power in host configuration has been verified and all the conducted measurement can be referenced. We also performed radiated spurious emission of WLAN 2.4/5GHz, GSM 1900, LTE B2, B7 and B26(5) in worst modes based on original test result of BEJTM05GTJN2. Other bands had significant margin to the limit and no additional test in host configuration was required. Radiated spurious emission test results were equivalent as original test result of the modular. Mode Radiated Spurious Emission Deviation Mode Worst Channel BEJTM05GTJN2 Margin BEJTA4HEBN2 Margin GSM GSM 850 836.6 MHz, Voice 33.27 dB Not Tested - GSM 1900 1850.2 MHz, Voice 2.90 dB 2.08 dB -0.82 dB WCDMA WCDMA 2 1852.4 MHz 12.02 dB Not tested - WCDMA 4 - Not detected Not tested - WCDMA 5 846.6 MHz 31.30 dB Not tested - LTE LTE 2 1860.0 MHz, 20 MHz, QPSK 2.81 dB 5.45 dB +2.64 dB LTE 4 - Not detected Not tested - LTE 7 2535 MHz 5 MHz, QPSK 3.05 dB 5.17 dB +2.12 dB LTE 12 700.5 MHz 3 MHz, QPSK 41.36 dB Not tested - LTE 26/5 848.3 MHz 1.4 MHz, QPSK 25.41 dB 24.62 dB -0.79 dB LTE 26 - Not detected Not tested - WLAN 2.4 GHz 802.11n 2462 MHz HT20, MCS3 4.31 dB 4.18 dB -0.13 dB WLAN 5 GHz 802.11ac 5210 MHz VHT80, MCS4 4.13 dB 4.47 dB +0.34 dB E. Conclusion Based on the analysis and additional test, it has been proven that the enclosure does not affects radiated spurious emission or other requirements. we hereby request a new equipment authorization application with referencing modular test reports. Sincerely, Dae Woong Kim Director, NA Regulatory & Environmental Affairs LG Electronics USA

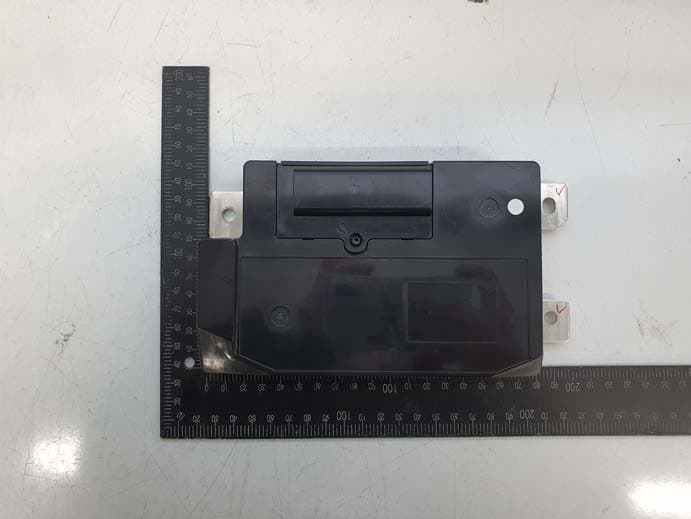

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

MAIN LABEL – JLR VDC MY22 - Model : JLR Telematics - Label Size : 54 X 141 mm - Label Material : Avery MZ1061J1/SP4200/G60Em Event Label_DV 1. Product information XXXX-XXXXX-XXXX MADE IN VIETNAM LG Electronics H/W Variant: VDC-HIGH GSDB Code - XXXXX Model Name: TA4HEB-N2 FCC ID : BEJTA4HEBN2 IC ID : 2703H-TA4HEBN2 DUNS Code - XXXXXXXXX IMEI: XXXXXXXXXXXXXX IMSI: XXXXXXXXXXXXXXX ICCID: XXXXXXXXXXXXXXXXXXXX Pri.Pwr : DC 12 V 2 A NAS S/N:XXXXXXXXXXX

Internal photos of EUT Overview of EUT Top view of PCB Bottom view of PCB View of Antenna & Module WWAN Port WLAN Port WWAN Port WLAN Port

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001715 Page: 2 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001715 Page: 3 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 Contact Person : Kim, Dae-woong Phone No. : +1 201 266 2215 1.3. Details of Manufacturer Company : LG Electronics Inc. Address : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001715 Page: 4 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.4. Description of EUT Kind of Product Car Telematics Device Model Name TA4HEB-N2 Power Supply DC 12V Frequency Range GSM 850: 824 ㎒ ~ 849 ㎒ GSM 1 900: 1 850 ㎒ ~ 1 910 ㎒ WCDMA 2: 1 850 ㎒ ~ 1 910 ㎒ WCDMA 4: 1 710 ㎒ ~ 1 755 ㎒ WCDMA 5: 824 ㎒ ~ 849 ㎒ LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 7: 2 500 ㎒ ~ 2 570 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ LTE Band 26: 814 ㎒ ~ 849 ㎒ WLAN 2.4G (11b/g/n_HT20, HT40): 2 412 ㎒ ~ 2 462 ㎒ WLAN 5G Band 1 (11a/n_HT20, 11ac_VHT20): 5 180 ㎒ ~ 5 240 ㎒ WLAN 5G Band 1 (11n_HT40, 11ac_VHT40): 5 190 ㎒ ~ 5 230 ㎒ WLAN 5G Band 1 (11ac_VHT80): 5 210 ㎒ WLAN 5G Band 3 (11a/n_HT20, 11ac_VHT20): 5 745 ㎒ ~ 5 825 ㎒ WLAN 5G Band 3 (11n_HT40, 11ac_VHT40): 5 755 ㎒ ~ 5 795 ㎒ WLAN 5G Band 3 (11ac_VHT80): 5 775 ㎒ Modulation Technique DSSS, OFDM, QPSK, 16QAM, 64QAM, GMSK, 8PSK Antenna Type External antenna Antenna Gain 2 400 ㎒ ~ 2 483.5 ㎒: 2.55 ㏈i (WLAN 2.4 G) 5 150 ㎒ ~ 5 250 ㎒: 3.96 ㏈i (WLAN 5 G) 5 725 ㎒ ~ 5 850 ㎒: 6.31 ㏈i (WLAN 5 G) 699 ㎒ ~ 716 ㎒: -1.85 ㏈i (LTE 12) 814 ㎒ ~ 824 ㎒: -3.18 ㏈i (LTE 26) 824 ㎒ ~ 849 ㎒: -2.45 ㏈i (GSM 850, WCDMA 5, LTE 26/5) 1 850 ㎒ ~ 1 910 ㎒: 1.13 ㏈i (GSM 1 900, WCDMA 2, LTE 2) 1 710 ㎒ ~ 1 755 ㎒: 1.45 ㏈i (WCDMA 4, LTE 4) 2 500 ㎒ ~ 2 570 ㎒: -1.67 ㏈i (LT E 7) H/W Version Rev.D S/W Version V9.1.02 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL001715 2021.02.25 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001715 Page: 5 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001715 Page: 6 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Test information of Cable Loss and Antenna Gain Test Item Frequency Range (㎒) Cable Loss (㏈) Antenna Gain of EUT (㏈i) Final Antenna Gain (㏈i) GSM 850 824 ~ 849 -1.12 -2.45 -3.57 GSM 1900 1 850 ~ 1 910 -1.12 1.13 0.01 WCDMA 2 1 850 ~ 1 910 -1.12 1.13 0.01 WCDMA 4 1 710 ~ 1 755 -1.12 1.45 0.33 WCDMA 5 824 ~ 849 -1.12 -2.45 -3.57 LTE 2 1 850 ~ 1 910 -1.12 1.13 0.01 LTE 4 1 710 ~ 1 755 -1.12 1.45 0.33 LTE 5 824 ~ 849 -1.12 -2.45 -3.57 LTE 7 2 500 ~ 2 570 -1.94 -1.67 -3.61 LTE 12 699 ~ 716 -0.76 -1.85 -2.61 LTE 26 814 ~ 824 -1.12 -3.18 -4.30 LTE 26 824 ~ 849 -1.12 -2.45 -3.57 Note; -Final Antenna Gain = Cable Loss(㏈) + Antenna Gain of EUT(㏈i) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001715 Page: 7 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.4. Output Power into Antenna & RF Exposure Evaluation Distance WLAN (2.4G ) - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 400 ~ 2 483.5 17.5 2.55 0.0…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001712 Page: 2 of 17 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information ---------------------------------------------------------------------------------------- 3 2. Spurious Radiated Emission --------------------------------------------------------------------------- 10 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001712 Page: 3 of 17 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 - CAB Identifier: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant FCC Applicant : LG Electronics USA FCC Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 IC Applicant : LG ELECTRONICS INC. IC Address : 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyenggi-do, Korea (Republic of), 451-713 Contact Person : Kim, Dae-woong Phone No. : +1 201 266 2215 1.3. Details of Manufacturer Company : LG Electronics Inc. Address. : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001712 Page: 4 of 17 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product Car Telematics Device Model Name TA4HEB-N2 Serial Number 001VITA000080 Power Supply DC 12 V Rated Power WCDMA 2, 4, 5: 24 ㏈m GSM 850: 33 ㏈m GSM 1 900: 30 ㏈m LTE Band 2, 4, 5, 7, 12, 26: 23 ㏈m Frequency Range WCDMA 2: 1 850 ㎒ ~ 1 910 ㎒ WCDMA 4: 1 710 ㎒ ~ 1 755 ㎒ WCDMA 5: 824 ㎒ ~ 849 ㎒ GSM 850: 824 ㎒ ~ 849 ㎒ GSM 1 900: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 7: 2 500 ㎒ ~ 2 570 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ LTE Band 26: 824 ㎒ ~ 849 ㎒ LTE Band 26: 814 ㎒ ~ 824 ㎒ (Only for FCC) Modulation Technique QPSK, 16QAM, 64QAM, GMSK, 8PSK Antenna Type External antenna Antenna Gain 699 ㎒ ~ 716 ㎒: -1.85 ㏈i 814 ㎒ ~ 824 ㎒: -3.18 ㏈i 824 ㎒ ~ 849 ㎒: -2.45 ㏈i 1 710 ㎒ ~ 1 780 ㎒: 1.45 ㏈i 1 850 ㎒ ~ 1 910 ㎒: 1.13 ㏈i 2 500 ㎒ ~ 2 570 ㎒: -1.67 ㏈i H/W Version Rev.D S/W Version V9.1.02 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001712 Page: 5 of 17 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Introduction of Test Data Reuse This report referenced from the FCC ID: BEJTM05GTJN2 and IC Certification: 2703H-TM05GTJN2 LTE, GSM and WCDMA. The applicant takes full responsibility that the test data as referenced in this report represent compliance for this FCC ID. 1.6. Reference Detail Reference applicant that contains the reused reference data in the individual test reports: Mode Reference FCC ID / IC Certification Application type Reference test report number Exhibit type Variant test report number Data reuse GSM, WCDMA FCC: BEJTM05GTJN2 IC: 2703H-TM05GTJN2 Original grant F690501-RF-RTL001646 (GSM, WCDMA) Test Report F690501-RF-RTL001712 All LTE F690501-RF-RTL001647 F690501-RF-RTL001648 (LTE) DTS F690501-RF-RTL001644 (WLAN 2.4G) F690501-RF-RTL001713 NII F690501-RF-RTL001645 (WLAN 5G) F690501-RF-RTL001714 1.7. Difference Model name Description TM05GTJN2 - Reference model - Single modular TA4HEB-N2 - Host equipment - Same to reference model except below - With external case 1.8. Worst Case Configuration and Mode The Radiated spurious emissions were tested in the band with the lowest margin of previously data and selected respectively above 1 ㎓ and below 1 ㎓. Fundamental Frequency Range Worst Case Below 1 ㎓ LTE 26/5 Above 1 ㎓ GSM 1900, LTE 2, LTE 7 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001712 Page: 6 of 17 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.9. Spot Check Data Mode Test items Frequency (㎒) Limit Original model Spot check model Deviation (㏈) TM05GTJN2 TA4HEB-N2 FCC ID: BEJTM05GTJN2 IC Certification: 2703H-TM05GTJN2 FCC ID: BEJ-TA4HEBN2 IC Certification: 2703H-TA4HEBN2 (㏈m) (W) (㏈m) (W) WCDMA II Conducted Power 1 907.6 2 W 22.96 0.198 22.83 0.192 -0.13 E.I.R.P. 1 850 ~ 1 910 25.70 0.372 25.70 0.372 - WCDMA IV Conducted Power 1 752.6 1 W 22.84 0.192 22.79 0.190 -0.05 E.I.R.P. 1 710 ~ 1 755 25.70 0.372 25.70 0.372 - WCDMA V Conducted Power 826.4 7 W 22.63 0.183 22.65 0.184 0.02 E.R.P. 824 ~ 849 25.70 0.372 25.70 0.372 - GSM 850 Conducted Power 848.8 7 W 32.52 1.786 32.60 1.820 0.08 E.R.P. 824 ~ 849 33.50 2.239 33.50 2.239 - GSM 1 900 Conducted Power 1 850.2 2 W 29.78 0.951 29.66 0.925 -0.12 E.I.R.P. 1 850 ~ 1 910 30.50 1.122 30.50 1.122 - Spurious 1 850.2 -13 ㏈m -15.90 - -15.08 - 0.82 LTE 2 Conducted Power 1 860 2 W 24.18 0.262 23.99 0.251 -0.19 E.I.R.P. 1 850 ~ 1 910 25.50 0.355 25.50 0.355 - Spurious 1 860 -13 ㏈m -15.81 - -18.45 - -2.64 LTE 4 Conducted Power 1 732.5 1 W 23.53 0.225 23.51 0.224 -0.02 E.I.R.P. 1 710 ~ 1 755 25.50 0.355 25.50 0.355 - LTE 7 Conducted Power 2 535 2 W 23.66 0.232 23.61 0.230 -0.05 E.I.R.P. 2 500 ~ 2 570 25.50 0.355 25.50 0.355 - Spurious 2 535 -25 ㏈m -28.05 - -30.17 - -2.12 LTE 12 Conducted Power 701.5 3 W 22…
