BEJTA4HEBW2Car Telematics Device

LG Electronics Inc. 1 19-3-4 JLR VDC User Manual TA4HEB-W Introduction VDC (Vehicle Domain Controller) Telematics device equipped in the JLR(Jaguar Land Rover) vehicles. In charge of wireless communications in LTE-A/LTE/WCDMA/GSM network Platform for Telematics Virtual Machine (VM) and other VMs based on Hypervisor TA4HEB-W s upports GSM850/1900, WCDMA B5, LTE B5/7/26, 2.4/ 5GHz WLAN (UNII 1, 3) Service types which are provided by VDC Voice service : eCall, bCall1) via TSP2) SMS service : MO/MT SMS between Telematics VM – TSP2) Data service : Telematics services between Telematics VM – TSP 1/ 10 LG Electronics Inc. 2 19-3-4 Major functions of VDC ( TA4HEB) Multi-mode LTE, Wi-Fi 11ac-Client, Ethernet connection. Micom for a vehicle interface and a power control, AP for an Ethernet interface and Wi-Fi operation Audio circuitry for Emergency Call and Breakdown Call. Ce llular Operating Frequency Band Common Name Uplink Downlink GSM/EDGE UMTS FD-LTE 2100 (B1) 1920–1980 2110–2170 1900(B2) 1850–1910 1930–1990 V 1800 (B3) 1710–1785 1805–1880 850 (B5) 824–849 869–894 V V V 2600 (B7) 2500–2570 2620–2690 V 900 (B8) 880–915 925–960 800(B20) 832–862 791–821 850(B26) 814–849 859–894 V 700(B28) 703–748 758–803 Wi-Fi Mode/Band Frequency Band (MHz) 802.11b, g, n / 2.4GHz 2412 ~ 2462 802.11a, n, ac / 5GHz 5180~5240, 5745~5825 VDC (Vehicle Domain Controller) supports highly integrated multimode, multiband RF CMOS transceiver IC. It provides a single-chip solution for LTE carrier aggregation support up to 20 MHz+20 MHz for 2DLCA. For the WiFi, Qualcomm engine are used. Overall the VDC directly supports with up to 2 GSM bands, 3UMTS bands and 6 FDD-LTE bands with 2DLCA. Additional Qualcomm IC as QCA6574 support WiFi 11ac. VDC is operating with LGE shark antenna approved for use with the device. Antenna port is FAKRA type and installation of this equipment shall be done by vehicle manufacturer. This device is a professional installation equipment. Installation will be done by vehicle manufacturer. 2/ 10 LG Electronics Inc. 2 18-5-28 2/2 FCC Part 15.21 statement Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. FCC Part 15.19 statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure (MPE) This equipment complies with FCC and IC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Cet équipement est conforme à l'exposition de FCC et IC rayonnements RF limites é-tablies pour un environnement non contrôlé. L’antenne pour ce transmetteur ne doit pas être même endroit avec d’autres émetteur sauf conformément à FCC et IC procédures de produits Multi-émetteur. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. IC Warning "This device complies with Industry Canada licence-exempt RSS standard(s)." Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

LG Electronics USA 1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States, 07632 February 9, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF DECLARATION FCC ID: BEJTA4HEBW2 We, LG Electronics Inc. as manufacturer of product mentioned above hereby declare similarity of each model as below. Other than the above part and function, all other parts of each product are identical. Sincerely, Dae Woong Kim Director, NA Regulatory & Environmental Affairs LG Electronics USA

LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 February 9, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: BEJTA4HEBW2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Software Security Document 5 Tune-Up Procedure Short-Term 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Dae Woong Kim Director, NA Regulatory & Environmental Affairs LG Elect ronics USA

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: BEJTA4HEBW2 To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; February 9, 2021 LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Dae Woong Kim Director, NA Regulatory & Environmental Affairs LG Electronics USA LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name LG Electronics USA Address 111 Sylvan Ave, North Building, Englewood Cliffs, NJ 07632 United States Grantee Code BEJ FCC ID BEJTA4HEBW2 Authorized Contact Name Dae Woong Kim Contact Email [email protected] Contact Phone 201-816-2003 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in acc ordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in acc epting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in acc ordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in acc ordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: February 9, 2021 Print Name: Dae Woong Kim Title: Director, Regulatory and Environmental Affairs *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

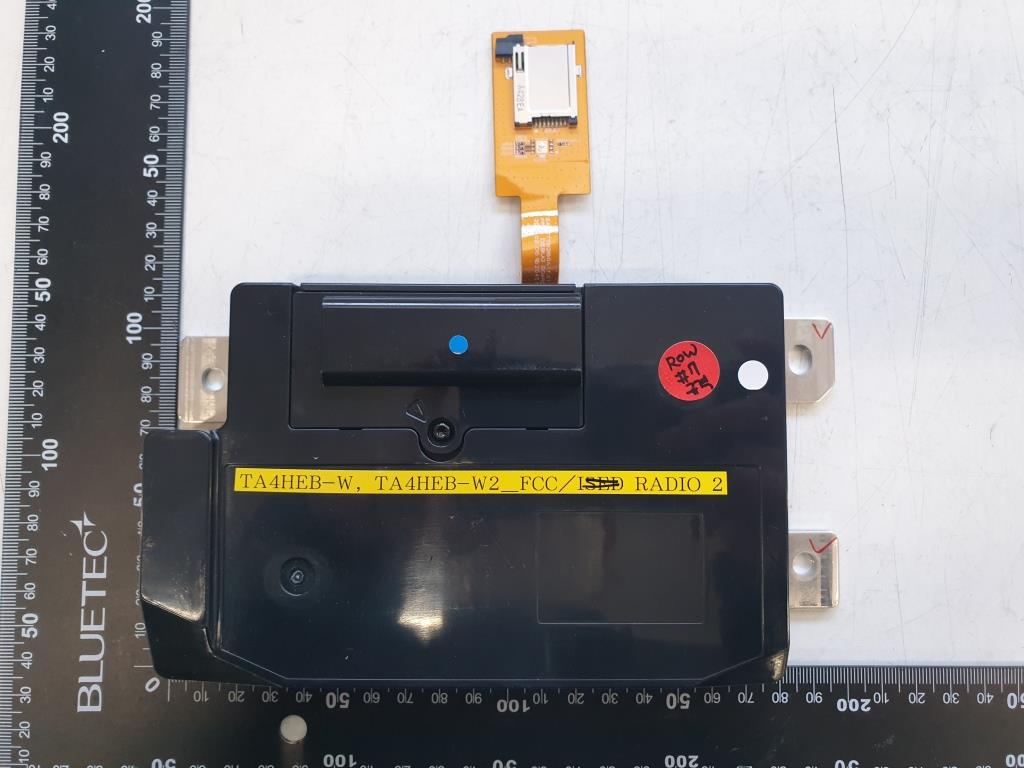

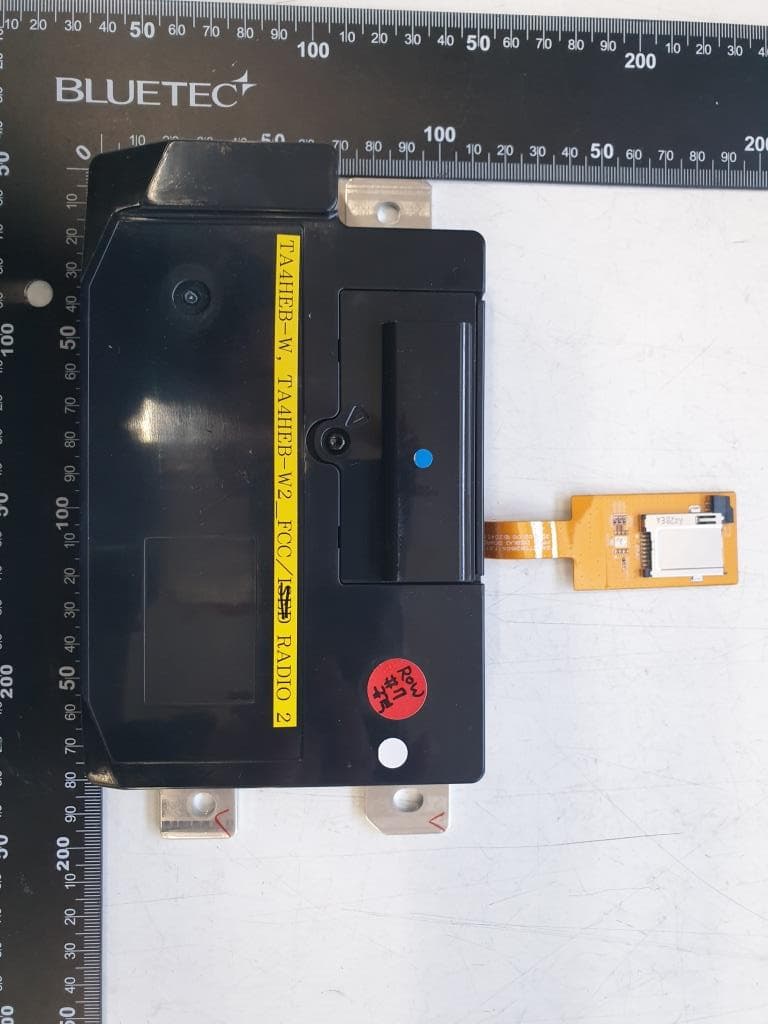

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

MAIN LABEL – JLR VDC MY22 - Model : JLR Telematics-Variant: ROW (FCC)- Label Size : 54 X 141 mm- Label Material : Avery MZ1061J1/SP4200/G60Em Event Label_DV 1. Product information XXXX-XXXXX-XXXX MADE IN VIETNAM LG Electronics H/W Variant: VDC-HIGHGSDB Code - XXXXXModel Name: TA4HEB-WFCC ID : BEJTA4HEBW2DUNS Code - XXXXXXXXX IMEI: XXXXX XXXXXXXXX IMSI: XXXXX XXXXXXXXXX ICCID: XXXXX XXXXXXXXXXXXXXX Pri.Pwr : DC 12 V 2 A ROW S/N:XXXXXXXXXXX

Internal photos of EUT Overview of EUT Top view of PCB Bottom view of PCB View of Antenna & Module WWAN Port WLAN Port WWAN Port WLAN Port

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001655-1 Page: 2 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001655-1 Page: 3 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 Contact Person : Kim, Dae-woong Phone No. : +1 201 266 2215 1.3. Details of Manufacturer Company : LG Electronics Inc. Address : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001655-1 Page: 4 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.4. Description of EUT Kind of Product Car Telematics Device Model Name TA4HEB-W Variant Model Names TA4HEB-W2, TA4LEN-W, TA4LEN-W2 Power Supply DC 12V Frequency Range GSM 850: 824 ㎒ ~ 849 ㎒ GSM 1 900: 1 850 ㎒ ~ 1 910 ㎒ WCDMA 5: 824 ㎒ ~ 849 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 7: 2 500 ㎒ ~ 2 570 ㎒ LTE Band 26: 814 ㎒ ~ 849 ㎒ WLAN 2.4G (11b/g/n_HT20, HT40): 2 412 ㎒ ~ 2 462 ㎒ WLAN 5G Band 1 (11a/n_HT20, 11ac_VHT20): 5 180 ㎒ ~ 5 240 ㎒ WLAN 5G Band 1 (11n_HT40, 11ac_VHT40): 5 190 ㎒ ~ 5 230 ㎒ WLAN 5G Band 1 (11ac_VHT80): 5 210 ㎒ WLAN 5G Band 3 (11a/n_HT20, 11ac_VHT20): 5 745 ㎒ ~ 5 825 ㎒ WLAN 5G Band 3 (11n_HT40, 11ac_VHT40): 5 755 ㎒ ~ 5 795 ㎒ WLAN 5G Band 3 (11ac_VHT80): 5 775 ㎒ Modulation Technique DSSS, OFDM, QPSK, 16QAM, 64QAM, GMSK, 8PSK Antenna Type External antenna Antenna Gain 2 400 ㎒ ~ 2 483.5 ㎒: 0.94 ㏈i (WLAN 2.4 G) 5 150 ㎒ ~ 5 250 ㎒: 5.71 ㏈i (WLAN 5 G) 5 725 ㎒ ~ 5 850 ㎒: 3.82 ㏈i (WLAN 5 G) 814 ㎒ ~ 824 ㎒: -1.79 ㏈i (LTE 26) 824 ㎒ ~ 849 ㎒: -0.69 ㏈i (GSM 850, WCDMA 5, LTE 26/5) 1 850 ㎒ ~ 1 910 ㎒: 0.85 ㏈i (GSM 1 900) 2 500 ㎒ ~ 2 570 ㎒: 0.99 ㏈i (LT E 7) H/W Version Rev.D S/W Version V9.1.02 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL001655 2021.02.09 Initial 1 F690501-RF-RTL001655-1 2021.02.26 Revise variant model name SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001655-1 Page: 5 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Information of Variant Models Model Name Information TA4HEB-W - Basic model TA4LEN-W - Same RF module and circuit to basic model, except below. - De-populated to Audio amp, DSP part - De-populated to BUB (Backup battery) part TA4HEB-W2 - Same to basic model - Model name for Costa Rica, Thailand TA4LEN-W2 - Same RF module and circuit to basic model, except below. - De-populated to Audio amp, DSP part - De-populated to BUB(Backup battery) part - Model name for Costa Rica, Thailand SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001655-1 Page: 6 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001655-1 Page: 7 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Test information of Cable Loss and Antenna Gain Test Item Frequency Range (㎒) Cable Loss (㏈) Antenna Gain of EUT (㏈i) Final Antenna Gain (㏈i) GSM 850 824 ~ 849 -1.12 -0.69 -1.81 GSM 1900 1 850 ~ 1 910 -1.12 0.85 -0.27 WCDMA 5 824 ~ 849 -1.12 -0.69 -1.81 LTE 5 824 ~ 849 -1.12 -0.69 -1.81 LTE 7 2 500 ~ 2 570 -1.94 0.99 -0.95 LTE 26 814 ~ 824 -1.12 -1.79 -2.91 LTE 26 824 ~ 849 -1.12 -0.69 -1.81 Note; -Final Antenna Gain = Cable Loss(㏈) + Antenna Gain of EUT(㏈i) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeon…
