BEJTFGMEIBBCD4GM Onstar Gen12 ROW

Subject : Attestation Letter (Section 2.911 (d)(5)(i)(ii)) Date: 09-20-2023 FCC ID: BEJTFGMEIBBCD4 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA LG Electronics USA certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2.911 (d)(5)(ii) And, we certifies that one of following, ☒ 1. We are not identified on the Covered List and are not an affiliate or subsidiary of an entity identified on the Covered List. ☐ 2. We are identified on the Covered List as an entity producing “covered” equipment. But, we can be authorized since the reason as explained below. ☐ 3. We are an affiliate or subsidiary of an entity identified on the Covered List. But, we can be authorized since the reason as explained below. *Only one of paragraphs 1, 2 or 3 should be checked, if checked on paragraphs 2 or 3, the reason why it does not include the “covered” equipment. Sincerely yours, Name: Heejae Cho Job Title: Director, Regulatory and Environmental Affairs Company Name: LG Electronics USA

UNITED STATES DESIGNATED AGENT LETTER Date: Sept 20, 2023 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: LG Electronics USA Company Name: LG Electronics USA Grantee Code: BEJ Contact Name: Heejae Cho Contact Name: Heejae Cho Address: 111 Sylvan Ave, North Building, Englewood Cliffs, NJ Address: 111 Sylvan Ave, North Building, Englewood Cliffs, NJ City/Province/Zip: Englewood Cliffs/New Jersey/07632 City/Province/Zip: Englewood Cliffs/New Jersey/07632 Telephone: 201-470-2696 Telephone: 201-470-2696 Fax: 201-816-20031 Fax: 201-816-20031 Email: [email protected] Email: [email protected] FRN: 23476120 FRN: 23476120 Applicable Equipment: FCC ID: <BEJTFGMEIBBCD4> ATTN: Director of Certification: We, < LG Electronics USA > understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e-mail of the designated agent listed above. We, < LG Electronics USA > acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Applicant U.S. designated agent Name (Printed): Heejae Cho Name (Printed): Heejae Cho Title: Director, Regulatory and Environmental Affairs Title: Director, Regulatory and Environmental Affairs Signature: Signature:

Date: To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID :BEJTFGMEIBBCD4 This authorization is valid until further written notice from the applicant. Sincerely, Signed by: (Name) Heejae Cho (Title) Director, Regulatory and Environmental Affairs [email protected] 201-470-2696 (Address) October 4, 2023 LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. ___________________________________ (Email Address) (Phone number)

Date: To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT: Request for Confidentiality for FCC ID:BEJTFGMEIBBCD4 We hereby request confidential treatment of the information accompanying this application as outlined below: Exhibit 1 2 3 4 5 6 7 8 Sincerely, Signed by: (Name) Heejae Cho (Title) Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-470-2696 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States October 4, 2023 Description Block Diagram Operational Description & Tune-up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. LONG-TERM CONFIDENTIAL SHORT-TERM CONFIDENTIAL (180 DAYS) User’s Manual Test-Setup Photos Internal Photos External Photos Schematics Parts List LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST

Subject: Product Equality Declaration Date: 09-20-2023 FCC ID: BEJTFGMEIBBCD4 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA We, LG Electronics Inc., hereby declare that our product has variant model names as listed below. Entire test was performed with basic model and variant models are electrically identical. After initial testing, there is no any degradation in variant models. All HW and SW are identical except addressed below. Model name Differences Basic model TFGMEIBBCD4 Single GNSS L1 Without DAMP Variant model TFGMEIBBCD5, TFGMEIBBCD7, TFGMEIBBCD9, TFGMEIBBCDB, Dual GNSS L1/L5 With DAMP TFGMEIBBCD6, TFGMEIBBCD8, TFGMEIBBCDA, TFGMEIBBCDC Single GNSS L1 With DAMP Sincerely Yours, Name: Heejae Cho Job Title: Director, Regulatory and Environmental Affairs Company Name: LG Electronics USA

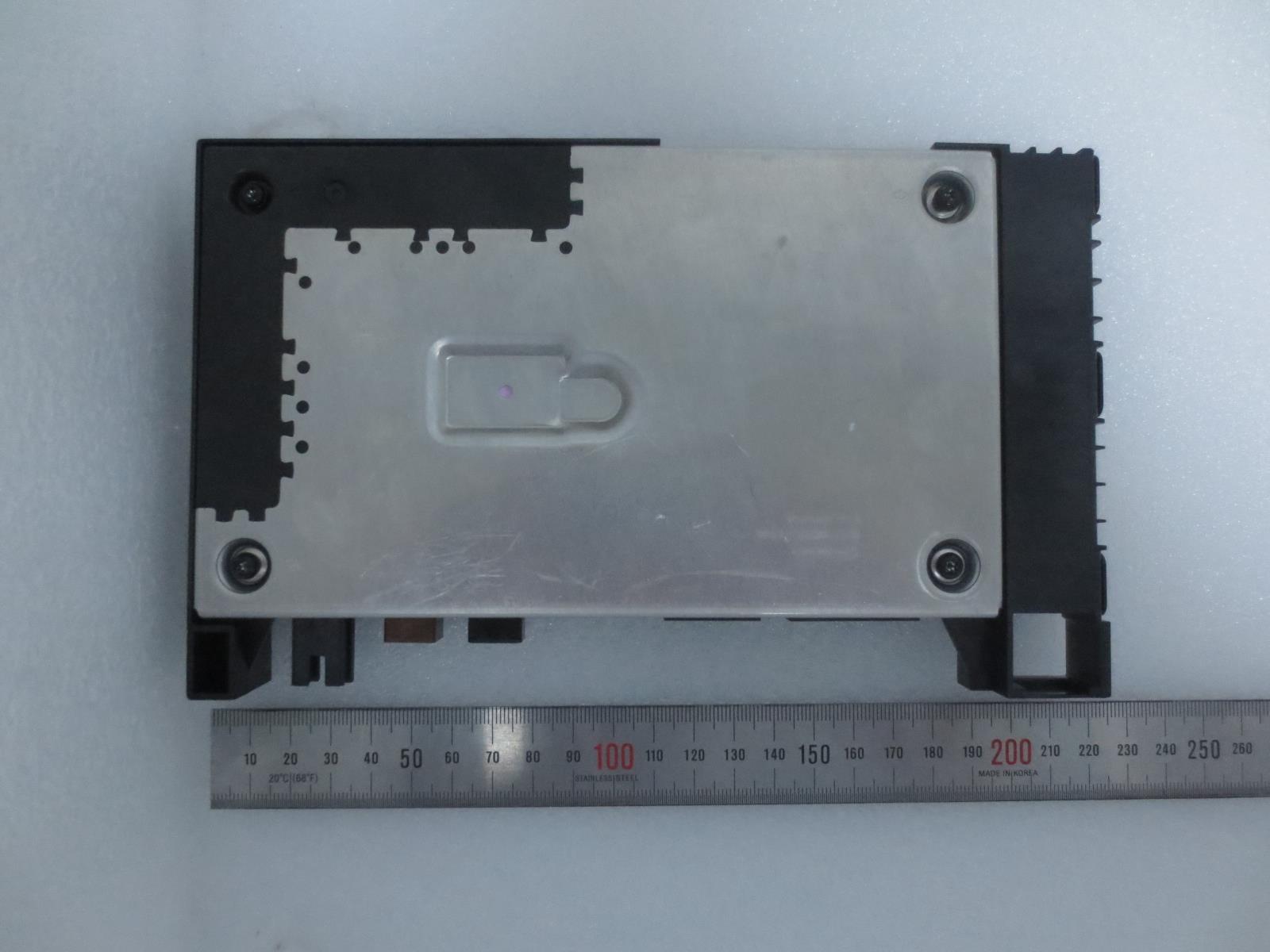

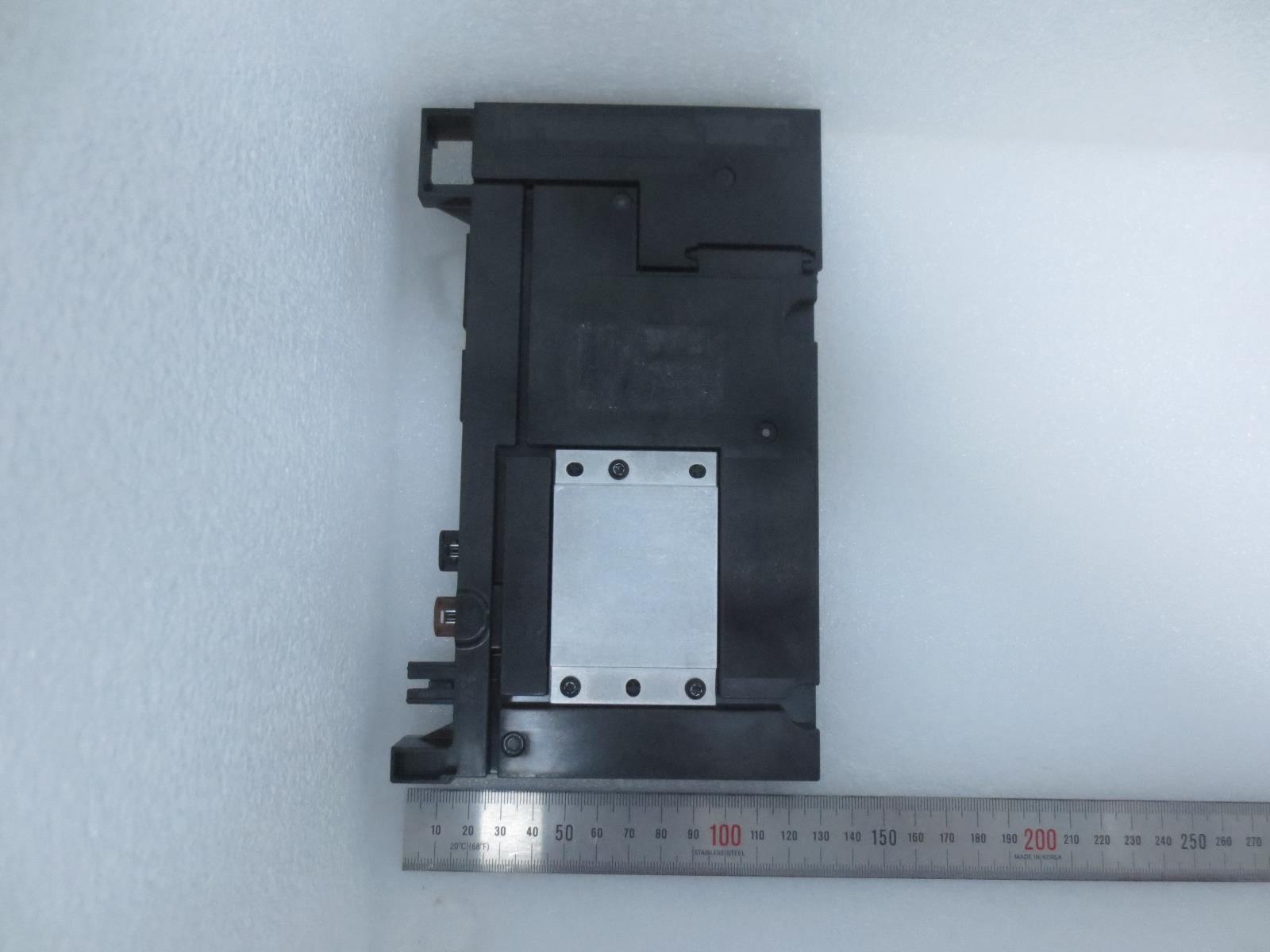

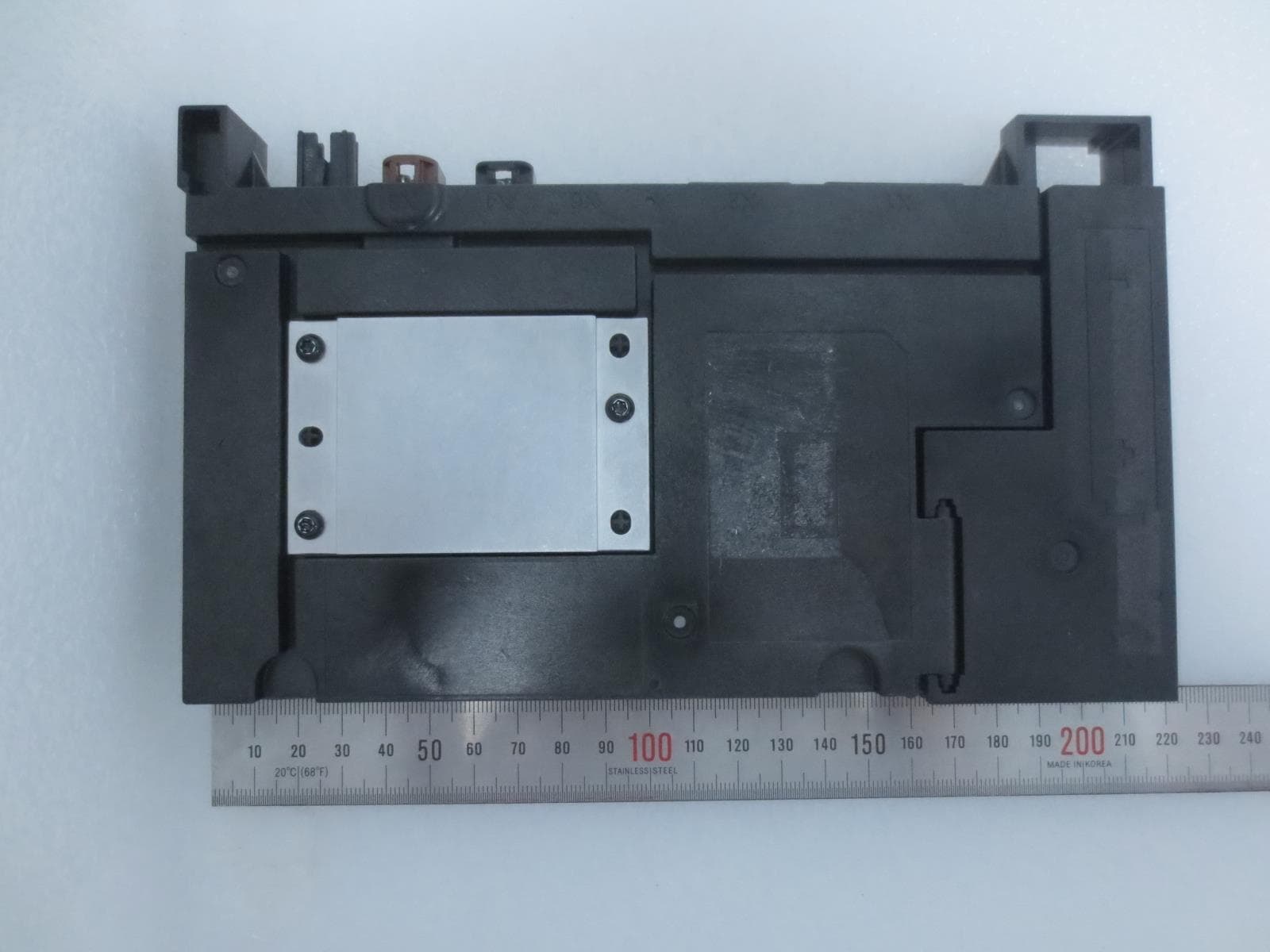

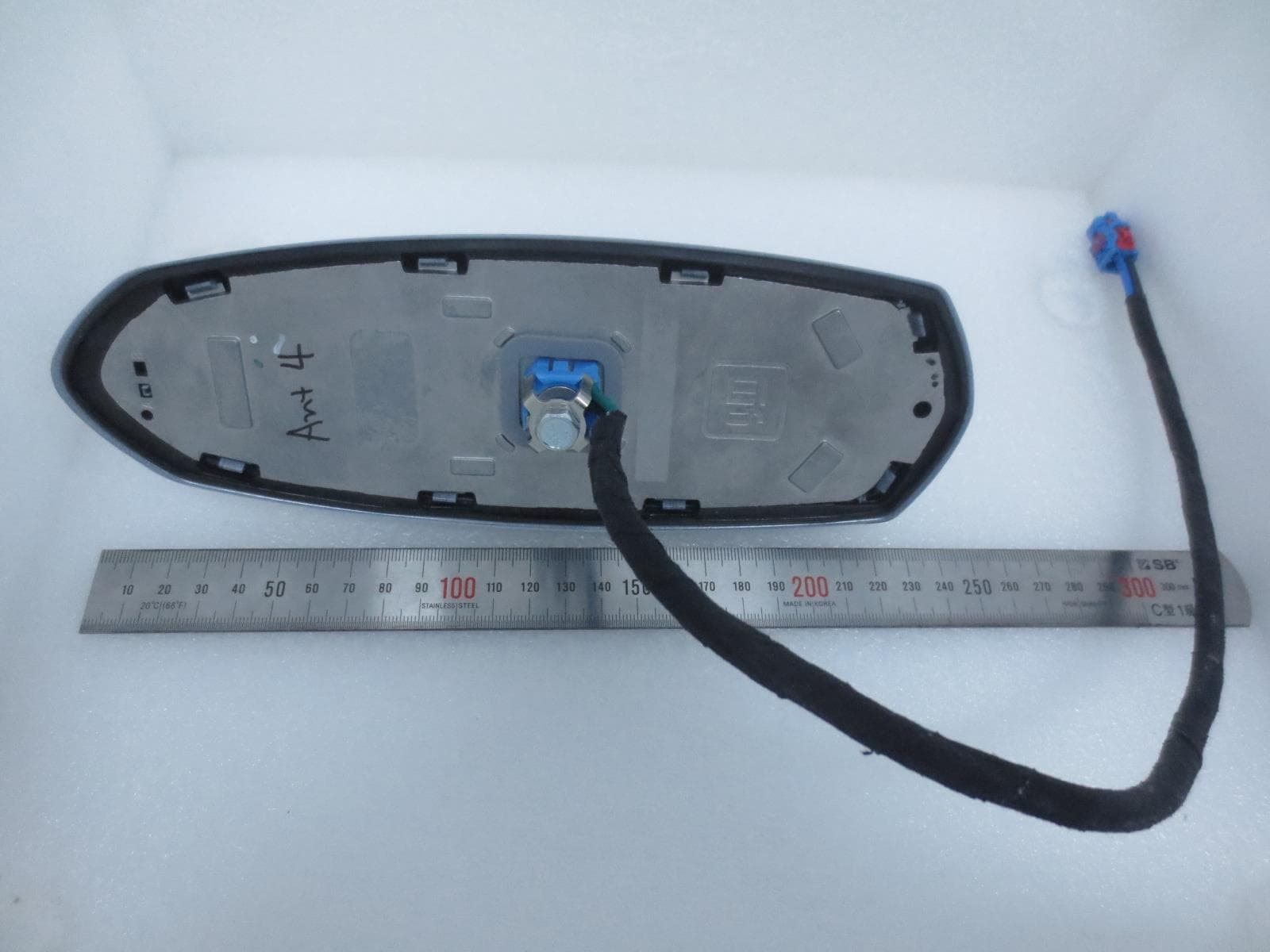

FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 16 EXTERNAL PHOTOGRAPHS FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 16 ■ EXTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 16 ■ EXTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 16 ■ EXTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 16 ■ EXTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 16 ■ EXTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 16 ■ EXTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 16 ■ EXTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 16 ■ EXTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 16 ■ EXTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 16 ■ EXTERNAL PHOTO_ANT 4(1) FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 16 ■ EXTERNAL PHOTO_ANT 4(2) FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 16 ■ EXTERNAL PHOTO_ANT 5(1) FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 16 ■ EXTERNAL PHOTO_ANT 5(2) FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 16 ■ EXTERNAL PHOTO_DUT 4(1) FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 16 ■ EXTERNAL PHOTO_DUT 4(2)

FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 8 INTERNAL PHOTOGRAPHS FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 8 ■ INTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 8 ■ INTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 8 ■ INTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 8 ■ INTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 8 ■ INTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 8 ■ INTERNAL PHOTO FCC ID: BEJTFGMEIBBCD4 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 8 ■ INTERNAL PHOTO

On your side HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 645 6300 F ax. +82 31 645 6401 F-TP22-03 (Rev. 04) The report shall not be reproduced except in full(only partly) without approval of the laboratory. Page 1 of 10 . TEST REPORT FCC SAR Exclusion Report for TFGMEIBBCD4 Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-SR-2310-FC005 DATE OF ISSUE Oct. 06, 2023 Technical Manager Yun Jeang Heo (signature) Accredited by KOLAS, Republic of KOREA F-TP22-03 (Rev. 04) Page 2 of 10 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TE S T R E P O R T FC C T e s t f o r T F G M E I B B C D 4 REPORT NO. HCT-SR-2310-FC005 DATE OF ISSUE Oct 06, 2023 Applicant LG Electronics Inc. 10, MagokJungang-ro, Gangseo-gu, Seoul 07796, Republic of Korea EUT Type Model Name GM Onstar Gen12 ROW TFGMEIBBCD4 FCC ID BEJTFGMEIBBCD4 Maximum Output Power(dBm) *GSM850 : 25.99, *GSM1900: 21.99, WCDMA B2,B5 : 25.5, WCDMA B4 : 25.0, LTE B4 : 24.5, LTE B5 : 25.7, LTE Other Band : 25.5, NR SA n77, n78 : 27.0, NR SA, NSA Other Band : 25.5 * GSM Band including duty-cycle transmit are normalized to frame average. FCC Rule Part(s) 47CFR §2.1093 The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-SR-2310-FC005 F-TP22-03 (Rev. 04) Page 3 of 10 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 Oct. 06, 2023 Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. This laboratory is not accredited for the test results marked *. The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 AND KOLAS (Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (HCT Accreditation No.: KT197) If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-SR-2310-FC005 F-TP22-03 (Rev. 04) Page 4 of 10 CONTENTS 1. EUT DESCRIPTION 5 2. TEST METHODOLOGY 6 2.1 FCC 6 Report No. HCT-SR-2310-FC005 F-TP22-03 (Rev. 04) Page 5 of 10 1. EUT DESCRIPTION Applicant Name: LG Electronics Inc. Address: 10, Magok Jungang-ro, Gangseo-gu, Seoul 07796, Republic of Korea FCC ID: BEJTFGMEIBBCD4 EUT Type: GM Onstar Gen12 ROW Model(s): TFGMEIBBCD4 Additional Model: TFGMEIBBCD5, TFGMEIBBCD6, TFGMEIBBCD7, TFGMEIBBCD8 Device Wireless Specification overview Band Tx Frequency GSM/GPRS/EDGE 850 824.2㎒ ~ 848.8㎒ GSM/GPRS/EDGE 1900 1 850.2 ㎒ ~ 1 909.8㎒ UMTS Band 5 826.4 ㎒ ~ 846.6㎒ UMTS Band 4 1 712.4 ㎒ ~ 1 752.6㎒ UMTS Band 2 1 852.4 ㎒ ~ 1 907.6㎒ LTE Band 2 (PCS) 1 850.7 ㎒ ~ 1 909.3㎒ LTE Band 4 (AWS) 1 710.7 ㎒ ~ 1 754.3㎒ LTE Band 5 (Cell) 824.7 ㎒ ~ 848.3㎒ LTE Band 7 2 502.5㎒ ~ 2 567.5㎒ NR Band n2 1 852.5 ㎒ ~ 1 907.5 ㎒ NR Band n5 826.5 ㎒ ~ 846.5 ㎒ NR Band n7 2 502.5 ㎒ ~ 2 567.5 ㎒ NR Band n77(3 700㎒ ~ 3 980㎒) NR Band n78(3 700㎒ ~ 3 800 ㎒) 3 710.01 ㎒ ~ 3 969.99㎒ NR Band n77(DoD),n78 (3 450㎒ ~3 550 ㎒) 3 460.02 ㎒ ~ 3 540.0㎒ Serial number: Conducted : EBR36018829_#75 External Antenna Information ANT5 : 86531607 ANT4 : 86575530 DUT4 : 85608774 Report No. HCT-SR-2310-FC005 F-TP22-03 (Rev. 04) Page 6 of 10 2. TEST METHODOLOGY 2.1 FCC Body SAR Test Exclusions Applied _ GSM 850, GSM 1900, WCDMA B 2,4,5 LTE B 2,4,5,7 NR n2,5,7,77,78 it is used by most users in the Body. In addition, The antennas must be installed at all times a distance minimum of at least 170 mm Between antenna and any individual. an exception evaluation is applied at a distance of 170 ㎜ from the Body SAR. According to the FCC KDB 447498 D01 v06 section 4.3.1 b), for 100 ㎒ to 6 ㎓ and test separation distances ≥ 50 ㎜, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: b) For 100 ㎒ to 6 ㎓ and test separation distances ≥ 50 ㎜, the 1-g and 10-g SAR test exclusion thresholds are determined by the following(also illustrated in appendix B): 1) {[(Power allowed at numeric threshold for 50mm in step a) ] + [ (Test separation distance - 50mm)*(f(MHz)/150)] } ㎽, for 100MHz to 1500 MHz 2)[(Power allowed at numeric threshold for 50mm in step a) + ((Test separation distance -50mm)*10)] ㎽, for >1500MHz and ≤ 6GHz Report No. HCT-SR-2310-FC005 F-TP22-03 (Rev. 04) Page 7 of 10 Calculation Result: Band 100㎒ to 1500 ㎒ *GSM 850 Tx frequency range: 824.2 ㎒ ~ 848.8 ㎒ Body SAR Consideration Min. test separation distance: 170 ㎜ Maximum Output Power: 25.99 dBm (397.19 ㎽) The Highest RF channel frequency: 848.8 ㎒ Mode / Band GPRS(GMSK) Data – CS1(dBm) EDGE Data (dBm) GPRS 1 TX Slot GPRS 2 TX Slot GPRS 3 TX Slot GPRS 4 TX Slot EDGE 1 TX Slot EDGE 2 TX Slot EDGE 3 TX Slot EDGE 4 TX Slot Maximum 34.5 30.0 29.0 29.0 28.5 25.5 24.0 23.0 Nominal 32.5 28.0 27.0 27.0 26.5 23.5 22.0 21.0 GSM 850 128 32.52 30.68 28.41 27.28 26.66 23.58 22.10 21.51 190 32.70 30.11 27.71 26.63 26.60 23.62 22.07 21.57 251 32.49 29.60 27.10 26.02 26.55 23.37 21.91 21.32 GSM Conducted output powers (Burst-Average) Mode / Band GPRS(GMSK) Data – CS1(dBm) EDGE Data (dBm) GPRS 1 TX Slot GPRS 2 TX Slot GPRS 3 TX Slot GPRS 4 TX Slot EDGE 1 TX Slot EDGE 2 TX Slot EDGE 3 TX Slot EDGE 4 TX Slot Maximum 25.47 23.98 24.74 25.99 19.47 19.48 19.74 19.99 Nominal 23.47 21.98 22.74 23.99 17.47 17.48 17.74 17.99 GSM 850 128 23.49 24.66 24.15 24.27 17.63 17.56 17.84 18.50 190 23.67 24.09 23.45 23.62 17.57 17.6 17.81 18.56 251 23.46 23.58 22.84 2…

Text truncated - open the document above for the full version.

TEST REPORT FCC 2G3G Test for TFGMEIBBCD4 Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2310-FC001 DATE OF ISSUE October 5, 2023 Tested by Jung Ki Lim Technical Manager Jong Seok Lee F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 146 The report shall not be reproduced except in full(only partly) without approval of the laboratory. F-TP22-03 (Rev. 04) Page 2 of 146 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC 2G3G Test for TFGMEIBBCD4 REPORT NO. HCT-RF-2310-FC001 DATE OF ISSUE October 05, 2023 Additional Model TFGMEIBBCD5, TFGMEIBBCD6, TFGMEIBBCD7, TFGMEIBBCD8, TFGMEIBBCD9, TFGMEIBBCDA, TFGMEIBBCDB, TFGMEIBBCDC A pplicantLG Electronics Inc. 10, MagokJungang-ro, Gangseo-gu, Seoul 07796, Republic of Korea Eut Type Model Name GM Onstar Gen12 ROW TFGMEIBBCD4 FCC IDBEJTFGMEIBBCD4 FCC Classification:PCS Licensed Transmitter (PCB) FCC Rule Part(s):§22, §24, §27, §2 The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2310-FC001 F-TP22-03 (Rev. 04) Page 3 of 146 REVISION HIST ORY The re vision history for this test report is shown in table. Revision No. Date of Issue Description 0 October 05, 2023 Initial Release The measurements shown in this report were made in accordance with the procedures specified in CFR47 section §2.947. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) T es t Report Statement: The above Test Report is not related to the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme) / A2LA(American Association for Laboratory Accreditation), which signed the ILAC-MRA. If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2310-FC001 F-TP22-03 (Rev. 04) Page 4 of 146 CON TENTS 1. GENERAL INFORMATION5 1.1. MAXIMUM OUTPUT POWER 6 2. INTRODUCTION7 2.1. DESCRIPTION OF EUT 7 2.2. MEASURING INSTRUMENT CALIBRATION 7 2.3. TEST FACILITY 7 3. DESCRIPTION OF TESTS8 3.1 TEST PROCEDURE 8 3.2 CONDUCTED OUTPUT POWER 9 3.3 RADIATED TEST 10 3.3.1 RADIATED POWER 11 3.3.2 RADIATED SPURIOUS EMISSIONS 12 3.4 PEAK- TO- AVERAGE RATIO 14 3.5 OCCUPIED BANDWIDTH. 16 3.6 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL 17 3.7 BAND EDGE 18 3.8 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE 19 3.9 WORST CASE(CONDUCTED TEST) 20 3.10 WORST CASE(RADIATED TEST) 21 4. LIST OF TEST EQUIPMENT23 5. MEASUREMENT UNCERTAINTY25 6. SUMMARY OF TEST RESULTS26 7. EMISSION DESIGNATOR27 8. TEST DATA 28 8.1 Conducted Output Power 28 8.2 EFFECTIVE RADIATED POWER 30 8.2.1 External Antenna 30 8.2.2 Internal Antenna 30 8.3 EQUIVALENT ISOTROPIC RADIATED POWER 31 8.3.1 External Antenna 31 8.3.2 Internal Antenna 32 8.4 RADIATED SPURIOUS EMISSIONS 33 8.4.1 External Antenna 33 8.4.2 Internal Antenna 38 8.5 PEAK-TO-AVERAGE RATIO 43 8.6 OCCUPIED BANDWIDTH 44 8.7 CONDUCTED SPURIOUS EMISSIONS 45 8.8 BAND EDGE 45 8.9 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE 46 9. TEST PLOTS57 10. ANNEX A_ TEST SETUP PHOTO146 Report No. HCT-RF-2310-FC001 F-TP22-03 (Rev. 04) Page 5 of 146 MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: LG Electronics Inc. Address: 10, Magok Jungang-ro, Gangseo-gu, Seoul 07796, Republic of Korea FCC ID: BEJTFGMEIBBCD4 Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §22, §24, §27, §2 EUT Type: GM Onstar Gen12 ROW Model(s): TFGMEIBBCD4 Additional Model: TFGMEIBBCD5,TFGMEIBBCD6,TFGMEIBBCD7,TFGMEIBBCD8, TFGMEIBBCD9, TFGMEIBBCDA, TFGMEIBBCDB, TFGMEIBBCDC Tx Frequency: 824.20 - 848.80 MHz (GSM850) 826.40 - 846.60 MHz (WCDMA850) 1 850.20 - 1 909.80 MHz (GSM1900) 1 852.4 ˊ 1 907.6 MHz (WCDMA1900) 1 712.4 ˊ 1 752.6 MHz (WCDMA1700) Rx Frequency: 869.20 - 893.80 MHz (GSM850) 871.40 - 891.60 MHz (WCDMA850) 1 930.20 - 1 989.80 MHz (GSM1900) 1 932.4 ˊ 1 987.6 MHz (WCDMA1900) 2 112.4 ˊ 2 152.6 MHz (WCDMA1700) Date(s) of Tests: February 27, 2023 ~ October 05, 2023 Serial number: Radiated - External Antenna : EBR36018942_#30 (GSM 850, WCDMA B2,5), EBR42280001K_#17 (GSM 1900) EBR42280001K_#16 (W CDMA B4) - Internal Antenna : EBR36018942K_#14 (GSM 850, WCDMA B5), EBR42280001K_#17 (GSM 1900, WCDMA B4), EBR36018942_#30 (WCDMA B2) Conducted : EBR36018829_#75 External Antenna Information ANT5 : 86531607 ANT4 : 86575530 DUT4 : 85608774 Report No. HCT-RF-2310-FC001 F-TP22-03 (Rev. 04) Page 6 of 146 1.1. MAXIMUM OUTPUT POWER Mode Tx Frequency (MHz) Rx Frequency (MHz) Emission Designator ERP External Antenna ERP Internal Antenna Max. Power (W) Max. Power (dBm) Max. Power (W) Max. Power (dBm) GSM850 824.2 ˊ 848.8 869.2 ˊ 893.8 249KGXW 2.080 33.18 3.327 35.22 GSM850 EDGE 249KG7W 0.495 26.95 0.857 29.33 WCDMA850 826.4 ˊ 846.6 871.4 ˊ 891.6 4M16F9W 0.290 24.62 0.440 26.43 Mode Tx Frequency (MHz) Rx Frequency (MHz) Emission Designator EIRP External Antenna EIRP Internal Antenna Max. Power (W) Max. Power (dBm) Max. Power (W) Max. Power (dBm) GSM1900 1850.2 ˊ 1909.8 1930.2 ˊ 1989.8 242KGXW 0.444 26.47 1.400 31.46 GSM1900 EDGE 248KG7W 0.404 26.06 1.334 31.25 WCDMA1900 1852.4 ˊ 1907.6 1932.4 ˊ 1987.6 4M15F9W 0.465 26.67 0.565 27.52 WCDMA1700 1712.4 ˊ 1752.6 2112.4 ˊ 2152.6 4M16F9W 0.384 25.85 0.743 28.71 Report No. HCT-RF-2310-FC001 F-TP22-03 (Rev. 04) Page 7 of 146 2. INTRODUCTION 2.1. DESCRIPTION OF EUT The EUT was a GM Onstar Gen12 ROW with GSM/GPRS/EGPRS/UMTS and LTE, Sub6. 2.2. MEASURING INSTRUMENT CALIBRATION The mea…

Text truncated - open the document above for the full version.

Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 152 of 183 BW3 M_CSE(30 M-10 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 153 of 183 BW5 M_CSE(30 M-10 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 154 of 183 BW5 M_CSE(30 M-10 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 155 of 183 BW5 M_CSE(30 M-10 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 156 of 183 BW10 M_CSE(30 M-10 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 157 of 183 BW10 M_CSE(30 M-10 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 158 of 183 BW10 M_CSE(30 M-10 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 159 of 183 BW15 M_CSE(30 M-10 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 160 of 183 BW15 M_CSE(30 M-10 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 161 of 183 BW15 M_CSE(30 M-10 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 162 of 183 BW20 M_CSE(30 M-10 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 163 of 183 BW20 M_CSE(30 M-10 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 164 of 183 BW20 M_CSE(30 M-10 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 165 of 183 BW1.4 M_CSE(10 G-20 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 166 of 183 BW1.4 M_CSE(10 G-20 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 167 of 183 BW1.4 M_CSE(10 G-20 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 168 of 183 BW3 M_CSE(10 G-20 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 169 of 183 BW3 M_CSE(10 G-20 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 170 of 183 BW3 M_CSE(10 G-20 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 171 of 183 BW5 M_CSE(10 G-20 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 172 of 183 BW5 M_CSE(10 G-20 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 173 of 183 BW5 M_CSE(10 G-20 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 174 of 183 BW10 M_CSE(10 G-20 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 175 of 183 BW10 M_CSE(10 G-20 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 176 of 183 BW10 M_CSE(10 G-20 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 177 of 183 BW15 M_CSE(10 G-20 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 178 of 183 BW15 M_CSE(10 G-20 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 179 of 183 BW15 M_CSE(10 G-20 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 180 of 183 BW20 M_CSE(10 G-20 G)_Lowest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 181 of 183 BW20 M_CSE(10 G-20 G)_Middle Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 182 of 183 BW20 M_CSE(10 G-20 G)_Highest Channel_QPSK_1RB Report No. HCT-RF-2308-FC004 F-TP22-03 (Rev. 04) Page 183 of 183 10. ANNEX A_ TEST SETUP PHOTO Please refer to test setup photo file no. as follows; No. Description 1 HCT-RF-2308-FC004-P

TEST REPORT FCC LTE Test for TFGMEIBBCD4 Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2310-FC002 DATE OF ISSUE October 5, 2023 Tested by Jung Ki Lim Technical Manager Jong Seok Lee F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 184 The report shall not be reproduced except in full(only partly) without approval of the laboratory. F-TP22-03 (Rev. 04) Page 2 of 184 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC LTE Test for TFGMEIBBCD4 REPORT NO. HCT-RF-2310-FC002 DATE OF ISSUE October 05, 2023 Additional Model TFGMEIBBCD5, TFGMEIBBCD6, TFGMEIBBCD7, TFGMEIBBCD8, TFGMEIBBCD9, TFGMEIBBCDA, TFGMEIBBCDB, TFGMEIBBCDC A pplicantLG Electronics Inc. 10, MagokJungang-ro, Gangseo-gu, Seoul 07796, Republic of Korea Eut Type Model Name GM Onstar Gen12 ROW TFGMEIBBCD4 FCC IDBEJTFGMEIBBCD4 FCC Classification:PCS Licensed Transmitter (PCB) FCC Rule Part(s):§27, §2 The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2310-FC002 F-TP22-03 (Rev. 04) Page 3 of 184 REVISION HIST ORY The re vision history for this test report is shown in table. Revision No. Date of Issue Description 0 October 05, 2023 Initial Release The measurements shown in this report were made in accordance with the procedures specified in CFR47 section §2.947. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) T es t Report Statement: The above Test Report is not related to the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme) / A2LA(American Association for Laboratory Accreditation), which signed the ILAC-MRA. If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2310-FC002 F-TP22-03 (Rev. 04) Page 4 of 184 CO N TENTS 1. GENERAL INFORMATION5 1.1. MAXIMUM OUTPUT POWER 6 2. INTRODUCTION7 2.1. DESCRIPTION OF EUT 7 2.2. MEASURING INSTRUMENT CALIBRATION 7 2.3. TEST FACILITY 7 3. DESCRIPTION OF TESTS8 3.1 TEST PROCEDURE 8 3.2 CONDUCTED OUTPUT POWER 9 3.3 RADIATED TEST 10 3.3.1 RADIATED POWER 11 3.3.2 RADIATED SPURIOUS EMISSIONS 12 3.4 PEAK- TO- AVERAGE RATIO 14 3.5 OCCUPIED BANDWIDTH. 16 3.6 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL 17 3.7 BAND EDGE 18 3.8 FREQUENCY …

Text truncated - open the document above for the full version.
