BEJTFHOBINN0DCar Telematics Device

LGE Internal Use Only LG Car Telematics Device User Manual TFHOBINN0D2 (Alt. TFHOBINN0D1) of telematics device as TSU equipped in the vehicles. This product is not used of the consumer, It is only used car company for example GM, TOYOTA. LGE Internal Use Only User Manual 1. With TFHOBINN0D2 network with North America LTE/5G network, There will be perfor m some use-case to demonstrate LTE& WiFiperformances targeted 1. High throughput fea tures 2. Low Latency features. Below is just for example. 1.Manual •1. High throughput features Demonstrate high-throughput, high -quality image by hotspot. •2. Low Latency features Images and file uploaded from the car are displayed without delay to other devices Cellular Network 1/3 LGE Internal Use Only Telematics Components Telematics System Unit(TSU) The TSU controls the telematics system, communicating with the vehicle systems. The system transmits/receives signals via Radio Frequency(RF), GPS and WiFiby internal Antenna. 1 2 3 6 4 ItemDescription 1External GNSS antenna connector 2LTE MIMO2 Antenna connector 3LTE MIMO1 Antenna connector 4Ethernet connector 5USB connector 6Vehicle IF Connector 2. System Integration 5 2/3 LGE Internal Use Only 3. Notice FCC Part 15.21 statement Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. FCC Part 15.19 statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure (MPE) This equipment complies with FCC and IC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be colocated or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Cetequipementestconformea l'expositionde FCC et IC rayonnementsRF limitese-tablies pour un environnementnon controle. L’antennepour cetransmetteurne doitpas etre meme endroitavec d’autresemetteursaufconformementa FCC et IC procedures de produitsMulti-emetteur. Cetequipementdoitetreinstalleet utiliseavec unedistance minimalede 20 cm entre le radiateuret votrecorps. IC Warning "This device complies with Industry Canada licence-exempt RSS standard(s)." Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareilestconformeaux CNR d'IndustrieCanada applicablesaux appareils radio exempts de licence. L'exploitationestautoriseeaux deuxconditions suivantes: (1) l'appareilne doitpas provoquerde brouillage, et (2) l'appareildoitaccepter tout brouillageradioelectriquesubi, meme sile brouillageestsusceptible d'encompromettre le fonctionnement. 3/3 LGE Internal Use Only 3. Notice 3/3 For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11-07-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: BEJTFHOBINN0D [LG Electronics USA, Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Name : David Kim Position : Team leader Date : 2023-11-07 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11-07-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: BEJTFHOBINN0D [LG Electronics USA, Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List ( as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment . Sincerely, Name : David Kim Position : Team leader Date : 2023-11-07

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11/07/2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID or Grantee Code: BEJ LG Electronics USA (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0023476120 Name: LG Electronics USA Address: 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Contact Person: David Kim Tel.: 1-201-266-2443 Email: [email protected] Sincerely, LG Electronics USA David Kim

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: BEJTFHOBINN0D Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type (Block Diagram, Schematics, Operational Description, Parts List, Tune Up Info) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for 180: Exhibit Type (External Photos, Internal Photos, Test Setup Photos, Manual) Sincerely, Name : David Kim Position : Team Leader Date : 11-07-2023

Date: 11/07/2023 Timco Engineering, Inc. 13146 NW 86th Drive Suite 400 Alachua, FL 32615 SUBJECT: Application for Certification for FCC ID: (BEJTFHOBINN0D) To Whom It May Concern: We, the undersigned, hereby authorize Hyunwoo.Choi at Estech Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Estech Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Name : David Kim Position : Team Leader Date : 2023-11-07

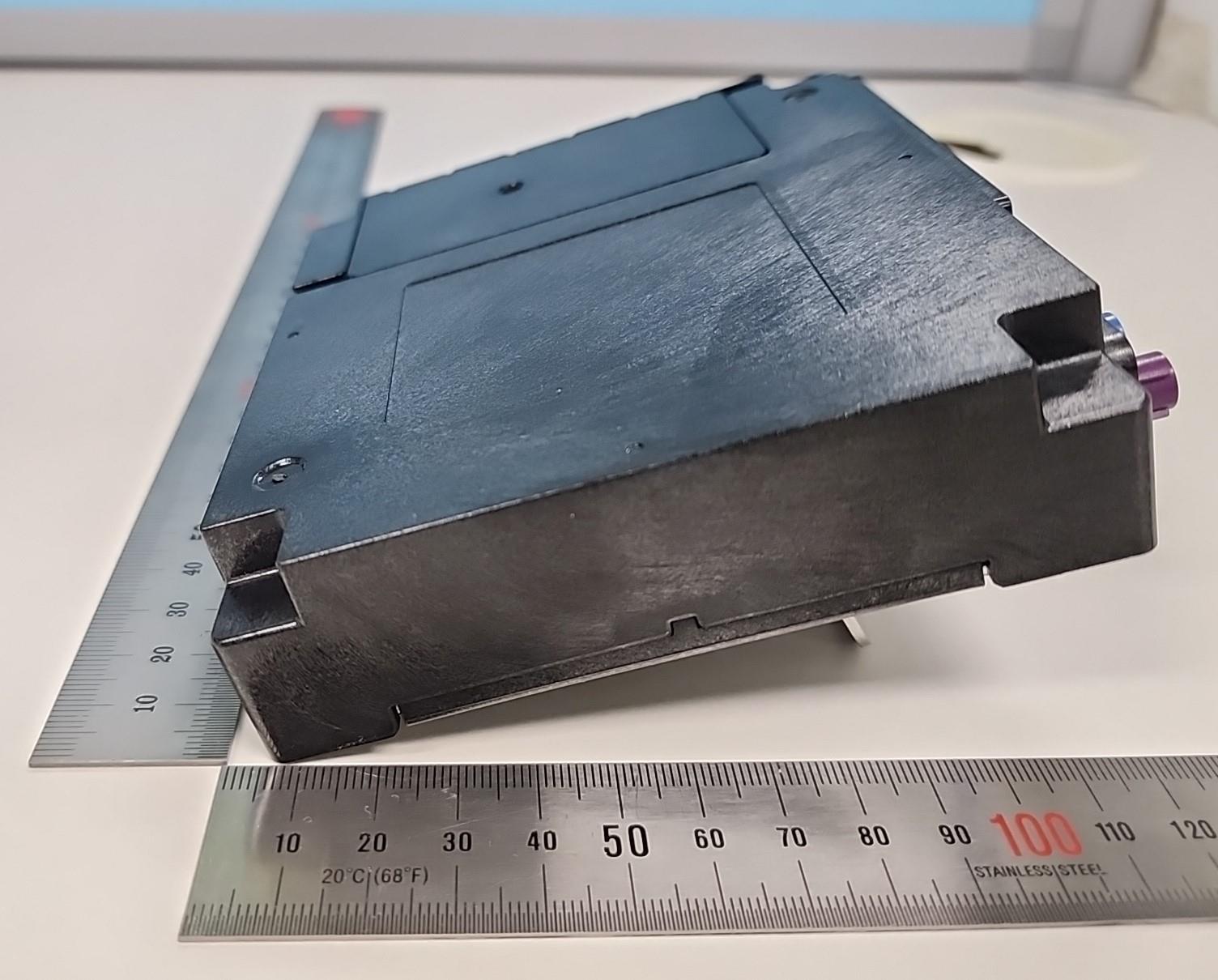

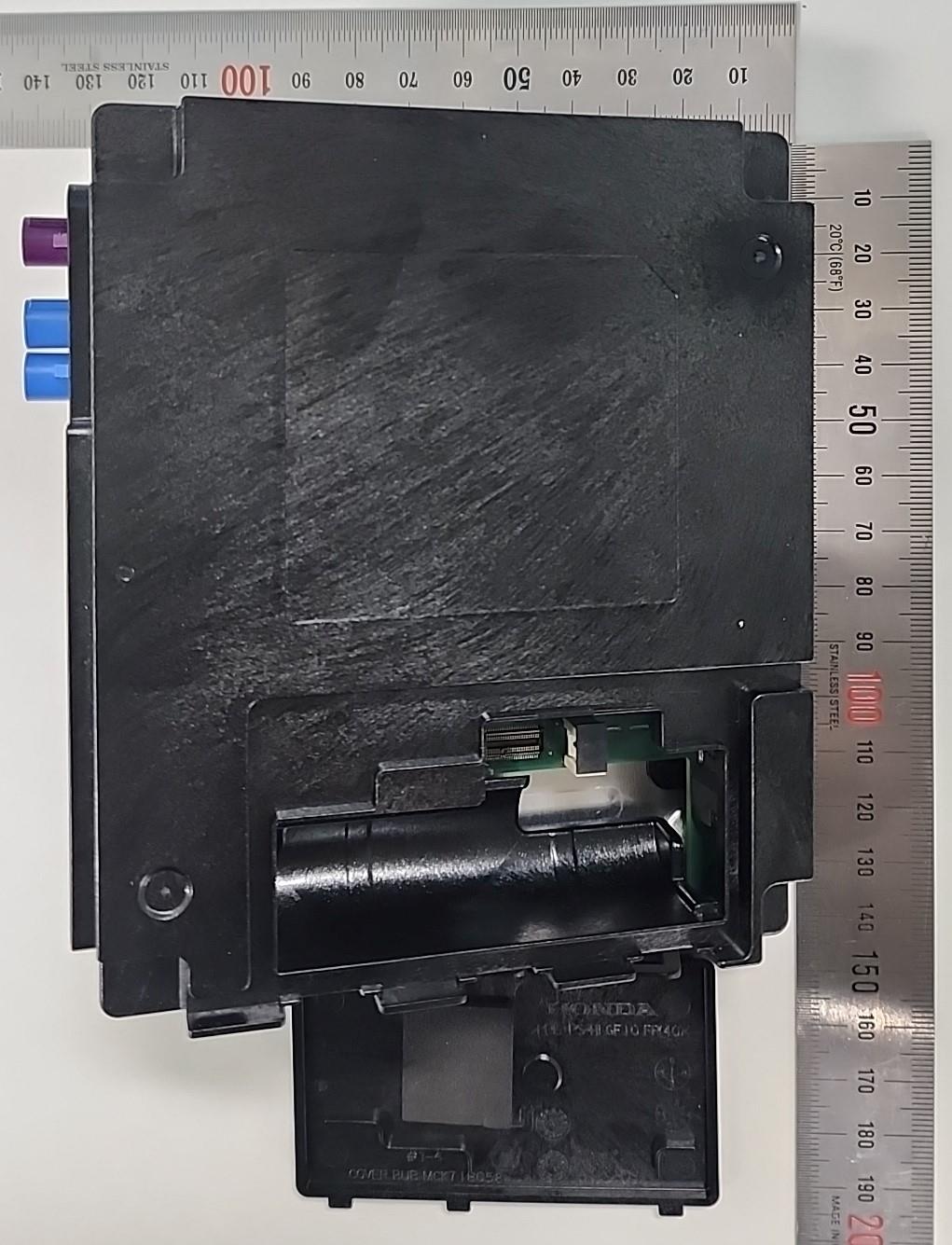

External_Top External_Height External_Side1 External_Side2 External_Rear External_Front External_Bottom External_BUB_Cover_Open Internal_Inside1 Internal_Inside2

LABEL DRAWING FCC ID: BEJTFHOBINN0D IC: 2703H-TFHOBINN0D Size : 59 X 52 mm < Bottom View of EUT>

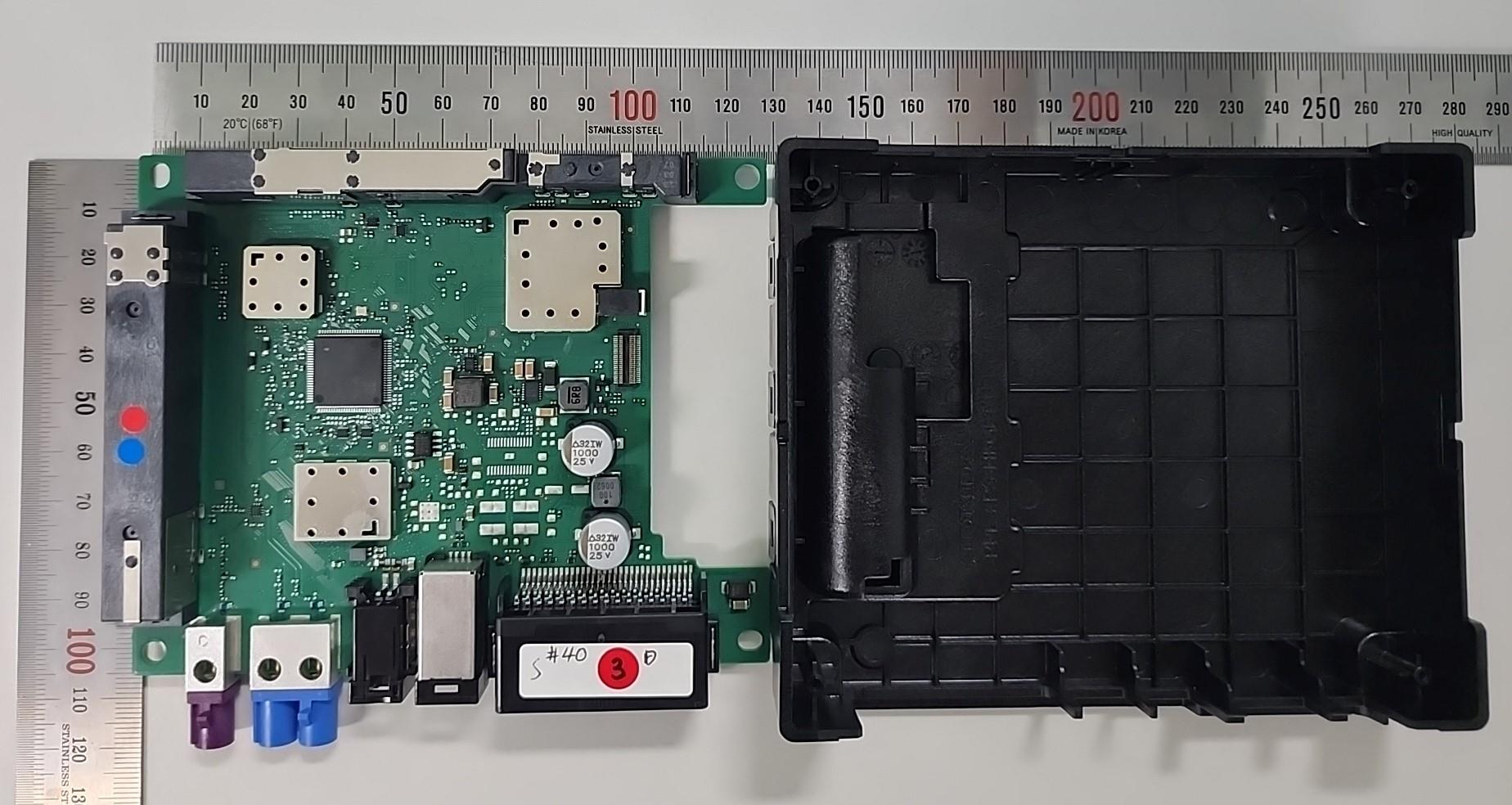

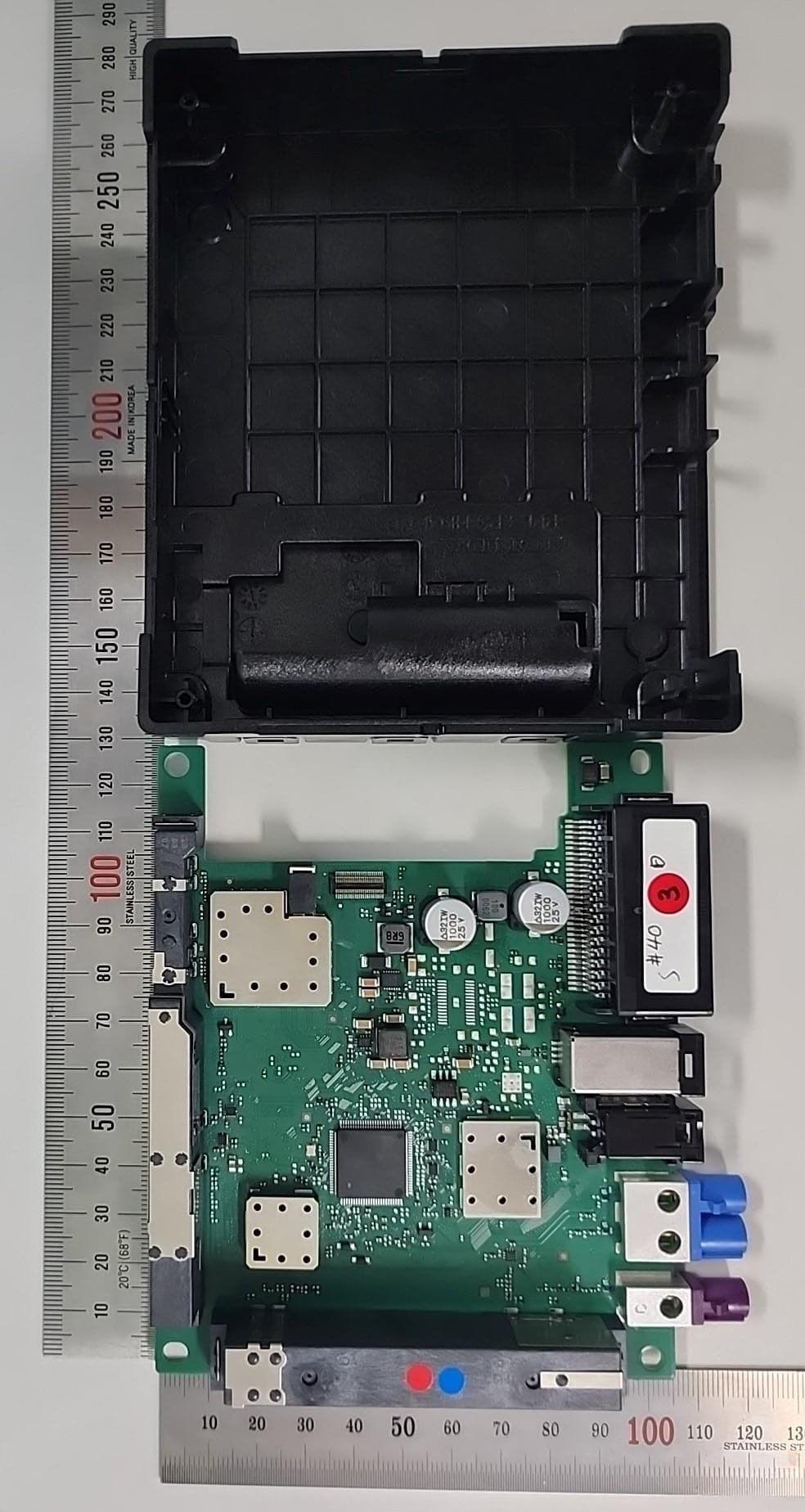

Internal_PCB_Top Internal_PCB_Bottom_Removed_Shield_Can Internal_PCB_Top_Removed_Shield_Can Internal_PCB_Bottom All antenna of LTE & WiFi I_TEL1 I_TEL2 I_GNSS WIFI

IC ID : 2703H-TFHOBINN0D FCC ID : BEJTFHOBINN0D Tested by Reviewed by Test Items Maximum Permissible Exposure Abbreviation RF Exposure Evaluation The test results with all measurement uncertainty excluded are presented in accordance with regulation limits or requirements declared by manufacturers. Comments and Explanations: Pass- (Signature) Pass = Complied, Fail = Failed, N/A = not applicable (Signature) Engineering Manager I.K. Hong None Result (Pass / Fail)Remark Page 1 of 3 Report No. : ESTRGC2311-008 Product name : Car Telematics Device Model name : TFHOBINN0D2, TFHOBINN0D1 Date of Test : 2023, 11, 23 Engineer H.G. Lee Declaration of Conformity: 1 Human Exposure Assessment 1.1.1 Limit of Maximum Permissible Exposure Magnetic Field Strength(A/m) Power Density (mW/cm 2 ) Average Time (minutes) 1.63 * (100) 30 2.19/f * (180/f 2 ) 30 0.0730.230 -F/150030 -1.030 Magnetic Field Strength(A/m) Power Density (W/m 2 ) Reference Period (minutes) 180- Instantaneous * 1.6/ ƒ-6** --6** 0.16310.06 0.3444/ ƒ 0.25 44.72/ ƒ 0.5 6 0.13096.4556 0.04138 ƒ 0.25 0.6455ƒ 0.5 6 0.364506 0.36450 616000/ ƒ 1.2 9.4 x 10 -4 ƒ 0.5 3.33 x 10 -4 ƒ 616000/ ƒ 1.2 0.003 - 10 23 170 0.1-10 - 1.1-10 193/ ƒ 0.5 27.5 300 - 1500- 1500 - 100,000- Limits for RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Page 2 of 3 0.3 - 1.34614 1.34 - 30824/f 1.1 Maximum Permissible Exposure Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) 30 - 300 Frequency Range (MHz) Electric Field Strength (V/m)(RMS) 48 - 30049.33 300 - 6000 15.6 ƒ 0.25 10 - 2061.4 20 - 48 129.8/ ƒ 0.25 6000 - 15000137 15000 - 150000137 150000 - 300000 0.354 ƒ 0.5 band Channel Frequency (MHz) max output power (dBm) Ant gain (dBi) EIRP (dBm) EIRP (mW) Power Density (mW/cm2) Power Density Limit (mW/cm2) Band n21850.00 ~ 1910.0023.601.7827.685860.1171 Band n5 824.00 ~ 849.0023.682.4423.392180.0431 Band n661710.00 ~ 1780.0023.831.8827.96170.1231 Band 77 (FCC) 3450.00 ~ 3550.0024.082.7521.191320.0261 Band 77 (FCC) 3700.00 ~ 3980.0024.032.7520.131030.0211 Band 77 (ISED) 3450.00 ~ 3900.0023.872.7522.051600.0321 LTE Band 2 1850.00 ~ 1910.0023.280.9226.224190.0831 LTE Band 5 824.00 ~ 849.0023.280.4922.201660.0331 LTE Band 7 2500.00 ~ 2570.0023.692.2725.133260.0651 LTE Band 12 699.00 ~ 716.0023.38-1.5222.301700.0341 LTE Band 66(4) 1710.00 ~ 1780.0023.501.1027.315380.1071 * FCC limit is worst case R=EIRP = Equivalent Isotropic Radiated Power(mW) S = Distance (20 cm) Pi = 3.14 WLAN Channel Channel Frequency (MHz) Power Density Limit (mW/cm2) First ch24121 Middle ch24371 Last ch24621 * FCC limit is worst case R= P out = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.14 Max Simultaneous transmission scenarios Band WLAN 2.4GHz Antenna gain(dBi)Nemeric 1.912.82 Page 3 of 3 0.123+0.107+0.0038=0.2338 Output Power to Antenna (mW) 8.77 9.94 9.61 Power Density (mW/cm2) 0.003334 0.003779 0.003653 S PG 4

Report Number :ESTRGC2311-002 EST-QP17-R-I01-F04 (2023.01.17) 131 / 257 Registration Number:ESTR-23-00268 Test Data(Mid) 802.11b ANT0 Measurement Distance : 3 m Frequency (MHz) Reading (dB㎶) Position (V/H) Height (m) Correction Factor Duty Cycle Correction(dB) Result Value Ant Factor (dB) AMP & Cable (dB) Limit (dB㎶/m) Result (dB㎶/m) Margin (dB) PEAK(RBW: 1 MHz VBW: 3 MHz) 4874.00 45.16 H 1.5 31.54 -25.18 74.00 51.52 22.48 4874.00 45.37 V 1.5 31.54 -25.18 74.00 51.73 22.27 AV(RBW: 1 MHz VBW: 3 MHz) 4874.00 36.86 H 1.5 31.54 -25.18 0.04 54.00 43.26 10.74 4874.00 36.22 V 1.5 31.54 -25.18 0.04 54.00 42.62 11.38 Remark H : Horizontal, V : Vertical TEST MODE : CH : 6 - 2 437 MHz (x postion) *The TX signal wasn't detected from 5th harmonics. *Checked in all 3 axis and the maximum measured data were reported.( Worst data is X axis of position) *Total = Reading Value + Antenna Factor + Cable Loss - Amp Gain + Duty Cycle Correction Report Number :ESTRGC2311-002 EST-QP17-R-I01-F04 (2023.01.17) 132 / 257 Registration Number:ESTR-23-00268 Test Data(High) 802.11b ANT0 Measurement Distance : 3 m Frequency (MHz) Reading (dB㎶) Position (V/H) Height (m) Correction Factor Duty Cycle Correction(dB) Result Value Ant Factor (dB) AMP & Cable (dB) Limit (dB㎶/m) Result (dB㎶/m) Margin (dB) PEAK(RBW: 1 MHz VBW: 3 MHz) 2483.50 50.18 H 1.5 27.70 -27.98 74.00 49.90 24.10 2483.50 48.81 V 1.5 27.70 -27.98 74.00 48.53 25.47 4824.00 45.59 H 1.5 31.44 -25.25 74.00 51.78 22.22 4824.00 47.44 V 1.5 31.44 -25.25 74.00 53.63 20.37 AV(RBW: 1 MHz VBW: 3 MHz) 2390.00 39.77 H 1.5 27.73 -28.01 0.04 54.00 39.53 14.47 2390.00 37.94 V 1.5 27.73 -28.01 0.04 54.00 37.7 16.3 4824.00 36.70 H 1.5 31.44 -25.25 0.04 54.00 42.93 11.07 4824.00 40.53 V 1.5 31.44 -25.25 0.04 54.00 46.76 7.24 Remark H : Horizontal, V : Vertical TEST MODE : CH : 11 - 2 462 MHz (x postion) *The TX signal wasn't detected from 5th harmonics. *Checked in all 3 axis and the maximum measured data were reported.( Worst data is X axis of position) *Total = Reading Value + Antenna Factor + Cable Loss - Amp Gain + Duty Cycle Correction Report Number :ESTRGC2311-002 EST-QP17-R-I01-F04 (2023.01.17) 133 / 257 Registration Number:ESTR-23-00268 Restricted Band Edges Band Edges(802.11b CH Low) Detector mode : Peak Polarity : Horizontal Detector mode : Average Polarity : Horizontal Ref 117 dBμVAtt 10 dB* * A PS RBW 1 MHz SWT 5 ms AC Center2.37 GHzSpan120 MHz12 MHz/ 3DB *VBW 3 MHz 1 PK MAXH 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 100.15 dBμV 2.410560000 GHz 2 Marker 2 [T1 ] 48.32 dBμV 2.390000000 GHz F1 ESTC-23-01646-H Date: 8.NOV.2023 15:17:09 Ref 117 dBμVAtt 10 dB* * * A PS RBW 1 MHz VBW 3 MHz SWT 5 ms AC SGL Center2.37 GHzSpan120 MHz12 MHz/ 3DB *1 RM AVG 20 30 40 50 60 70 80 90 100 110 SWP 300 of 300 1 Marker 1 [T1 ] 95.88 dBμV 2.413320000 GHz 2 Marker 2 [T1 ] 37.23 dBμV 2.390000000 GHz F1 ESTC-23-01646-H Date: 8.NOV.2023 15:22:07 Report Number :ESTRGC2311-002 EST-QP17-R-I01-F04 (2023.01.17) 134 / 257 Registration Number:ESTR-23-00268 Band Edges (802.11b CH Low) Detector mode : Peak Polarity : Vertical Detector mode : Average Polarity : Vertical Ref 117 dBμVAtt 10 dB* * A PS RBW 1 MHz SWT 5 ms AC Center2.37 GHzSpan120 MHz12 MHz/ 3DB *VBW 3 MHz 1 PK MAXH 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 97.52 dBμV 2.410920000 GHz 2 Marker 2 [T1 ] 49.37 dBμV 2.390000000 GHz F1 ESTC-23-01646-H Date: 8.NOV.2023 15:18:36 Ref 117 dBμVAtt 10 dB* * * A PS RBW 1 MHz VBW 3 MHz SWT 5 ms AC SGL Center2.37 GHzSpan120 MHz12 MHz/ 3DB *1 RM AVG 20 30 40 50 60 70 80 90 100 110 SWP 300 of 300 1 Marker 1 [T1 ] 92.61 dBμV 2.410800000 GHz 2 Marker 2 [T1 ] 36.91 dBμV 2.390000000 GHz F1 ESTC-23-01646-H Date: 8.NOV.2023 15:19:41 Report Number :ESTRGC2311-002 EST-QP17-R-I01-F04 (2023.01.17) 135 / 257 Registration Number:ESTR-23-00268 Band Edges(802.11b CH High) Detector mode : Peak Polarity : Horizontal Detector mode : Average Polarity : Horizontal Ref 117 dBμVAtt 10 dB* * A PS RBW 1 MHz SWT 5 ms AC Center2.465 GHzSpan70 MHz7 MHz/ 3DB *VBW 3 MHz 1 PK MAXH 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 100.60 dBμV 2.463320000 GHz 2 Marker 2 [T1 ] 49.90 dBμV 2.483500000 GHz F1 ESTC-23-01646-H Date: 8.NOV.2023 15:42:26 Ref 117 dBμVAtt 10 dB* * * A PS RBW 1 MHz VBW 3 MHz SWT 5 ms AC SGL Center2.465 GHzSpan70 MHz7 MHz/ 3DB *1 RM AVG 20 30 40 50 60 70 80 90 100 110 SWP 300 of 300 1 Marker 1 [T1 ] 96.42 dBμV 2.462900000 GHz 2 Marker 2 [T1 ] 39.49 dBμV 2.483500000 GHz F1 ESTC-23-01646-H Date: 8.NOV.2023 15:43:11 Report Number :ESTRGC2311-002 EST-QP17-R-I01-F04 (2023.01.17) 136 / 257 Registration Number:ESTR-23-00268 Band Edges(802.11b CH High) Detector mode : Peak Polarity : Vertical Detector mode : Average Polarity : Vertical Ref 117 dBμVAtt 10 dB* * A PS RBW 1 MHz SWT 5 ms AC Center2.465 GHzSpan70 MHz7 MHz/ 3DB *VBW 3 MHz 1 PK MAXH 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 97.13 dBμV 2.463390000 GHz 2 Marker 2 [T1 ] 48.53 dBμV 2.483500000 GHz F1 ESTC-23-01646-H Date: 8.NOV.2023 15:41:40 Ref 117 dBμVAtt 10 dB* * * A PS RBW 1 MHz VBW 3 MHz SWT 5 ms AC SGL Center2.465 GHzSpan70 MHz7 MHz/ 3DB *1 RM AVG 20 30 40 50 60 70 80 90 100 110 SWP 300 of 300 1 Marker 1 [T1 ] 92.66 dBμV 2.462900000 GHz 2 Marker 2 [T1 ] 37.66 dBμV 2.483500000 GHz F1 ESTC-23-01646-H Date: 8.NOV.2023 15:43:58 Report Number :ESTRGC2311-002 EST-QP17-R-I01-F04 (2023.01.17) 137 / 257 Registration Number:ESTR-23-00268 Test Data(Low) 802.11b ANT1 Measurement Distance : 3 m Frequency (MHz) Reading (dB㎶) Position (V/H) Height (m) Correction Factor Duty Cycle Correction(dB) Result Value Ant Factor (dB) AMP & Cable (dB) Limit (dB㎶/m) Result (dB㎶/m) Margin (dB) PEAK(RBW: 1 MHz VBW: 3 MHz) 2390.00 48.26 H 1.5 27.73 -28.01 74.00 47.98 26.02 2390.00 47.60 V 1.5 27.73 -28.01 74.00 47.32 26.68 4824.00 45.59 H 1.5 31.44 -25.25 74.00 51.78 22.22 4824.00 47.44 V 1.5 31.44 -25.25 74.00 53.63 20.37 AV(RBW: 1 MHz VBW: 3 MHz) 2390.00 38.13 H 1.5 27.73 -28.01 0.04 54.00 37.89 16.11 2390.00 37.46 V 1.5 27.73 -28.01 0.04 54.00 37.22 16.78 4824.00 36.7…
