BEJTL1R22NRTelematics

1/6 User Manual (TL1R22NR, TL1R22NE) FCC ID : BEJTL1R22NR 2/6 1. Product Introduction The TL1R22NRare designed for the automotive industry. They support LTE and WCDMA air Interface standards. The TL1R22NR are based on the Qualcomm MDM9250 wireless chipsets and support the following bands. Table 1. Supported Band Band TL1R22NRTL1R22NE Band B2 G, W, L W, L B4 W, L W, L B5 G, W, L W, L B7 L L B12(B17) L L B26 L B41 L G: GSM / W: WCDMA / L: LTE 1.1 Block Diagram Figure 1.1. TL1R22NR Block diagram Confidential 3/6 1.2 Environmental Specifications The environmental specification for operating and storage of the TL1R22NR are defined in the the table below. Table 2. Environmental Specifications Parameter Temperature Range Operating Temperature -40°C to 90°C (ecall 95°C) Storage Temperature -40°C to +95°C Humidity 95% or less 1.3 Electrical Specifications This section provides details for some of the key electrical specifications of the TL1R22NR embedded modules. 1.3.1 Absolute Maximum Rating and ESD Ratings This section defines the Absolute Maximum and Electrostatic Discharge (ESD) Ratings of the TL1R22NR embedded modules. Warning: If these parameters are exceeded, even momentarily, damage may occur to the device. Table 3. Absolute Maximum Ratings Parameter MinMax Units VBATT Power Supply Input - 18 V VIN Voltage on any digital input or output pin - 18 V ESD Ratings ESD 1) Primary, Diversity antenna pads - Contact 10 kV 1) The ESD Simulator configured with 330pF, 2000Ω. Caution: The TL1R22NR embedded modules are sensitive to Electrostatic Discharge. ESD countermeasures and handling methods must be used when handling the TL1R22NR devices. 4/6 1.3.2 Current Consumption Table 4. TL1R22NR Current Consumption (12.5V) Mode Parameter Typical Max Units LTE Max TX Output /Full RB 450 550 mA WCDMA Max TX Output /Full RB 450 550 mA LTE Idle, Registered 2 4 mA WCDMA Idle, Registered 2 4 mA LTE Sleep Mode, Average Current 0.03 mA WCDMA Sleep Mode, Average Current 0.03 mA 5/6 1.4 Mechanical Specifications 1.4.1 Physical Dimensions and Connection Interface Mechanical structure diagram Roof variant Size : 160 x 100 x 18mm Weight : Low variant – 285.7g 6/6 2. RF Specification The specifications for the LTE and WCDMA interfaces are defined. TL1R22NR is designed to be compliant with the standard shown in the table below. Table6. Standards Compliance 3. Warning Statement FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiating element of this device and the user. Technology Standards LTE • 3GPP Release 11 WCDMA • 3GPP Release 9 GSM • 3GPP Release 8

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: BEJTL1R22NR To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; December 28, 2022 LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Mr. Sungsoo Kim Director, Regulatory & Environmental Affairs LG Electronics USA, Inc. LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name LG Electronics USA Address 111 Sylvan Ave, North Building, Englewood Cliffs, NJ 07632 United States Grantee Code BEJ FCC ID BEJTL1R22NR Authorized Contact Name Sungsoo Kim Contact Email [email protected] Contact Phone 201-816-2 003 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance wit h 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equi pment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applican t is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance wit h 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance wit h ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applican t understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs : https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: December 28, 2022 Print Name: Sungsoo Kim Title: Director, Regulatory and Environmental Affairs *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 December 28, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: BEJTL1R22NR Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Sungsoo Kim Director, NA Regulatory & Environmental Affairs LG Electronics USA, Inc. CONFIDENTIAL LIST Short-Term 1 External Photos 2 Internal Photos 3 Test-Setup Photos 4 Operational Description Long- Term 5 Block Diagram 6 Schematics 7 PCB Layout 8 Part List 9 Tune-Up Procedure 10 User Manual

Declaration of Equivalence We, LG Electronics Inc., as manufacturer of following product hereby declare equality of following devices. Those models are technically identical, but the only difference is cellular portion. Model Name Remark TL1R22NR Basic Model TL1R22NE Market in EU Des cription The Models are TL1R22NR and TL1R22NE have following differences. - Common PCB design but the component Pop or de-poped Models Remark TL1R22NR Fully Mounted Module on hardware. TL1R22NE Band 21 duplexer, PA are removed *Difference between two models does not affect bands that can be used in the US. - Supported Cellular Band MODEL GSM WCDMALTE TL1R22NR GSM850, PCS1900 B2, B4, B5 B2, B4, B5, B7, B12, B17, B26, B41 TL1R22NE N/A B2, B4, B5 B2, B4, B5, B7, B12, B17 *Operating bands are different by Software. W e, the undersigned, hereby declare that the models are identical in both design and implementation. December 14, 2022 Sungsoo Kim Director, NA Regulatory & Environmental Affairs LG Electronics USA, Inc.

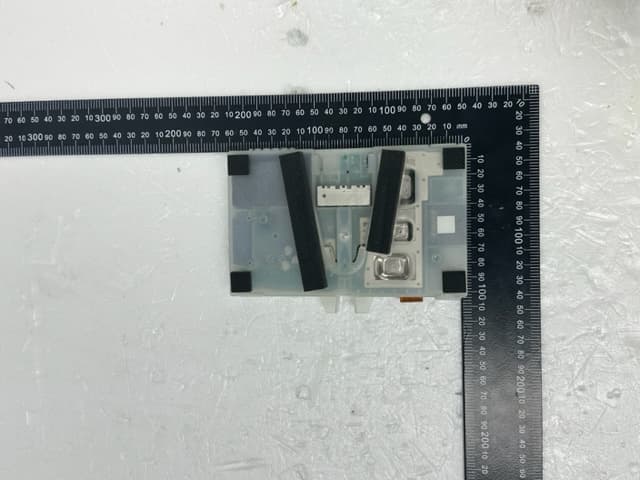

Model name: TL1R22NR External photos of EUT Model name: TL1R22NR Top view of EUT Bottom view of EUT Model name: TL1R22NR Side view of EUT Model name: TL1R22NR

❑ Model : TL1R22NR, TL1R22NE (Telematics) ❑Label Size: Main Label -62 X 40 mm Regulation Label -60 X 34 mm ❑Label Material 1) Paper : Avery MZ1061J1 2) Adhesive : SP4200 3) Liner : G60Em ❑Label Attachment Location on the Product Label Label ❑ Model : TL1R22NR, TL1R22NE (Telematics) FCC ID: BEJTL1R22NR FCC ID: BEJTL1R22NR

Model name: TL1R22NR Internal photos of EUT Model name: TL1R22NR Internal view of EUT Model name: TL1R22NR Top view of Main PCB Bottom view of Main PCB Model name: TL1R22NR View of Module View of Ante nna WWAN Module WWAN Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003661 Page: 2 of 9 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003661 Page: 3 of 9 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 Contact Person : Kim, Sung-soo Phone No. : +1 201 266 2215 1.3. Details of Manufacturer Company : LG Electronics Inc. Address : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003661 Page: 4 of 9 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product Telematics Model Name TL1R22NR Variant Model Names TL1R22NE Serial Number 352162110229030 Power Supply DC 12.5 V Rated Power GSM 850: 33 ㏈m GSM 1 900: 30 ㏈m WCDMA II, IV, V: 24 ㏈m LTE Band 2, 4, 5, 7, 12, 17, 26, 41: 23 ㏈m Frequency Range GSM 850: 824 ㎒ ~ 849 ㎒ GSM 1 900: 1 850 ㎒ ~ 1 910 ㎒ WCDMA II: 1 850 ㎒ ~ 1 910 ㎒ WCDMA IV: 1 710 ㎒ ~ 1 755 ㎒ WCDMA V: 824 ㎒ ~ 849 ㎒ LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 7: 2 500 ㎒ ~ 2 570 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ LTE Band 17: 704 ㎒ ~ 716 ㎒ LTE Band 26(Part 90): 814 ㎒ ~ 824 ㎒ LTE Band 26(Part 22): 824 ㎒ ~ 849 ㎒ LTE Band 41: 2 496 ㎒ ~ 2 690 ㎒ Modulation Technique QPSK, 16QAM Antenna Type External antenna Antenna Gain※ 699 ㎒ ~ 716 ㎒: -0.2 ㏈i 704 ㎒ ~ 716 ㎒: -0.2 ㏈i 814 ㎒ ~ 824 ㎒: -0.3 ㏈i 824 ㎒ ~ 849 ㎒: -0.6 ㏈i 1 710 ㎒ ~ 1 755 ㎒: 2 ㏈i 1 850 ㎒ ~ 1 910 ㎒: 2.8 ㏈i 2 500 ㎒ ~ 2 570 ㎒: 5 ㏈i 2 496 ㎒ ~ 2 690 ㎒: 5 ㏈i H/W Version Rev.D S/W Version v001.039.026 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003661 Page: 5 of 9 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL003661 2022.12.26 Initial 1.6. Information of Variant Model Model Name Description Basic Model TL1R22NR Fully mounted module on hardware. Variant Model TL1R22NE Band 21 duplexer, PA are removed. - Supported Cellular Band MODEL GSM WCDMA LTE TL1R22NR GSM850, PCS1900 B2, B4, B5 B2, B4, B5, B7, B12, B17, B26, B41 TL1R22NE N/A B2, B4, B5 B2, B4, B5, B7, B12, B17 *Difference between two models does not affect bands that can be used in the US. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003661 Page: 6 of 9 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 ≤6 3.0-30 1842/f 4.89/f *900/f 2 <6 30-300 61.4 0.163 1.0 <6 300-1 500 - - f/300 <6 1 500-100 000 - - 5 <6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1 500 - - f/1500 <30 1 500-100 000 - - 1.0 <30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003661 Page: 7 of 9 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance GSM 850 - Maximum tune up tolerance Frequency (㎒) Maximum Average Target Power (㏈m) Maximum Tune up (㏈) Maximum Average Output Power (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 824 ~ 849 33.0 2.5 35.5 -0.6 25.0 0.153 699 0.549 333 GSM 1 900 - Maximum tune up tolerance Frequency (㎒) Maximum Average Target Power (㏈m) Maximum Tune up (㏈) Maximum Average Output Power (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 1 850 ~ 1 910 30.0 2.5 32.5 2.8 25.0 0.168 527 1 WCDMA - Band II - Maximum tune up tolerance Frequency (㎒) Maximum Average Target Power (㏈m) Maximum Tune up (㏈) Maximum Average Output Power (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) …

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003660 Page: 2 of 157 RTT7081-02 (20 20.10.05)( 0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information ---------------------------------------------------------------------------------------- 3 2. E.R.P. / E.I.R.P. & Spurious Radiated Emission -------------------------------------------------- 12 3. Conducted Output Power --------------------------------------------------------------------------------- 23 4. Occupied Bandwidth ---------------------------------------------------------- --- -------------------------- 36 5. Peak-Average Ratio --------- ------------------------------------------------------------------------------ 51 6. Spurious Emissions at Antenna Terminal -------- ---------------------------------------------------- 72 7. Band Edge and Emission Mask - ----------------------------------------------------------------------- 80 8. Frequency Stability ----------------------------------------------------------------------------------------- 150 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003660 Page: 3 of 157 RTT7081-02 (20 20.10.05)( 0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 Contact Person : Kim, Sung-soo Phone No. : +1 201 266 2215 1.3. Details of Manufacturer Company : LG Electronics Inc. Address : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 1.4. Description of EUT Kind of Product Telematics Model Name TL1R22NR Variant Model Names TL1R22NE Serial Number 352162110229030 Power Supply DC 12.5 V Rated Power LTE Band 2, 4, 5, 7, 12, 17, 26, 41: 23 ㏈m Frequency Range LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 7: 2 500 ㎒ ~ 2 570 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ LTE Band 17: 704 ㎒ ~ 716 ㎒ LTE Band 26(Part 90): 814 ㎒ ~ 824 ㎒ LTE Band 26(Part 22): 824 ㎒ ~ 849 ㎒ LTE Band 41: 2 496 ㎒ ~ 2 690 ㎒ Modulation Technique QPSK, 16QAM Antenna Type External Antenna Antenna Gain ※ 699 ㎒ ~ 716 ㎒: -0.2 ㏈i 704 ㎒ ~ 716 ㎒: -0.2 ㏈i 814 ㎒ ~ 824 ㎒: -0.3 ㏈i 824 ㎒ ~ 849 ㎒: -0.6 ㏈i 1 710 ㎒ ~ 1 755 ㎒: 2 ㏈i 1 850 ㎒ ~ 1 910 ㎒: 2.8 ㏈i 2 500 ㎒ ~ 2 570 ㎒: 5.0 ㏈i 2 496 ㎒ ~ 2 690 ㎒: 5.0 ㏈i H/W Version Rev.D S/W Version v001.039.026 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003660 Page: 4 of 157 RTT7081-02 (20 20.10.05)( 0) A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMA100B 106887 Oct. 13, 2022 Annual Oct. 13, 2023 Signal Generator R&S SMBV100A 255834 May 25, 2022 Annual May 25, 2023 Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2022 Annual Dec. 07, 2023 Spectrum Analyzer Agilent N9020A MY53421758 Aug. 26, 2022 Annual Aug. 26, 2023 Mobile Test Unit R&S CMW 500 144034 Feb. 21, 2022 Annual Feb. 21, 2023 Communication Analyzer Anritsu MT8821C 6262192291 Oct. 11, 2022 Annual Oct. 11, 2023 Power Meter Anritsu ML2495A 1223004 Nov. 29, 2022 Annual Nov. 29, 2023 Power Sensor Anritsu MA2411B 1207272 May 27, 2022 Annual May 27, 2023 Power Splitter Weinschel 1534 499 May 31, 2022 Annual May 31, 2023 Temperature Chamber ESPEC CORP. SH-662 15004184 Jun. 02, 2022 Annual Jun. 02, 2023 Low Pass Filter Mini-Circuits NLP-1200+ V 8979400903-2 Feb. 10, 2022 Annual Feb. 10, 2023 High Pass Filter Wainwright Instrument GmbH WHKX10-900-1000-18000 -40SS 7 Mar. 04, 2022 Annual Mar. 04, 2023 High Pass Filter Wainwright Instrument GmbH WHKX2.2/12.75G-10SS 8 Mar. 04, 2022 Annual Mar. 04, 2023 High Pass Filter Wainwright Instrument GmbH WHKX3.0/18G-6SS 21 Jun. 09, 2022 Annual Jun. 09, 2023 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 11 Oct. 24, 2022 Annual Oct. 24, 2023 BRIDGE COUPLER MARKI MICROWAVE INC CBR16-0012 1542 May 06, 2022 Annual May 06, 2023 Directional Coupler KRYTAR 152613 122660 Jul. 06, 2022 Annual Jul. 06, 2023 DC Power Supply Agilent U8002A MY49030063 Jan. 25, 2022 Annual Jan. 25, 2023 Preamplifier H . P. 8447F 2944A03909 Aug. 04, 2022 Annual Aug. 04, 2023 Preamplifier R&S SCU 18 10117 Jun. 13, 2022 Annual Jun. 13, 2023 Preamplifier TESTEK TK-PA1840H 130016 Jan. 10, 2022 Annual Jan. 10, 2023 Test Receiver R&S ESU26 100368 Jan. 18, 2022 Annual Jan. 18, 2023 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 23, 2021 Biennial Aug. 23, 2023 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 01126 Feb. 07, 2022 Annual Feb. 07, 2023 Horn Antenna R&S HF906 100326 Feb. 18, 2022 Annual Feb. 18, 2023 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 9170-540 Nov. 30, 2022 Annual Nov. 30, 2023 Antenna Master Innco systems GmbH MA4640-XP-ET MA4640/536/383 30516/L N.C.R. N/A N.C.R. Turn Table Innco systems GmbH DS 1200S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Oct. 04, 2022 Semi- Annual Apr. 04, 2023 Coaxial Cable Qualwave Inc. QA500-18-NN-10 (10 m) 22200114 Oct. 04, 2022 Semi- Annual Apr. 04, 2023 Coaxial Cable RADIALL TE…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003660 Page: 36 of 157 RTT7081-02 (20 20.10.05)( 0) A4(210 mmx297 mm) 4. Occupied Bandwidth 4.1. Limit CFR 47, Section FCC §2.1049. 4.2. Test Procedure The test follows section 5.4.4 of ANSI C63.26-2015. a. The spectrum analyzer center frequency is set to the nominal EUT channel center frequency. The frequency span for the spectrum analyzer shall be set wide enough to capture all modulation. products including the emission skirts (typically a span of 1.5 × OBW is sufficient). b. The nominal IF filter 3 ㏈ bandwidth (RBW) shall be in the range of 1 % to 5 % of the anticipated OBW, and the VBW shall be set ≥ 3 × RBW. c. Set the reference level of the instrument as required to prevent the signal amplitude from exceeding the maximum spectrum analyzer input mixer level for linear operation. See guidance provided in 4.2.3. d. Set the detection mode to peak, and the trace mode to max-hold. e. If the instrument does not have a 99 % OBW function, recover the trace data points and sum directly in linear power terms. Place the recovered amplitude data points, beginning at the lowest frequency, in a running sum until 0.5 % of the total is reached. Record that frequency as the lower OBW frequency. Repeat the process until 99.5 % of the total is reached and record that frequency as the upper OBW frequency. The 99 % power OBW can be determined by computing the difference these two frequencies. f. The OBW shall be reported and plot(s) of the measuring instrument display shall be provided with the test report. The frequency and amplitude axis and scale shall be clearly labeled. Tabular data can be reported in addition to the plot(s). For the 99 % emission bandwidth, the trace data points are recovered and directly summed in linear power level terms. The recovered amplitude data points, beginning at the lowest frequency, are placed in a running sum until 0.5 % of the total is reached, and that frequency recorded. The process is repeated for the highest frequency data points (starting at the highest frequency, at the right side of the span, and going down in frequency). This frequency is then recorded. The difference between the two recorded frequencies is the occupied bandwidth (or the 99 % emission bandwidth). EUT Directional Coupler Mobile Test Unit Spectrum Analyzer SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003660 Page: 37 of 157 RTT7081-02 (20 20.10.05)( 0) A4(210 mmx297 mm) 4.3 Test Results Ambient temperature : (23 ± 1) °C Relative humidity : 47 % R.H. Band Bandwidth (㎒) Frequency (㎒) Occupied Bandwidth (㎒) QPSK 16QAM 2 1.4 1 880.0 1.098 1.088 3 2.696 2.686 5 4.493 4.493 10 8.952 8.985 15 13.478 13.527 20 17.945 17.970 4 1.4 1 732.5 1.088 1.093 3 2.686 2.686 5 4.509 4.493 10 8.985 8.952 15 13.478 13.527 20 17.837 17.970 7 5 2 535.0 4.493 4.509 10 8.952 8.918 15 13.527 13.527 20 17.837 17.903 12/17 1.4 707.5 1.088 1.088 3 2.686 2.686 5 4.493 4.493 10 8.952 8.952 26 Part 22 1.4 836.5 1.098 1.098 3 2.686 2.686 5 4.509 4.493 10 8.918 8.918 15 831.5 13.527 13.478 26 Part 90 1.4 819.0 1.098 1.088 3 2.686 2.686 5 4.509 4.493 10 8.918 8.952 15 821.5 13.428 13.428 41 5 2 593.0 4.493 4.509 10 8.918 8.918 15 13.478 13.478 20 17.903 17.903 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003660 Page: 38 of 157 RTT7081-02 (20 20.10.05)( 0) A4(210 mmx297 mm) - Test plots LTE band 2 1.4 ㎒ QPSK Middle Channel - Full RB 1.4 ㎒ 16QAM Middle Channel - Full RB 3 ㎒ QPSK Middle Channel - Full RB 3 ㎒ 16QAM Middle Channel - Full RB 5 ㎒ QPSK Middle Channel - Full RB 5 ㎒ 16QAM Middle Channel - Full RB SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31…

Text truncated - open the document above for the full version.
